Description

Overview

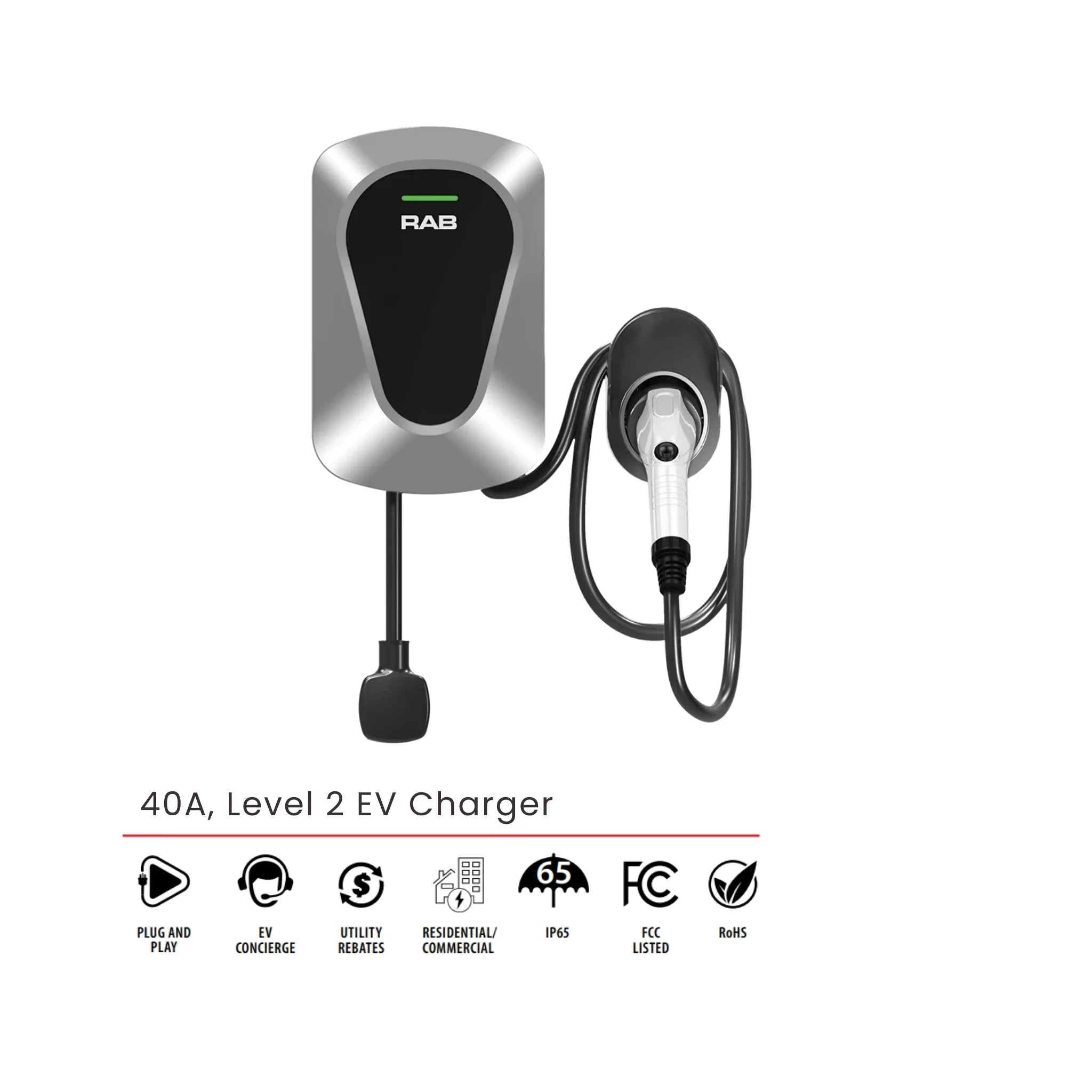

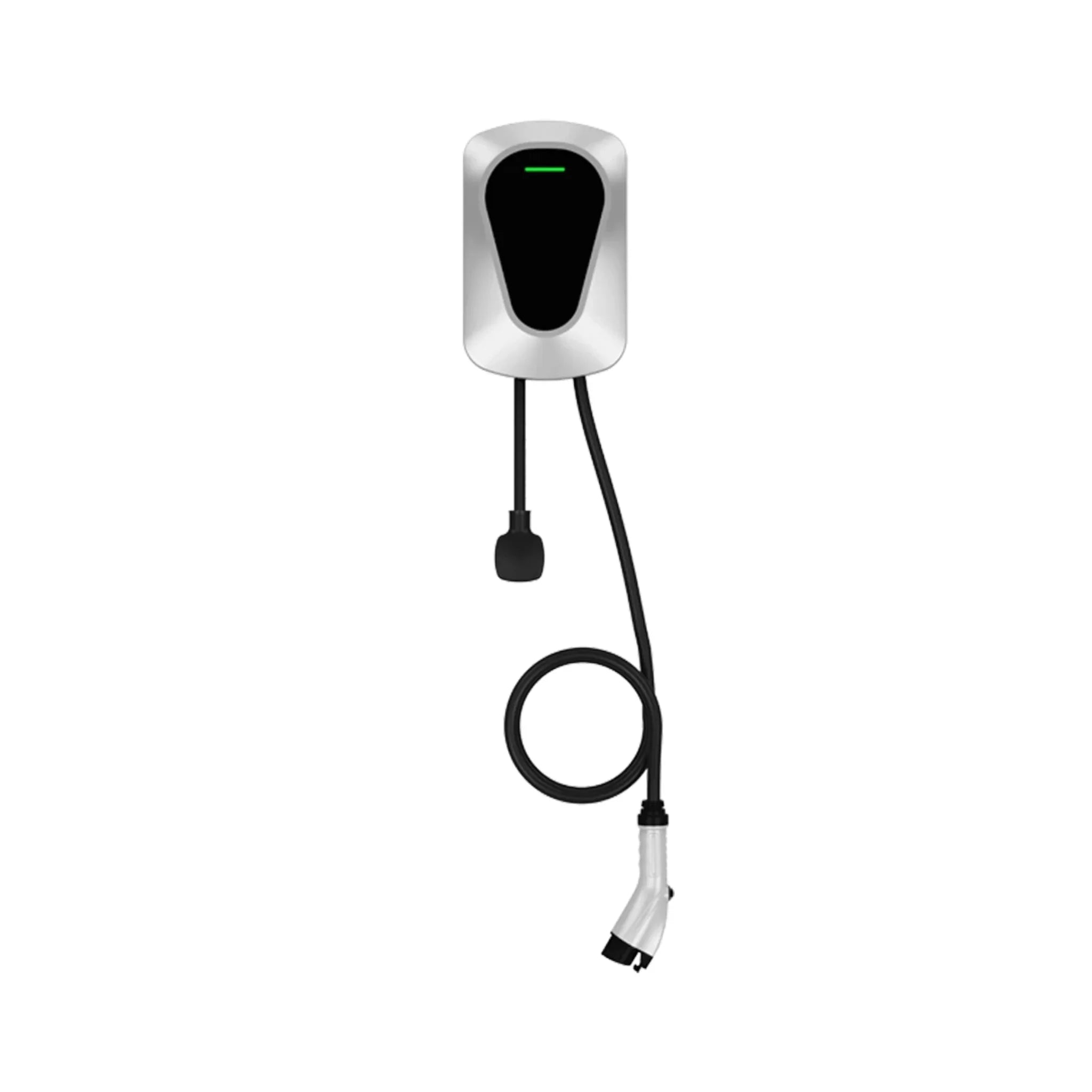

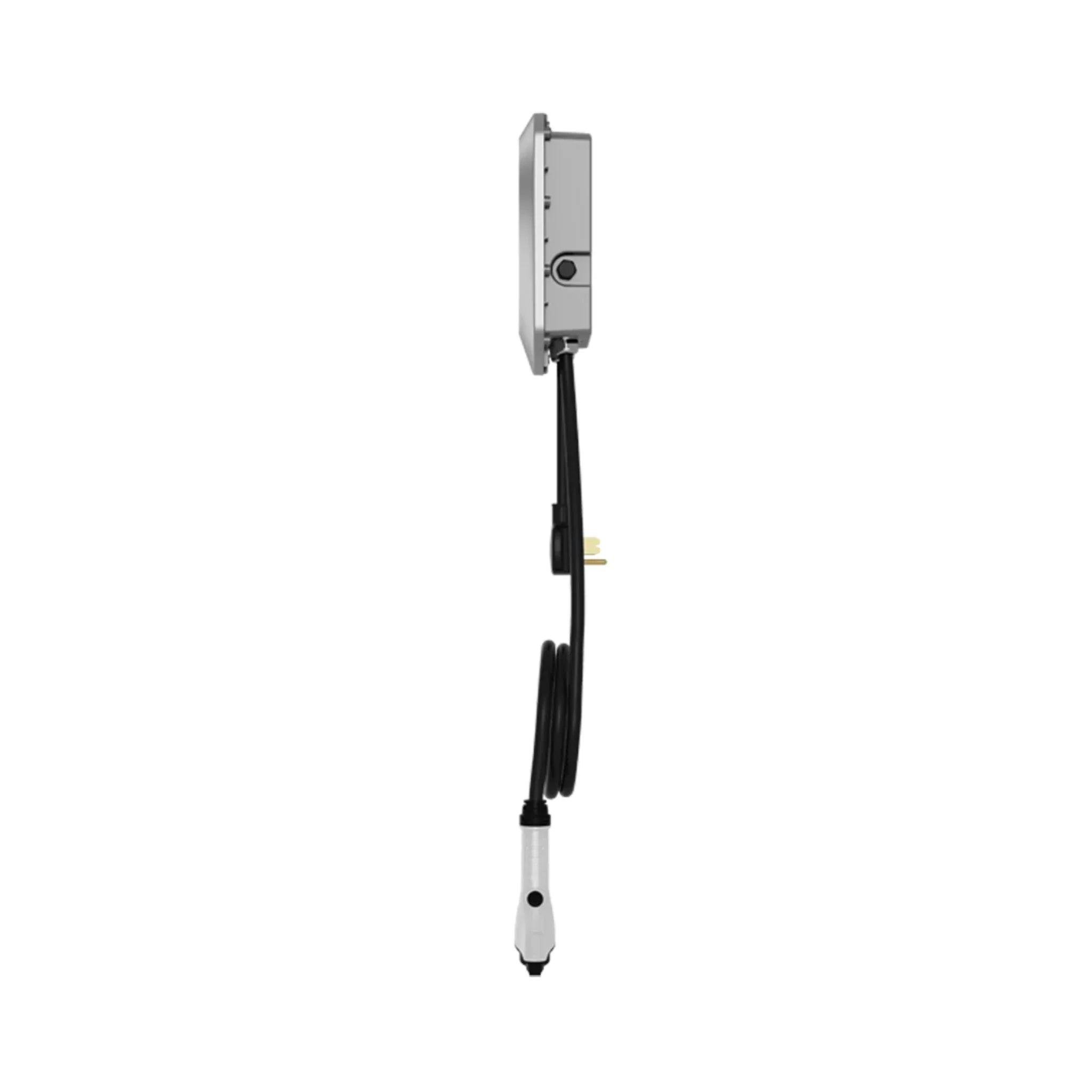

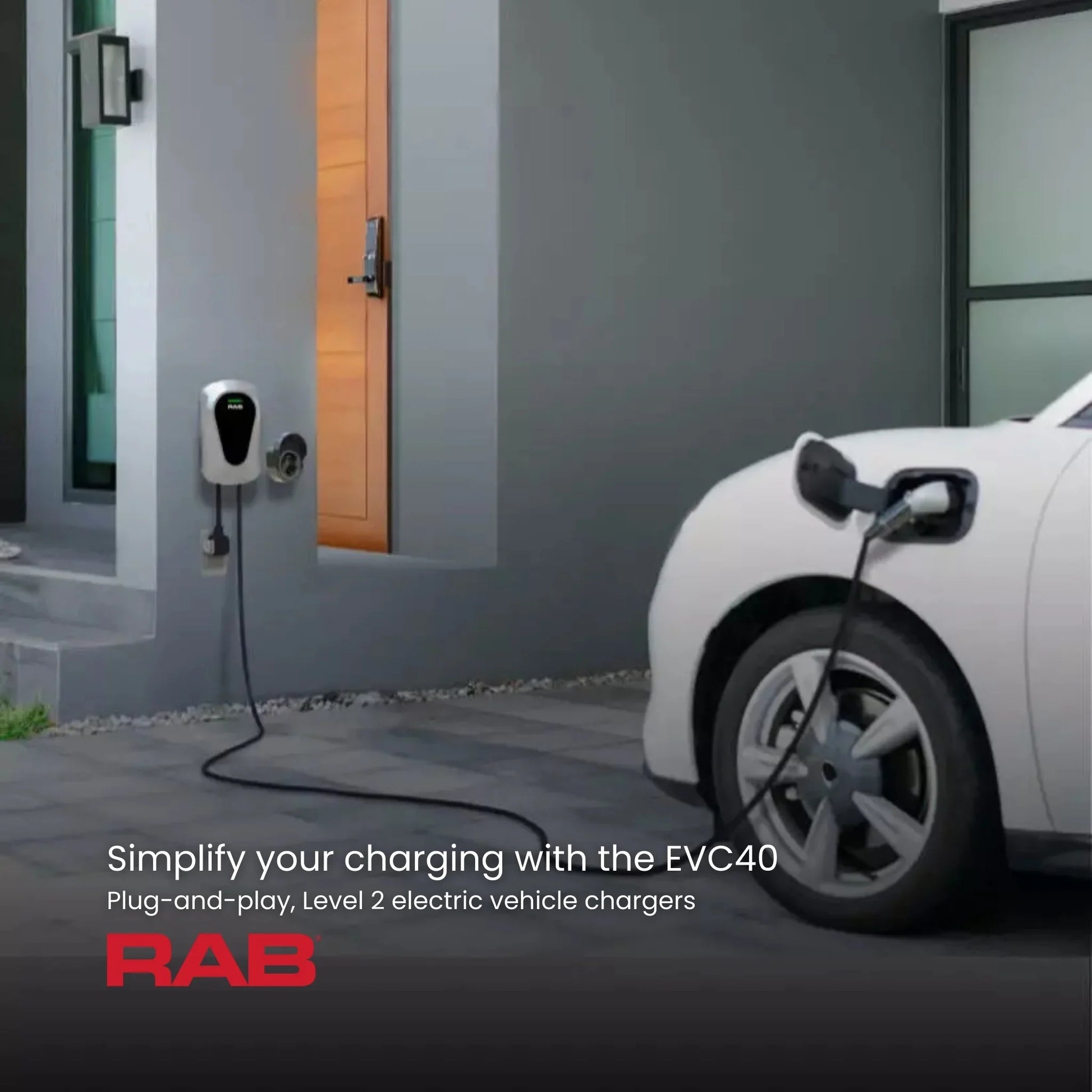

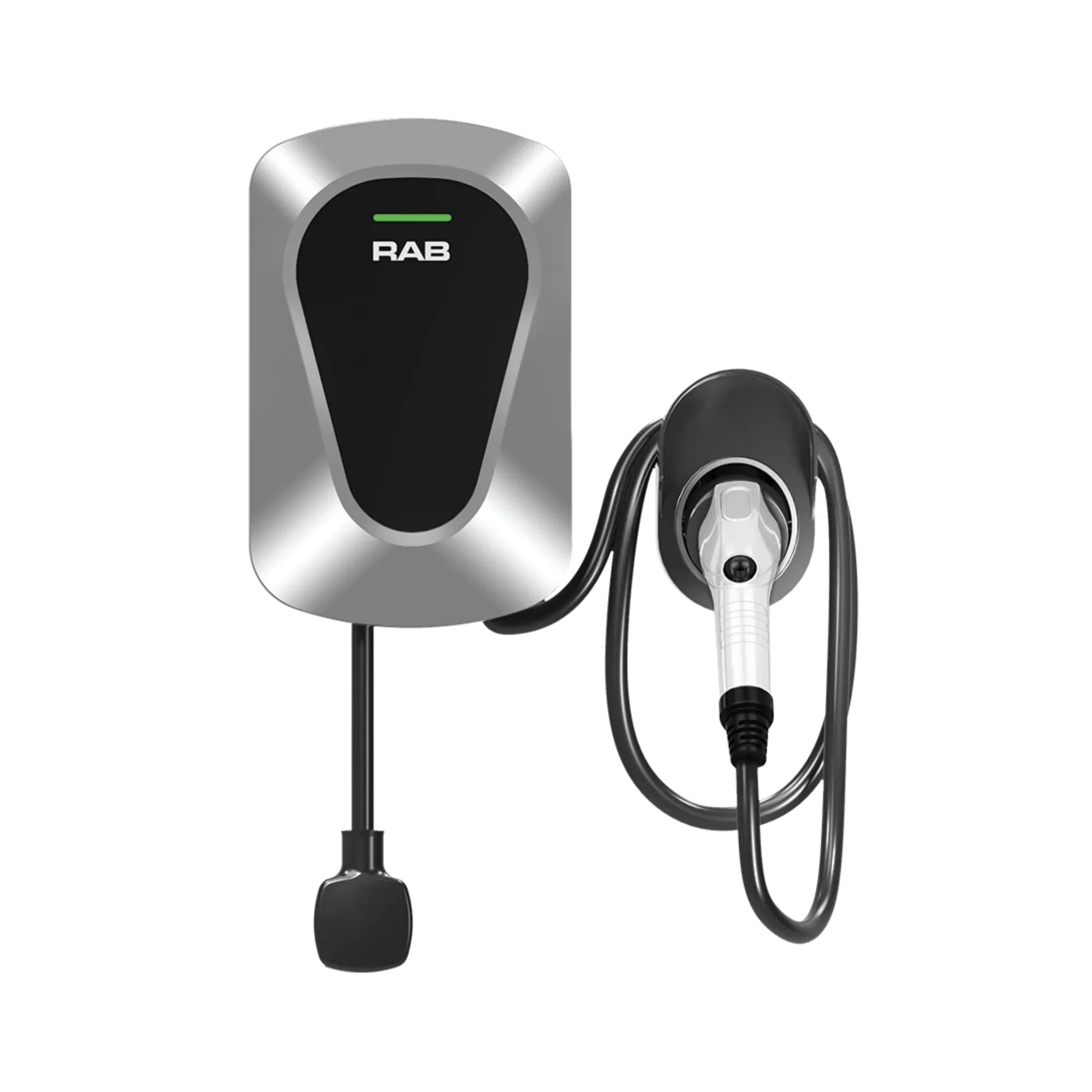

The RAB Lighting EVC40 is a plug-and-play Level 2 electric vehicle charger that delivers reliable 40A charging performance. No complicated setup, no unexpected costs, no commissioning software—simply plug it in and start charging. Wall-mountable with a 25-foot charging cable and includes a nozzle holder for convenient cable storage.

Key Features

  • Plug and play: No complicated setup or commissioning software required—just plug in and start charging
  • Powerful charging: 40A output delivers 9.6 kW of power for fast, efficient charging
  • Universal compatibility: Works with all EVs and PHEVs via standard SAE J1772 connector
  • Weatherproof: IP65 and NEMA Type 4 rated for reliable indoor or outdoor use in temperatures from -22°F to 131°F
  • Safe and protected: Comprehensive electrical protection including over/under voltage, over current, ground fault, and temperature protection

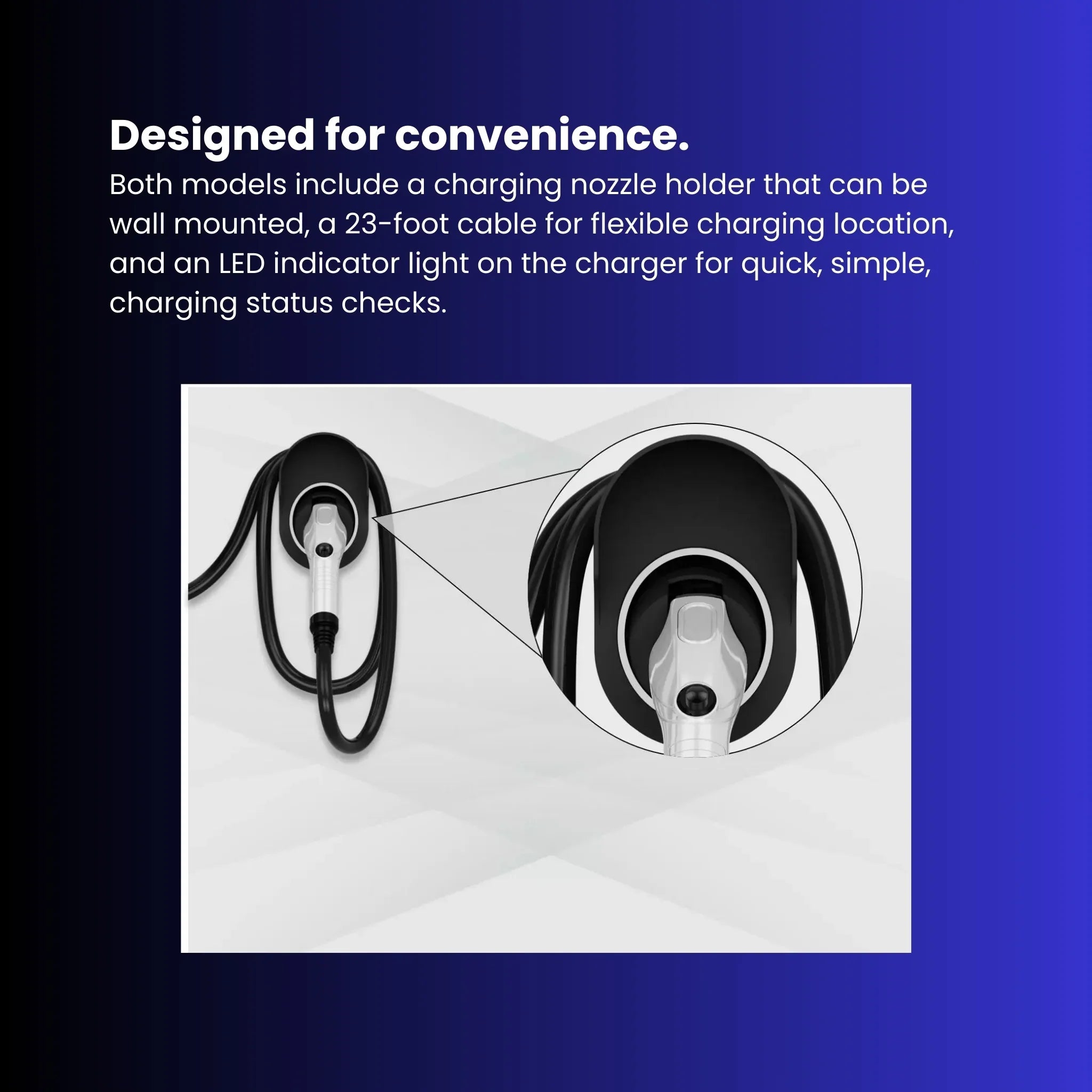

  • Convenient design: 25-foot cable with wall-mounted nozzle holder and LED indicator light for charging status
  • Flexible installation: Wall mount or use with optional pedestal bases (sold separately)

Technical Specifications

  • Performance: EVC Level 2, 40A Series, Residential Charger, 25 ft cord, no display, LED indicator light
  • Output: 40A max, 9.6 kW power
  • Input: 200-240V single phase, 50/60Hz, NEMA 14-50 plug, 8 AWG wire
  • Cable: 25 ft SAE J1772 Type 1 connector
  • Protection: IP65 ingress, NEMA Type 4 weatherproof, IK08 tamper resistant
  • Branch circuit breaker: 50A rating
  • Certifications: ETL Listed, Energy Star, FCC compliant, RoHS compliant
  • Warranty: 3-year limited
  • Compatible accessories: EVPS Single Pedestal Base, EVPD Dual Pedestal Base

Applications

Ideal for residential and light commercial use where straightforward, reliable EV charging is needed without smart features or network connectivity. The weatherproof design and 25-foot cable accommodate various parking configurations, while the plug-and-play installation eliminates complex setup requirements.

Specifications

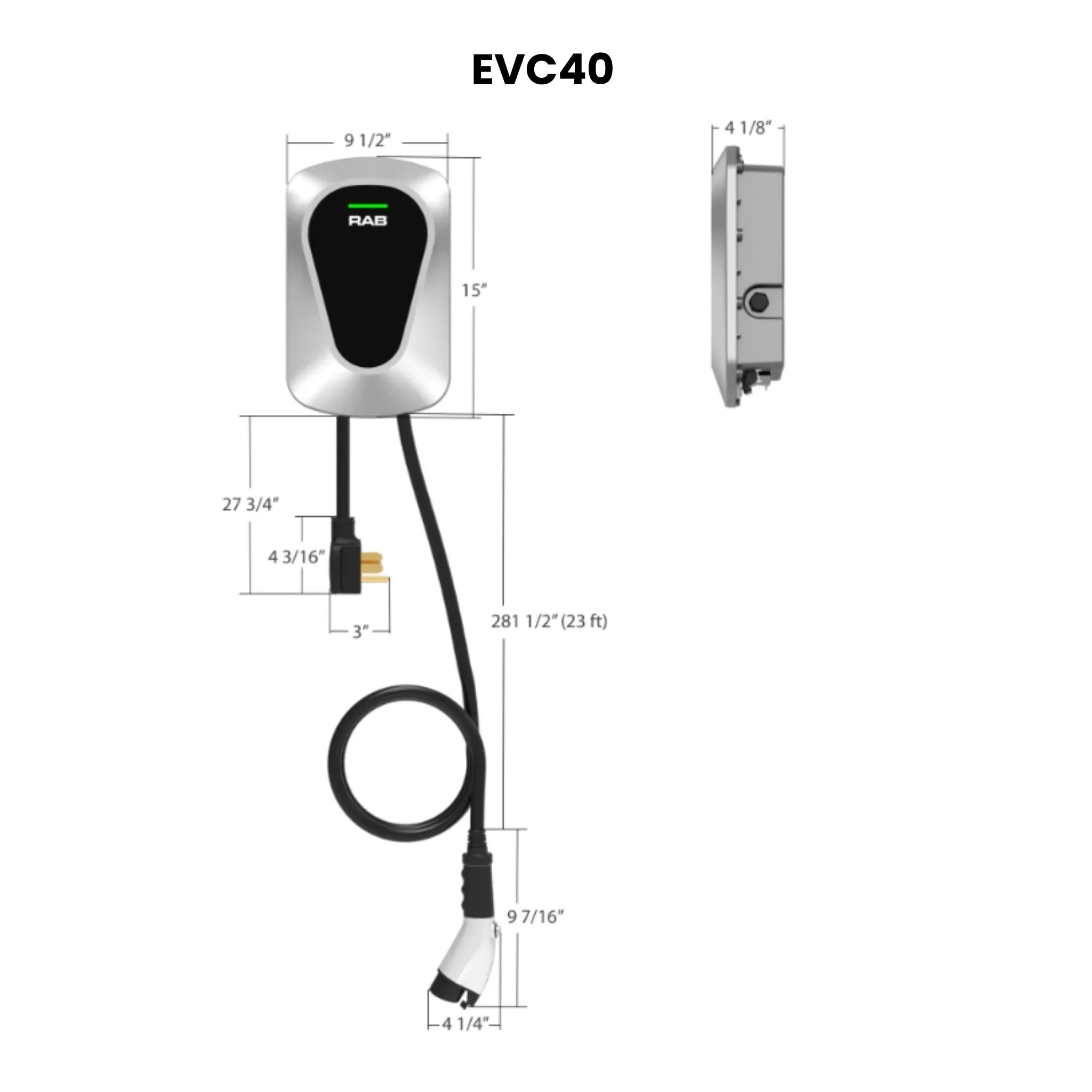

Dimensions

Length/Depth
15 in
Width/Diameter
9.5 in
Height
4.13 in
Weight
14.3 lb
Wire
300

Style & Materials

Finish
Silver

Electrical Information

Voltage
200-240V
Amps Rating
40.0 A

Item Details

MPN
EVC40
Brand
RAB Lighting
Family
EVC
UPC
192552037235

Warranty & Certifications

Product Warranty
3 Years
Product Rating
CETLUS, IP65 Rated, Wet Rated, NEMA 14-50R
