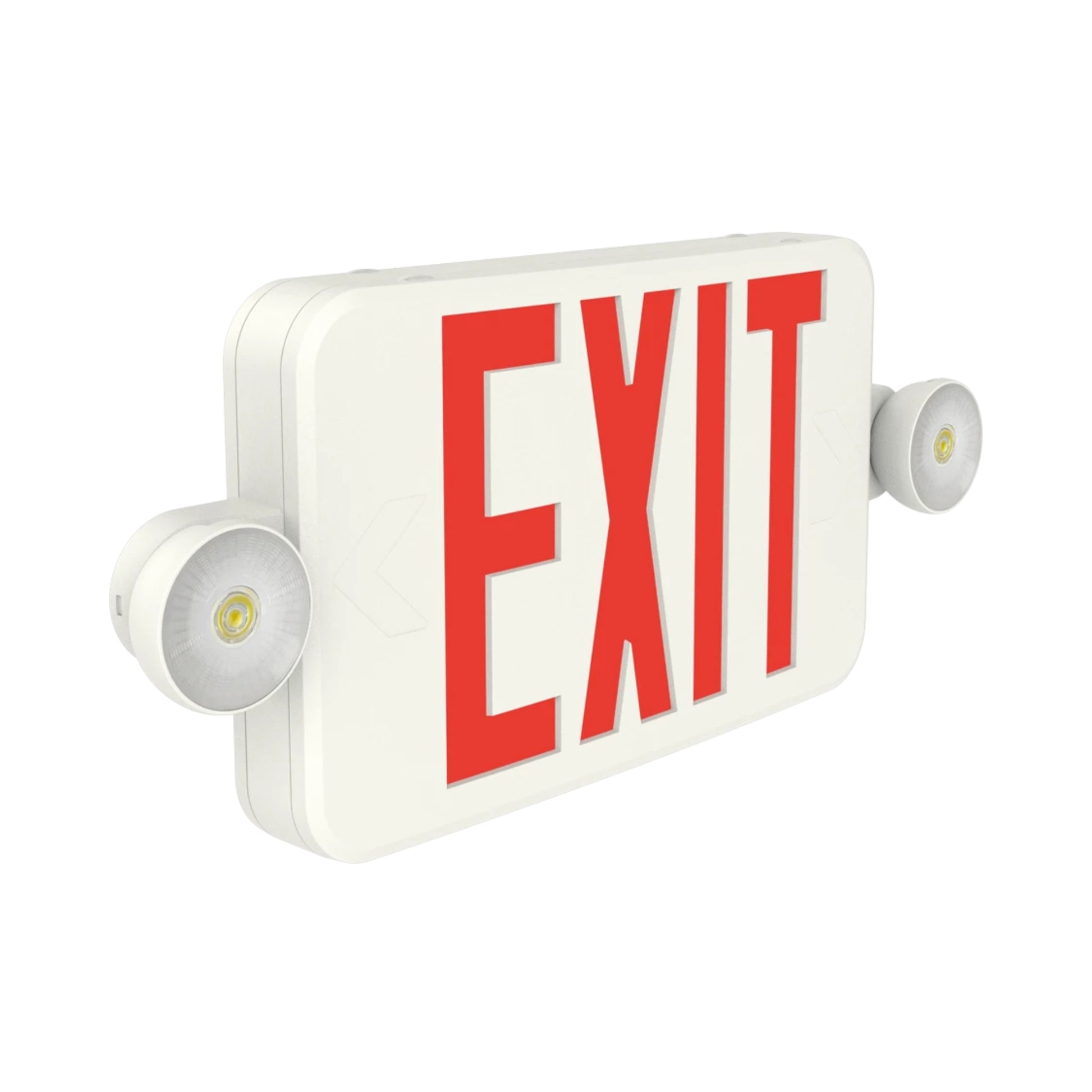

RAB ECOMBO34-RGR - LED Combo Exit Sign with Emergency Light, Red/Green Selectable, Remote Capable, 90-Min Battery Backup, 120-277V, White

RAB ECOMBO34-RGR LED Combo Exit Sign with Emergency Light - Remote Capable

The RAB ECOMBO34-RGR is a RAB Lighting ultra-economy LED combo exit sign with integrated emergency lighting and remote capability designed for code-compliant emergency egress marking and illumination. Ensure life safety compliance with this versatile 2-in-1 solution featuring universal single/double face with selectable red or green letters, dual adjustable round emergency light heads, remote head capability, and 90-minute battery backup with universal 120-277V voltage. The durable thermoplastic housing with clear acrylic face provides long-lasting performance while the dual round lamp heads deliver 160 lumens of emergency illumination with the added flexibility to power additional remote emergency light heads for commercial buildings, multi-family residential, and institutional facilities requiring UL924-listed exit signage with expandable emergency lighting.

RAB ECOMBO34-RGR Combo Exit Sign Features

• Universal Red/Green Letters: Field-selectable letter color meets local code requirements without stocking multiple SKUs
• Integrated Emergency Lighting: Dual adjustable round lamp heads provide 160 lumens of supplemental illumination during power outages
• Remote Capable: Powers additional remote emergency light heads (2W capacity) for expanded coverage beyond the combo unit
• Universal Single/Double Face: Configurable for wall mount (single face) or ceiling mount (double face) applications
• 90-Minute Battery Backup: Meets NEC and IBC emergency duration requirements for exit sign, emergency lights, and remote heads
• Universal Voltage: 120-277V AC operation for flexible installation in commercial applications
• Adjustable Lamp Heads: Dual round heads rotate and pivot for optimal emergency light coverage
• Energy-Efficient LED: Only 3W power consumption reduces operating costs
• Durable Thermoplastic: White high-impact housing and panel for long-lasting performance
• Stencil Format: Clear, easy-to-read exit lettering with optional left/right arrow direction
• Manual Test Button: Easy code compliance verification with manual test switch
• California Title 20 Compliant: Can be used to conform with California Title 20 requirements
• Easy Installation: Back/top/side mounting with included hardware and instructions
• UL924 Listed: Certified for emergency exit sign and emergency lighting applications

RAB ECOMBO34-RGR Combo Exit Sign Specifications

• Brand: RAB Lighting
• Model Number: ECOMBO34-RGR
• UPC: 192552027069
• Product Type: Exit Combo - Ultra-economy exit sign combo with 90-minute emergency battery backup and remote capability
• Technology: LED
• Letter Color: Red/Green (field selectable)
• Face Configuration: Universal Single/Double Face
• Sign Format: Stencil
• Arrow Direction: Left/Right Arrow
• Housing Material: Thermoplastic
• Housing Color: White
• Panel Material: Thermoplastic
• Panel Color: White
• Shape: Rectangle

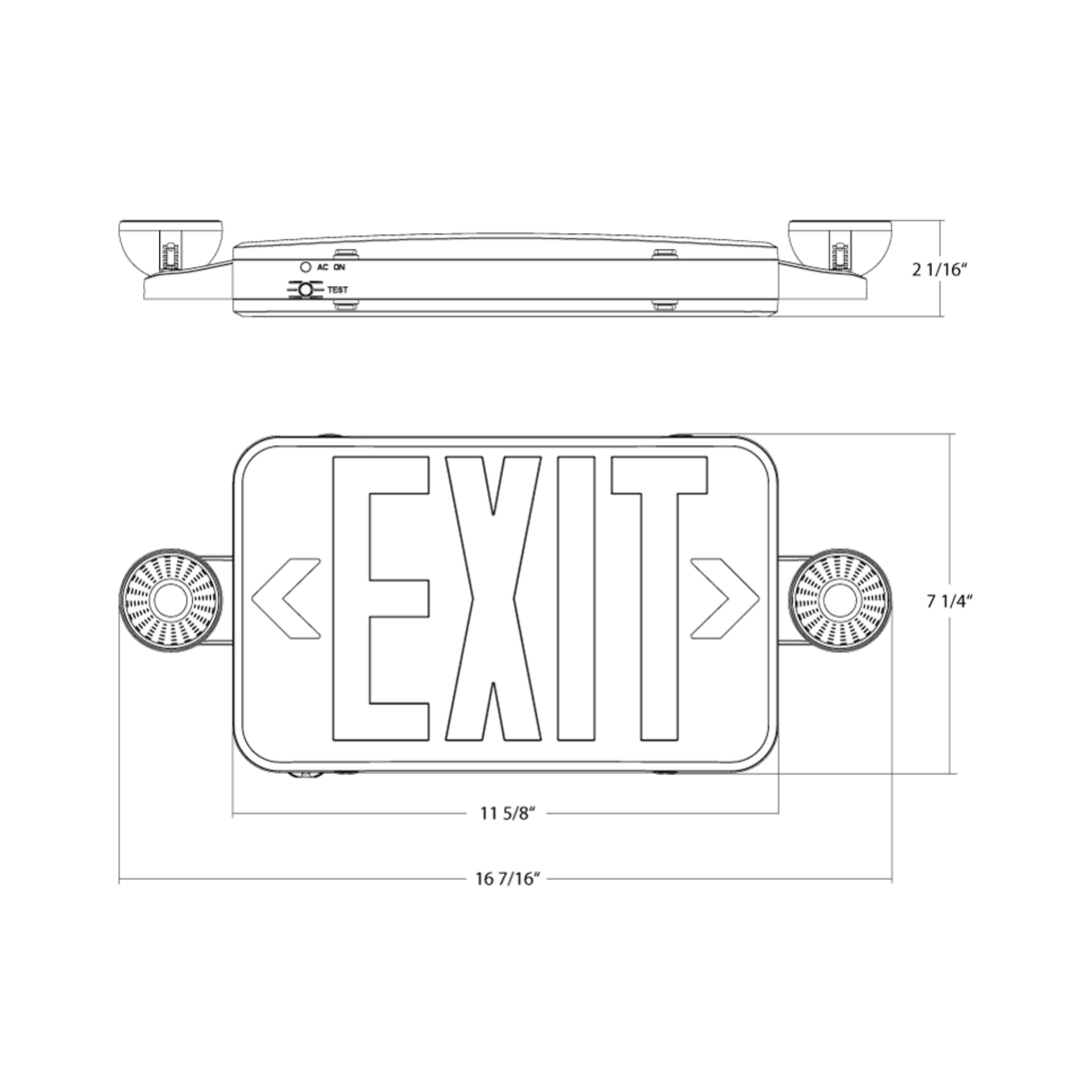

• Dimensions: 16 7/16" W x 7 1/4" H x 2 1/16" D
• Face Dimensions: 11 5/8" W x 7 1/4" H
• Emergency Light Heads: 2-Lamp Heads (round, non-replaceable)
• Remote Head Power: 1.8W per remote head
• Remote Head Lumens: 160lm total
• Remote Power Capacity: 2W
• Remote Capacity: Yes
• Input Power: 3W
• Input Voltage: 120-277V AC
• Operating Frequency: 50/60Hz
• Input Current @ 120V: 45mA
• Input Current @ 277V: 20mA
• Maximum Output Wattage: 4.2W
• Power Factor: 0.4
• Battery Type: Nickel-Metal Hydride
• Battery Voltage: 3.6V
• Battery Backup Time: 90 minutes
• Recharge Time: 24 hours
• Battery Operating Temperature: 0°F to 50°F (32°C to 122°C)
• Storage Temperature: 32°F to 104°F (0°C to 40°C)
• Storage Shelf Life: 3 years before initial charge, 5 years after initial charge
• Self Diagnostics: No, manual test only
• Remote Test Switch: No
• Mounting Method: Back/Top/Side
• Mounting Type: Wall/Ceiling Mount
• Maximum Mounting Height: 20 ft
• Spacing Criteria: 14 ft on center assuming 7.5 ft mounting height with egress path 3 ft out
• Operating Temperature: 32°F to 104°F (0°C to 40°C)
• Environment: Suitable for use in dry and damp environments
• IP Rating: IP20
• Cold Weather Rated: No
• Dual Voltage Circuit Operation: No
• Certifications: UL924 Listed
• FCC: Complies with Part 15 of the FCC Rules
• California Title 20: Compliant - can be used to conform with requirements
• California Title 24 JA8: No
• CEC Status: Lawful for sales in California
• Warranty: 5-Year No-Compromise Warranty
• Weight: 1.8 lbs

RAB Combo Exit Sign Applications

• Commercial office buildings and corridors
• Retail stores and shopping centers
• Multi-family residential buildings and apartments
• Educational facilities and schools
• Healthcare facilities and medical offices
• Hospitality hotels and guest corridors
• Industrial and warehouse facilities
• Stairwells and exit pathways
• Large open areas requiring multiple emergency light heads powered from a single source
• Any application requiring combined exit signage and emergency lighting with remote head capability
• Locations where separate exit signs and emergency lights would require multiple fixtures
• Budget-conscious projects requiring code-compliant emergency egress solutions with expandable coverage

Installation & Operation

The RAB ECOMBO34-RGR combo exit sign offers flexible mounting for wall or ceiling installation with back, top, or side mounting options. The included mounting hardware and installation instructions make setup quick and easy. Connect to your AC power source (120-277V) and select red or green letter color using the field-selectable switch. Adjust the dual emergency light heads to provide optimal coverage for the egress path. If additional coverage is needed, connect optional remote emergency light heads (sold separately) to the remote capability terminals (2W capacity). The unit will automatically charge the battery.

During normal operation, the exit sign remains illuminated while the battery charges. When AC power is lost, the battery backup automatically activates, maintaining exit sign illumination, integrated emergency lighting, and any connected remote emergency light heads for 90 minutes. When power is restored, the unit automatically returns to charging mode. The manual test button allows for easy code compliance verification.

Remote Capability for Expanded Coverage

The ECOMBO34-RGR's remote capability allows you to power additional emergency light heads (sold separately) from the combo unit's battery backup system with a 2W remote power capacity. Each remote head provides 1.8W of power and 160 lumens of illumination. This feature is ideal for large corridors, open areas, or locations where additional emergency illumination is required beyond the coverage provided by the integrated dual lamp heads. The remote capability reduces the need for multiple standalone emergency lights, simplifying installation and reducing overall system costs while maintaining code compliance.

2-in-1 Ultra-Economy Combo Design

The ECOMBO34-RGR combines exit signage and emergency lighting in a single, space-saving fixture at an ultra-economy price point. This integrated design reduces installation time and costs compared to installing separate exit signs and emergency lights. The dual adjustable round lamp heads provide 160 lumens of emergency illumination, ensuring adequate visibility along egress paths during power outages. The durable thermoplastic housing ensures long-lasting performance in commercial environments while maintaining a clean, professional appearance.

Universal Single or Double Face Configuration

The ECOMBO34-RGR features universal single/double face capability, allowing configuration for wall mounting (single face) or ceiling mounting (double face) applications. This flexibility allows you to use the same product for different mounting scenarios, reducing inventory complexity. The stencil format provides clear, easy-to-read exit lettering with optional left/right directional arrows, while the adjustable emergency light heads can be positioned to illuminate the egress path effectively.

Selectable Letter Color

The field-selectable red or green letter feature allows you to meet local code requirements without stocking multiple products. Simply flip the internal switch to select the required letter color during installation. This flexibility reduces inventory complexity and ensures you always have the right exit sign for any application.

Code Compliance & Battery Backup

The RAB ECOMBO34-RGR meets all NEC (National Electrical Code) and IBC (International Building Code) requirements for emergency exit signage and emergency lighting. The built-in 90-minute battery backup with nickel-metal hydride battery ensures continuous illumination of the exit sign, integrated emergency lights, and any connected remote heads during power outages, meeting code requirements for emergency egress lighting. The manual test button allows for easy verification of battery and lamp operation during inspections. The unit is UL924 listed and compliant with California Title 20 requirements, making it lawful for sales in California.

Why Choose RAB Combo Exit Signs

RAB Lighting is a trusted leader in emergency exit signage with over 75 years of American manufacturing excellence. The ECOMBO34-RGR represents ultra-economy exit sign efficiency and flexibility, combining exit signage and emergency lighting in a single fixture with remote capability, 90-minute battery backup, field-selectable letter color, and universal single/double face flexibility. The durable thermoplastic housing ensures long-lasting performance, while the automatic battery charging provides hassle-free code compliance and reduces maintenance costs.

With UL924 listing, 90-minute battery backup, universal 120-277V voltage, remote head capability (2W capacity), dual adjustable emergency light heads, and field-selectable features, the RAB ECOMBO34-RGR delivers professional-grade combo exit sign performance with maximum flexibility at an ultra-economy price point. The energy-efficient 3W LED technology provides long-life illumination with minimal operating costs, while the 2-in-1 design with remote capability reduces installation time and costs. The flexible configuration options offer installation versatility for any application. With RAB's 5-year no-compromise warranty and reputation for quality, the ECOMBO34-RGR combo exit sign delivers long-term reliability and value.
