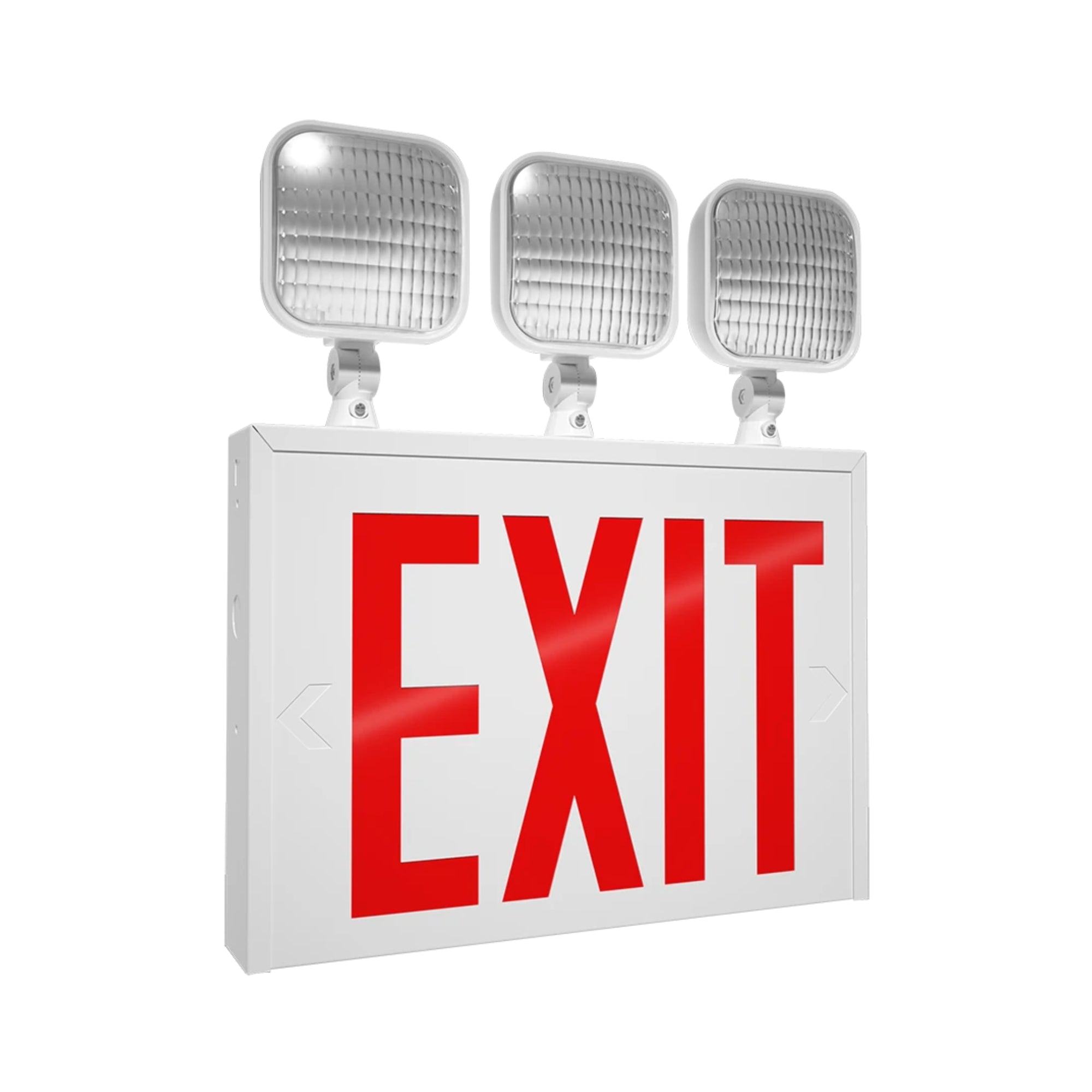

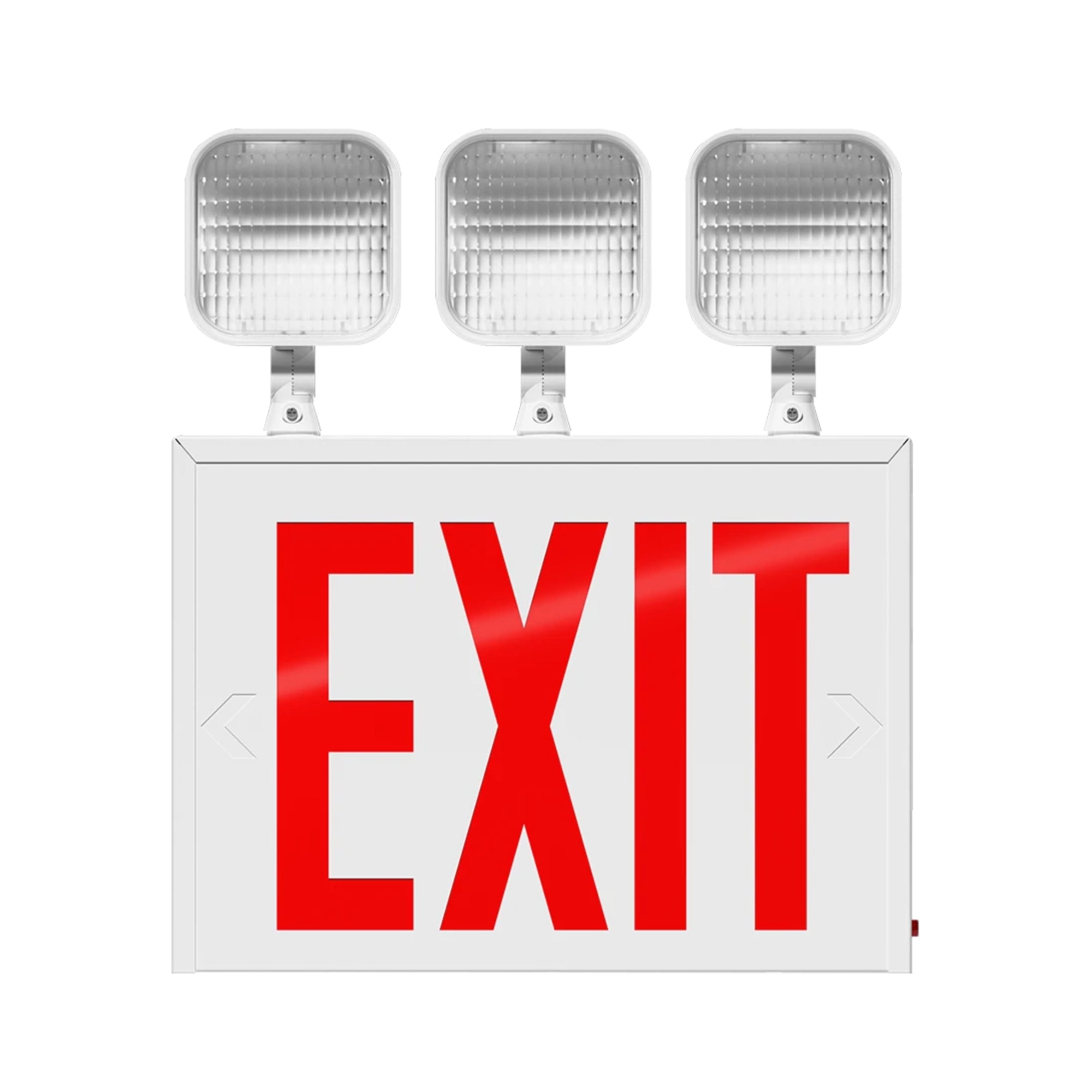

RAB ECOMBO-NY NYC Approved Exit/Emergency Combo — 90-Minute Battery Backup, 120/277V

The RAB ECOMBO-NY is a specialized exit/emergency combo featuring red letters and a robust 90 minutes of battery backup. Operating strictly on a 120/277V input, this heavy-duty steel fixture is officially New York City Approved. It delivers unparalleled safety compliance for urban commercial environments, ensuring occupants have a brightly illuminated, code-compliant path of egress during critical power outages.

Key Features

• City Approval: New York City Approved for strict local building code compliance.
• Housing Material: Heavy-duty white steel sheet construction resists physical damage.
• Face Configuration: Universal single or double face with classic stencil format.
• Emergency Runtime: Minimum 90 minutes of reliable battery backup illumination.
• Lamp Heads: Features two square 65-lumen LED remote-capable lamp heads.
• Testing Method: Manual integrated test switch allows for quick safety audits.
• Letter Color: High-visibility red lettering meets NYC dimensional mandates.
• Input Voltage: Dual 120/277V capability easily integrates into commercial circuits.

Performance & Illumination

Engineered to meet stringent NYC visual standards, this combo unit features oversized 8-inch red stencil lettering. It is equipped with two square LED lamp heads that deliver a combined 195 lumens, providing a wide and focused beam capable of illuminating a 26-foot egress path on center. Additionally, the unit possesses 1.5W of remote capacity to power an auxiliary emergency head if expanded coverage is required.

Electrical & Battery

The fixture operates efficiently on a dual 120/277V input, drawing just 5.2W at 120V. During a power loss, it relies on a rugged 9.6V Nickel Cadmium battery to power the exit face and emergency heads for a minimum of 90 minutes. The battery fully recharges within 24 hours. Compliance officers can perform required safety checks using the unit's manual push-to-test button.

Physical & Installation Details

Built to survive demanding urban environments, the housing and panel are fabricated from durable sheet metal finished in clean white. The unit is designed with universal mounting capabilities, allowing for back or end mounting on walls or ceilings up to a 10-foot maximum height. Field-installable chevrons are included to properly denote directional egress paths.

Compliance & Safety

This combo unit is fully UL924 Listed and explicitly New York City Approved, satisfying the rigid requirements of the NYC Department of Buildings. It is suitable for dry and damp indoor environments, maintaining optimal operation in ambient temperatures ranging from 32°F to 122°F (0°C to 50°C).

What's Included

• (1) NYC Approved Exit/Emergency Combo Unit
• (1) Extra Faceplate for Double-Sided Use
• Field-Installable Chevrons
