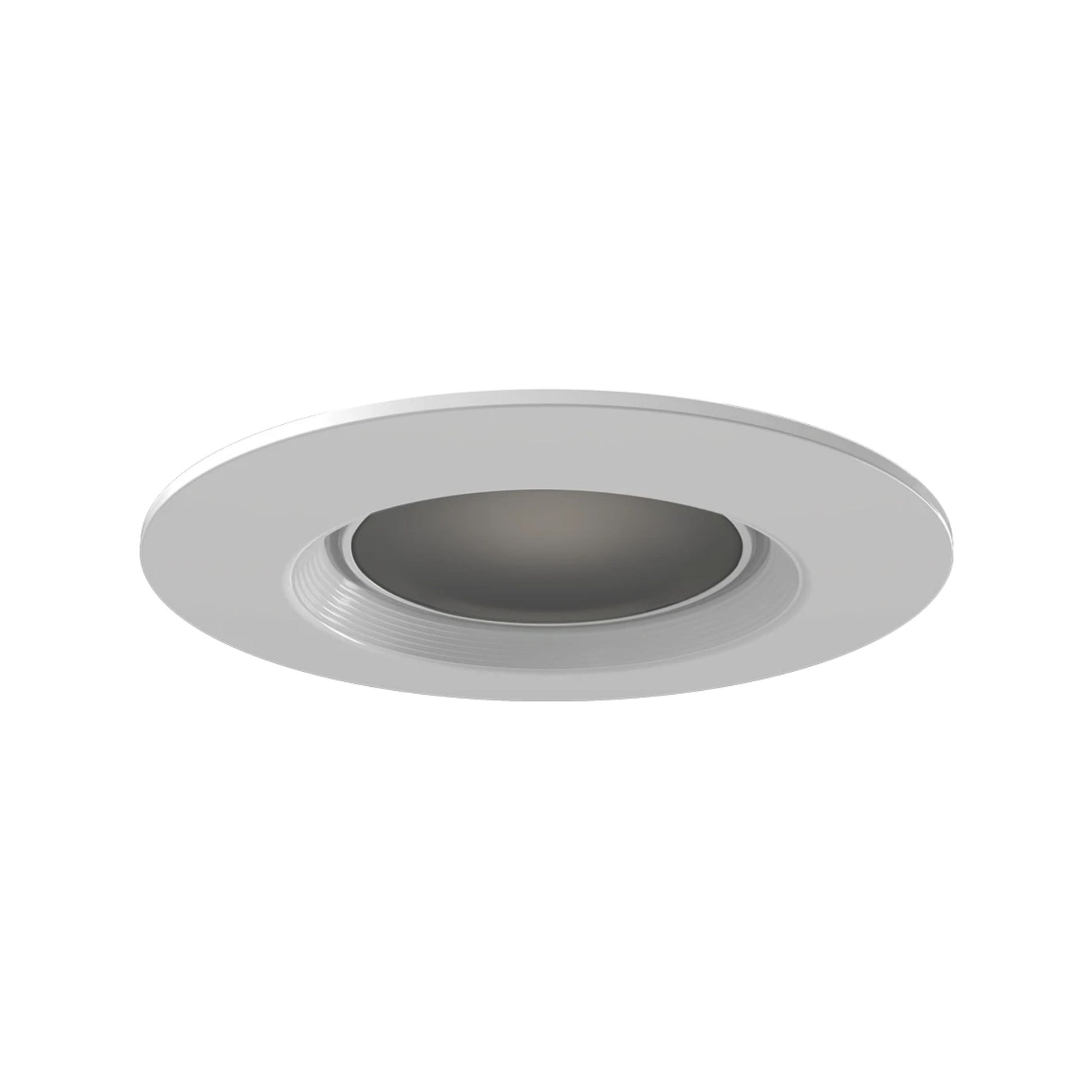

RAB ECLPS6B 6 in Round Baffle Retrofit LED Downlight with Nightlight — 9.5W / Selectable CCT / 120V / White

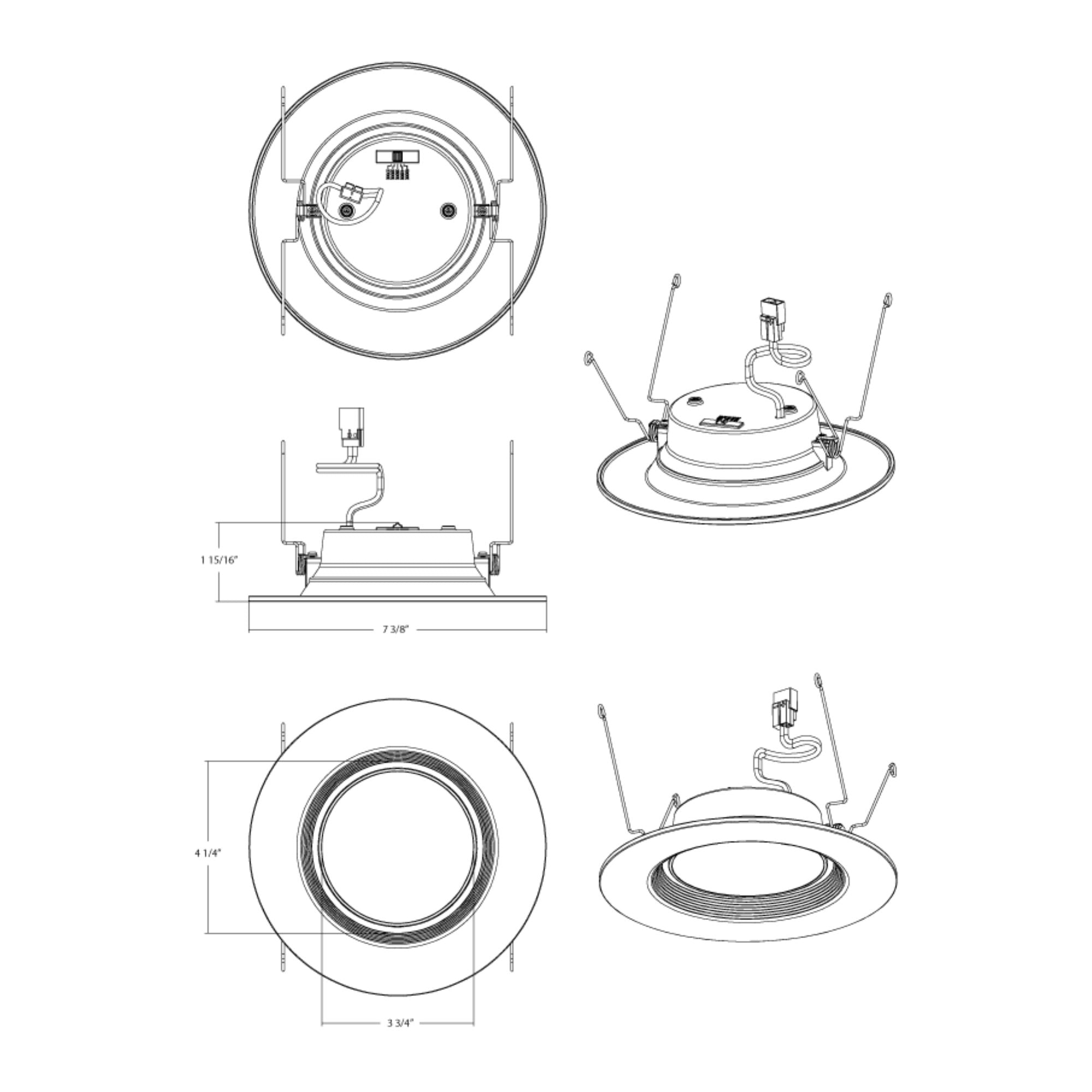

The RAB ECLPS6B is a 6 in round baffle retrofit LED downlight in white with a frosted polycarbonate diffuser, delivering 900 lumens at 9.5W and 94 lm/W with a 90° beam angle. Features a built-in 2000K amber nightlight at 20 lm. CCT is field-selectable via dip switch. Requires an existing 5/6 in recessed housing — E26 adapter included. The baffle trim reduces glare for comfortable general lighting.

Key Features

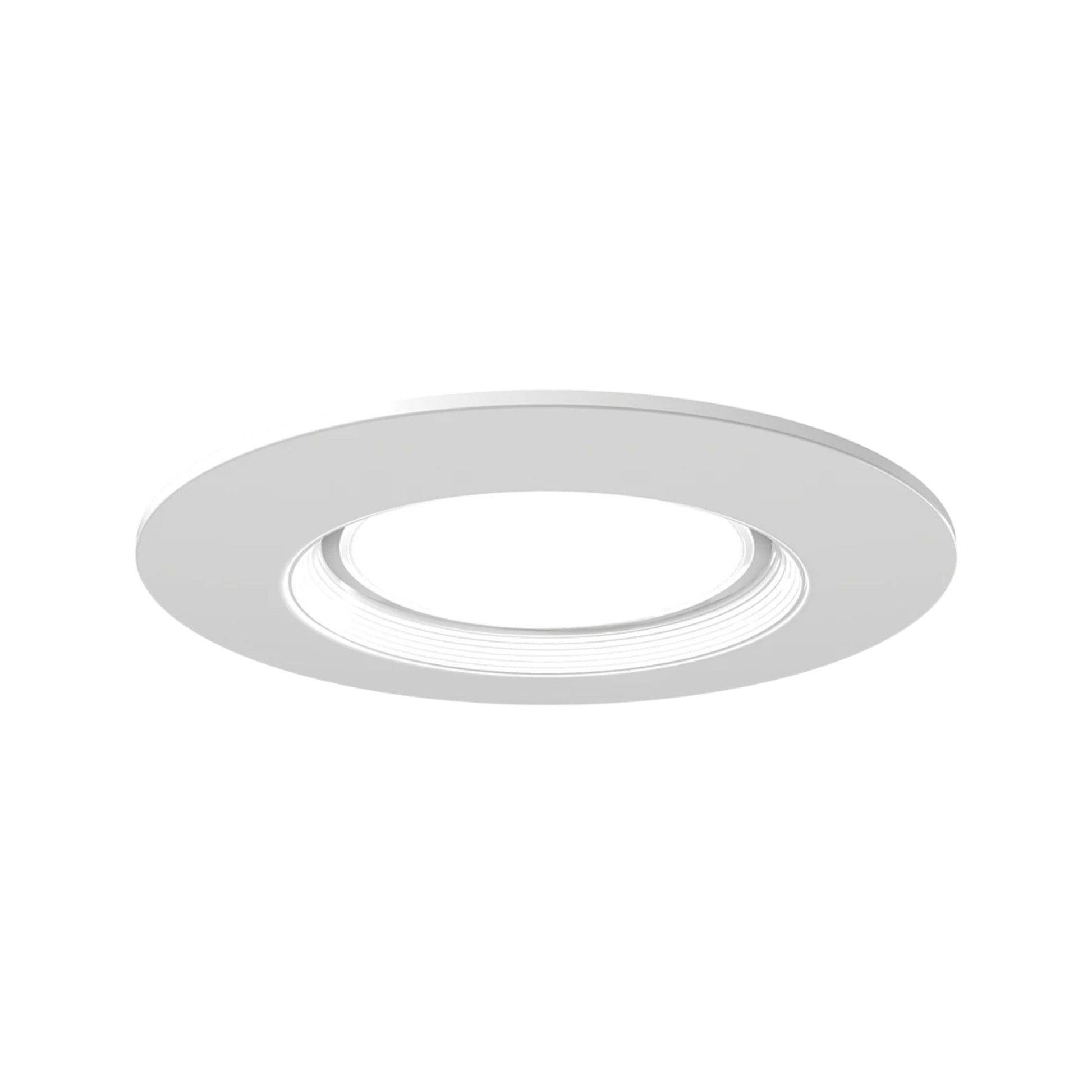

• 6 in Round Baffle — White: Plastic enclosure; frosted polycarbonate diffuser for even light distribution
• Requires Existing 5/6 in Housing: E26 adapter included; compatible with most standard 5/6 in recessed housings
• 90° Beam Angle: Focused distribution for general and task lighting
• Main Light: 900 lm nominal | 9.5W | 60W incandescent equivalent

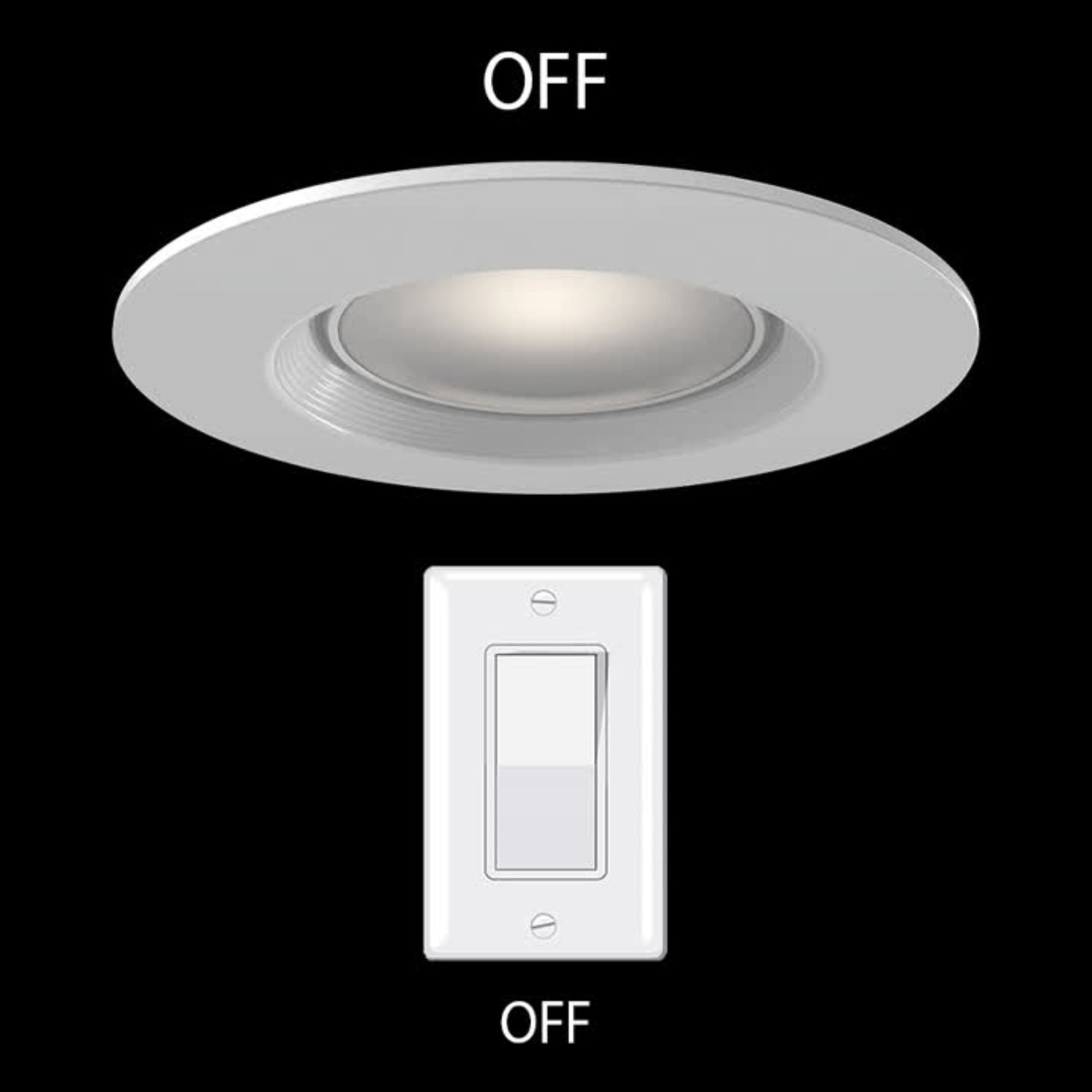

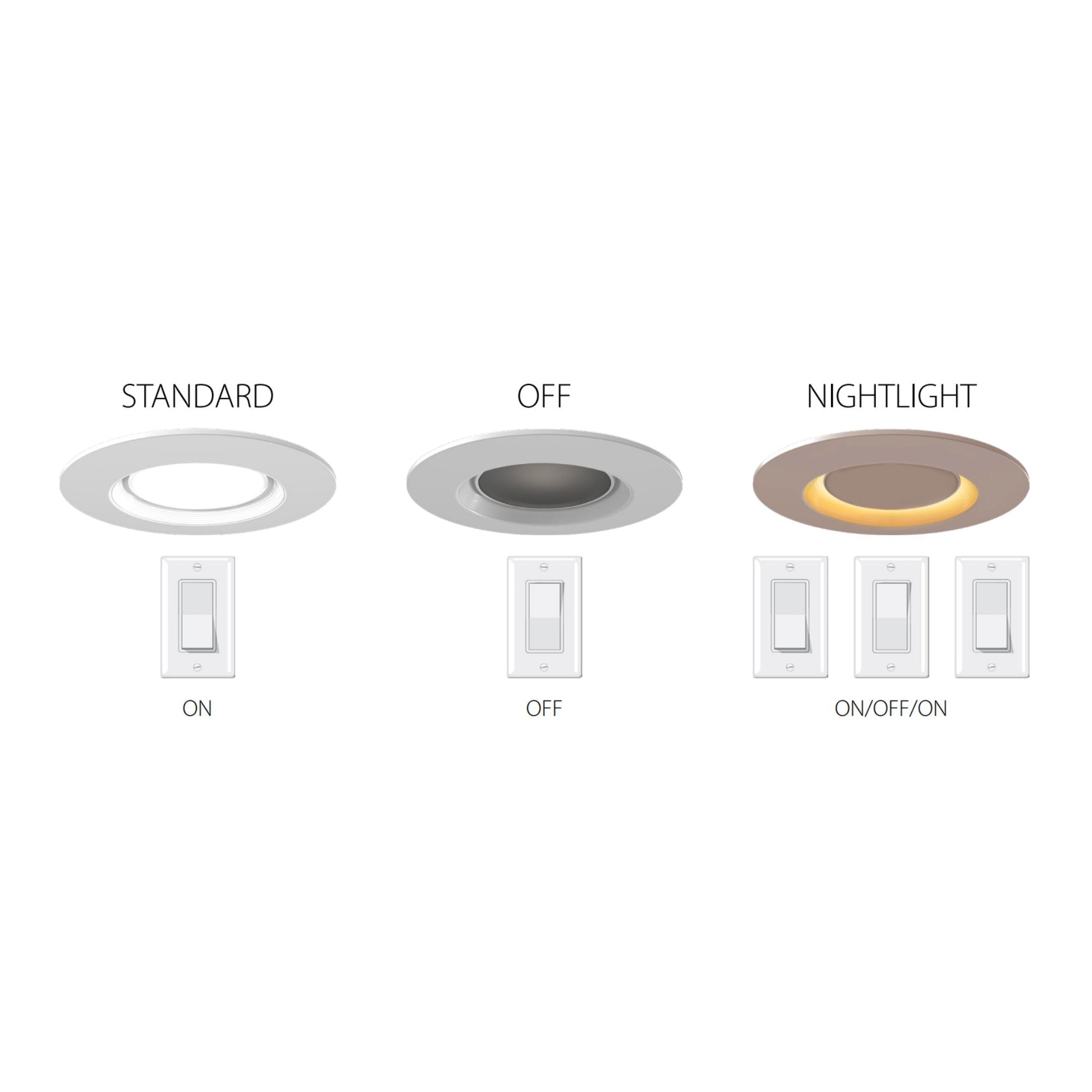

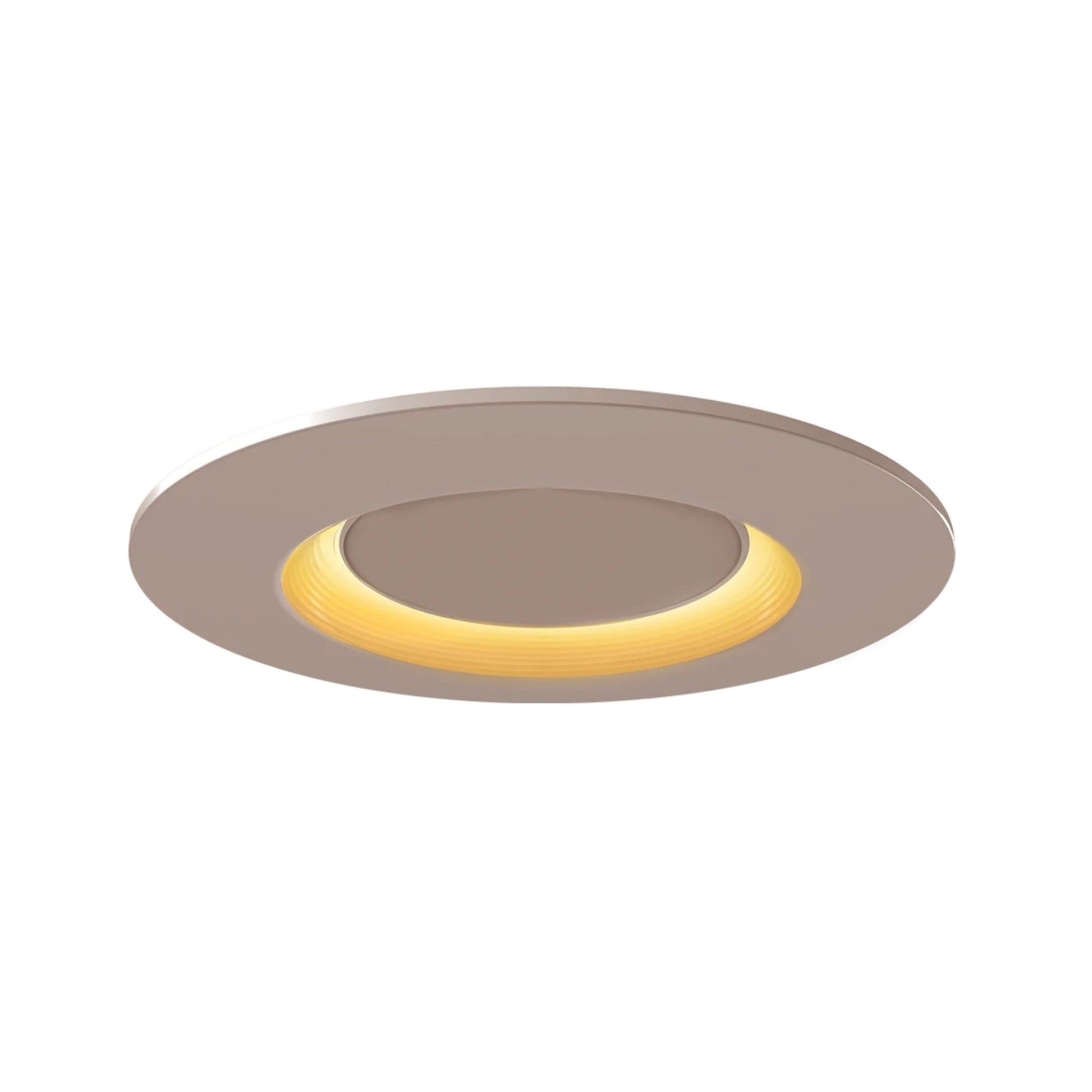

• Nightlight Mode: Built-in 2000K amber ring | 20 lm | 5W
• Field-Selectable CCT: 2700K / 3000K / 3500K / 4000K / 5000K via dip switch (default: 3000K)
• Efficacy: 94 lm/W | CRI: 90+, R9 ≥ 50 | 4-step MacAdam Ellipse
• Dimming: TRIAC/ELV dimmable to 10% at 120V
• Voltage: 120V | 91mA (0.09A)
• Wet location rated — suitable for showers and covered outdoor locations
• Note: Not IC rated. Not air tight. Verify housing compatibility for your installation.
• Certifications: UL Classified | UL Recognized | ENERGY STAR v2.2 (DLR0156) | Title 20 Compliant | NEC closet compliant | RoHS | FCC Part 15
• Note: This model is not California Title 24 JA8 compliant.
• Color Stability: CCT shift ≤200K over 5 years
• Lifespan: 50,000 hours L70 | Warranty: 5-year no-compromise warranty

Light Output & Performance

Main light: 900 lm / 9.5W at 94 lm/W. Nightlight: 20 lm / 5W / 2000K amber. CRI 90+, R9 ≥ 50, 4-step MacAdam Ellipse, 90° beam, CCT shift ≤200K over 5 years.

Electrical & Installation

120V | 91mA (0.09A) | Constant Current Class 2 driver | TRIAC/ELV dimmable to 10% | THD ≤20% | PF >0.7 | Flicker: 30% | Operating temp: -4°F to 104°F | Not IC rated | Not air tight.

Compatible Accessories

• 5/6 in Recessed Housings — new construction IC rated | remodeler IC rated

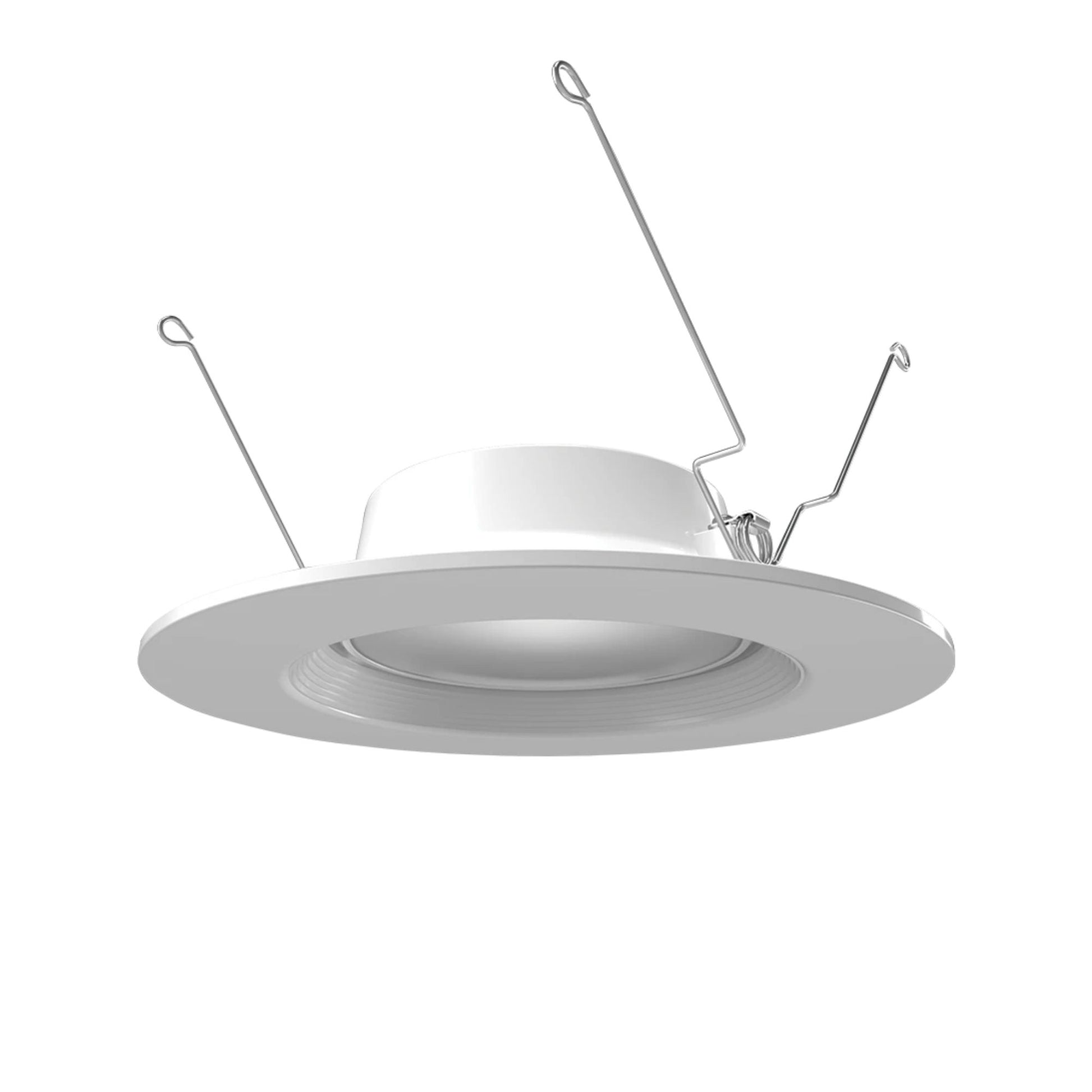

• Retrofit Band — for 5/6 in downlight with friction clips

What’s Included

• RAB ECLPS6B 6 in round baffle retrofit LED downlight with nightlight (white)
• E26 socket adapter

Typical Applications

• Retrofit upgrade of existing 5/6 in recessed housings

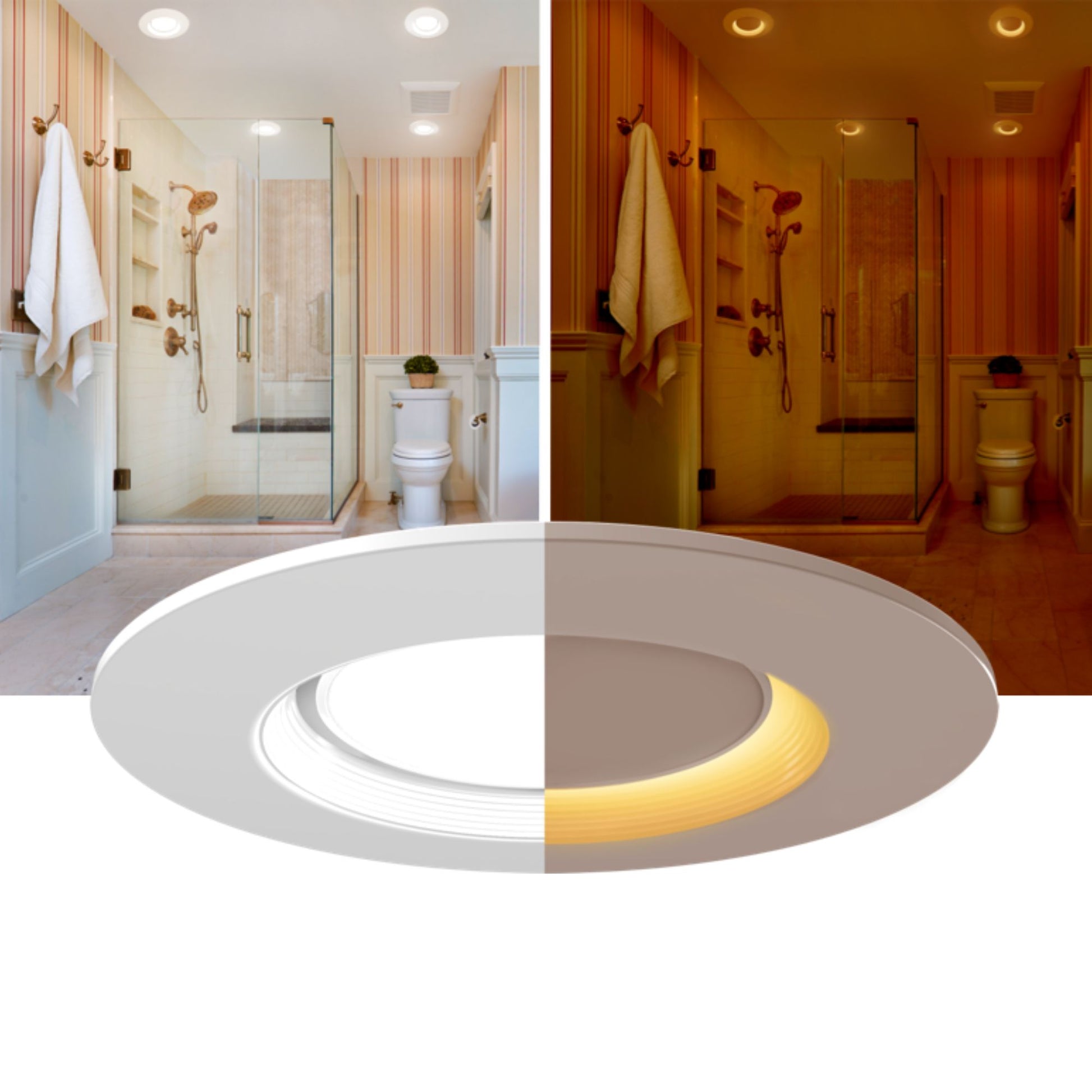

• Bedrooms, hallways, and bathrooms — nightlight for comfort and wayfinding
• Showers, bathrooms, and covered outdoor locations
• Projects requiring California Title 20 compliance
