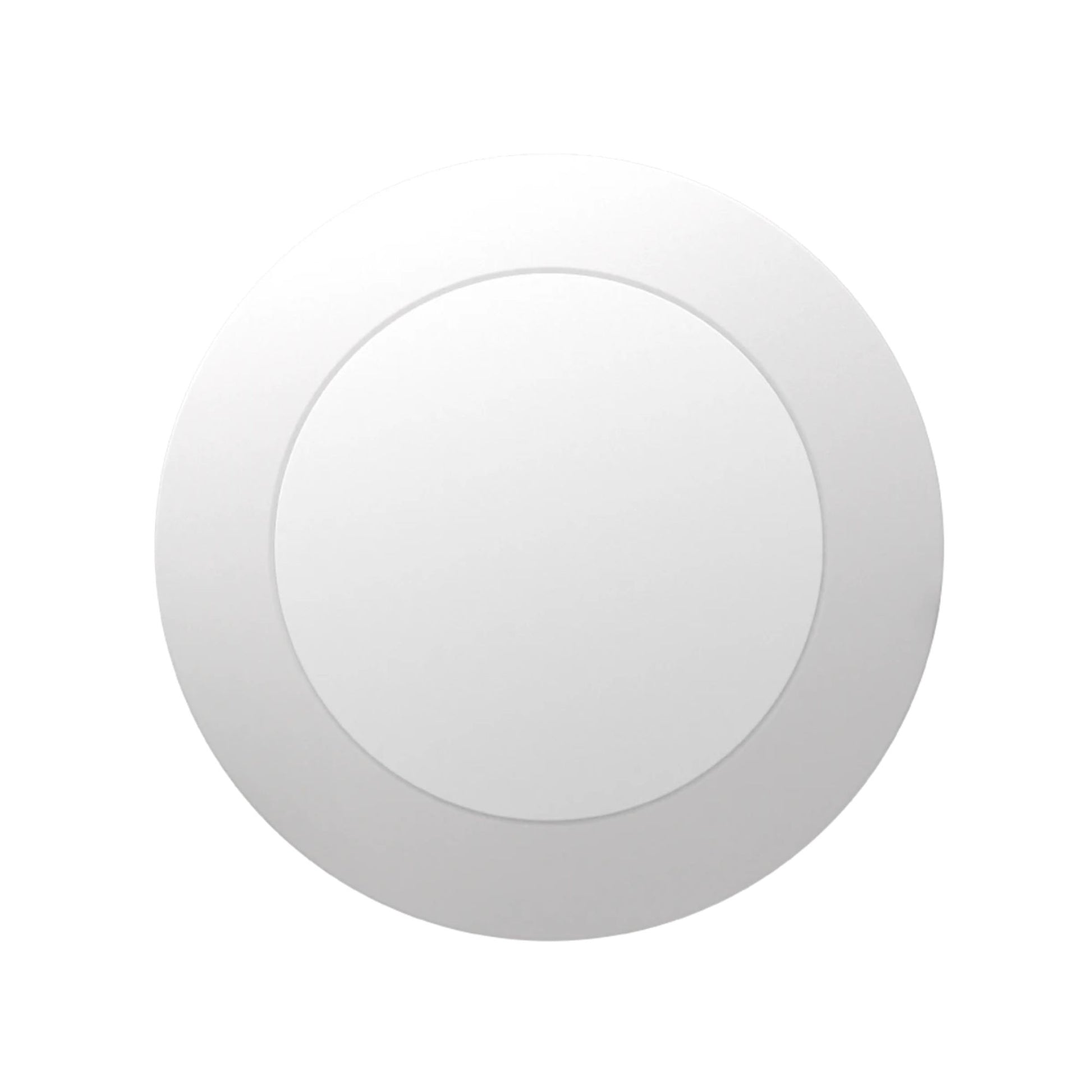

RAB DISK34-6 6 in LED Flush Mount — White, 15W, Selectable CCT, 120V

The RAB DISK34-6 integrated LED disk light combines a low-profile white design with five selectable color temperatures. Its polycarbonate diffuser distributes light evenly for general illumination, and compatible TRIAC/ELV controls dim down to 10%. The 15W fixture offers surface-mount and recessed mounting configurations for versatile projects.

Key Features

• Mounting: Surface-mount and recessed configurations
• Selectable CCT: 2700K, 3000K, 3500K, 4000K or 5000K via DIP switch
• Wattage: 15W integrated LED; 75W incandescent equivalency
• CCT-Specific Output: 1,017 lumens at 2700K, 1,077 at 3000K, 1,128 at 3500K, 1,132 at 4000K and 1,088 at 5000K
• Color Quality: 90 CRI class, R9 at least 50 and 4-step MacAdam Ellipse consistency
• Beam: 110 degrees with ±10-degree tolerance
• Dimming: Down to 10% on compatible TRIAC/ELV systems
• Driver: Constant-current 120V, 60Hz
• Electrical Quality: Power factor at least 0.9, THD at most 20% and flicker below 30%
• Construction: Metal enclosure with smooth white trim and polycarbonate diffuser; 6 in nominal size and 0.5 lb
• Listings: UL listed for indoor and outdoor dry, damp or wet use; ENERGY STAR Version 1.0 certified; not IC rated or airtight
• Life and Compliance: 50,000-hour L70 lifespan; five-year RAB warranty; -4°F to 104°F operating range; TAA, FCC Part 15B and RoHS compliant; sheet states suitability for conformity with Title 24 Part 6 requirements

Construction & Design

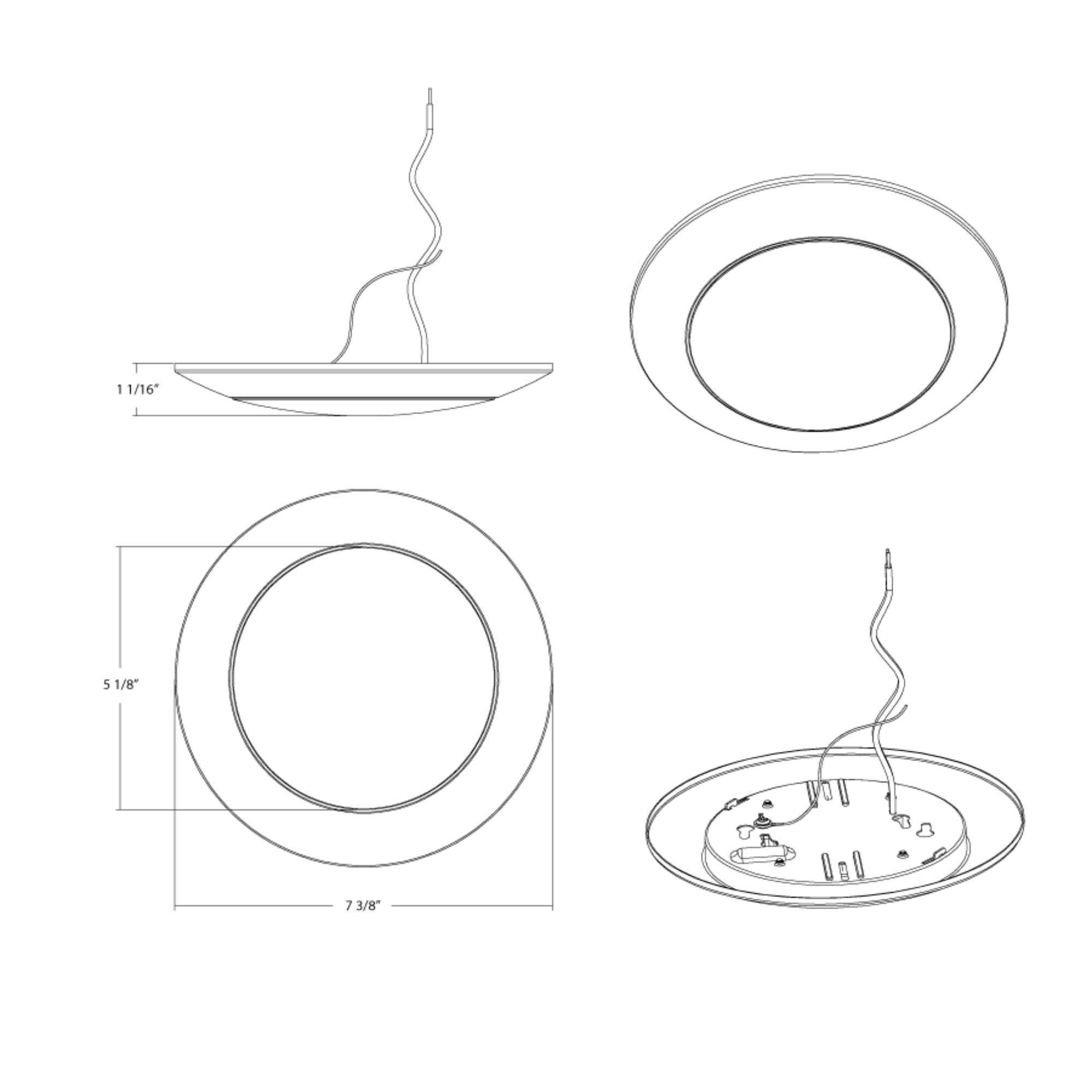

The round metal enclosure features a smooth white finish and a polycarbonate diffuser for even, soft illumination. This 6 in nominal-size fixture weighs 0.5 lb. Its low-profile disk shape keeps the design visually understated.

Light Output & Performance

The detailed performance table lists 1,017 lumens at 2700K, 1,077 at 3000K, 1,128 at 3500K, 1,132 at 4000K and 1,088 at 5000K. A broad 110-degree beam with ±10-degree tolerance, 90 CRI class color rendering and R9 at least 50 support general illumination. Rated LED life is 50,000 hours at L70; separate bulbs are not required.

Electrical & Installation

Operate on 120V at 60Hz. The constant-current driver supports TRIAC/ELV dimming down to 10% on compatible controls. The mounting specification lists surface-mount and recessed configurations. Select CCT using the DIP switch during installation. The low-profile format avoids a pendant drop where overhead clearance matters. The fixture is UL listed for indoor and outdoor dry, damp or wet environments, but it is neither IC rated nor airtight.

Compatible Accessories

• DSKFA6/PIR/ACC: Mounting hardware accessory

Typical Applications

• Residential hallways and entryways
• Utility and laundry areas
• Bathrooms

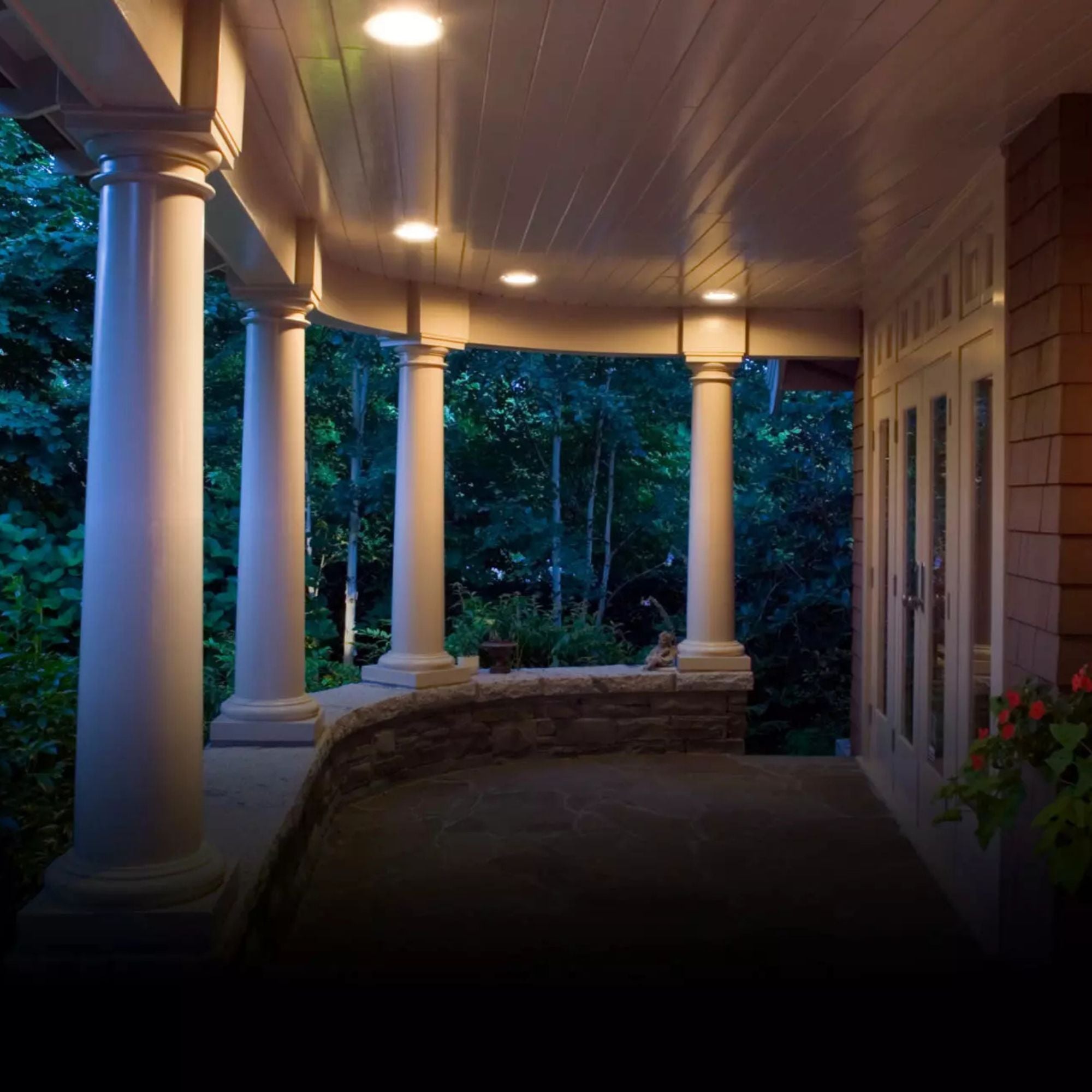

• Covered outdoor circulation areas

What's Included

• RAB DISK34-6 white disk fixture with integrated LED and polycarbonate diffuser
