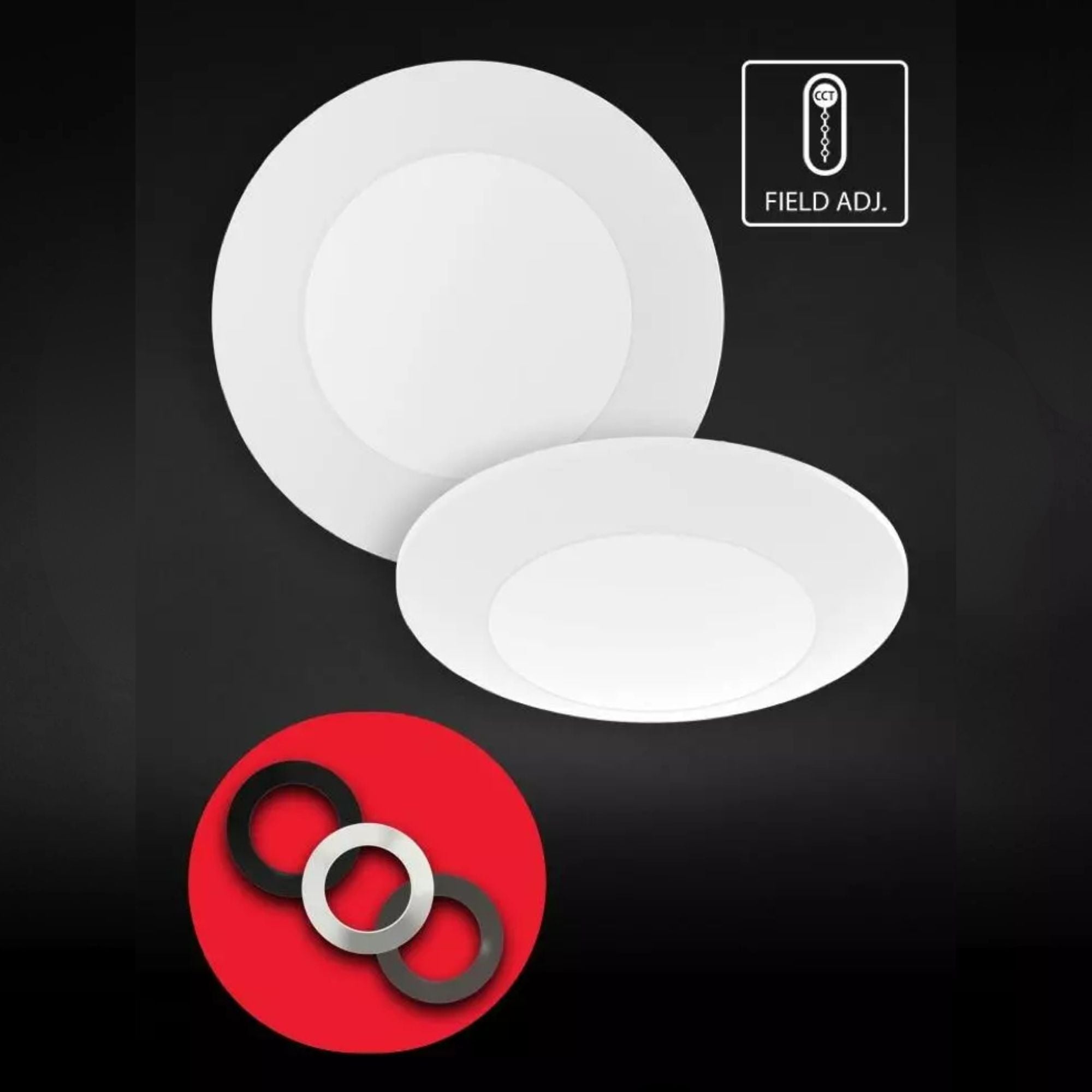

RAB DISK34-4 4 in LED Flush Mount — White, 10W, Selectable CCT, 120V

The RAB DISK34-4 integrated LED disk light offers a low-profile surface-mount design for new construction and retrofit applications. A smooth white finish and polycarbonate diffuser spread light evenly, while five selectable color temperatures help match the installation. The 10W, 120V fixture supports compatible TRIAC/ELV dimming down to 10%.

Key Features

• Versatile Installation: Surface-mount and recessed mounting configurations; installs on standard junction boxes
• Selectable CCT: 2700K, 3000K, 3500K, 4000K or 5000K via DIP switch
• Wattage: 10W integrated LED; 60W incandescent equivalency
• CCT-Specific Output: 712 lumens at 2700K, 746 at 3000K, 762 at 3500K, 763 at 4000K and 738 at 5000K
• Color Quality: 90 CRI class with R9 at least 50 and 4-step MacAdam Ellipse consistency
• Beam: 110 degrees with ±10-degree tolerance
• Dimming: Down to 10% on compatible TRIAC/ELV systems
• Driver: Constant-current 120V, 60Hz
• Electrical Quality: Power factor at least 0.9, THD at most 20% and flicker at most 30%

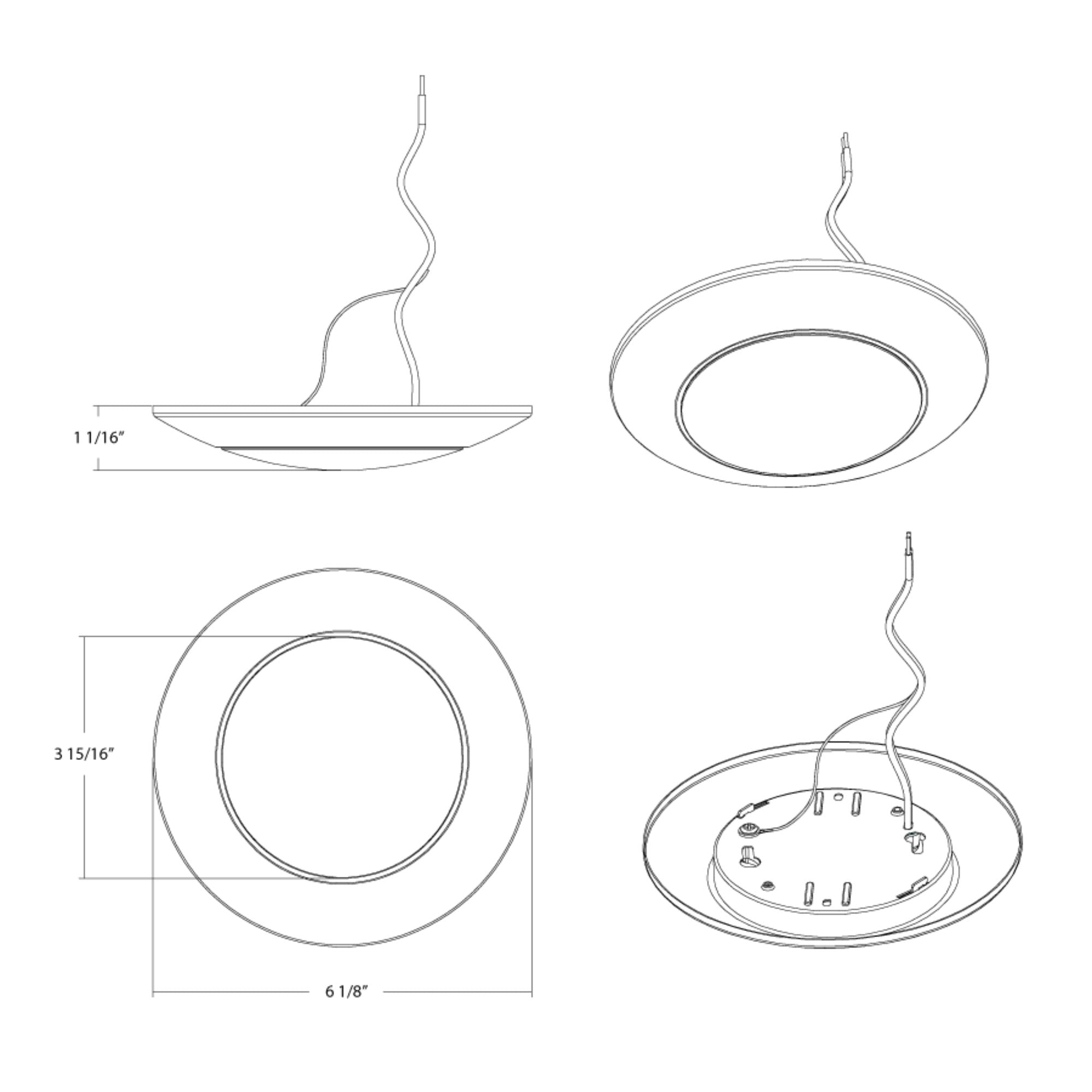

• Size and Weight: 4 in nominal round fixture weighing 0.4 lb
• Listings: UL listed for indoor and outdoor dry, damp or wet use; ENERGY STAR Version 1.0 certified; not IC rated or airtight
• Life and Compliance: 50,000-hour L70 lifespan; five-year RAB warranty; -4°F to 104°F operating range; TAA, FCC Part 15B and RoHS compliant; sheet states suitability for conformity with Title 24 Part 6 requirements

Construction & Design

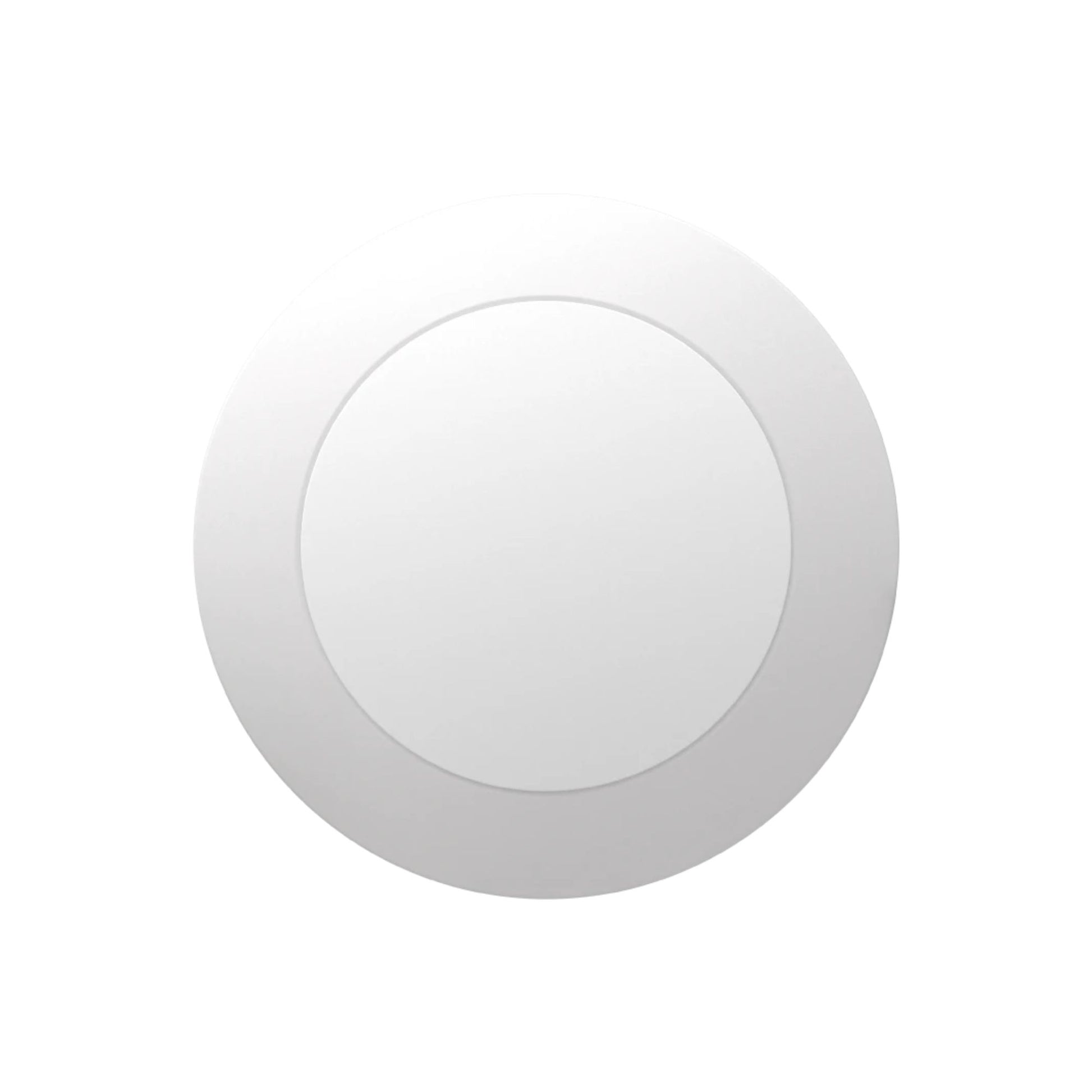

The round white finish and smooth trim create a clean, low-profile look. A polycarbonate diffuser distributes light evenly for general illumination. This 4 in nominal-size disk weighs 0.4 lb.

Light Output & Performance

The detailed performance table lists 712 lumens at 2700K, 746 at 3000K, 762 at 3500K, 763 at 4000K and 738 at 5000K. These setting-specific values are used here rather than the conflicting 900-lumen summary. The 90 CRI class, R9 at least 50 and broad 110-degree beam support accurate, evenly distributed light. Rated LED life is 50,000 hours at L70.

Electrical & Installation

Operate on 120V at 60Hz. The constant-current driver supports TRIAC/ELV dimming to 10% with compatible controls. The supplied features identify standard junction-box installation for new construction or retrofit projects, while the mounting specification lists surface and recessed configurations. The low-profile disk avoids a pendant drop where clearance matters. Select CCT during installation. The fixture is UL listed for indoor and outdoor dry, damp or wet environments, but is not IC rated or airtight.

Compatible Accessories

• DSKFA4/PIR/ACC: Mounting hardware accessory listed on the specification sheet

Typical Applications

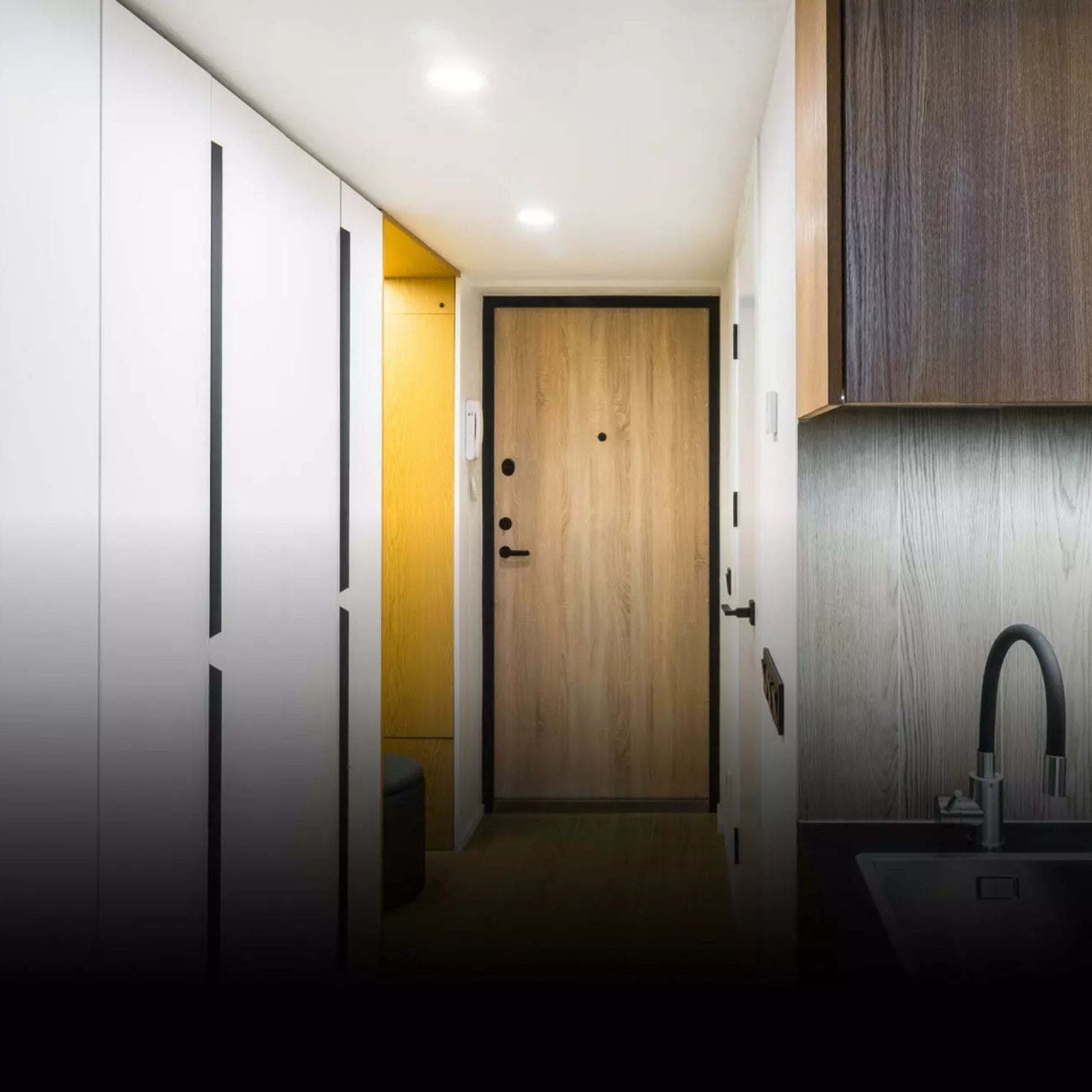

• Residential hallways and entryways
• Utility and laundry areas
• Bathrooms

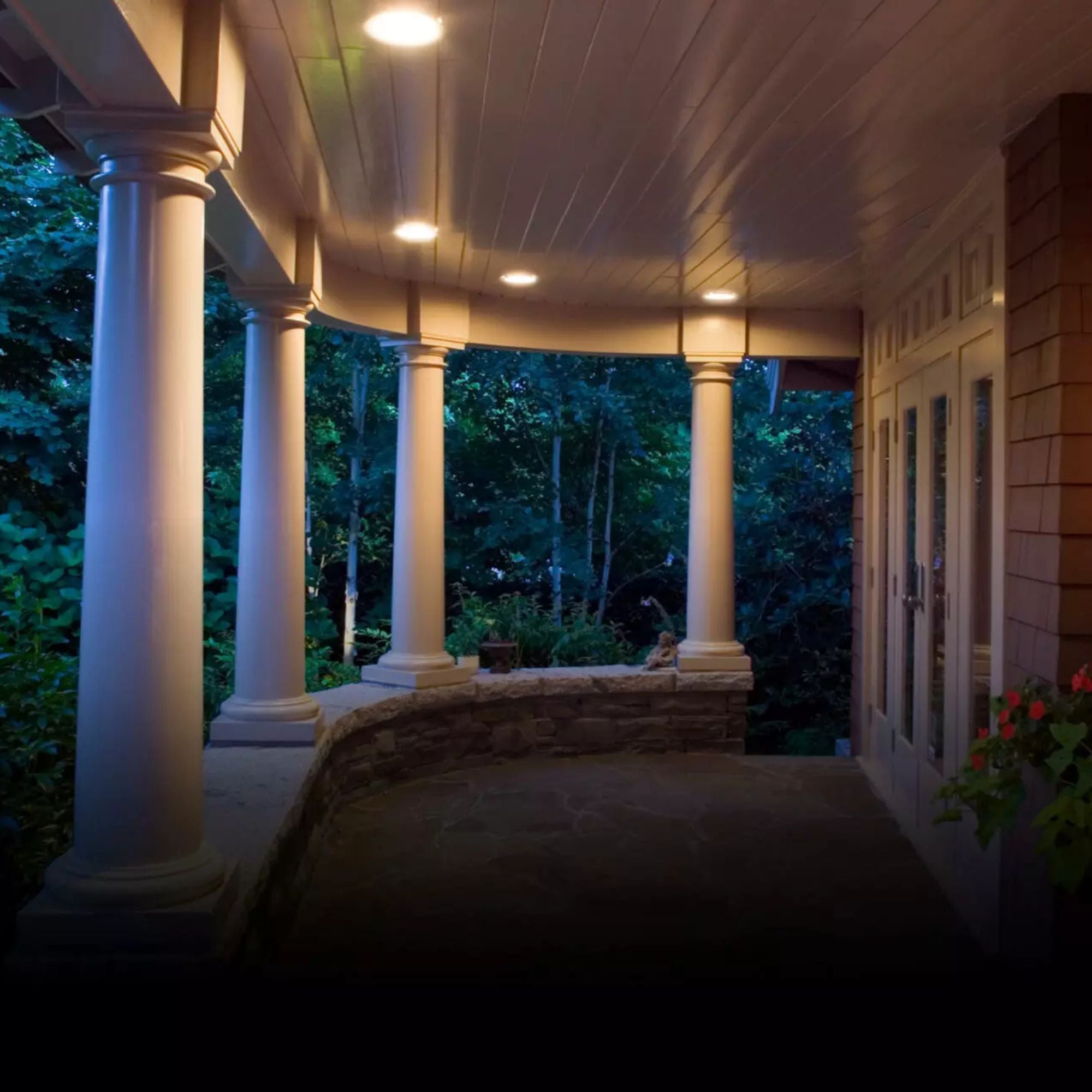

• Covered outdoor circulation areas

What's Included

• RAB DISK34-4 white disk fixture with integrated LED and polycarbonate diffuser
