RAB DISK17-6/BP 6 in LED Flush Mount — White, 10W, 5CCT, Contractor Bulk-Pack Model

The RAB DISK17-6/BP integrated LED surface mount pairs a contractor-focused economy design with five selectable color temperatures. Smooth white trim and a frosted diffuser provide 900 nominal lumens at 10W. Its twist-lock lens simplifies removal and attachment during installation, while compatible TRIAC/ELV controls dim output down to 10%.

Key Features

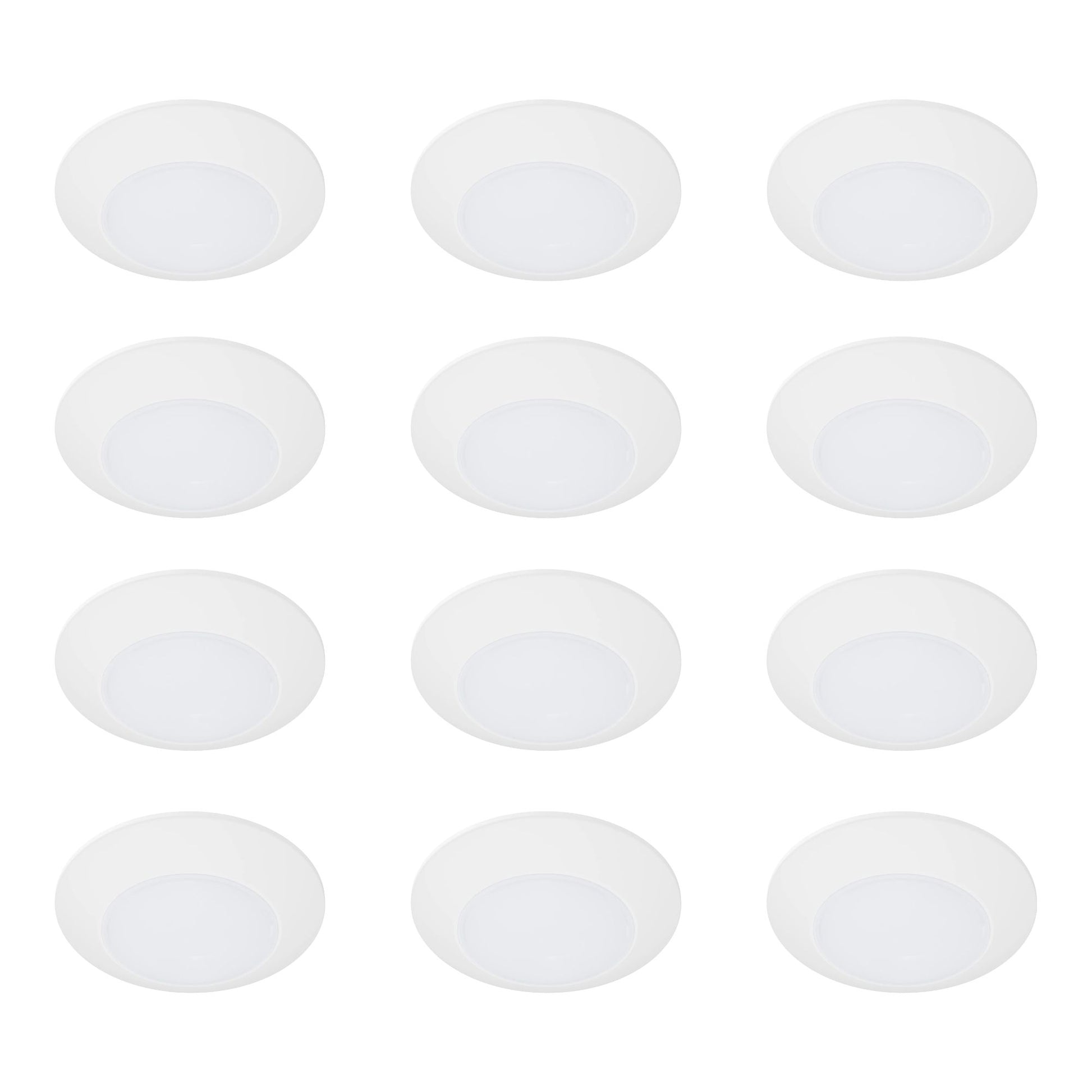

• Contractor Design: Economy CCT-adjustable surface-mount disk in the BP bulk-pack configuration
• Nominal Output: 900 lumens at 10W; 75W incandescent equivalency
• Selectable CCT: 2700K, 3000K, 3500K, 4000K or 5000K via DIP switch
• Dimming: Down to 10% on compatible TRIAC/ELV systems
• Color Quality: 90 CRI and R9 greater than 50; less than 4-step MacAdam Ellipse color consistency
• Beam Angle: 90 degrees
• Driver: Constant-current 120V, 60Hz
• Electrical Quality: Power factor at least 0.9 and flicker below 30%

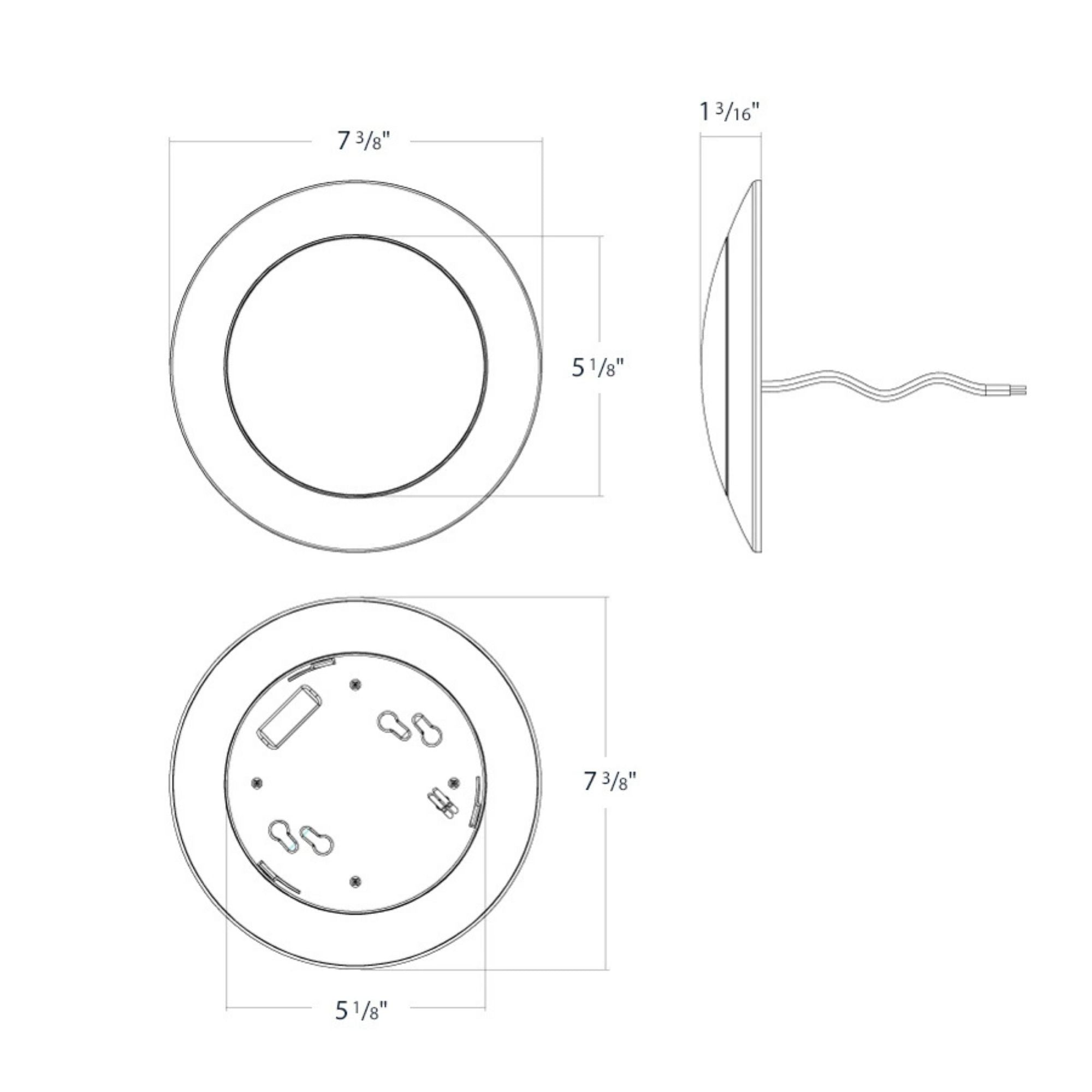

• Construction: Plastic enclosure, smooth white trim and UV-resistant polycarbonate twist-lock diffuser; 6 in nominal size and 0.4 lb
• Environment: UL listed for indoor or outdoor dry, damp and wet use; not IC rated or airtight
• Certifications: ENERGY STAR certified, TAA compliant, FCC Part 15 compliant and RoHS-compliant components; sheet states suitability for conformity with Title 24 Part 6 requirements
• Life and Warranty: 50,000-hour L70 lifespan; -4°F to 104°F operating range; five-year limited RAB warranty

Construction & Design

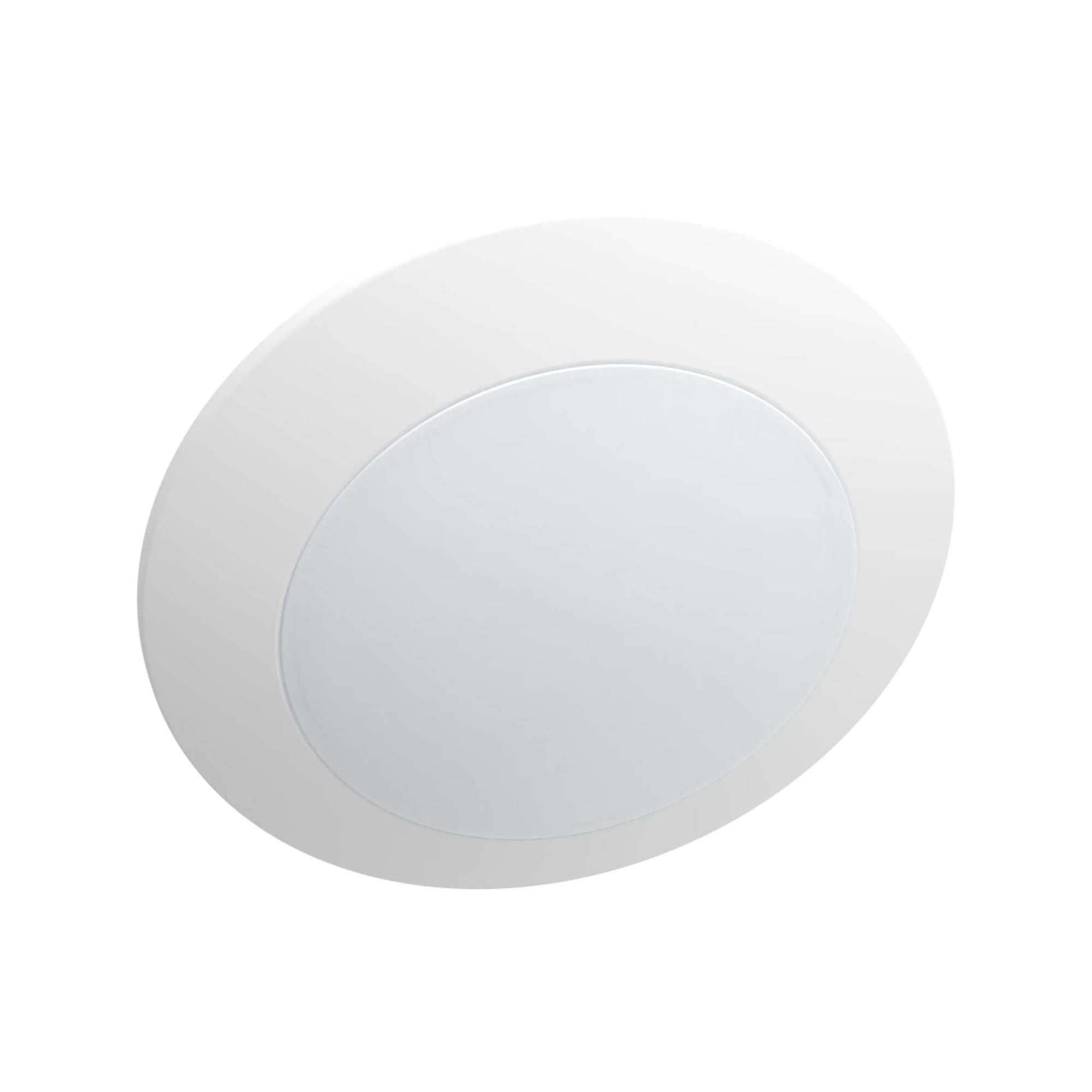

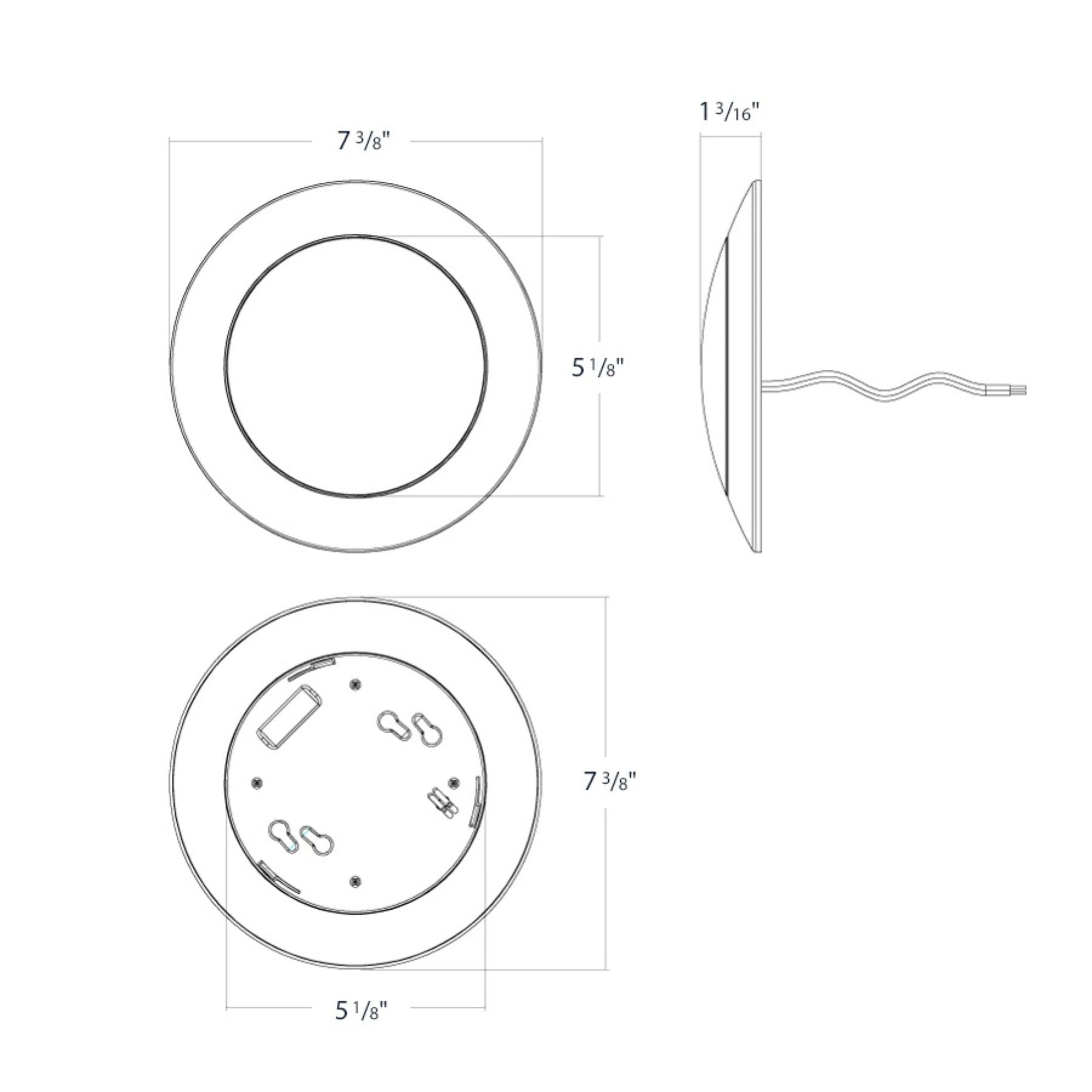

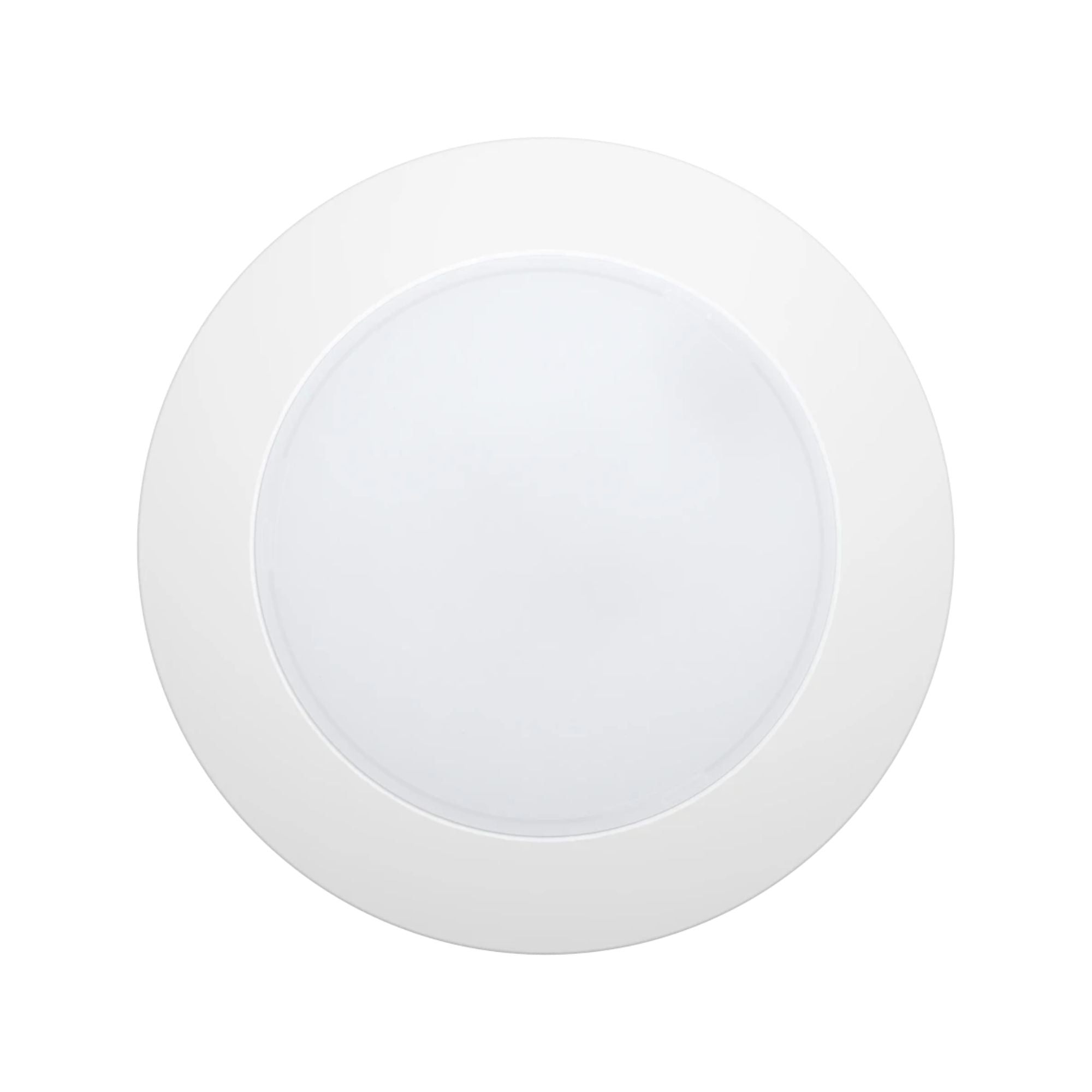

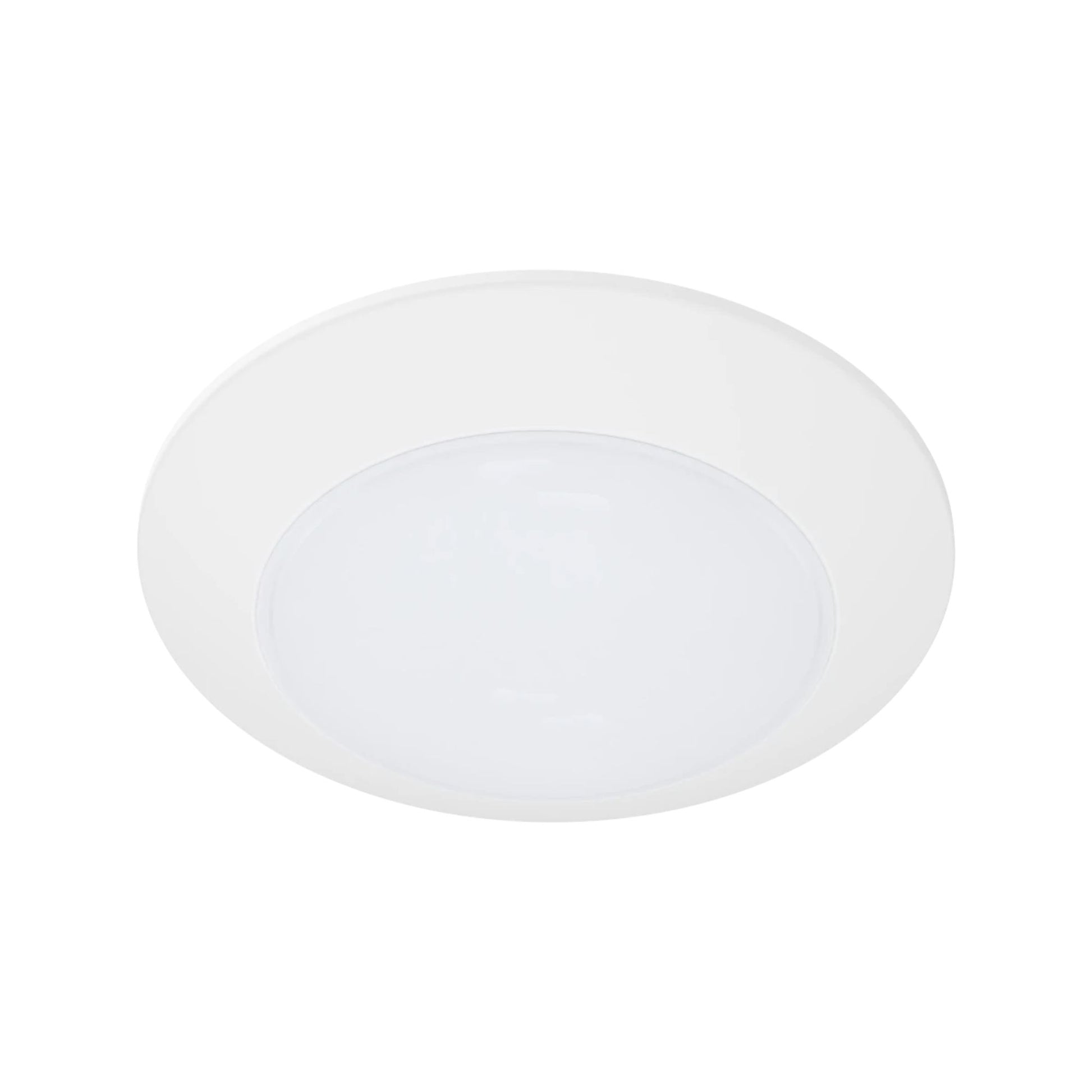

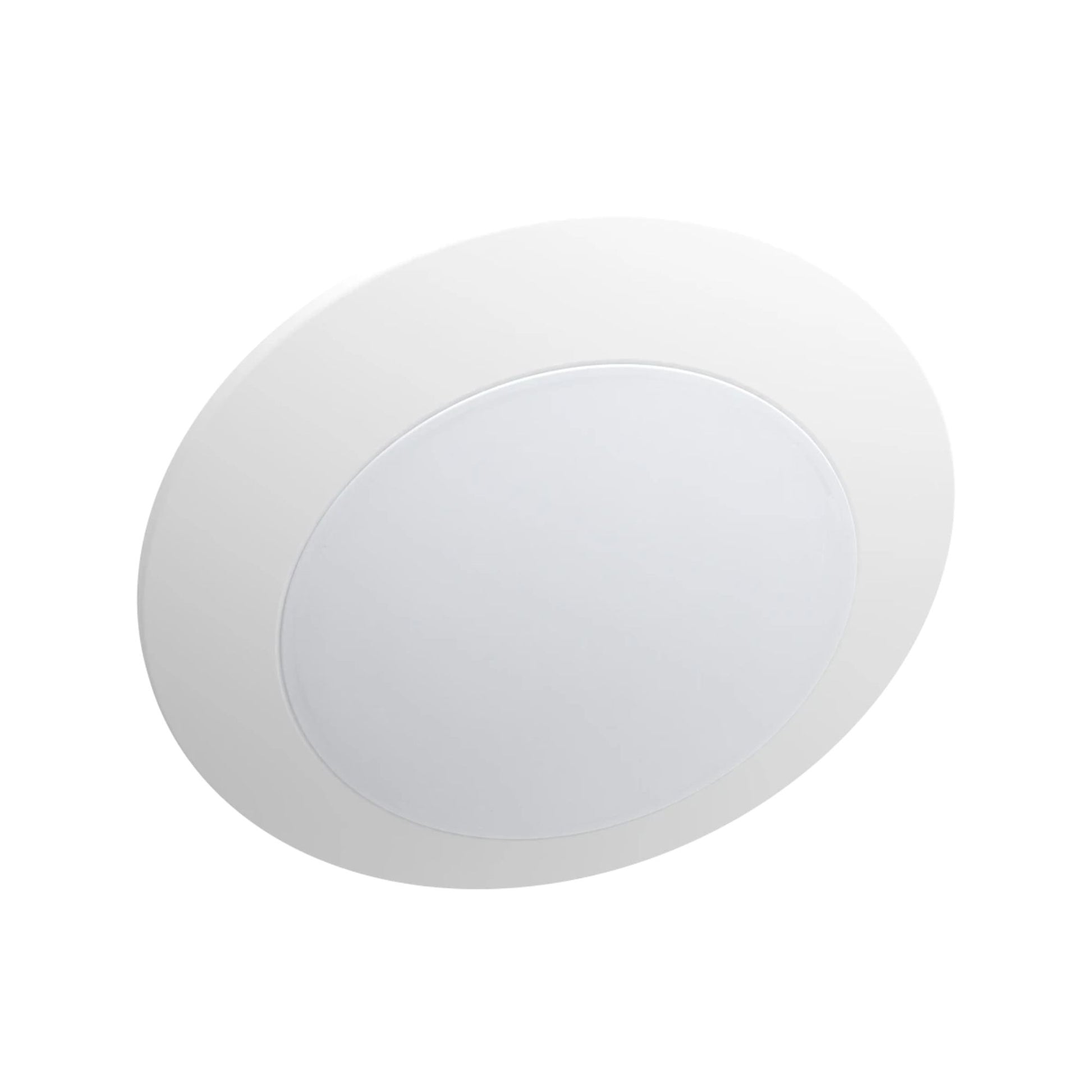

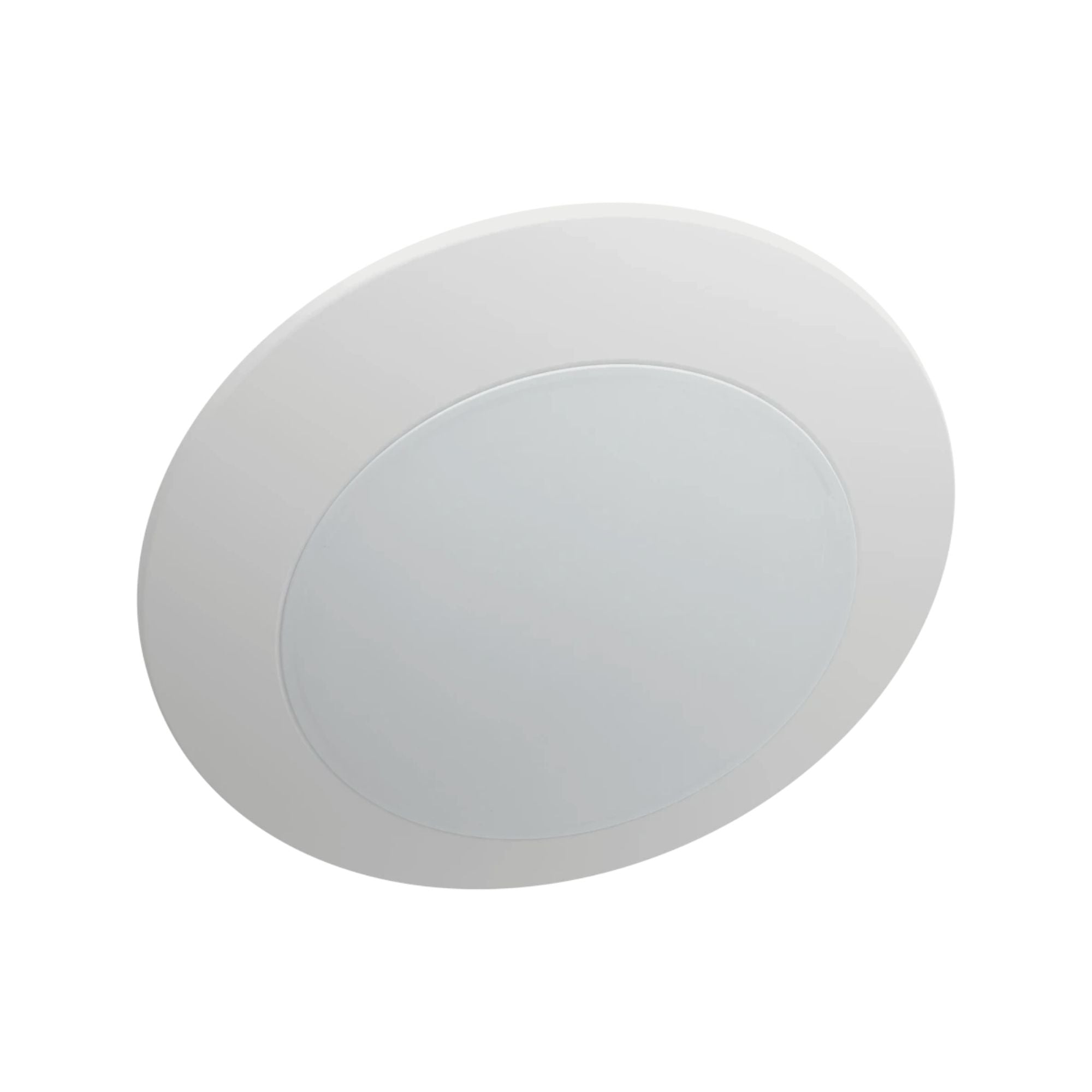

The round white plastic enclosure features smooth trim and a frosted UV-resistant polycarbonate diffuser. The twist-lock lens removes and reattaches during installation. This 6 in nominal-size fixture weighs 0.4 lb. Optional black, brushed nickel and bronze trims let installers coordinate the finish.

Light Output & Performance

Nominal output is 900 lumens at 10W. The LED information table separately lists 891-958 lumens and 9.6-9.7W. A 90-degree beam, 90 CRI and R9 greater than 50 support general illumination with accurate color rendering. Select 2700K, 3000K, 3500K, 4000K or 5000K during installation. Rated LED life is 50,000 hours at L70.

Electrical & Installation

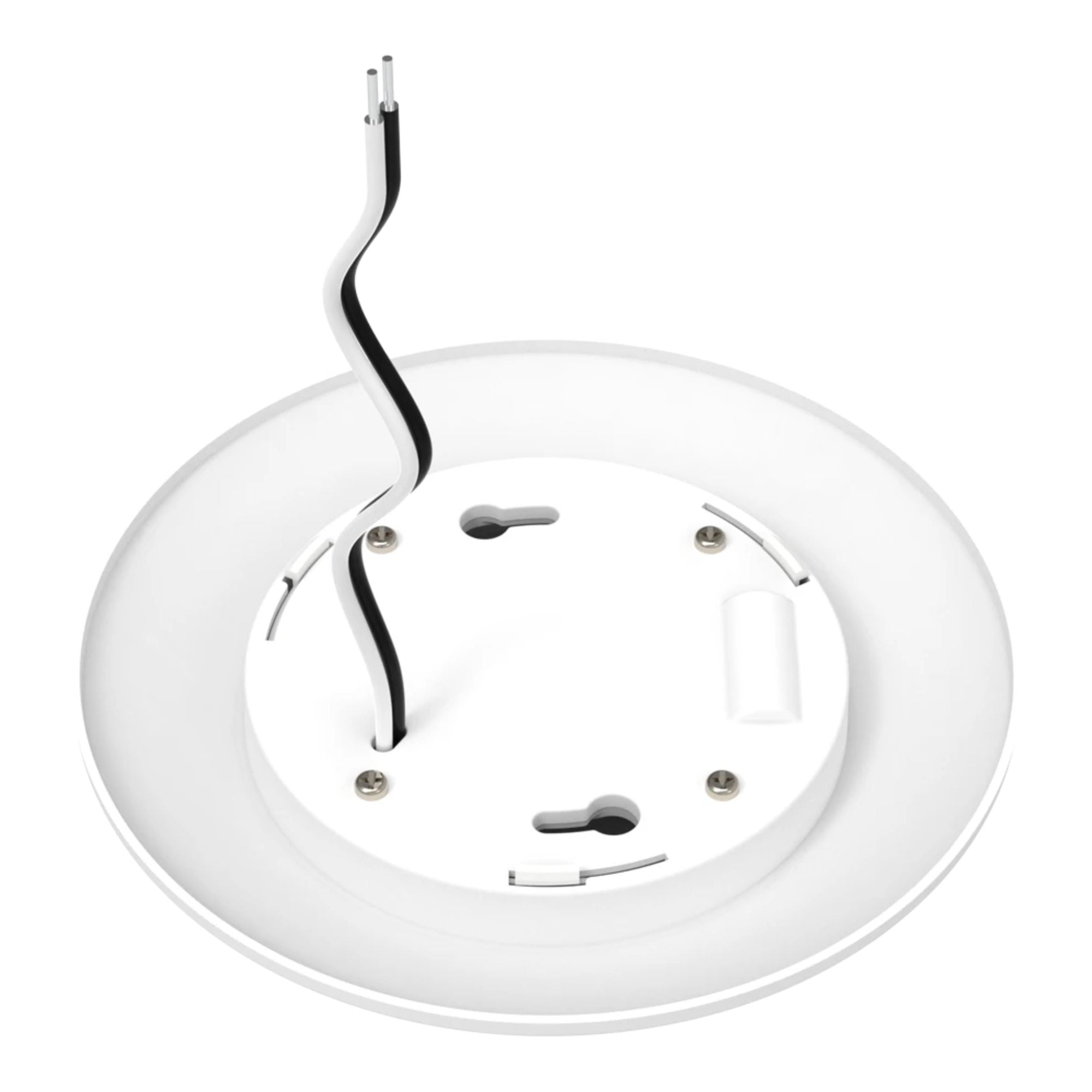

Surface mount on a 120V, 60Hz circuit. The constant-current driver supports TRIAC/ELV dimming down to 10% on compatible controls. Set CCT using the DIP switch and reattach the twist-lock lens. The low-profile surface-mount format avoids a pendant drop where overhead clearance matters. The fixture is UL listed for indoor and outdoor dry, damp or wet environments; it is not IC rated or airtight.

Compatible Accessories

• DISK36-TRIM-6-BLK: 6 in round black color trim
• DISK36-TRIM-6-BN: 6 in round brushed nickel color trim
• DISK36-TRIM-6-BRZ: 6 in round bronze color trim

Typical Applications

• Residential hallways and entryways
• Utility and laundry areas
• Bathrooms

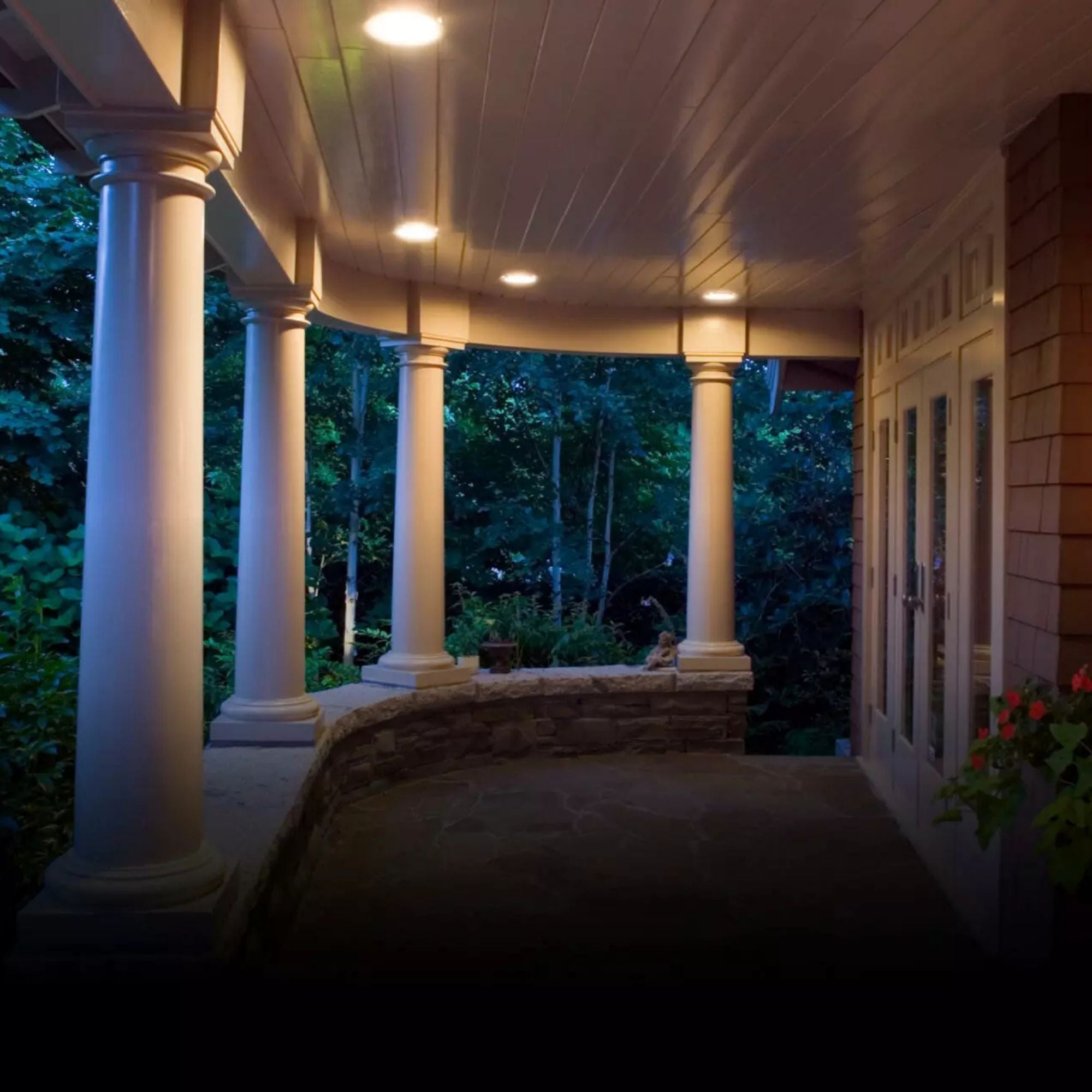

• Covered outdoor circulation areas

What's Included

• RAB DISK17-6/BP white surface-mount fixture with integrated LED and frosted twist-lock diffuser
