RAB DISK17-4/BP 4 in LED Flush Mount — White, 7W, 5CCT, Contractor Bulk-Pack Model

The RAB DISK17-4/BP integrated LED surface mount offers a contractor-focused economy design with five selectable color temperatures. Its smooth white trim and frosted diffuser provide 600 nominal lumens at 7W, while a twist-lock lens simplifies removal and attachment during installation. Compatible TRIAC/ELV controls dim the fixture down to 10%.

Key Features

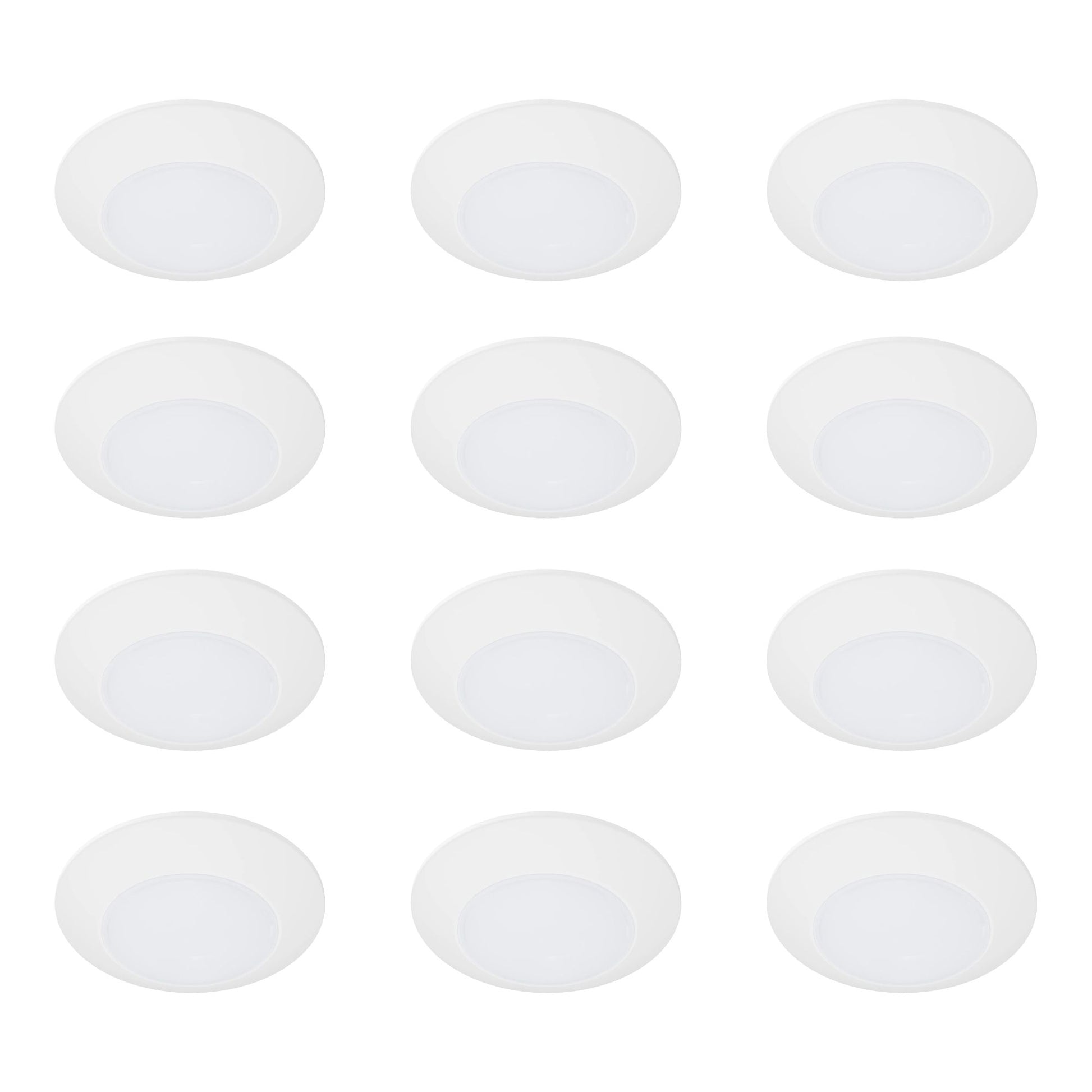

• Contractor Design: Economy CCT-adjustable surface-mount disk light in the BP bulk-pack configuration
• Nominal Output: 600 lumens at 7W; 60W incandescent equivalency
• Selectable CCT: 2700K, 3000K, 3500K, 4000K or 5000K via DIP switch
• Dimming: Down to 10% on compatible TRIAC/ELV systems
• Color Quality: 90 CRI and R9 greater than 50; less than 4-step MacAdam Ellipse color consistency
• Beam Angle: 90 degrees
• Driver: Constant-current 120V, 60Hz; 60mA input current
• Electrical Quality: Power factor at least 0.9 and flicker below 30%

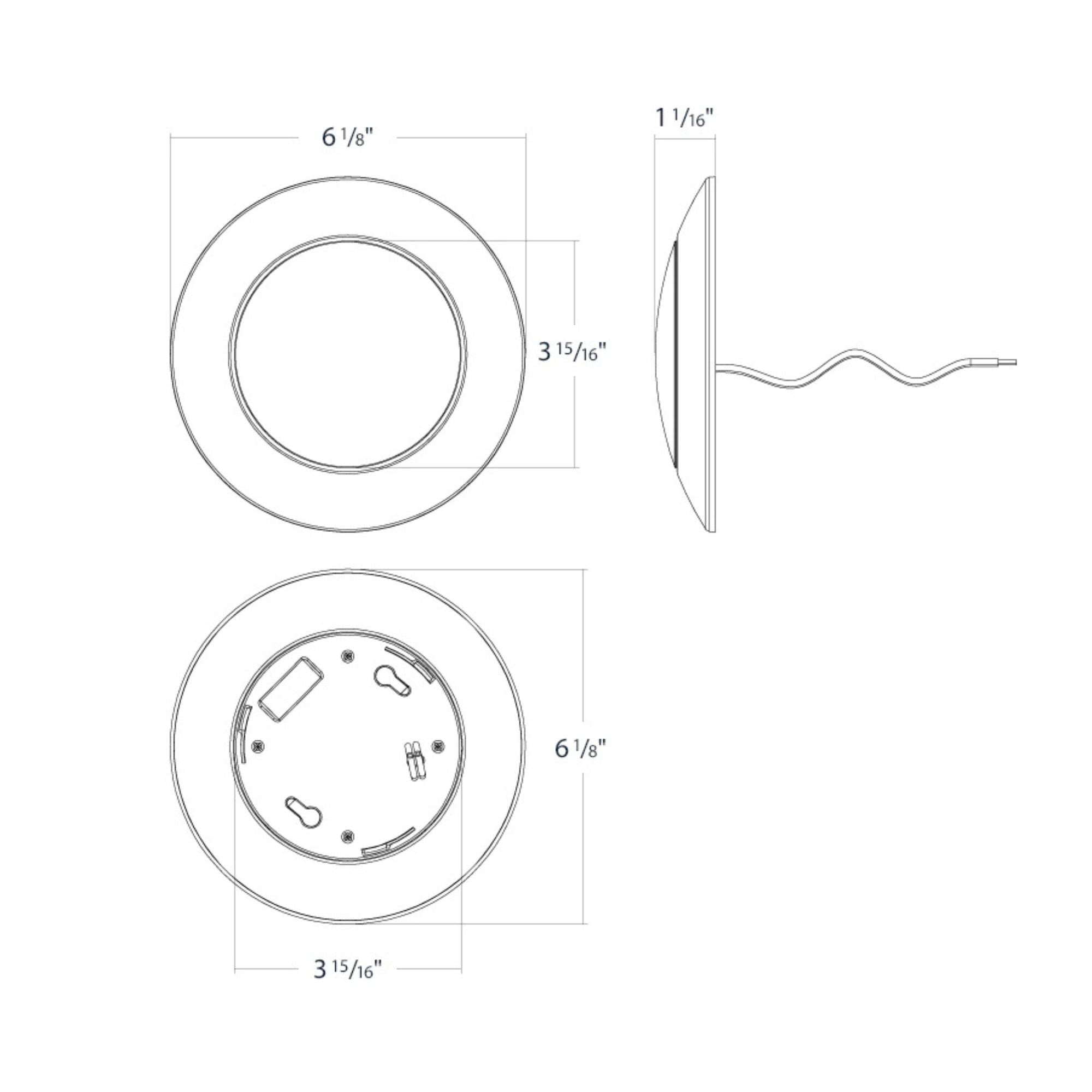

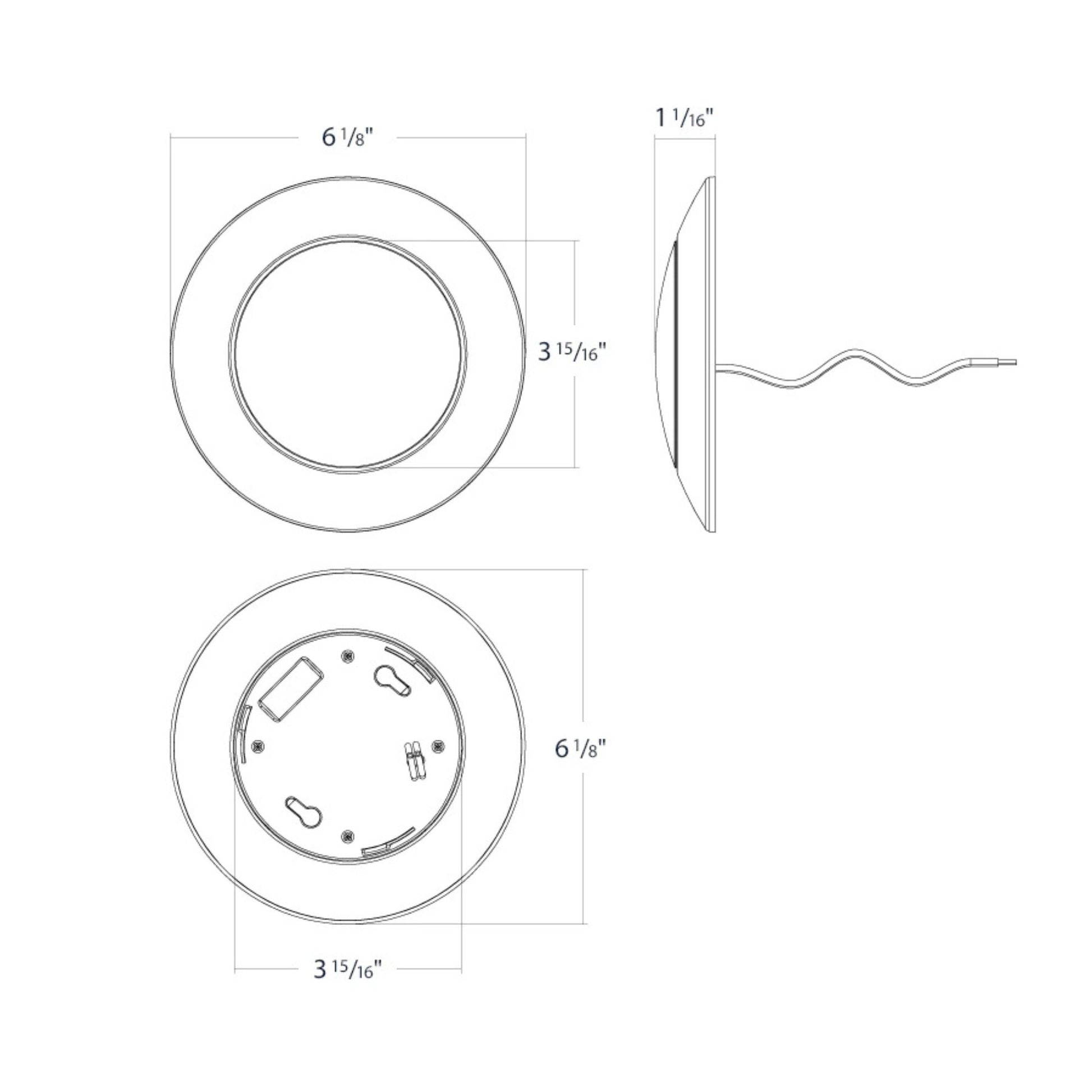

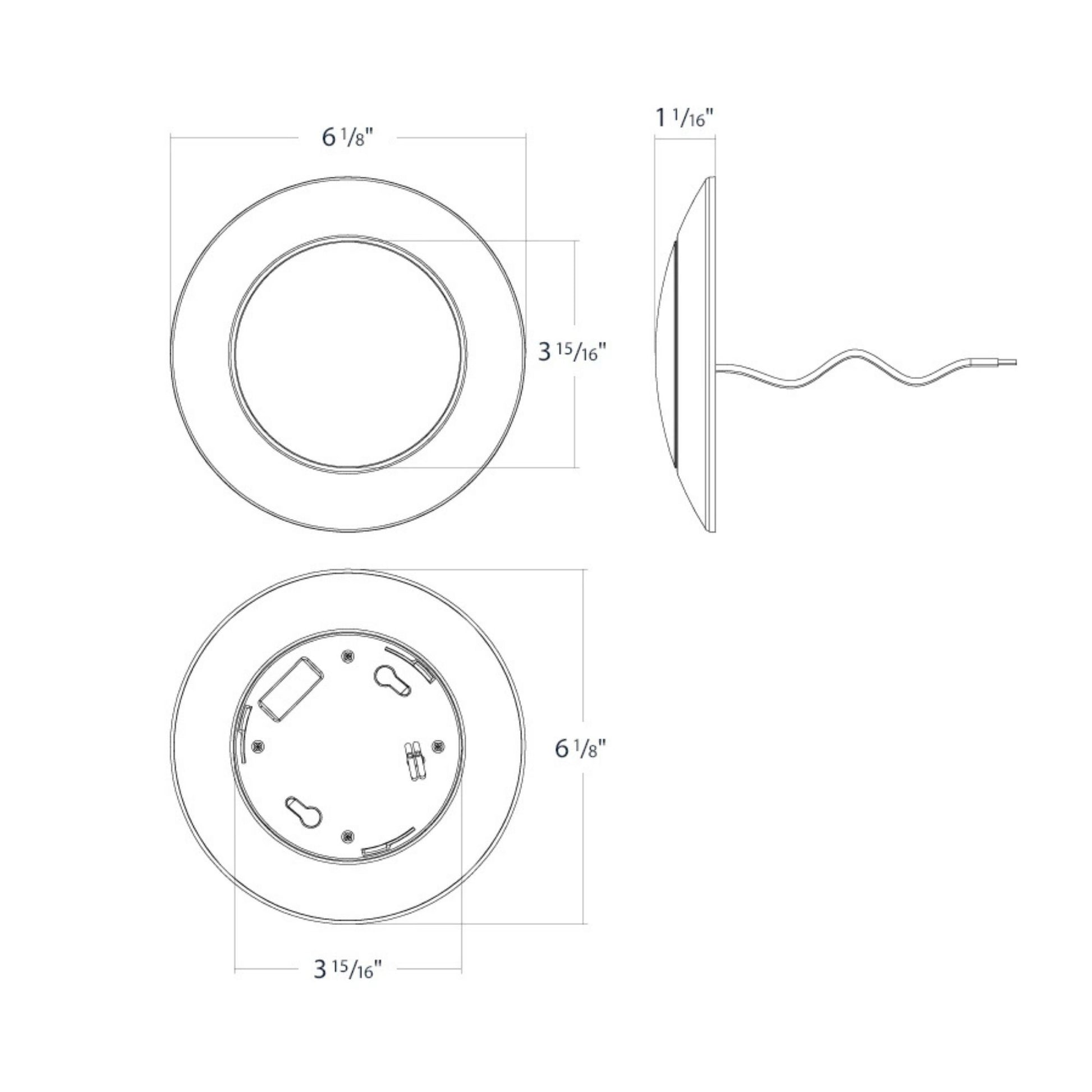

• Construction: Plastic enclosure, smooth white trim and twist-lock UV-resistant polycarbonate diffuser; 4 in nominal size and 0.3 lb
• Environment: UL listed for indoor or outdoor dry, damp and wet use; not IC rated or airtight
• Certifications: ENERGY STAR certified, TAA compliant, FCC Part 15 compliant and RoHS-compliant components; sheet states suitability for conformity with Title 24 Part 6 requirements
• Life and Warranty: 50,000-hour L70 lifespan; -4°F to 104°F operating range; five-year limited RAB warranty

Construction & Design

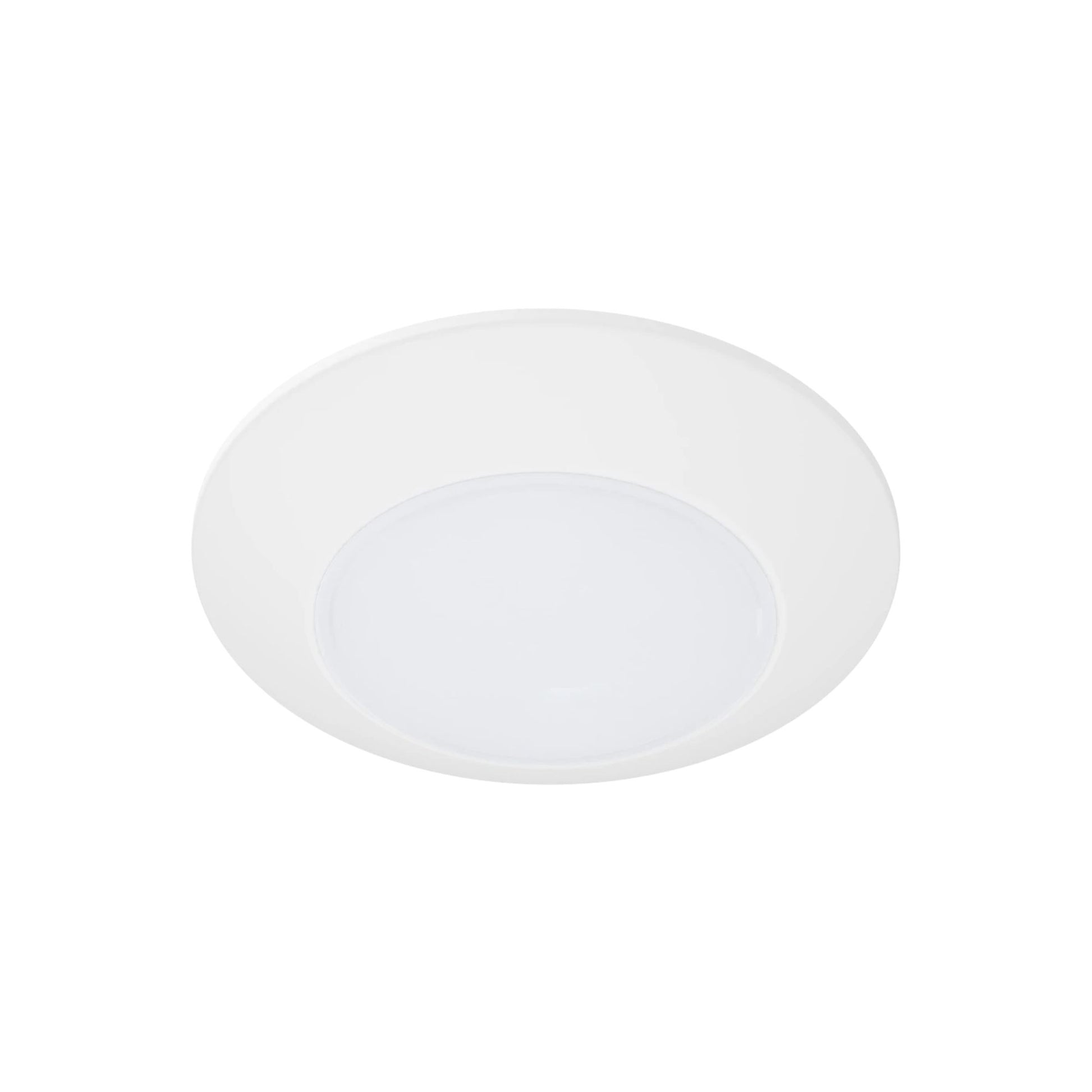

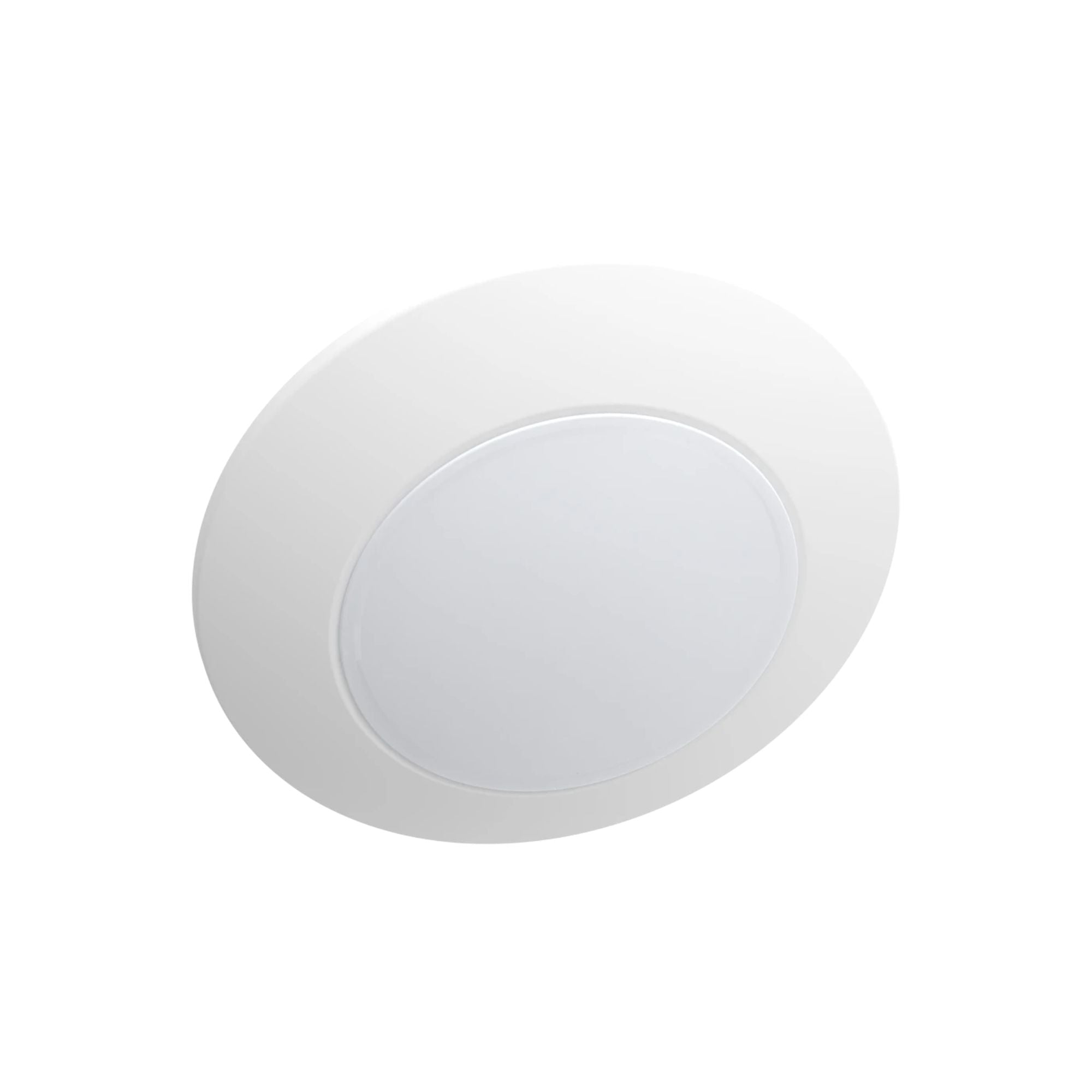

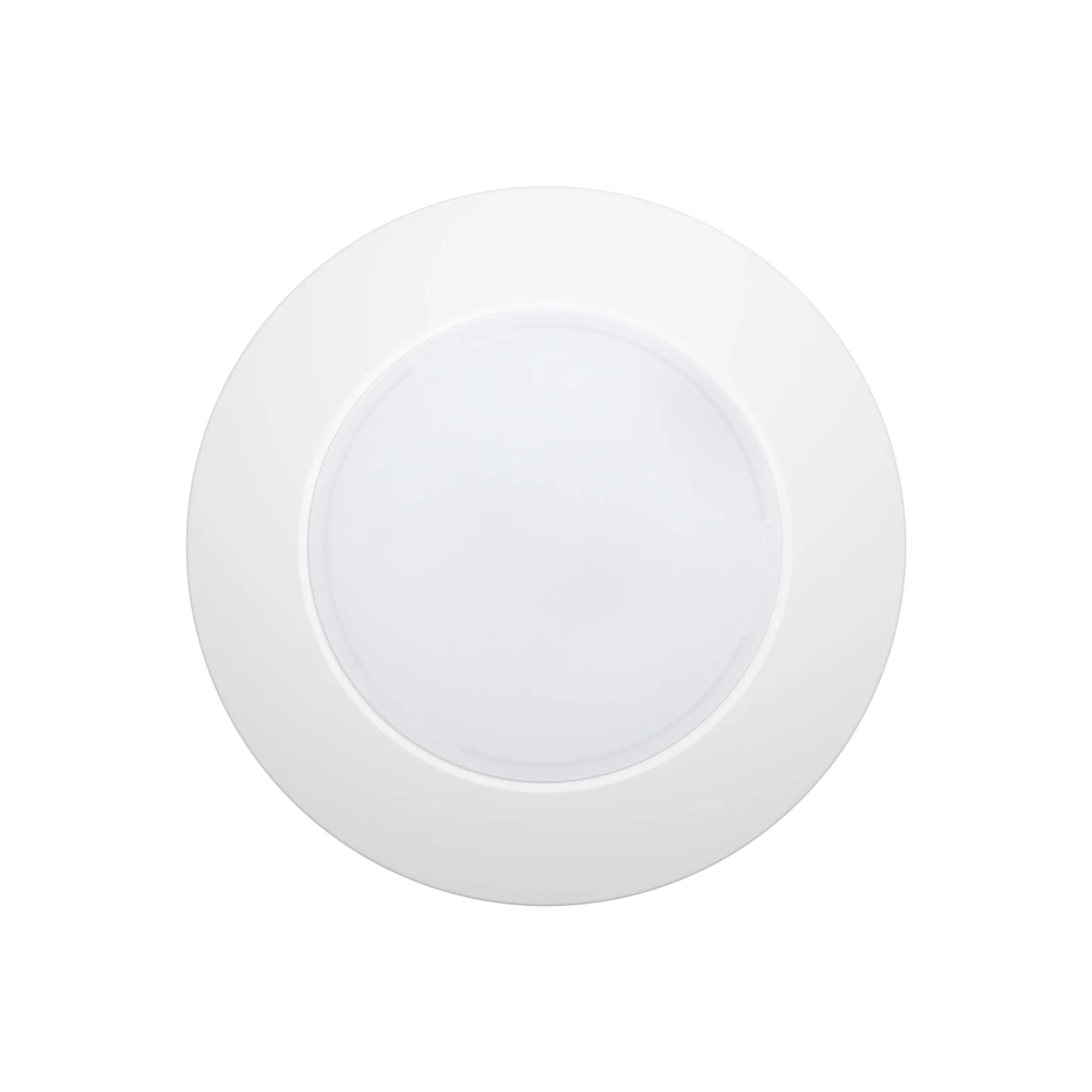

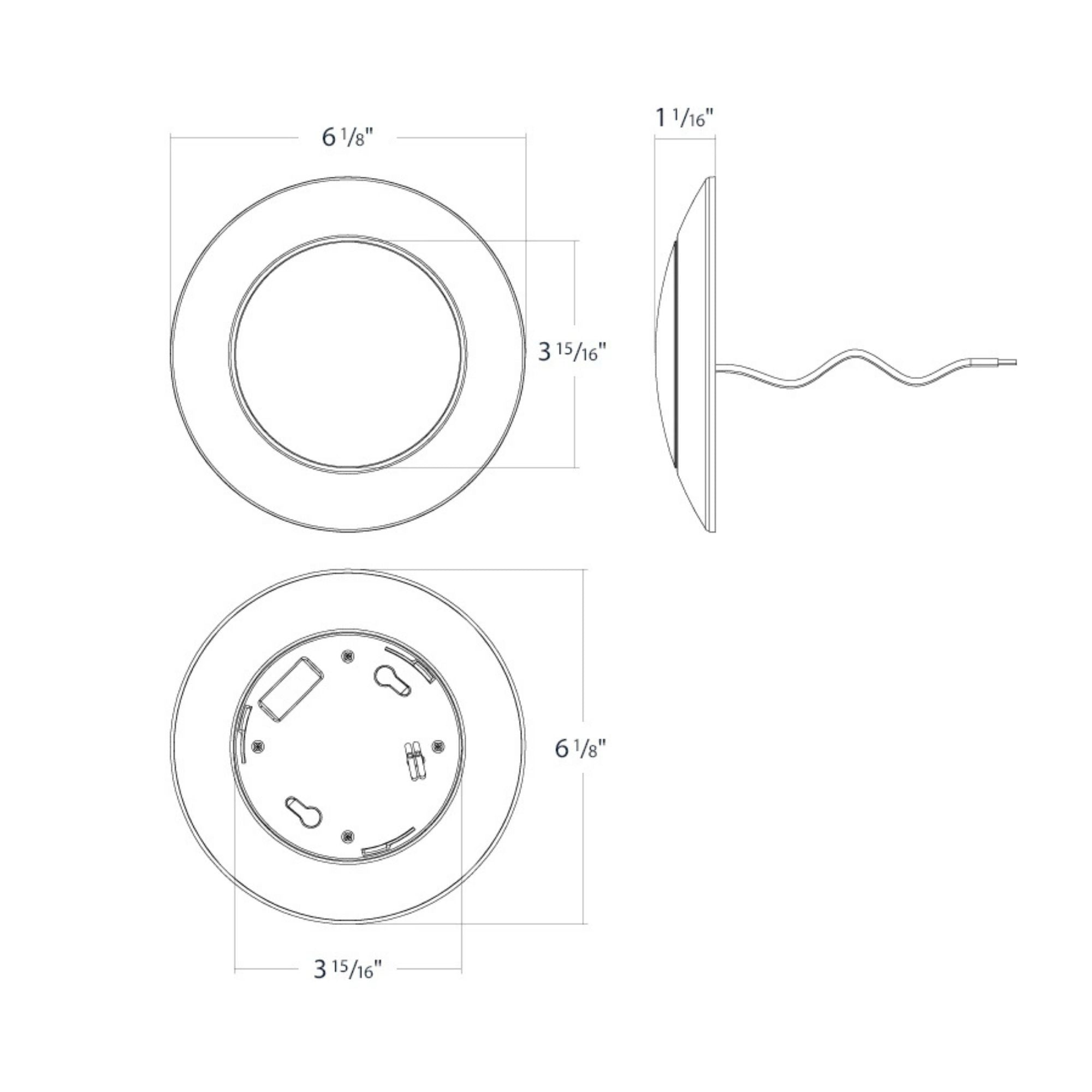

The round white plastic enclosure features smooth trim and a frosted UV-resistant polycarbonate diffuser. Its twist-lock lens removes and reattaches during installation. This 4 in nominal-size fixture weighs 0.3 lb, with optional black, brushed nickel and bronze color trims available.

Light Output & Performance

Nominal light output is 600 lumens at 7W. The LED information table also lists 597-663 lumens and 6.5-6.7W, distinct from the nominal ratings. A 90-degree beam and 90 CRI with R9 greater than 50 support general illumination and accurate color rendering. Select 2700K, 3000K, 3500K, 4000K or 5000K during installation. Rated LED life is 50,000 hours at L70.

Electrical & Installation

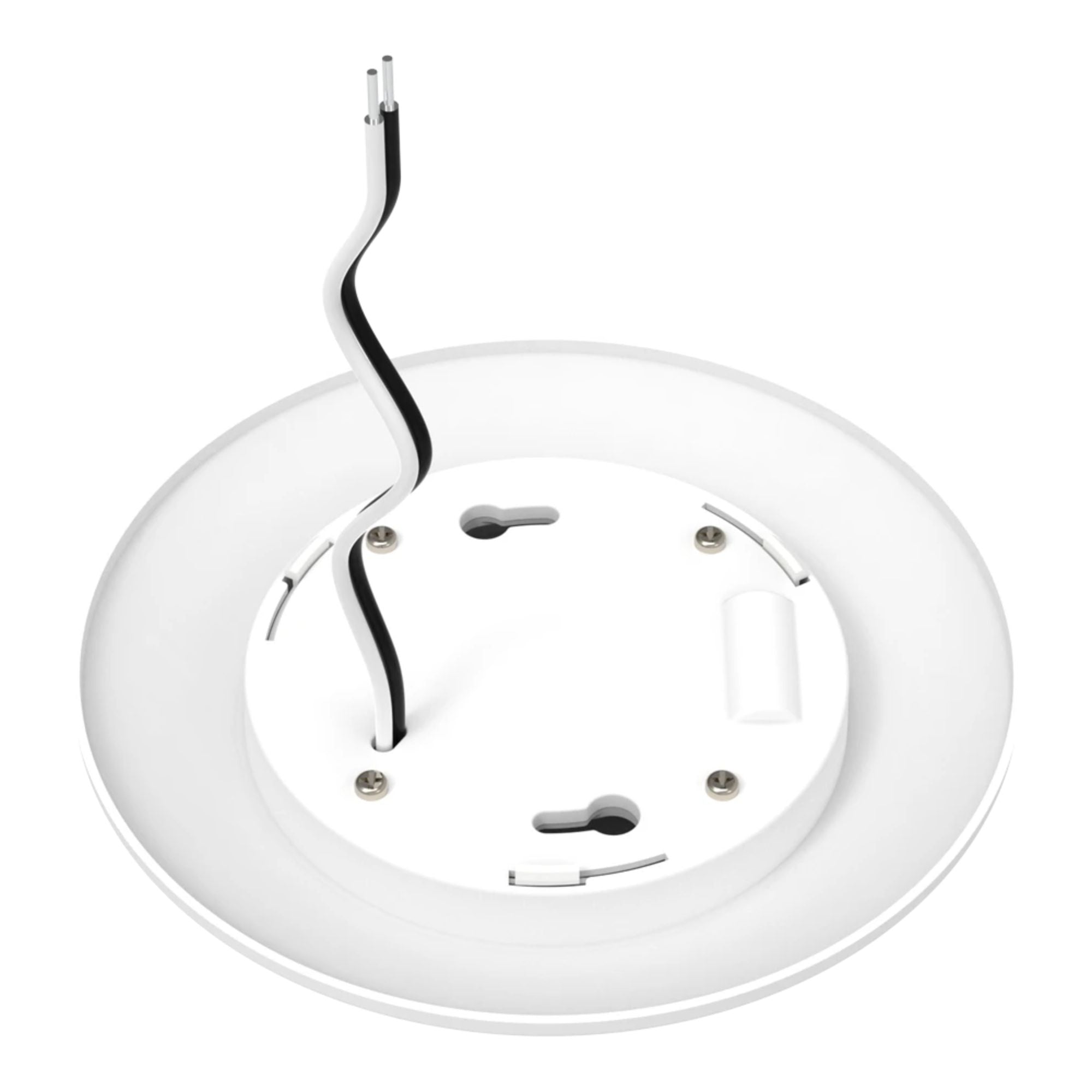

Surface mount this fixture on a 120V, 60Hz circuit. The constant-current driver draws 60mA and supports TRIAC/ELV dimming down to 10% with compatible controls. Set CCT using the DIP switch and reattach the twist-lock lens. The low-profile surface-mount format avoids a pendant drop where overhead clearance matters. The fixture is UL listed for indoor and outdoor dry, damp or wet environments; it is not IC rated or airtight.

Compatible Accessories

• DISK34-TRIM-4-BLK: 4 in round black color trim
• DISK34-TRIM-4-BN: 4 in round brushed nickel color trim
• DISK34-TRIM-4-BRZ: 4 in round bronze color trim

Typical Applications

• Residential hallways and entryways
• Utility and laundry areas
• Bathrooms

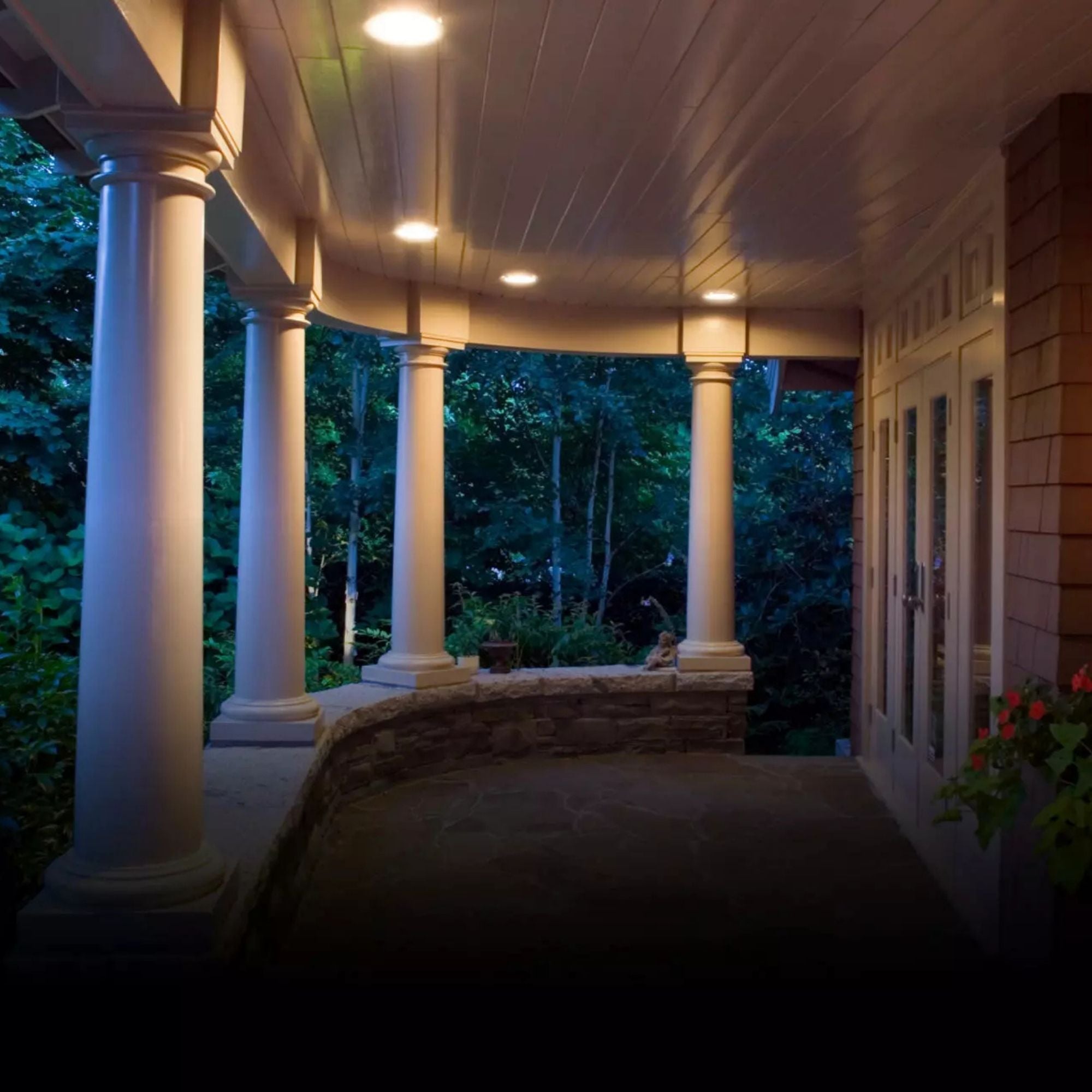

• Covered outdoor circulation areas

What's Included

• RAB DISK17-4/BP white surface-mount fixture with integrated LED and frosted twist-lock diffuser
