RAB DISK-6/PIR 6 in LED Flush Mount — White, 12W, 5CCT, PIR Motion Sensor

The RAB DISK-6/PIR low-profile integrated LED surface mount pairs a PIR motion sensor and photocell with adjustable motion modes and hold times. Its frosted polycarbonate diffuser delivers soft, smooth light with 1,050 lumens at 12W. Five selectable color temperatures and a clean white finish help coordinate indoor utility and circulation spaces.

Key Features

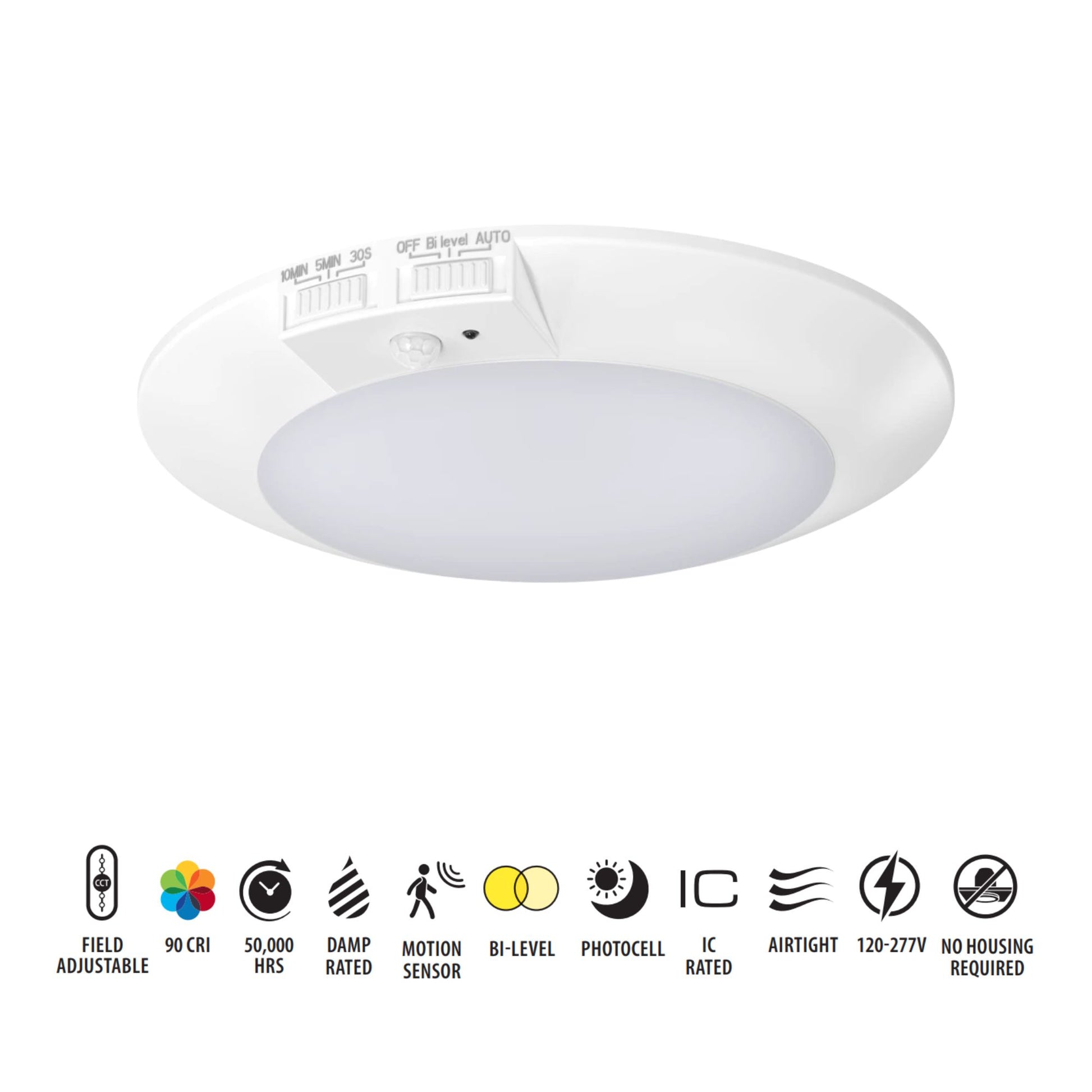

• Integrated Controls: Passive infrared motion sensor and photocell
• Motion Modes: Auto, Bi-Level and Off via integrated DIP switches
• Hold Times: 30 seconds by default, 5 minutes or 10 minutes
• Detection: 13 ft diameter at 6.5 ft mounting height; maximum mounting height 6.5 ft
• Selectable CCT: 2700K, 3000K, 3500K, 4000K or 5000K; default 3000K
• Output: 1,050 lumens at 12W; 88 lm/W; 60W incandescent equivalency
• Color and Beam: 90 CRI, R9 greater than 50 and 110-degree beam with ±10-degree tolerance
• Electrical: Constant-current 120V, 60Hz driver; 0.11A input; power factor at least 0.9; flicker at most 30%; non-dimmable
• Construction: Plastic and metal enclosure, smooth white trim and frosted polycarbonate lens; 6 in nominal size and 0.5 lb
• Listings: UL listed and ENERGY STAR certified; indoor dry and damp use
• Compliance: Can be used to conform with Title 24 Part 6 requirements as stated on the sheet; RoHS-compliant components, FCC Part 15 compliant and TAA compliant
• Life and Warranty: 50,000-hour L70 lifespan; -4°F to 104°F operating range; five-year RAB warranty

Construction & Design

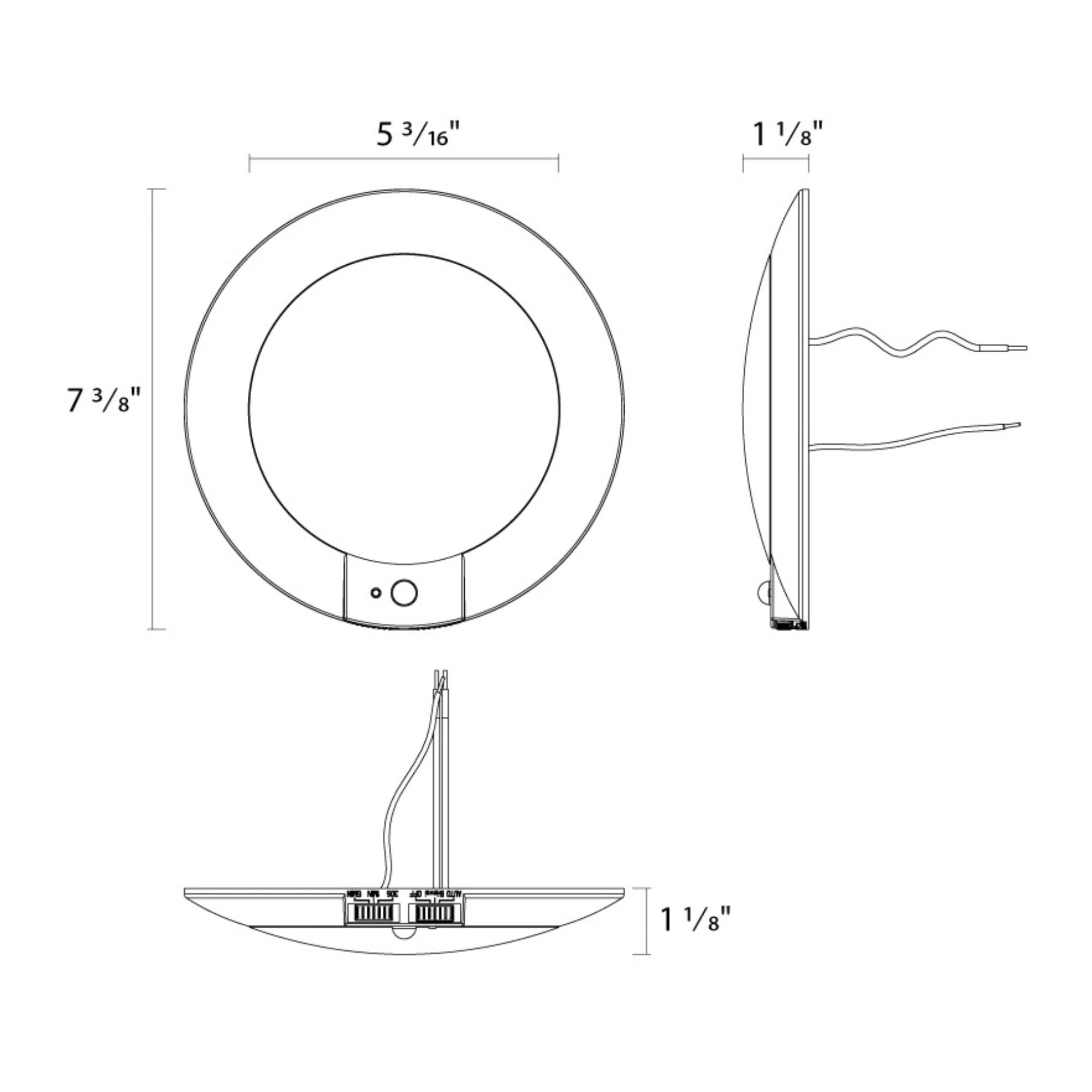

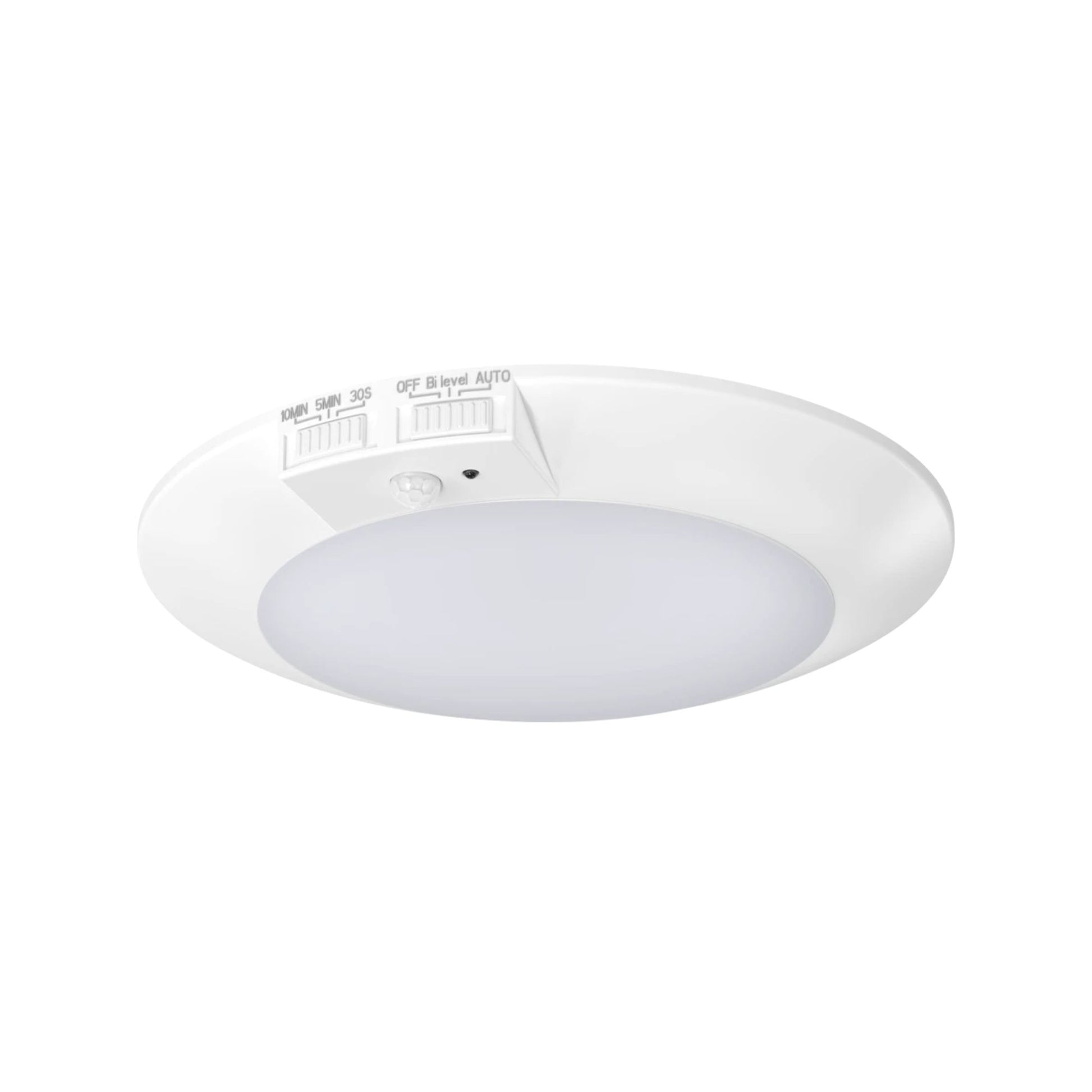

The round plastic-and-metal enclosure features smooth white trim and a frosted polycarbonate diffuser that distributes light evenly. This 6 in nominal-size surface-mount fixture weighs 0.5 lb and maintains a low-profile appearance without a hanging drop.

Light Output & Performance

The integrated LED delivers 1,050 lumens with 90 CRI and R9 greater than 50. A 110-degree beam, with ±10-degree tolerance, provides broad illumination. DIP switches select 2700K, 3000K, 3500K, 4000K or 5000K, with 3000K as the default. Rated LED life is 50,000 hours at L70.

Electrical & Installation

Operate on 120V at 60Hz with a 0.11A constant-current driver. This fixture is not compatible with external dimmers. Surface mount within the specified 6.5 ft maximum sensor mounting height; the stated detection diameter is 13 ft at that height. Choose a location within this limit rather than assuming suitability for standard higher ceilings. Use indoors in dry or damp environments, not wet locations.

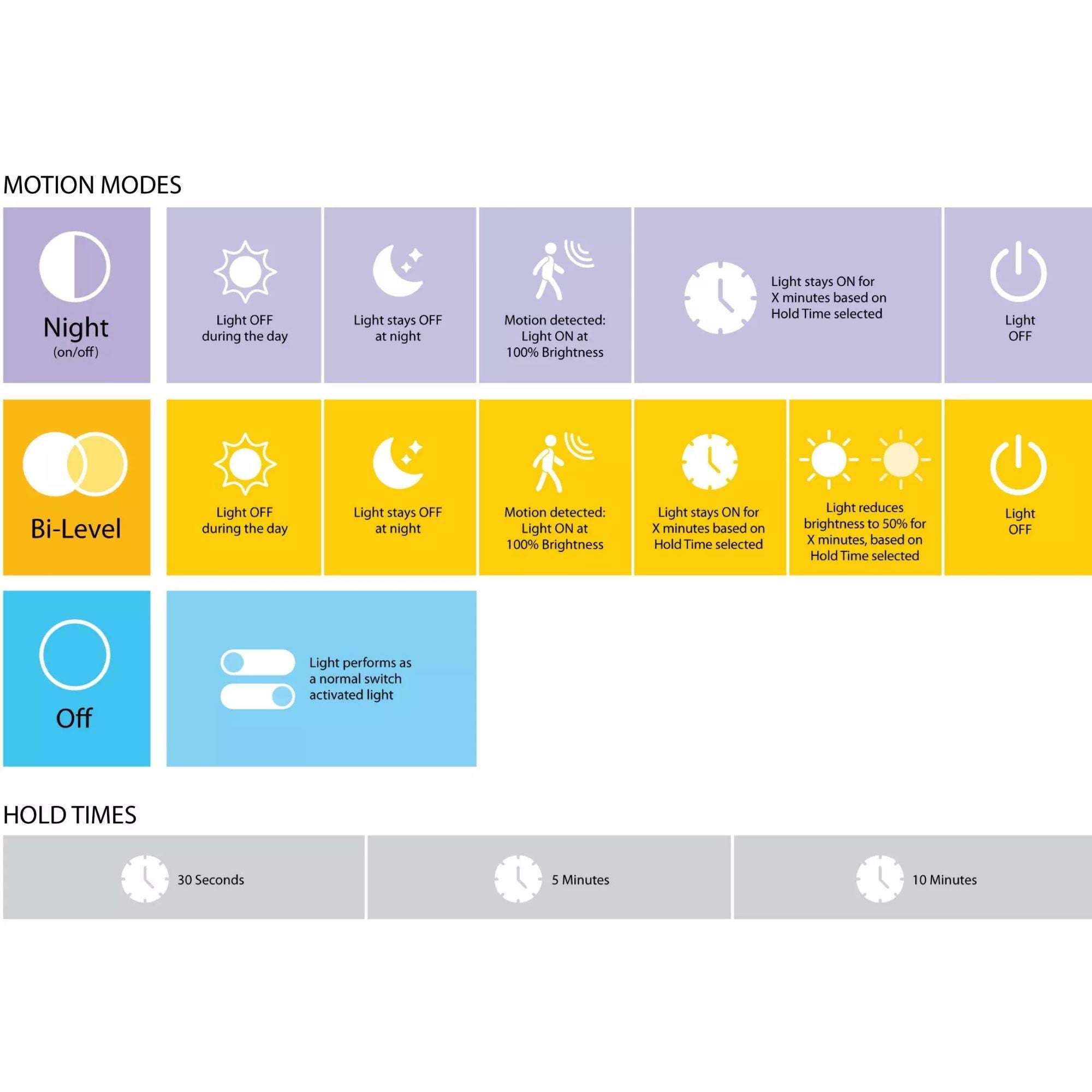

Auto mode keeps the light off during the day and activates 100% brightness upon nighttime motion, switching off after the selected hold time. Bi-Level mode activates 100% brightness with nighttime motion, then reduces output to 50% after the first hold period before switching off after another selected hold period. Off mode disables motion detection. Hold times are 30 seconds, 5 minutes or 10 minutes. The internal 50% Bi-Level setting does not mean the fixture accepts an external dimmer.

Typical Applications

• Low-height indoor circulation areas within the sensor mounting limit
• Utility and laundry areas
• Storage and pantry areas
• Indoor damp areas without direct water exposure

What's Included

• (1) RAB DISK-6/PIR white surface-mount fixture with integrated LED, PIR sensor and photocell
