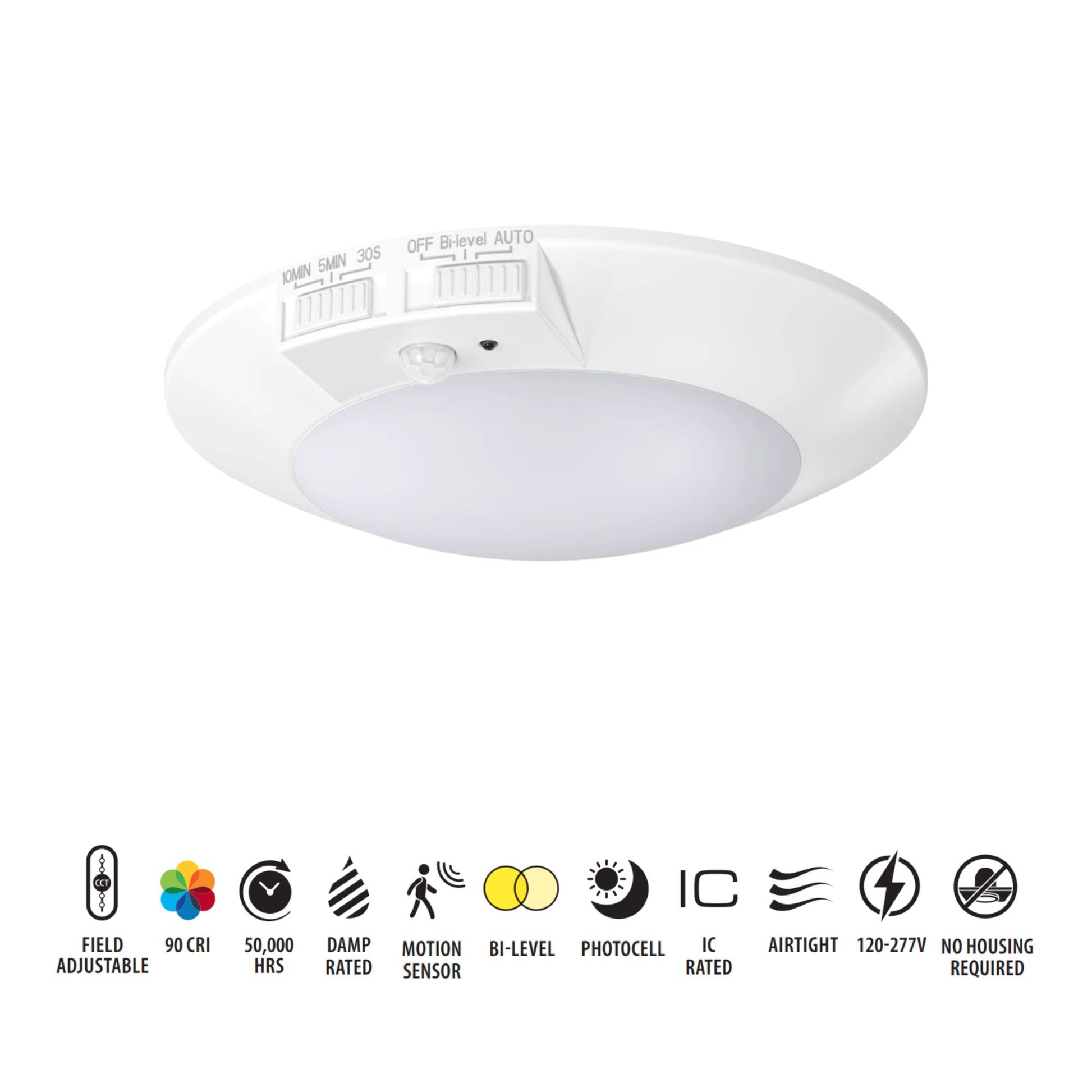

RAB DISK-4/PIR 4 in LED Flush Mount — White, 8W, 5CCT, PIR Motion Sensor

The RAB DISK-4/PIR low-profile integrated LED surface mount combines a PIR motion sensor and photocell with adjustable motion modes and hold times. Its white finish and frosted polycarbonate diffuser provide soft, smooth illumination with 700 lumens at 8W. Select one of five color temperatures to match the space, then configure automatic lighting for indoor dry or damp environments.

Key Features

• Integrated Controls: Passive infrared motion sensor and photocell
• Motion Modes: Auto, Bi-Level and Off via integrated DIP switches
• Hold Times: 30 seconds by default, 5 minutes or 10 minutes
• Detection: 13 ft diameter coverage at 6.5 ft mounting height; maximum mounting height 6.5 ft
• Selectable CCT: 2700K, 3000K, 3500K, 4000K or 5000K; default 3000K
• Light Output: 700 lumens at 8W; 88 lm/W; 40W incandescent equivalency
• Color and Beam: 90 CRI, R9 greater than 50 and 110-degree beam with ±10-degree tolerance
• Electrical: Constant-current 120V, 60Hz driver; power factor at least 0.9; flicker at most 30%; non-dimmable

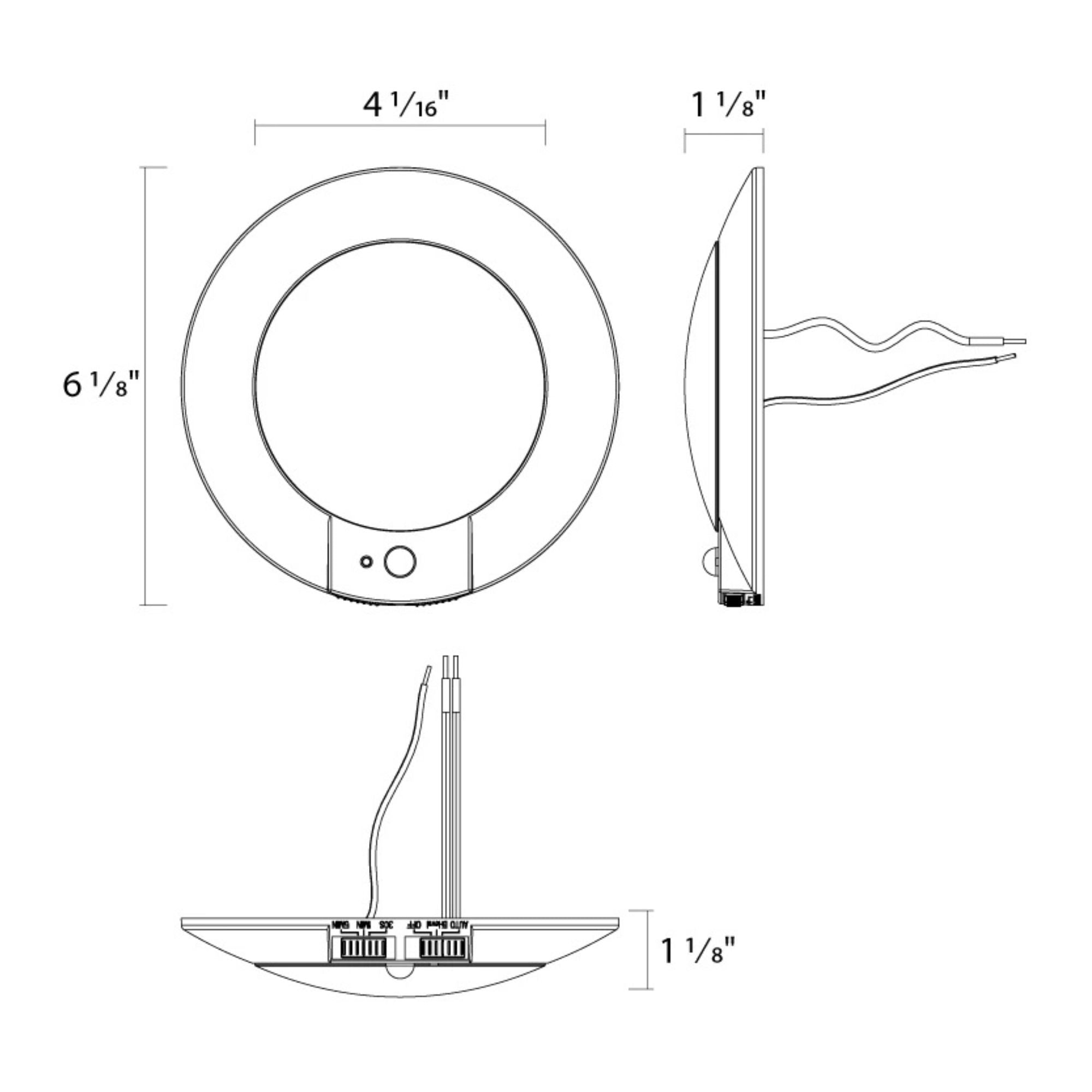

• Construction: Plastic and metal enclosure, smooth white trim and frosted polycarbonate diffuser; 4 in nominal size and 0.4 lb
• Listings: UL listed and ENERGY STAR certified; indoor dry and damp use
• Compliance: Title 24 JA8 conformity supported as stated on the sheet; RoHS-compliant components, FCC Part 15 compliant and TAA compliant
• Life and Warranty: 50,000-hour L70 lifespan, -4°F to 104°F operating range and five-year RAB warranty

Construction & Design

A smooth white finish and round low-profile enclosure blend into utility and circulation spaces. The plastic-and-metal body weighs 0.4 lb. A frosted polycarbonate lens spreads light evenly without the visual bulk of a hanging fixture.

Light Output & Performance

The integrated LED delivers 700 lumens with 90 CRI and R9 greater than 50. The 110-degree beam, with ±10-degree tolerance, supports broad general illumination. DIP switches select 2700K, 3000K, 3500K, 4000K or 5000K, with 3000K as the default. Rated LED life is 50,000 hours at L70.

Electrical & Installation

This surface-mount fixture operates on 120V at 60Hz and is not compatible with external dimmers. For the specified sensor performance, mounting height must not exceed 6.5 ft; detection coverage is a 13 ft diameter at that height. Its low-profile design avoids a pendant drop, but the sensor-height limit remains essential when choosing a location.

In Auto mode, the light stays off during the day and turns on at 100% brightness when motion is detected at night, switching off after the selected hold time. In Bi-Level mode, nighttime motion activates 100% brightness; after the hold time, output reduces to 50% for another selected hold period before switching off. Off mode disables motion detection. Choose a 30-second, 5-minute or 10-minute hold time. The internally controlled 50% level is distinct from external dimming compatibility.

Typical Applications

• Low-height indoor circulation areas within the sensor mounting limit
• Utility and laundry areas
• Storage and pantry areas
• Indoor damp locations without direct water exposure

What's Included

• (1) RAB DISK-4/PIR white LED surface-mount fixture with integrated LED, PIR sensor and photocell
