RAB CW2 C-WRAP Field Adjustable 2ft Wraparound Light 3000 Lumens 22W Selectable CCT 120-277V White
Available in stock (200)
About this item
About this item
- Lumens: Provides up to 3,040 lumens for efficient lighting in various applications.
- Wattage: Field adjustable wattage options of 22W, 17W, and 11W to suit different needs.
- Voltage: Operates on a wide voltage range of 120-277V for versatile installation.
- Dimming: Includes 0-10V dimming capability for customizable light levels.
- Construction: Made with sustainable materials including biocomposite resin and recycled components.
We process payments securely and do not store credit card information.
Description
Description

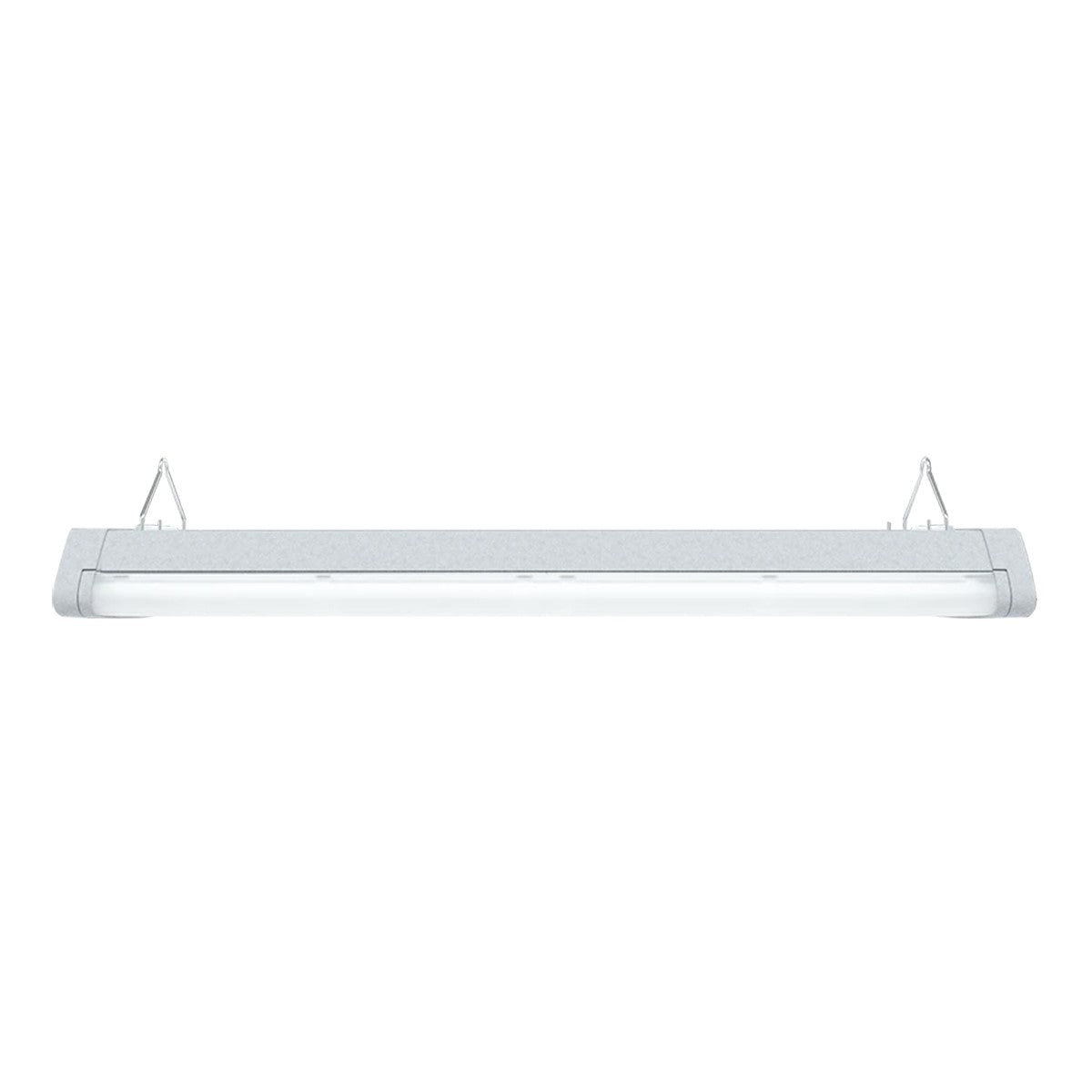

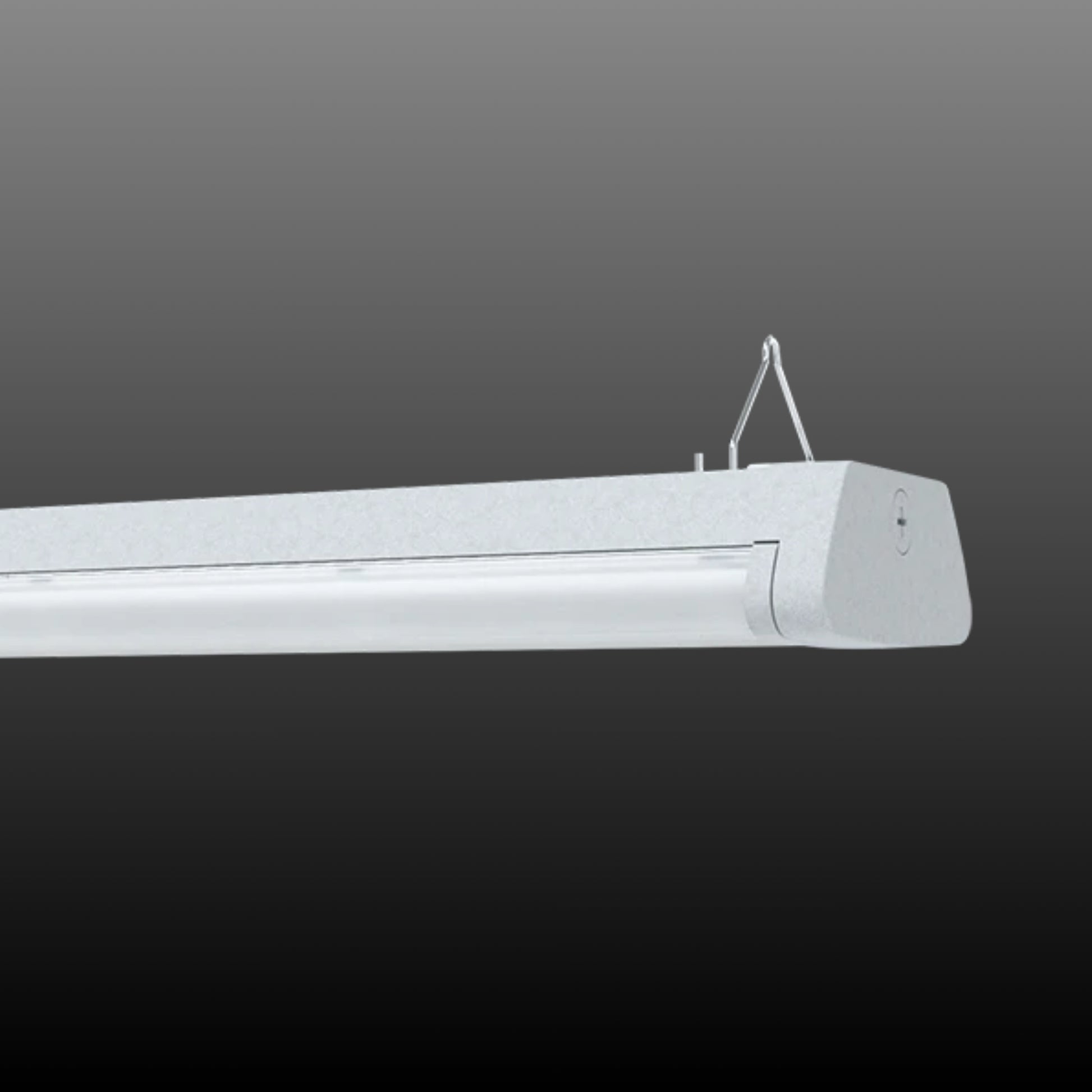

RAB C-WRAP Field Adjustable Wraparound Light — 22W Configuration
The RAB CW2 wraparound light is a versatile lighting solution with 22W power, delivering up to 3,040 lumens and operating on 120-277V. This fixture is DLC listed and suitable for damp locations, making it ideal for various commercial applications.
Key Features

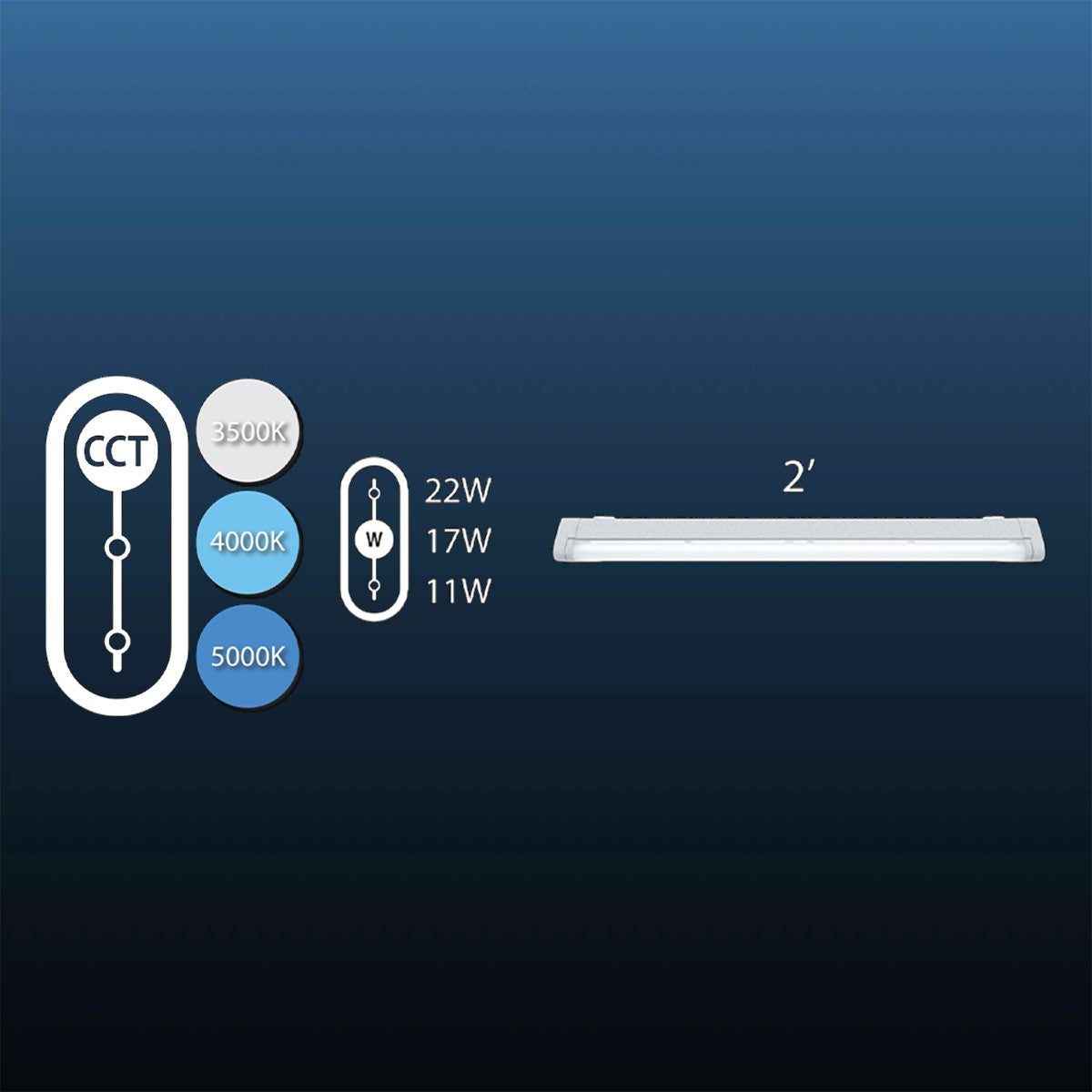

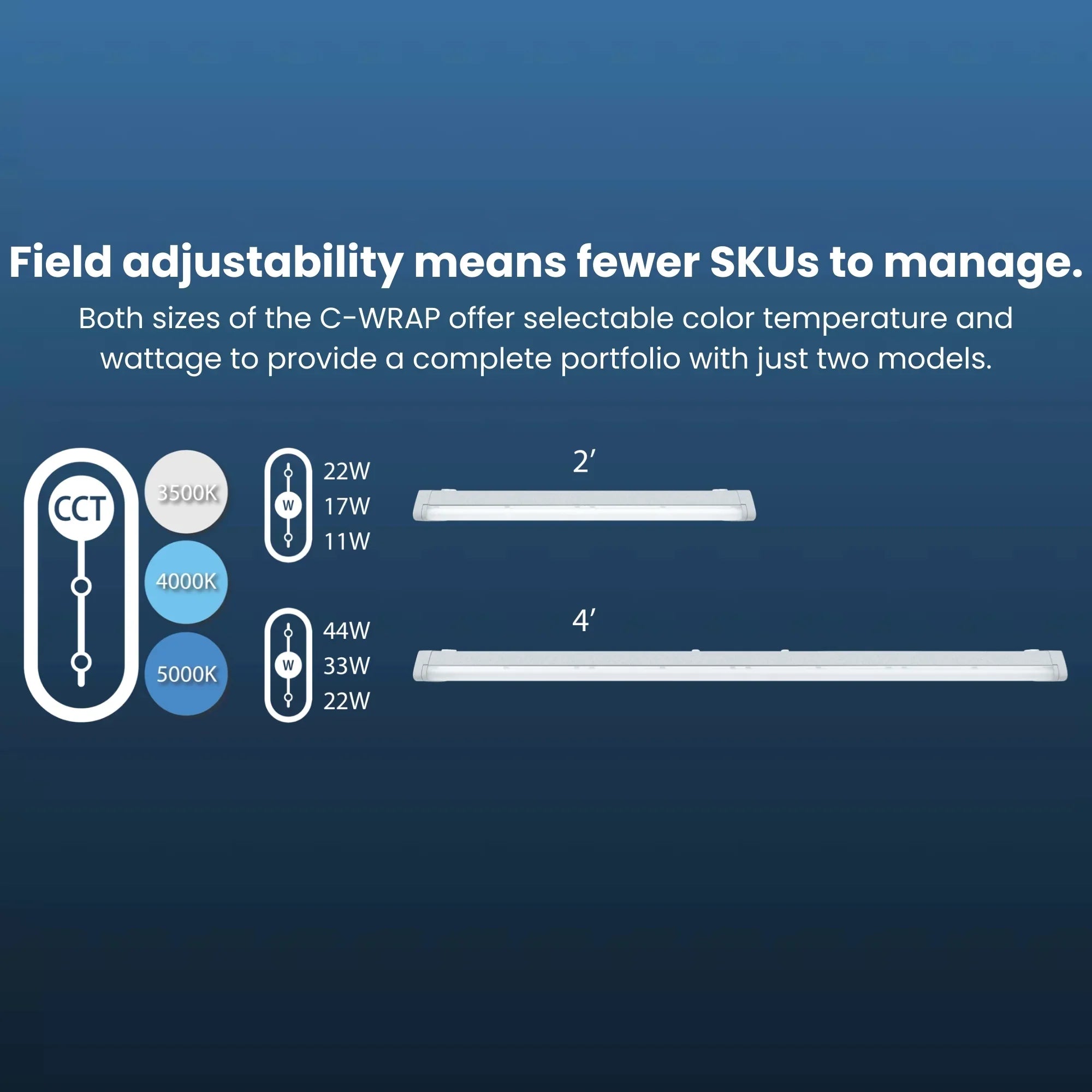

- Field Adjustability: Offers selectable wattage of 22W, 17W, and 11W, with a default setting of 22W.
- Color Temperature: Adjustable CCT options of 3500K, 4000K, and 5000K, defaulting to 4000K.
- Driver: Class P, constant current driver compatible with 120-277V, 50/60 Hz.
- Dimming: Integrated 0-10V dimming driver for light level control down to 10%.
- Surge Protection: Equipped with 1Kv differential mode and 2Kv common mode surge protection.
- Lifespan: Long-lasting LEDs with a 100,000-hour lifespan based on IES LM-80 results.

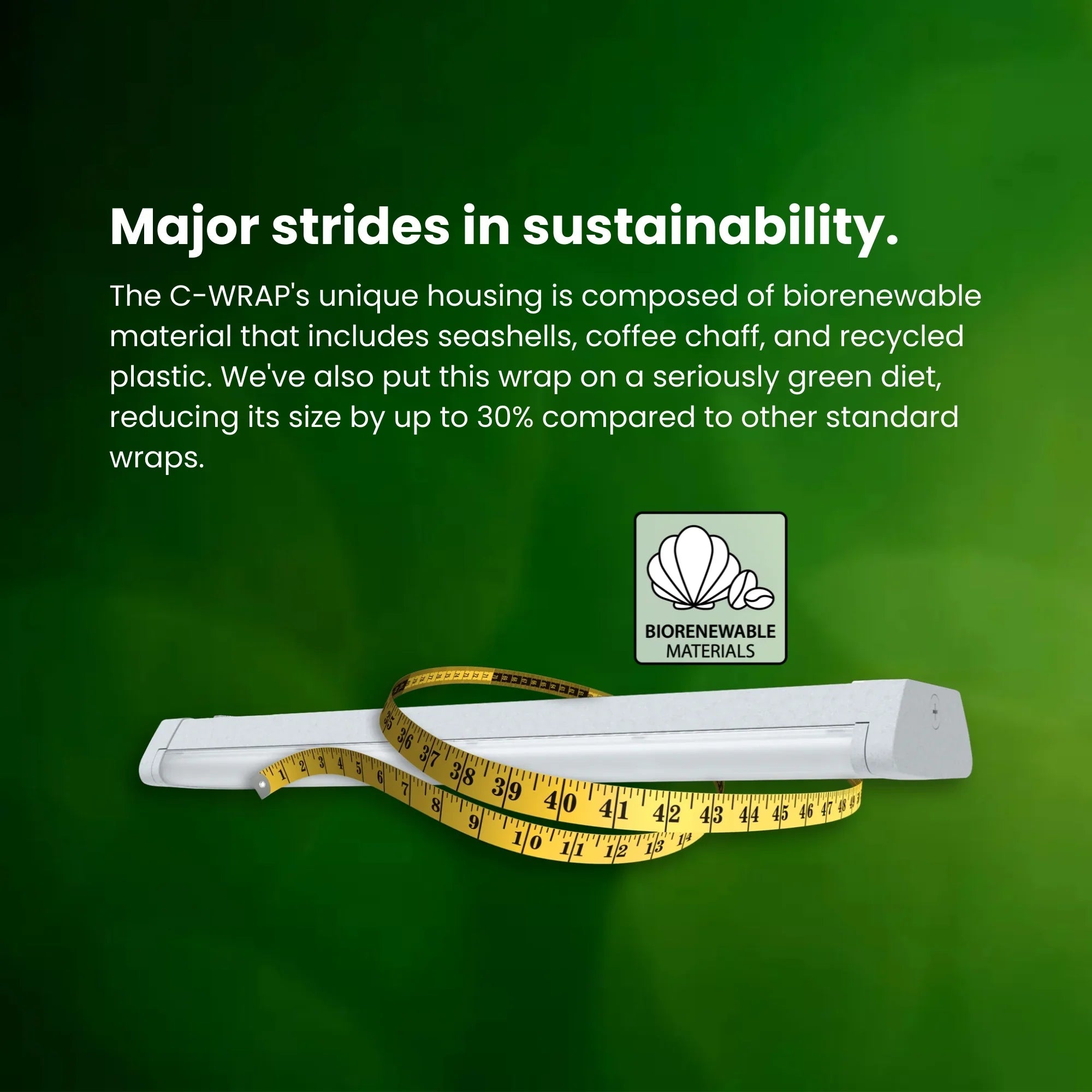

- Construction: Features a sustainable housing made from biocomposite materials.

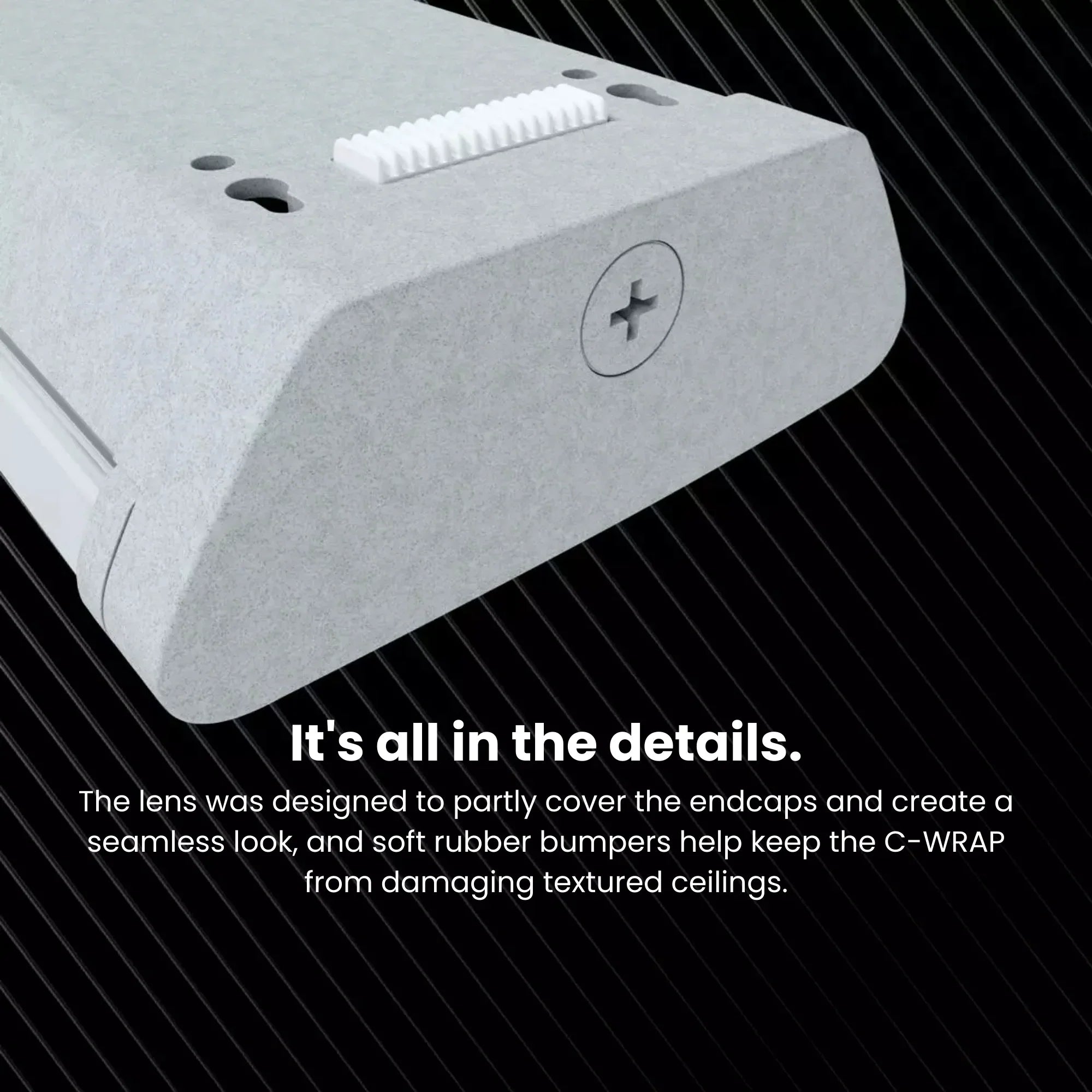

- Lens: Diffused PMMA lens for uniform light distribution.
- Compliance: UL listed for damp locations and meets DLC 5.1 requirements.

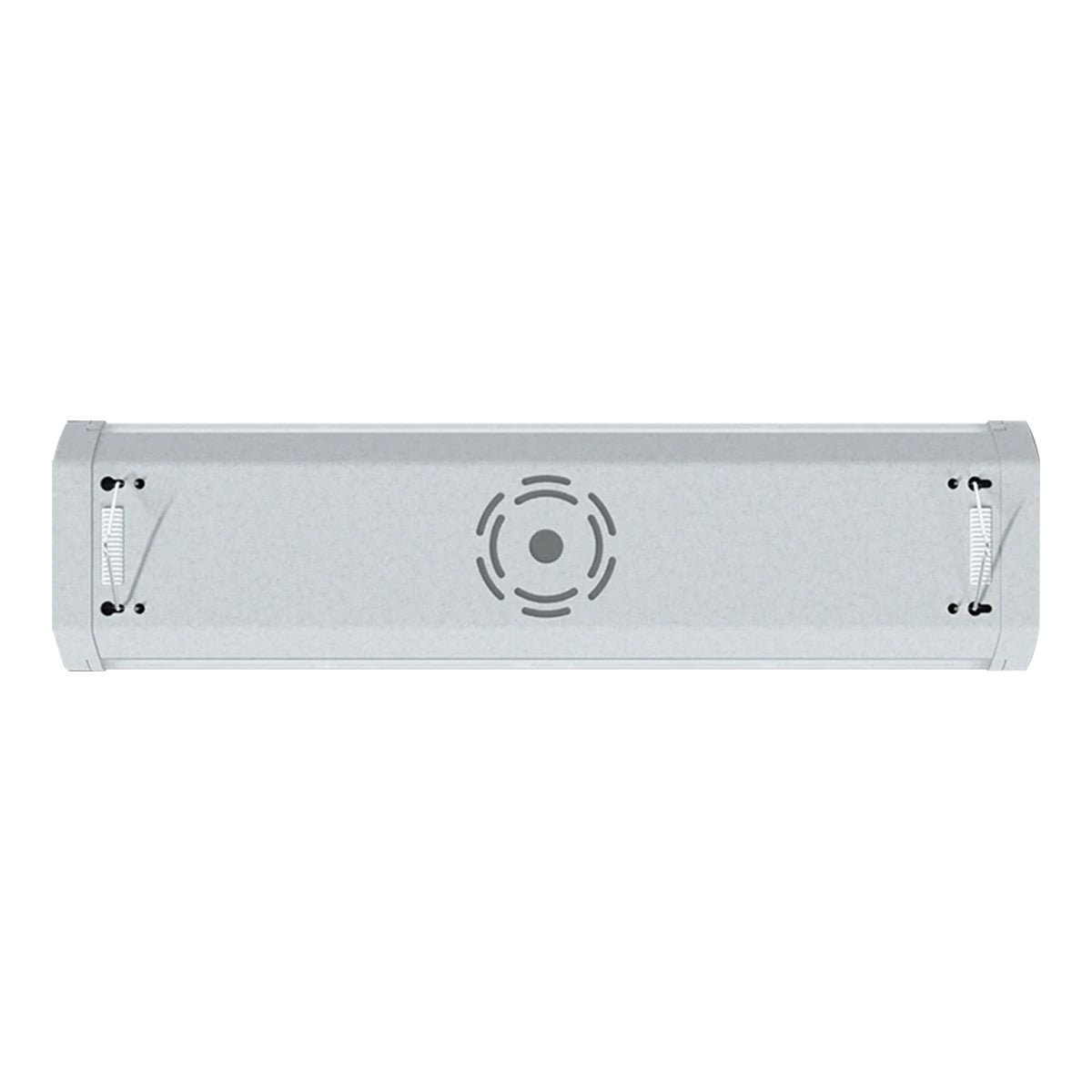

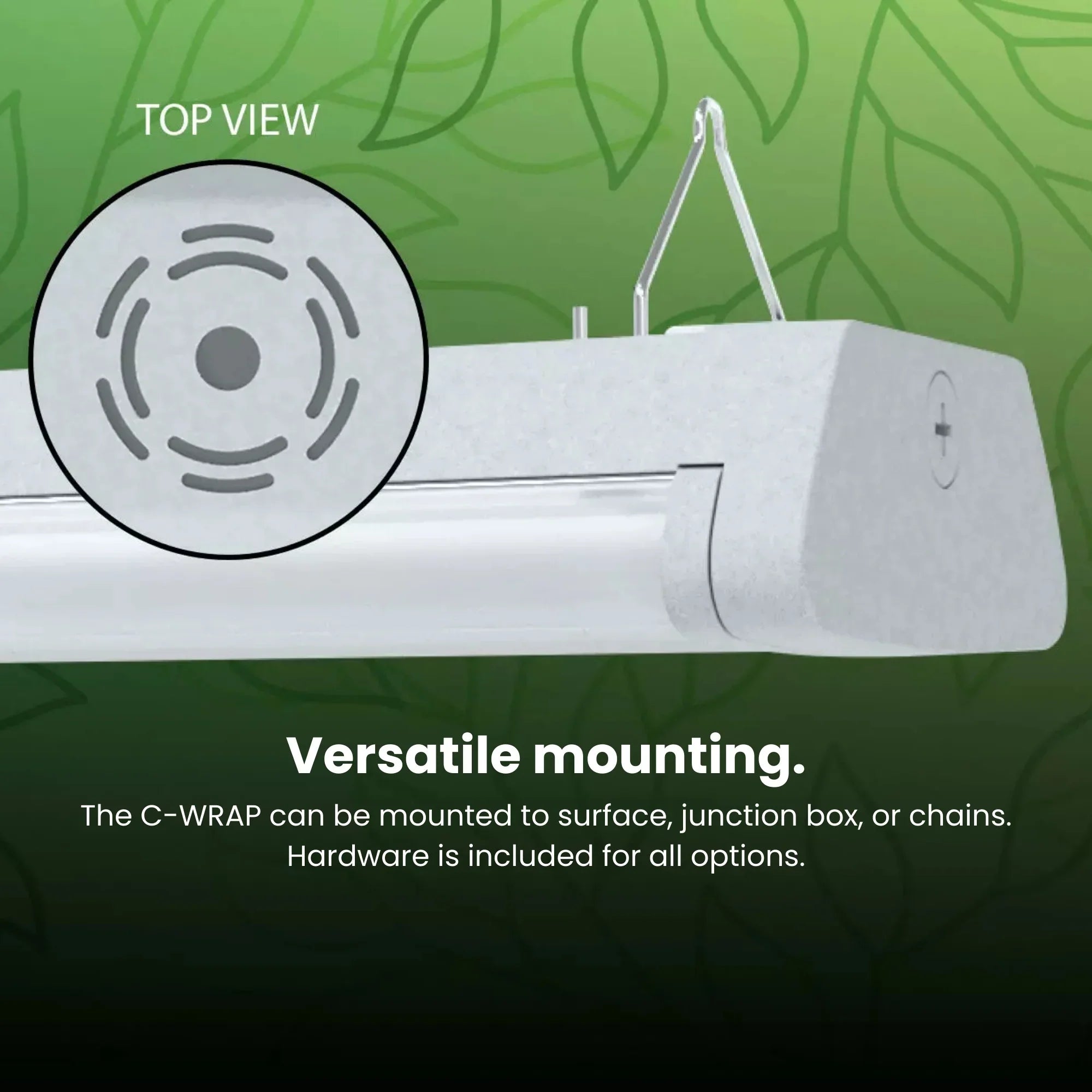

- Installation: Designed for surface mounting with VHOOKs, supporting end-to-end connections.

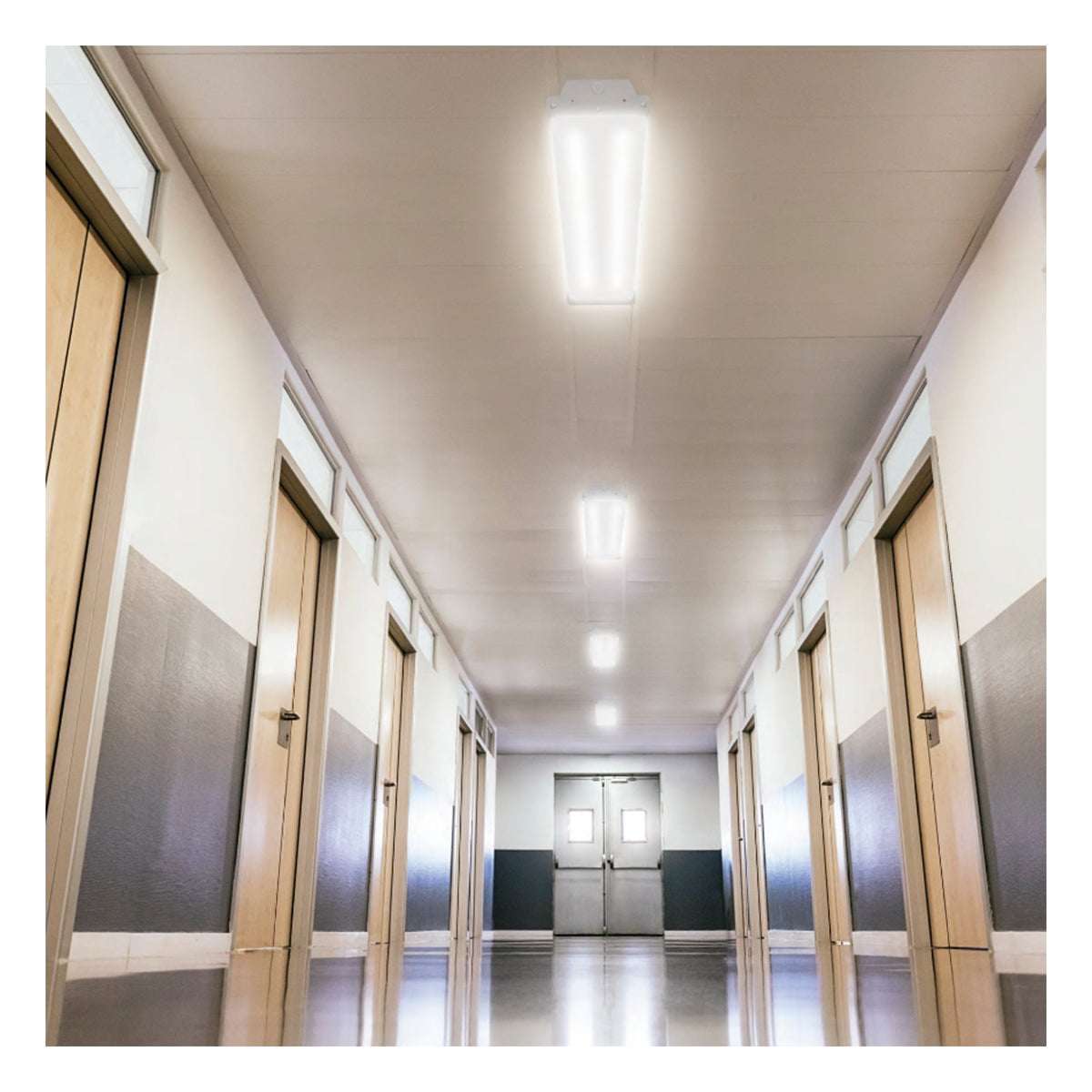

Typical Applications
- Warehouses
- Retail Spaces
- Offices
- Educational Facilities
- Healthcare Facilities
Performance & Light Output
This fixture delivers a light output range of 1,503 to 3,040 lumens with an efficacy of 125.3 to 133.3 lm/W. It features a CRI of 84-86 and a lifespan of 100,000 hours.
Electrical & Controls
The CW2 operates on 120-277V with a constant current driver and supports 0-10V dimming. It includes surge protection and maintains a high power factor across voltages.
Construction & Durability
Constructed with a sustainable biocomposite housing, this fixture is designed for durability and environmental responsibility. It is suitable for temperatures from -20°C to 40°C.

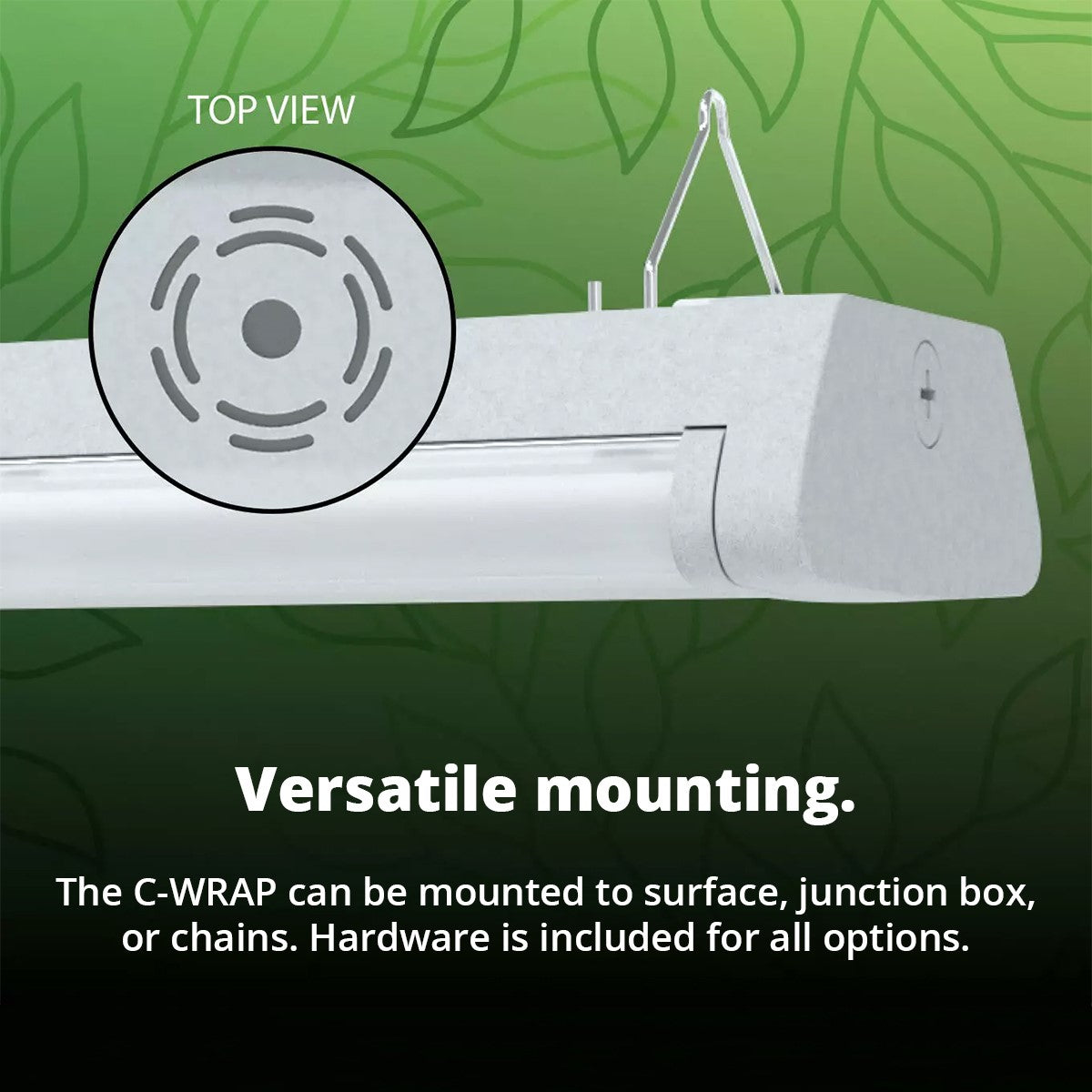

Installation & Mounting
Installation is straightforward with surface mounting and VHOOKs. The fixture supports end-to-end connections, though a through wiring kit is not included.
What's Included
- Wraparound Light Fixture
Specifications
Specifications

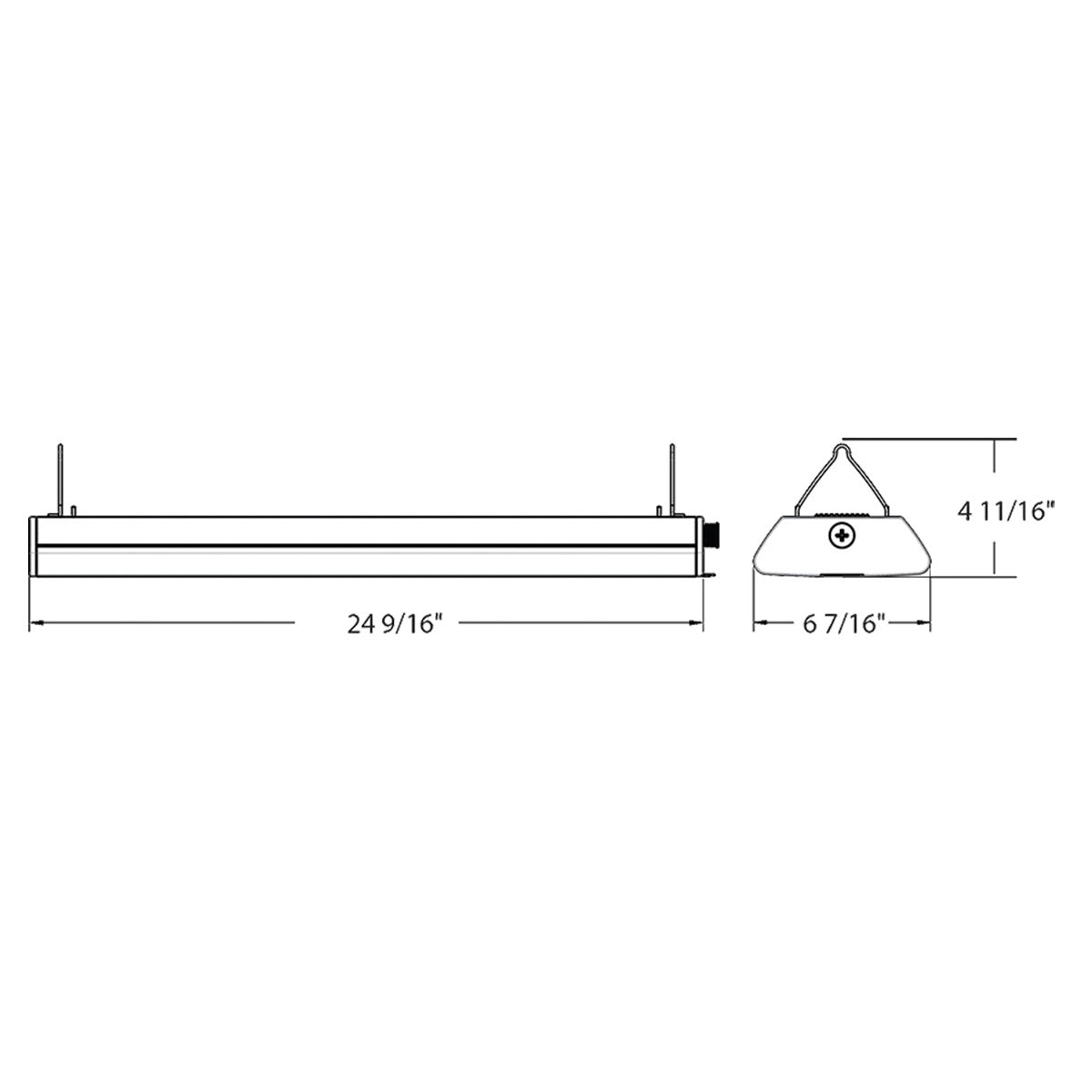

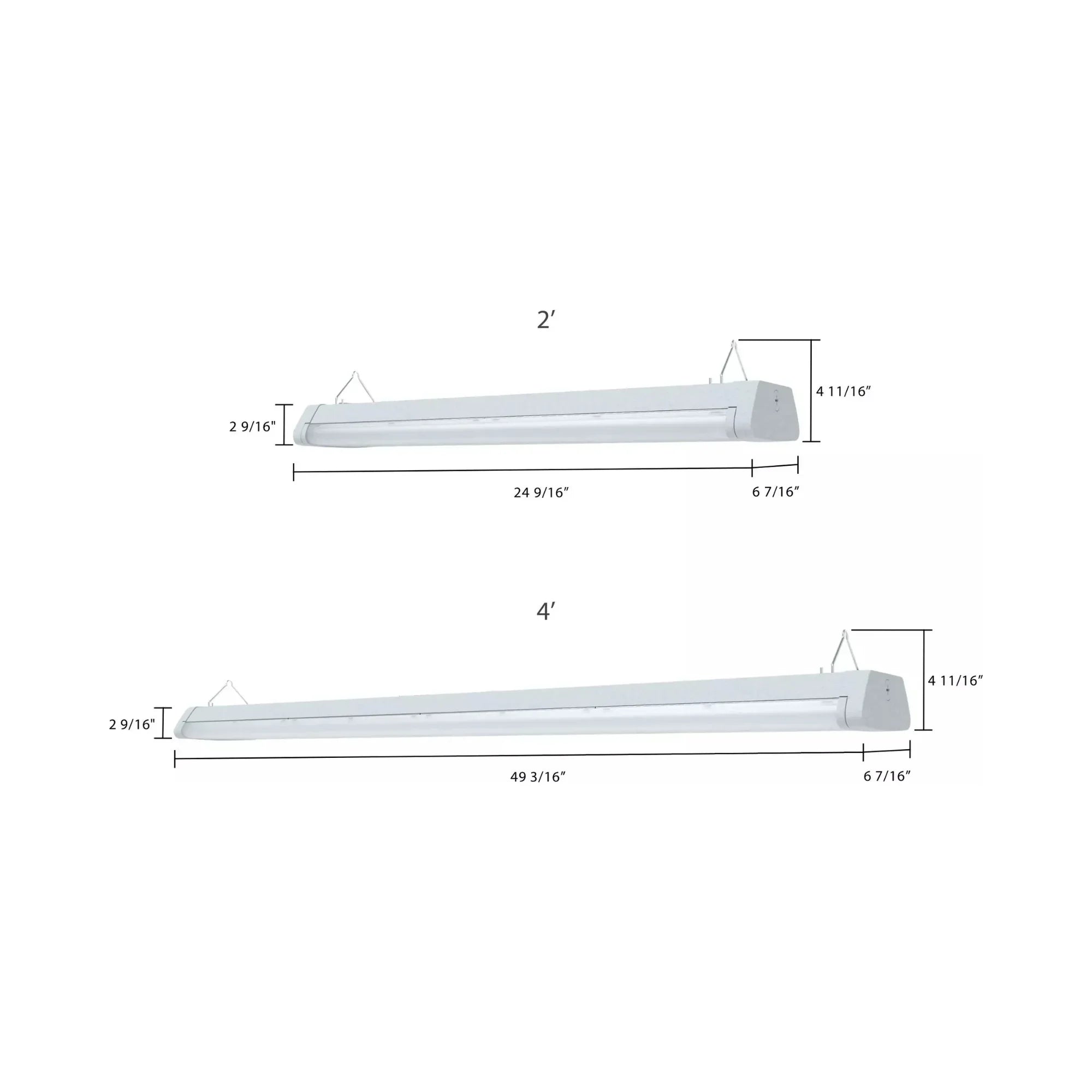

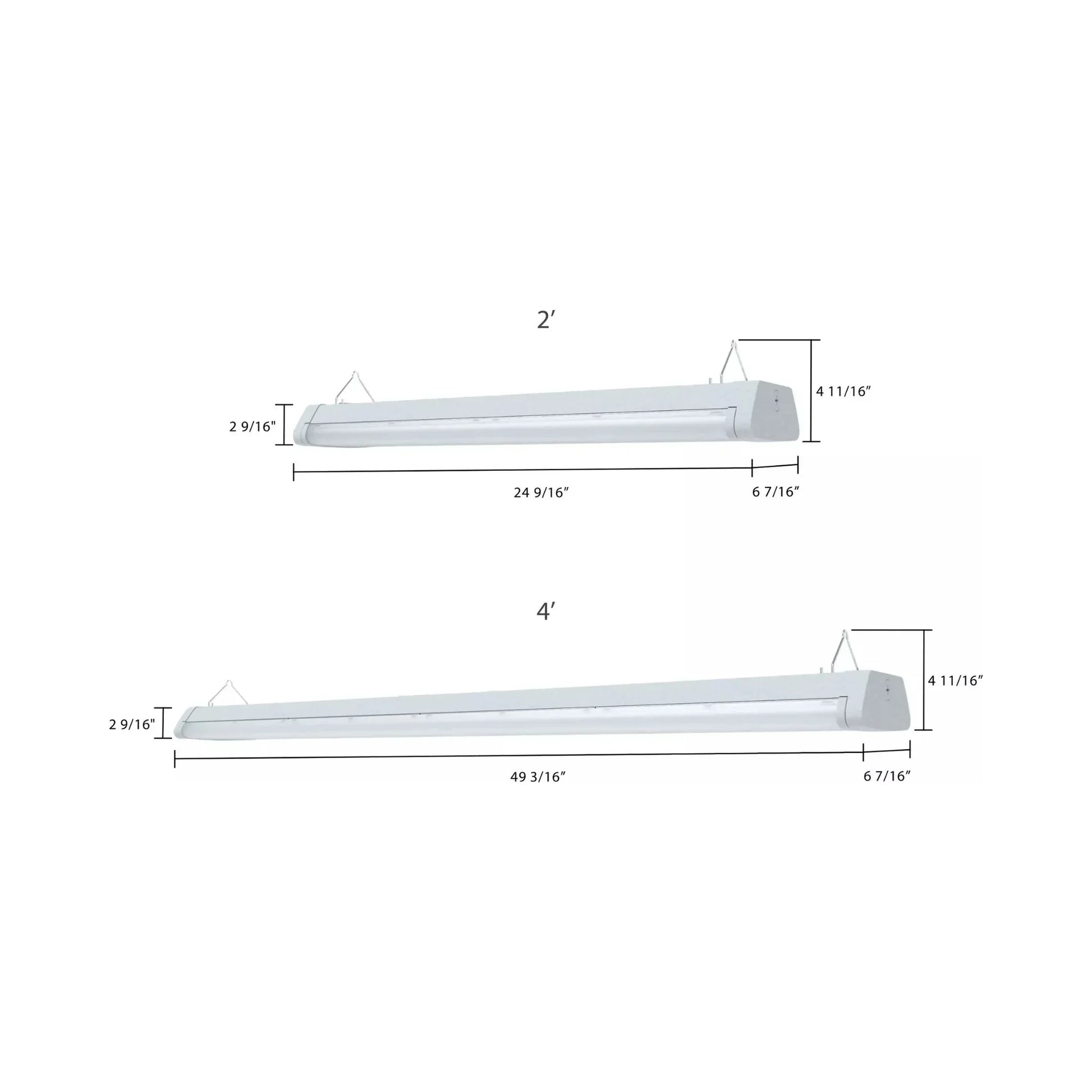

Dimensions
Style & Materials
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
