RAB CRX6 6 in Round Commercial Downlight 30/40/50W Selectable CCT White
Available in stock (100)
About this item
About this item
- Field-Selectable Wattage & CCT: Dipswitch-adjustable between 30W, 40W, and 50W and five CCTs (2700K–5000K) from a single fixture — no need to stock multiple SKUs
- Up to 5,720 lm at 50W: High-output commercial performance with 90 CRI, R9 > 50, and a wide 85° beam angle for broad, even illumination in large spaces
- Universal 120-277V: Compatible with commercial voltages and both 0-10V and TRIAC/ELV dimming systems, dimmable to 10%
- Interchangeable Color Trims: Comes with white smooth splay trim — matte black, brushed nickel, and bronze color trims available separately
- Certified Performance: ENERGY STAR certified, California Title 24 JA8 compliant, ETL/UL listed, RoHS compliant, 50,000-hour L70 lifespan
We process payments securely and do not store credit card information.
Description
Description

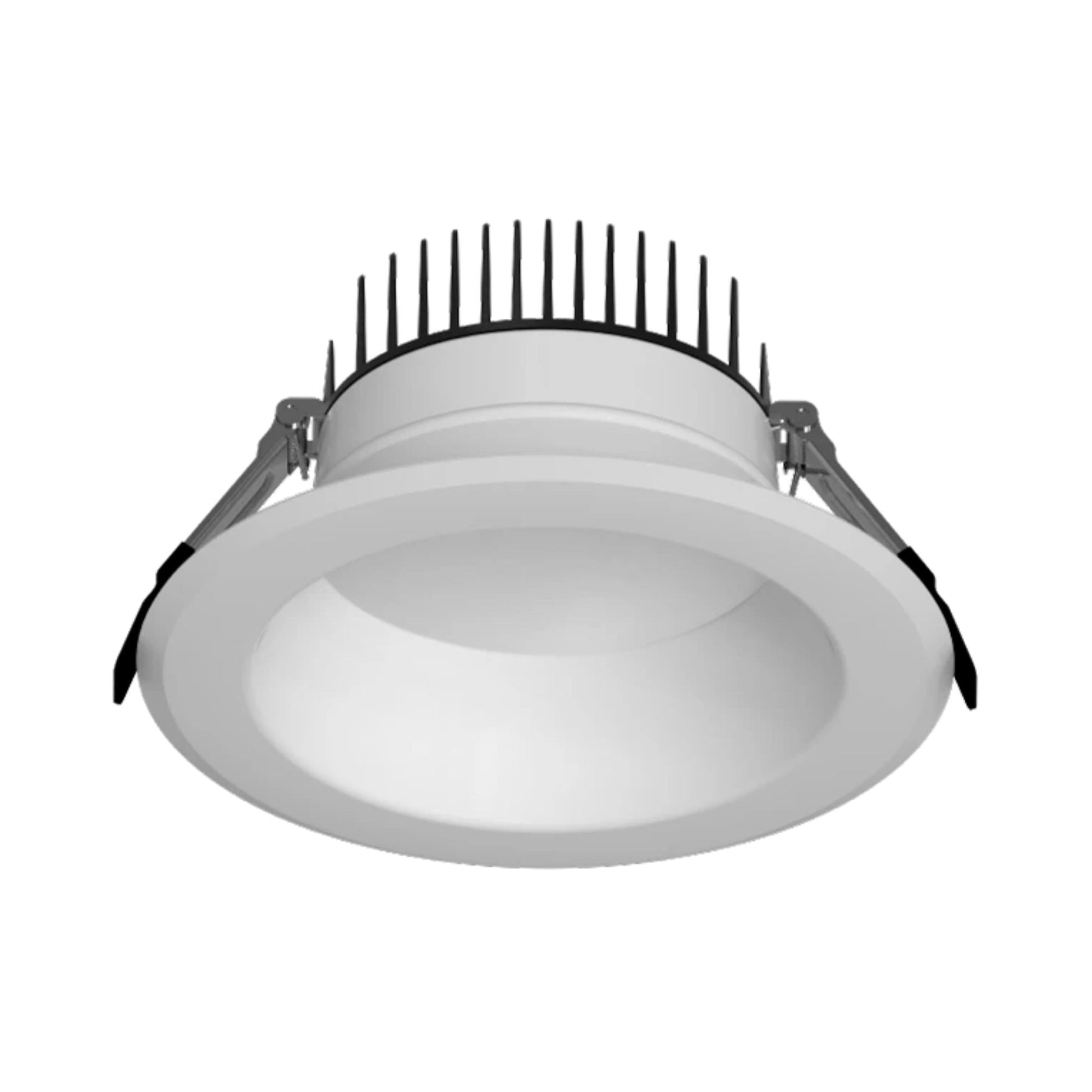

RAB CRX6 6 in Round Commercial Downlight — 30/40/50W / Selectable CCT / 120-277V

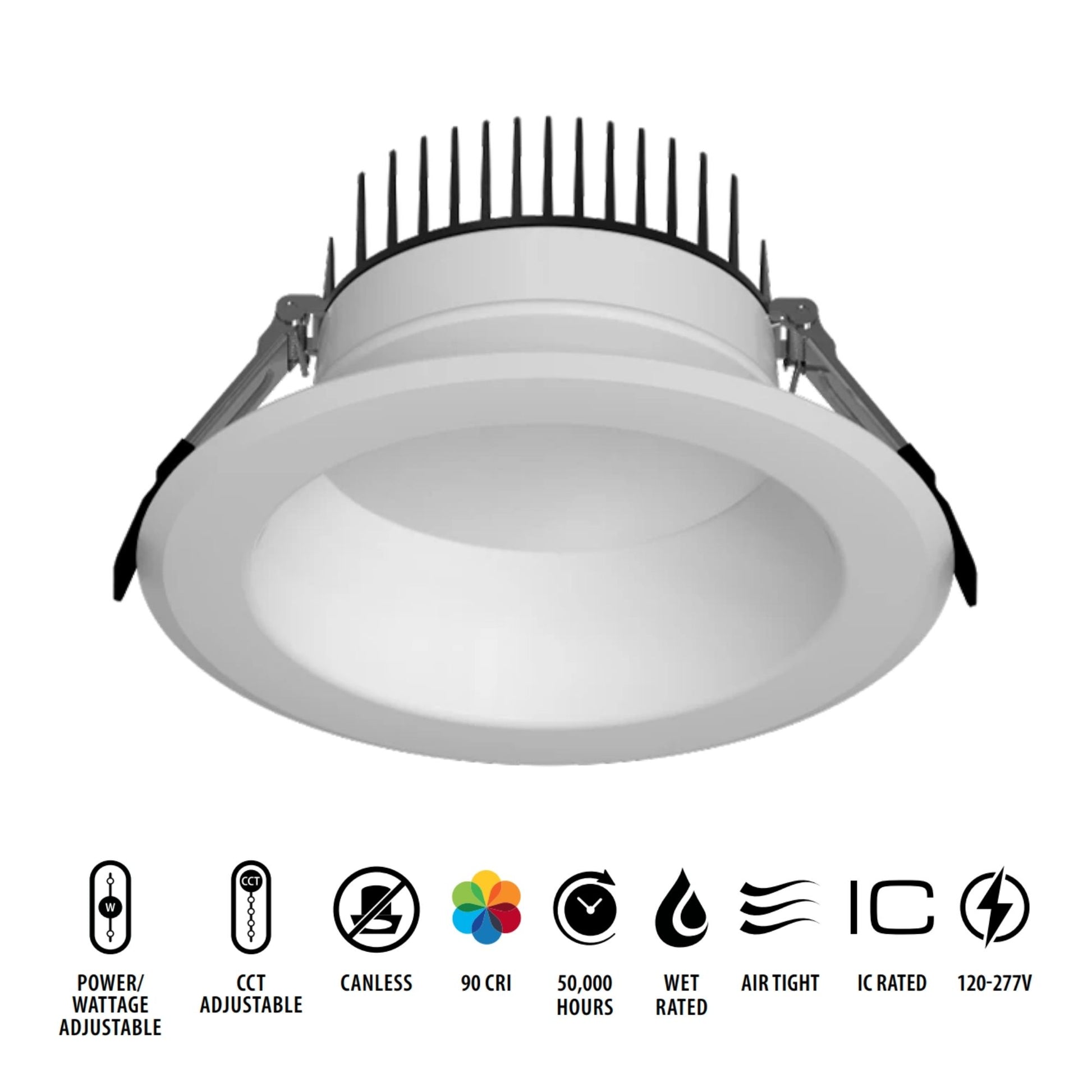

The RAB CRX6 is a 6 in round commercial canless recessed downlight delivering up to 5,720 lumens at 50W with a wide 85° beam angle and 90 CRI. Part of the high-output, field-adjustable CRXLED family, the CRX6 features field-selectable wattage (30/40/50W) and CCT (2700K–5000K) via integrated dipswitches — eliminating the need to stock multiple SKUs. Universal 120-277V input and dual dimming compatibility (0-10V and TRIAC/ELV) make it ideal for commercial, hospitality, and high-ceiling applications requiring broad, powerful illumination.
Key Features

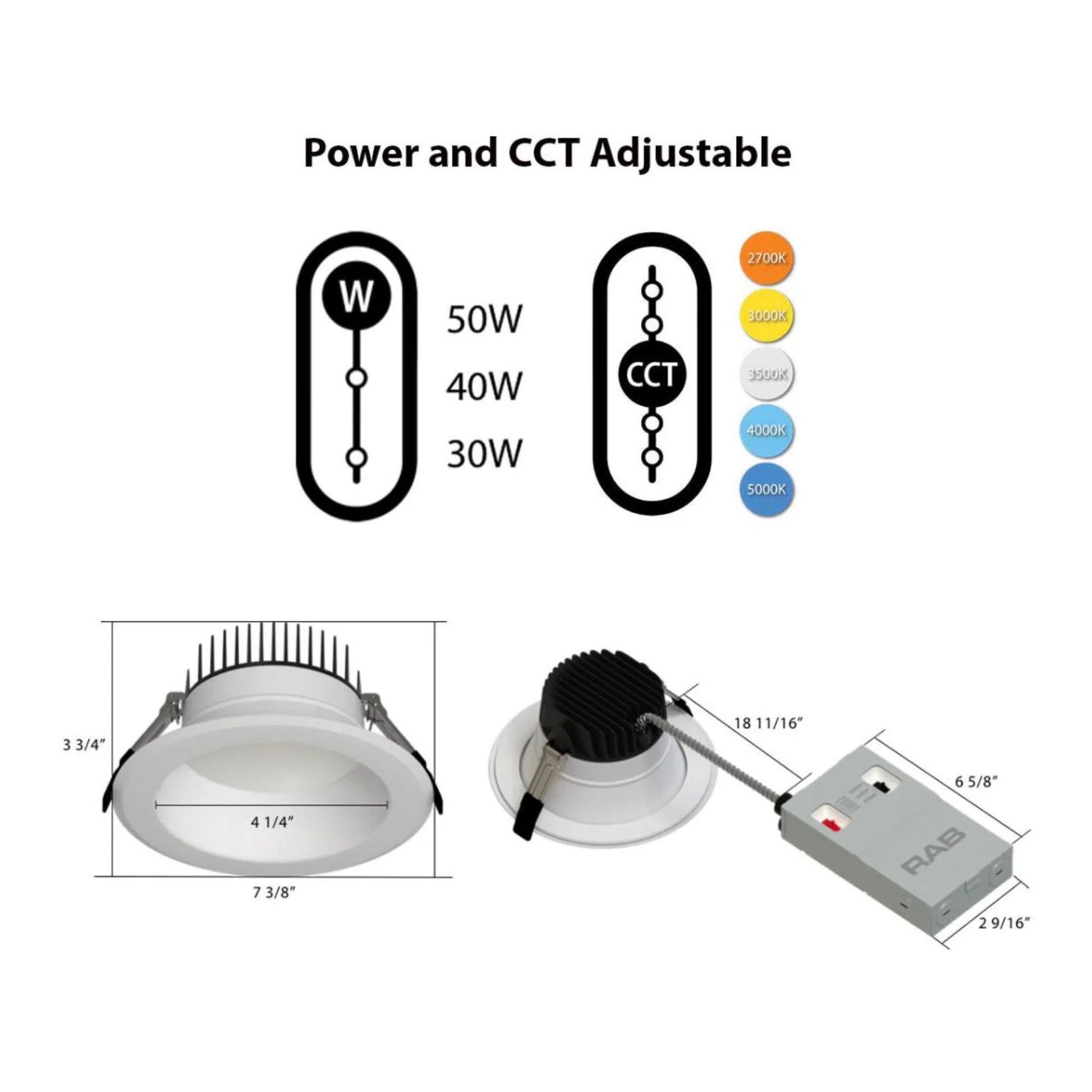

- Field-Selectable Wattage: Choose between 30W, 40W, and 50W via dipswitch on the remote driver/junction box
- Field-Selectable CCT: Dip-switch adjustable between 2700K, 3000K, 3500K, 4000K, and 5000K from a single fixture
- Lumen Output: Up to 5,720 lm (50W / 4000K); 4,547 lm (40W / 4000K); 3,444 lm (30W / 4000K)
- Wattage Equivalency: 125W CFL equivalent
- CRI: 90 with R9 > 50 for high color accuracy
- Beam Angle: 85° ±10% for broad, even illumination
- Dimming: 0-10V dimmable to 10%; TRIAC/ELV dimmable to 10% at 120V
- Voltage: 120-277V universal

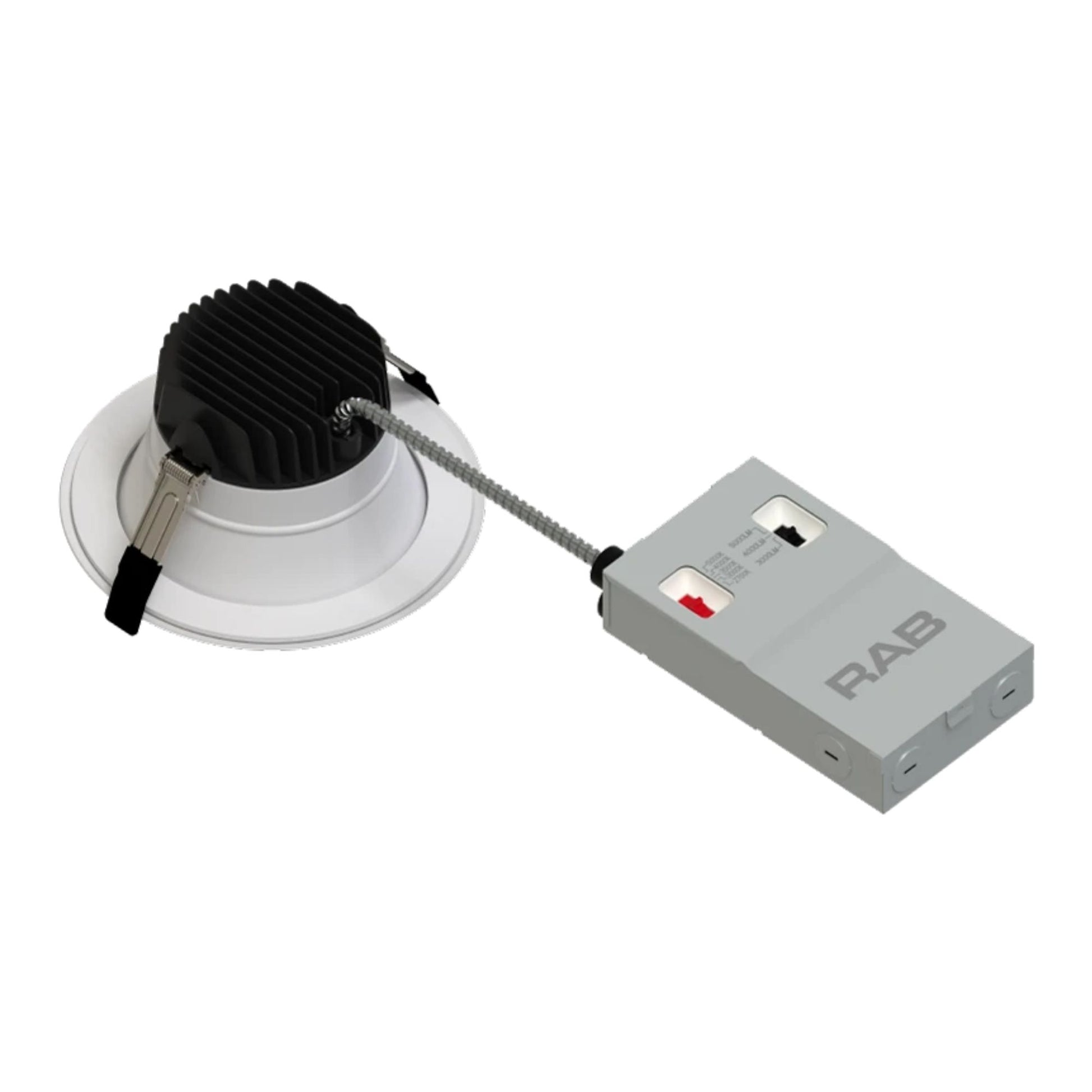

- No Housing Required: Canless design with remote driver/junction box — installs directly into ceiling
- Trim: White smooth splay trim with flange included; matte black, brushed nickel, and bronze color trim overlays sold separately
- Certifications: ENERGY STAR, Title 24 JA8, ETL/UL listed, RoHS compliant, NEC compliant (Sec. 410.16)
- Note: Not IC rated — do not install in direct contact with insulation
- Warranty: 5-year no-compromise warranty
Smart & Control Features
The CRX6 dims to 10% on compatible 0-10V dimming systems and on TRIAC/ELV dimming systems at 120V. Wattage and CCT are both field-adjustable via integrated dipswitches on the remote driver/junction box — select from 30W, 40W, or 50W and from 2700K, 3000K, 3500K, 4000K, or 5000K at installation. Compatible emergency driver: DRI-21-EMGR-DC-D10; emergency driver T20.
Construction & Design
The CRX6 features a metal enclosure with a white smooth splay trim and flange and a deep-regress frosted polycarbonate lens for even light distribution and glare reduction. Color trim overlays in matte black, brushed nickel, and bronze are available separately for design flexibility. Weight: 2.1 lbs.
Light Output & Performance
With efficacy up to 118 lm/W (30W @ 4000K), a 90 CRI, R9 > 50, and a wide 85° beam angle, the CRX6 delivers broad, powerful commercial illumination suited for open-plan spaces, lobbies, and high-ceiling environments. Color temperature is warranted to shift no more than 200K over five years. Rated lifespan: 50,000 hours L70 per IES LM-70.
Electrical & Installation
Operates on 120-277V with a Constant Current, Class A driver. Dimmable to 10% via 0-10V or TRIAC/ELV systems. The remote driver/junction box installs easily with quick snap-in connectors — no recessed housing needed. Not IC rated — maintain clearance from insulation per NEMA LSD57-2013. Airtight certified (ASTM E283). Operating temperature: -4°F to 104°F.
What’s Included
- RAB CRX6 6 in round commercial downlight (white)
- Remote driver/junction box
- Quick snap-in connectors
- Mounting hardware
- Compatible accessories: DLPLATE/WFR6/NB/CL 6 in mounting plate with nailer bar and drywall collar; DRI-21-EMGR-DC-D10 emergency driver; color trim overlays in matte black, brushed nickel, bronze (all sold separately)
