RAB CRX3 3 in Round Commercial Downlight 9/12/15W Selectable CCT White
Available in stock (102)
About this item
About this item

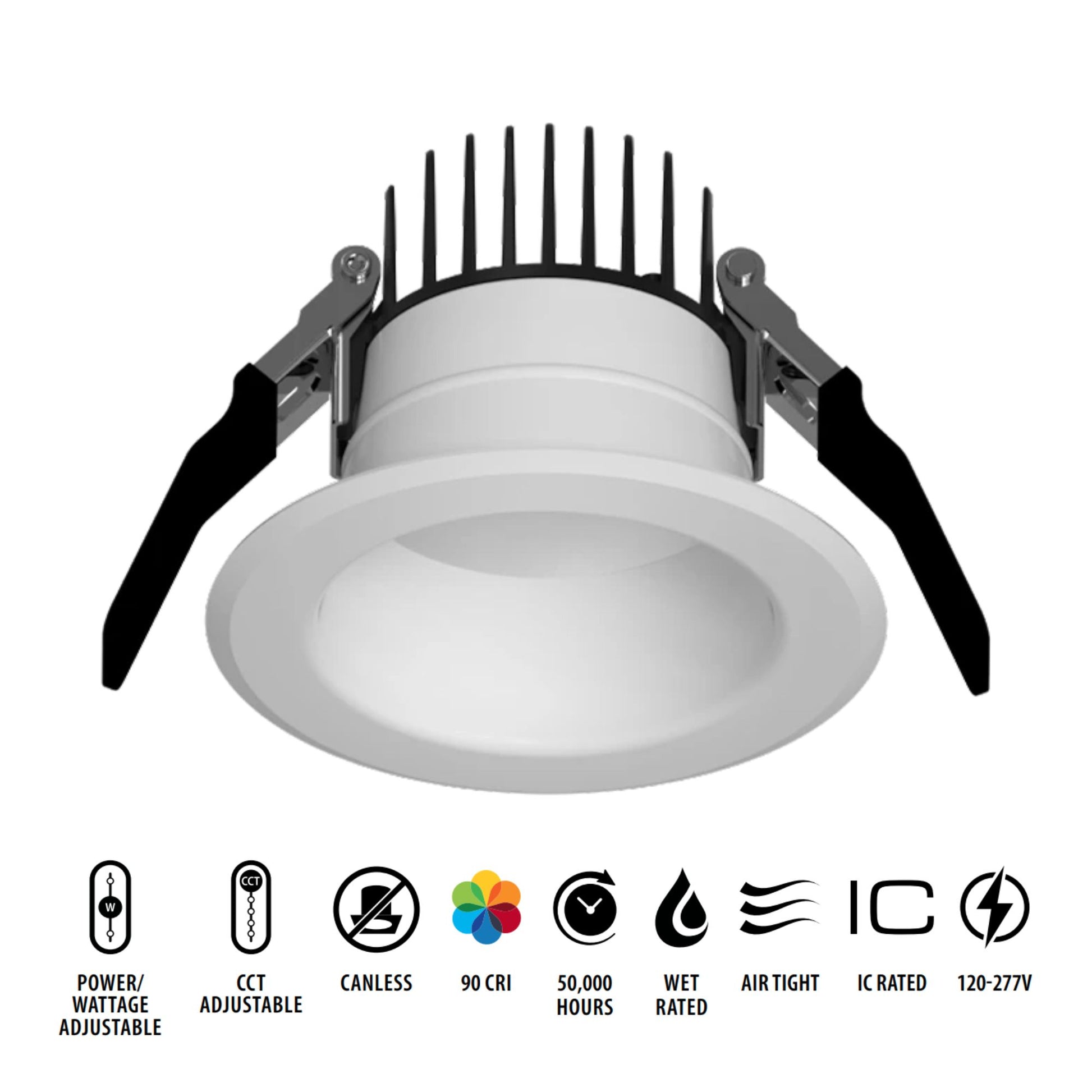

- Field-Selectable Wattage & CCT: Dipswitch-adjustable between 9W, 12W, and 15W and five CCTs (2700K–5000K) from a single fixture — no need to stock multiple SKUs
- Up to 1,685 lm at 15W: High-output commercial performance with 90 CRI, R9 > 50, and a wide 85° beam angle for broad, even illumination
- Universal 120-277V: Compatible with commercial voltages and both 0-10V and TRIAC/ELV dimming systems, dimmable to 10%
- Wet Rated, IC & Airtight: UL listed for wet locations, IC rated for direct insulation contact, and airtight certified per ASTM E283
- Certified Performance: ENERGY STAR certified, California Title 24 JA8 compliant, ETL/UL listed, RoHS compliant, 50,000-hour L70 lifespan
We process payments securely and do not store credit card information.
Description
Description

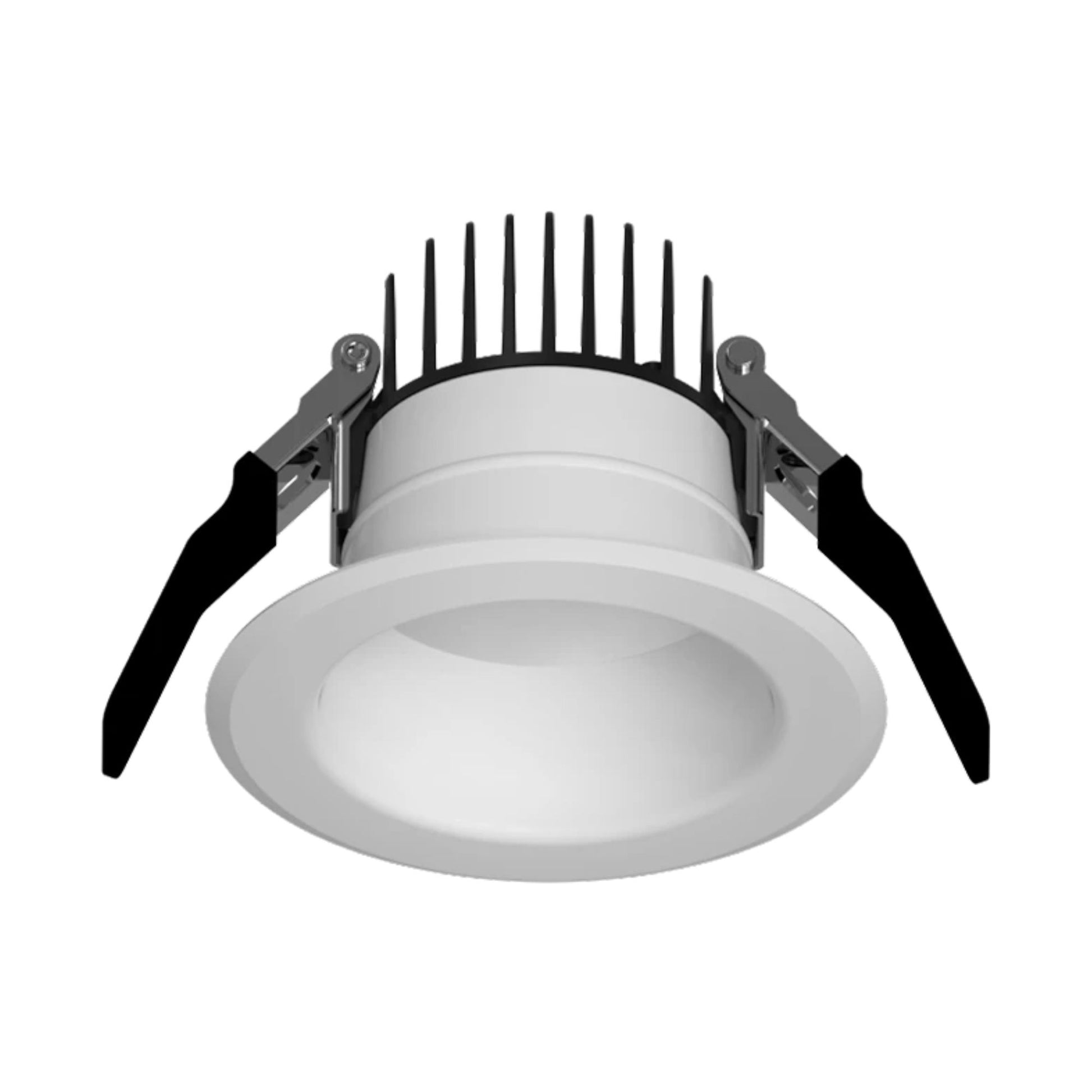

RAB CRX3 3 in Round Commercial Downlight — 9/12/15W / Selectable CCT / 120-277V
The RAB CRX3 is a 3 in round commercial canless recessed downlight delivering up to 1,685 lumens at 15W with a wide 85° beam angle and 90 CRI. Part of the high-output, field-adjustable CRXLED family, the CRX3 features field-selectable wattage (9/12/15W) and CCT (2700K–5000K) via integrated dipswitches — eliminating the need to stock multiple SKUs. Universal 120-277V input and dual dimming compatibility (0-10V and TRIAC/ELV) make it ideal for commercial, hospitality, and high-end residential applications.
Key Features
- Field-Selectable Wattage: Choose between 9W, 12W, and 15W via dipswitch on the remote driver/junction box
- Field-Selectable CCT: Dip-switch adjustable between 2700K, 3000K, 3500K, 4000K, and 5000K from a single fixture

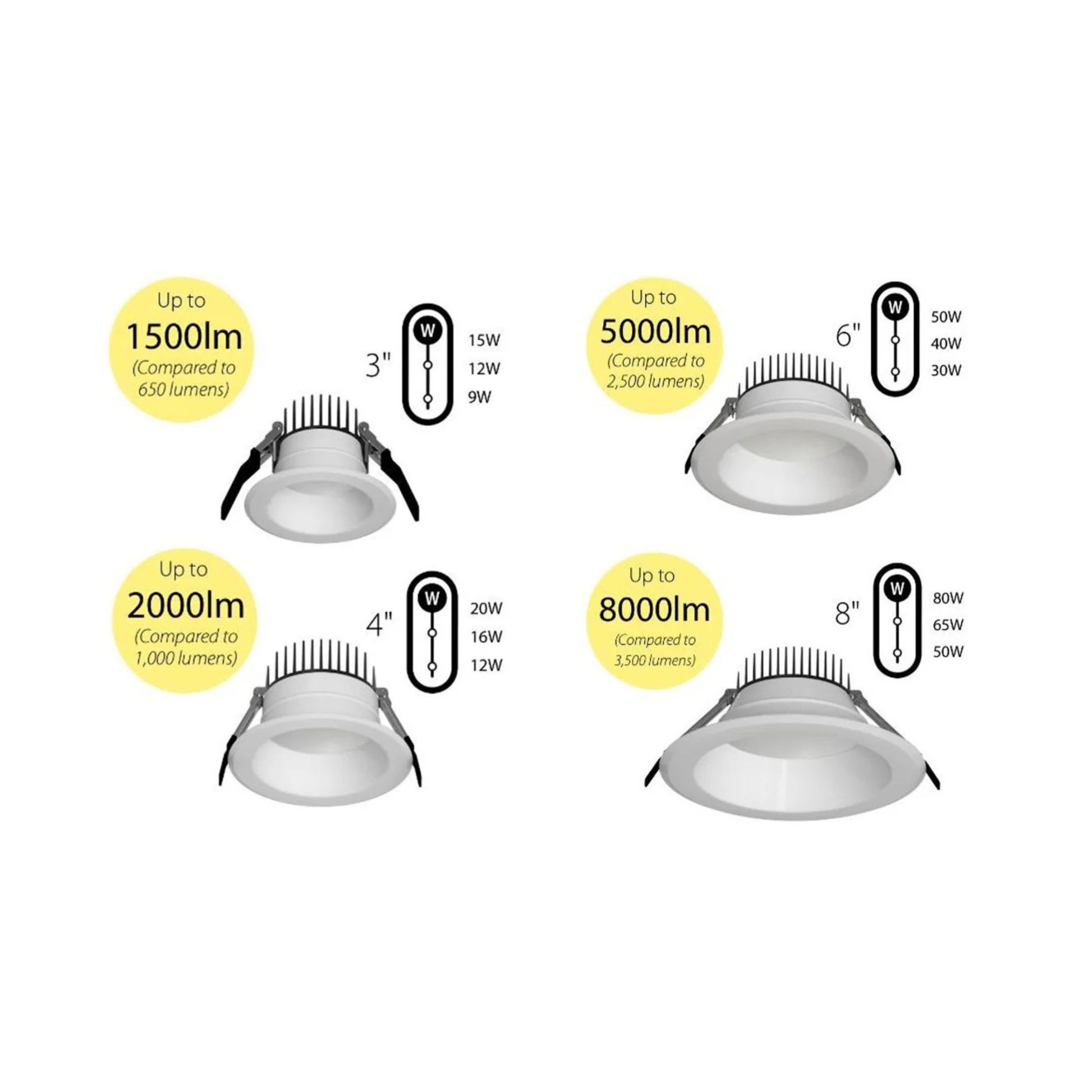

- Lumen Output: Up to 1,685 lm (15W / 4000K); 1,372 lm (12W / 4000K); 993 lm (9W / 4000K)
- Wattage Equivalency: 40W CFL equivalent
- CRI: 90 with R9 > 50 for high color accuracy
- Beam Angle: 85° ±10% for broad, even illumination
- Dimming: 0-10V dimmable to 10%; TRIAC/ELV dimmable to 10% at 120V
- Voltage: 120-277V universal

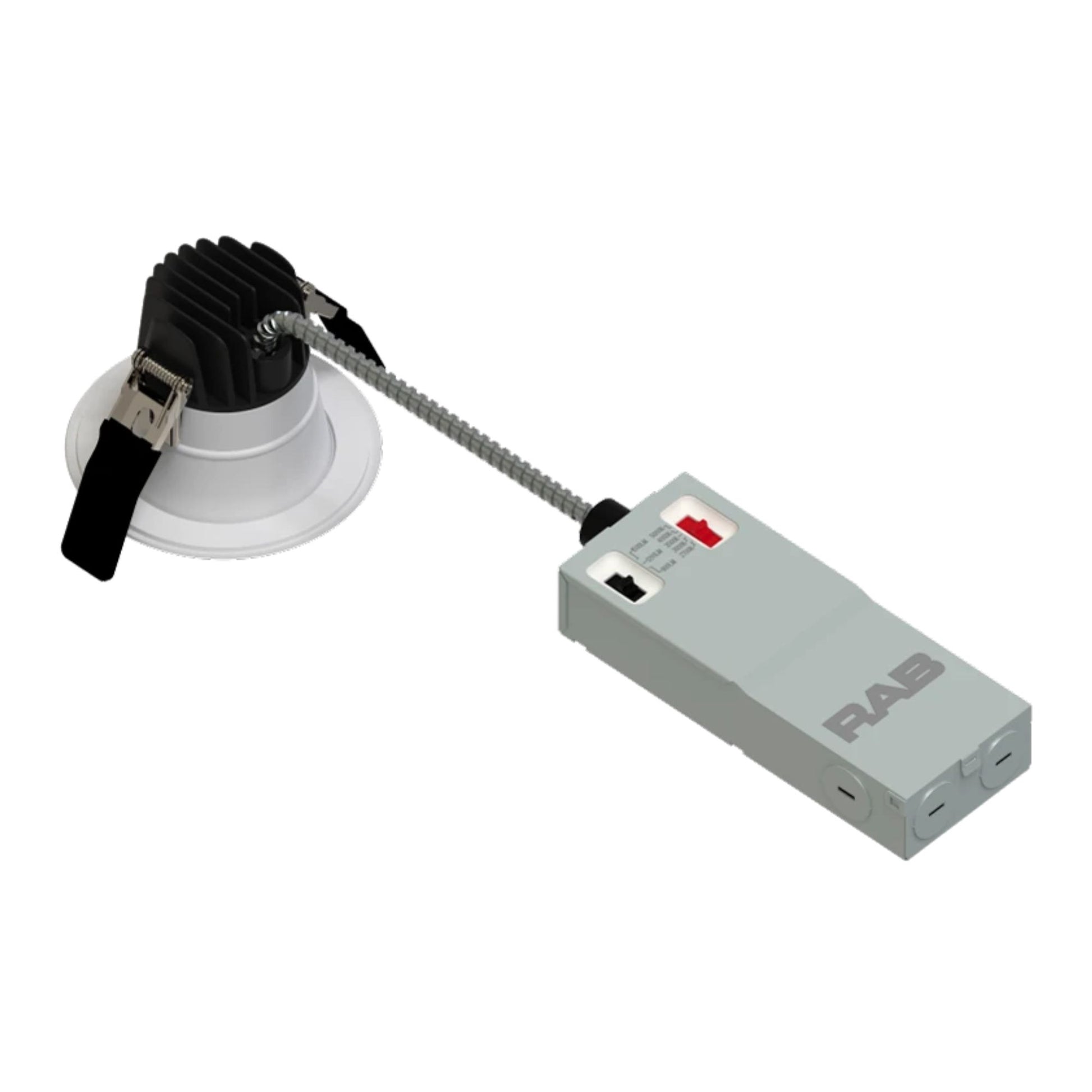

- No Housing Required: Canless design with remote driver/junction box — installs directly into ceiling
- Trim: White smooth splay trim with flange included
- Certifications: ENERGY STAR, Title 24 JA8, ETL/UL listed, RoHS compliant, NEC compliant (Sec. 410.16)
- Warranty: 5-year no-compromise warranty
Smart & Control Features
The CRX3 dims to 10% on compatible 0-10V dimming systems and on TRIAC/ELV dimming systems at 120V. Wattage and CCT are both field-adjustable via integrated dipswitches on the remote driver/junction box — select from 9W, 12W, or 15W and from 2700K, 3000K, 3500K, 4000K, or 5000K at installation. Compatible emergency driver: DRI-21-EMGR-DC-D10; emergency driver T20.
Construction & Design
The CRX3 features an aluminum housing and die-cast heat sink with a white smooth splay trim and flange for a clean, commercial finish. The deep-regress frosted polycarbonate lens distributes light evenly and reduces glare. Weight: 1.1 lbs.
Light Output & Performance
With efficacy up to 121 lm/W (12W @ 4000K), a 90 CRI, R9 > 50, and a wide 85° beam angle, the CRX3 delivers broad, high-quality commercial illumination. Color temperature is warranted to shift no more than 200K over five years. Rated lifespan: 50,000 hours L70 per IES LM-70.
Electrical & Installation
Operates on 120-277V with a Constant Current, Class A driver. Dimmable to 10% via 0-10V or TRIAC/ELV systems. The remote driver/junction box installs easily with quick snap-in connectors — no recessed housing needed. Suitable for new construction, remodel, and retrofit. IC rated and airtight certified (ASTM E283). Operating temperature: -4°F to 104°F.
What’s Included
- RAB CRX3 3 in round commercial downlight (white)
- Remote driver/junction box
- Quick snap-in connectors
- Mounting hardware
- Compatible accessory: DRI-21-EMGR-DC-D10 emergency driver (sold separately)
