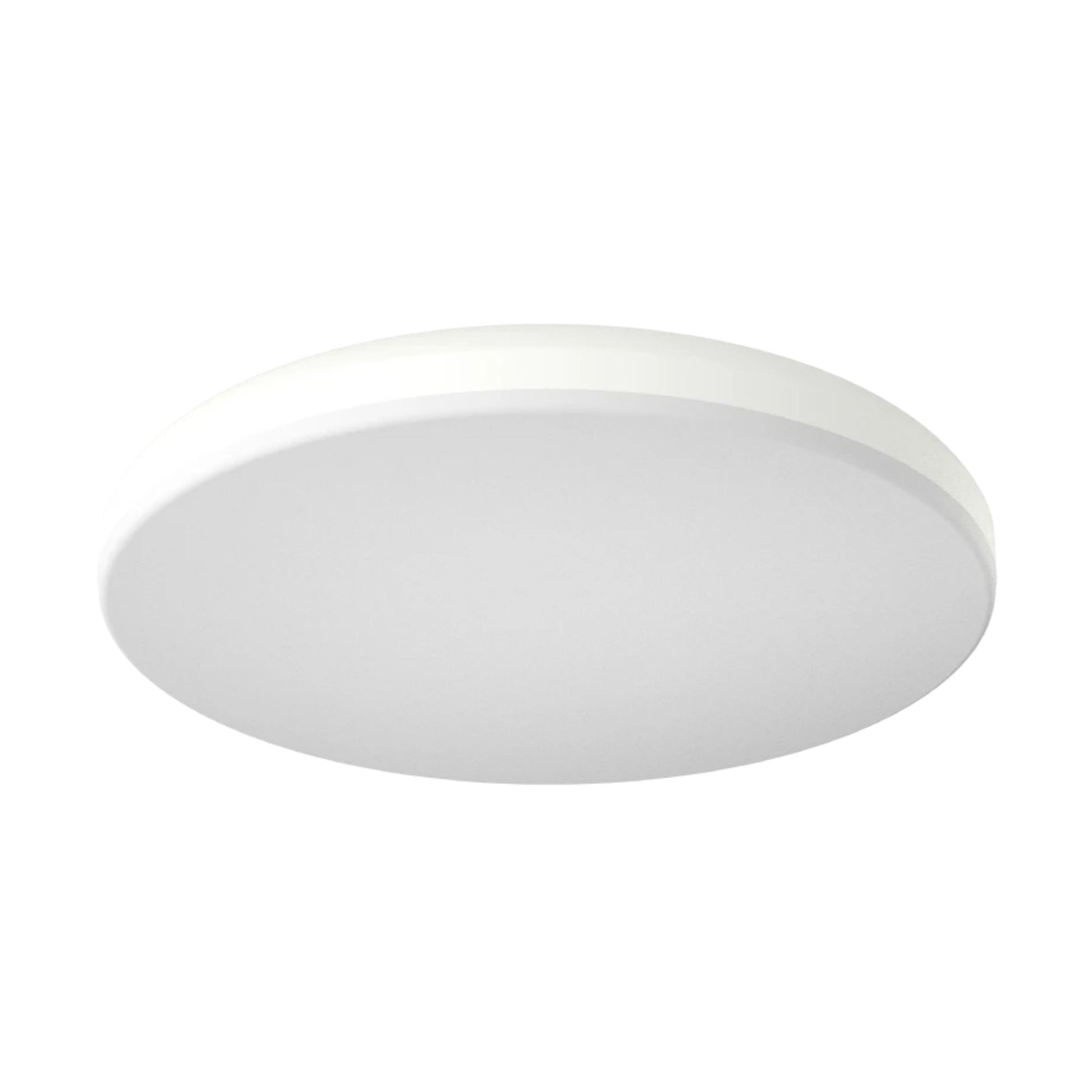

RAB CRVFAS-19R-32-9CCT-UNV-W/MVS 19 in LED Flush Mount — White, 32W, 5CCT, Occupancy Sensor

The RAB CRVFAS-19R-32-9CCT-UNV-W/MVS integrated LED flush mount combines microwave occupancy sensing with 0-10V dimming down to 10%. Its smooth round trim and white finish provide a clean appearance, while a diffused back-lit lens delivers 2,450 lumens at 32W. Five field-selectable color temperatures help coordinate lighting across hospitality and multi-family residential interiors.

Key Features

• Occupancy Sensor: MVS microwave occupancy-sensor configuration
• Dimming: 0-10V dimming down to 10%; requires a separate 0-10V DC dimming circuit
• Selectable CCT: 2700K, 3000K, 3500K, 4000K or 5000K
• Output and Efficacy: 2,450 lumens at 32W; 76.5 lm/W
• Color Quality: 90 CRI with R9 of at least 50
• Beam: 120-degree beam angle
• Driver: Constant-current driver; 120-277V input at 50/60Hz
• Input Current: 0.30A at 120V, 0.16A at 208V, 0.14A at 240V and 0.13A at 277V
• Electrical Performance: Power factor at least 0.9; THD at most 20%; flicker at most 30%

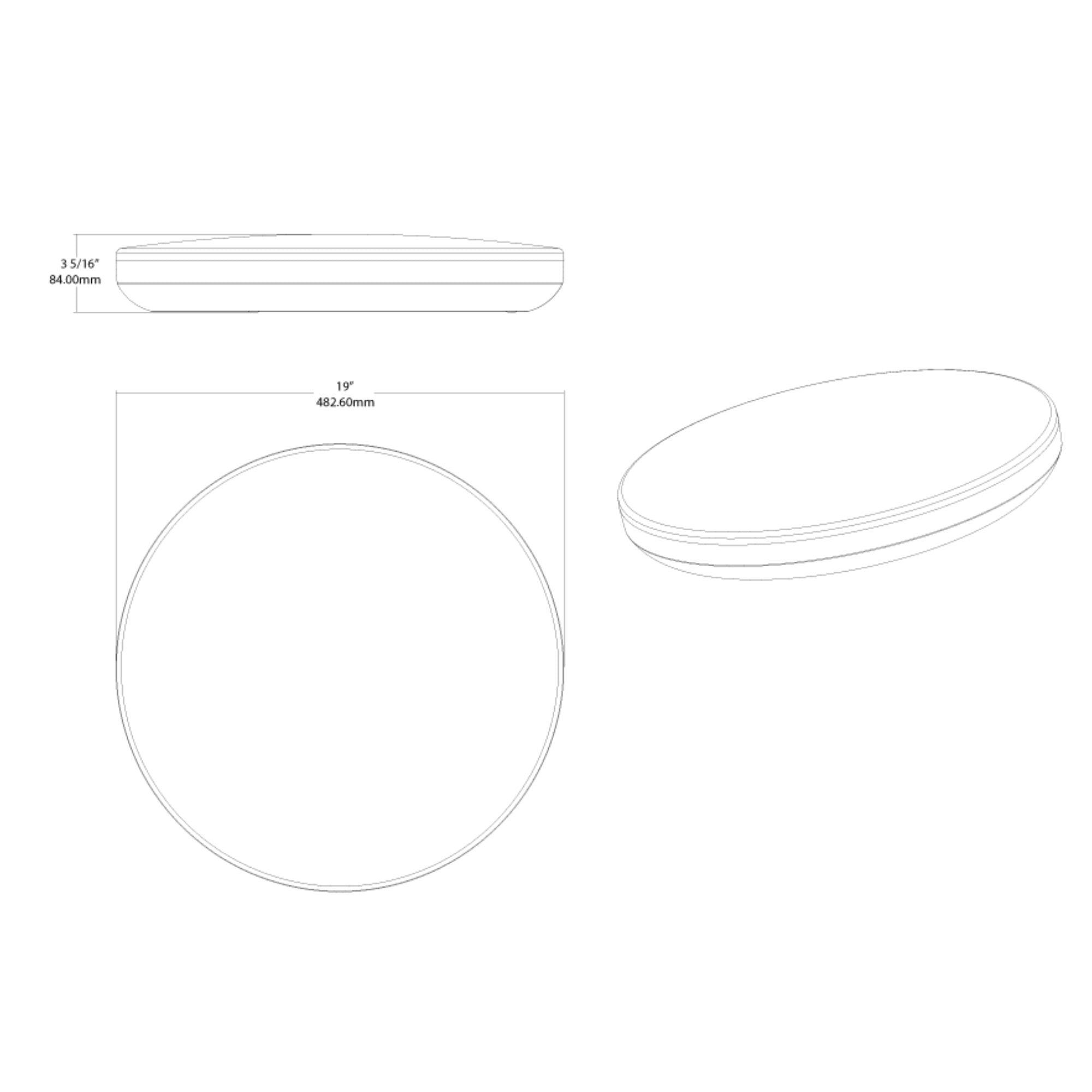

• Construction and Mounting: 19 in round white plastic body, smooth trim and diffused lens; 4.4 lb weight; ceiling or wall surface mount on a standard junction box
• Ratings and Certification: UL listed for wet locations; ENERGY STAR Version 2.2 certified
• Life, Temperature and Warranty: 50,000-hour L70 lifespan; -4°F to 104°F operating range; RAB five-year warranty

Construction & Design

The 19 in round fixture features a white plastic body and smooth trim for an understated look. Its diffused lens softens the back-lit illumination. Fixture weight is 4.4 lb, and the surface-mount profile avoids a pendant's hanging drop where overhead clearance matters.

Light Output & Performance

The integrated LED produces 2,450 lumens with a broad 120-degree beam. Its 90 CRI and R9 of at least 50 support accurate color rendering. Choose warm 2700K or 3000K, intermediate 3500K or 4000K, or cool 5000K during installation. Rated LED life is 50,000 hours at L70.

Electrical & Installation

This model accepts 120-277V at 50/60Hz. The driver includes control wiring for 0-10V dimming down to 10% and requires a separate 0-10V DC dimming circuit. Surface mount on a standard junction box on a ceiling or wall and set the CCT during installation. The MVS configuration adds occupancy sensing to the flush-mount format.

Typical Applications

• Hotel corridors and hospitality interiors
• Multi-family residential hallways and common areas
• Entryways and laundry rooms
• Bathrooms and covered entries

What's Included

• (1) RAB CRVFAS-19R-32-9CCT-UNV-W/MVS white integrated LED flush mount with occupancy sensor
