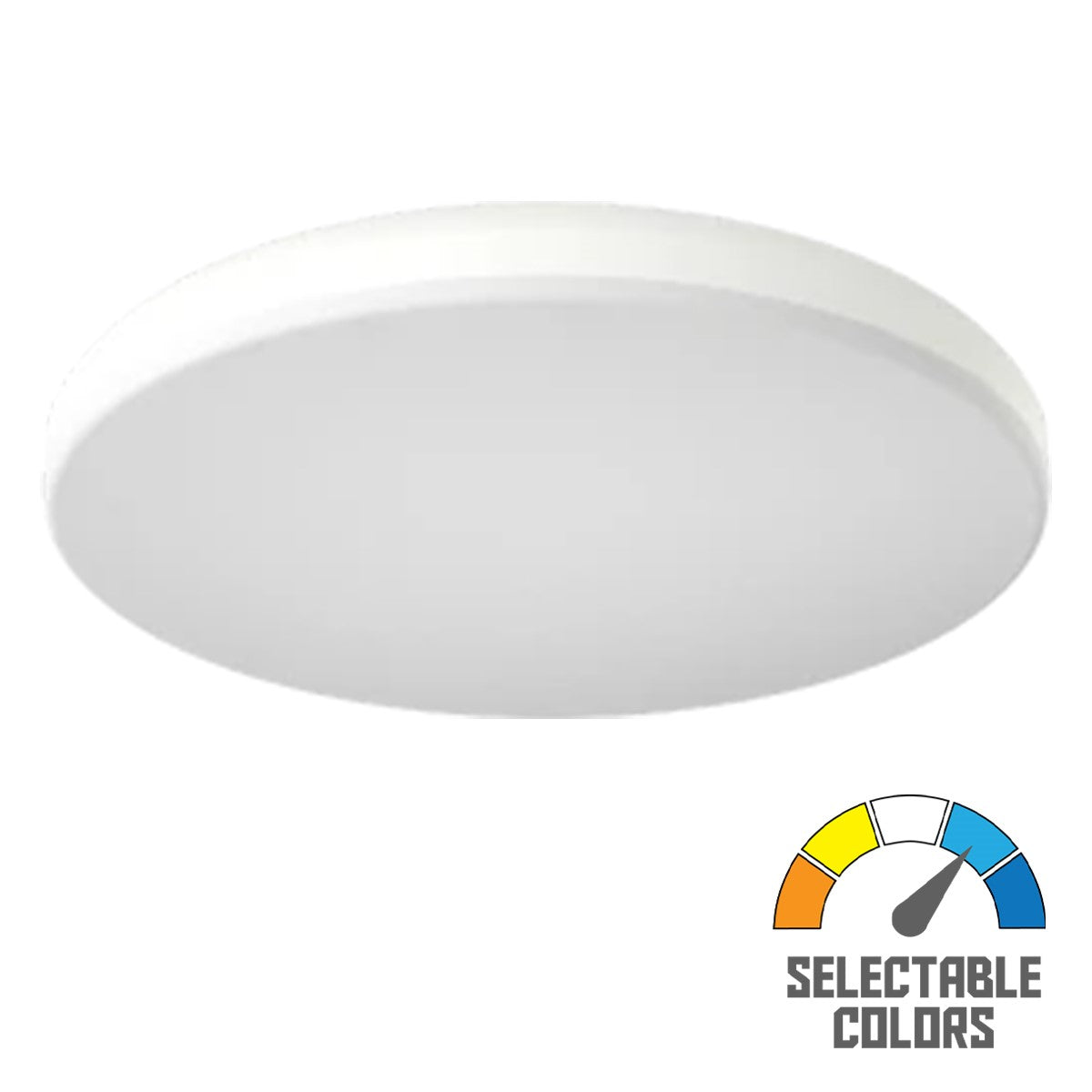

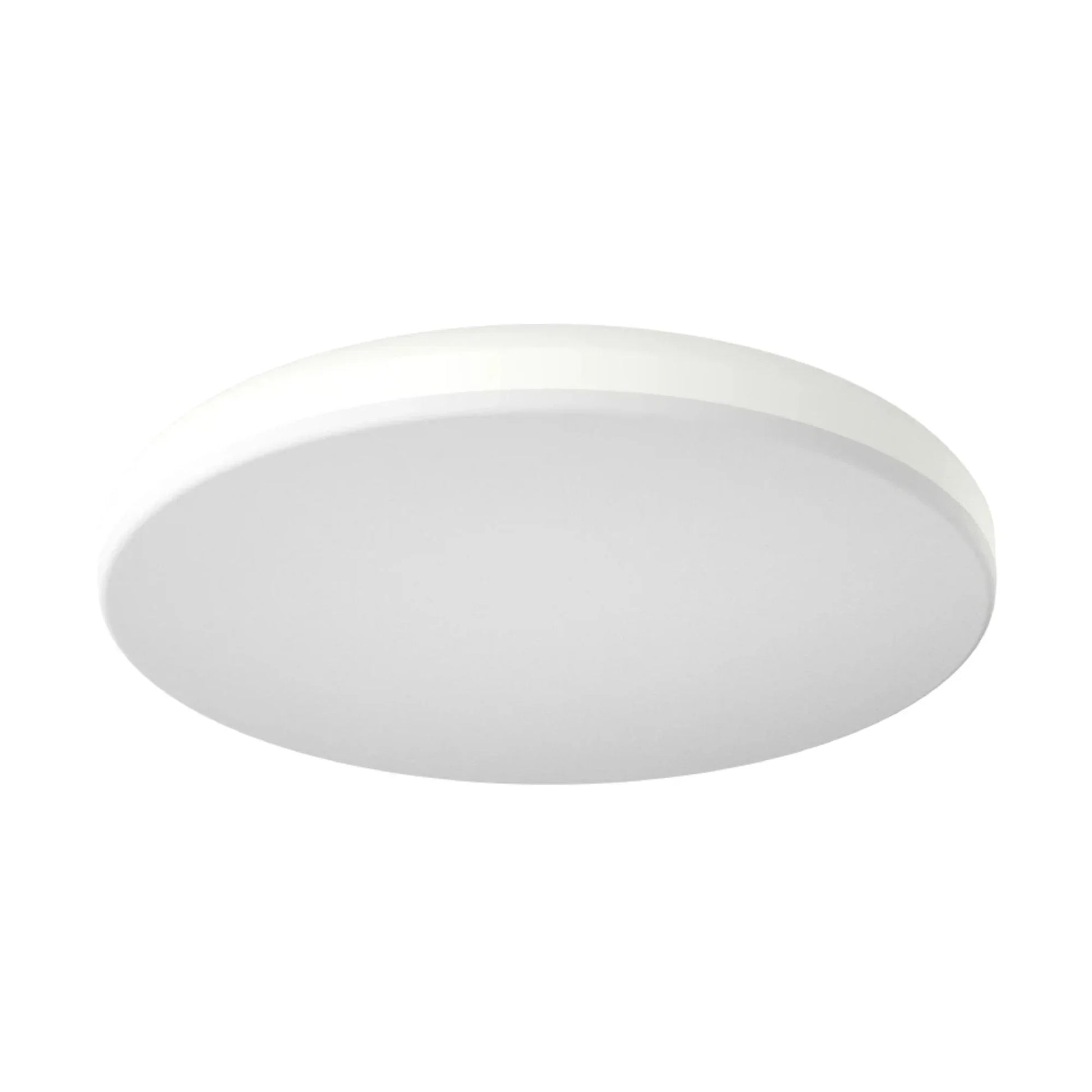

RAB CRVFAS-19R-32-9CCT-UNV-W/EMBB 19 in LED Flush Mount — White, 32W, 5CCT

The RAB CRVFAS-19R-32-9CCT-UNV-W/EMBB integrated LED flush mount combines emergency battery backup with universal 120-277V input and the UNV family's 0-10V dimming configuration. A white finish, smooth round trim and diffused back-lit lens provide soft illumination. Normal-operation output is 2,450 lumens at 32W, with five field-selectable color temperatures for hospitality and multi-family residential interiors.

Key Features

  • Emergency Backup: Integrated emergency battery backup
  • Dimming: UNV 0-10V driver configuration
  • Selectable CCT: 2700K, 3000K, 3500K, 4000K or 5000K
  • Normal Light Output: 2,450 lumens at 32W
  • Color Rendering: 90 CRI
  • Driver: Constant-current driver with 120-277V input
  • Input Current: 0.30A at 120V, 0.17A at 208V, 0.15A at 240V and 0.13A at 277V
  • Electrical: 0.9 power factor and 50/60Hz operation
  • Construction: 19 in round white plastic body with smooth trim and diffused lens
  • Mounting: Ceiling or wall surface mount on a standard junction box
  • Location and Temperature: Suitable for wet and damp locations; -4°F to 104°F operating range
  • Life and Warranty: 50,000-hour L70 lifespan and RAB five-year warranty

Construction & Design

The 19 in round fixture uses a white plastic body and smooth trim for an understated appearance. Its diffused lens softens the back-lit LED output. The surface-mount format avoids a pendant's hanging drop where overhead clearance matters.

Light Output & Performance

Normal-operation output is 2,450 lumens with 90 CRI. Select warm 2700K or 3000K, intermediate 3500K or 4000K, or cool 5000K during installation. Rated LED life is 50,000 hours at L70. Integrated emergency battery backup distinguishes this EMBB model from the standard fixture.

Electrical & Installation

The constant-current driver accepts 120-277V at 50/60Hz. Use a compatible 0-10V control for the UNV configuration, rather than a TRIAC/ELV control intended for UNVT models. Surface mount on a standard junction box on a ceiling or wall and select the CCT during installation.

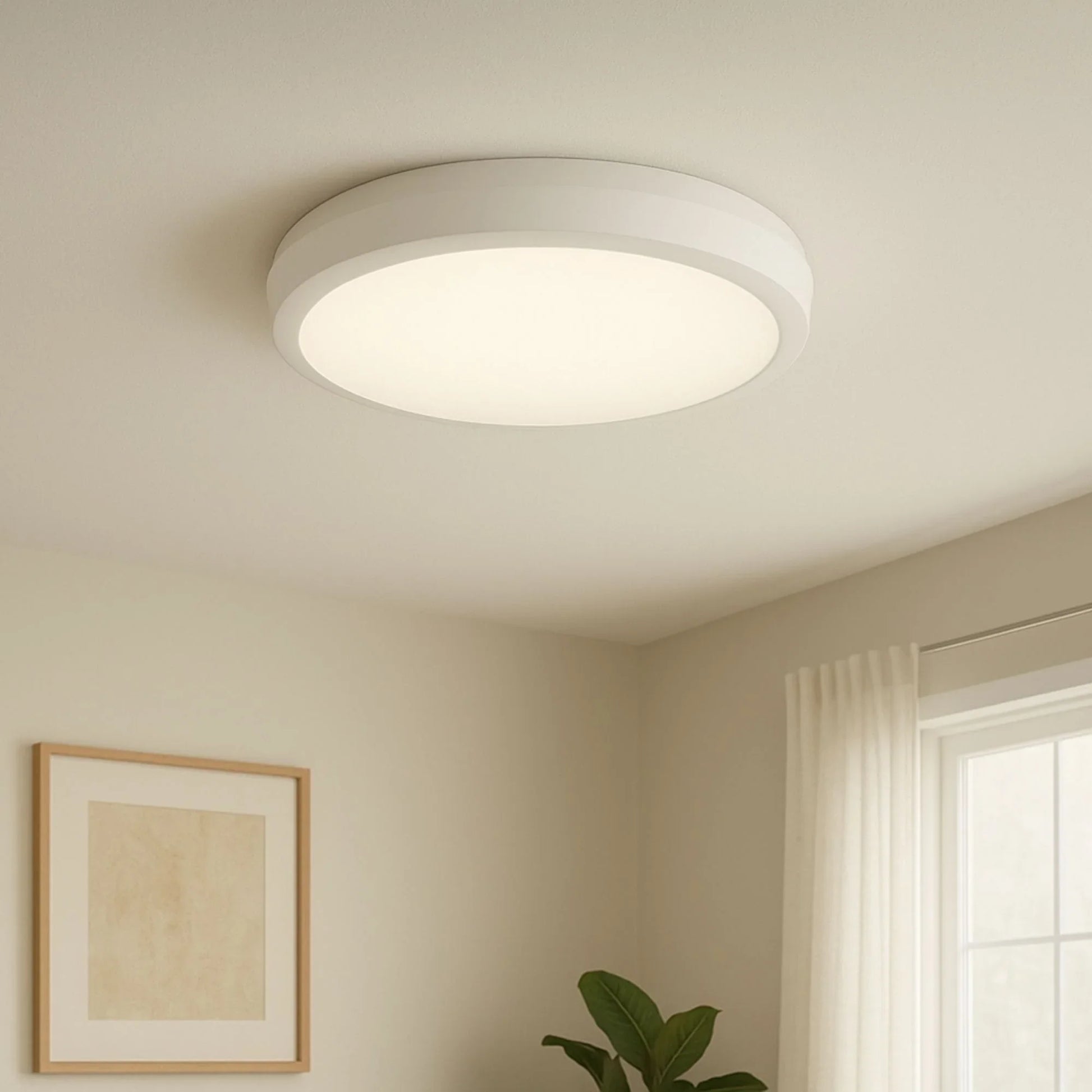

Typical Applications

  • Hotel corridors and hospitality interiors
  • Multi-family residential hallways and common areas
  • Entryways and laundry rooms
  • Bathrooms and covered entries

What's Included

  • (1) RAB CRVFAS-19R-32-9CCT-UNV-W/EMBB white flush mount with integrated LED and emergency battery backup

Specifications

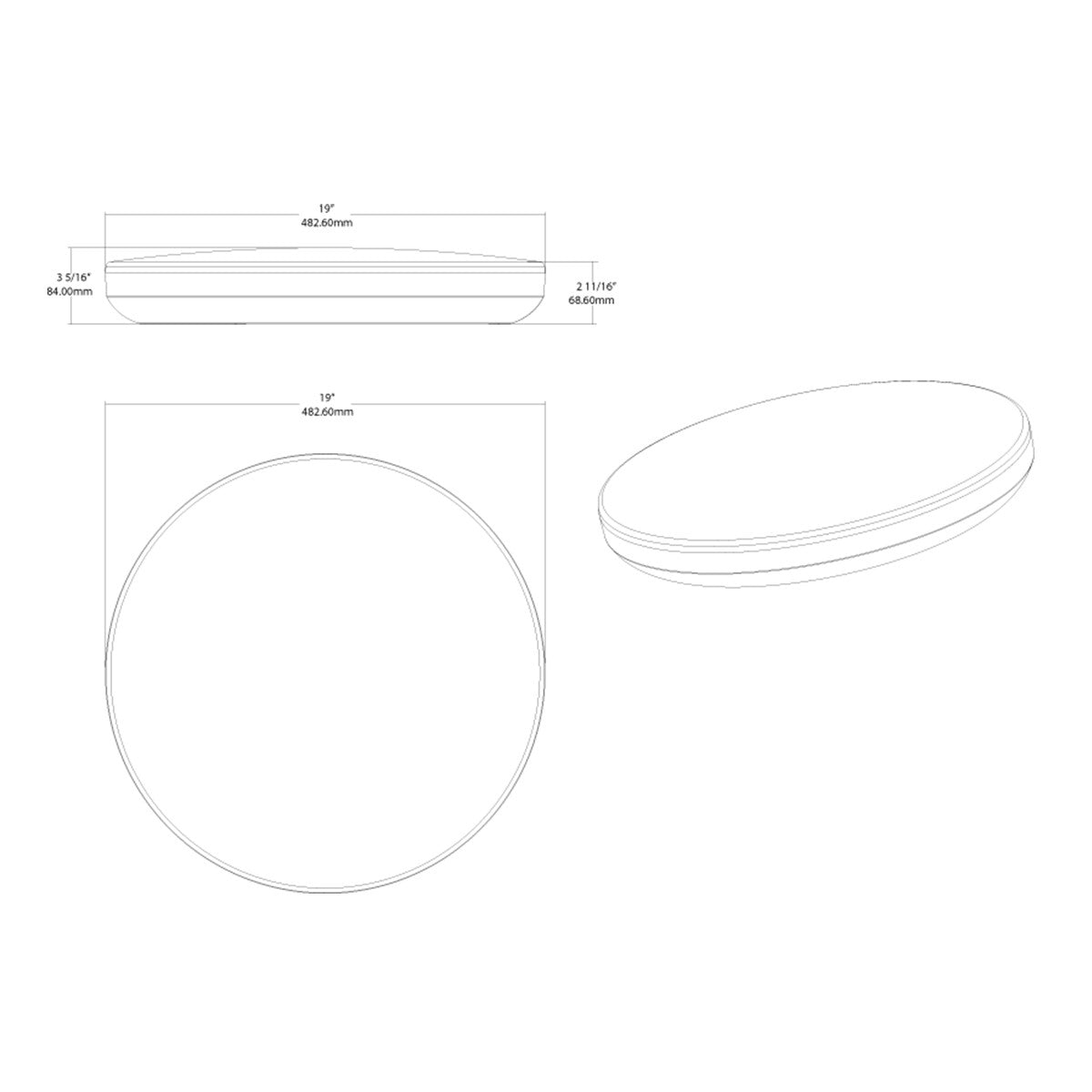

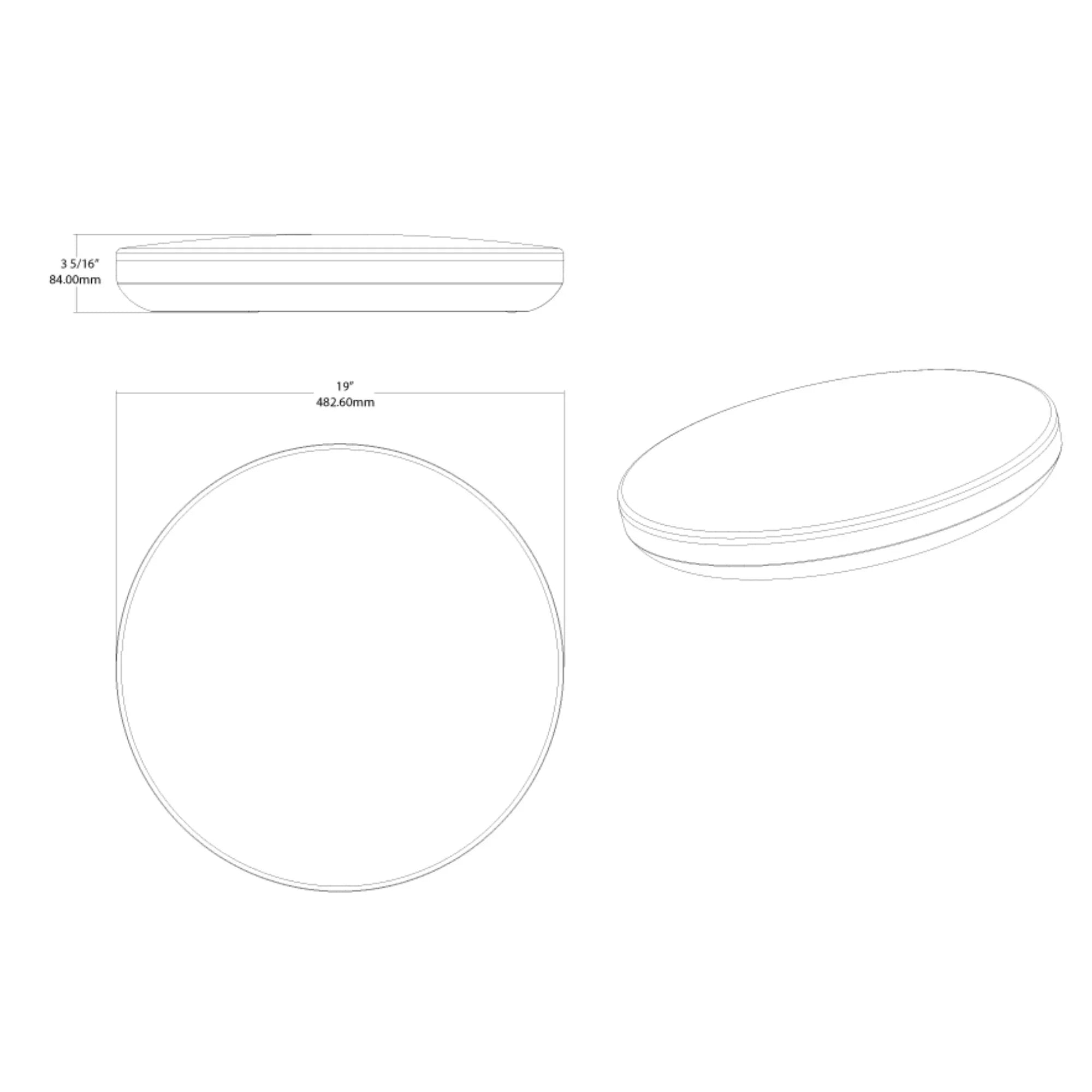

Dimensions

Length/Depth
19 in
Width/Diameter
19 in
Height
3 in
Weight
5.77 lb

Style & Materials

Finish
White
Material
Plastic

Characteristics & Features

Lamp Source
LED Module
Number of Lights
1
Lamp Color
2700K, 3000K, 3500K, 4000K, 5000K, Selectable CCT
Color Rendering
90 CRI
Delivered Lumens
2450
Dimmable
Yes

Electrical Information

Voltage
120-277V
Total Wattage
32W

Item Details

MPN
CRVFAS-19R-32-9CCT-UNV-W/EMBB
Brand
RAB Lighting
Family
CRVFA
UPC
192552018562

Warranty & Certifications

Product Warranty
5 Years
Lamp Life
50,000 Hours
Product Rating
Wet Rated

Shipping & Returns

Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.

Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.

See Full Shipping Policy | See Full Return Policy

Frequently Asked Questions

Is the CRVFAS-19R-32-9CCT-UNV-W/EMBB suitable for wet locations?

Yes — the CRVFAS-19R-32-9CCT-UNV-W/EMBB is suitable for wet and damp locations.

Does the CRVFAS-19R-32-9CCT-UNV-W/EMBB include emergency battery backup?

Yes — the CRVFAS-19R-32-9CCT-UNV-W/EMBB includes integrated emergency battery backup. The 2,450-lumen specification describes normal operation.

Does the CRVFAS-19R-32-9CCT-UNV-W/EMBB use 0-10V dimming?

Yes — the CRVFAS-19R-32-9CCT-UNV-W/EMBB uses the UNV 0-10V driver configuration and accepts 120-277V input at 50/60Hz.

Can I select the CCT on the CRVFAS-19R-32-9CCT-UNV-W/EMBB?

Yes — the CRVFAS-19R-32-9CCT-UNV-W/EMBB offers field-selectable 2700K, 3000K, 3500K, 4000K and 5000K settings.

Does the CRVFAS-19R-32-9CCT-UNV-W/EMBB require separate bulbs?

No — the CRVFAS-19R-32-9CCT-UNV-W/EMBB uses an integrated 32W LED delivering 2,450 lumens in normal operation, 90 CRI and a 50,000-hour L70 lifespan.
