RAB CRVFAS 14 in LED Flush Mount White 5CCT 120-277V TRIAC Battery Backup
Available in stock (100)
About this item
About this item
- Emergency Battery Backup: Integrated backup distinguishes this EMBB fixture from the standard model
- TRIAC/ELV Control: UNVT driver supports dimming with universal 120-277V input
- Five Selectable CCTs: Choose 2700K, 3000K, 3500K, 4000K or 5000K during installation
- Normal-Mode Output: 1,500 lumens at 20W with 90 CRI and a soft diffused lens
- Versatile, Long-Life Design: 14 in white ceiling or wall surface mount, suitable for wet and damp locations, with a 50,000-hour L70 lifespan
Description
Description
RAB CRVFAS-14R-20-9CCT-UNVT-W/EMBB 14 in LED Flush Mount — White, 20W, 5CCT
The RAB CRVFAS-14R-20-9CCT-UNVT-W/EMBB integrated LED flush mount combines emergency battery backup with TRIAC/ELV dimming and universal 120-277V input. Its white finish, smooth round trim and diffused back-lit lens deliver an understated appearance with soft illumination. Normal-operation output is 1,500 lumens at 20W, with five field-selectable color temperatures for coordinating hospitality and multi-family residential interiors.
Key Features
- Emergency Backup: Integrated emergency battery backup
- Dimming: TRIAC/ELV control for the UNVT driver configuration
- Selectable CCT: 2700K, 3000K, 3500K, 4000K or 5000K
- Normal Light Output: 1,500 lumens at 20W
- Color Rendering: 90 CRI
- Driver: Constant-current driver with universal 120-277V input
- Input Current: 0.19A at 120V, 0.11A at 208V, 0.09A at 240V and 0.08A at 277V
- Electrical: 0.9 power factor and 50/60Hz operation

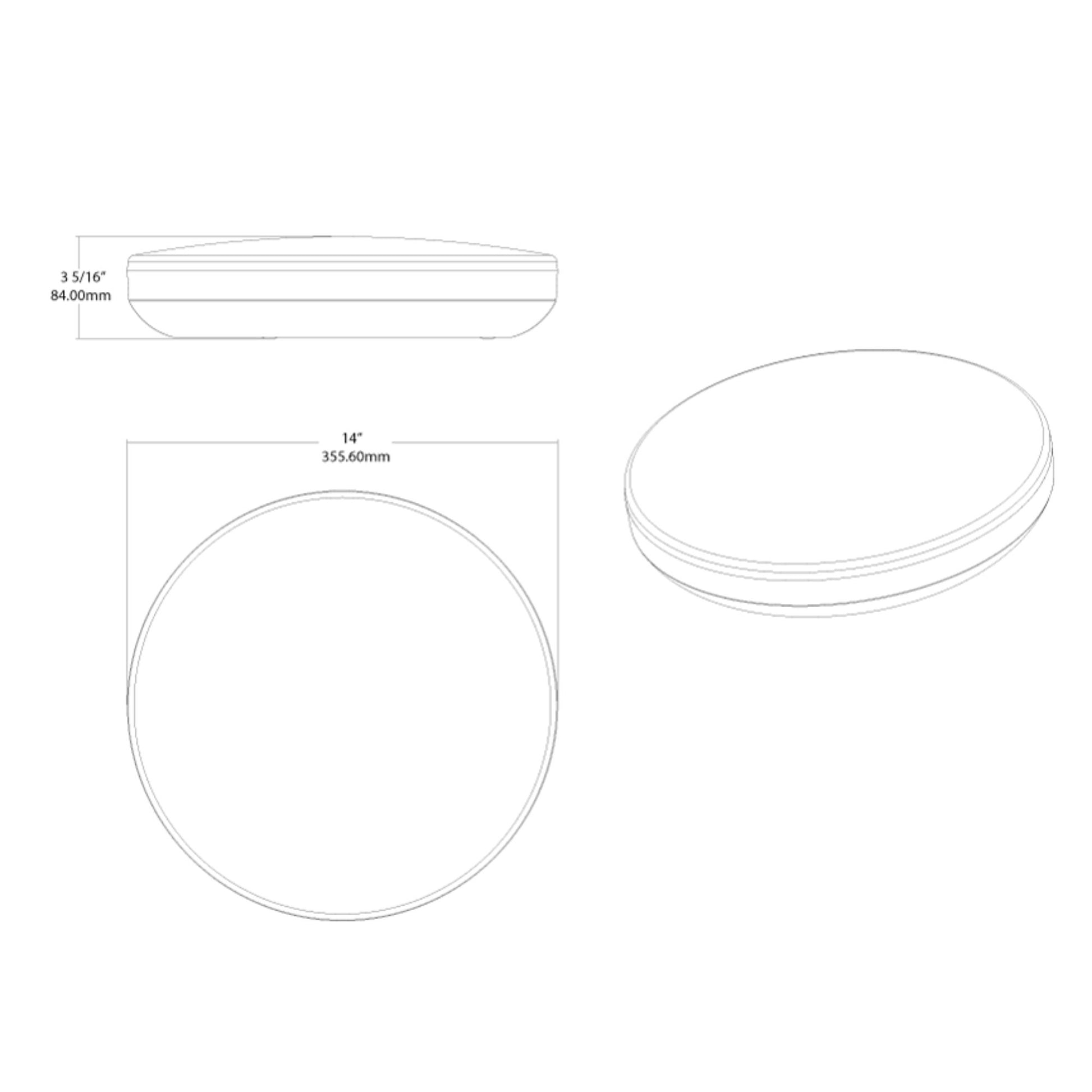

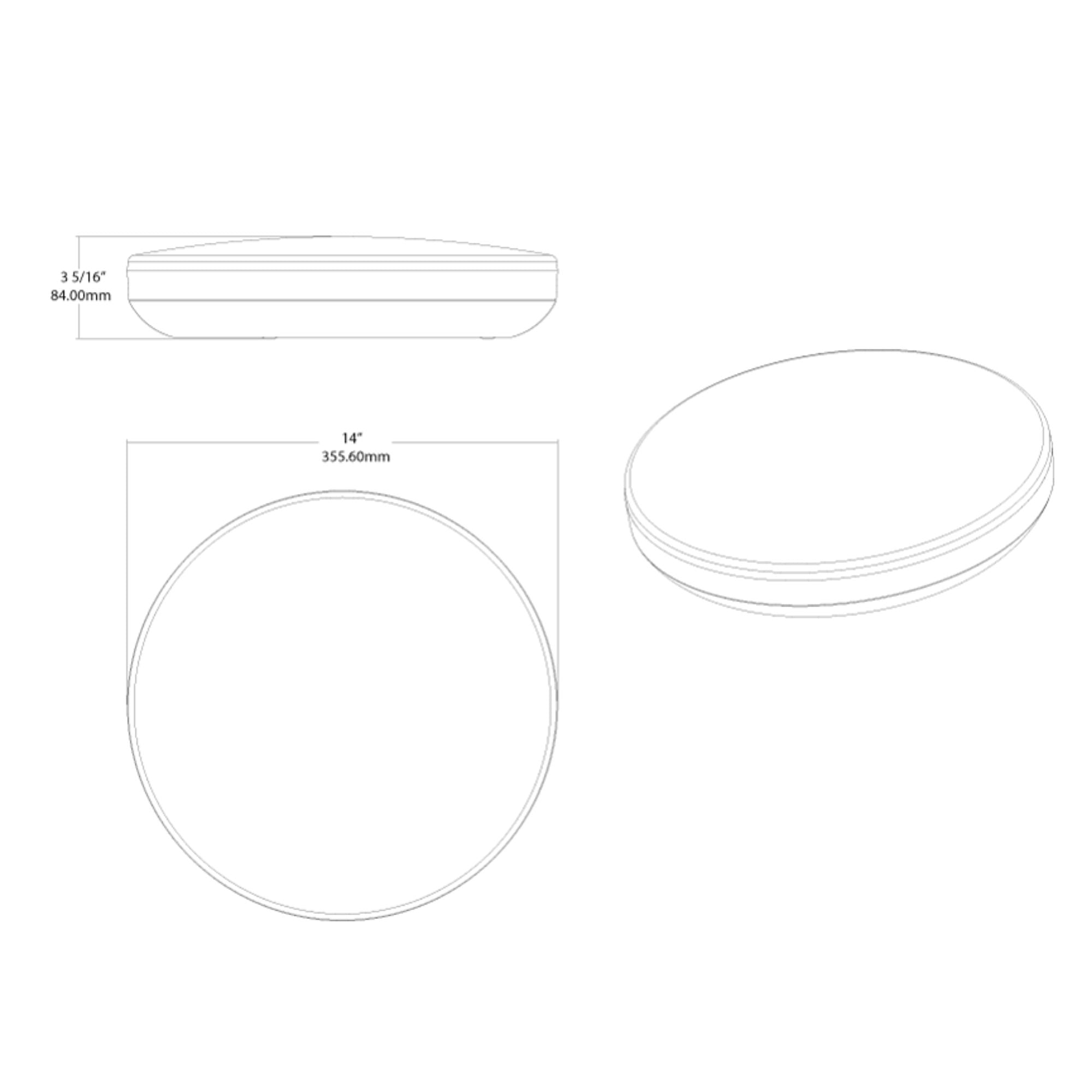

- Construction: 14 in round white plastic body, smooth trim and diffused lens
- Mounting: Ceiling or wall surface mount on a standard junction box
- Location and Temperature: Suitable for wet and damp locations; -4°F to 104°F operating range
- Life and Warranty: 50,000-hour L70 lifespan and RAB five-year warranty
Construction & Design
The 14 in round fixture uses a white plastic body and smooth trim for a clean, low-profile appearance. Its diffused lens softens the back-lit illumination. The surface-mount design avoids a pendant's hanging drop where overhead clearance matters.
Light Output & Performance
Normal-operation output is 1,500 lumens with 90 CRI. Select warm 2700K or 3000K, intermediate 3500K or 4000K, or cool 5000K during installation. Rated LED life is 50,000 hours at L70. Integrated emergency battery backup distinguishes this EMBB configuration from the standard fixture.
Electrical & Installation
The constant-current driver accepts 120-277V at 50/60Hz. This UNVT configuration supports TRIAC/ELV dimming, rather than the 0-10V protocol of UNV versions. Surface mount on a standard junction box on a ceiling or wall and select the CCT during installation.
Typical Applications
- Hotel guest rooms and corridors
- Multi-family residential hallways and common areas
- Entryways and laundry rooms
- Bathrooms and covered entries
What's Included
- (1) RAB CRVFAS-14R-20-9CCT-UNVT-W/EMBB white flush mount with integrated LED and emergency battery backup
