RAB CRVFAS 14" LED Flush Mount White 5CCT 120-277V TRIAC Dimming
Available in stock (100)
About this item
About this item
- TRIAC/ELV Dimming: UNVT driver provides adjustable illumination with universal 120-277V input
- Five Selectable CCTs: Choose 2700K, 3000K, 3500K, 4000K or 5000K during installation
- Soft, Accurate Light: 1,500 lumens at 20W with 90 CRI and a diffused back-lit lens
- Versatile Surface Mount: 14 in white round fixture mounts on a ceiling or wall standard junction box
- Lasting Performance: UL wet location listed, TAA compliant and rated for 50,000 hours at L70 with a five-year warranty
Description
Description

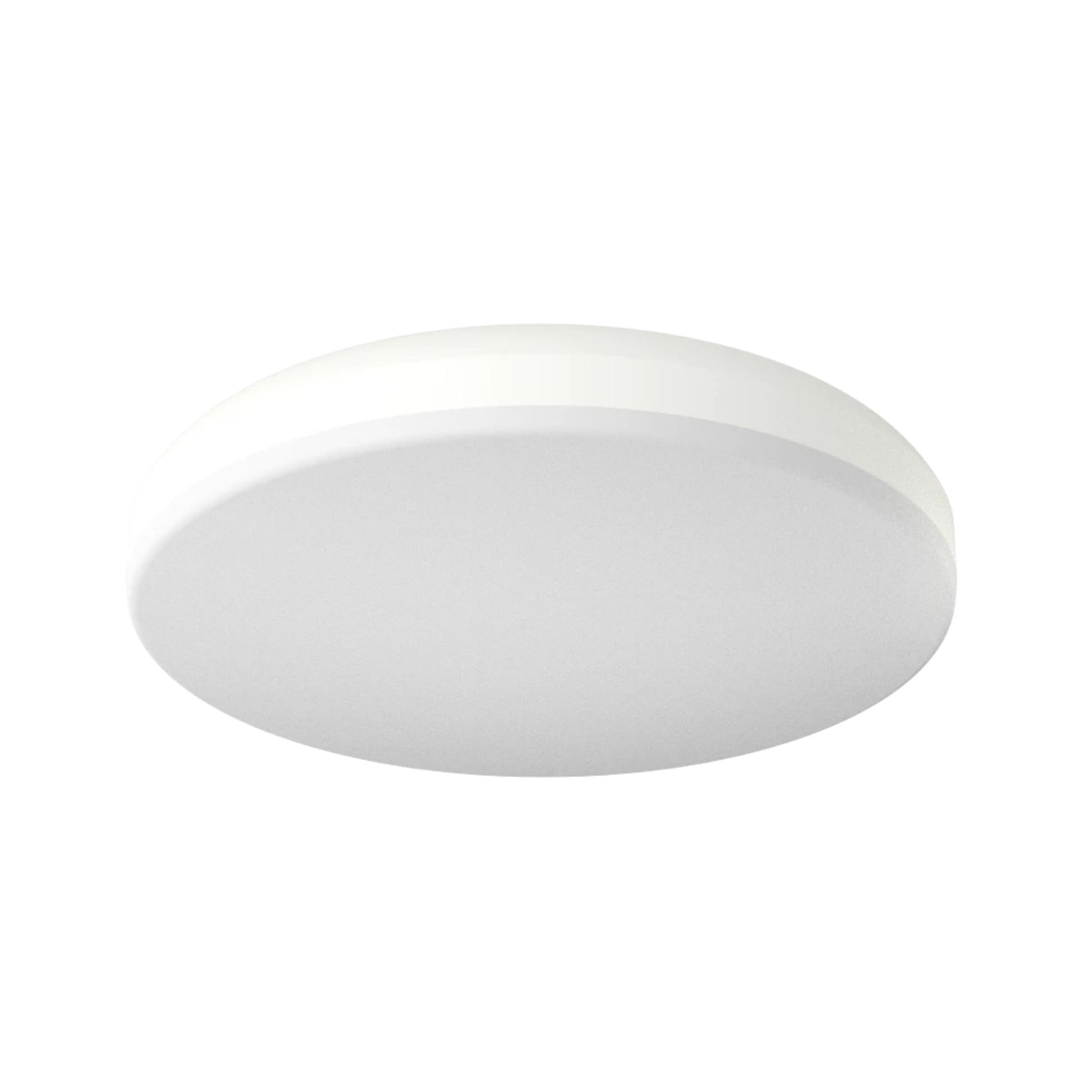

RAB CRVFAS-14R-20-9CCT-UNVT-W 14 in Smooth LED Flush Mount — White, 20W, 5CCT
The RAB CRVFAS-14R-20-9CCT-UNVT-W integrated LED flush mount combines TRIAC/ELV dimming and 120-277V input in a smooth round fixture with a white finish. Its back-lit LED delivers 1,500 lumens at 20W through a soft diffused lens. Five field-selectable color temperatures help coordinate lighting across hospitality and multi-family residential interiors.
Key Features
- Dimming: TRIAC/ELV control for the UNVT driver configuration
- Selectable CCT: 2700K, 3000K, 3500K, 4000K or 5000K
- Output: 1,500 lumens from 20W
- Color Rendering: 90 CRI
- Driver: Constant-current driver with universal 120-277V input
- Input Current: 0.19A at 120V, 0.11A at 208V, 0.09A at 240V and 0.08A at 277V
- Electrical: 0.9 power factor and 50/60Hz operation

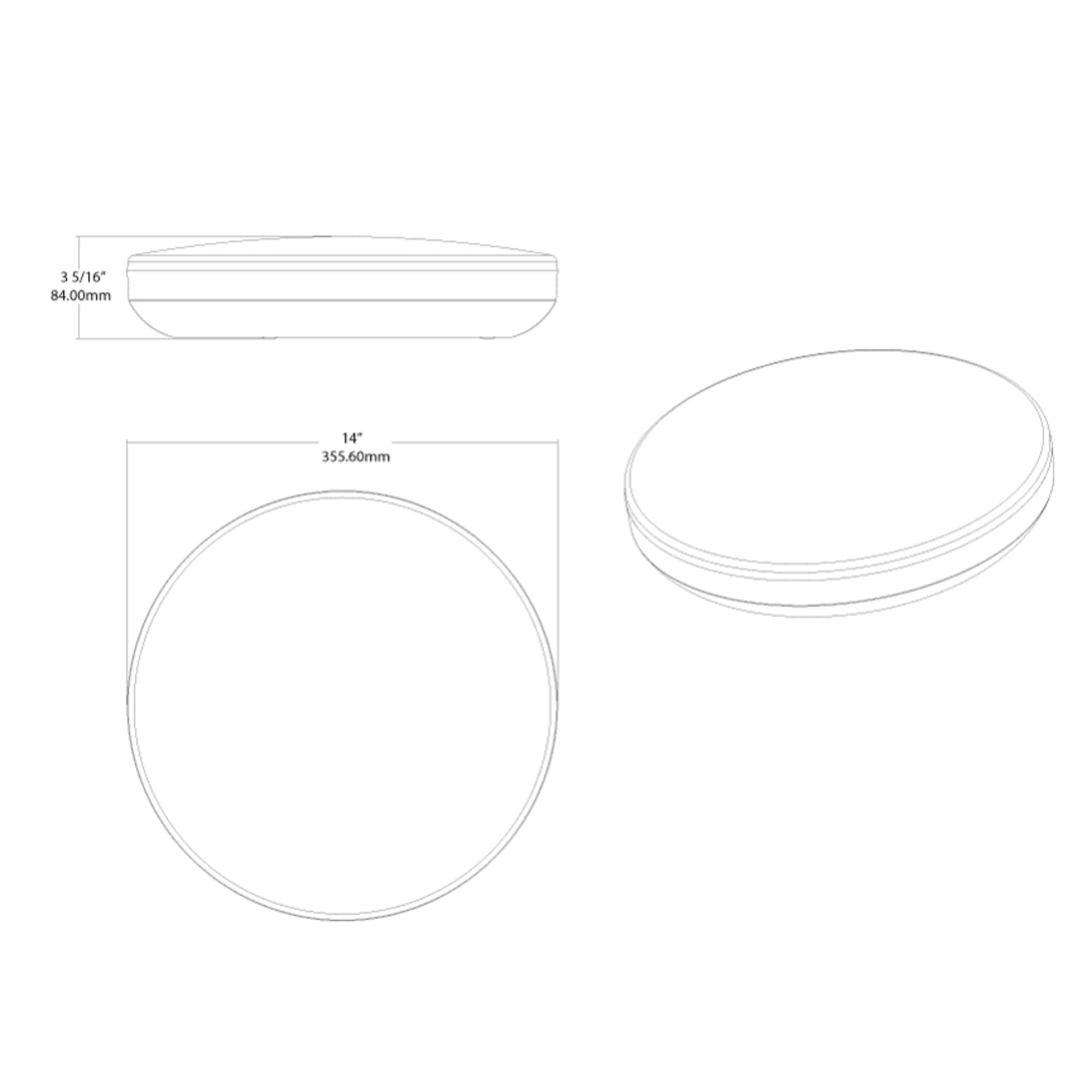

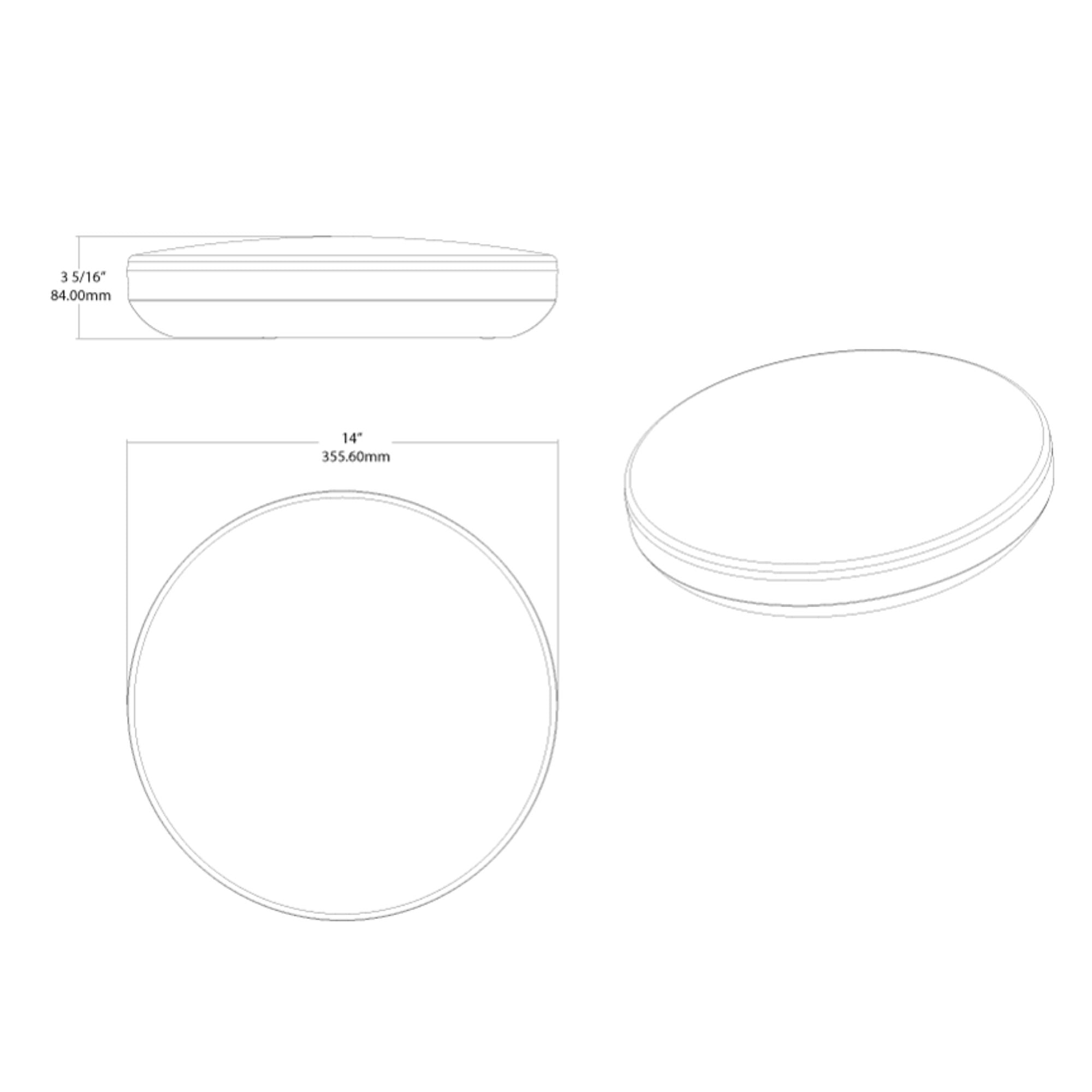

- Construction: 14 in round white plastic body with smooth trim and diffused lens
- Mounting: Ceiling or wall surface mount on a standard junction box
- Location Rating: UL listed for wet locations; suitable for damp locations
- TAA: Trade Agreements Act compliant
- Life, Temperature and Warranty: 50,000-hour L70 lifespan; -4°F to 104°F operating range; RAB five-year warranty
Construction & Design
The 14 in round fixture features a white plastic body and smooth trim for an understated appearance. Its diffused lens softens the back-lit illumination. A surface-mount profile avoids the hanging drop of a pendant where overhead clearance matters.
Light Output & Performance
The integrated LED delivers 1,500 lumens with 90 CRI. Select warm 2700K or 3000K, intermediate 3500K or 4000K, or cool 5000K during installation. The soft, smooth light suits frequently used interiors, and rated LED life is 50,000 hours at L70.
Electrical & Installation
The constant-current driver accepts 120-277V at 50/60Hz. This UNVT configuration supports TRIAC/ELV dimming, rather than the 0-10V protocol of UNV versions. Surface mount on a standard junction box on a ceiling or wall and set the color temperature during installation.

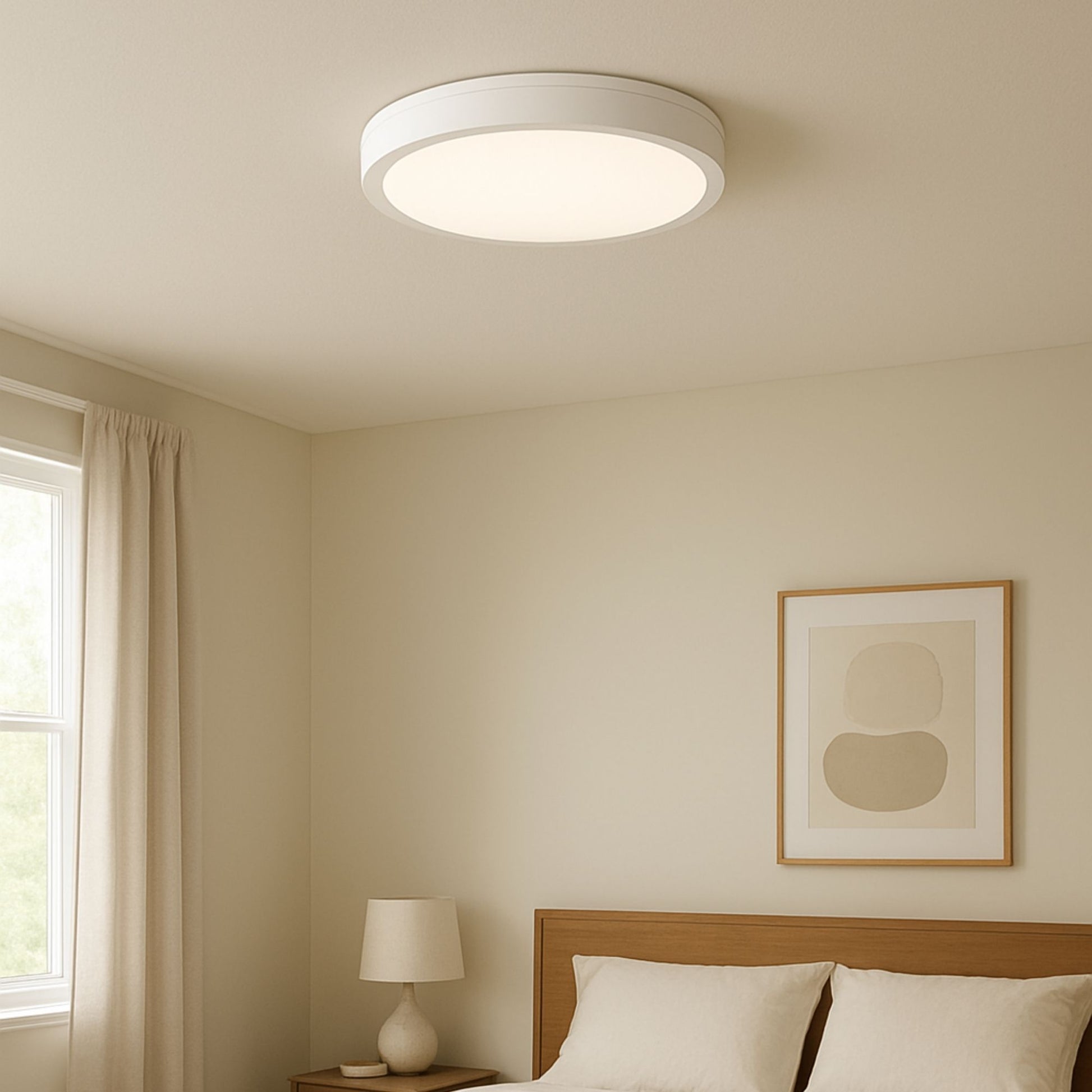

Typical Applications
- Hotel guest rooms and corridors
- Multi-family residential hallways and common areas
- Entryways and laundry rooms
- Bathrooms and covered entries
What's Included
- (1) RAB CRVFAS-14R-20-9CCT-UNVT-W white flush mount with integrated LED
