RAB CRVFAS 14" LED Flush Mount White 5CCT 120-277V 0-10V Occupancy
Available in stock (100)
About this item
About this item
- Occupancy Sensing: MVS microwave sensor configuration for occupancy-based lighting
- Precise Dimming: 0-10V control dims to 10% using a separate 0-10V DC circuit
- Selectable Color: Choose 2700K, 3000K, 3500K, 4000K or 5000K during installation
- Bright, Accurate Light: 1,500 lumens at 20W with 90 CRI and a broad 120-degree beam
- Lasting Performance: UL wet location listed, ENERGY STAR Version 2.2 certified and rated for 50,000 hours at L70
Description
Description

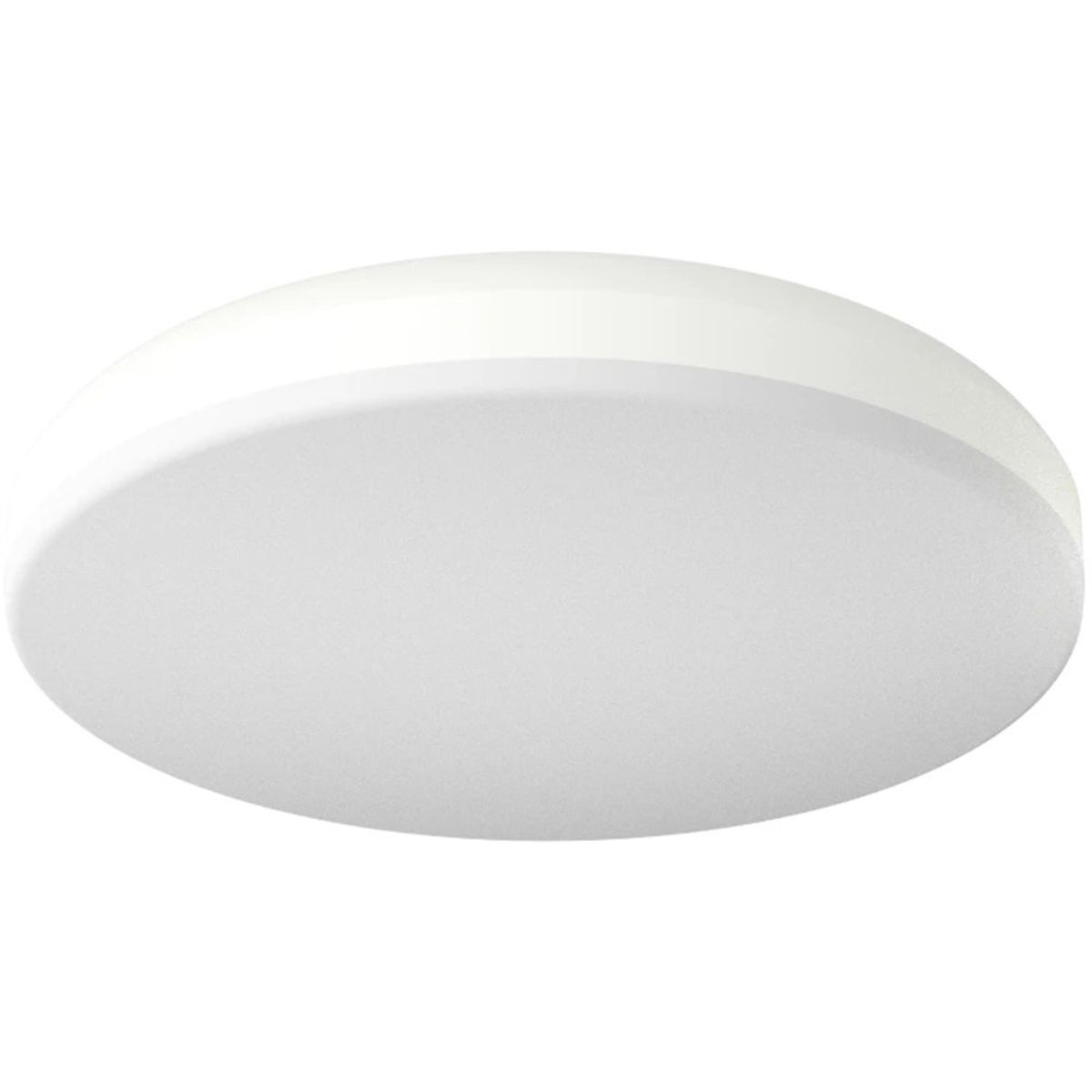

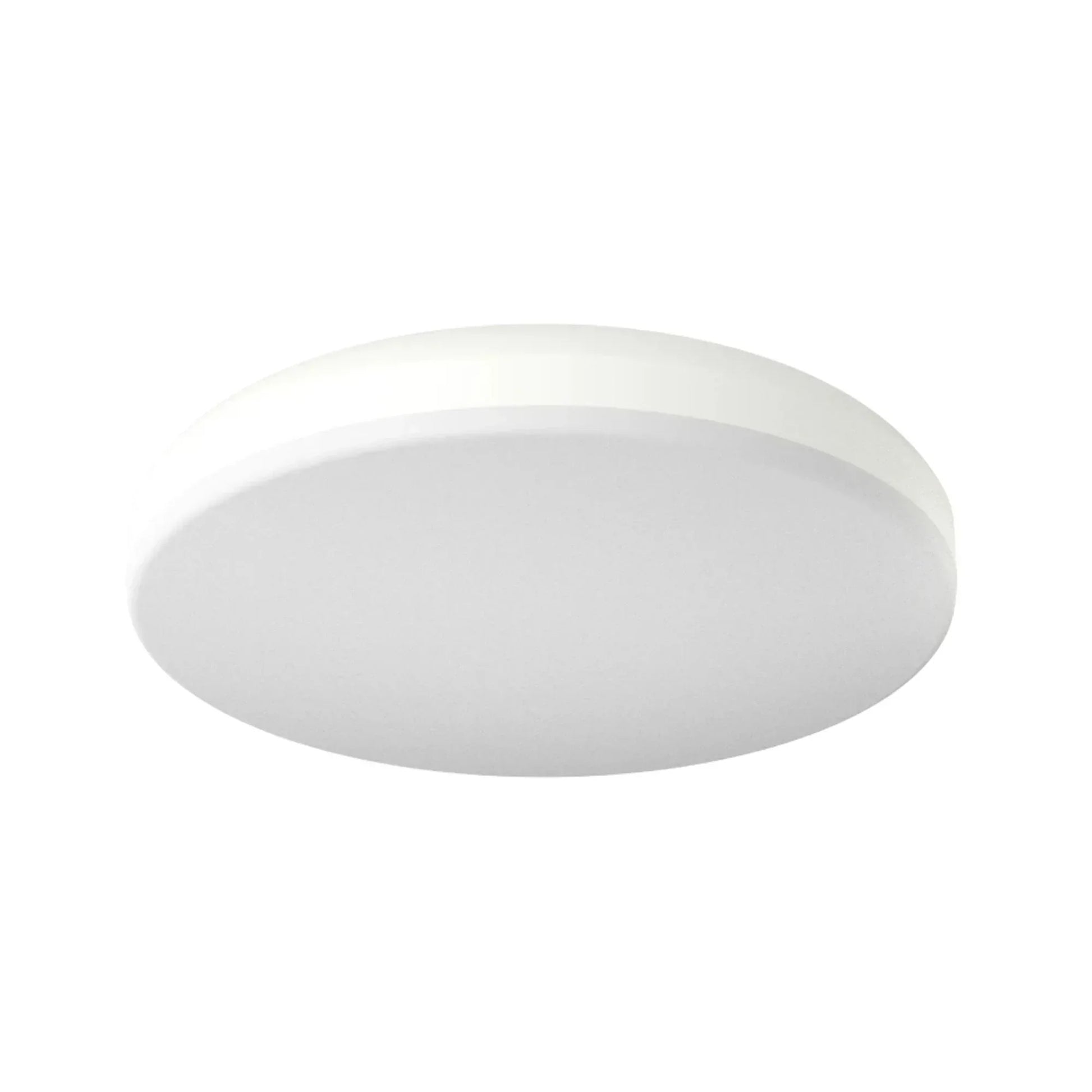

RAB CRVFAS-14R-20-9CCT-UNV-W/MVS 14 in LED Flush Mount — White, 20W, 5CCT, Occupancy Sensor
The RAB CRVFAS-14R-20-9CCT-UNV-W/MVS integrated LED flush mount combines microwave occupancy sensing with 0-10V dimming down to 10%. Its white finish and smooth round trim provide an understated look, while the diffused lens delivers 1,500 lumens at 20W. Five selectable color temperatures help coordinate lighting in hospitality and multi-family residential interiors.
Key Features
- Occupancy Sensor: MVS microwave occupancy-sensor configuration
- Dimming: 0-10V dimming down to 10%; requires a separate 0-10V DC dimming circuit

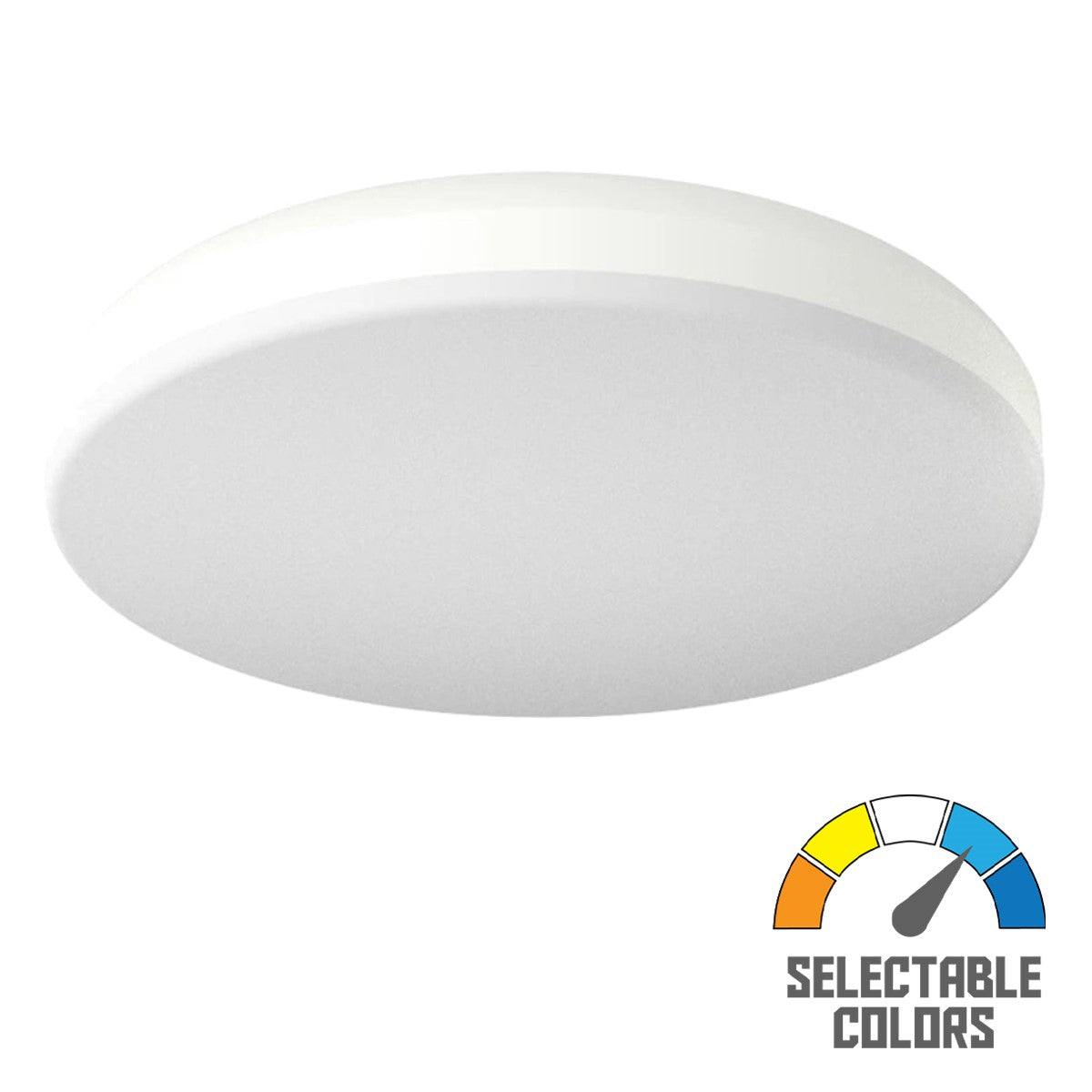

- Selectable CCT: 2700K, 3000K, 3500K, 4000K or 5000K
- Output and Efficacy: 1,500 lumens at 20W; 75 lm/W
- Color Quality: 90 CRI with R9 of at least 50
- Beam: 120-degree beam angle
- Driver: Constant-current driver; 120-277V, 50/60Hz input
- Electrical Performance: Power factor at least 0.9; THD at most 20%; flicker at most 30%

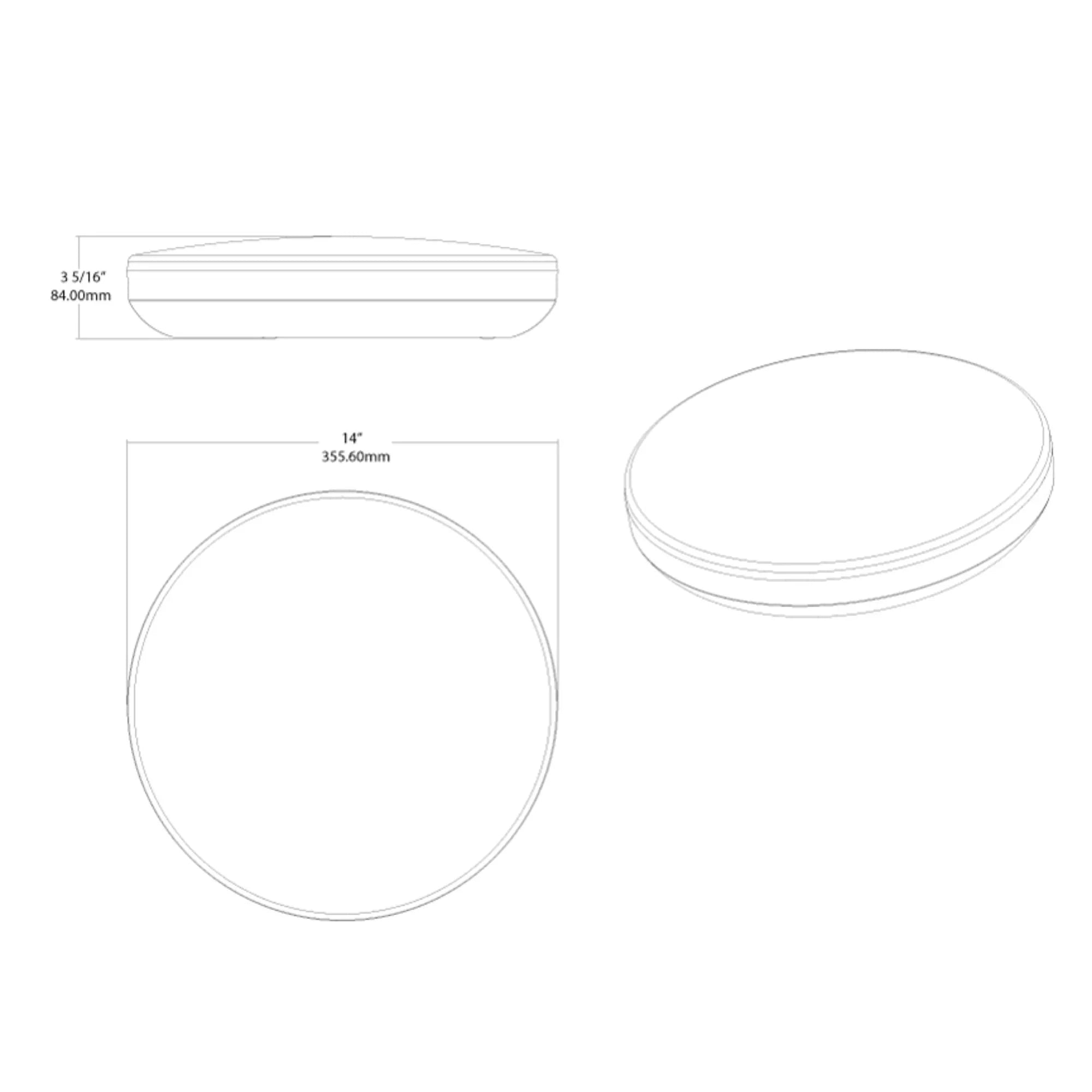

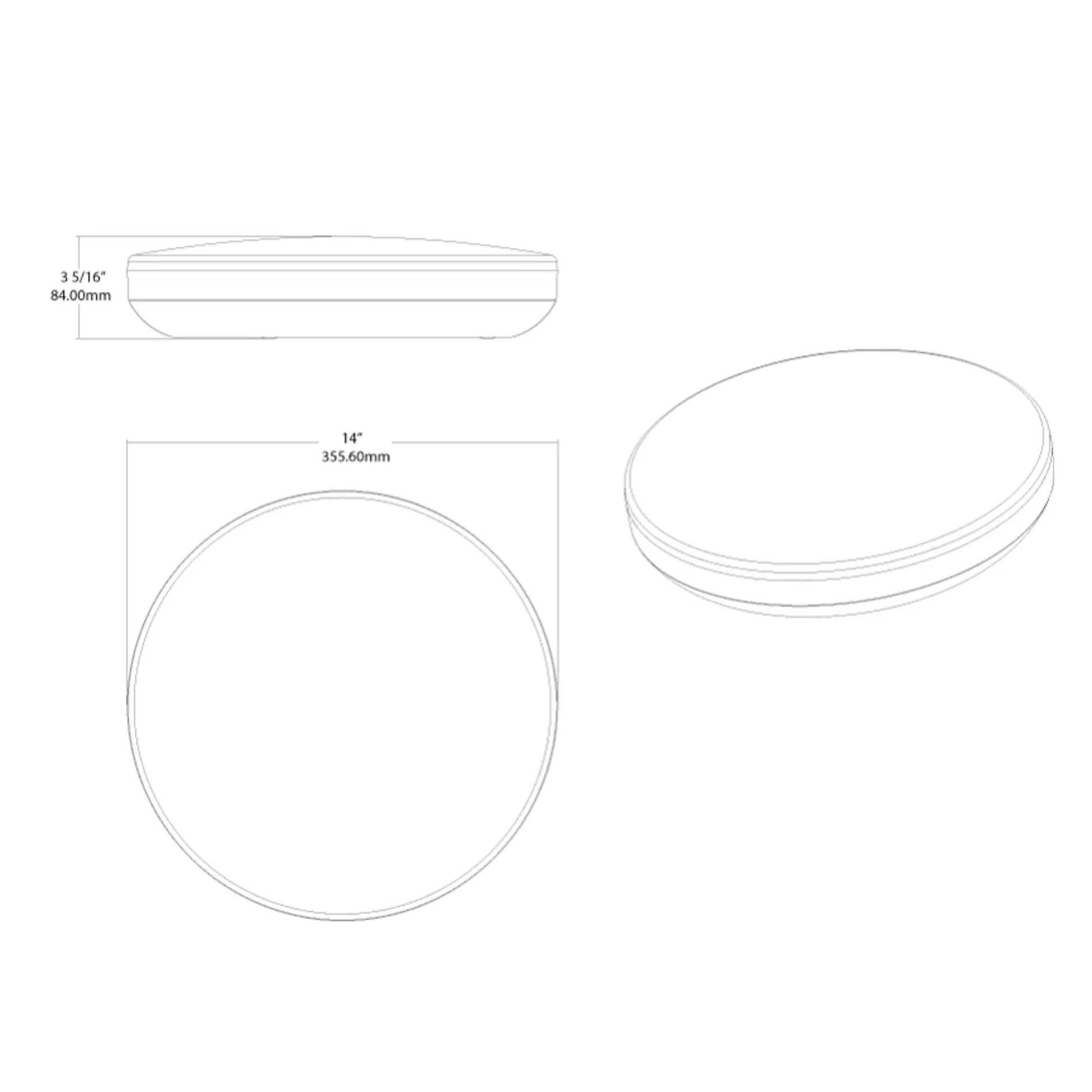

- Construction: 14 in round white plastic body, smooth trim and diffused lens; 2.6 lb fixture weight
- Mounting and Rating: Ceiling or wall surface mount on a standard junction box; UL listed for wet locations
- Certification: ENERGY STAR Version 2.2 certified
- Life, Temperature and Warranty: 50,000-hour L70 lifespan; -4°F to 104°F operating range; RAB five-year warranty
Construction & Design
The 14 in round fixture uses a white plastic body and smooth trim to blend into a variety of interiors. A diffused lens softens the back-lit illumination. Fixture weight is 2.6 lb, and the surface-mount profile avoids a pendant's hanging drop.
Light Output & Performance
The integrated LED delivers 1,500 lumens with a broad 120-degree beam. Its 90 CRI and R9 of at least 50 support accurate color rendering. Select warm 2700K or 3000K, intermediate 3500K or 4000K, or cool 5000K during installation. Rated LED life is 50,000 hours at L70.
Electrical & Installation
This model accepts 120-277V at 50/60Hz. The driver includes control wiring for 0-10V dimming down to 10% and requires a separate 0-10V DC dimming circuit. Surface mount on a standard junction box on a ceiling or wall and select the CCT during installation. The flush-mount format preserves overhead clearance, while the MVS configuration adds occupancy sensing.

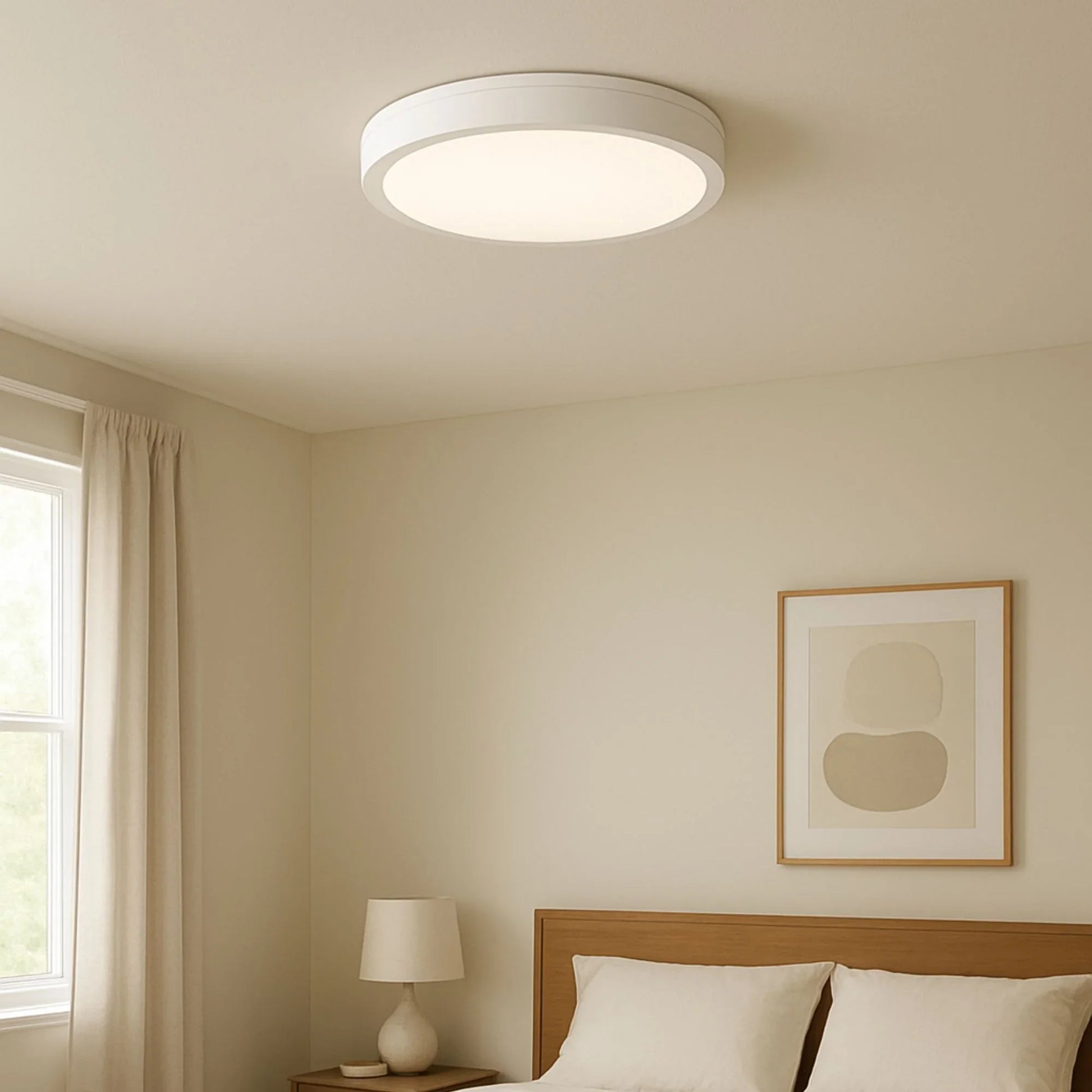

Typical Applications
- Hotel corridors and hospitality interiors
- Multi-family residential hallways and common areas
- Entryways and laundry rooms
- Bathrooms and covered entries
What's Included
- (1) RAB CRVFAS-14R-20-9CCT-UNV-W/MVS white integrated LED flush mount with occupancy sensor
