RAB CRVFAS 14" LED Flush Mount White 5CCT 120-277V 0-10V Dimming
Available in stock (100)
About this item
About this item
- 0-10V Control: UNV driver provides dimming flexibility with universal 120-277V input
- Five Selectable CCTs: Choose 2700K, 3000K, 3500K, 4000K or 5000K during installation
- Soft, Accurate Light: 1,500 lumens at 20W with 90 CRI and a diffused back-lit lens
- Flexible Surface Mount: 14 in white round fixture mounts on a standard junction box on a ceiling or wall
- Long-Life Performance: UL wet location listed, TAA compliant and rated for 50,000 hours at L70 with a five-year warranty
Description
Description

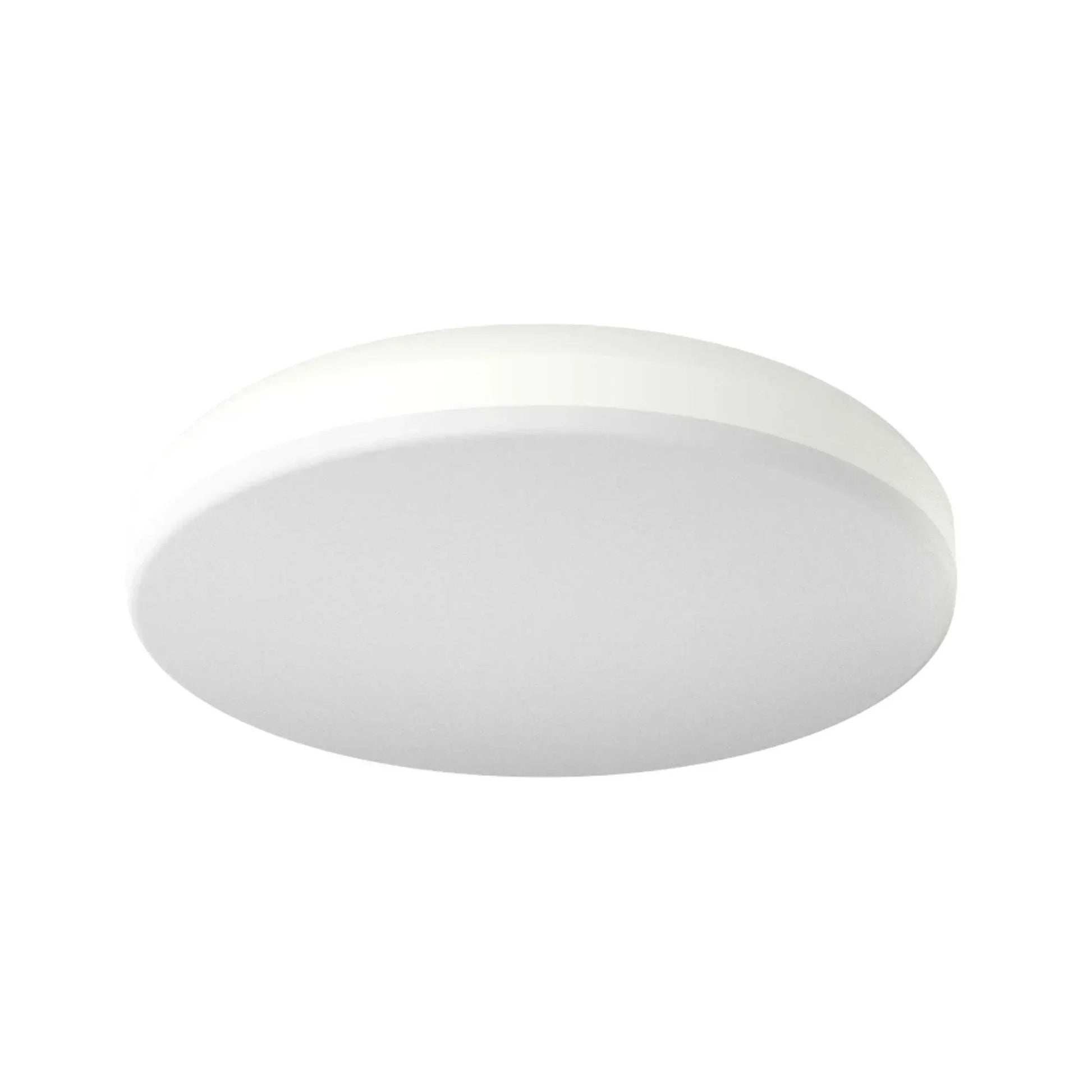

RAB CRVFAS-14R-20-9CCT-UNV-W 14 in Smooth LED Flush Mount — White, 20W, 5CCT
The RAB CRVFAS-14R-20-9CCT-UNV-W integrated LED flush mount delivers 1,500 lumens at 20W with 0-10V dimming and universal 120-277V input. Its white finish, smooth round trim and soft diffused illumination suit hospitality and multi-family residential interiors. Five field-selectable color temperatures make it easy to coordinate the lighting during installation.
Key Features
- Dimming: 0-10V control for the UNV driver configuration
- Selectable CCT: 2700K, 3000K, 3500K, 4000K or 5000K
- Output: 1,500 lumens from 20W
- Color Rendering: 90 CRI
- Driver: Constant-current driver with 120-277V input
- Input Current: 0.19A at 120V, 0.11A at 208V, 0.09A at 240V and 0.08A at 277V
- Electrical: 0.9 power factor and 50/60Hz operation
- Construction: Round white plastic body with smooth trim and diffused lens
- Mounting: Ceiling or wall surface mount on a standard junction box
- Location Rating: UL listed for wet locations; suitable for damp locations
- TAA: Trade Agreements Act compliant
- Life, Temperature and Warranty: 50,000-hour L70 lifespan; -4°F to 104°F operating range; RAB five-year warranty
Construction & Design

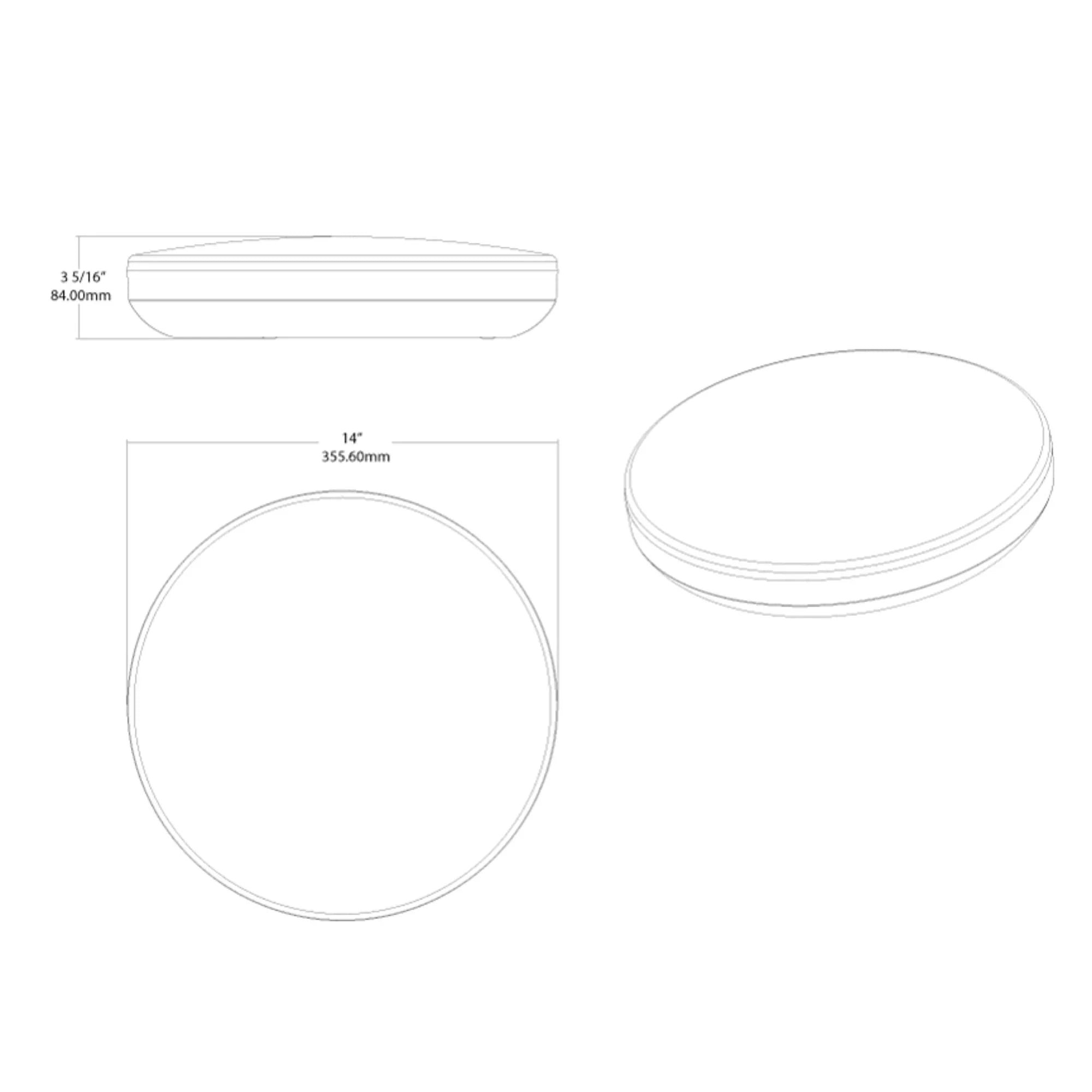

The 14 in round fixture combines a white plastic body with smooth trim for a clean, understated appearance. A diffused lens softens the back-lit LED output. The flush-mount format avoids a pendant's hanging drop where overhead clearance matters.
Light Output & Performance
The integrated LED produces 1,500 lumens with 90 CRI. Select warm 2700K or 3000K, intermediate 3500K or 4000K, or cool 5000K during installation. Rated LED life is 50,000 hours at L70, supporting low-maintenance lighting in frequently used spaces.
Electrical & Installation
The constant-current driver accepts 120-277V at 50/60Hz. Use a compatible 0-10V control for this UNV model, rather than a TRIAC/ELV control intended for UNVT versions. Surface mount on a standard junction box on a ceiling or wall and set the color temperature during installation.

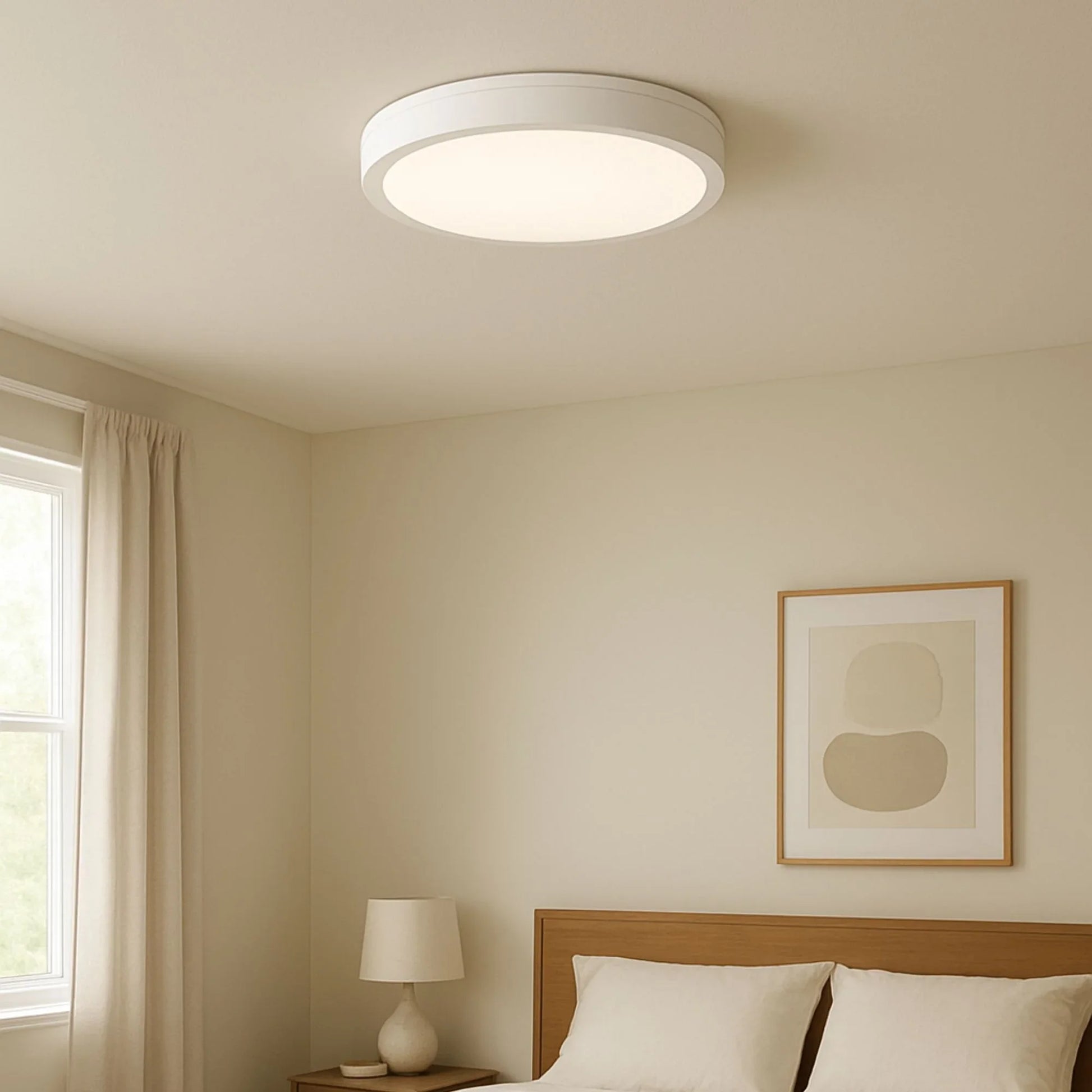

Typical Applications
- Hotel guest rooms and corridors
- Multi-family residential hallways and common areas
- Entryways and laundry rooms
- Bathrooms and covered entries
What's Included
- (1) RAB CRVFAS-14R-20-9CCT-UNV-W white flush mount with integrated LED
Specifications
Specifications
Dimensions
Documents
Style & Materials
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.
Frequently Asked Questions
Is the CRVFAS-14R-20-9CCT-UNV-W suitable for wet locations?
Is the CRVFAS-14R-20-9CCT-UNV-W suitable for wet locations?
Does the CRVFAS-14R-20-9CCT-UNV-W support 0-10V dimming?
Does the CRVFAS-14R-20-9CCT-UNV-W support 0-10V dimming?
Can I select the CCT on the CRVFAS-14R-20-9CCT-UNV-W?
Can I select the CCT on the CRVFAS-14R-20-9CCT-UNV-W?
Can the CRVFAS-14R-20-9CCT-UNV-W operate on a 277V circuit?
Can the CRVFAS-14R-20-9CCT-UNV-W operate on a 277V circuit?
Does the CRVFAS-14R-20-9CCT-UNV-W require separate bulbs?
Does the CRVFAS-14R-20-9CCT-UNV-W require separate bulbs?
