RAB CRVFA CRVFAS-14R-20-9CCT-120-W 14 in LED Flush Mount — White / 20W / 5CCT

The RAB CRVFAS-14R-20-9CCT-120-W is an integrated LED flush mount for standard junction-box installation on a ceiling or wall. Its white finish and smooth round trim blend into residential and hospitality interiors, while the back-lit diffused lens provides soft, smooth light. Choose your color temperature during installation and get 1,500 lumens from 20W on a 120V circuit.

Key Features

• Selectable CCT: Field-adjustable 2700K, 3000K, 3500K, 4000K or 5000K with set-and-forget selection
• Light Output: 1,500 lumens at 20W with 75 lm/W efficacy
• Color Rendering: 90 CRI and R9 greater than or equal to 50
• Beam Angle: 120 degrees for broad distribution
• Driver: Constant current, 120V input, 0.19A and 60Hz
• Electrical Performance: Power factor at least 0.9, THD at most 20% and published flicker at most 30%
• Mounting: Ceiling or wall surface mount on a standard junction box
• Construction: White plastic body with smooth round trim
• Location Rating: UL listed for wet locations; suitable for wet and damp areas
• Certifications: ENERGY STAR Version 2.2 certified and Trade Agreements Act compliant
• Operating Range: -4°F to 104°F (-20°C to 40°C)
• Life and Warranty: 50,000-hour L70 lifespan based on IES LM-70 results and RAB 5-year limited warranty

Construction & Design

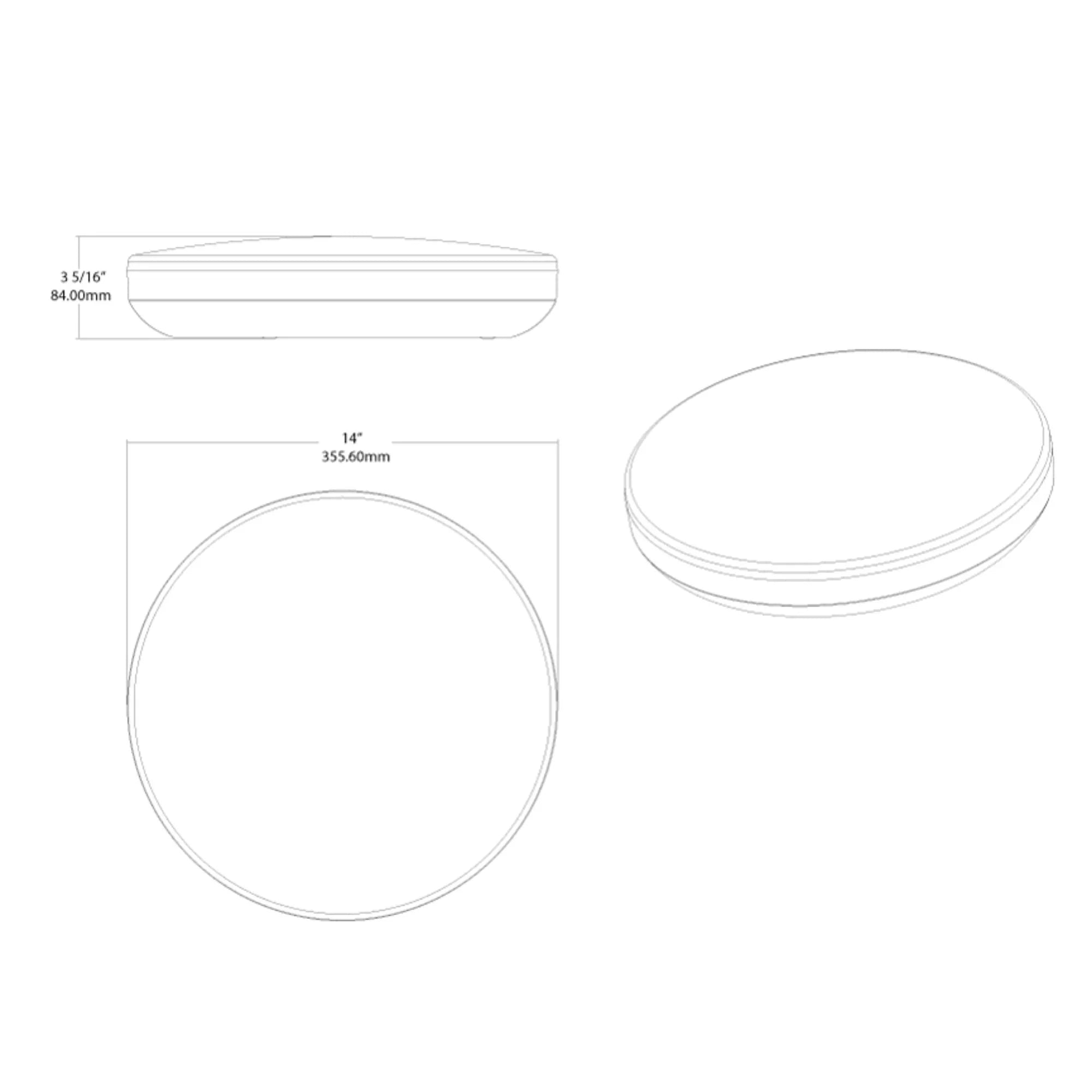

The 14 in round fixture features a plastic body in white, smooth trim and a diffused lens. Its surface-mount design avoids a hanging pendant drop and offers a consistent look for residential rooms and corridors. Fixture weight is 2.6 lbs.

Light Output & Performance

The integrated LED delivers 1,500 lumens with a 120-degree beam. A 90 CRI rating and R9 of at least 50 support natural color rendering, including red tones. Select warm 2700K or 3000K, intermediate 3500K or 4000K, or cool 5000K during installation. Rated LED life is 50,000 hours at L70.

Electrical & Installation

Surface mount the fixture on a standard junction box on a ceiling or wall. This model requires 120V, 60Hz input and uses a constant-current driver rated at 0.19A. Set the color temperature during installation. The flush-mount format avoids a pendant drop where overhead clearance matters.

Typical Applications

• Hotel guest rooms and corridors
• Multi-family residential interiors and hallways
• Kitchens, bedrooms and laundry rooms
• Bathrooms and covered entries

What's Included

• (1) RAB CRVFAS-14R-20-9CCT-120-W integrated LED flush mount in white
