Description

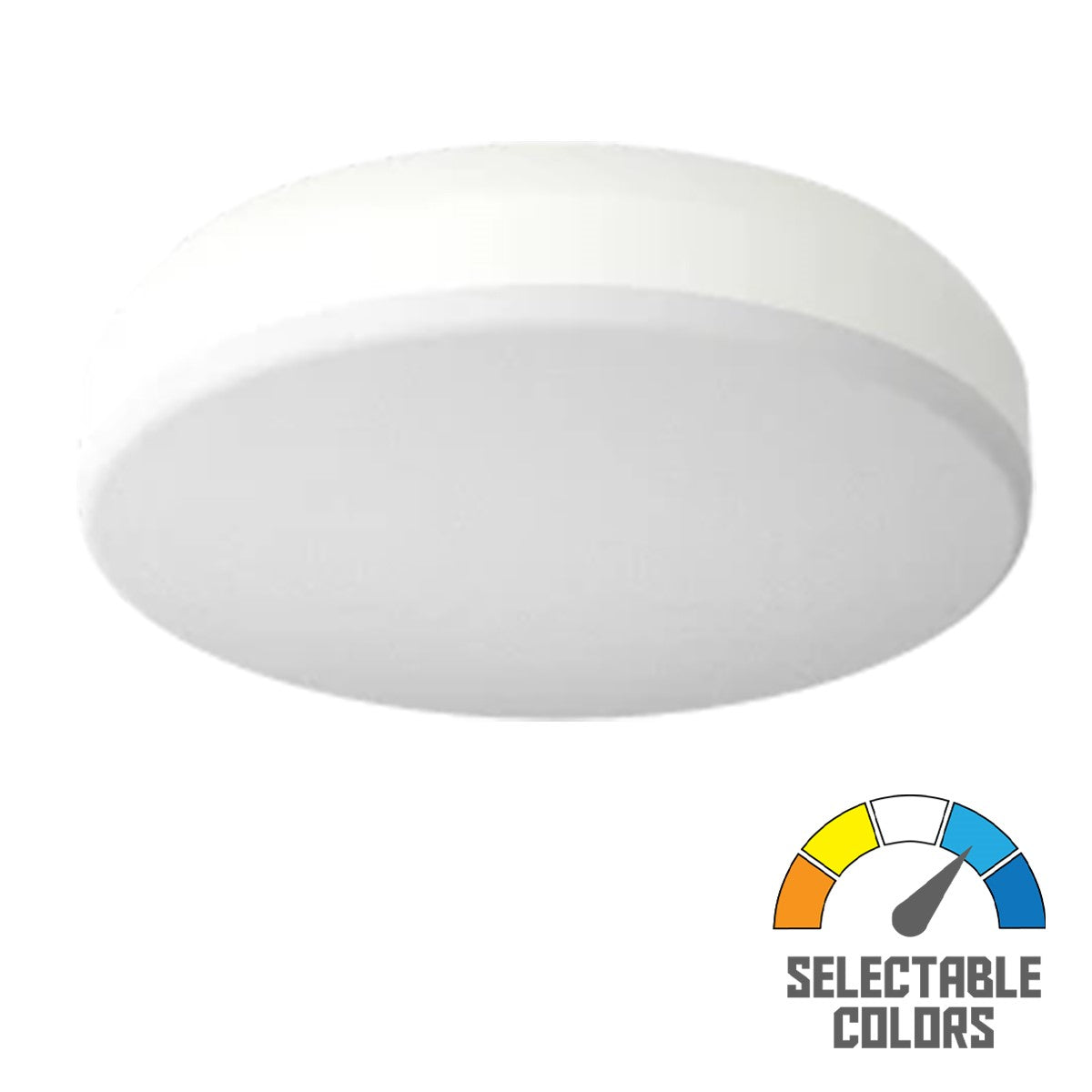

RAB CRVFAS-11R-16-9CCT-UNVT-W/EMBB 11 in LED Flush Mount — White, 16W, 5CCT

The RAB CRVFAS-11R-16-9CCT-UNVT-W/EMBB integrated LED flush mount pairs emergency battery backup with a smooth round profile and white finish. In normal operation, its back-lit LED delivers 1,150 lumens at 16W. Five field-selectable color temperatures let installers coordinate the lighting in hospitality and multi-family residential spaces.

Key Features

  • Emergency Backup: Integrated emergency battery backup
  • Selectable CCT: 2700K, 3000K, 3500K, 4000K or 5000K
  • Normal Light Output: 1,150 lumens at 16W
  • Color Accuracy: 90 CRI
  • Dimming: TRIAC/ELV control for the UNVT driver configuration
  • Driver: Constant-current driver with 120-277V input
  • Input Current: 0.15A at 120V, 0.09A at 208V, 0.07A at 240V and 0.06A at 277V
  • Electrical Performance: 0.9 power factor; 50/60Hz operation
  • Construction: Round plastic body, smooth trim and diffused lens
  • Mounting: Surface mounts on a standard junction box on a ceiling or wall
  • Location and Temperature: UL listed for wet locations; -4°F to 104°F operating range
  • Life and Warranty: 50,000-hour L70 LED lifespan and RAB five-year warranty

Construction & Design

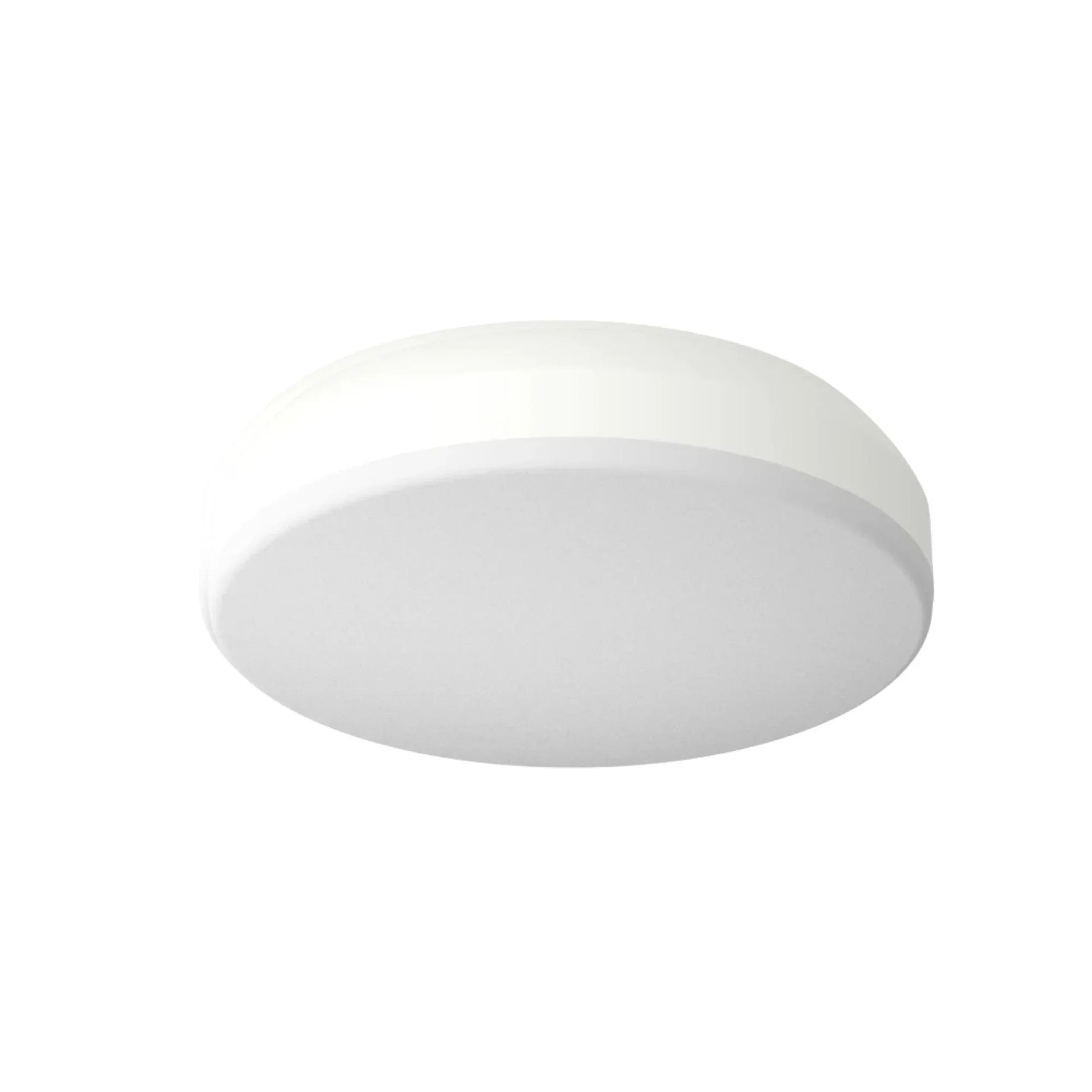

The 11 in round flush mount features a white plastic body and smooth trim for an understated appearance. Its diffused lens softens the back-lit illumination. The surface-mount format avoids the hanging drop of a pendant, making it a practical choice where overhead clearance matters.

Light Output & Performance

Normal-operation output is 1,150 lumens with 90 CRI. Select 2700K or 3000K for warm light, 3500K or 4000K for intermediate tones, or 5000K for a cooler appearance. The LEDs have a rated 50,000-hour L70 lifespan.

Electrical & Installation

The constant-current driver operates on 120-277V at 50/60Hz. This UNVT configuration supports TRIAC/ELV dimming. Surface mount the fixture on a standard junction box on a ceiling or wall, and set the color temperature during installation. Integrated emergency battery backup distinguishes this EMBB model from the standard fixture.

Typical Applications

  • Hospitality guest rooms and corridors
  • Multi-family residential hallways
  • Entryways and laundry rooms
  • Bathrooms and covered entries

What's Included

  • (1) RAB CRVFAS-11R-16-9CCT-UNVT-W/EMBB white flush mount with integrated LED and emergency battery backup

Specifications

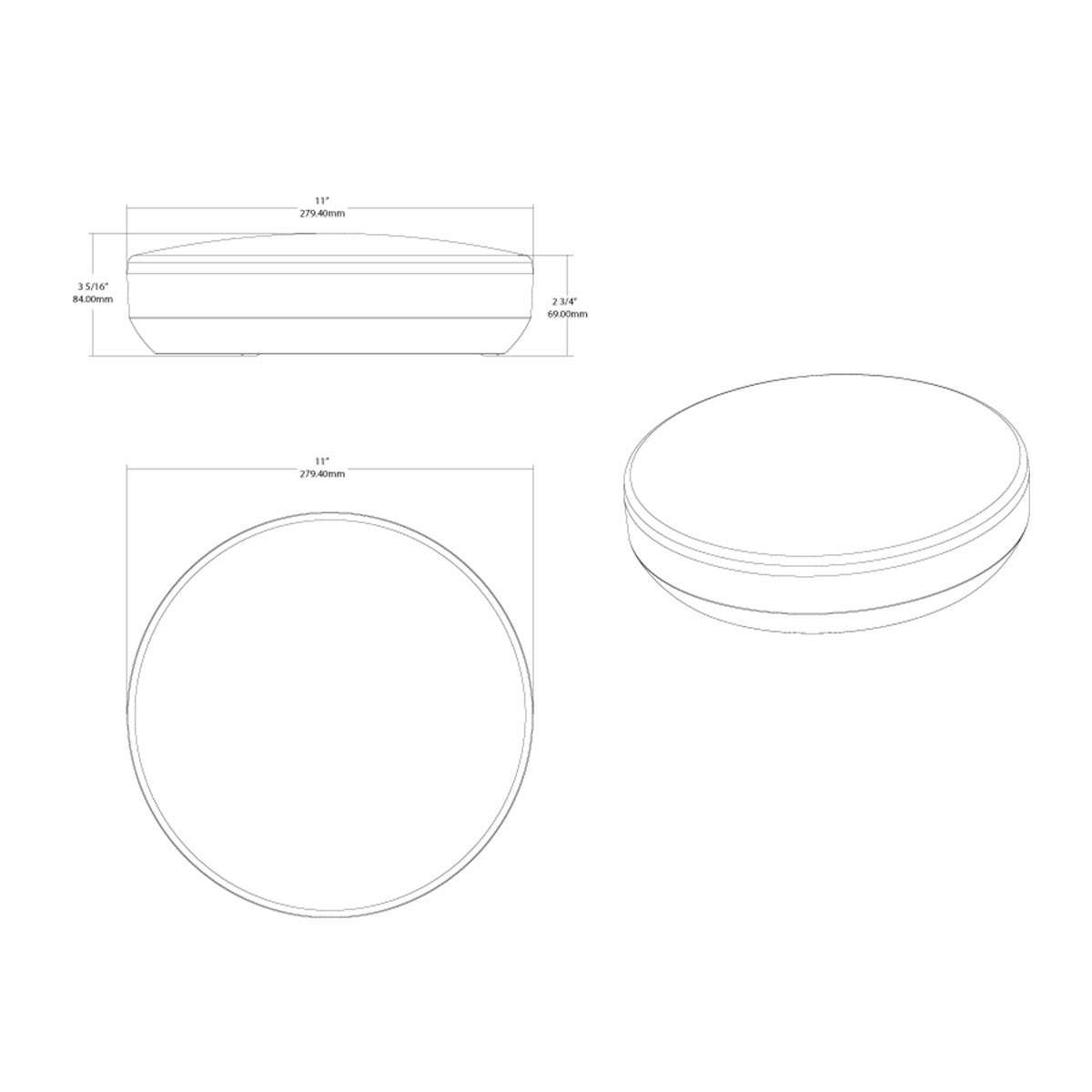

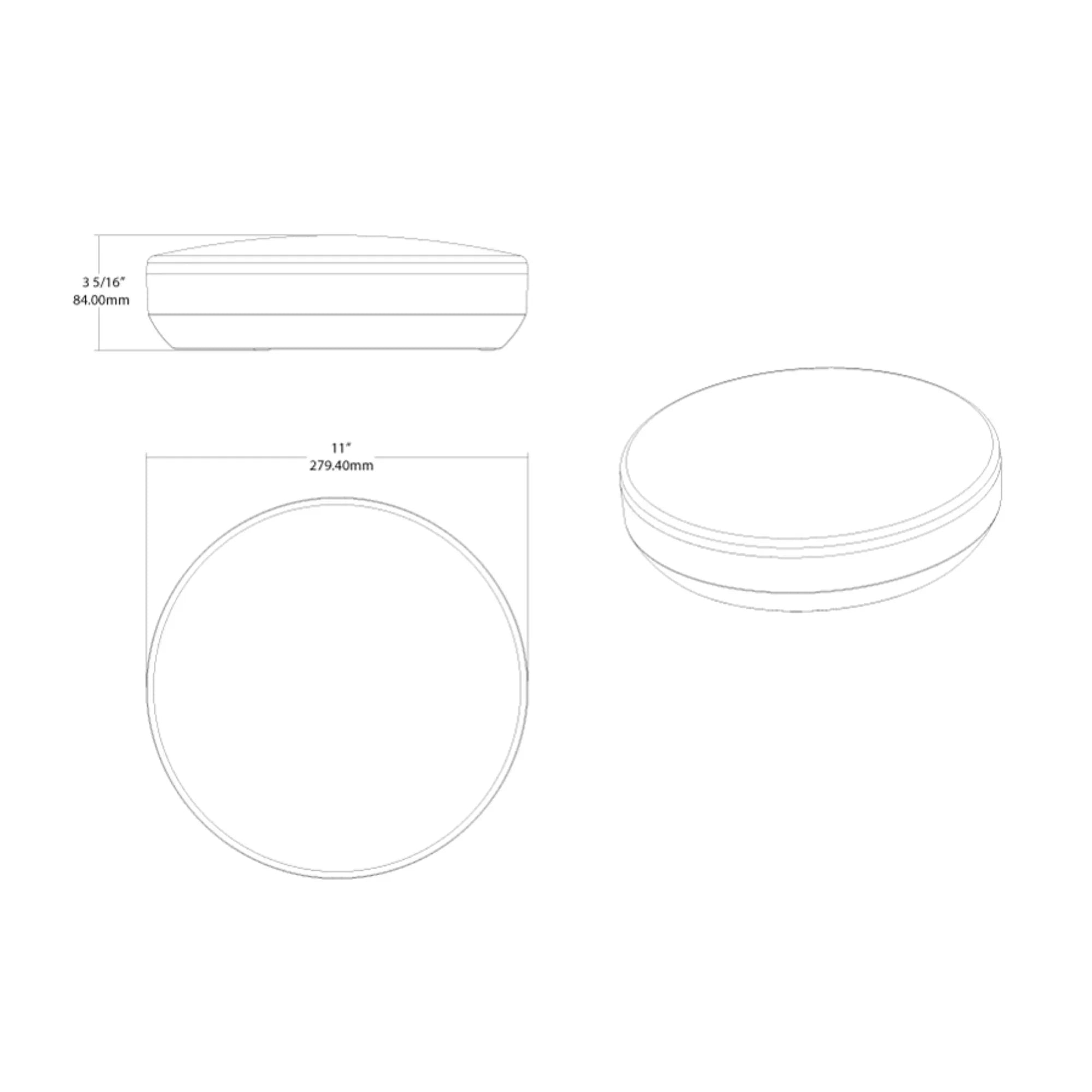

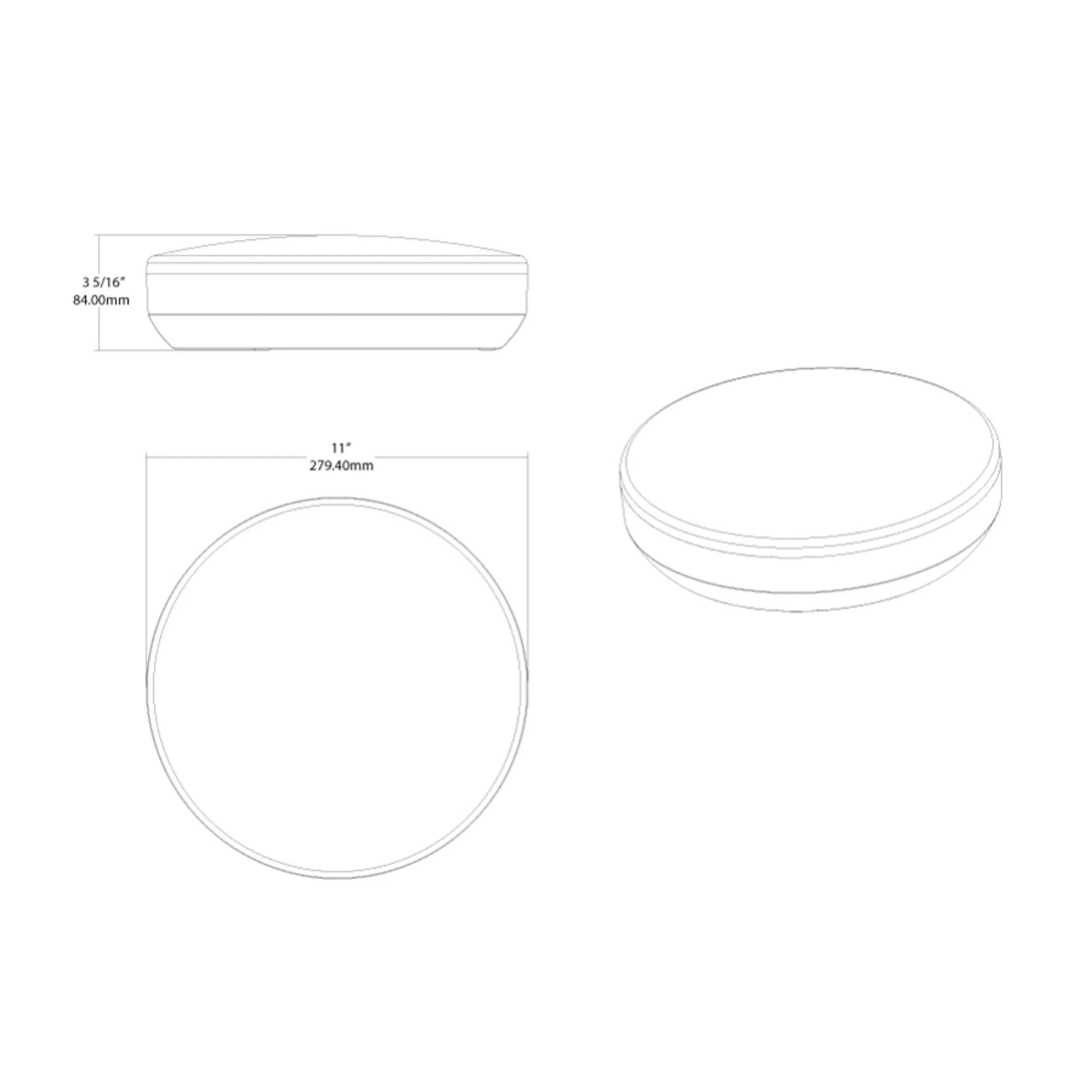

Dimensions

Length/Depth
11 in
Width/Diameter
11 in
Height
3 in
Weight
2.36 lb

Style & Materials

Finish
White
Material
Plastic

Characteristics & Features

Lamp Source
LED Module
Number of Lights
1
Lamp Color
2700K, 3000K, 3500K, 4000K, 5000K, Selectable CCT
Color Rendering
90 CRI
Delivered Lumens
1150
Dimmable
Yes

Electrical Information

Voltage
120-277V
Total Wattage
16W

Item Details

MPN
CRVFAS-11R-16-9CCT-UNVT-W/EMBB
Brand
RAB Lighting
Family
CRVFA
UPC
192552018548

Warranty & Certifications

Product Warranty
5 Years
Lamp Life
50,000 Hours
Product Rating
Wet Rated

Shipping & Returns

Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.

Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.

See Full Shipping Policy | See Full Return Policy

Frequently Asked Questions

Is the CRVFAS-11R-16-9CCT-UNVT-W/EMBB suitable for wet locations?

Yes — the CRVFAS-11R-16-9CCT-UNVT-W/EMBB is UL listed for wet locations and suitable for damp locations.

Does the CRVFAS-11R-16-9CCT-UNVT-W/EMBB include emergency battery backup?

Yes — the CRVFAS-11R-16-9CCT-UNVT-W/EMBB includes integrated emergency battery backup. Its 1,150-lumen specification describes normal operation.

Can I select the color temperature on the CRVFAS-11R-16-9CCT-UNVT-W/EMBB?

Yes — the CRVFAS-11R-16-9CCT-UNVT-W/EMBB offers field-selectable 2700K, 3000K, 3500K, 4000K and 5000K settings.

Does the CRVFAS-11R-16-9CCT-UNVT-W/EMBB support TRIAC/ELV dimming and 277V input?

Yes — the CRVFAS-11R-16-9CCT-UNVT-W/EMBB uses the UNVT TRIAC/ELV driver configuration and accepts 120-277V input at 50/60Hz.

Does the CRVFAS-11R-16-9CCT-UNVT-W/EMBB require replacement bulbs?

No — the CRVFAS-11R-16-9CCT-UNVT-W/EMBB has an integrated 16W LED light source with 1,150 lumens in normal operation, 90 CRI and a 50,000-hour L70 lifespan.
