Description

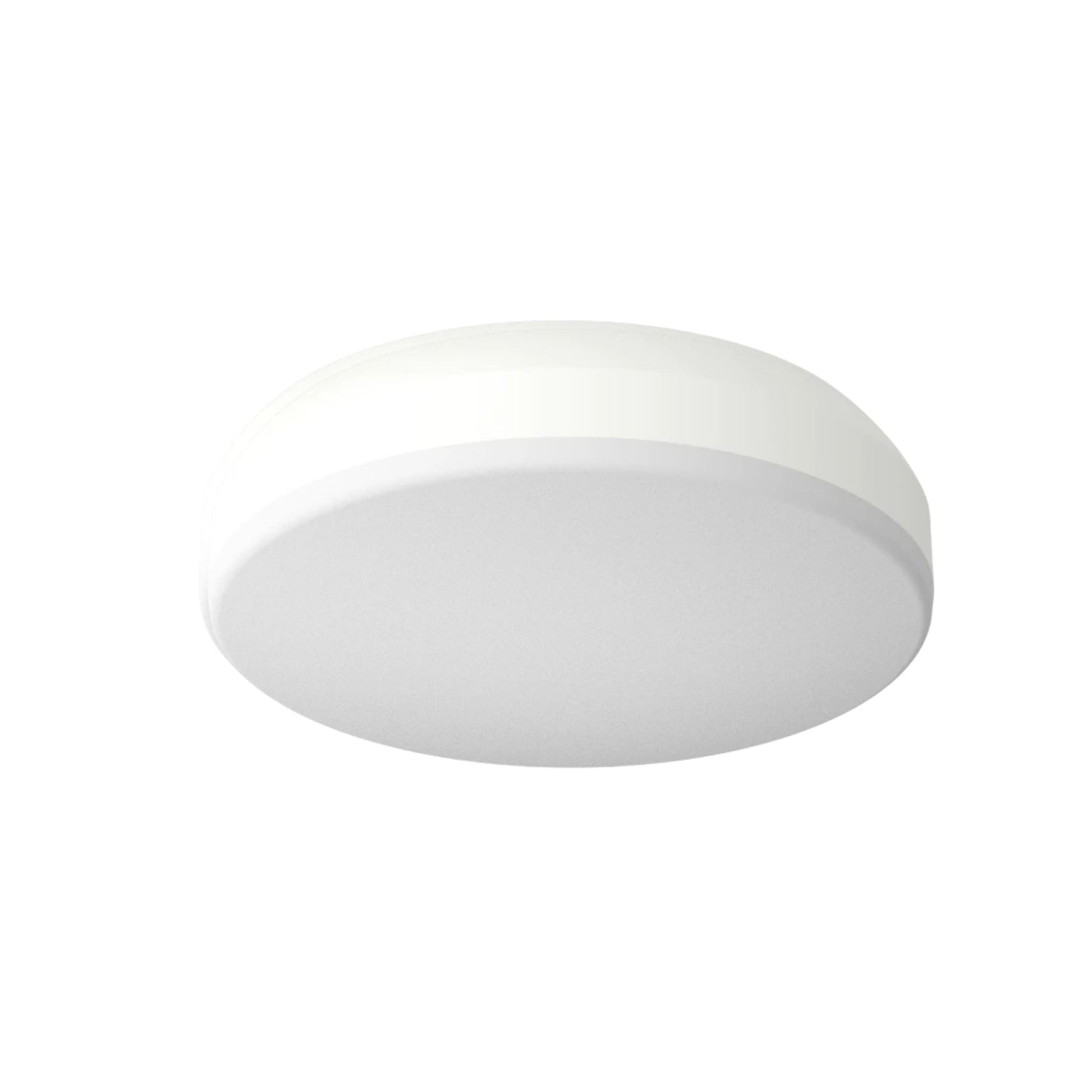

RAB CRVFAS-11R-16-9CCT-UNVT-W 11 in Smooth LED Flush Mount — White / 16W / 5CCT

The RAB CRVFAS-11R-16-9CCT-UNVT-W integrated LED flush mount combines TRIAC/ELV dimming with 120-277V input in a clean white finish. A back-lit diffused lens provides soft, smooth illumination with 1,150 lumens from 16W. Five field-selectable color temperatures help coordinate lighting across hospitality and multi-family residential interiors.

Key Features

  • Dimming: TRIAC/ELV dimming
  • Selectable CCT: Field-adjustable 2700K, 3000K, 3500K, 4000K or 5000K
  • Output: 1,150 lumens at 16W
  • Color Rendering: 90 CRI
  • Beam Angle: 120 degrees
  • Driver: Constant current with universal 120-277V input
  • Input Current: 0.15A at 120V, 0.09A at 208V, 0.07A at 240V and 0.06A at 277V
  • Electrical: 0.9 power factor and 50/60Hz operation
  • Construction: White plastic housing with smooth round trim and frosted polycarbonate lens
  • Mounting and Rating: Ceiling or wall surface mount on a standard junction box; UL listed for wet locations
  • TAA: Trade Agreements Act compliant
  • Life, Temperature and Warranty: 50,000-hour L70 lifespan; -4°F to 104°F operating range; RAB 5-year warranty

Construction & Design

The 11 in round fixture combines a white plastic housing with smooth trim and a frosted polycarbonate diffuser. Its low-profile surface-mount design keeps a clean appearance without the hanging drop of a pendant.

Light Output & Performance

The integrated LED delivers 1,150 lumens with 90 CRI and a 120-degree beam. Choose warm 2700K or 3000K, intermediate 3500K or 4000K, or cool 5000K during installation. The diffused lens provides soft, smooth light, and rated LED life is 50,000 hours at L70.

Electrical & Installation

This model operates on 120-277V, 50/60Hz and uses TRIAC/ELV dimming. Surface mount on a standard junction box on a ceiling or wall using the housing keyholes. Select the color temperature during installation. The flush-mount format avoids a hanging drop where overhead clearance matters.

Typical Applications

  • Hotel guest rooms and corridors
  • Multi-family residential interiors and hallways
  • Closets and laundry rooms
  • Bathrooms and covered entries

What's Included

  • (1) RAB CRVFAS-11R-16-9CCT-UNVT-W integrated LED flush mount in white

Specifications

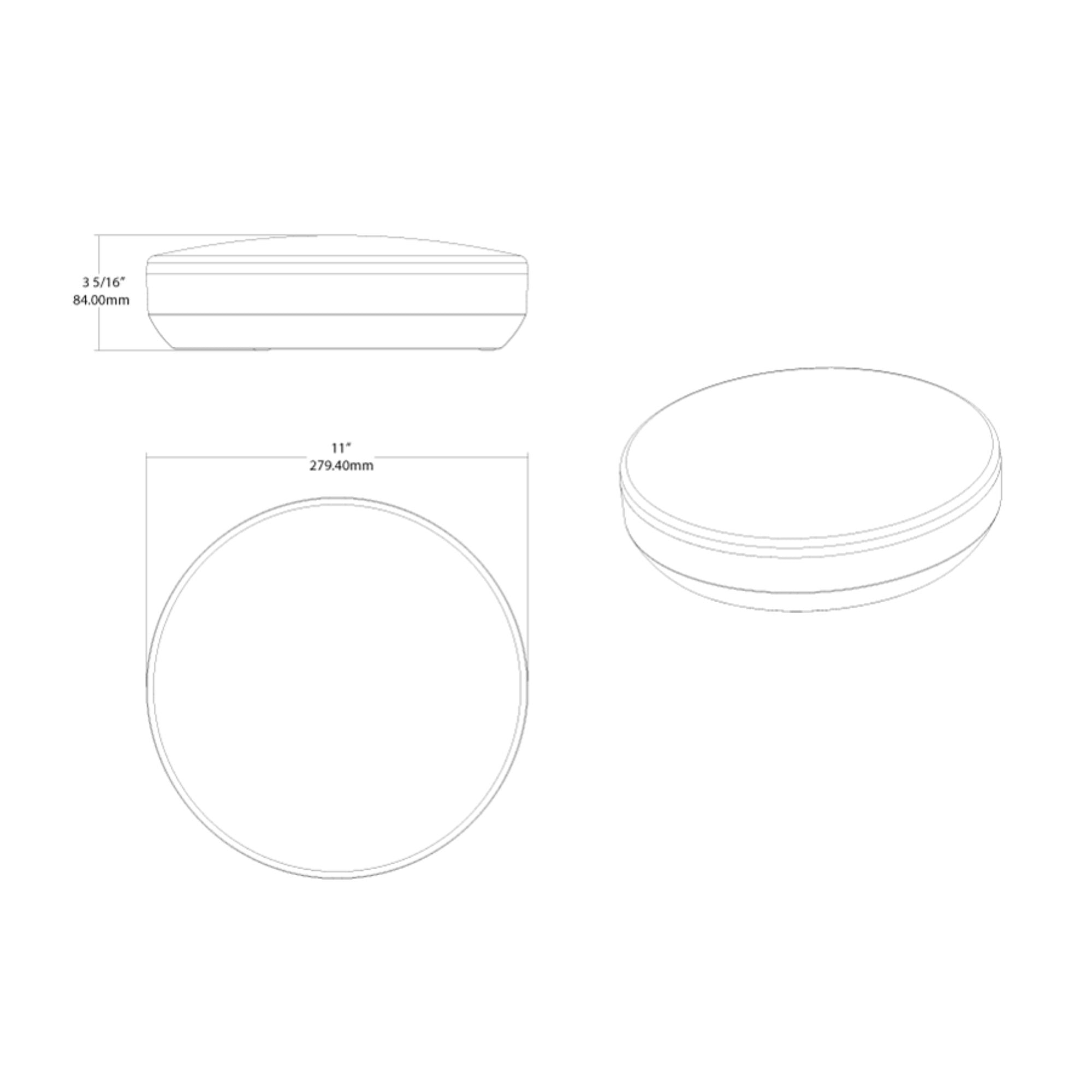

Dimensions

Length/Depth
11 in
Width/Diameter
11 in
Height
3 in
Weight
2.36 lb

Style & Materials

Finish
White
Material
Plastic

Characteristics & Features

Lamp Source
LED Module
Number of Lights
1
Lamp Color
2700K, 3000K, 3500K, 4000K, 5000K, Selectable CCT
Color Rendering
90 CRI
Delivered Lumens
1150
Dimmable
Yes

Electrical Information

Voltage
120-277V
Total Wattage
16W

Item Details

MPN
CRVFAS-11R-16-9CCT-UNVT-W
Brand
RAB Lighting
Family
CRVFA
UPC
192552018524

Warranty & Certifications

Product Warranty
5 Years
Lamp Life
50,000 Hours
Product Rating
Wet Rated

Shipping & Returns

Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.

Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.

See Full Shipping Policy | See Full Return Policy

Frequently Asked Questions

Can the CRVFAS-11R-16-9CCT-UNVT-W be used in wet locations?

Yes — the CRVFAS-11R-16-9CCT-UNVT-W is UL listed for wet locations and also suitable for damp locations.

Does the CRVFAS-11R-16-9CCT-UNVT-W support TRIAC/ELV dimming?

Yes — the CRVFAS-11R-16-9CCT-UNVT-W uses TRIAC/ELV dimming. It is not the 0-10V UNV version.

Can I select the CCT on the CRVFAS-11R-16-9CCT-UNVT-W?

Yes — the CRVFAS-11R-16-9CCT-UNVT-W offers field-selectable 2700K, 3000K, 3500K, 4000K and 5000K settings.

Can the CRVFAS-11R-16-9CCT-UNVT-W operate on a 277V circuit?

Yes — the CRVFAS-11R-16-9CCT-UNVT-W accepts universal 120-277V input at 50/60Hz.

Does the CRVFAS-11R-16-9CCT-UNVT-W require separate bulbs?

No — the CRVFAS-11R-16-9CCT-UNVT-W uses an integrated 16W LED delivering 1,150 lumens with 90 CRI and a 50,000-hour L70 lifespan.
