Description

RAB CRVFAS-11R-16-9CCT-UNV-W/MVS 11 in Smooth LED Flush Mount — White / 16W / 5CCT

The RAB CRVFAS-11R-16-9CCT-UNV-W/MVS integrated LED flush mount combines a microwave occupancy sensor with 0-10V dimming and universal 120-277V input. Its white finish and diffused back-lit lens create a clean look with soft, smooth illumination. It delivers 1,150 lumens from 16W and offers five field-selectable color temperatures for hospitality and multi-family residential projects.

Key Features

  • Occupancy Control: Microwave sensor included on the MVS version
  • Dimming: 0-10V dimming down to 10%; separate 0-10V DC dimming circuit required
  • Selectable CCT: 2700K, 3000K, 3500K, 4000K or 5000K
  • Output: 1,150 lumens at 16W; individual sheet specifies 71.5 lm/W
  • Color and Beam: 90 CRI, R9 at least 50 and a 120-degree beam
  • Driver: Constant current, 120-277V, 50/60Hz
  • Input Current: 0.15A at 120V, 0.08A at 208V, 0.07A at 240V and 0.07A at 277V
  • Electrical Performance: Power factor at least 0.9, THD at most 20% and published flicker at most 30%
  • Construction: White plastic housing, smooth round trim and diffused lens
  • Mounting and Rating: Ceiling or wall surface mount on a standard junction box; UL listed for wet locations
  • Certification: ENERGY STAR Version 2.2 certified
  • Life, Temperature and Warranty: 50,000-hour L70 lifespan; -4°F to 104°F operating range; RAB 5-year warranty

Construction & Design

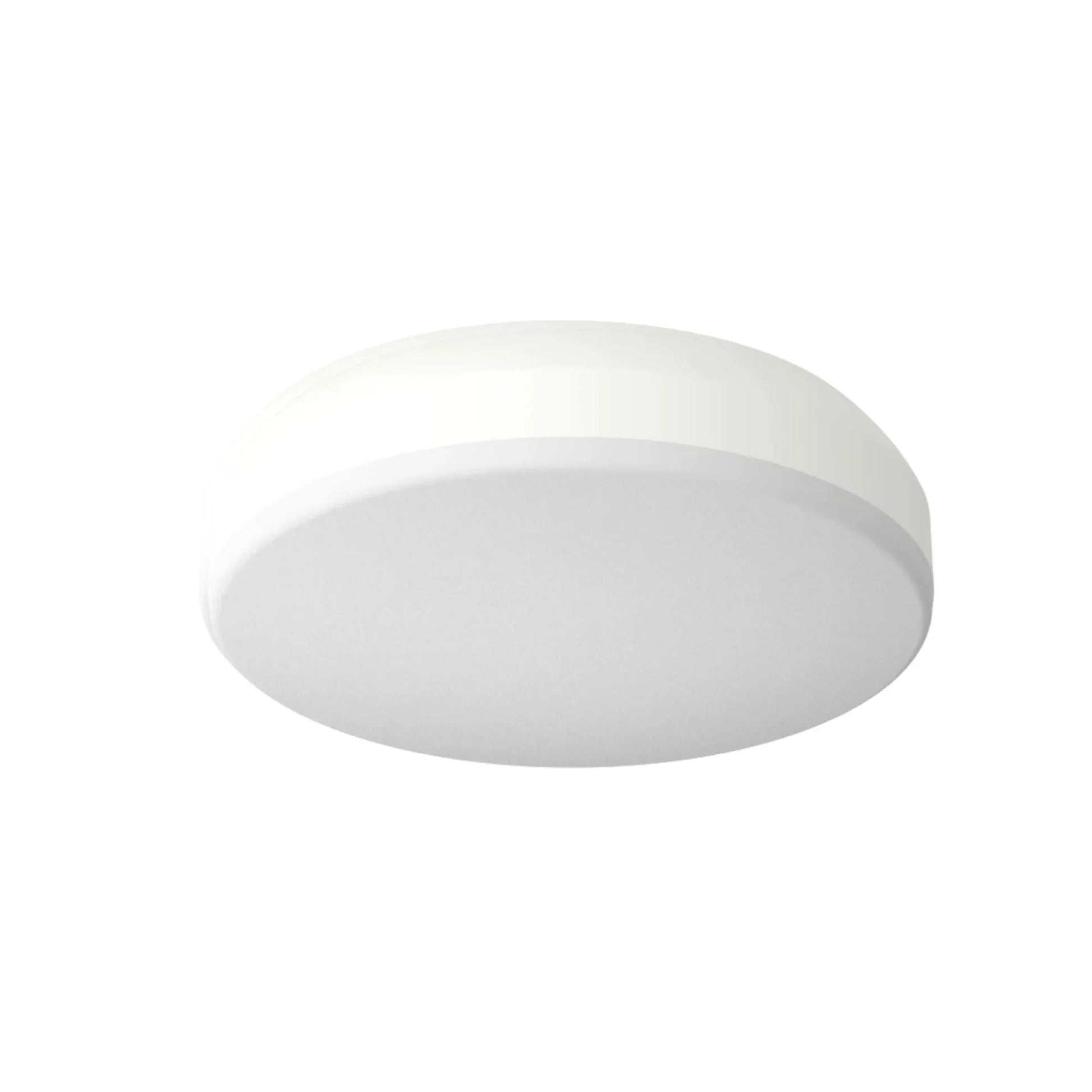

The 11 in round fixture has a white plastic body with smooth trim and a frosted polycarbonate lens specified in the family sheet. Fixture weight is 1.8 lbs. The low-profile surface-mount format avoids the hanging drop of a pendant.

Light Output & Performance

The integrated LED delivers 1,150 lumens with a 120-degree beam. A 90 CRI rating and R9 of at least 50 support natural color rendering, including red tones. Choose warm 2700K or 3000K, intermediate 3500K or 4000K, or cool 5000K during installation. Rated LED life is 50,000 hours at L70.

Electrical & Installation

This model operates on 120-277V, 50/60Hz. Its driver includes dimming-control wiring for a separate 0-10V DC dimming circuit and dims down to 10%. The MVS version includes a microwave occupancy sensor. Surface mount on a standard junction box on a ceiling or wall, using the keyholes described in the family sheet, and set the color temperature during installation. The flush-mount format avoids a pendant drop where overhead clearance matters.

Typical Applications

  • Hotel corridors
  • Multi-family residential hallways
  • Laundry rooms and utility spaces
  • Bathrooms and covered entries

What's Included

  • (1) RAB CRVFAS-11R-16-9CCT-UNV-W/MVS integrated LED flush mount in white with microwave occupancy sensor

Specifications

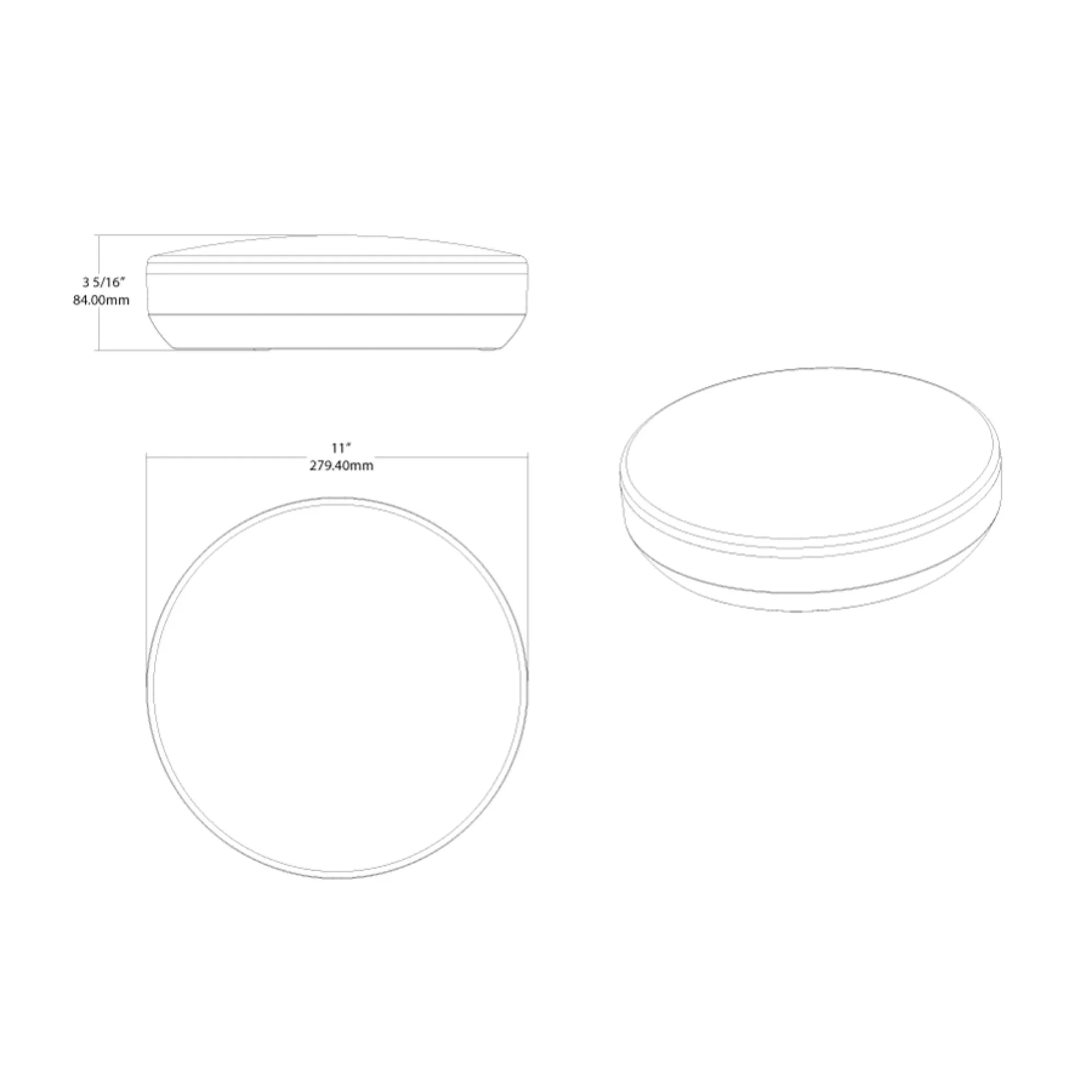

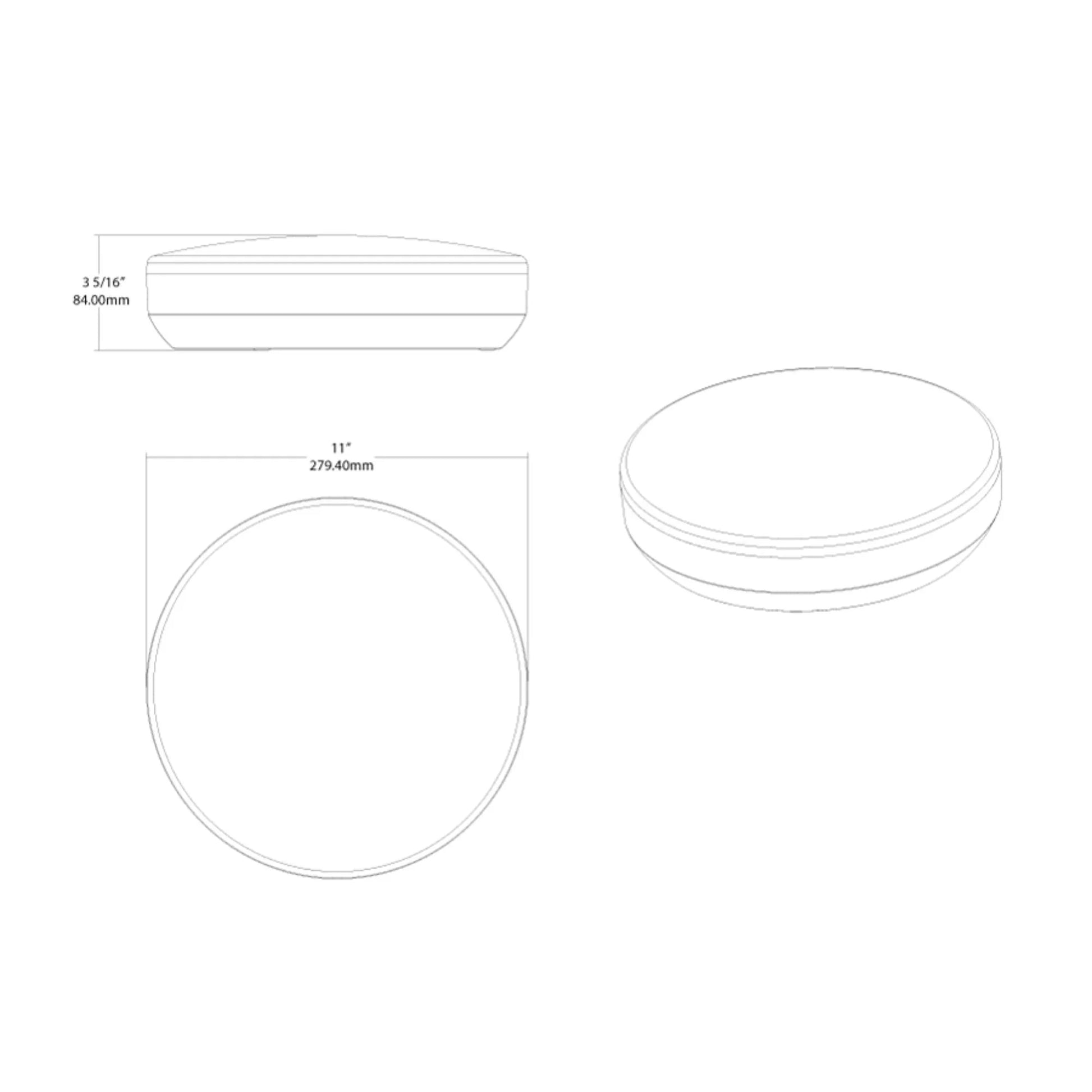

Dimensions

Length/Depth
11 in
Width/Diameter
11 in
Height
3.31 in
Weight
2.2 lb

Style & Materials

Finish
White
Material
Plastic

Characteristics & Features

Lamp Source
LED Module
Number of Lights
1
Lamp Color
2700K, 3000K, 3500K, 4000K, 5000K, Selectable CCT
Color Rendering
90 CRI
Delivered Lumens
1150
Dimmable
Yes

Electrical Information

Voltage
120-277V
Total Wattage
16W

Item Details

MPN
CRVFAS-11R-16-9CCT-UNV-W/MVS
Brand
RAB Lighting
Family
CRVFA
UPC
192552013284

Warranty & Certifications

Product Warranty
5 Years
Lamp Life
50,000 Hours
Product Rating
Wet Rated

Shipping & Returns

Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.

Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.

See Full Shipping Policy | See Full Return Policy

Frequently Asked Questions

Can the CRVFAS-11R-16-9CCT-UNV-W/MVS be used in wet locations?

Yes — the CRVFAS-11R-16-9CCT-UNV-W/MVS is UL listed for wet locations and is also suitable for damp locations.

Does the CRVFAS-11R-16-9CCT-UNV-W/MVS include an occupancy sensor?

Yes — the CRVFAS-11R-16-9CCT-UNV-W/MVS includes a microwave occupancy sensor, as identified in the family performance table.

Does the CRVFAS-11R-16-9CCT-UNV-W/MVS support 0-10V dimming?

Yes — the CRVFAS-11R-16-9CCT-UNV-W/MVS dims down to 10% using a separate 0-10V DC dimming circuit connected to the driver's dimming-control wiring.

Can I select the CCT on the CRVFAS-11R-16-9CCT-UNV-W/MVS?

Yes — the CRVFAS-11R-16-9CCT-UNV-W/MVS offers field-selectable 2700K, 3000K, 3500K, 4000K and 5000K settings.

Can the CRVFAS-11R-16-9CCT-UNV-W/MVS operate on 277V?

Yes — the CRVFAS-11R-16-9CCT-UNV-W/MVS accepts 120-277V input at 50/60Hz and delivers 1,150 lumens from its integrated 16W LED.
