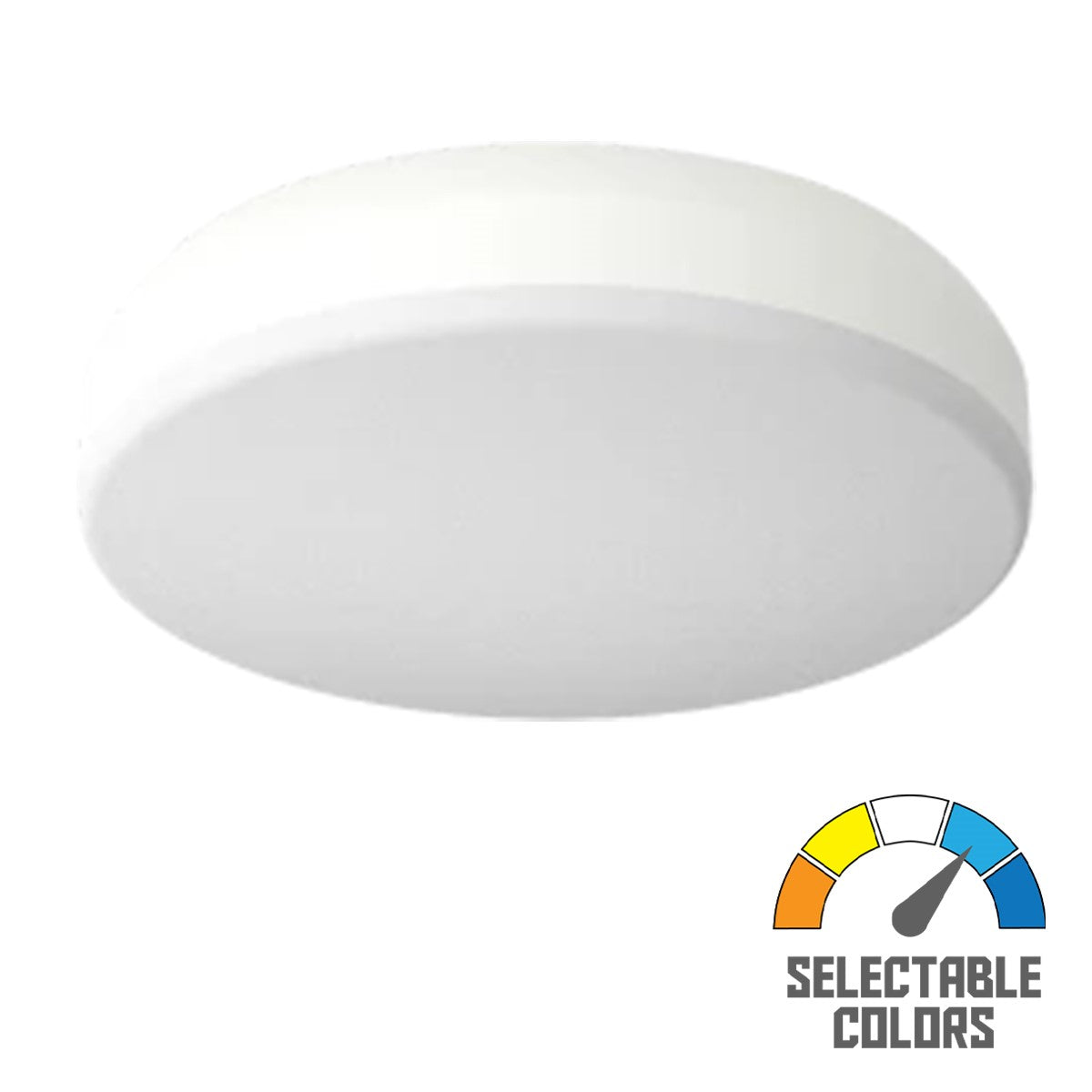

RAB CRVFAS-11R-16-9CCT-UNV-W 11 in Smooth LED Flush Mount — White / 16W / 5CCT

The RAB CRVFAS-11R-16-9CCT-UNV-W integrated LED flush mount combines 120-277V input and 0-10V dimming with a clean white finish. Its back-lit diffused lens provides soft, smooth illumination, delivering 1,150 lumens from 16W. Five field-selectable color temperatures make it easy to coordinate lighting across hospitality and multi-family residential projects.

Key Features

  • Selectable CCT: Field-adjustable 2700K, 3000K, 3500K, 4000K or 5000K
  • Light Output: 1,150 lumens at 16W
  • Color Rendering: 90 CRI
  • Dimming: 0-10V protocol for the UNV model
  • Driver: Constant current with 120-277V input and 50/60Hz operation
  • Input Current: 0.15A at 120V, 0.09A at 208V, 0.07A at 240V and 0.06A at 277V
  • Power Factor: 0.9
  • Construction: White thermoplastic housing, smooth round trim and frosted polycarbonate lens
  • Mounting: Surface mount directly to a standard junction box on a ceiling or wall
  • Location and Listing: Suitable for wet and damp locations; family sheet lists UL and IP54
  • TAA: Trade Agreements Act compliant
  • Life, Temperature and Warranty: 50,000-hour L70 lifespan; -4°F to 104°F operating range; RAB 5-year warranty

Construction & Design

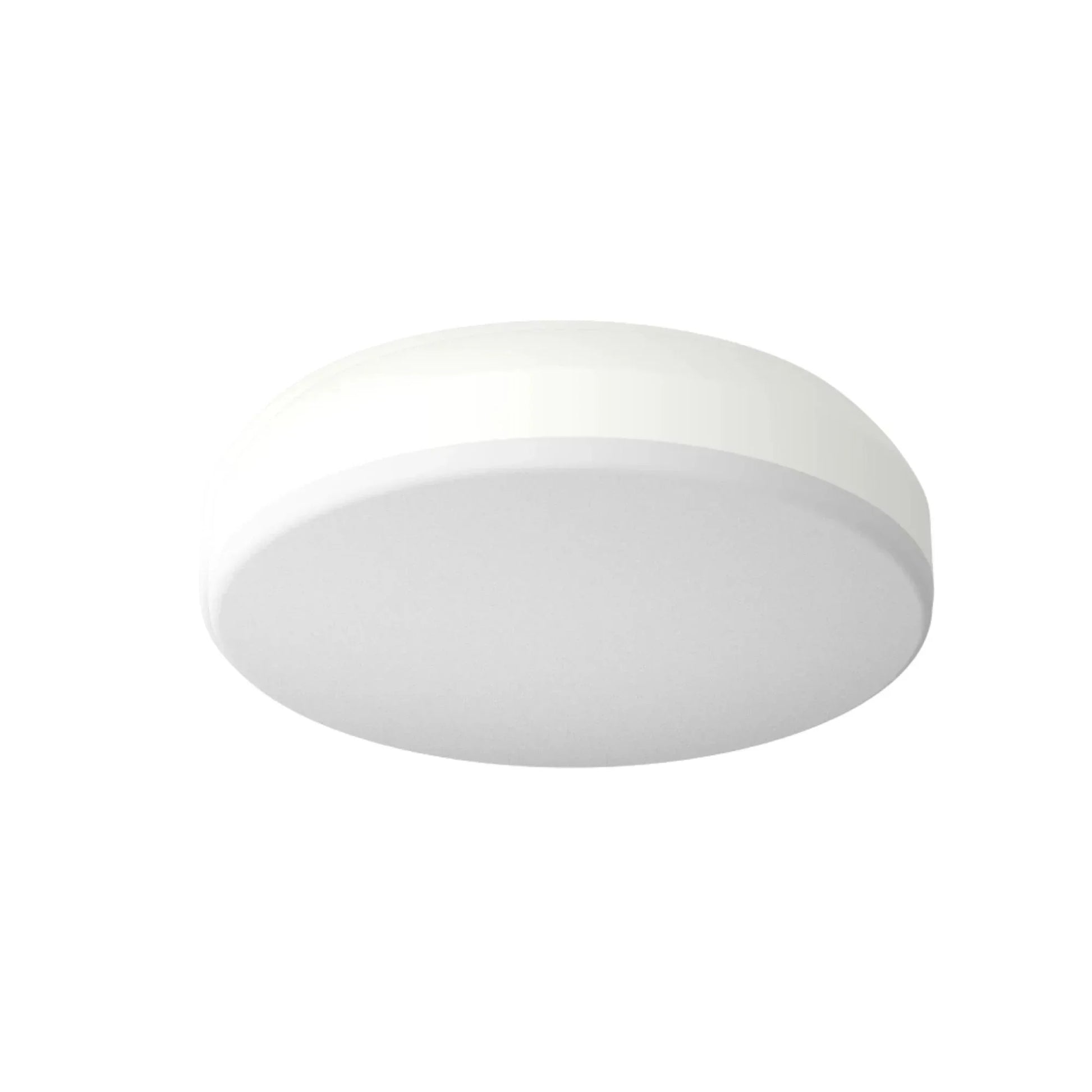

The 11 in round fixture uses a white thermoplastic housing with smooth trim. A frosted polycarbonate lens diffuses the back-lit LED output for a uniform appearance. Its low-profile surface-mount format avoids the hanging drop of a pendant.

Light Output & Performance

The integrated LED delivers 1,150 lumens with 90 CRI and a 120-degree beam specified in the family sheet. Choose warm 2700K or 3000K, intermediate 3500K or 4000K, or cool 5000K during installation. Rated LED life is 50,000 hours at L70.

Electrical & Installation

This model operates on 120-277V, 50/60Hz and supports 0-10V dimming, not the TRIAC/ELV protocol assigned to UNVT models. Surface mount directly to a standard junction box using the keyholes in the fixture housing, on a ceiling or wall. Set the color temperature during installation. The flush-mount format is useful where overhead clearance matters.

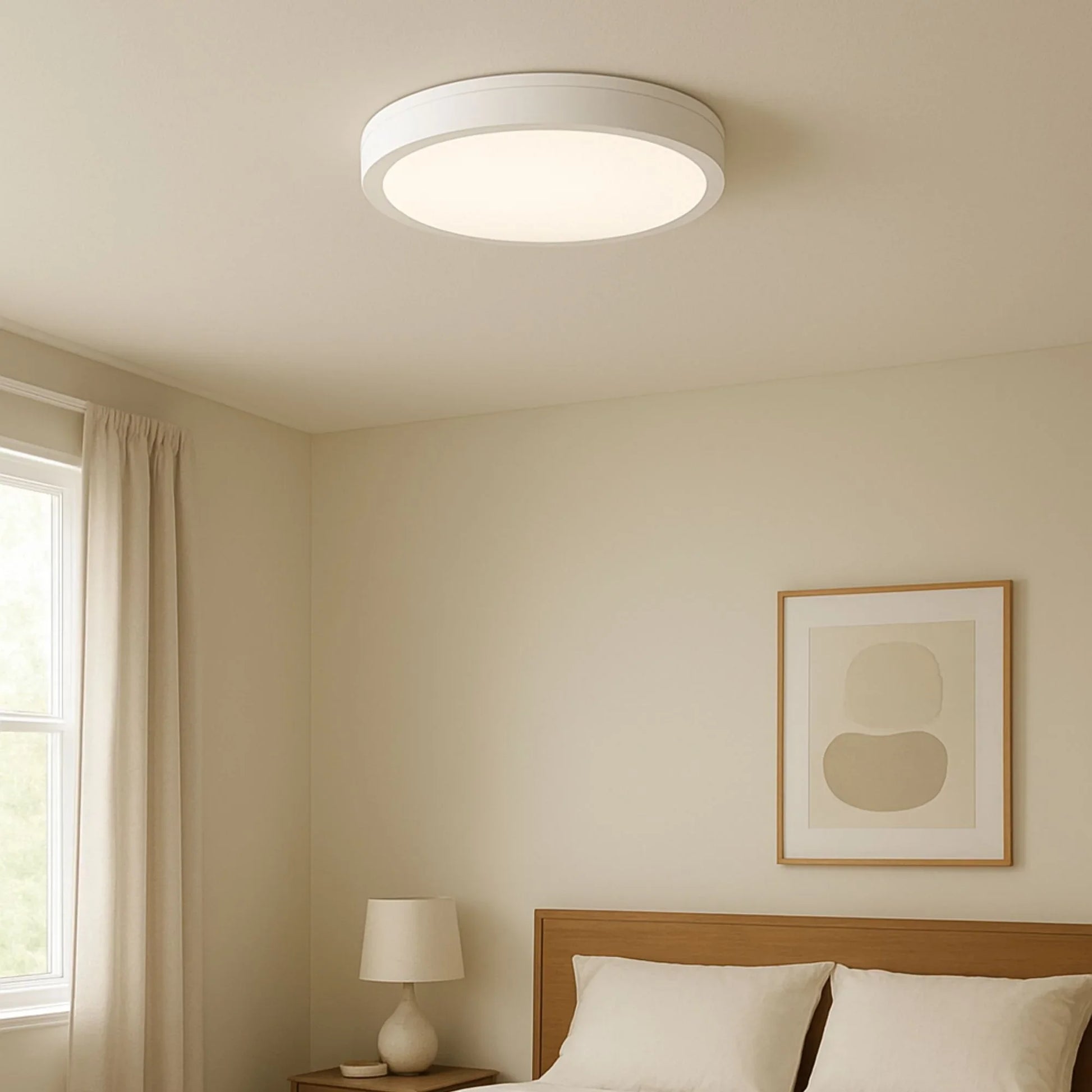

Typical Applications

  • Hotel guest rooms and corridors
  • Multi-family residential interiors and hallways
  • Closets and laundry rooms
  • Bathrooms and covered entries

What's Included

  • (1) RAB CRVFAS-11R-16-9CCT-UNV-W integrated LED flush mount in white

Specifications

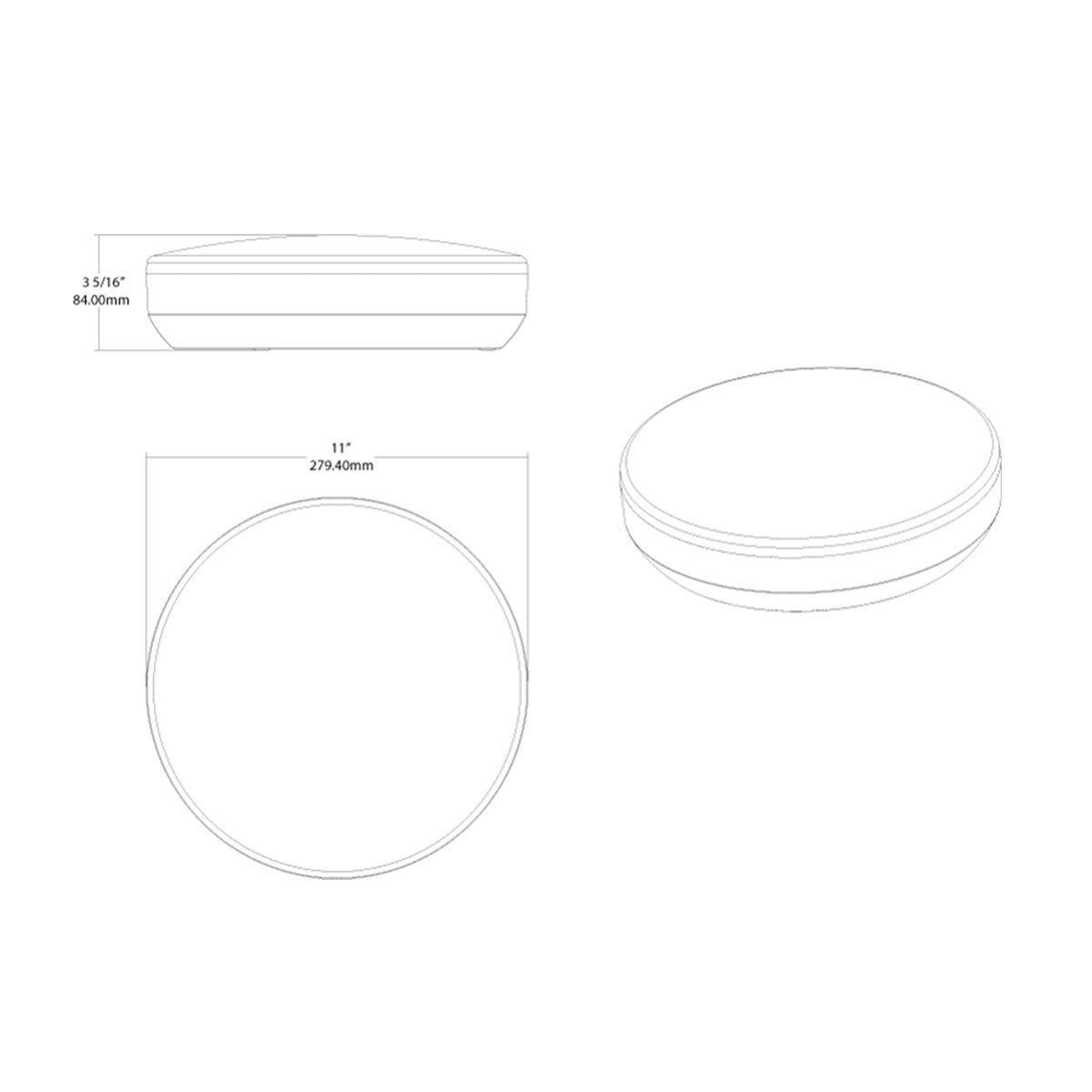

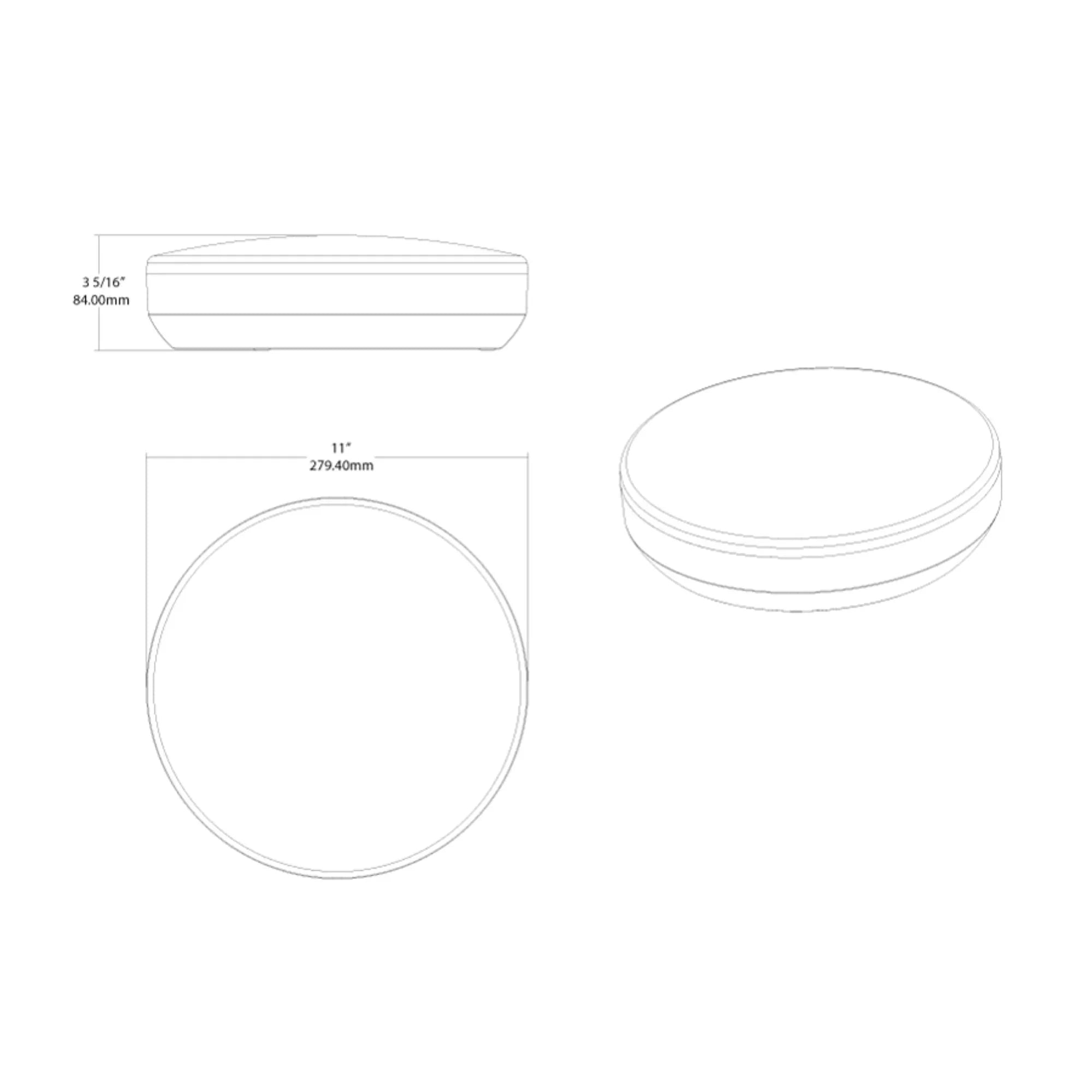

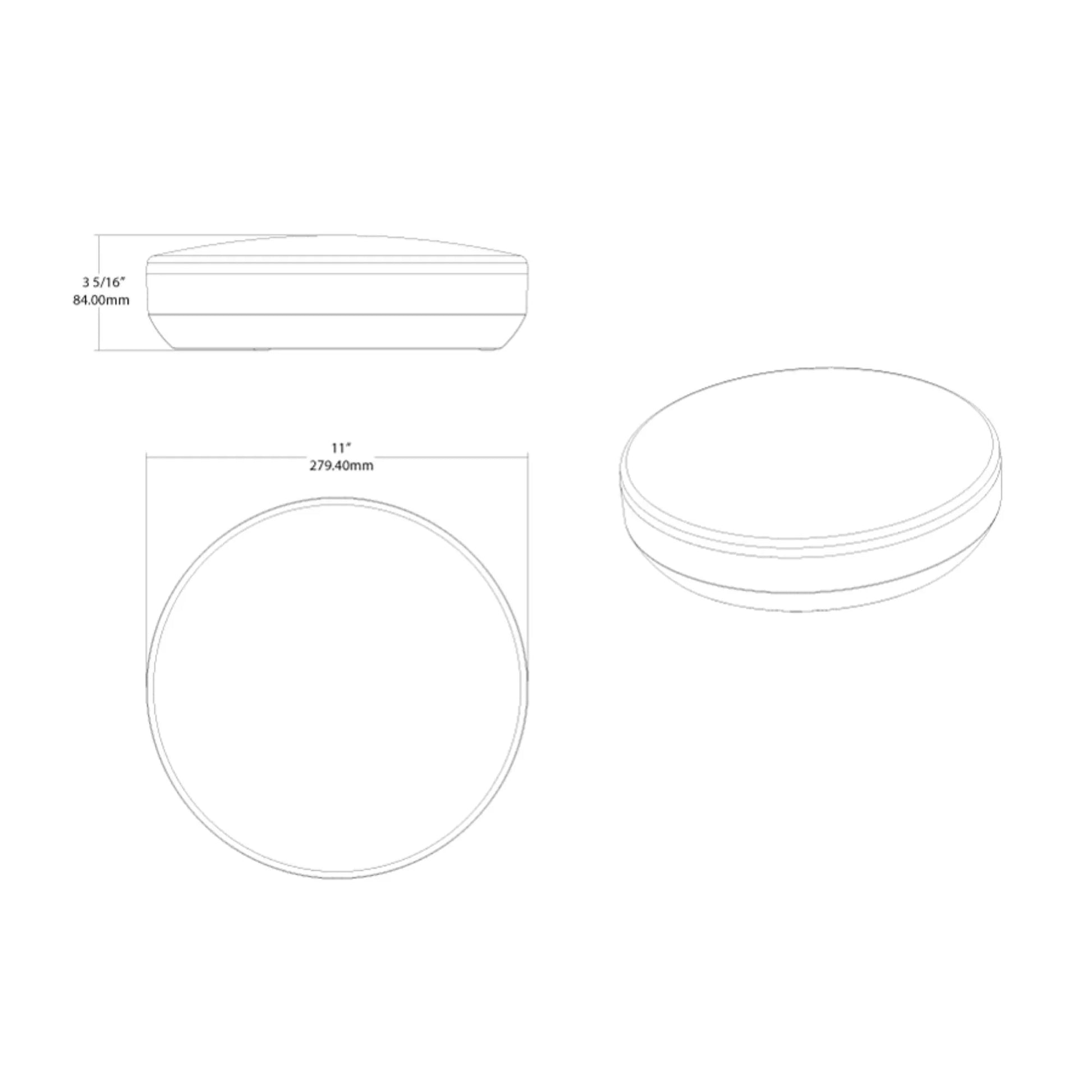

Dimensions

Length/Depth
11 in
Width/Diameter
11 in
Height
3 in
Weight
2.36 lb

Style & Materials

Finish
White
Material
Plastic

Characteristics & Features

Lamp Source
LED Module
Number of Lights
1
Lamp Color
2700K, 3000K, 3500K, 4000K, 5000K, Selectable CCT
Color Rendering
90 CRI
Delivered Lumens
1150
Dimmable
Yes

Electrical Information

Voltage
120-277V
Total Wattage
16W

Item Details

MPN
CRVFAS-11R-16-9CCT-UNV-W
Brand
RAB Lighting
Family
CRVFA
UPC
192552018579

Warranty & Certifications

Product Warranty
5 Years
Lamp Life
50,000 Hours
Product Rating
Wet Rated

Shipping & Returns

Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.

Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.

See Full Shipping Policy | See Full Return Policy

Frequently Asked Questions

Can the CRVFAS-11R-16-9CCT-UNV-W be used in wet or damp locations?

Yes — the CRVFAS-11R-16-9CCT-UNV-W is suitable for wet and damp locations. The CRVFAS family sheet lists UL and IP54 ratings.

Does the CRVFAS-11R-16-9CCT-UNV-W support 0-10V dimming?

Yes — the family performance table specifies 0-10V dimming for CRVFAS-11R-16-9CCT-UNV-W. TRIAC/ELV is assigned to different driver versions.

Can I select the color temperature on the CRVFAS-11R-16-9CCT-UNV-W?

Yes — CRVFAS-11R-16-9CCT-UNV-W offers 2700K, 3000K, 3500K, 4000K and 5000K field-selectable settings.

Can the CRVFAS-11R-16-9CCT-UNV-W operate on a 277V circuit?

Yes — CRVFAS-11R-16-9CCT-UNV-W uses a universal 120-277V constant-current driver with 50/60Hz operation.

Does the CRVFAS-11R-16-9CCT-UNV-W require separate bulbs?

No — CRVFAS-11R-16-9CCT-UNV-W has an integrated 16W LED delivering 1,150 lumens with 90 CRI and a 50,000-hour L70 lifespan.
