CRVFA 11" LED Surface Mount, 5CCT White Finish, 120V
Available in stock (100)
About this item
About this item

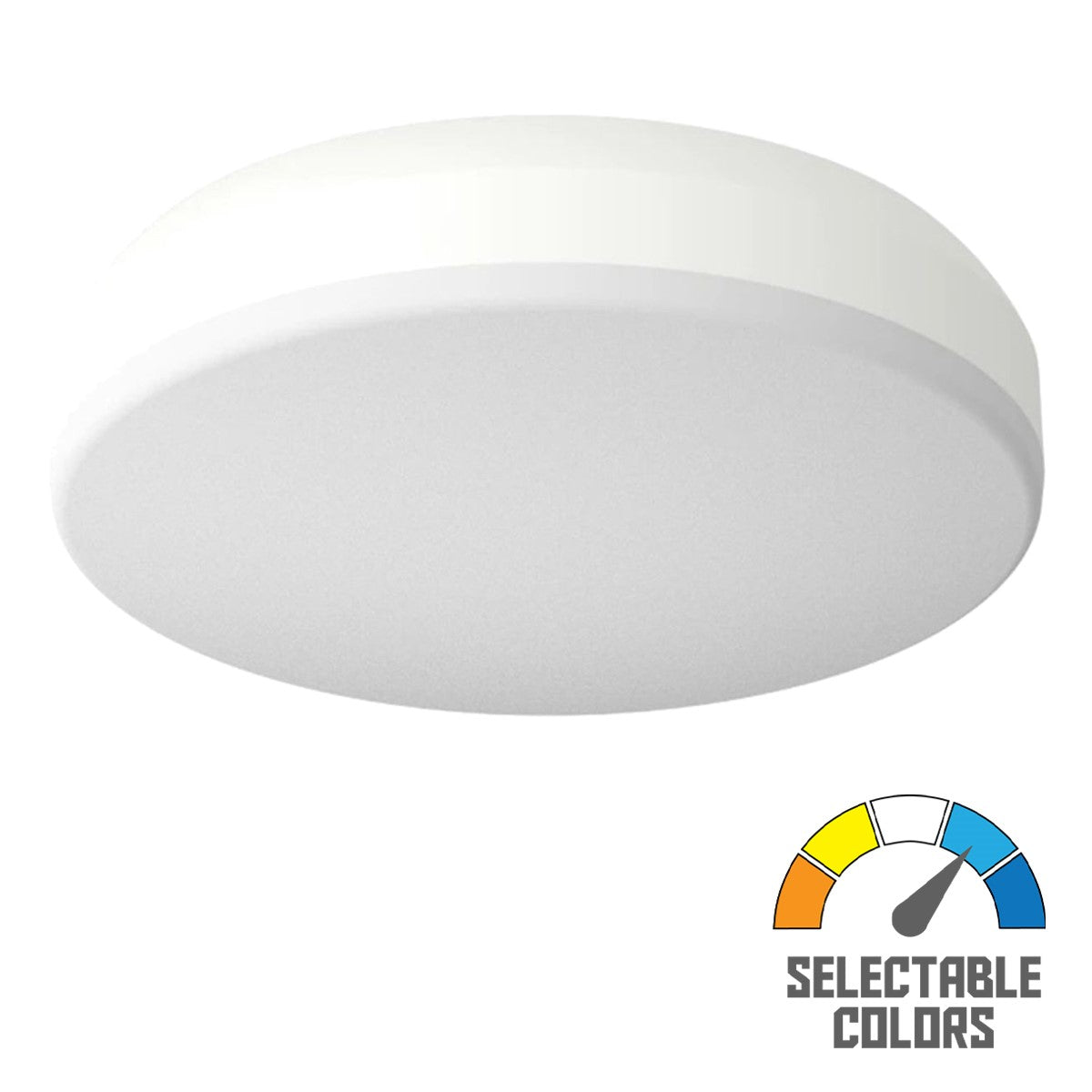

- Five Selectable Colors: Set 2700K, 3000K, 3500K, 4000K or 5000K during installation
- Natural Light: 1,150 lumens at 16W with 90 CRI and a broad 120-degree beam
- Flexible Installation: Surface mounts on a standard junction box on a ceiling or wall
- Wet Location Listed: UL listed for wet locations with white plastic construction and smooth trim
- Certified Performance: ENERGY STAR Version 2.2 certified, TAA compliant, 50,000-hour L70 lifespan and 5-year warranty
Description
Description
RAB CRVFA CRVFAS-11R-16-9CCT-120-W 11 in LED Flush Mount — White / 16W / 5CCT
The RAB CRVFAS-11R-16-9CCT-120-W is an integrated LED flush mount for standard junction-box installation on a ceiling or wall. Its white finish and smooth round trim blend into residential and hospitality interiors, while a diffused back-lit lens provides soft, smooth light. Choose the color temperature during installation and get 1,150 lumens from 16W on a 120V circuit.
Key Features
- Selectable CCT: 2700K, 3000K, 3500K, 4000K or 5000K with field-adjustable set-and-forget selection
- Output: 1,150 lumens at 16W; published efficacy of 71.5 lm/W
- Color Rendering: 90 CRI and R9 greater than or equal to 50
- Beam Angle: 120 degrees for broad distribution
- Driver: Constant current, 120V input, 0.15A and 60Hz
- Electrical Performance: Power factor at least 0.9, THD at most 20% and published flicker at most 30%
- Mounting: Ceiling or wall surface mount on a standard junction box
- Construction: White plastic body with smooth round trim
- Location Rating: UL listed for wet locations; suitable for wet and damp areas
- Certifications: ENERGY STAR Version 2.2 certified and TAA compliant
- Operating Range: -4°F to 104°F (-20°C to 40°C)
- Life and Warranty: 50,000-hour L70 lifespan based on IES LM-70 results and RAB 5-year limited warranty
Construction & Design
The 11 in round fixture features a plastic body in white, smooth trim and a diffused lens. Its surface-mount design avoids a hanging pendant drop. Fixture weight is 1.8 lbs.
Light Output & Performance
The integrated LED delivers 1,150 lumens with a 120-degree beam. A 90 CRI rating and R9 of at least 50 support natural color rendering, including red tones. Select warm 2700K or 3000K, intermediate 3500K or 4000K, or cool 5000K. Rated LED life is 50,000 hours at L70.
Electrical & Installation
Surface mount the fixture on a standard junction box on a ceiling or wall. This model requires 120V, 60Hz input and uses a constant-current driver rated at 0.15A. Set the color temperature during installation. The flush-mount format avoids a pendant drop where overhead clearance matters.
Typical Applications
- Hotel guest rooms and corridors
- Multi-family residential interiors and hallways
- Closets, laundry rooms and bathrooms
- Covered entries and porches
What's Included
- (1) RAB CRVFAS-11R-16-9CCT-120-W integrated LED flush mount in white
Specifications
Specifications
Dimensions
Documents
Style & Materials
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.
Frequently Asked Questions
Can this fixture be installed in wet locations?
Can this fixture be installed in wet locations?
Can I select the color temperature during installation?
Can I select the color temperature during installation?
Does this fixture require separate light bulbs?
Does this fixture require separate light bulbs?
Can this model operate on a 277V circuit?
Can this model operate on a 277V circuit?
Can I mount this fixture on a wall?
Can I mount this fixture on a wall?
