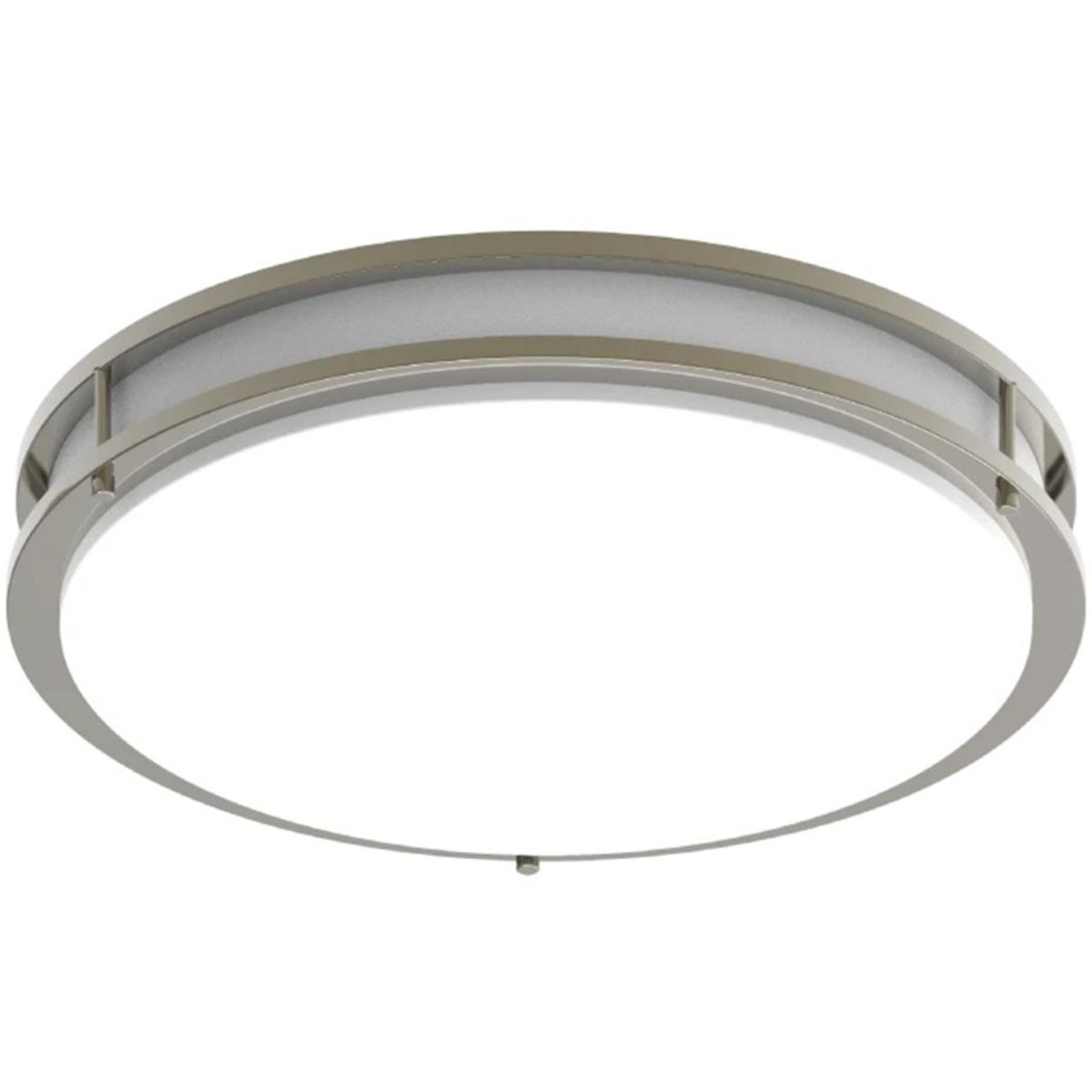

RAB CRVFAD-18R-32-9CCT-UNV-BN/MVS 18 in Decorative LED Flush Mount with Occupancy Sensor

The RAB CRVFAD-18R-32-9CCT-UNV-BN/MVS integrated LED flush mount combines decorative twin-ring detailing in brushed nickel with occupancy sensing and five selectable color temperatures. Its diffused lens delivers soft, smooth illumination with 2,200 lumens at 32W. Universal 120-277V input and dedicated 0-10V dimming suit hospitality and multi-family residential installations.

Key Features

• Occupancy Control: Sensor-equipped MVS configuration

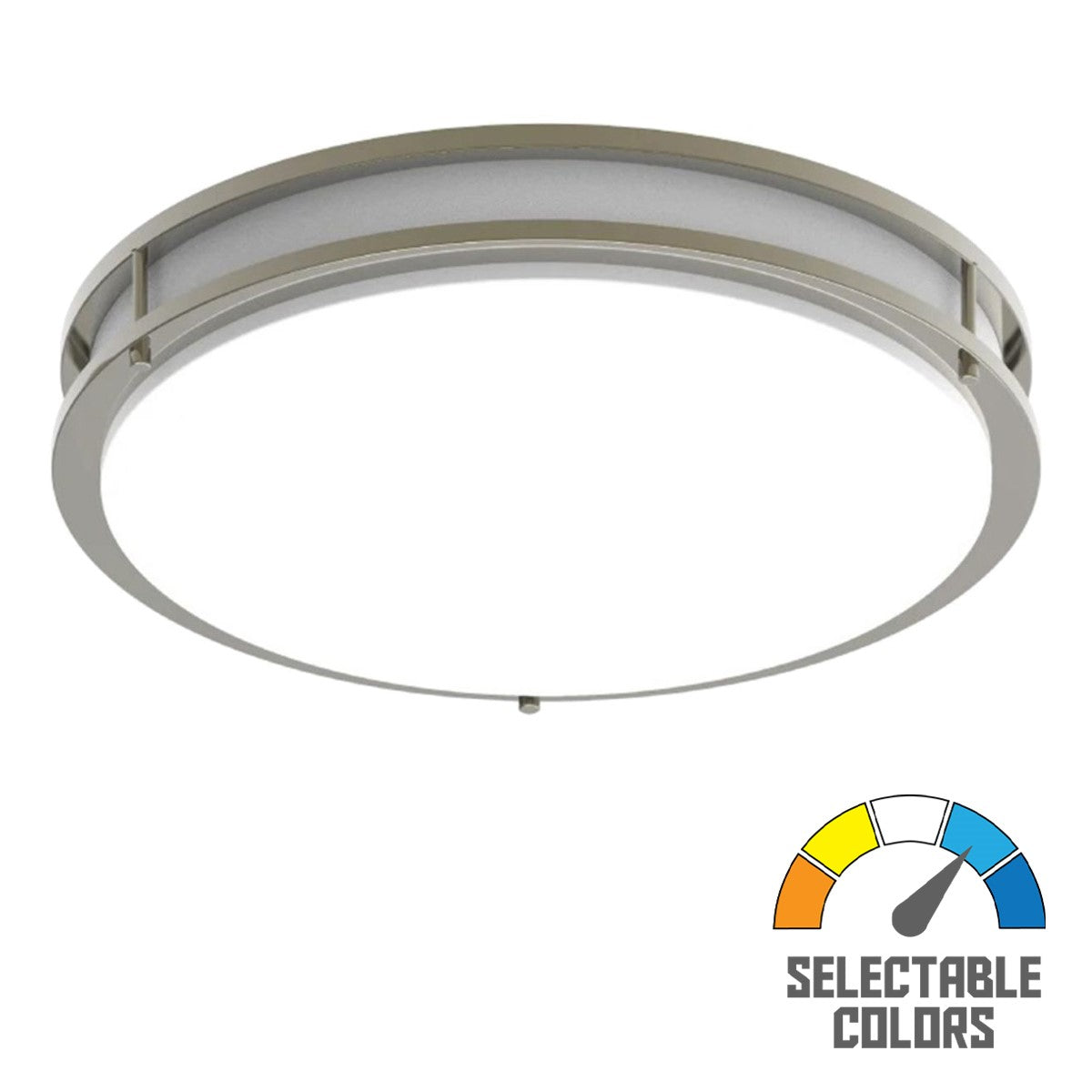

• Selectable CCT: 2700K, 3000K, 3500K, 4000K or 5000K
• Output and Efficacy: 2,200 lumens at 32W; 68.8 lm/W
• Color Quality: 90 CRI with R9 of at least 50
• Beam Angle: Broad 130-degree distribution
• Dimming: 0-10V dimming to 10%; separate 0-10V DC control circuit required
• Driver and Input: Constant-current driver; 120-277V, 50/60Hz
• Input Current: 0.30A at 120V, 0.16A at 208V, 0.14A at 240V and 0.13A at 277V
• Electrical Quality: Power factor at least 0.9; THD at most 20%; flicker at most 30%

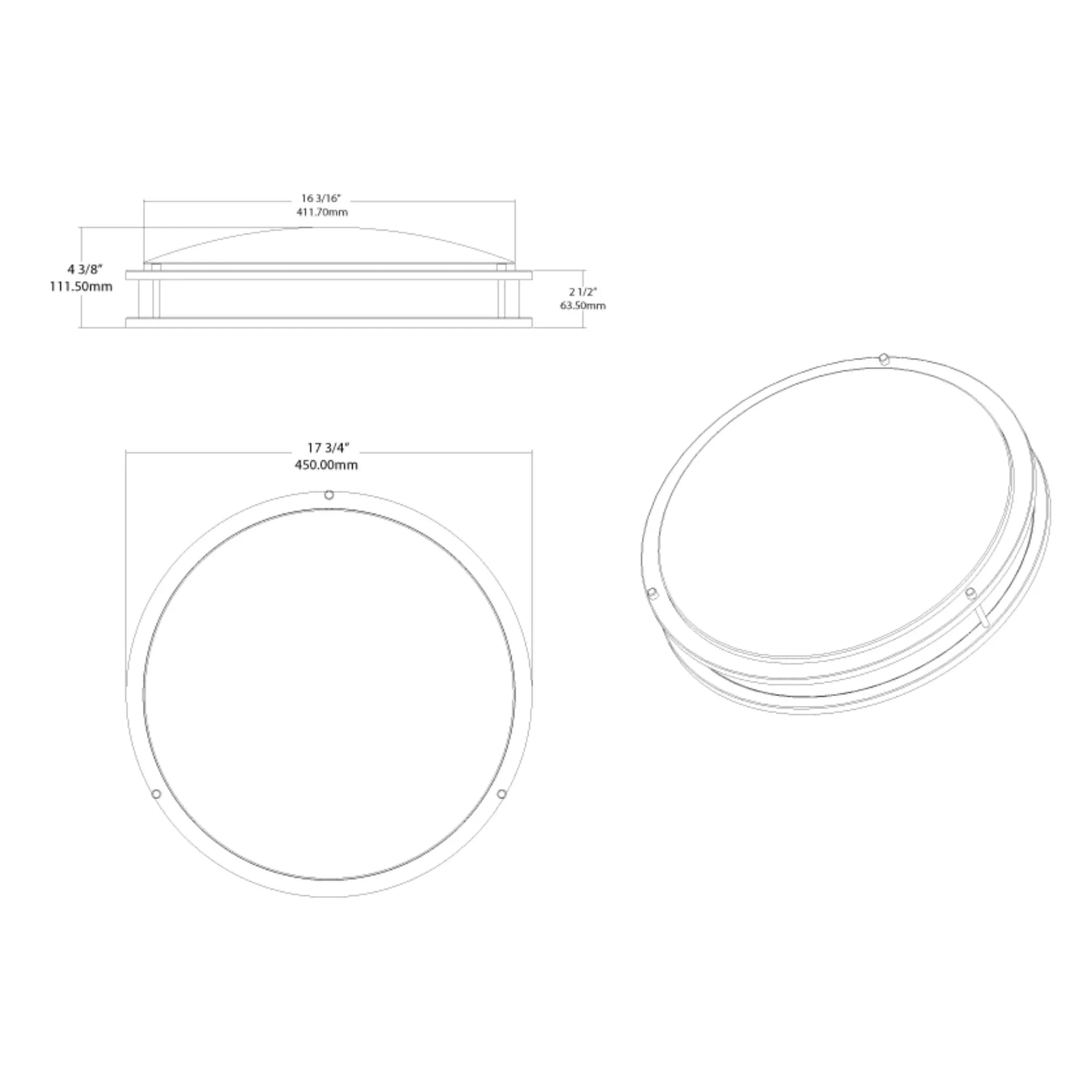

• Construction and Size: Metal and plastic, smooth round trim; 18 in diameter and 4.4 lb
• Listings: UL listed for wet locations; ENERGY STAR Version 2.2 certified
• Life and Warranty: 50,000-hour L70 lifespan; -4°F to 104°F operating range; five-year RAB warranty

Construction & Design

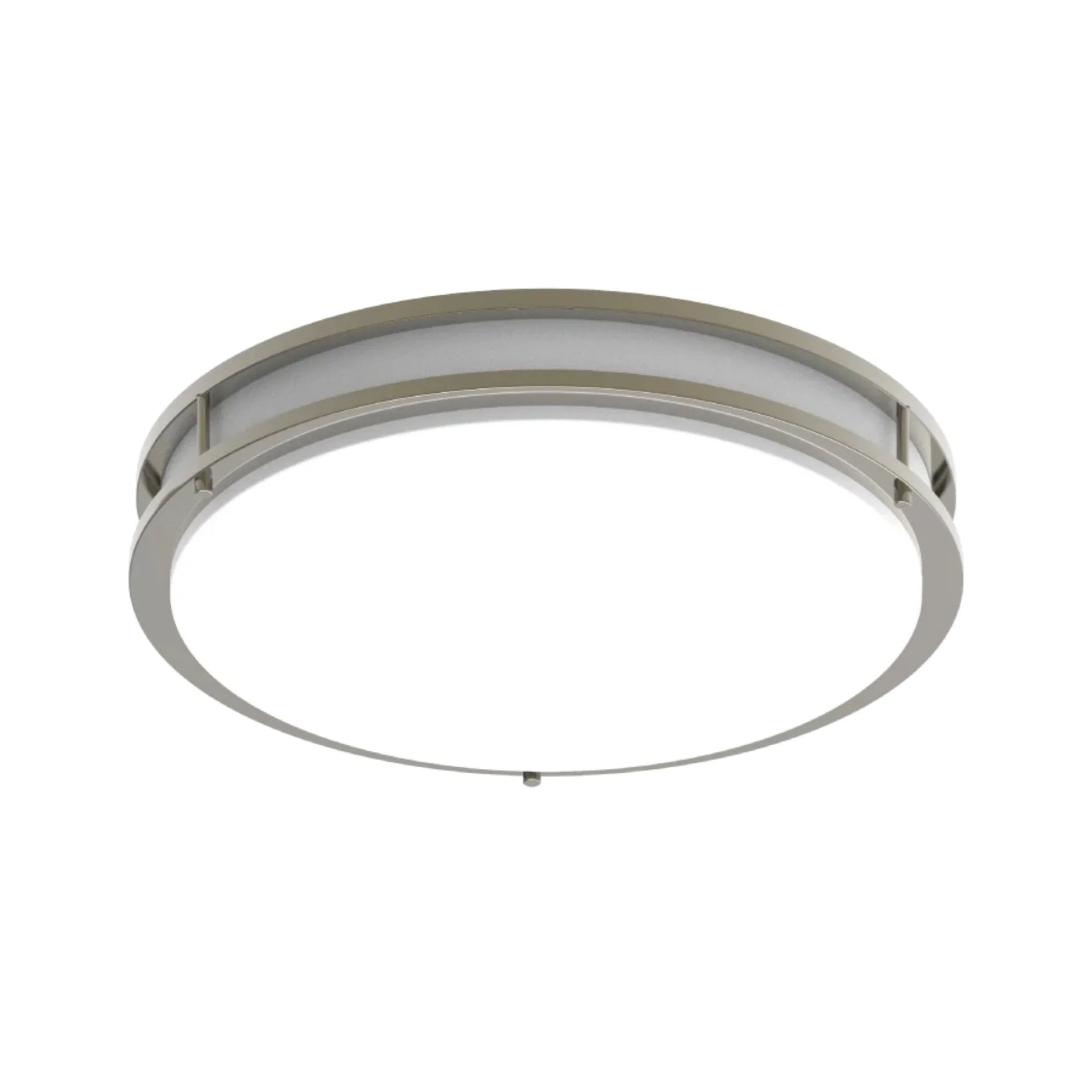

Decorative twin rings frame a frosted polycarbonate lens in a brushed nickel finish. The smooth round trim and metal-and-plastic construction provide a decorative surface-mount profile with diffused light. This 18 in fixture weighs 4.4 lb.

Light Output & Performance

The integrated LED produces 2,200 lumens over a 130-degree beam. Its 90 CRI and R9 of at least 50 support accurate color rendering. Choose 2700K, 3000K, 3500K, 4000K or 5000K during installation to coordinate the space's lighting. Rated LED life is 50,000 hours at L70.

Electrical & Installation

Operate on 120-277V at 50/60Hz. The constant-current driver includes control wiring for 0-10V dimming down to 10% and requires a separate 0-10V DC dimming circuit. The MVS configuration includes occupancy sensing. Mount directly to a ceiling or wall junction box and set the color temperature during installation. The flush-mount format avoids a pendant drop where overhead clearance matters. The fixture is UL listed for wet locations.

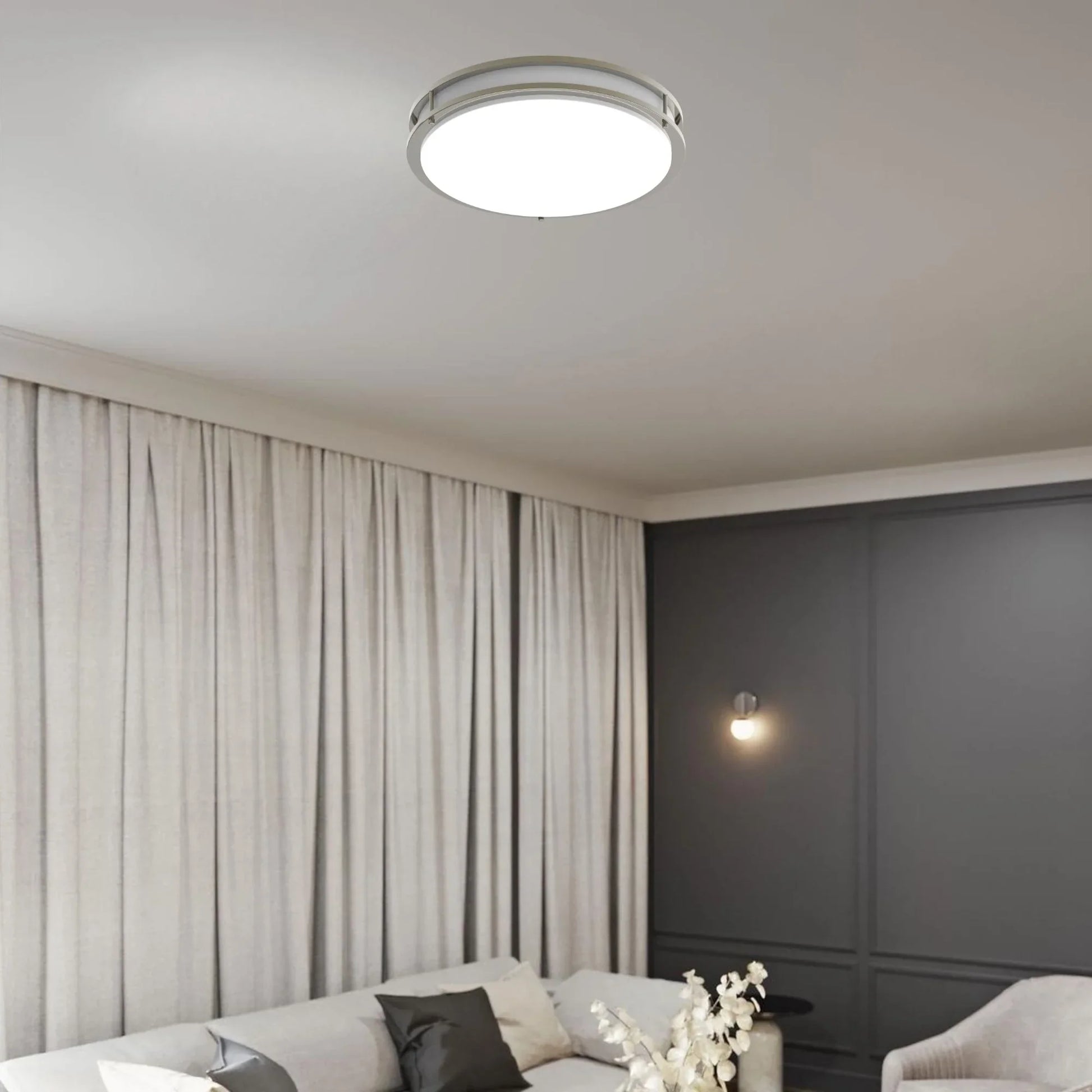

Typical Applications

• Hotel guest rooms and corridors
• Multi-family residential common areas
• Entryways and utility rooms
• Bathrooms and covered entries

What's Included

• (1) RAB CRVFAD-18R-32-9CCT-UNV-BN/MVS brushed nickel decorative flush mount with integrated LED and occupancy sensor
