RAB Curv CRVFAD-18R-32-9CCT-UNV-BN/EM 18 in LED Flush Mount — 32W / 5CCT / Emergency Battery Backup

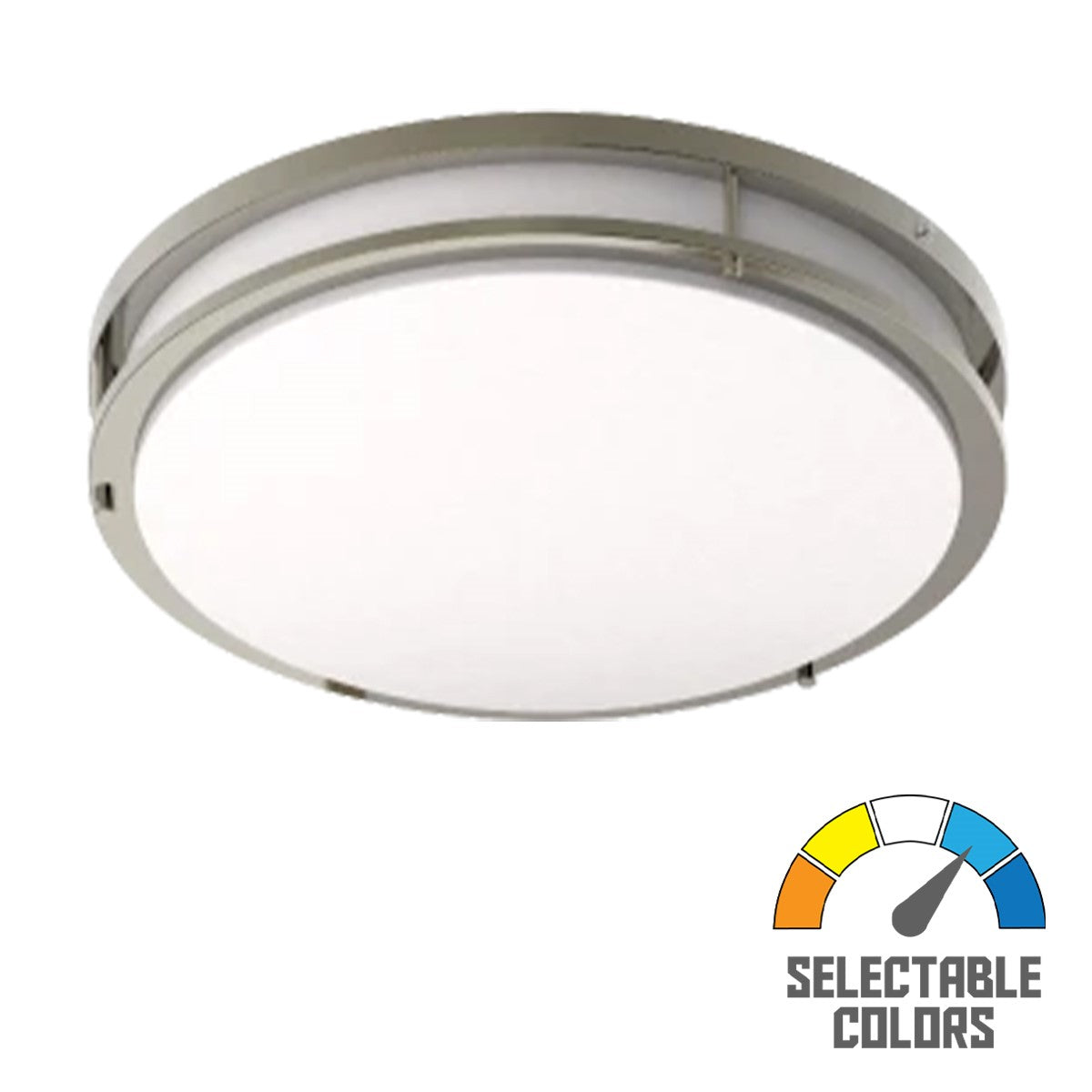

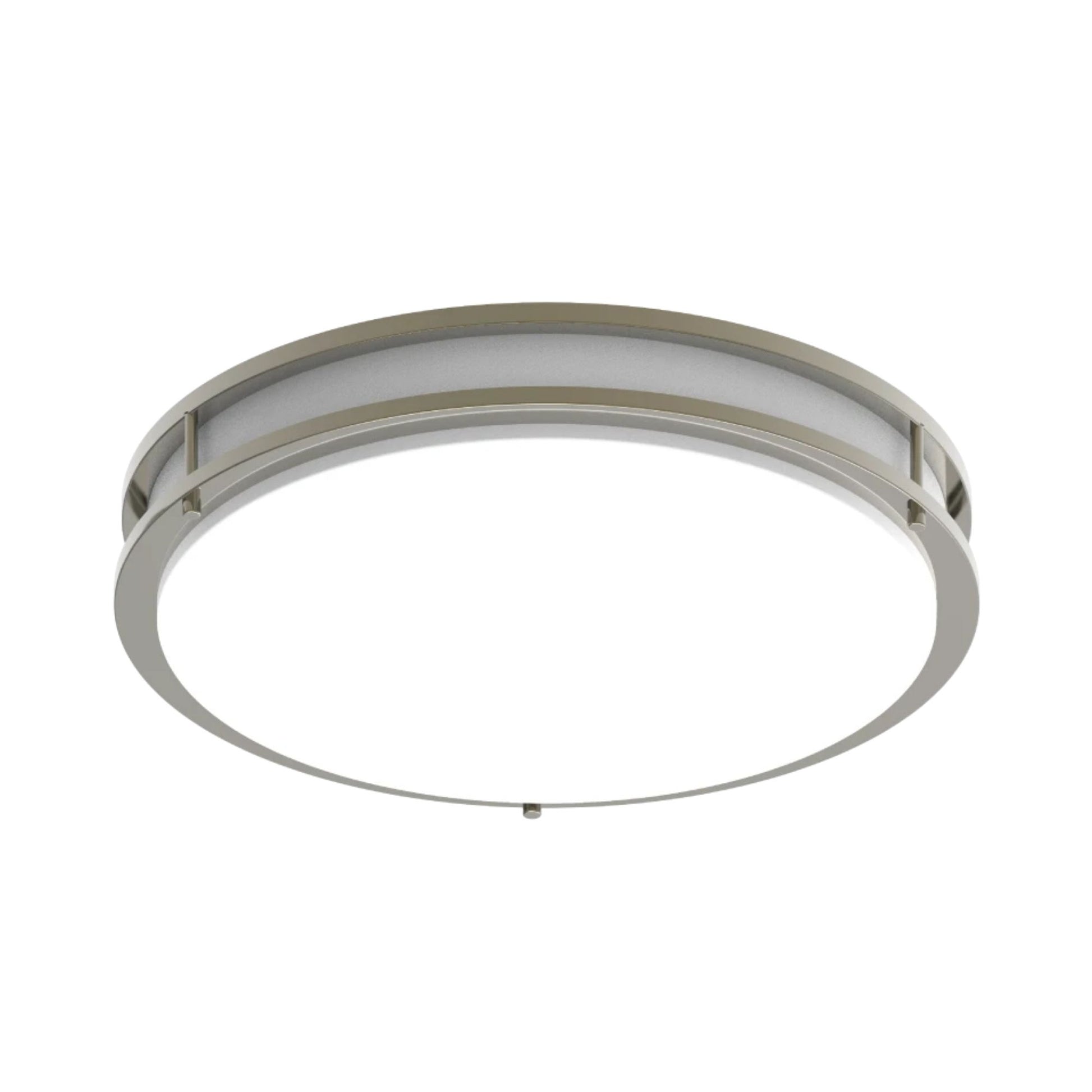

The RAB CRVFAD-18R-32-9CCT-UNV-BN/EM is an 18 in round back-lit LED flush mount in a brushed nickel finish with an integrated emergency battery backup. It delivers 2,240 lumens from 32W, offers five field-selectable color temperatures, and installs directly on a standard junction box on a ceiling or wall. UL listed for wet locations, it is a high-output, low-maintenance choice for larger hospitality and multi-family residential spaces.

Key Features

• Emergency Battery Backup: Integrated battery keeps the fixture lit when normal power fails
• Selectable CCT: Field-adjustable set-and-forget 2700K, 3000K, 3500K, 4000K or 5000K
• Lumen Output: 2,240 lumens at 32W input, 70 lm/W
• Color Quality: 90 CRI for natural, accurate color rendering
• Back-Lit Diffused Lens: Provides soft, smooth, glare-free light
• Universal Voltage: 120-277V constant current driver, 0.9 power factor, 50/60Hz
• Flexible Mounting: Surface mounts to a ceiling or wall on a standard junction box
• Wet Location Listed: UL listed for wet locations, also suitable for damp locations
• Durable Construction: Metal and plastic body with a smooth round trim
• Wide Operating Range: -4°F to 104°F (-20°C to 40°C)
• Lifespan: 50,000-hour L70 rating based on IES LM-70
• Warranty: RAB 5-year limited warranty covering light output, color stability, driver performance and finish

Construction & Design

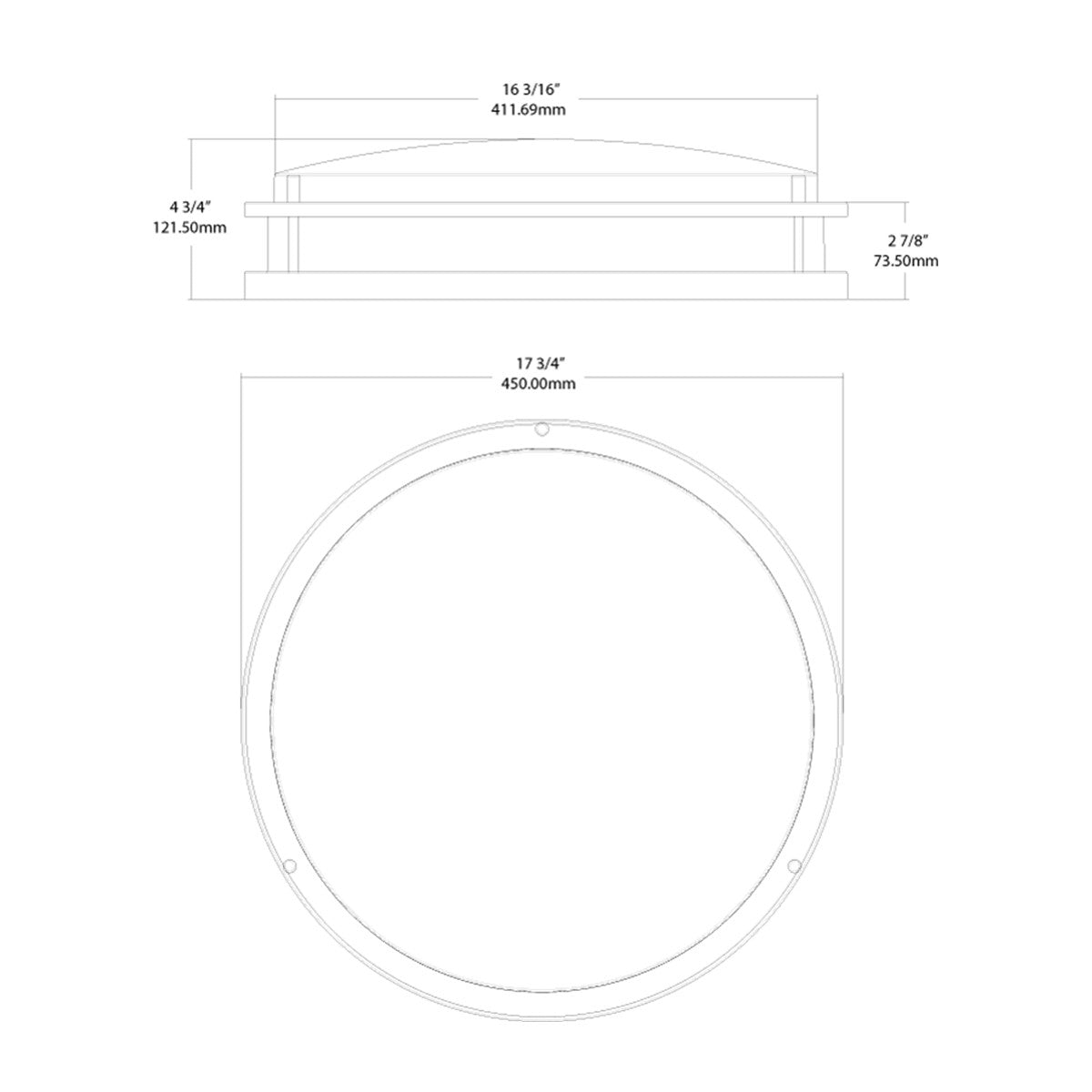

The fixture combines a metal and plastic body with a smooth round trim and a domed diffused lens, finished in brushed nickel. It measures 17 3/4 in in diameter and 4 3/4 in tall, with a 16 3/16 in lens and a 2 7/8 in base, keeping a low profile on standard ceilings.

Light Output & Performance

Produces 2,240 lumens at 32W with 90 CRI for clear, natural light across larger rooms. Five selectable color temperatures from warm 2700K to cool 5000K let one SKU fit any space, and the LED is rated for 50,000 hours L70.

Electrical & Installation

The CRVFAD 18 in installs directly on a standard junction box and can be surface mounted to a ceiling or wall. It runs on universal 120-277V input, and color temperature is set in the field during installation. The integrated emergency battery provides backup illumination during power loss, making it well suited to corridors, lobbies, stairwells and common areas.

Typical Applications

• Hotel lobbies, corridors and large guest rooms
• Multi-family common areas, stairwells and hallways
• Covered entries, porches and other wet locations
• Residential kitchens, living rooms and large bedrooms

What's Included

• (1) RAB CRVFAD 18 in LED flush mount with integrated emergency battery backup, brushed nickel
