RAB Curv CRVFAD-18R-32-9CCT-UNV-BN 18 in LED Flush Mount — 32W / 5CCT / 120-277V

The RAB CRVFAD-18R-32-9CCT-UNV-BN is the largest round back-lit LED flush mount in the Curv series, finished in brushed nickel. It delivers 2,240 lumens from 32W, offers five field-selectable color temperatures, and installs directly on a standard junction box on a ceiling or wall. UL listed for wet locations and TAA compliant, it is a low-maintenance choice for hospitality, multi-family and government-funded projects that need more light per fixture.

Key Features

  • Selectable CCT: Field-adjustable set-and-forget 2700K, 3000K, 3500K, 4000K or 5000K
  • Lumen Output: 2,240 lumens at 32W input, 70 lm/W
  • Color Quality: 90 CRI for natural, accurate color rendering
  • Back-Lit Diffused Lens: Provides soft, smooth, glare-free light
  • Universal Voltage: 120-277V constant current driver, 0.9 power factor, 50/60Hz
  • Flexible Mounting: Surface mounts to a ceiling or wall on a standard junction box
  • Wet Location Listed: UL listed for wet locations, also suitable for damp locations
  • Durable Construction: Metal and plastic body with a smooth round trim
  • Wide Operating Range: -4°F to 104°F (-20°C to 40°C)
  • TAA Compliant: Trade Agreements Act compliant for federal and government projects
  • Lifespan: 50,000-hour L70 rating based on IES LM-70
  • Warranty: RAB 5-year limited warranty covering light output, color stability, driver performance and finish

Construction & Design

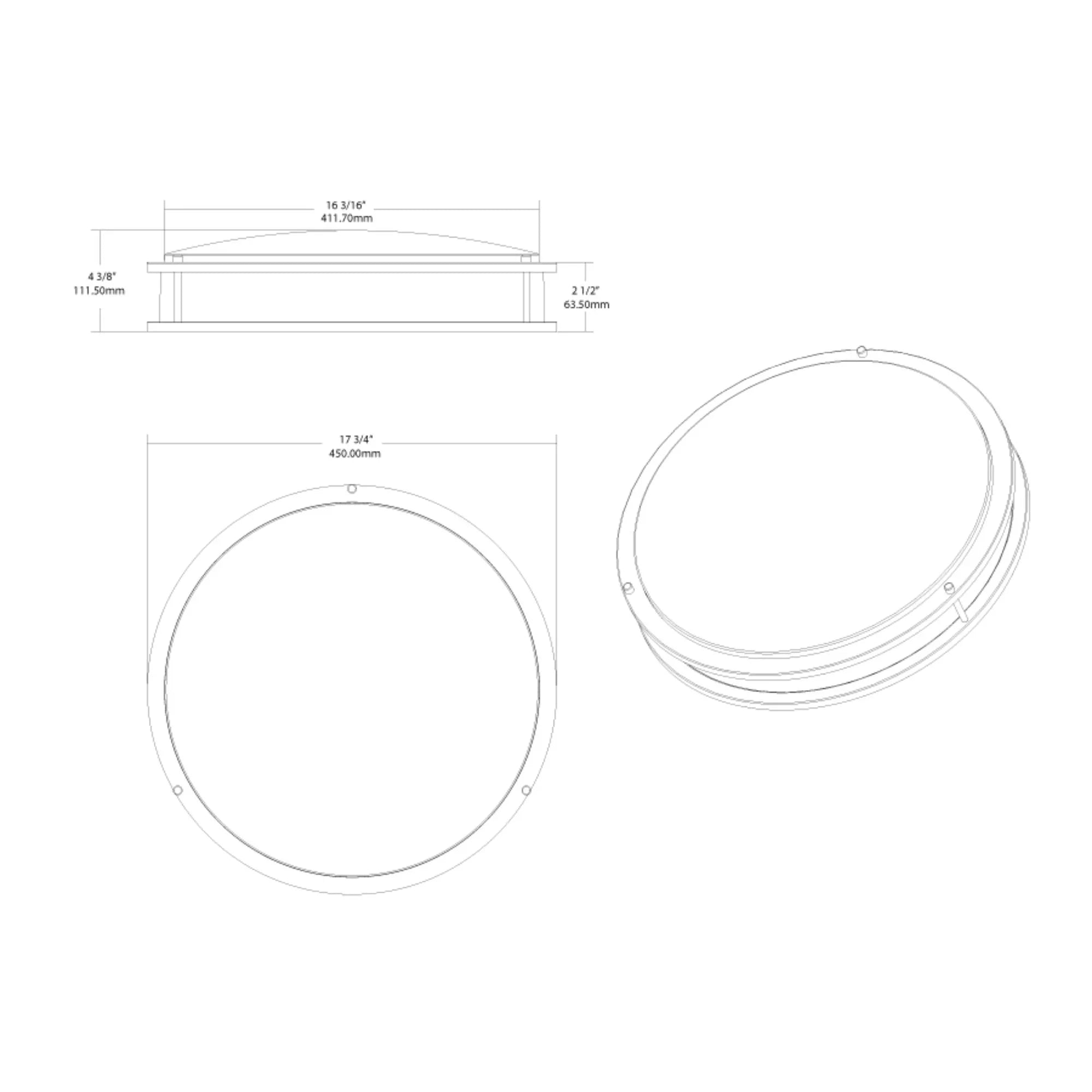

The fixture combines a metal and plastic body with a smooth round trim and a domed diffused lens, finished in brushed nickel. It measures 17 3/4 in in diameter and approximately 4 3/8 in tall.

Light Output & Performance

Produces 2,240 lumens at 32W with 90 CRI for clear, natural light across larger rooms. Five selectable color temperatures from warm 2700K to cool 5000K let one SKU fit any space, and the LED is rated for 50,000 hours L70.

Electrical & Installation

The CRVFAD 18 in installs directly on a standard junction box and can be surface mounted to a ceiling or wall. It runs on universal 120-277V input, and color temperature is set in the field during installation, making it easy to standardize one fixture across an entire project.

Typical Applications

  • Hotel lobbies, corridors and common areas
  • Multi-family hallways, stairwells and amenity spaces
  • Covered entries, porches and other wet locations
  • Residential kitchens, living rooms and large bedrooms

What's Included

  • (1) RAB CRVFAD 18 in LED flush mount, brushed nickel

Specifications

Dimensions

Length/Depth
18 in
Width/Diameter
18 in
Height
4 in
Weight
5.8 lb

Style & Materials

Finish
Brushed Nickel
Material
Metal

Characteristics & Features

Lamp Source
LED Module
Number of Lights
1
Lamp Color
2700K, 3000K, 3500K, 4000K, 5000K, Selectable CCT
Color Rendering
90 CRI
Delivered Lumens
2240
Dimmable
Yes

Electrical Information

Voltage
120-277V
Total Wattage
32W

Item Details

MPN
CRVFAD-18R-32-9CCT-UNV-BN
Brand
RAB Lighting
Family
CRVFA
UPC
192552018654

Warranty & Certifications

Product Warranty
5 Years
Lamp Life
50,000 Hours
Product Rating
Wet Rated

Shipping & Returns

Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.

Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.

See Full Shipping Policy | See Full Return Policy

Frequently Asked Questions

Can the RAB CRVFAD-18R-32-9CCT-UNV-BN be used in wet locations?

Yes — this fixture is UL listed for wet locations and is also suitable for damp areas such as bathrooms, covered porches and entryways.

Can I choose the color temperature?

Yes — the color temperature is field-adjustable to 2700K, 3000K, 3500K, 4000K or 5000K, so you can set it once during installation to suit the space.

Does this model include an emergency battery backup?

No — the CRVFAD-18R-32-9CCT-UNV-BN is the standard version without battery backup. For emergency lighting, choose the CRVFAD-18R-32-9CCT-UNV-BN/EM.

Is the 18 in size bright enough for large rooms?

Yes — at 2,240 lumens, the 18 in model is the brightest in the Curv flush mount series, making it a strong fit for lobbies, living rooms, kitchens and wide corridors.

Is this fixture TAA compliant for government projects?

Yes — the CRVFAD-18R-32-9CCT-UNV-BN is Trade Agreements Act compliant, making it suitable for federal and government-funded projects.
