RAB CRVFAD-18R-32-9CCT-120-BN 18 in Decorative LED Flush Mount — Brushed Nickel, 32W, 5CCT

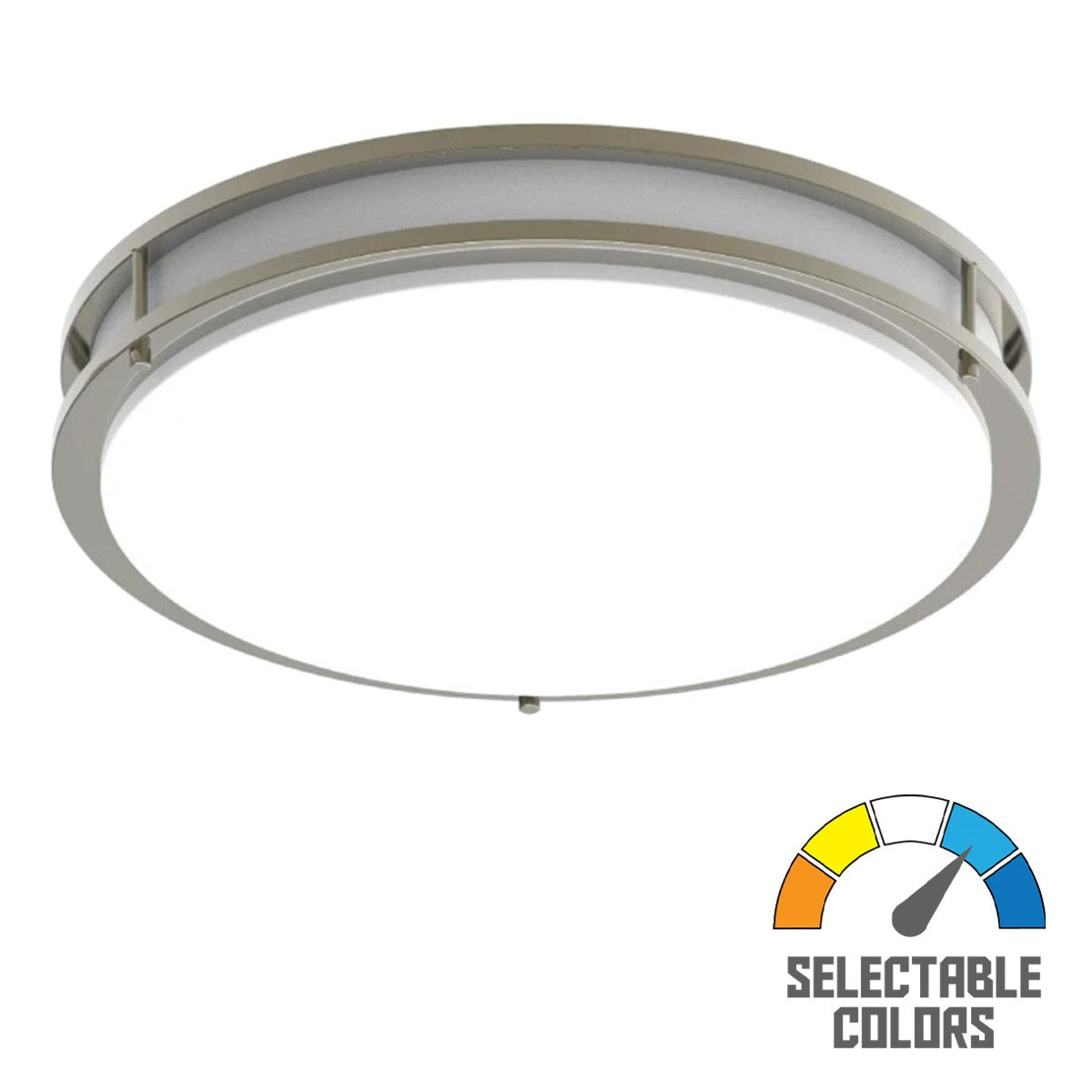

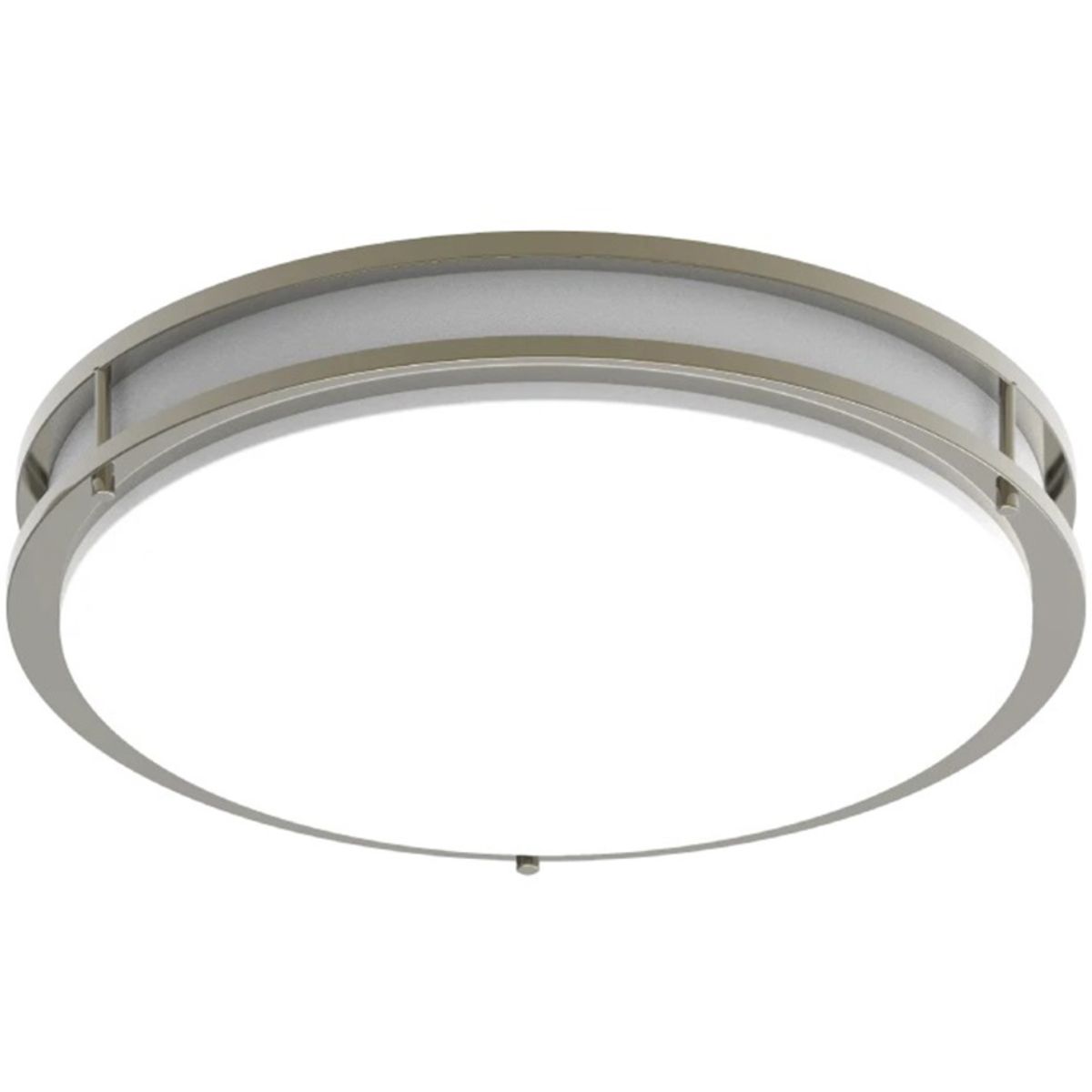

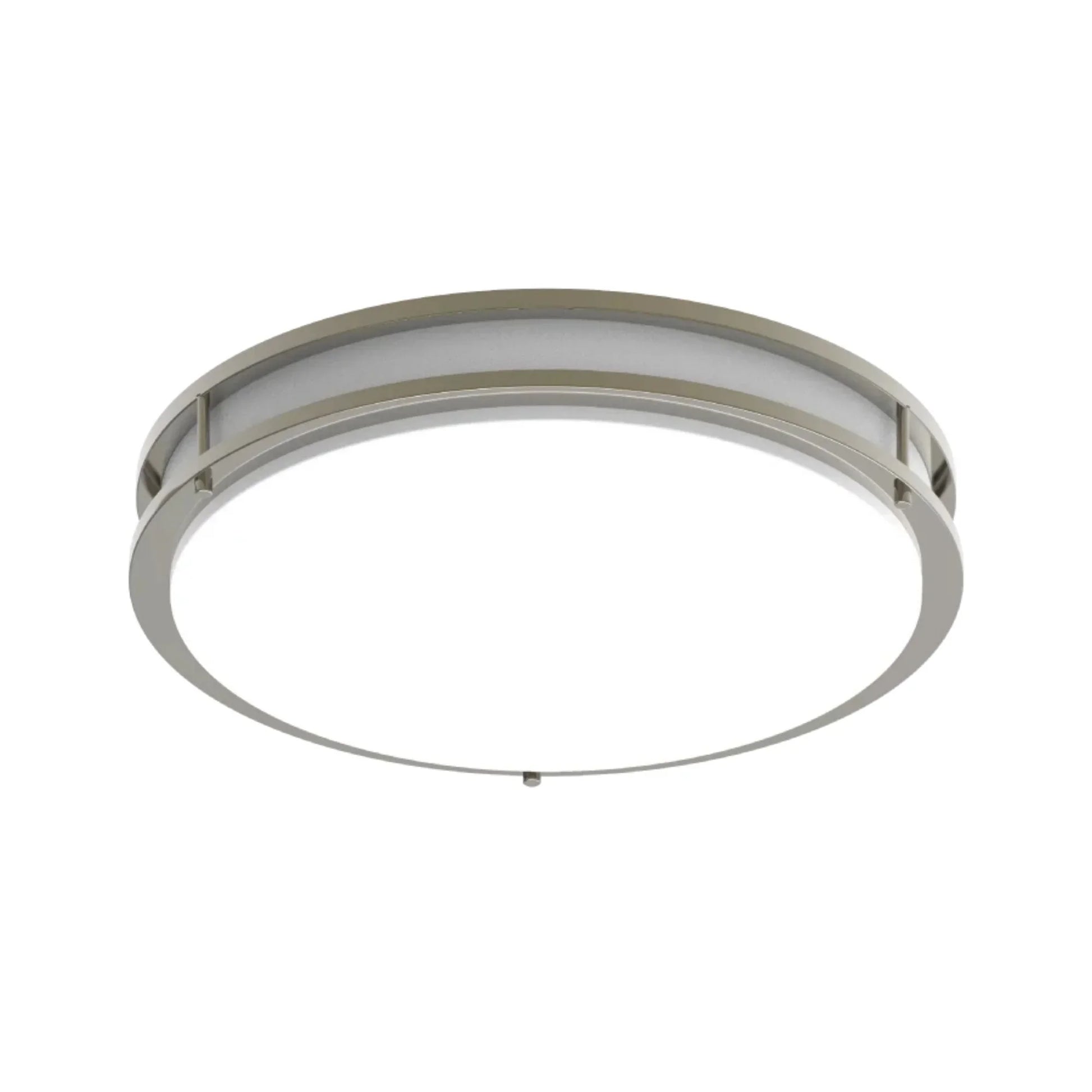

The RAB CRVFAD-18R-32-9CCT-120-BN integrated LED flush mount pairs decorative twin-ring detailing with a brushed nickel finish. A frosted polycarbonate lens softens the back-lit illumination, delivering 2,200 lumens at 32W. Five selectable color temperatures let installers coordinate the light with hospitality and multi-family interiors without separate bulbs.

Key Features

• Decorative Design: Brushed nickel twin-ring housing with metal and plastic construction
• Selectable CCT: 2700K, 3000K, 3500K, 4000K or 5000K
• Output and Efficacy: 2,200 lumens at 32W; 68.8 lm/W
• Color Quality: 90 CRI with R9 of at least 50
• Beam Angle: 130 degrees
• Dimming: TRIAC/ELV control for the family's 120V configuration
• Driver: Constant-current driver; 120V, 60Hz; 0.30A input current
• Electrical Performance: Power factor at least 0.9; THD at most 20%; flicker at most 30%

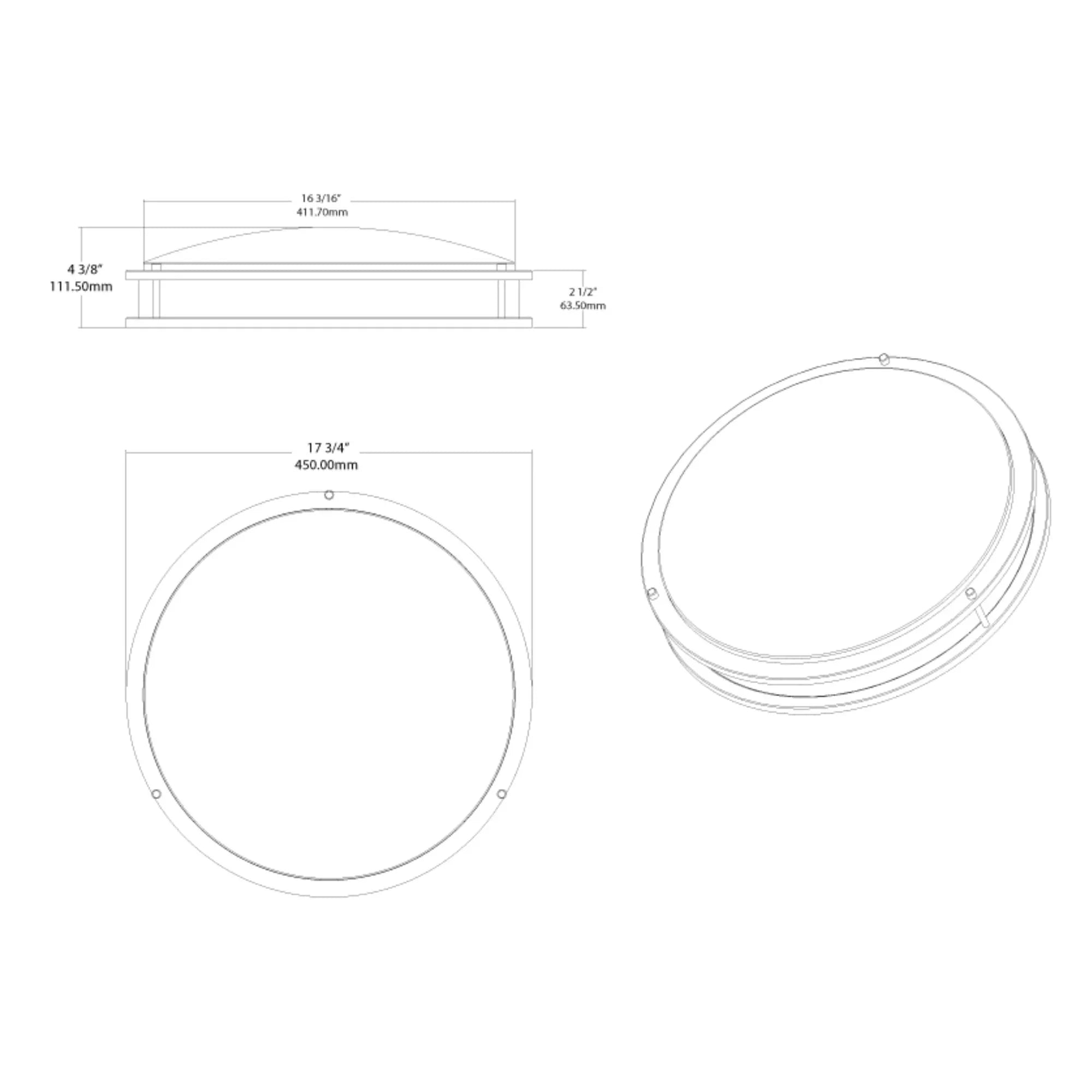

• Size and Weight: 18 in round fixture weighing 4.4 lb
• Mounting and Listing: Ceiling or wall surface mount on standard junction boxes; UL listed for wet locations
• Certifications: ENERGY STAR Version 2.2 certified and TAA compliant
• Life and Warranty: 50,000-hour L70 lifespan; -4°F to 104°F operating range; five-year RAB warranty

Construction & Design

Decorative twin rings frame the diffused lens in a brushed nickel finish. Metal and plastic construction and smooth round trim give the fixture a clean decorative profile. The 18 in fixture weighs 4.4 lb.

Light Output & Performance

The integrated LED delivers 2,200 lumens across a broad 130-degree beam. Its 90 CRI and R9 of at least 50 support accurate color rendering. Choose 2700K, 3000K, 3500K, 4000K or 5000K during installation to match the intended atmosphere. Rated LED life is 50,000 hours at L70.

Electrical & Installation

This model operates on 120V at 60Hz with a constant-current driver drawing 0.30A. The family performance table assigns TRIAC/ELV dimming to this 120V configuration. Surface mount to a standard junction box on a ceiling or wall, and set the color temperature during installation. The flush-mount format avoids a pendant drop where overhead clearance matters. The fixture is UL listed for wet locations and suitable for damp locations.

Typical Applications

• Hotel guest rooms and corridors
• Multi-family residential common areas
• Entryways and kitchens
• Bathrooms and covered entries

What's Included

• (1) RAB CRVFAD-18R-32-9CCT-120-BN brushed nickel decorative flush mount with integrated LED
