RAB CRVFAD 14" LED Flush Mount Brushed Nickel 5CCT 120-277V Occupancy
Available in stock (100)
About this item
About this item
- Occupancy Control: Sensor-equipped decorative twin-ring fixture in brushed nickel
- Selectable Color: Five settings from 2700K to 5000K suit warm or cool lighting schemes
- Soft, Accurate Light: 1,400 lumens at 20W with 90 CRI and a broad 130-degree beam
- Flexible Electrical Input: 120-277V with 0-10V dimming to 10% using a separate DC control circuit
- Rated Performance: UL wet-location listing, ENERGY STAR Version 2.2 certification and 50,000-hour L70 life
Description
Description

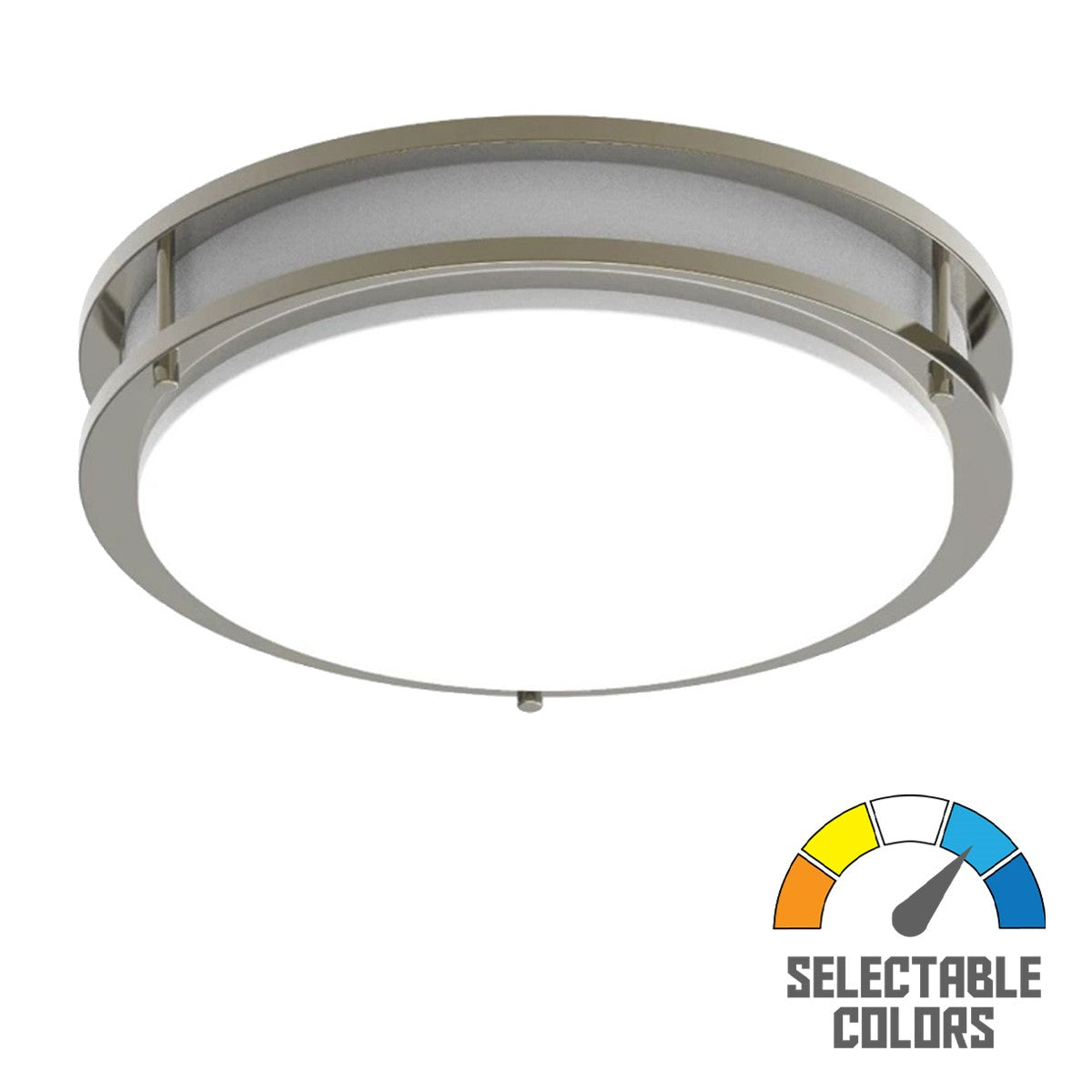

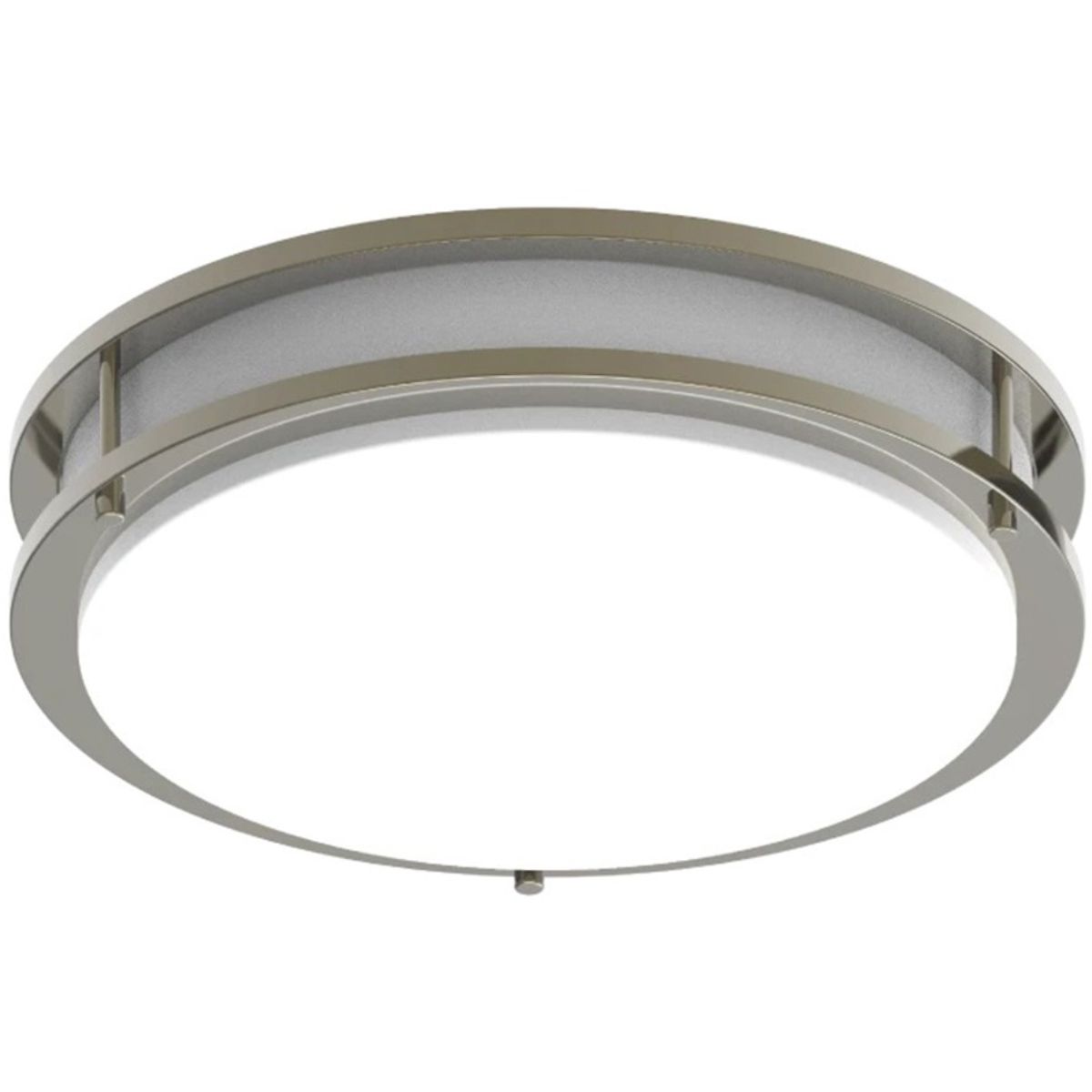

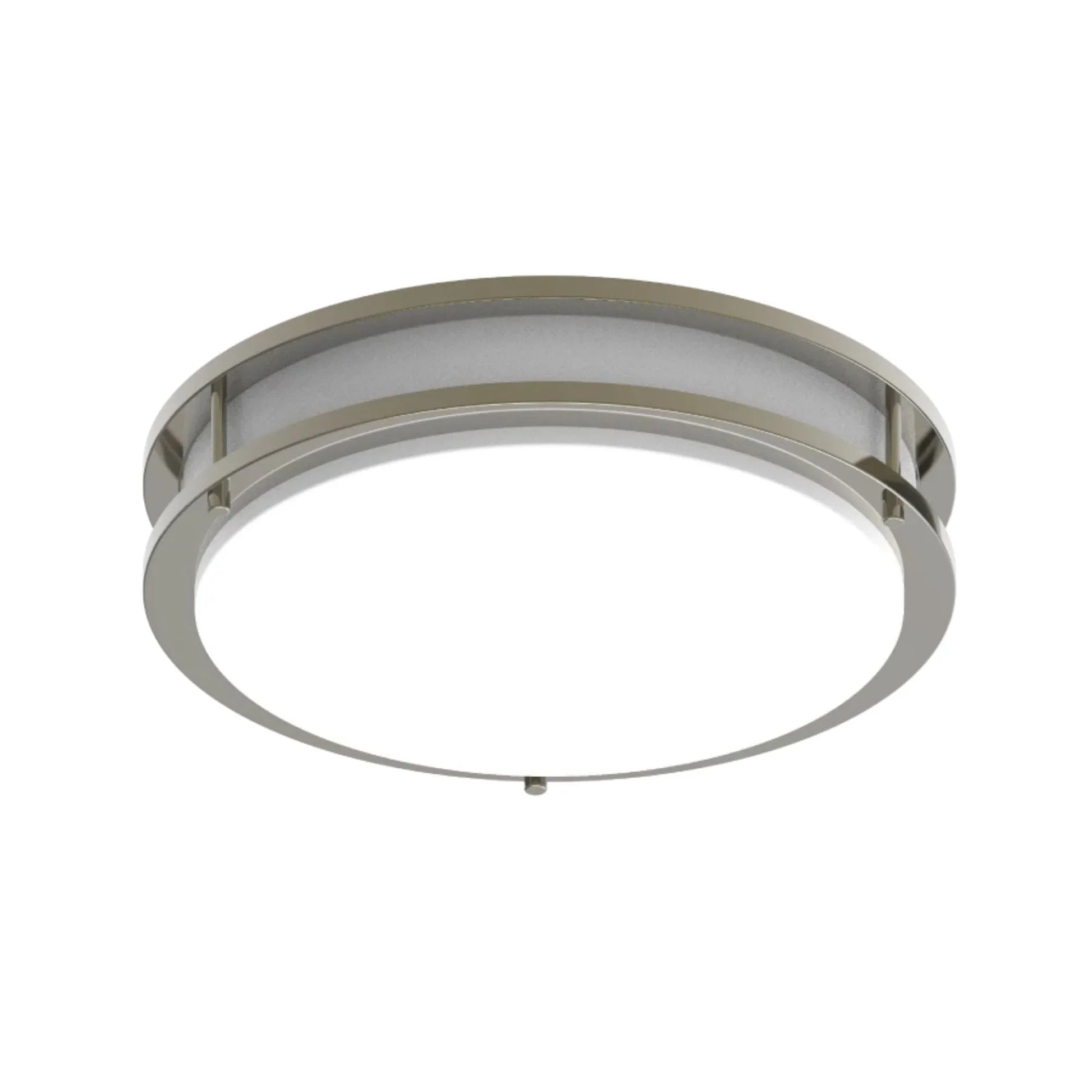

RAB CRVFAD-14R-20-9CCT-UNV-BN/MVS 14 in Decorative LED Flush Mount with Occupancy Sensor
The RAB CRVFAD-14R-20-9CCT-UNV-BN/MVS combines decorative twin-ring detailing in brushed nickel with occupancy sensing and five selectable color temperatures. This integrated LED flush mount delivers 1,400 lumens at 20W, pairing soft diffused illumination with 120-277V operation for residential and hospitality spaces.
Key Features
- Occupancy Sensor: MVS configuration includes occupancy sensing
- Selectable CCT: 2700K, 3000K, 3500K, 4000K or 5000K
- Light Output: 1,400 lumens at 20W and 70 lm/W
- Color Rendering: 90 CRI with R9 of at least 50
- Beam: Broad 130-degree light distribution
- Dimming: 0-10V control dims to 10%; requires a separate 0-10V DC dimming circuit
- Driver and Input: Constant-current driver; 120-277V, 50/60Hz
- Electrical Quality: Power factor at least 0.9, THD at most 20% and flicker at most 30%
- Construction: Metal and plastic, smooth round trim and brushed nickel twin-ring detailing

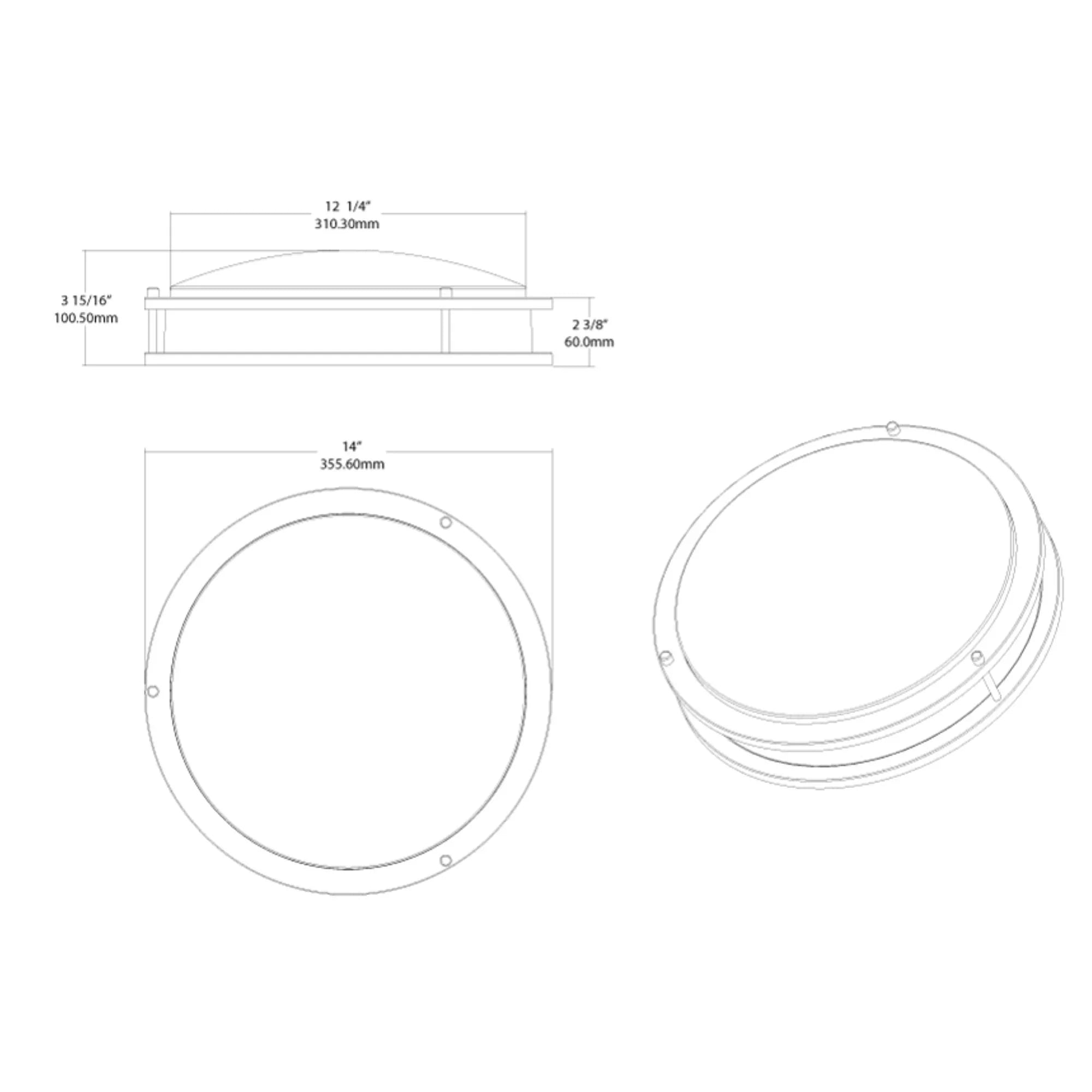

- Size and Weight: 14 in diameter and 2.4 lb
- Listing: UL listed for wet locations; ENERGY STAR Version 2.2 certified
- Life and Warranty: 50,000-hour L70 lifespan, -4°F to 104°F operating range and five-year RAB warranty
Construction & Design
Decorative twin rings frame a frosted polycarbonate lens for soft, smooth light. The brushed nickel finish and round smooth trim complement contemporary interiors. Metal and plastic construction keeps this 14 in fixture at 2.4 lb.
Light Output & Performance
The integrated LED produces 1,400 lumens over a 130-degree beam. Its 90 CRI and R9 of at least 50 support natural color rendering. Field-selectable 2700K, 3000K, 3500K, 4000K and 5000K settings allow the installer to match the surrounding lighting. Rated LED life is 50,000 hours at L70.
Electrical & Installation
Operate this fixture on 120-277V at 50/60Hz. The constant-current driver supports 0-10V dimming down to 10% using a separate 0-10V DC control circuit. The occupancy-sensor configuration adds presence-responsive control. Surface mounting on a ceiling or wall keeps the fixture close to the mounting surface without a pendant drop. Set the color temperature during installation. The fixture is UL listed for wet locations and suitable for damp locations.

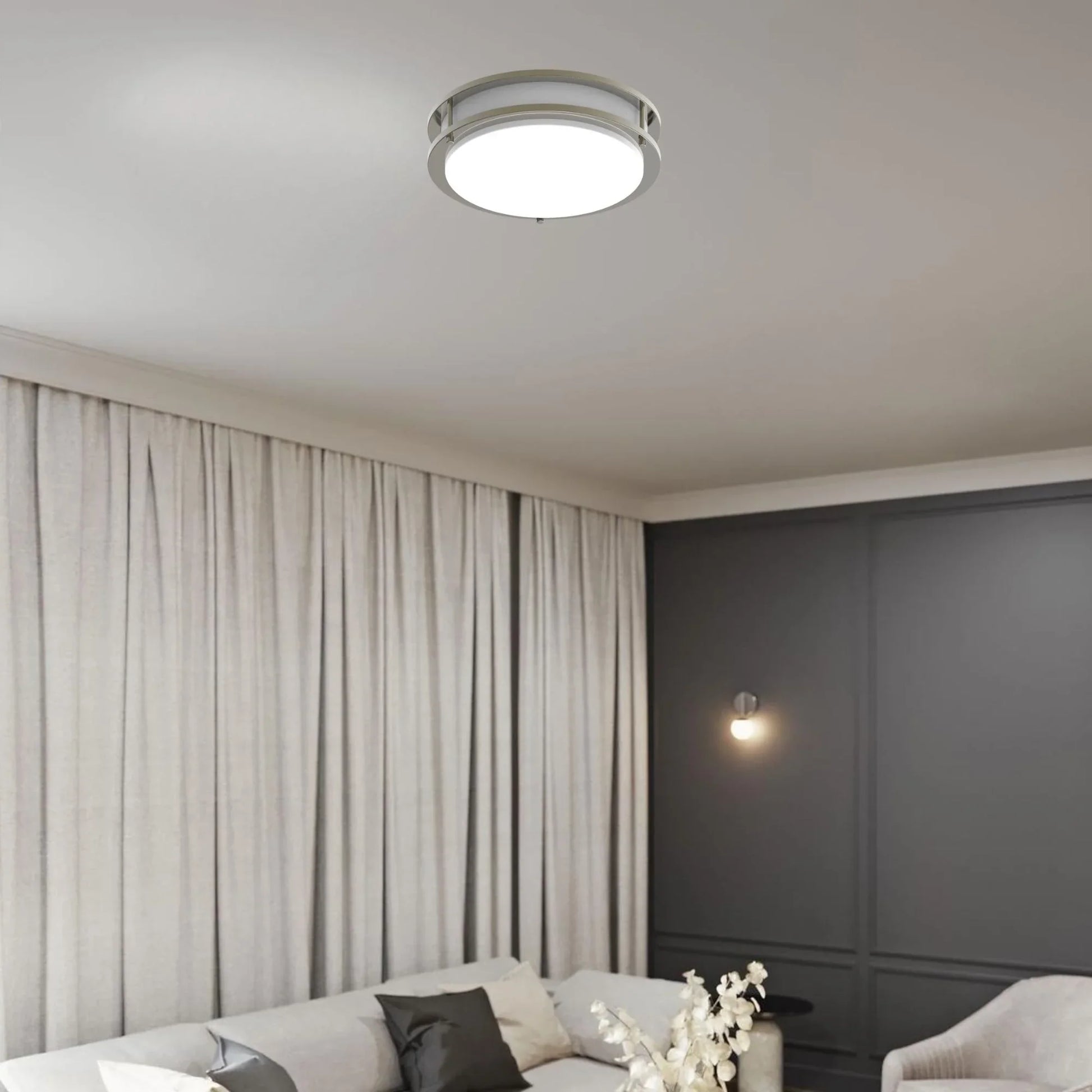

Typical Applications
- Hospitality corridors and guest rooms
- Multi-family residential hallways
- Entryways and utility rooms
- Bathrooms and covered entries
What's Included
- (1) RAB CRVFAD-14R-20-9CCT-UNV-BN/MVS brushed nickel decorative flush mount with integrated LED and occupancy sensor
