RAB Curv CRVFAD-12R-16-9CCT-UNVT-BN/EM 12 in LED Flush Mount — 16W / 5CCT / Emergency Battery Backup

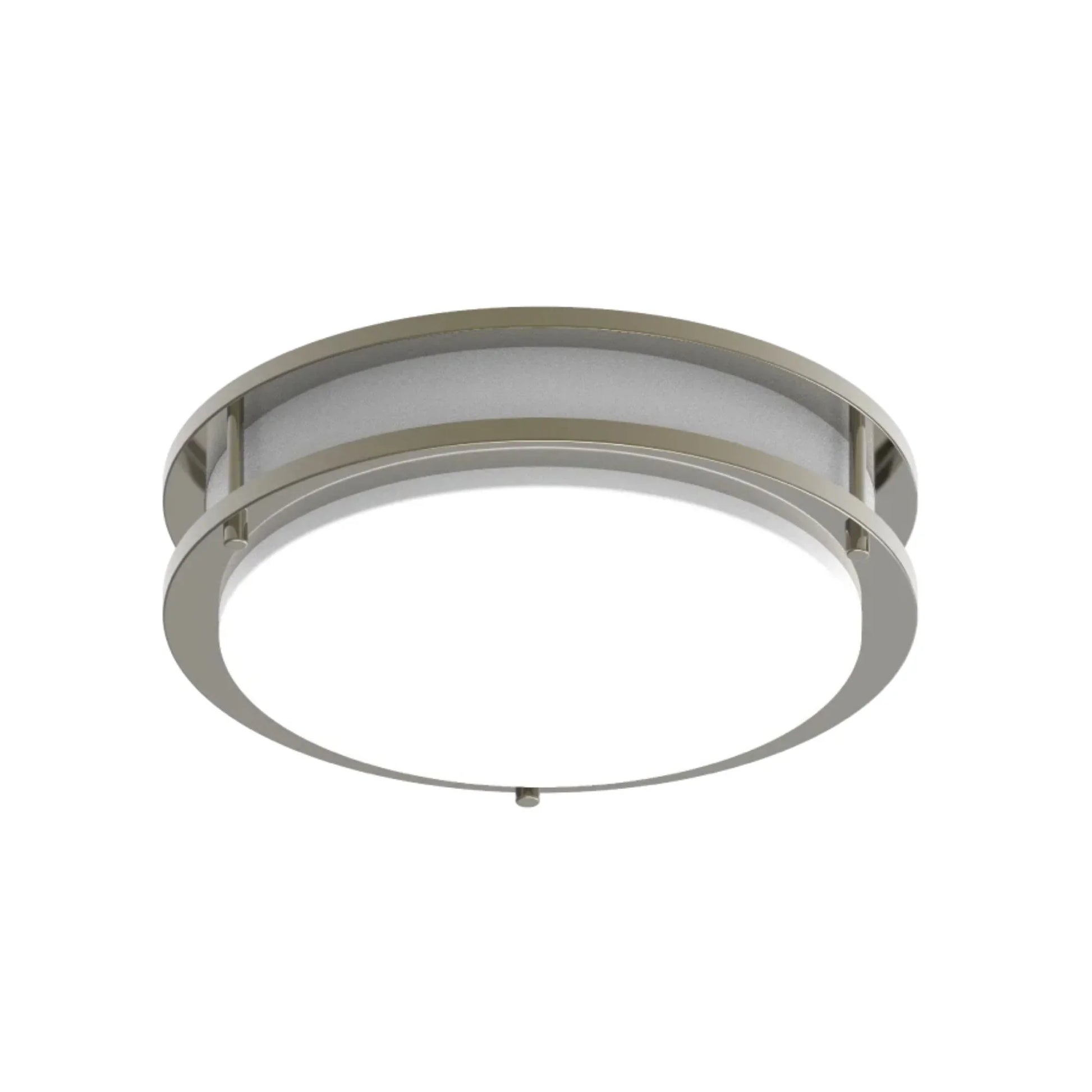

The RAB CRVFAD-12R-16-9CCT-UNVT-BN/EM is a 12 in round back-lit LED flush mount in a brushed nickel finish with an integrated emergency battery backup. It delivers 1,120 lumens from 16W, offers five field-selectable color temperatures, and installs directly on a standard junction box on a ceiling or wall. UL listed for wet locations, it is a low-maintenance choice for hospitality and multi-family residential projects.

Key Features

• Emergency Battery Backup: Integrated battery keeps the fixture lit when normal power fails
• Selectable CCT: Field-adjustable set-and-forget 2700K, 3000K, 3500K, 4000K or 5000K
• Lumen Output: 1,120 lumens at 16W input
• Color Quality: 90 CRI for natural, accurate color rendering
• Back-Lit Diffused Lens: Provides soft, smooth, glare-free light
• Universal Voltage: 120-277V constant current driver, 0.9 power factor
• Flexible Mounting: Surface mounts to a ceiling or wall on a standard junction box
• Wet Location Listed: UL listed for wet locations, also suitable for damp locations
• Durable Construction: Metal and plastic body with a smooth round trim
• Wide Operating Range: -4°F to 104°F (-20°C to 40°C)
• Lifespan: 50,000-hour L70 rating based on IES LM-70
• Warranty: RAB 5-year limited warranty covering light output, color stability, driver performance and finish

Construction & Design

The fixture combines a metal and plastic body with a smooth round trim and a domed diffused lens, finished in brushed nickel. It measures 12 in in diameter and 4 1/8 in tall, with a 10 1/4 in lens and a 2 3/4 in base, keeping a low profile on standard ceilings.

Light Output & Performance

Produces 1,120 lumens at 16W with 90 CRI for clear, natural light. Five selectable color temperatures from warm 2700K to cool 5000K let one SKU fit any space, and the LED is rated for 50,000 hours L70.

Electrical & Installation

The CRVFAD 12 in installs directly on a standard junction box and can be surface mounted to a ceiling or wall. It runs on universal 120-277V input, and color temperature is set in the field during installation. The integrated emergency battery provides backup illumination during power loss, making it well suited to corridors, stairwells and common areas.

Typical Applications

• Hotel corridors and guest rooms
• Multi-family hallways, stairwells and common areas
• Covered entries, porches and other wet locations
• Residential bathrooms, laundry rooms and closets

What's Included

• (1) RAB CRVFAD 12 in LED flush mount with integrated emergency battery backup, brushed nickel
