RAB CRVFAD 12" LED Flush Mount Brushed Nickel 5CCT 120-277V Occupancy
Available in stock (100)
About this item
About this item
- Occupancy Sensing: MVS microwave sensor configuration adds occupancy-based lighting
- Decorative Twin Rings: Brushed nickel metal detailing with a frosted diffuser
- Selectable, Accurate Light: 1,100 lumens at 16W, 90 CRI, 130-degree beam and five CCT settings from 2700K to 5000K
- 0-10V Dimming: Dims to 10% with a separate 0-10V DC circuit; universal 120-277V input
- Lasting Performance: UL wet location listed, ENERGY STAR Version 2.2 certified and rated for 50,000 hours at L70
Description
Description

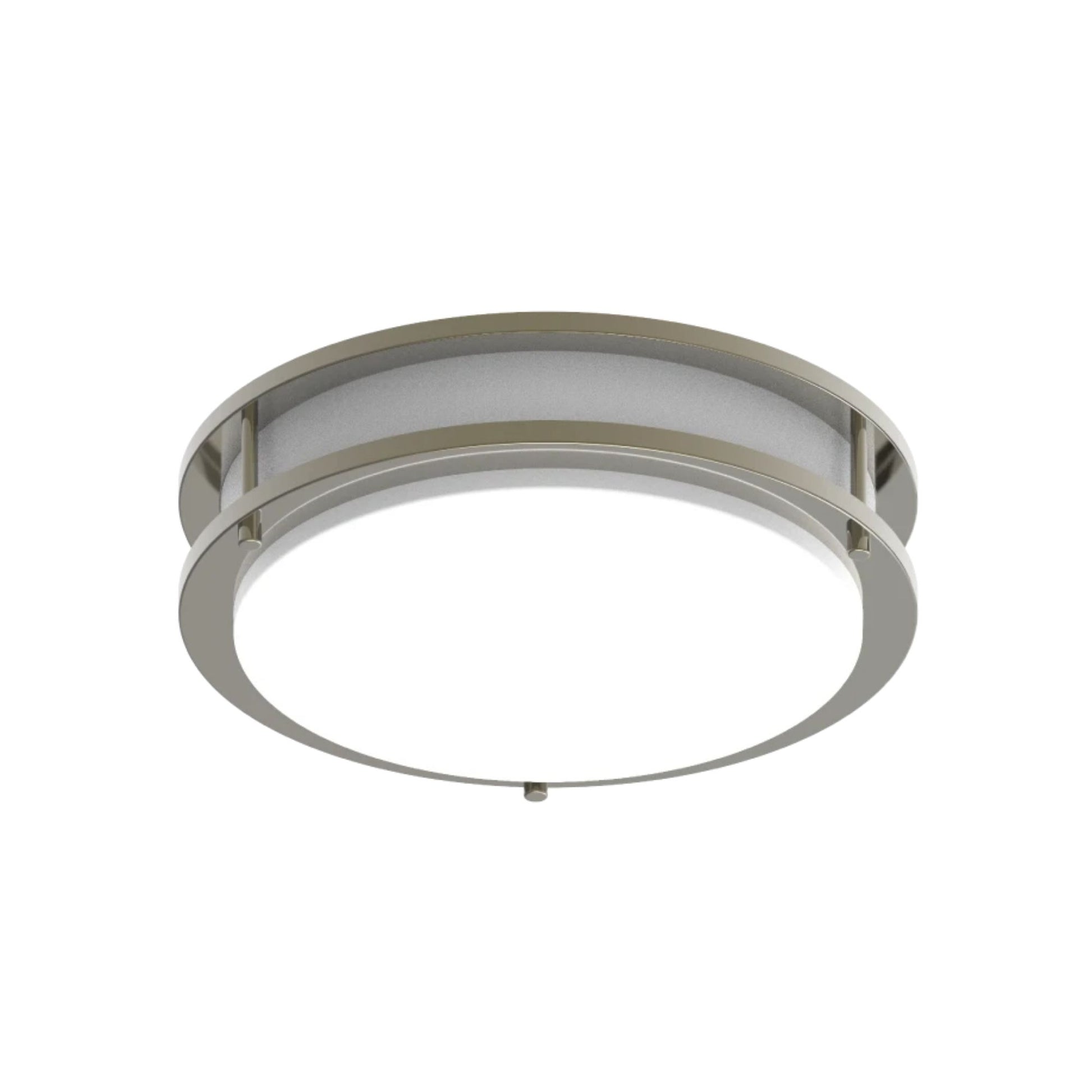

RAB CRVFAD-12R-16-9CCT-UNV-BN/MVS 12 in Decorative LED Flush Mount — Brushed Nickel, 16W, 5CCT
The RAB CRVFAD-12R-16-9CCT-UNV-BN/MVS integrated LED flush mount pairs microwave occupancy sensing with a decorative twin-ring design in brushed nickel. Its frosted polycarbonate lens delivers soft illumination with 1,100 lumens at 16W. Five selectable color temperatures and 0-10V dimming down to 10% provide installation flexibility for hospitality and multi-family residential interiors.
Key Features
- Occupancy Sensor: MVS microwave occupancy-sensor configuration
- Decorative Design: Brushed nickel twin-ring metal housing with metal and plastic construction
- Selectable CCT: 2700K, 3000K, 3500K, 4000K or 5000K
- Output and Efficacy: 1,100 lumens at 16W; 68.8 lm/W
- Color Quality: 90 CRI with R9 of at least 50
- Beam: 130-degree beam angle
- Dimming: 0-10V dimming down to 10%; requires a separate 0-10V DC dimming circuit
- Driver and Current: Constant-current driver; 120-277V at 50/60Hz; 0.15A at 120V, 0.08A at 208V, 0.07A at 240V and 0.07A at 277V
- Electrical Performance: Power factor at least 0.9; THD at most 20%; flicker at most 30%

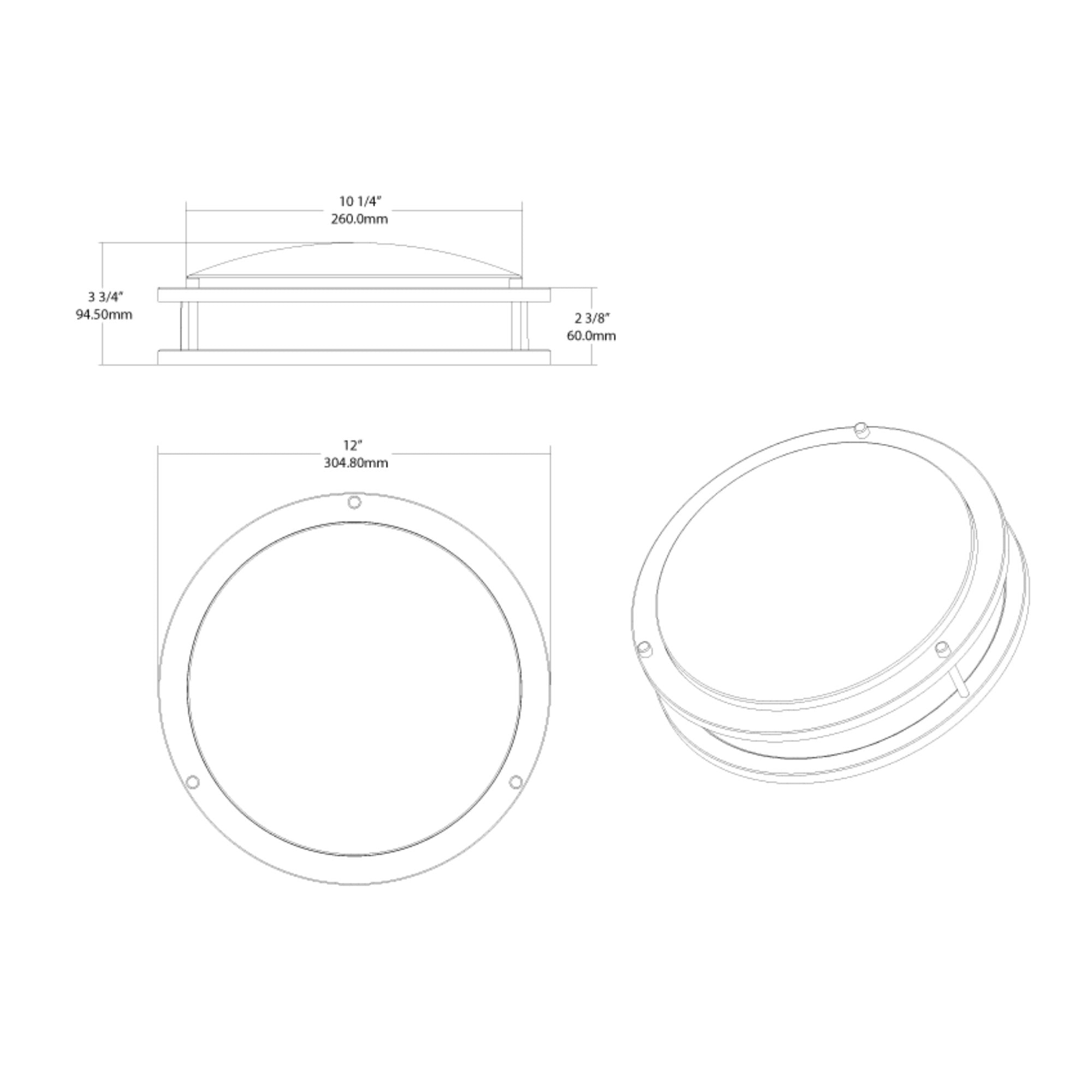

- Size and Mounting: 12 in round fixture weighing 2.0 lb; ceiling or wall junction-box surface mount
- Ratings and Certification: UL listed for wet locations; ENERGY STAR Version 2.2 certified
- Life, Temperature and Warranty: 50,000-hour L70 lifespan; -4°F to 104°F operating range; RAB five-year warranty
Construction & Design
The decorative twin-ring metal housing frames a frosted polycarbonate lens in a brushed nickel finish. Metal and plastic construction and smooth round trim create an understated decorative look. The fixture measures 12 in across and weighs 2.0 lb.
Light Output & Performance
The integrated LED produces 1,100 lumens across a broad 130-degree beam. Its 90 CRI and R9 of at least 50 support accurate color rendering. Choose warm 2700K or 3000K, intermediate 3500K or 4000K, or cool 5000K during installation. Rated LED life is 50,000 hours at L70.
Electrical & Installation
The constant-current driver accepts 120-277V at 50/60Hz. It includes control wiring for 0-10V dimming down to 10% and requires a separate 0-10V DC dimming circuit. Surface mount directly to a standard junction box on a ceiling or wall using the housing keyholes. Select the CCT during installation. The flush-mount format avoids a pendant's hanging drop, while the MVS configuration adds occupancy sensing.
Typical Applications
- Hotel corridors and hospitality interiors
- Multi-family residential hallways and common areas
- Entryways and laundry rooms
- Bathrooms and covered entries
What's Included
- (1) RAB CRVFAD-12R-16-9CCT-UNV-BN/MVS brushed nickel integrated LED flush mount with occupancy sensor
Specifications
Specifications
Dimensions
Documents
Style & Materials
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.
Frequently Asked Questions
Is the CRVFAD-12R-16-9CCT-UNV-BN/MVS suitable for wet locations?
Is the CRVFAD-12R-16-9CCT-UNV-BN/MVS suitable for wet locations?
Does the CRVFAD-12R-16-9CCT-UNV-BN/MVS include occupancy sensing?
Does the CRVFAD-12R-16-9CCT-UNV-BN/MVS include occupancy sensing?
Does the CRVFAD-12R-16-9CCT-UNV-BN/MVS dim down to 10%?
Does the CRVFAD-12R-16-9CCT-UNV-BN/MVS dim down to 10%?
Can I select the CCT on the CRVFAD-12R-16-9CCT-UNV-BN/MVS?
Can I select the CCT on the CRVFAD-12R-16-9CCT-UNV-BN/MVS?
Does the CRVFAD-12R-16-9CCT-UNV-BN/MVS require separate bulbs?
Does the CRVFAD-12R-16-9CCT-UNV-BN/MVS require separate bulbs?
