RAB Curv CRVFAD-12R-16-9CCT-UNV-BN 12" LED Flush Mount 5CCT 120-277V
Available in stock (100)
About this item
About this item
- Set-and-Forget 5CCT: Field-adjustable 2700K, 3000K, 3500K, 4000K or 5000K with 90 CRI so one fixture fits any room
- Efficient Output: 1,120 lumens from just 16W (70 lm/W) through a soft, diffused back-lit lens
- Wet Location Listed: UL listed for wet locations with universal 120-277V input
- Easy Installation: Surface mounts to a ceiling or wall on a standard junction box
- Built to Last: 50,000-hour L70 lifespan, TAA compliant, RAB 5-year limited warranty
Description
Description

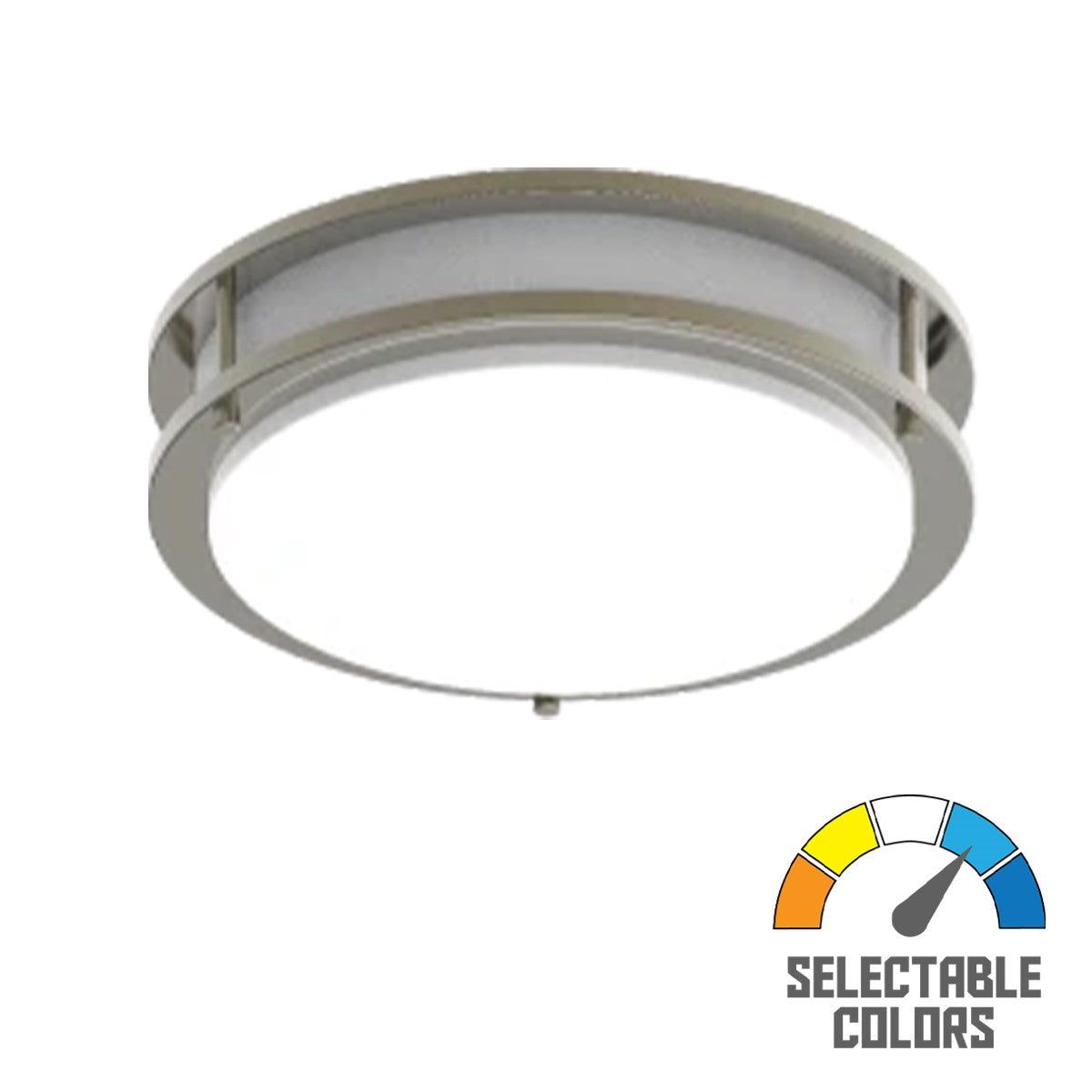

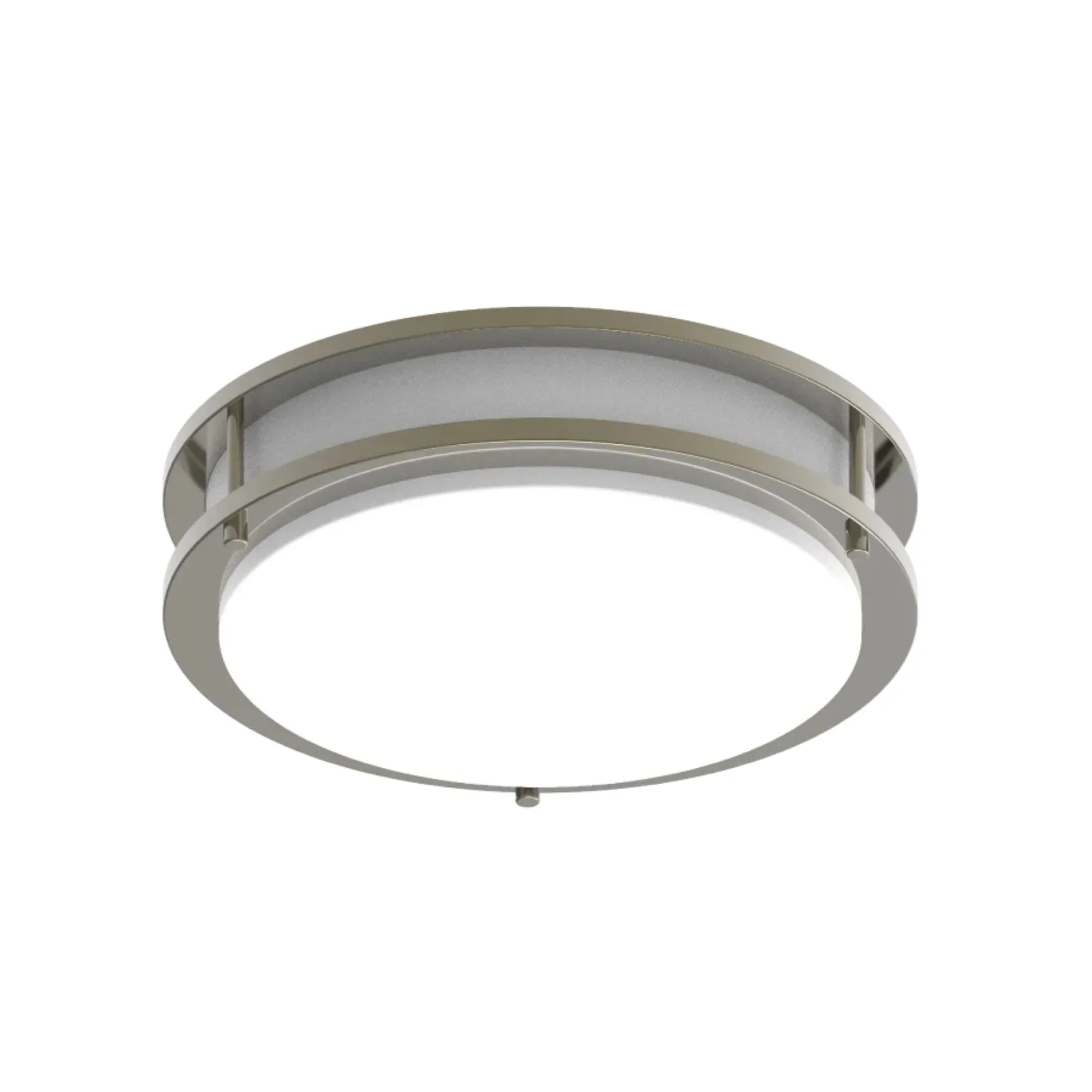

RAB Curv CRVFAD-12R-16-9CCT-UNV-BN 12 in LED Flush Mount — 16W / 5CCT / 120-277V
The RAB CRVFAD-12R-16-9CCT-UNV-BN is a 12 in round back-lit LED flush mount in a brushed nickel finish. It delivers 1,120 lumens from 16W, offers five field-selectable color temperatures, and installs directly on a standard junction box on a ceiling or wall. UL listed for wet locations and TAA compliant, it is a low-maintenance choice for hospitality, multi-family and government-funded residential projects.
Key Features
- Selectable CCT: Field-adjustable set-and-forget 2700K, 3000K, 3500K, 4000K or 5000K
- Lumen Output: 1,120 lumens at 16W input, 70 lm/W
- Color Quality: 90 CRI for natural, accurate color rendering
- Back-Lit Diffused Lens: Provides soft, smooth, glare-free light
- Universal Voltage: 120-277V constant current driver, 0.9 power factor, 50/60Hz
- Flexible Mounting: Surface mounts to a ceiling or wall on a standard junction box
- Wet Location Listed: UL listed for wet locations, also suitable for damp locations
- Durable Construction: Metal and plastic body with a smooth round trim
- Wide Operating Range: -4°F to 104°F (-20°C to 40°C)
- TAA Compliant: Trade Agreements Act compliant for federal and government projects
- Lifespan: 50,000-hour L70 rating based on IES LM-70
- Warranty: RAB 5-year limited warranty covering light output, color stability, driver performance and finish
Construction & Design

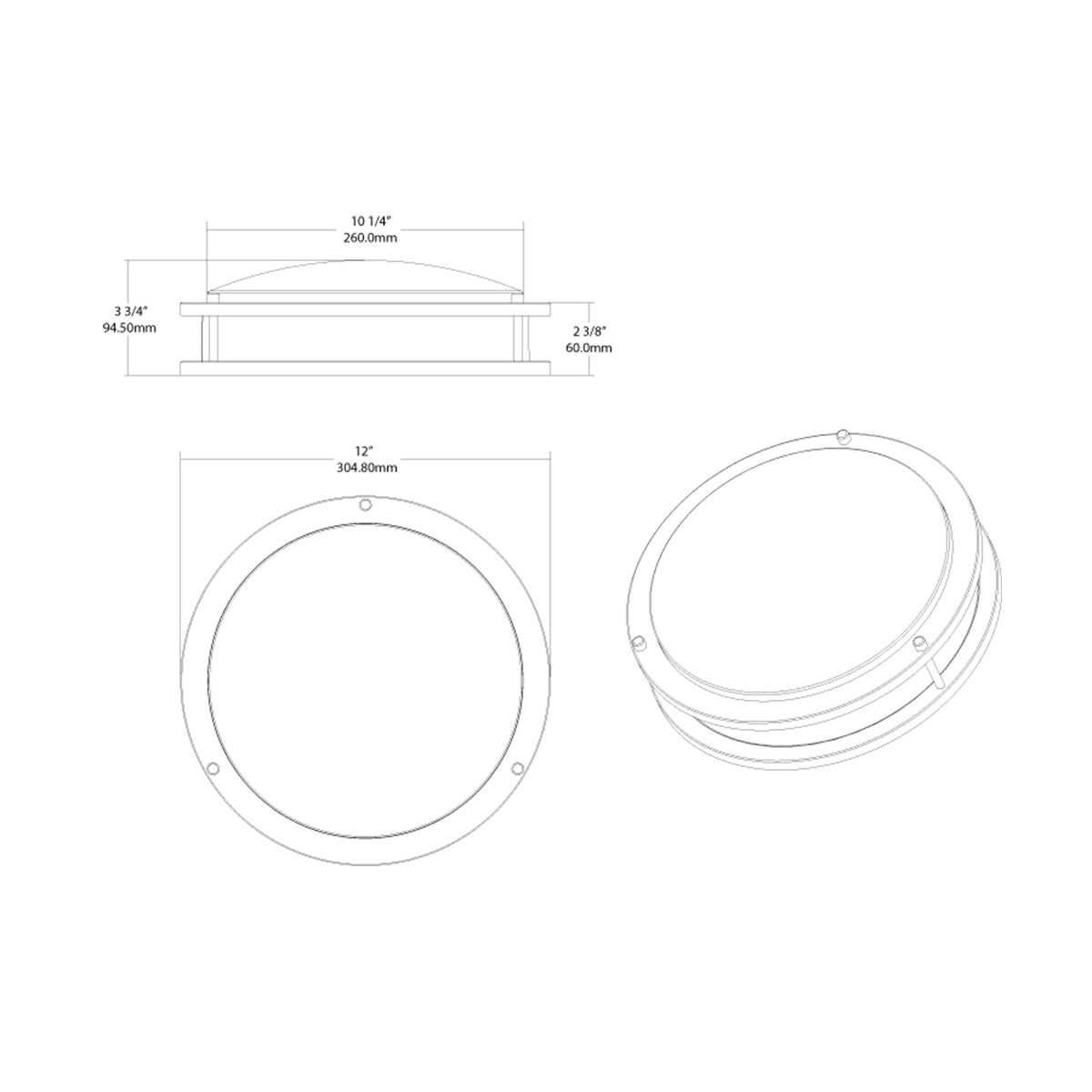

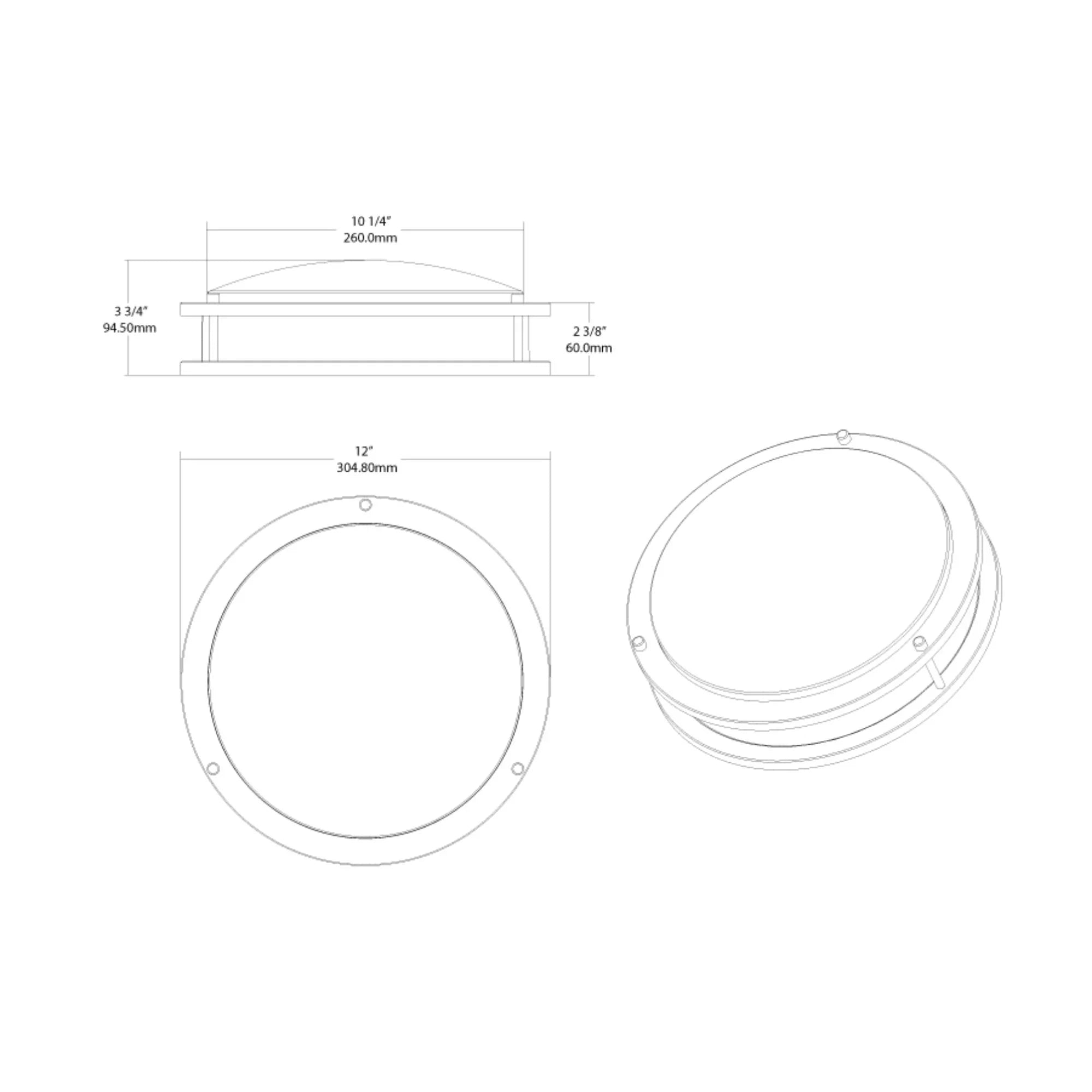

The fixture combines a metal and plastic body with a smooth round trim and a domed diffused lens, finished in brushed nickel. It measures 12 in in diameter and approximately 3 3/4 in tall for a low profile on standard ceilings.
Light Output & Performance
Produces 1,120 lumens at 16W with 90 CRI for clear, natural light. Five selectable color temperatures from warm 2700K to cool 5000K let one SKU fit any space, and the LED is rated for 50,000 hours L70.
Electrical & Installation
The CRVFAD 12 in installs directly on a standard junction box and can be surface mounted to a ceiling or wall. It runs on universal 120-277V input, and color temperature is set in the field during installation, making it easy to standardize one fixture across an entire project.
Typical Applications
- Hotel guest rooms and corridors
- Multi-family units and hallways
- Covered entries, porches and other wet locations
- Residential bathrooms, closets and laundry rooms
What's Included
- (1) RAB CRVFAD 12 in LED flush mount, brushed nickel
