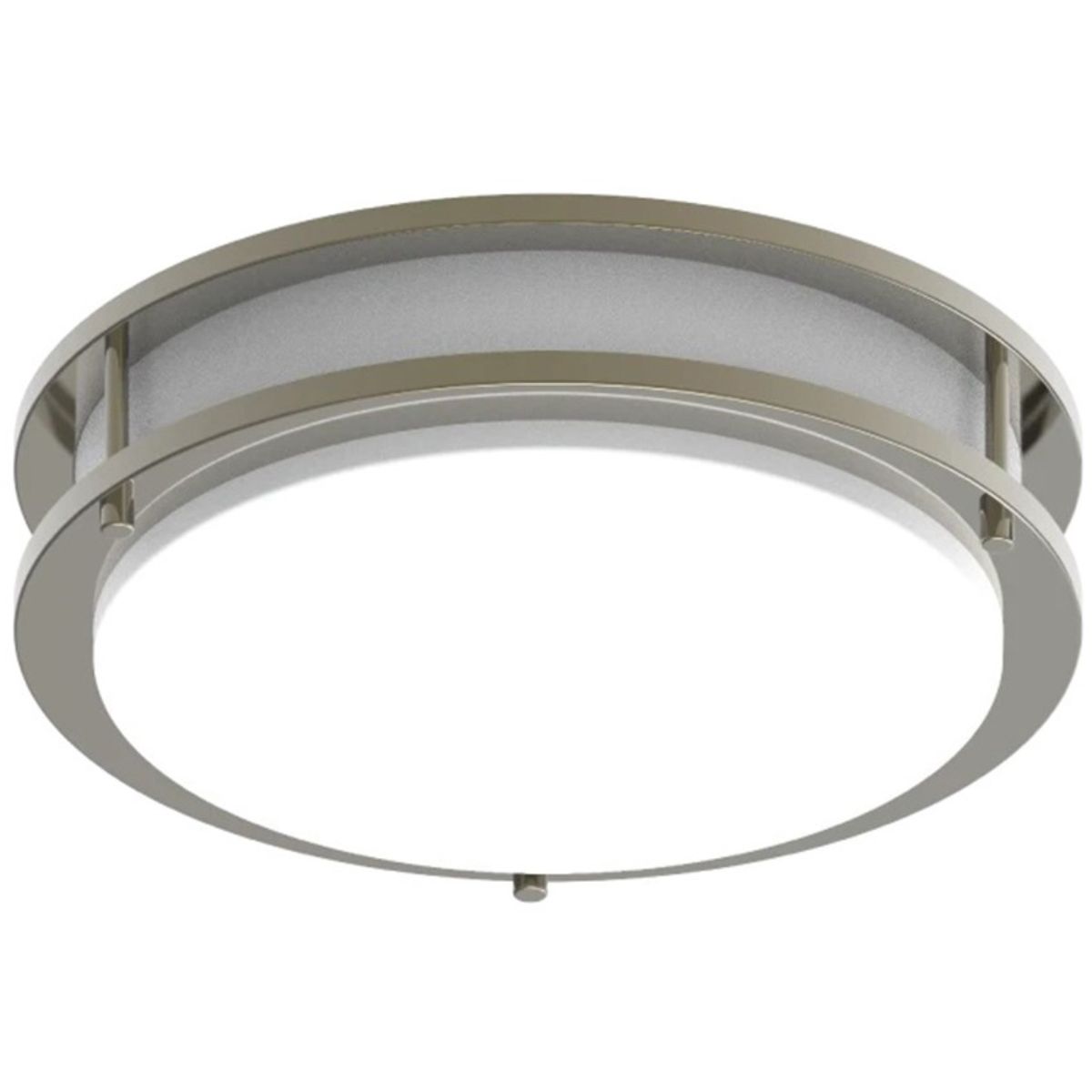

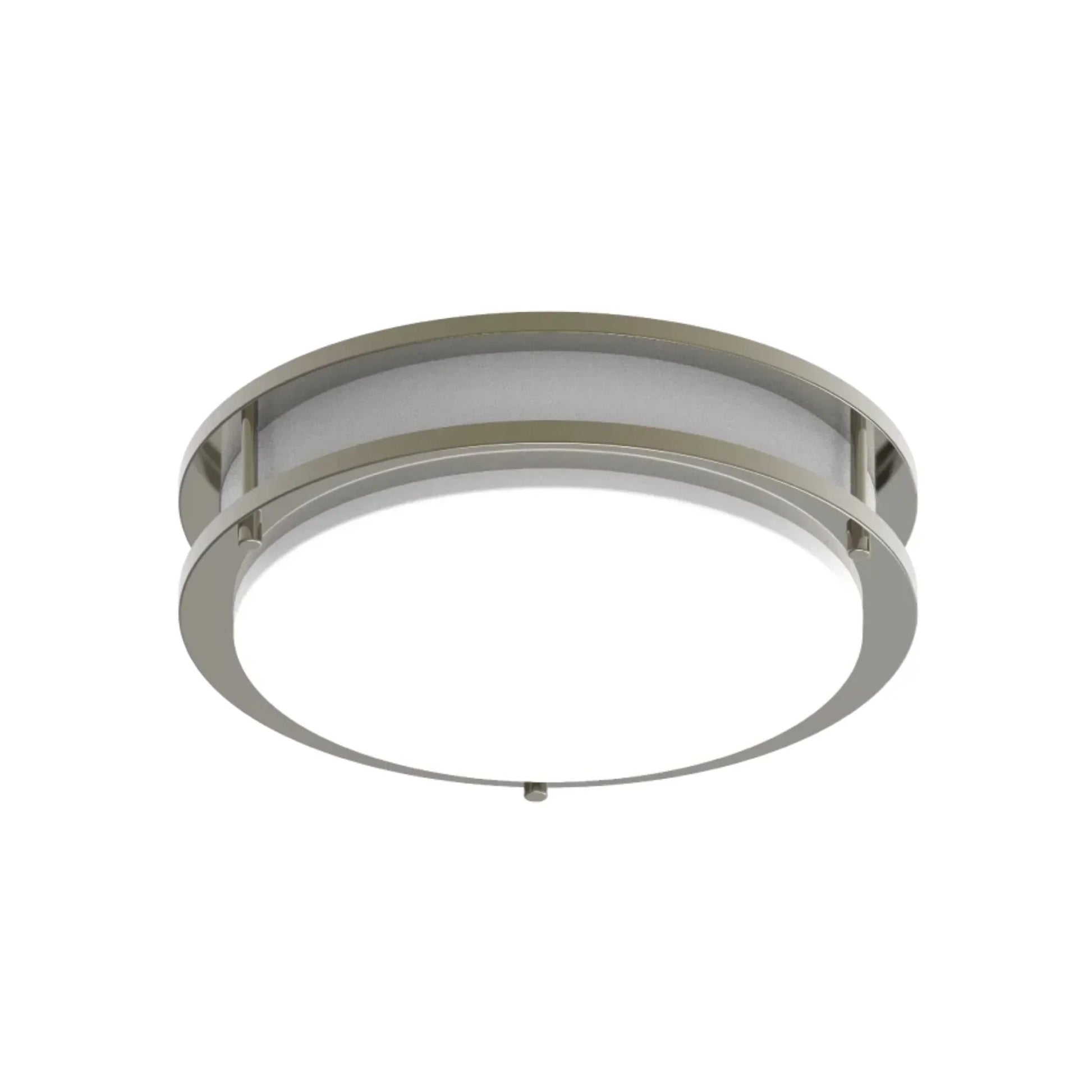

RAB CRVFAD-12R-16-9CCT-120-BN 12 in Decorative LED Flush Mount — Brushed Nickel, 16W, 5CCT

The RAB CRVFAD-12R-16-9CCT-120-BN integrated LED flush mount combines a decorative twin-ring design with a brushed nickel finish. Its frosted polycarbonate lens provides soft, diffused illumination with 1,100 lumens at 16W. Five field-selectable color temperatures help coordinate hospitality and multi-family residential interiors without separate bulbs.

Key Features

• Decorative Design: Metal twin-ring housing in brushed nickel with metal and plastic construction

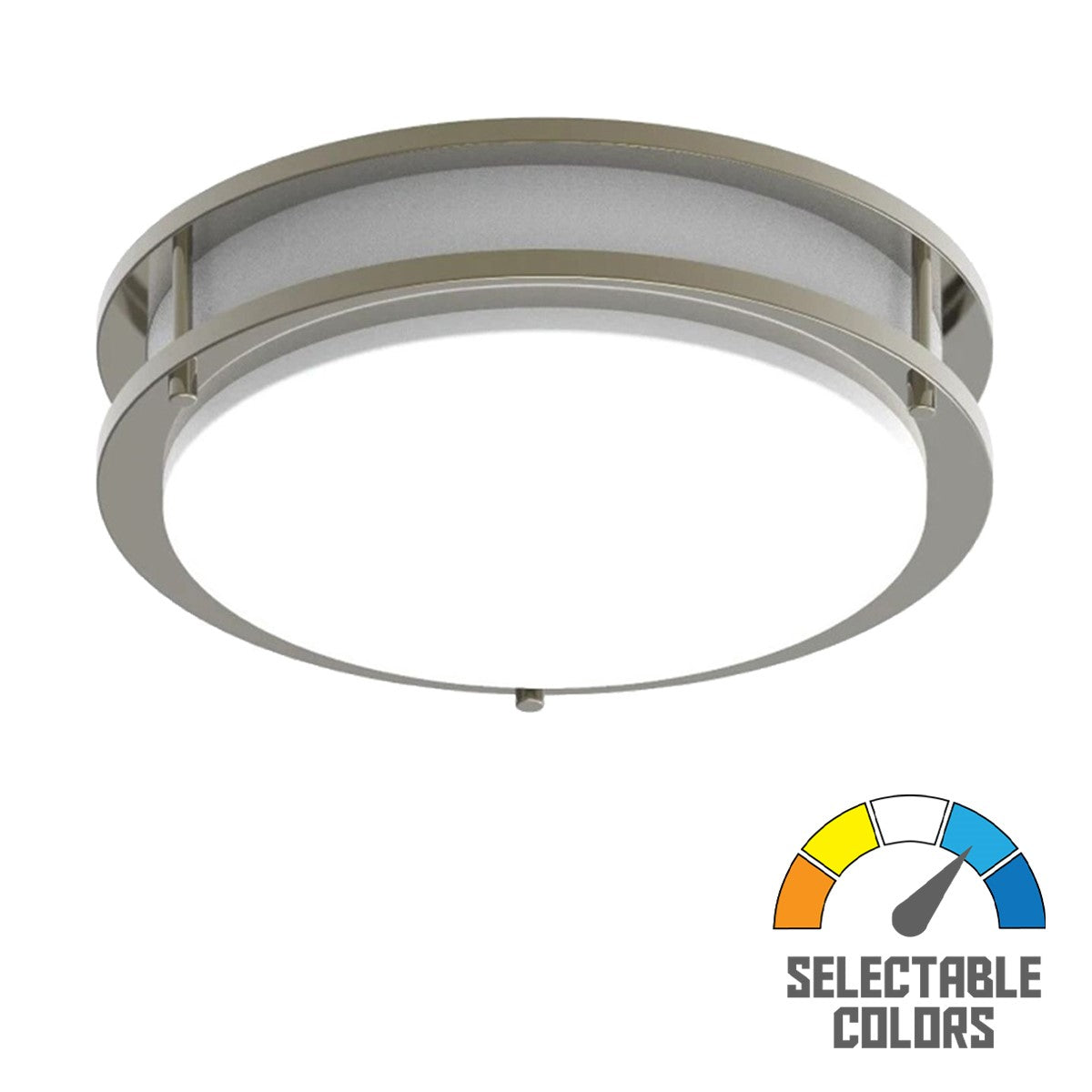

• Selectable CCT: 2700K, 3000K, 3500K, 4000K or 5000K
• Light Output: 1,100 lumens at 16W; 68.8 lm/W
• Color Quality: 90 CRI with R9 of at least 50
• Beam Angle: 130 degrees
• Dimming: TRIAC/ELV protocol assigned to the 120V model in the family performance table
• Driver: Constant-current driver; 120V, 60Hz input; 0.15A input current
• Electrical Performance: Power factor at least 0.9; THD at most 20%; flicker at most 30%

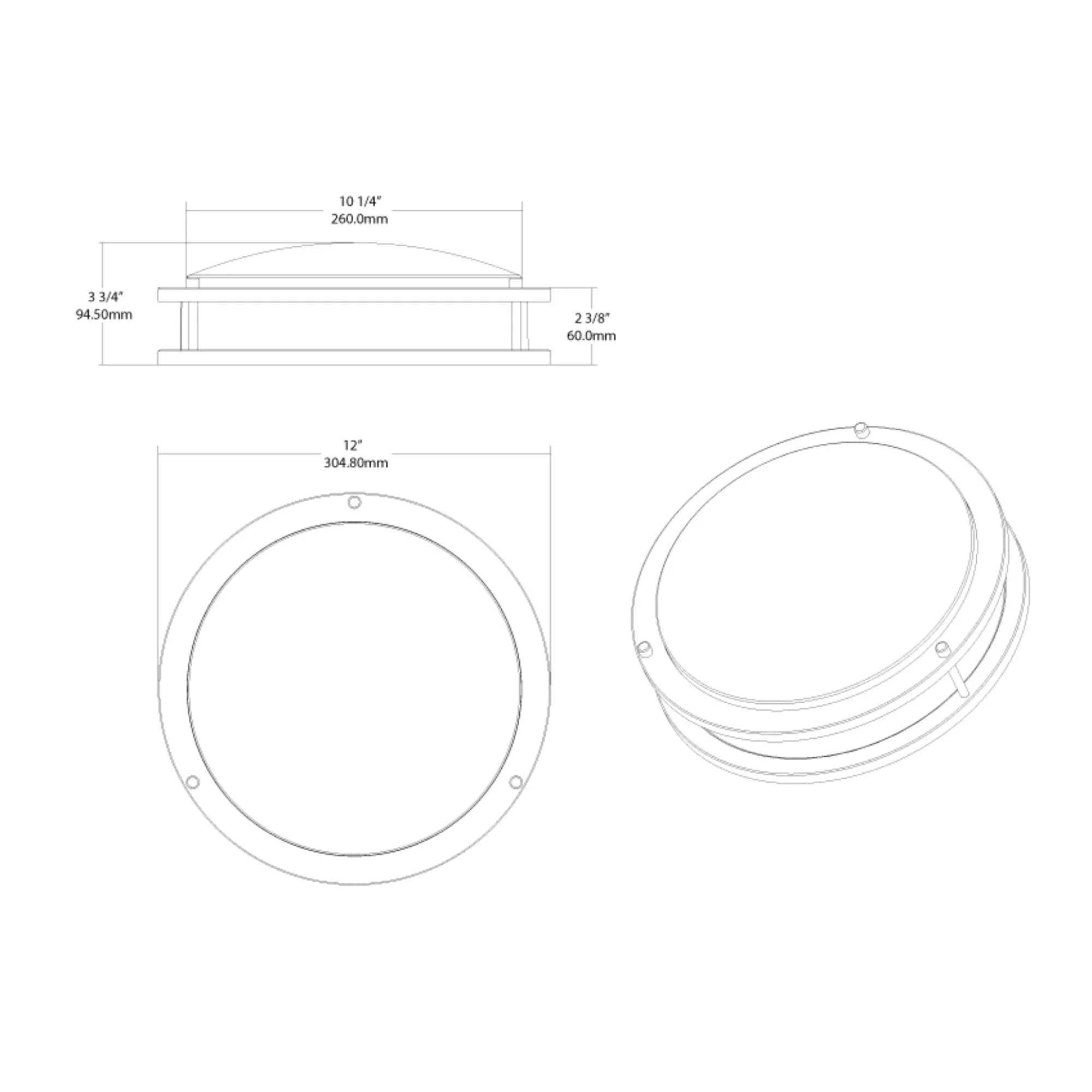

• Size and Weight: 12 in round fixture; 2.0 lb
• Mounting and Rating: Ceiling or wall surface mount on a standard junction box; UL listed for wet locations
• Certifications: ENERGY STAR Version 2.2 certified and TAA compliant; family specifications list Title 24 JA8, FCC Part 15 and RoHS compliance
• Life, Temperature and Warranty: 50,000-hour L70 lifespan; -4°F to 104°F operating range; RAB five-year warranty

Construction & Design

The decorative metal twin-ring design frames a frosted polycarbonate lens in a brushed nickel finish. Metal and plastic construction creates a clean, round profile with smooth trim. The fixture measures 12 in across and weighs 2.0 lb, providing a decorative alternative to plain surface-mount lighting.

Light Output & Performance

The integrated LED delivers 1,100 lumens across a broad 130-degree beam. Its 90 CRI and R9 of at least 50 support accurate color rendering. Select warm 2700K or 3000K, intermediate 3500K or 4000K, or cool 5000K during installation. Rated LED life is 50,000 hours at L70.

Electrical & Installation

This model operates on 120V at 60Hz with a constant-current driver drawing 0.15A. The family performance table assigns TRIAC/ELV dimming to this 120V configuration. Surface mount directly to a standard junction box using the housing keyholes, on a ceiling or wall. Set the CCT during installation. Its flush-mount format avoids a pendant's hanging drop where overhead clearance matters.

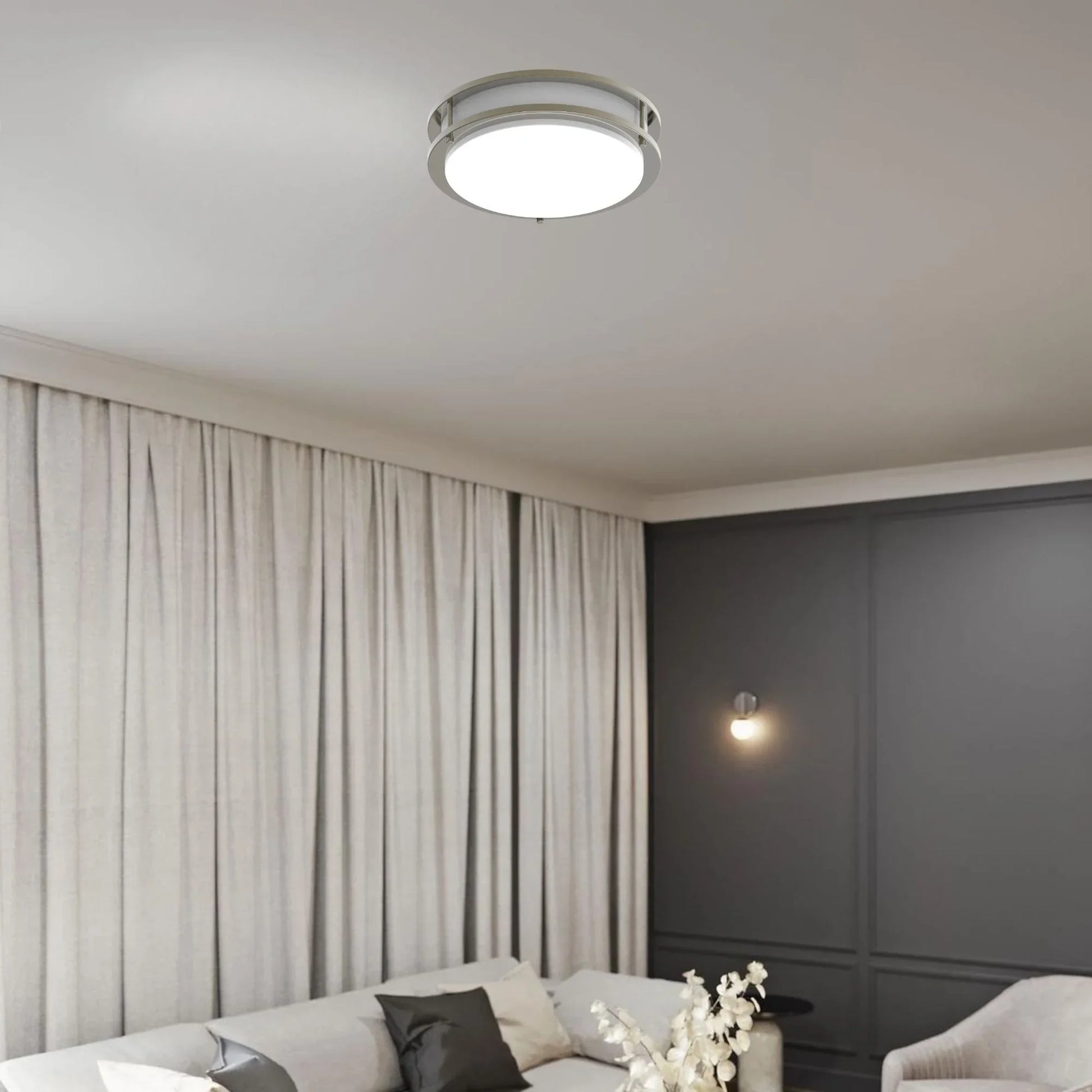

Typical Applications

• Hotel guest rooms and corridors
• Multi-family residential hallways
• Entryways and laundry rooms
• Bathrooms and covered entries

What's Included

• (1) RAB CRVFAD-12R-16-9CCT-120-BN brushed nickel decorative flush mount with integrated LED
