RAB CR8-HW 8 in Round Commercial Downlight — 16/24/30W / Selectable CCT / 120-277V / Haze White

The RAB CR8-HW is an 8 in round commercial recessed downlight in haze white finish delivering up to 3,500 lumens at 30W with a wide 85° beam angle and 90 CRI. The CR8-HW features field-selectable wattage (16/24/30W) and CCT (2700K–5000K) via integrated dipswitches, with universal 120-277V input and dual dimming compatibility (0-10V and TRIAC/ELV). The spun aluminum enclosure maximizes passive cooling for long-term performance, and the fixture accepts a wide range of interchangeable color trim overlays sold separately.

Key Features

• Field-Selectable Wattage: Choose between 16W, 24W, and 30W via integrated dipswitch
• Field-Selectable CCT: Dip-switch adjustable between 2700K, 3000K, 3500K, 4000K, and 5000K; default 2700K
• Lumen Output: 3,500 lm (30W); 2,700 lm (24W); 1,800 lm (16W)
• Wattage Equivalency: 75W CFL equivalent
• CRI: 90 with R9 > 50 for high color accuracy
• Beam Angle: 85° ±10° for broad, even illumination
• Dimming: 0-10V dimmable to 10%; TRIAC/ELV dimmable to 10% at 120V
• Voltage: 120-277V universal

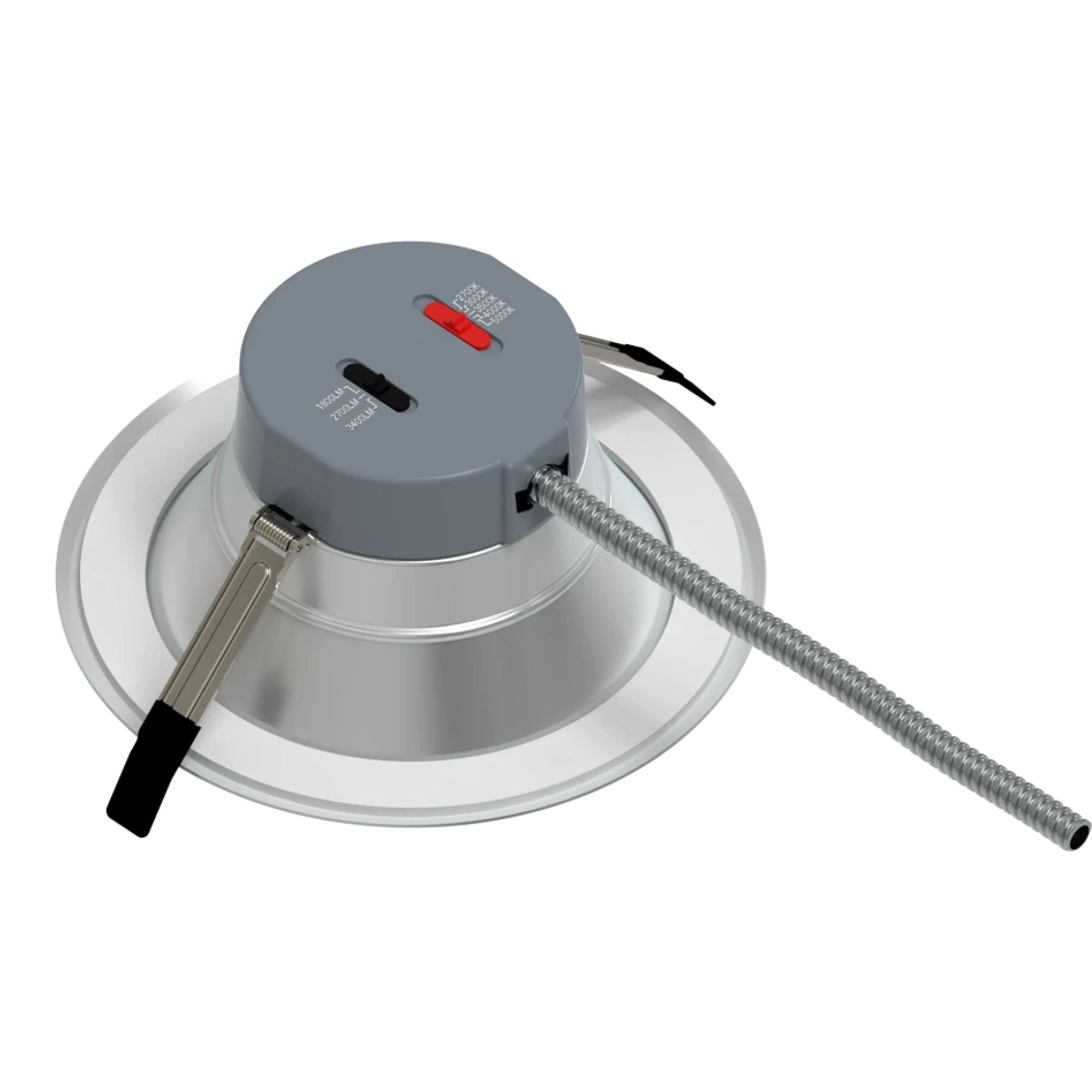

• Integrated Driver: Mounts on top of fixture; connects to junction box (not included) via MC Whip cable
• Enclosure: Spun aluminum for passive cooling; haze white finish
• Installation: Spring clips, 1/2 in to 2 in ceiling; remodel direct mount or retrofit into existing commercial housings
• Trim: Spun aluminum smooth splay reflector with polycarbonate lens; interchangeable color trim overlays sold separately
• IC Rated: Suitable for direct contact with air-permeable insulation; not for use with spray foam insulation (consult NEMA LSD57-2013)
• Certifications: ENERGY STAR Version 2.2, Title 24 JA8, UL Listed/Classified, RoHS compliant, NEC compliant (Sec. 410.16)
• Warranty: 5-year no-compromise warranty

Smart & Control Features

The CR8-HW dims to 10% on compatible 0-10V and TRIAC/ELV dimming systems. Wattage and CCT are both field-adjustable via integrated dipswitches — select from 16W, 24W, or 30W and from 2700K, 3000K, 3500K, 4000K, or 5000K (default 2700K) at installation. Battery backup sold separately. Compatible emergency driver: DRI-21-EMGR-DC-D10; emergency driver T20.

Construction & Design

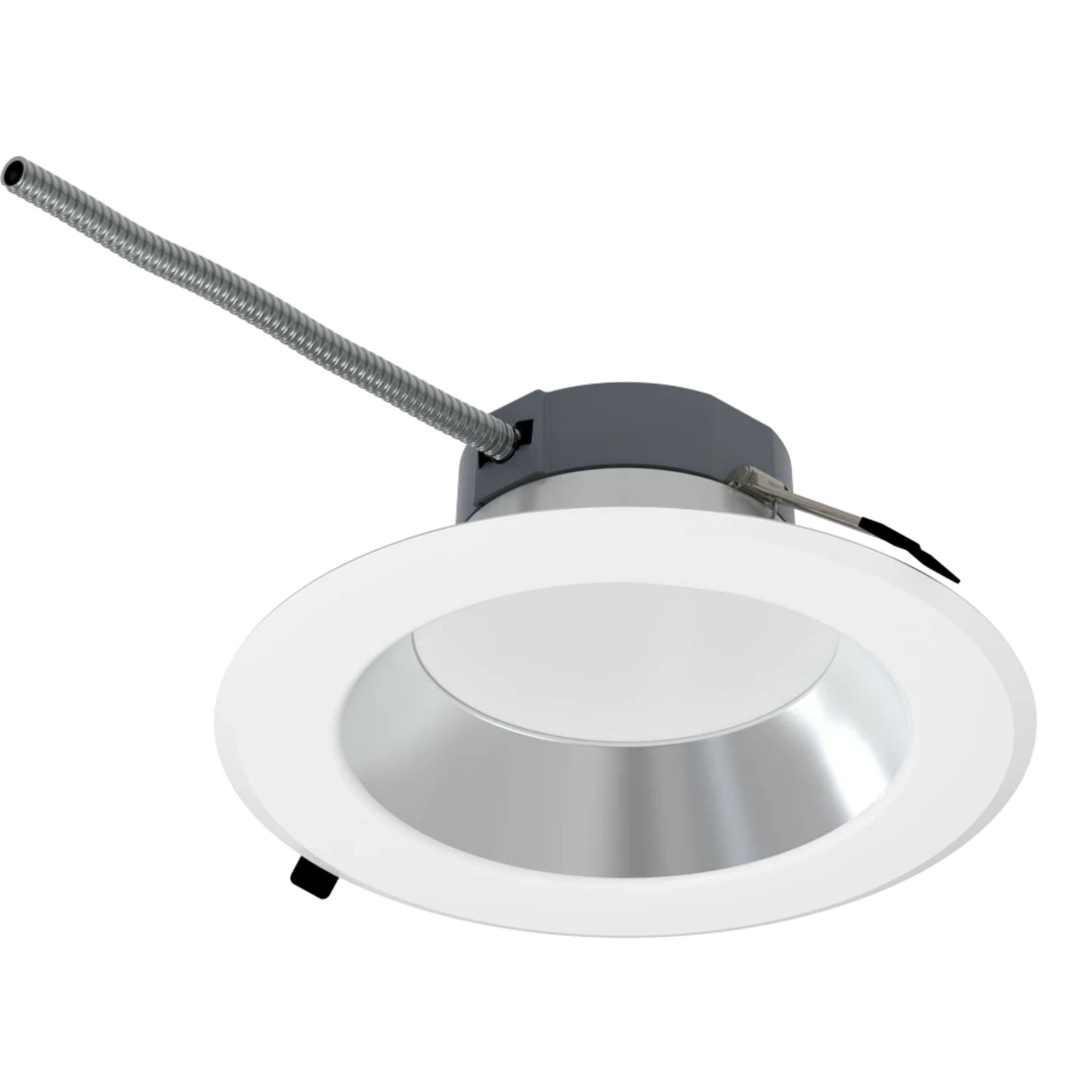

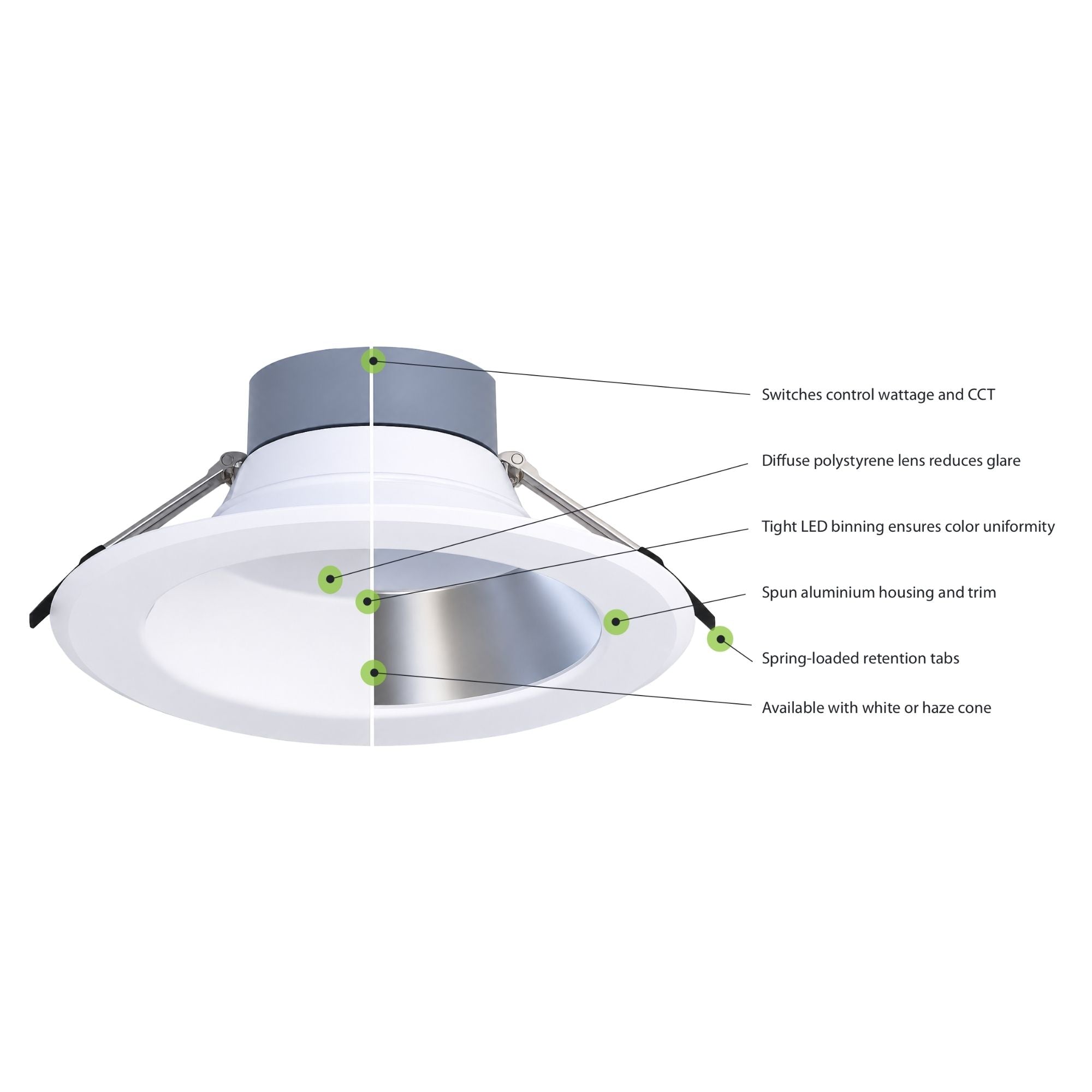

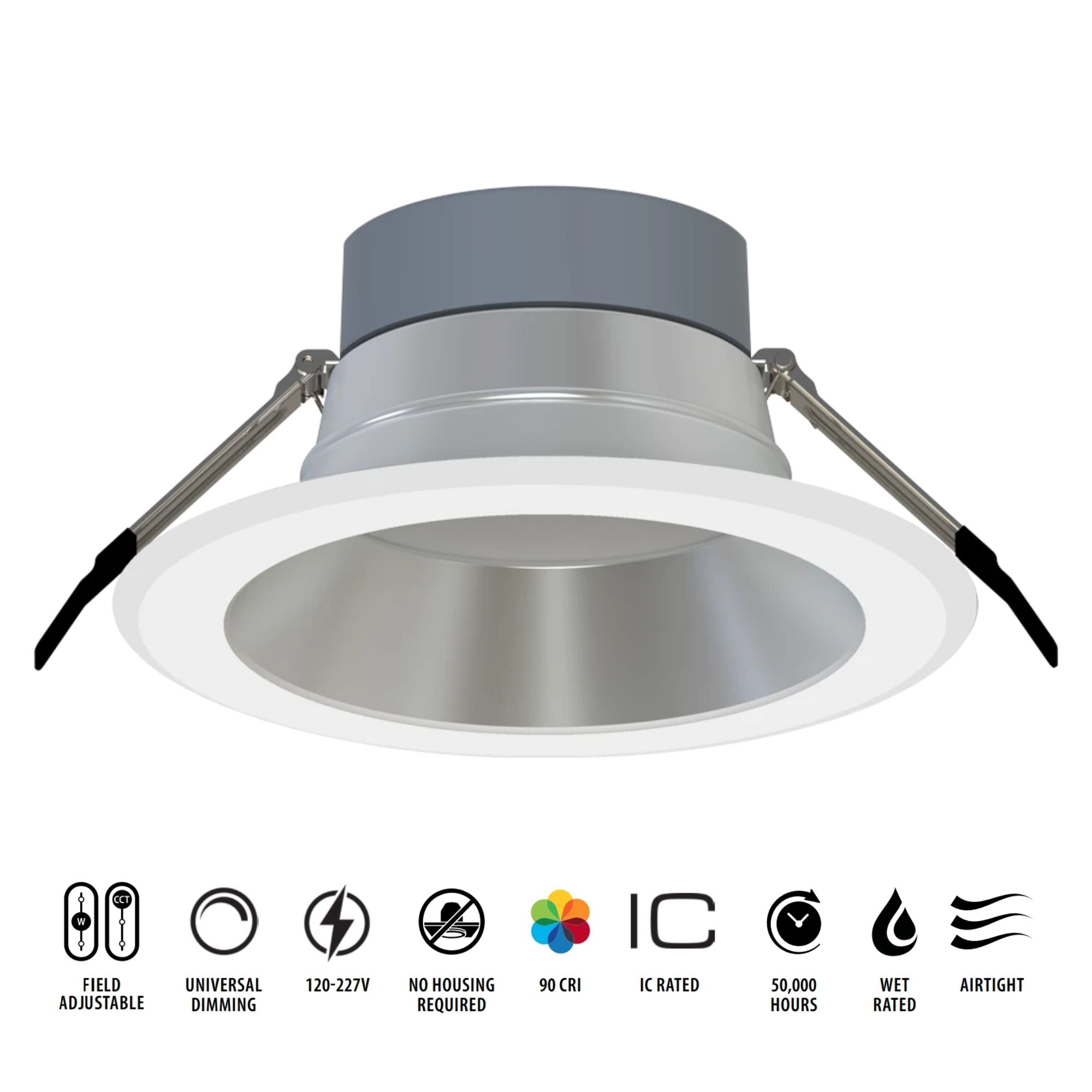

The CR8-HW features a spun aluminum enclosure that maximizes passive cooling to ensure long fixture lifespan, with a spun aluminum smooth splay reflector in haze white finish and a polycarbonate light diffuser for even, smooth general illumination. Stainless steel spring action clips allow for quick, tool-free installation into ceiling openings from 1/2 in to 2 in thick. Weight: 1.4 lbs. Accepts interchangeable 8 in color trim overlays in smooth black, brushed nickel, bronze, haze white, and wall wash white (all sold separately).

Light Output & Performance

With efficacy up to 117 lm/W (30W), a 90 CRI, R9 > 50, and a wide 85° beam angle, the CR8-HW delivers broad, high-quality commercial illumination for large spaces. Color temperature is warranted to shift no more than 200K over five years (<4-step MacAdam Ellipse binning). Rated lifespan: 50,000 hours L70 per IES LM-70.

Electrical & Installation

Operates on 120-277V with a Constant Current, Class A driver integrated on top of the fixture. Connects to junction box (not included) via MC Whip cable. Dimmable to 10% via 0-10V or TRIAC/ELV systems. Spring action clips support ceiling thicknesses from 1/2 in to 2 in. Suitable for remodel direct mount or retrofit into existing commercial downlight housings. IC rated for direct contact with air-permeable insulation; airtight certified (ASTM E283). Operating temperature: -4°F to 104°F.

Compatible Color Trim Accessories (sold separately)

• DL8-10GOOF/R/P/CRLEDFA — 8 in-10 in goof ring, white round
• DLTRIM/CRLEDFA8R-BS — 8 in color trim, round, smooth black
• DLTRIM/CRLEDFA8R-BNS — 8 in color trim, round, smooth brushed nickel
• DLTRIM/CRLEDFA8R-BRS — 8 in color trim, round, smooth bronze
• DLTRIM/CRLEDFA8R-HW — 8 in color trim, round, smooth haze white
• DLTRIM-8RW-WW — 8 in color trim, round, smooth wall wash white

What’s Included

• RAB CR8-HW 8 in round commercial downlight (haze white)
• Integrated driver (mounted on fixture)
• MC Whip cable
• Stainless steel spring action mounting clips
• Compatible accessories: DRI-21-EMGR-DC-D10 emergency driver; color trim overlays and goof ring DL8-10GOOF/R/P/CRLEDFA (all sold separately)
