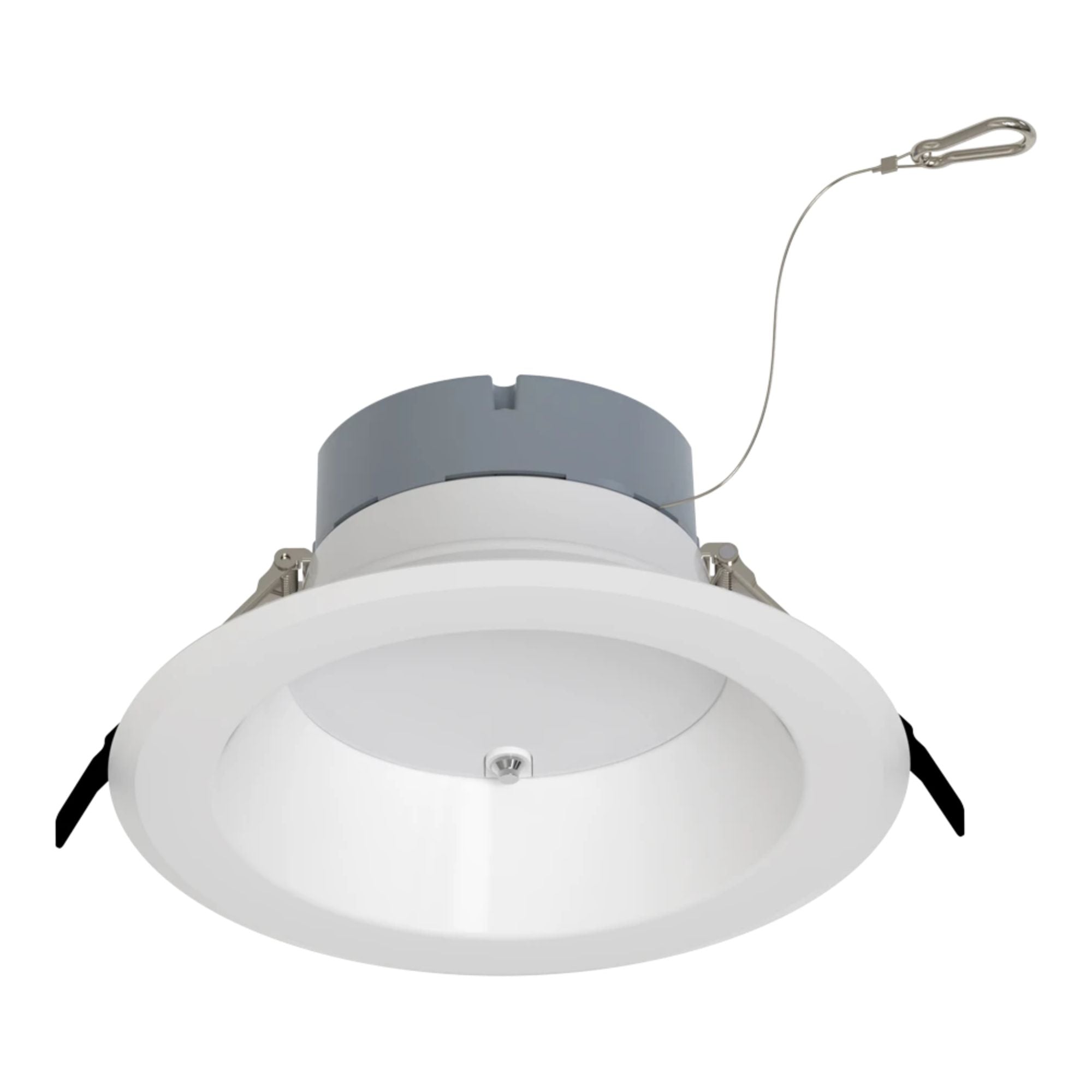

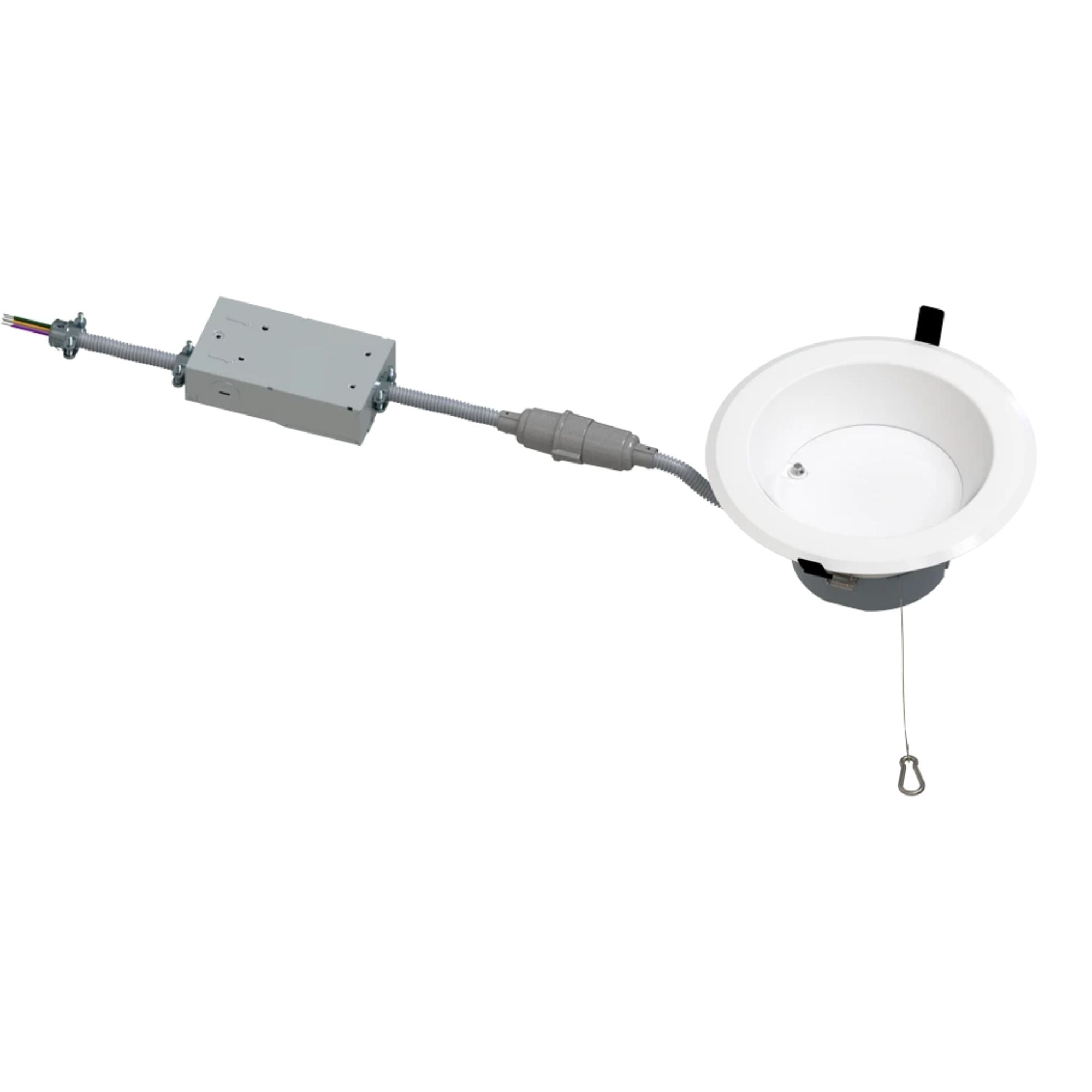

RAB CR8/E 8 in Round Commercial Downlight — 17/25/31W / Selectable CCT / 120-277V / Integrated Emergency Battery / White

The RAB CR8/E is an 8 in round commercial recessed downlight in white finish with an integrated quick-connect emergency battery, delivering up to 3,500 lumens at 31W with a wide 85° beam angle and 90 CRI. The CR8/E features field-selectable wattage (17/25/31W) and CCT (2700K–5000K) via integrated dipswitches, with universal 120-277V input and dual dimming compatibility (0-10V and TRIAC/ELV). The built-in battery backup provides 90 minutes of emergency operation with no separate bulk battery required — ideal for commercial spaces requiring code-compliant emergency lighting.

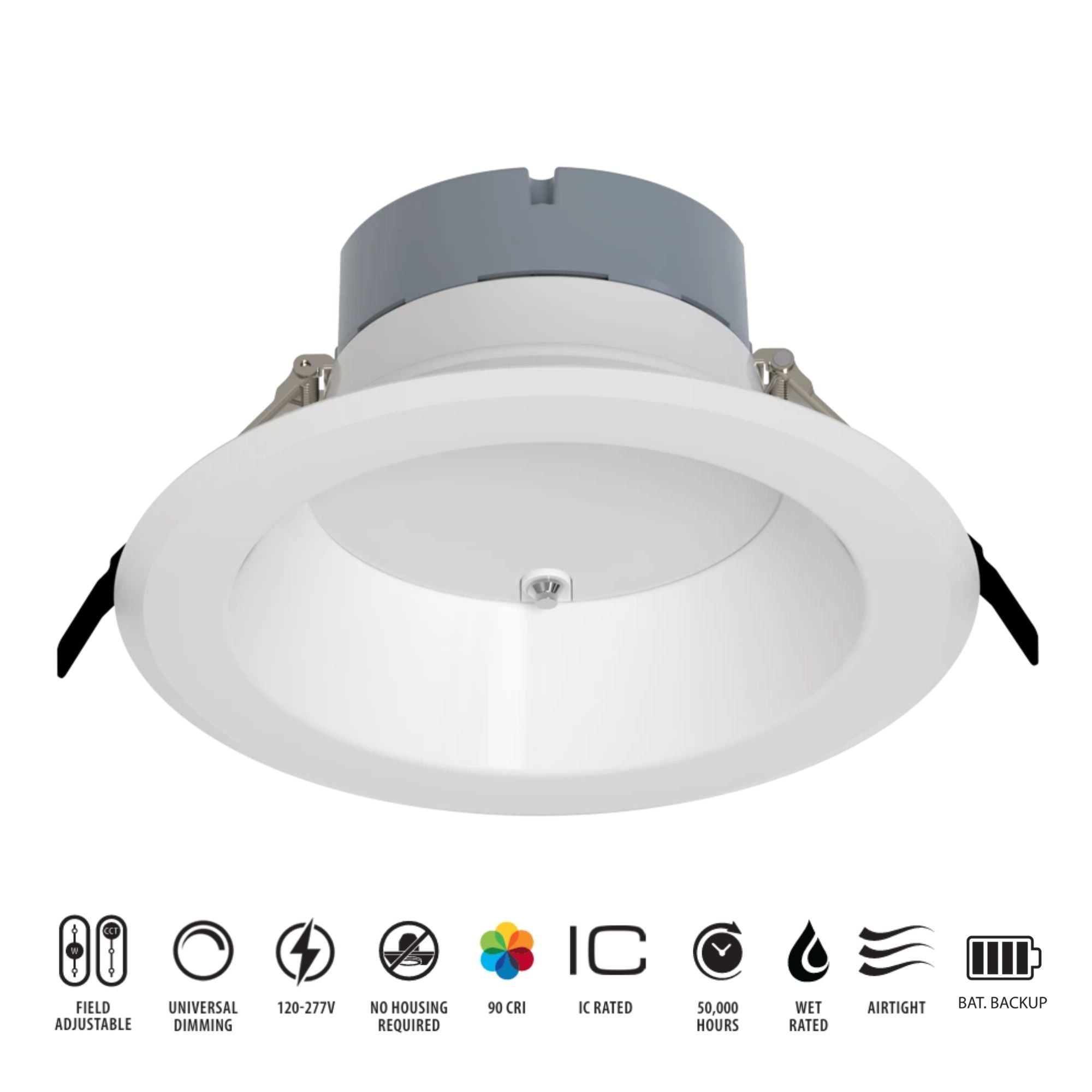

Key Features

• Integrated Emergency Battery: Built-in quick-connect battery backup; 90 minutes emergency operation; 24-hour recharge time; no separate bulk battery required
• Field-Selectable Wattage: Choose between 17W, 25W, and 31W via integrated dipswitch
• Field-Selectable CCT: Dip-switch adjustable between 2700K, 3000K, 3500K, 4000K, and 5000K; default 2700K
• Lumen Output: 3,500 lm (31W); 2,700 lm (25W); 1,800 lm (17W)
• Wattage Equivalency: 75W CFL equivalent
• CRI: 90 with R9 > 50 for high color accuracy
• Beam Angle: 85° ±10° for broad, even illumination
• Dimming: 0-10V dimmable to 10%; TRIAC/ELV dimmable to 10% at 120V
• Voltage: 120-277V universal
• Integrated Driver: Mounts on top of fixture; connects to junction box (not included) via MC Whip cable
• Enclosure: Spun aluminum for passive cooling; white finish
• Installation: Spring clips, 1/2 in to 2 in ceiling; remodel direct mount or retrofit into existing commercial housings
• Trim: Spun aluminum smooth splay reflector with polycarbonate lens
• IC Rated: Suitable for direct contact with air-permeable insulation; not for use with spray foam insulation (consult NEMA LSD57-2013)
• Certifications: ENERGY STAR Version 2.2, Title 24 JA8, ETL listed, RoHS compliant, NEC compliant (Sec. 410.16)
• Warranty: 5-year no-compromise warranty

Smart & Control Features

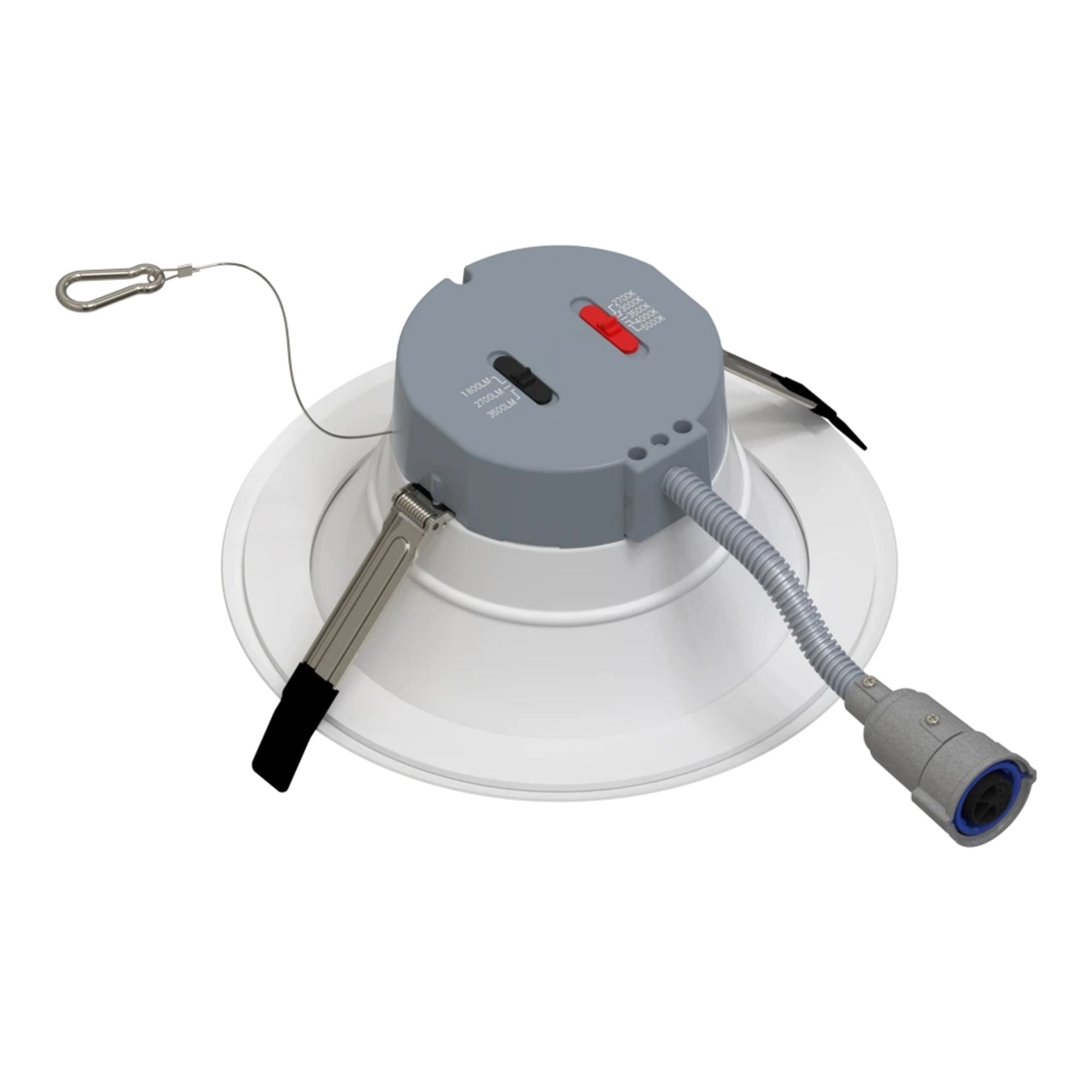

The CR8/E dims to 10% on compatible 0-10V and TRIAC/ELV dimming systems. Wattage and CCT are both field-adjustable via integrated dipswitches — select from 17W, 25W, or 31W and from 2700K, 3000K, 3500K, 4000K, or 5000K (default 2700K) at installation. In emergency mode, the fixture operates automatically at a set output level for 90 minutes; the battery recharges fully within 24 hours.

Construction & Design

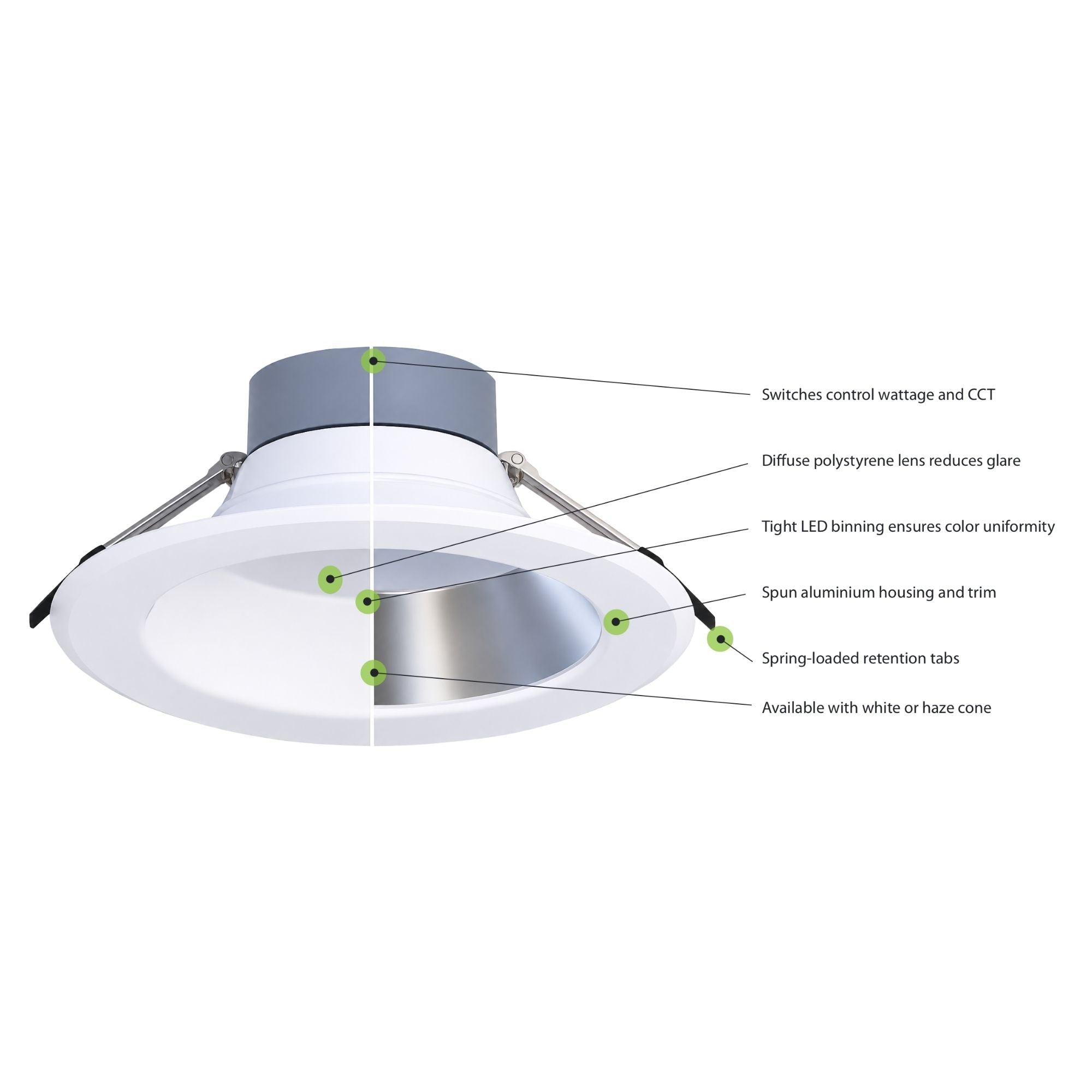

The CR8/E features a spun aluminum enclosure that maximizes passive cooling, with a spun aluminum smooth splay reflector in white finish and a polycarbonate light diffuser for even, smooth general illumination. Stainless steel spring action clips allow for quick, tool-free installation into ceiling openings from 1/2 in to 2 in thick. Weight: 3.0 lbs (includes integrated battery).

Light Output & Performance

With efficacy up to 113 lm/W (31W), a 90 CRI, R9 > 50, and a wide 85° beam angle, the CR8/E delivers broad, high-quality commercial illumination for large spaces. Color temperature is warranted to shift no more than 200K over five years (<4-step MacAdam Ellipse binning). Rated lifespan: 50,000 hours L70 per IES LM-70.

Electrical & Installation

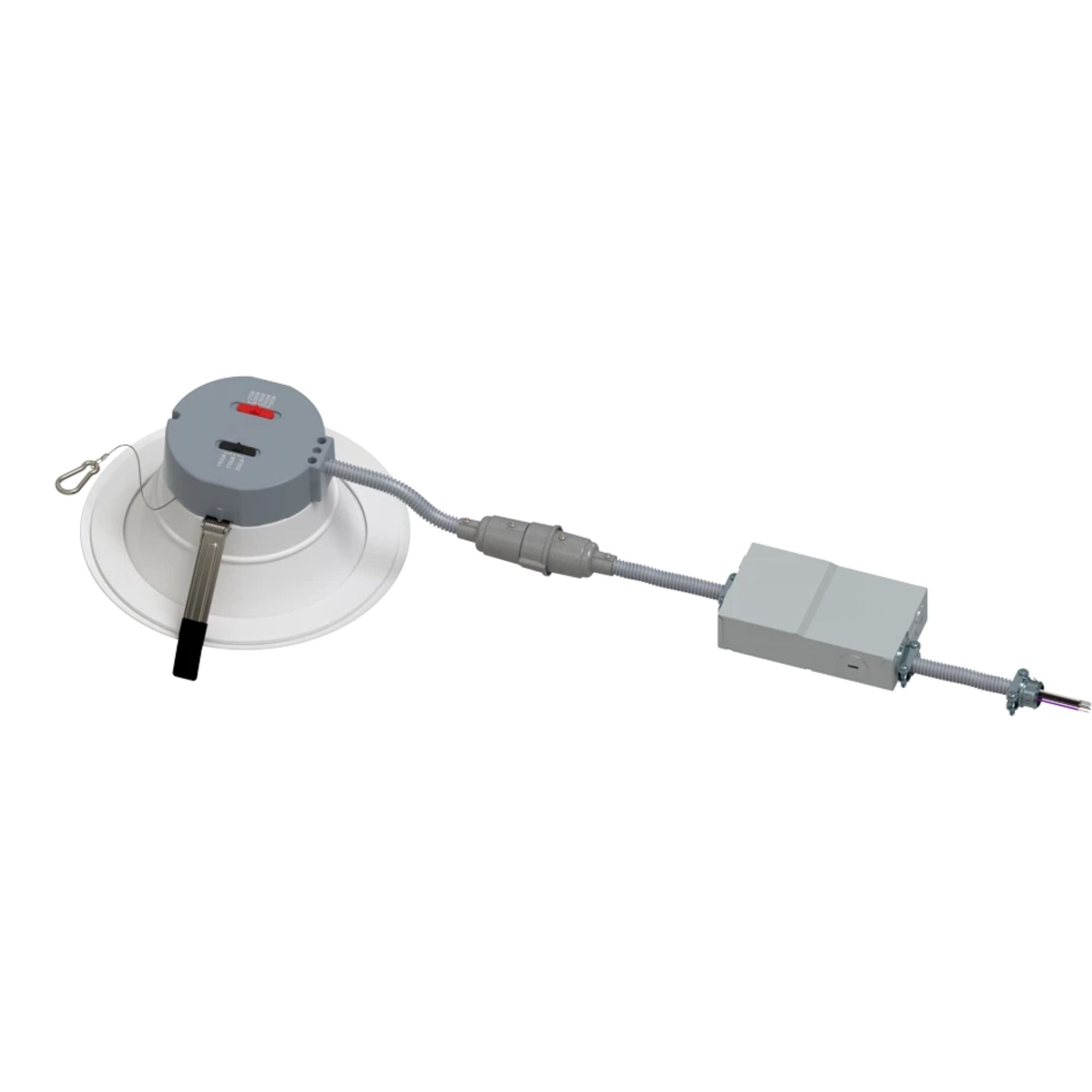

Operates on 120-277V with a Constant Current, Class A driver integrated on top of the fixture. Connects to junction box (not included) via MC Whip cable. Dimmable to 10% via 0-10V or TRIAC/ELV systems. Spring action clips support ceiling thicknesses from 1/2 in to 2 in. Suitable for remodel direct mount or retrofit into existing commercial downlight housings. IC rated for direct contact with air-permeable insulation; airtight certified (ASTM E283). Operating temperature: -4°F to 104°F.

What’s Included

• RAB CR8/E 8 in round commercial downlight with integrated emergency battery (white)
• Integrated driver (mounted on fixture)
• MC Whip cable
• Stainless steel spring action mounting clips
• Compatible accessories: 8 in-10 in goof ring, 8 in mounting frame with nailer bar, mounting plate with nailer bar, emergency driver T20 (all sold separately)
