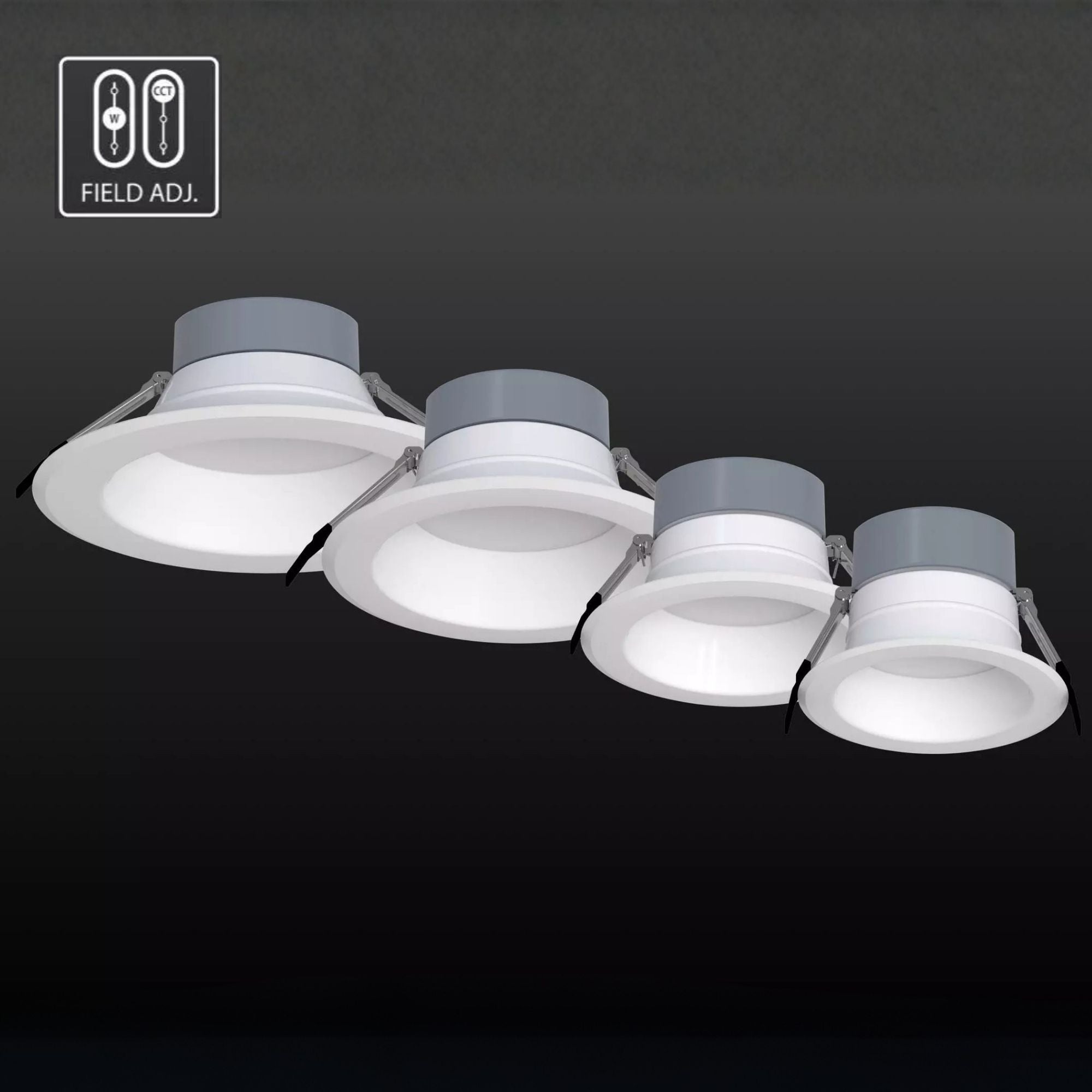

RAB CR6/E 6 in. Open Deep Regressed Downlight 22W 2500 Lumens Selectable CCT, Emergency Battery Included
Available in stock (100)
About this item
About this item
- Selectable CCT: 2700K to 5000K for versatile lighting
- High Lumens: Delivers up to 2500 lumens with only 22 wats consumption

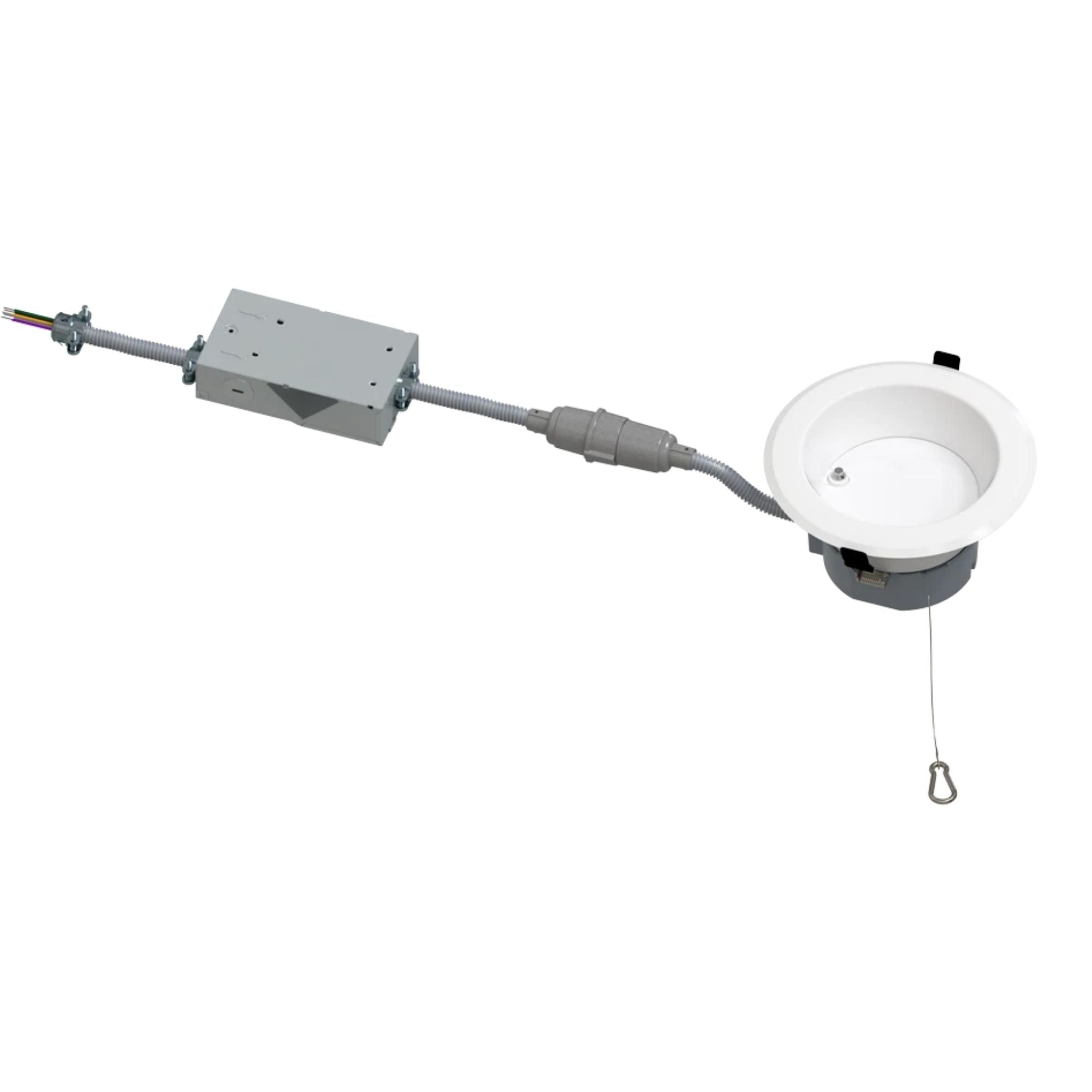

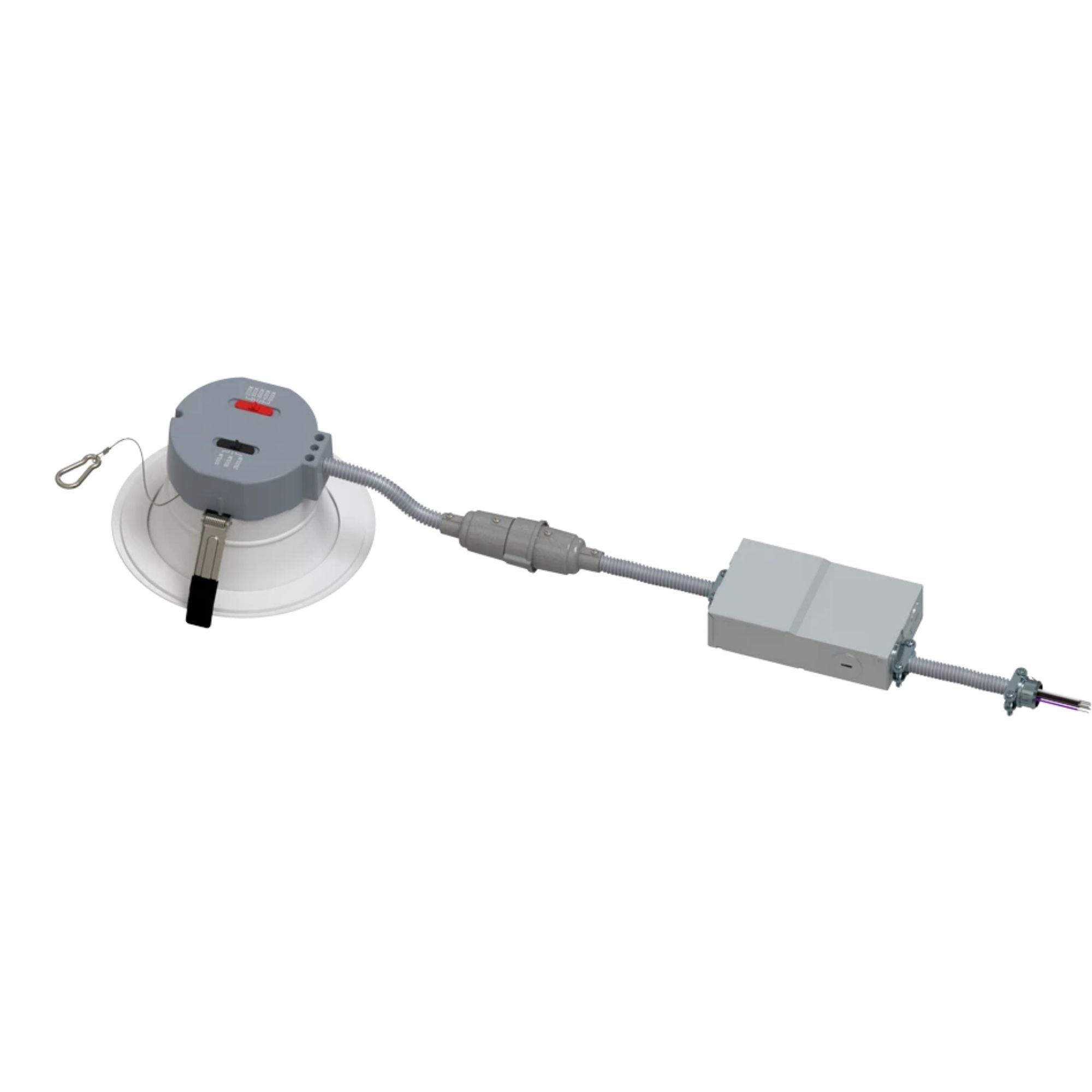

- Emergency Battery Backup:Integrated, quick connect battery backup system, minimum of 90 minutes of power during emergency operation.
- Universal Voltage: Operates on 120-277V systems
- Dimmable: Compatible with TRIAC/ELV and 0-10V dimming
We process payments securely and do not store credit card information.
Description
Description

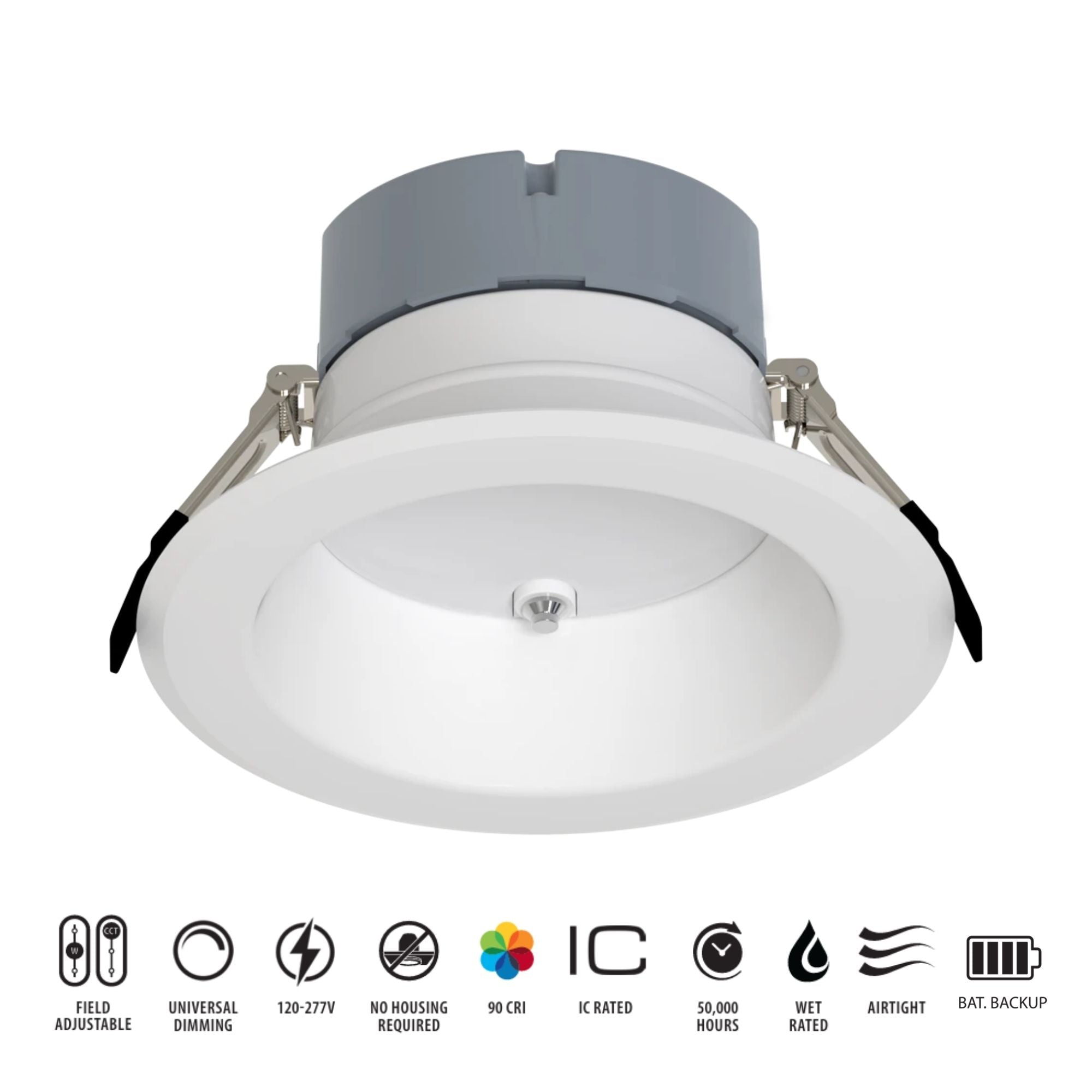

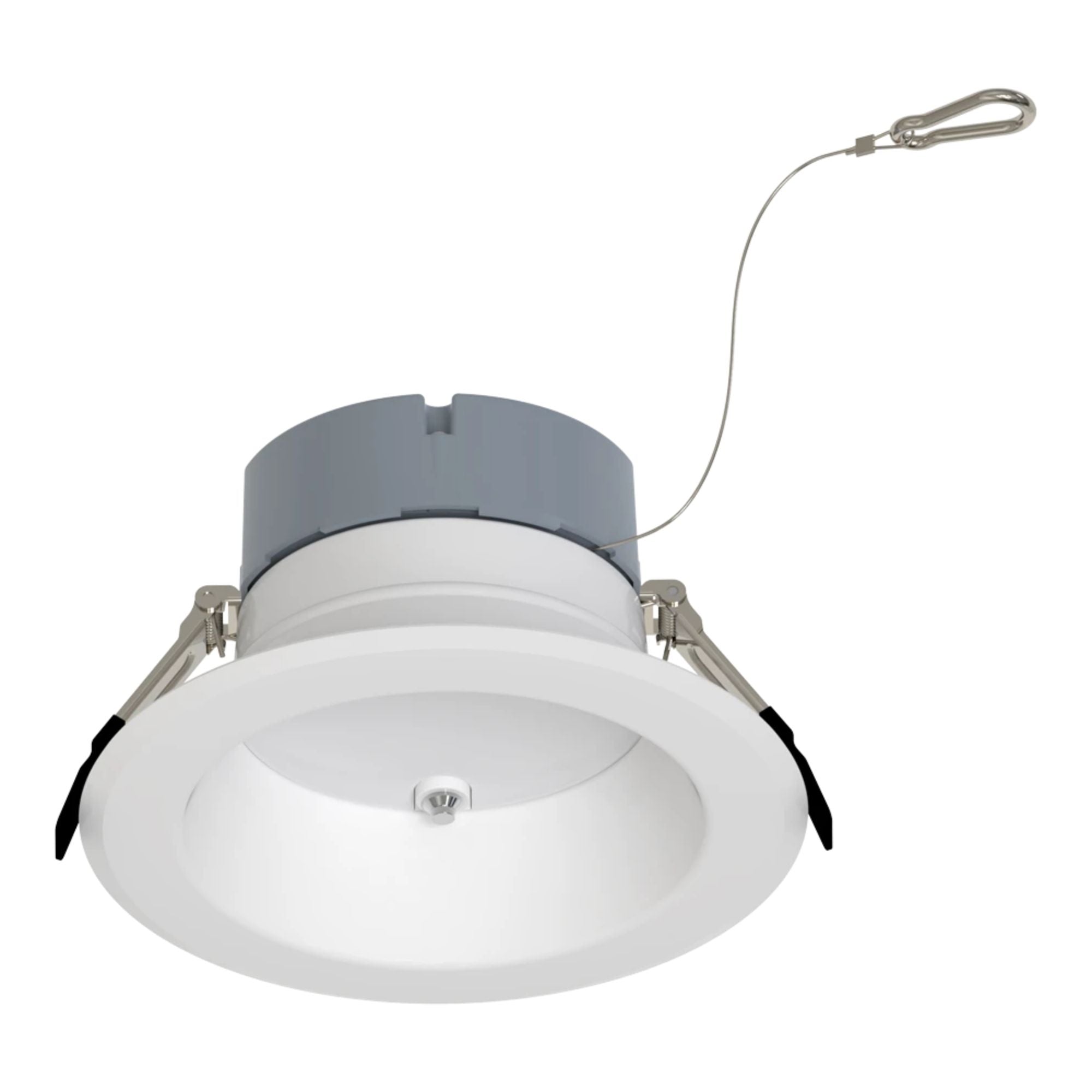

RAB CR6/E 6 in. Open Downlight With Integrated Emergency Battery Backup — 22W / Selectable CCT
The RAB CR6/E is a versatile 6-inch commercial downlight delivering 2500 lumens using 22W. It features an open, deep regressed reflector design, making it ideal for both residential and commercial applications. The selectable CCT ranges from 2700K to 5000K, offering flexibility in lighting design.
Key Features
- Wattage: 22/18/11W options
- Lumens: 2500/1800/1000 lm
- Voltage: 120-277V
- Dimming: TRIAC/ELV and 0-10V
- Beam Angle: 85°±10°
- CRI: 90
- Lifespan: 50,000 hours
- Energy Star: Certified
- Title 24 JA8: Compliant
- RoHS: Compliant
- Emergency Battery Backup:Integrated, quick connect battery backup system, minimum of 90 minutes of power during emergency operation.

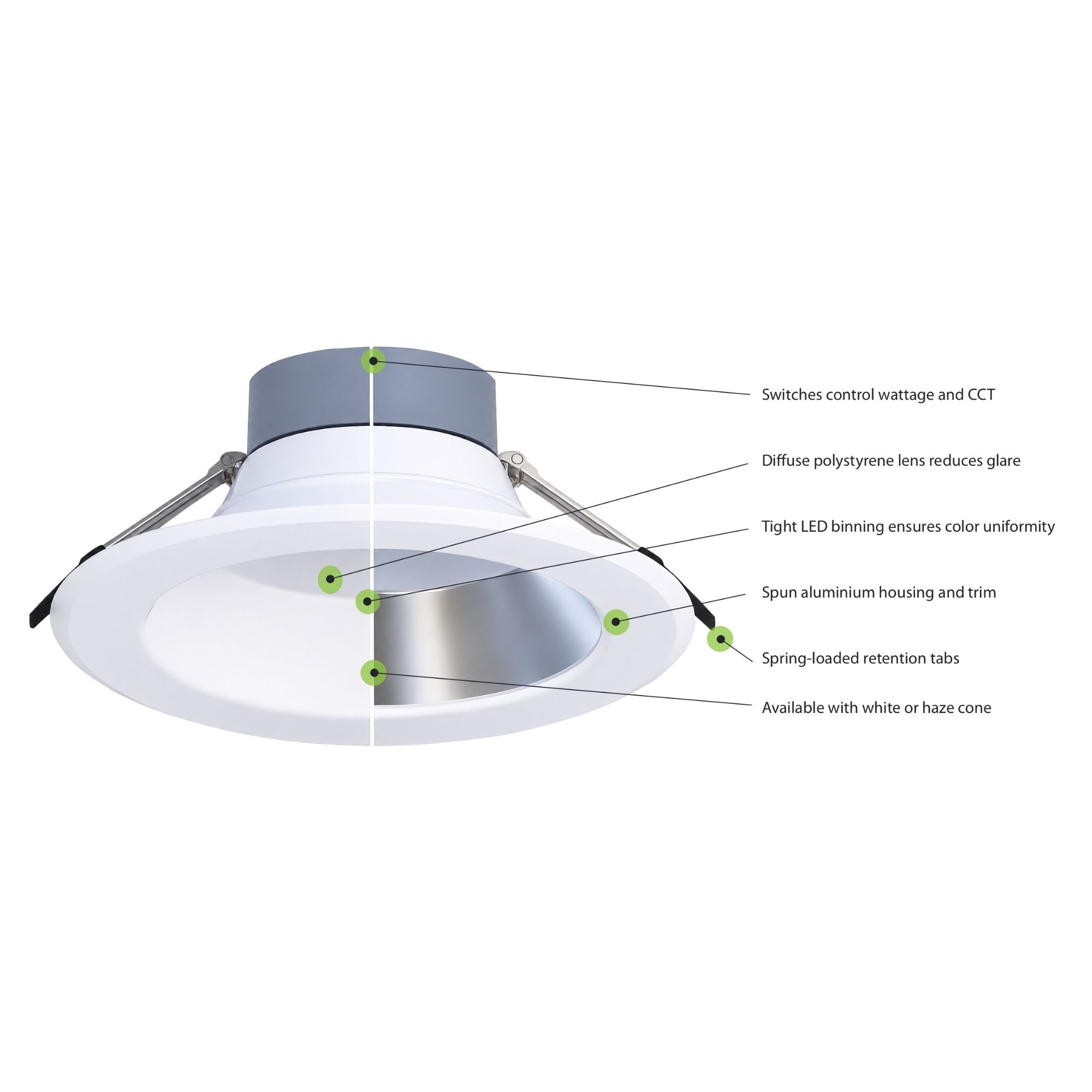

Construction & Aesthetics
Constructed from spun aluminum for optimal cooling, the fixture includes a polycarbonate light diffuser for even distribution. The deep regressed lens minimizes glare, and the fixture is available in a white finish.
Electrical & Installation

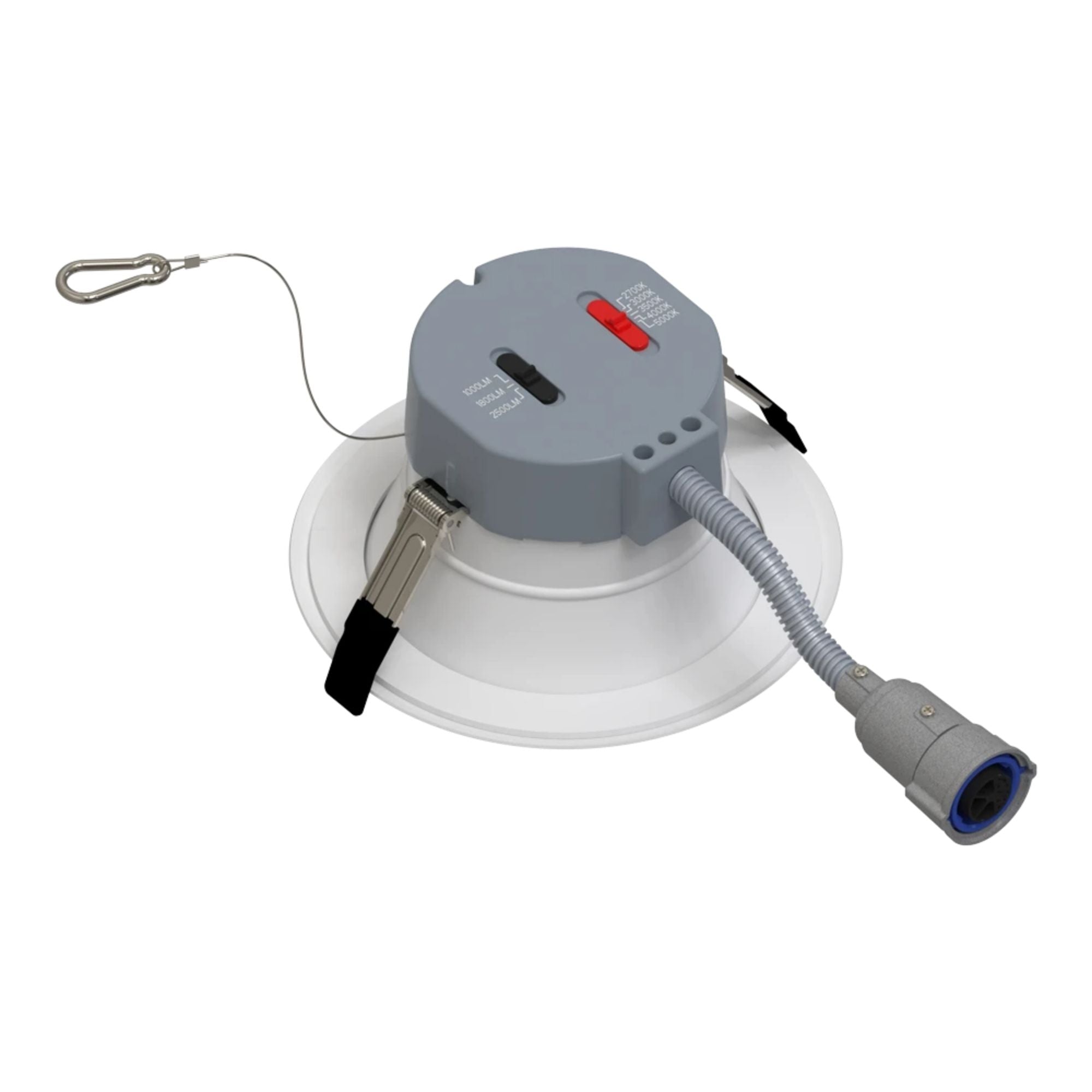

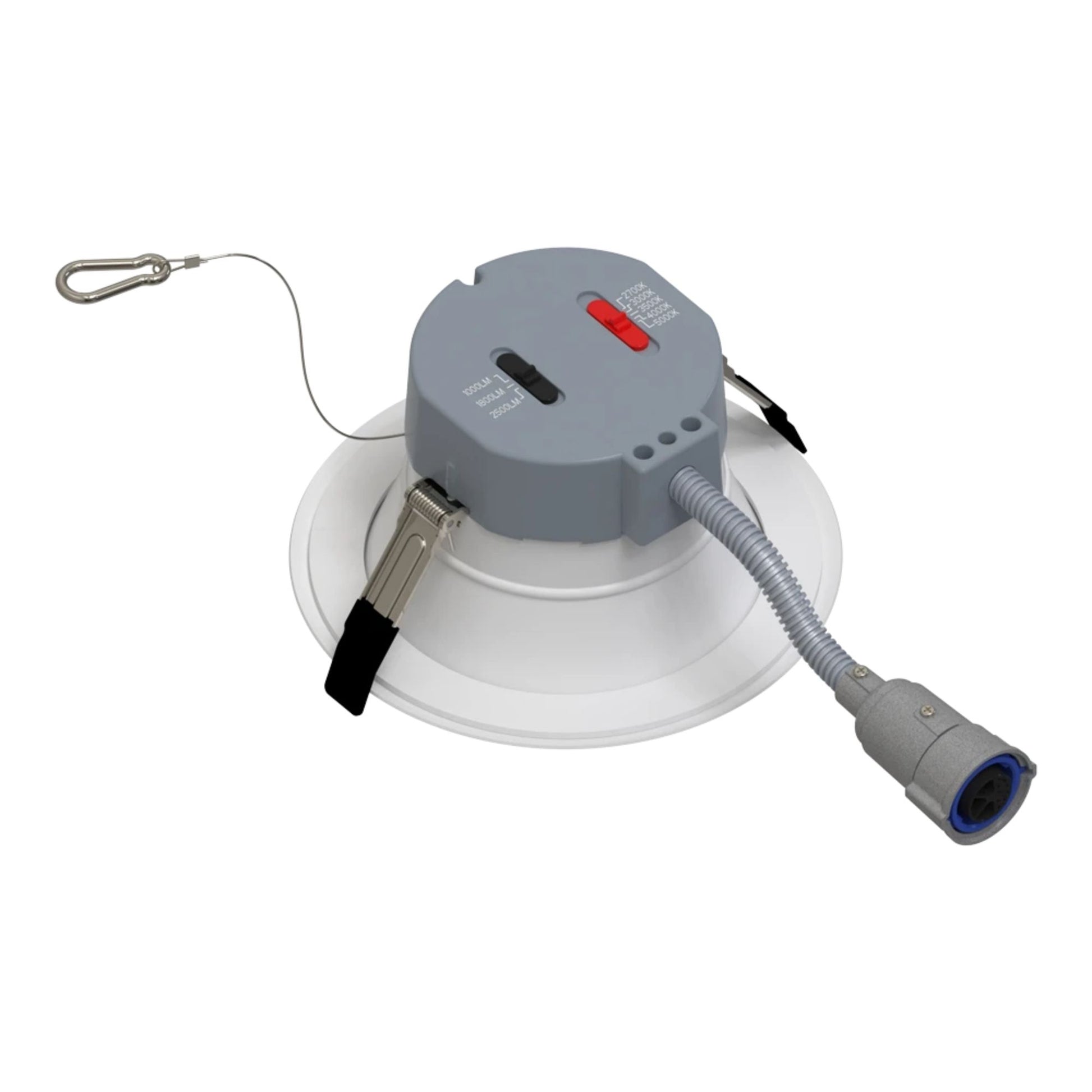

Designed for easy installation with stainless steel spring clips, it supports ceiling thicknesses from 1/2'' to 2''. Compatible with various mounting plates and goof rings for enhanced installation flexibility.
Light Output & Performance
With a high efficacy of up to 114 lm/W, this downlight ensures bright and efficient illumination. The 90 CRI provides excellent color rendering, suitable for various settings.

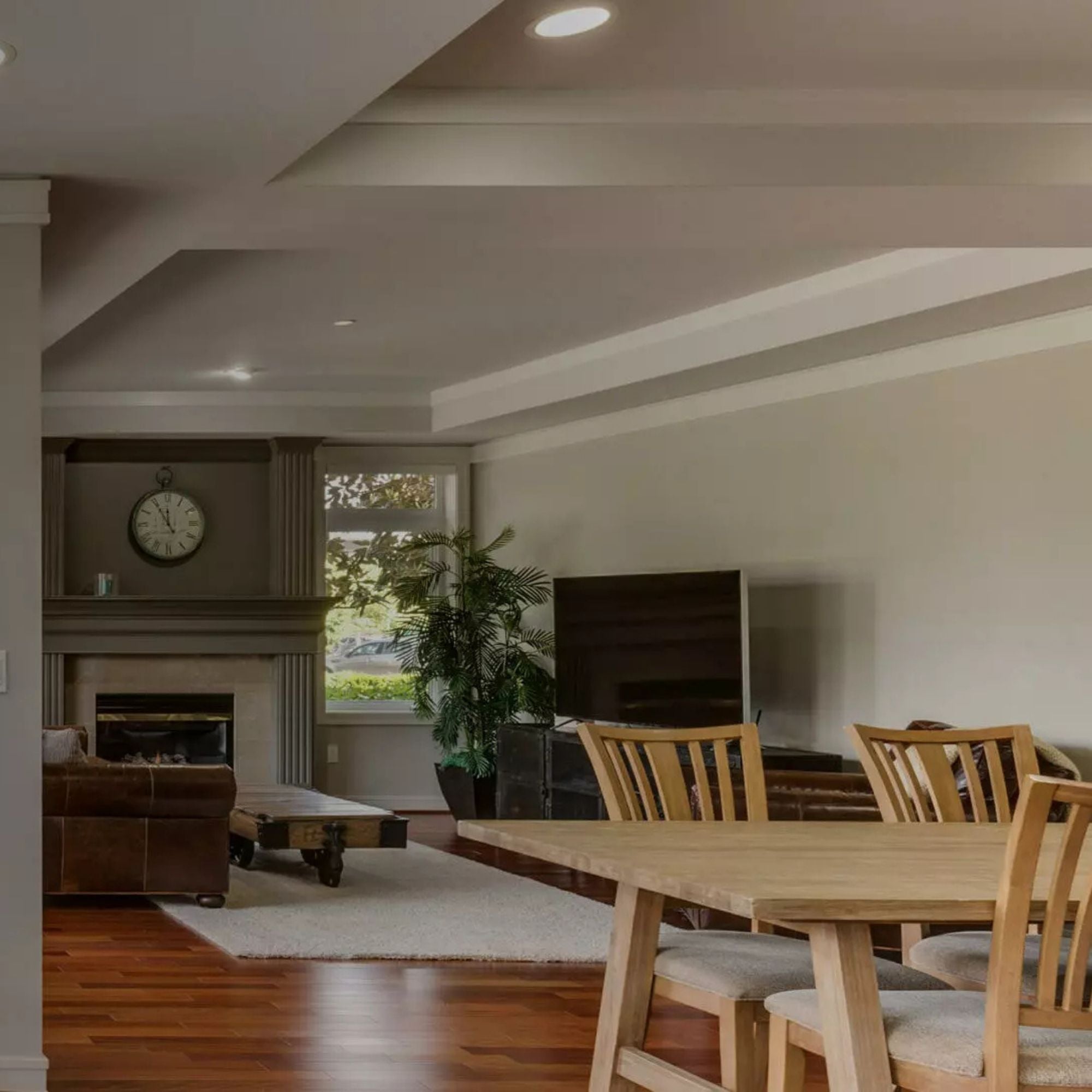

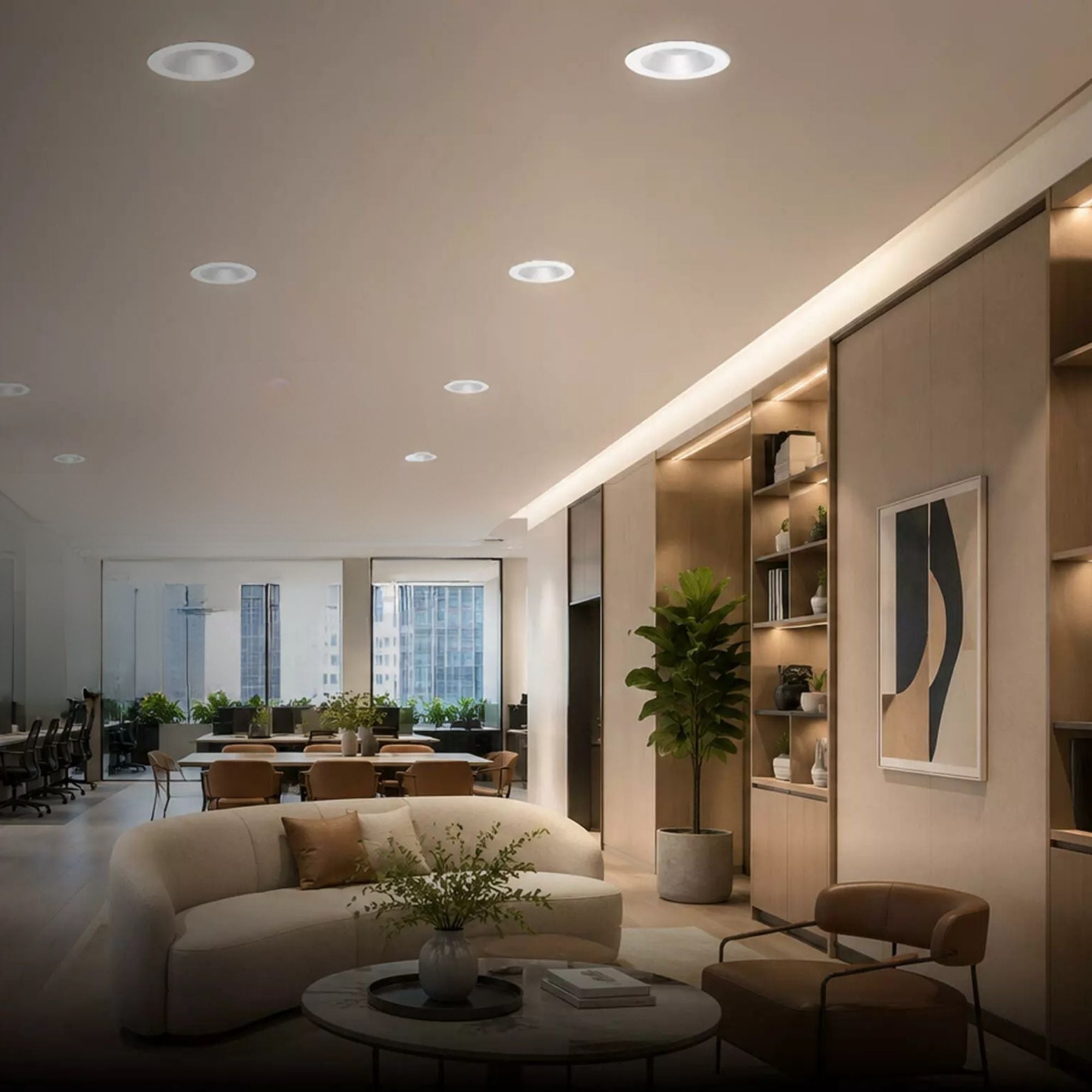

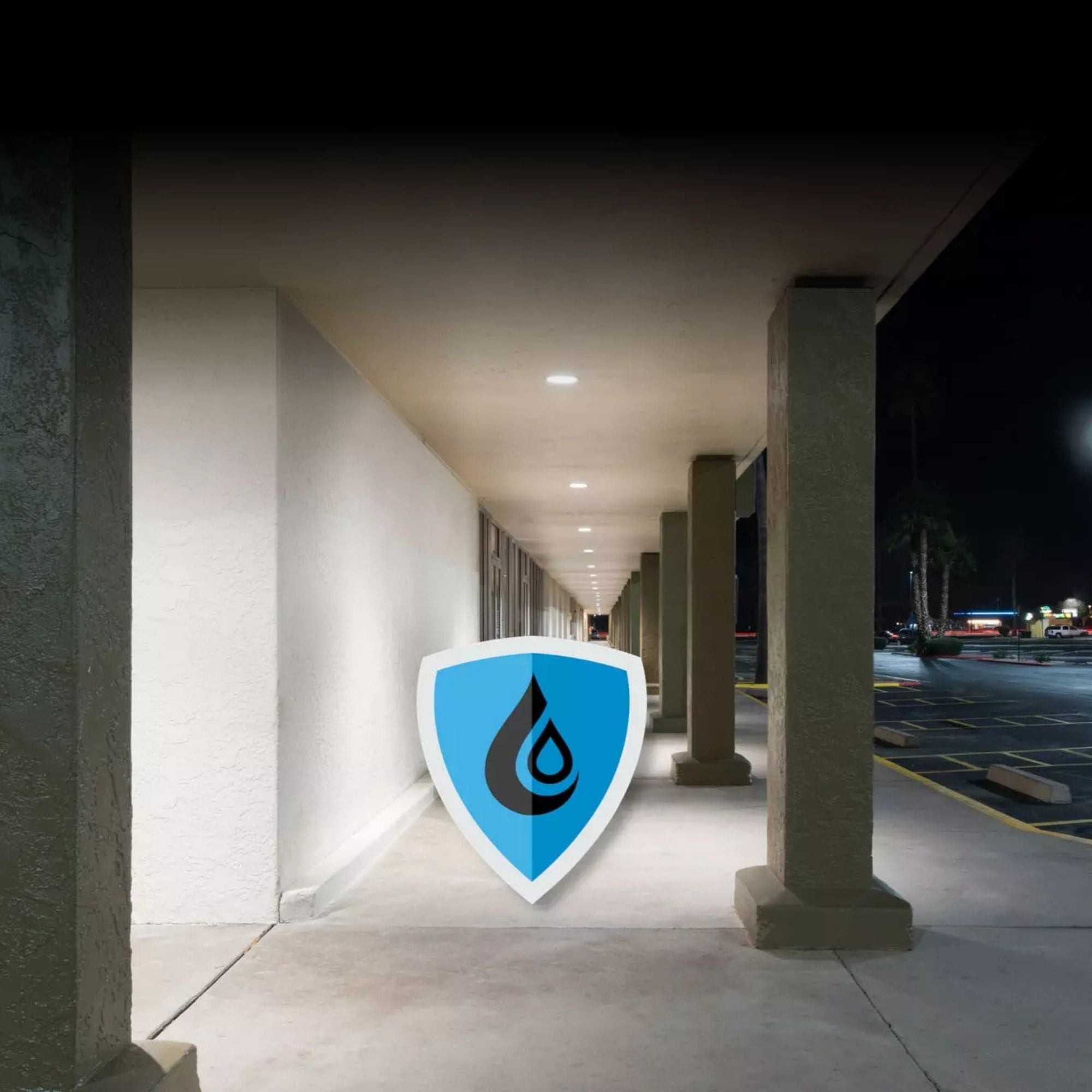

Typical Applications
- Commercial spaces

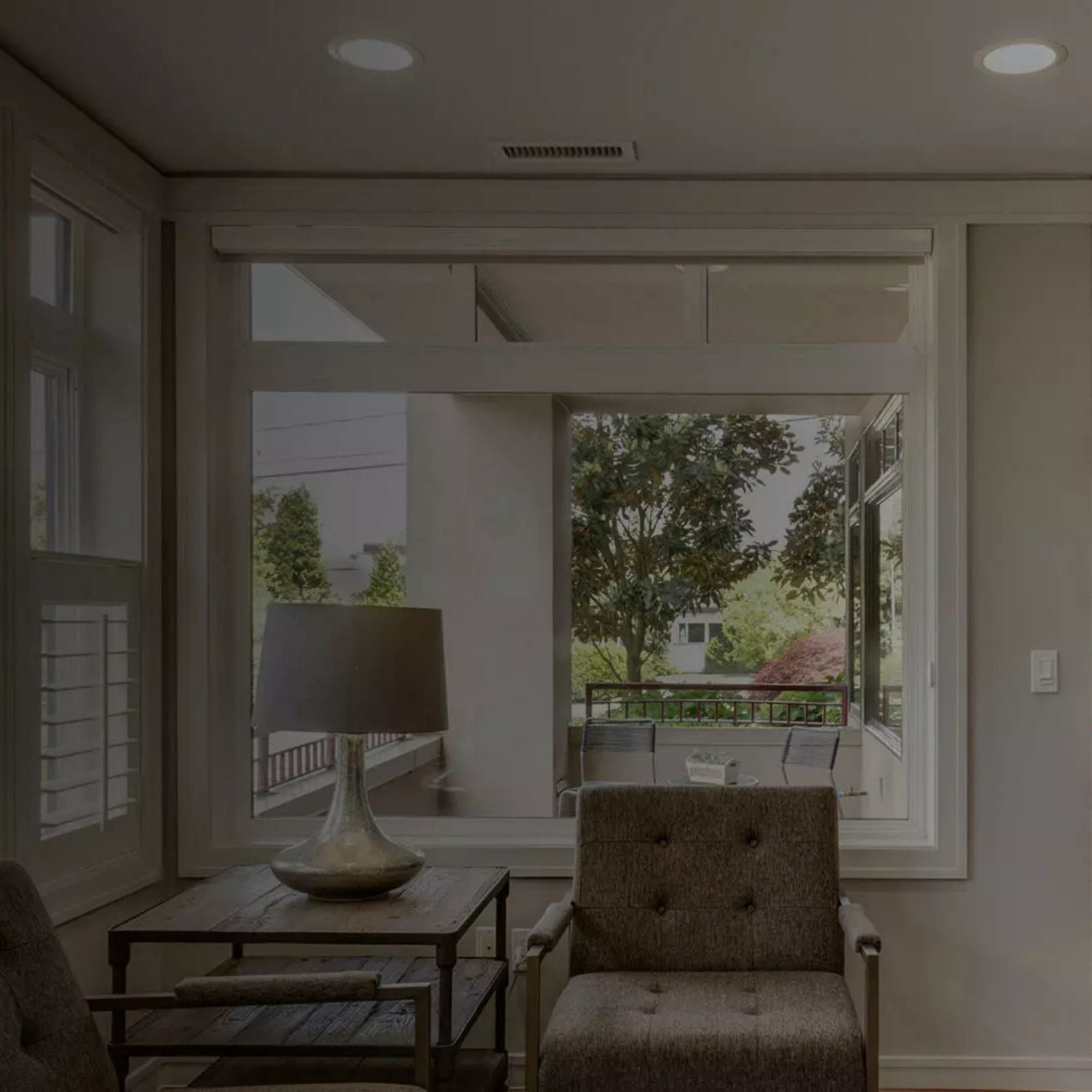

- Residential areas
- Retail environments
- Hospitality settings
- Office buildings
Specifications
Specifications

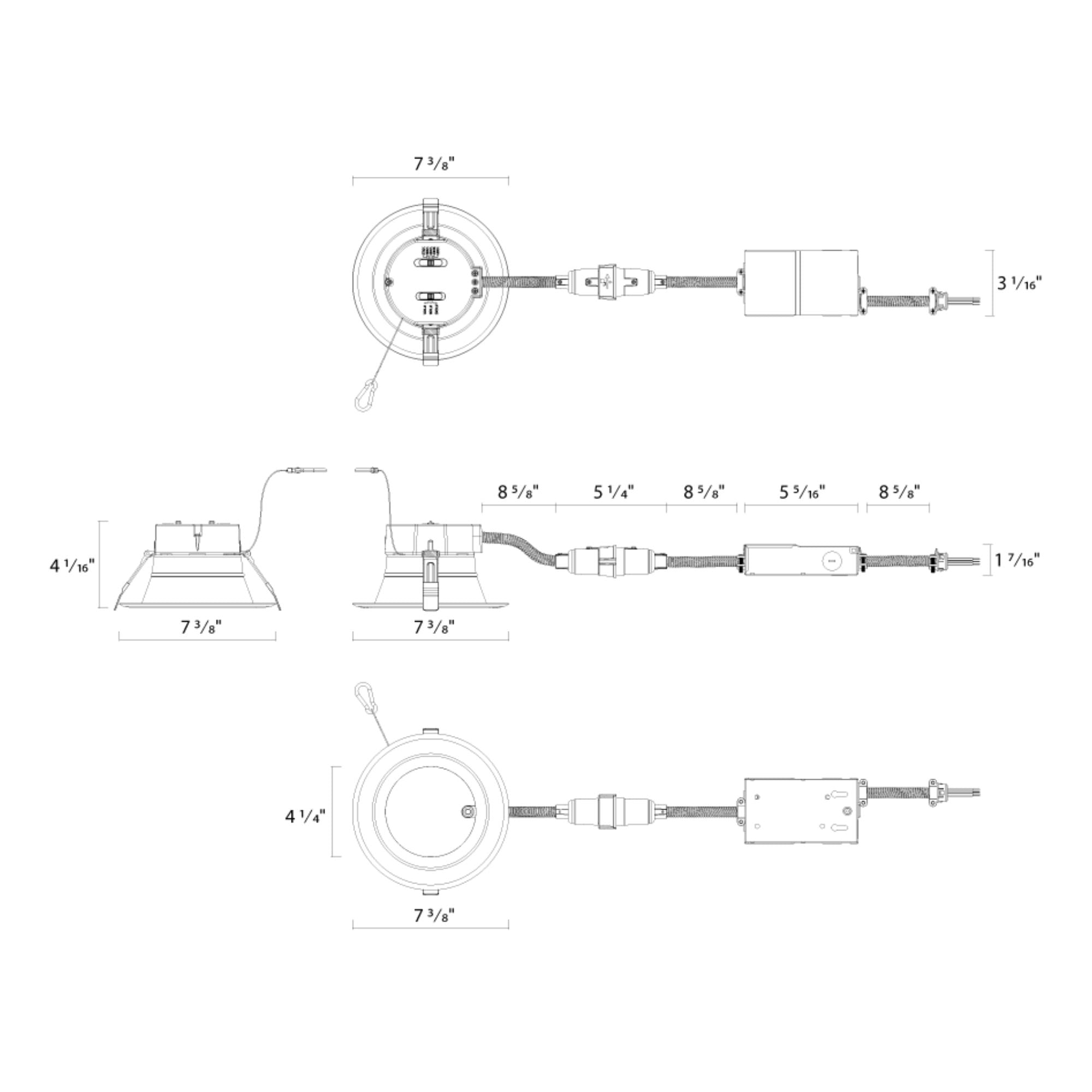

Dimensions
