RAB CR10-HW 10 in Round Commercial Downlight — 24/30/37W / Selectable CCT / 120-277V / Haze White

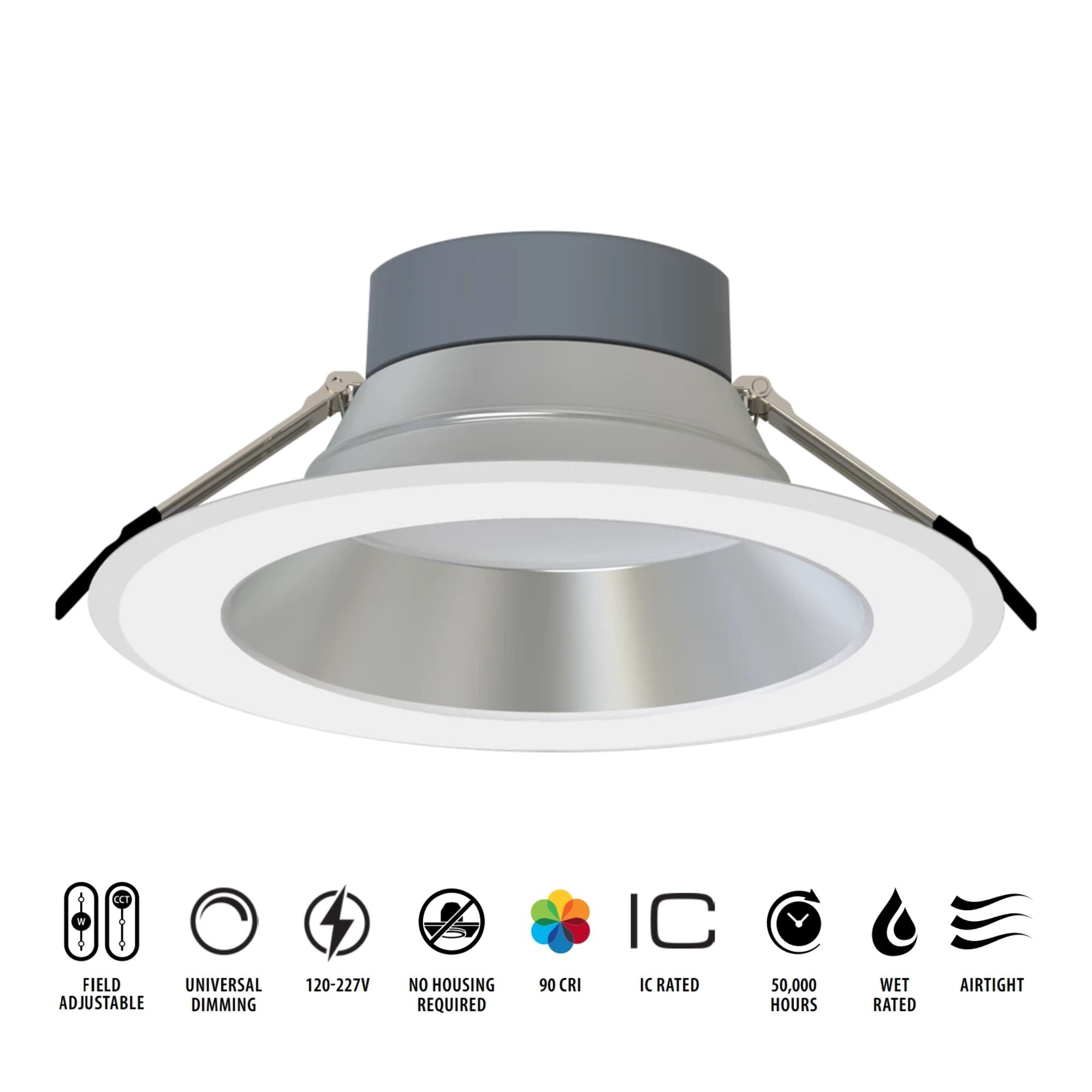

The RAB CR10-HW is a 10 in round commercial recessed downlight in haze white finish delivering up to 4,500 lumens at 37W with a wide 85° beam angle and 90 CRI. The largest fixture in the CR-HW family, the CR10-HW features field-selectable wattage (24/30/37W) and CCT (2700K–5000K) via integrated dipswitches, with universal 120-277V input and dual dimming compatibility (0-10V and TRIAC/ELV). The spun aluminum enclosure maximizes passive cooling for long-term performance.

Key Features

• Field-Selectable Wattage: Choose between 24W, 30W, and 37W via integrated dipswitch
• Field-Selectable CCT: Dip-switch adjustable between 2700K, 3000K, 3500K, 4000K, and 5000K; default 2700K
• Lumen Output: 4,500 lm (37W); 3,500 lm (30W); 2,800 lm (24W)
• Wattage Equivalency: 100W CFL equivalent
• CRI: 90 with R9 > 50 for high color accuracy
• Beam Angle: 85° ±10° for broad, even illumination
• Dimming: 0-10V dimmable to 10%; TRIAC/ELV dimmable to 10% at 120V
• Voltage: 120-277V universal
• Integrated Driver: Mounts on top of fixture; connects to junction box (not included) via MC Whip cable
• Enclosure: Spun aluminum for passive cooling; haze white finish
• Installation: Spring clips, 1/2 in to 2 in ceiling; remodel direct mount or retrofit into existing commercial housings
• Trim: Spun aluminum smooth splay reflector with polycarbonate lens; interchangeable color trim overlays sold separately
• IC Rated: Suitable for direct contact with air-permeable insulation; not for use with spray foam insulation (consult NEMA LSD57-2013)
• Certifications: ENERGY STAR Version 2.2, Title 24 JA8, UL Listed/Classified, RoHS compliant, NEC compliant (Sec. 410.16)
• Warranty: 5-year no-compromise warranty

Smart & Control Features

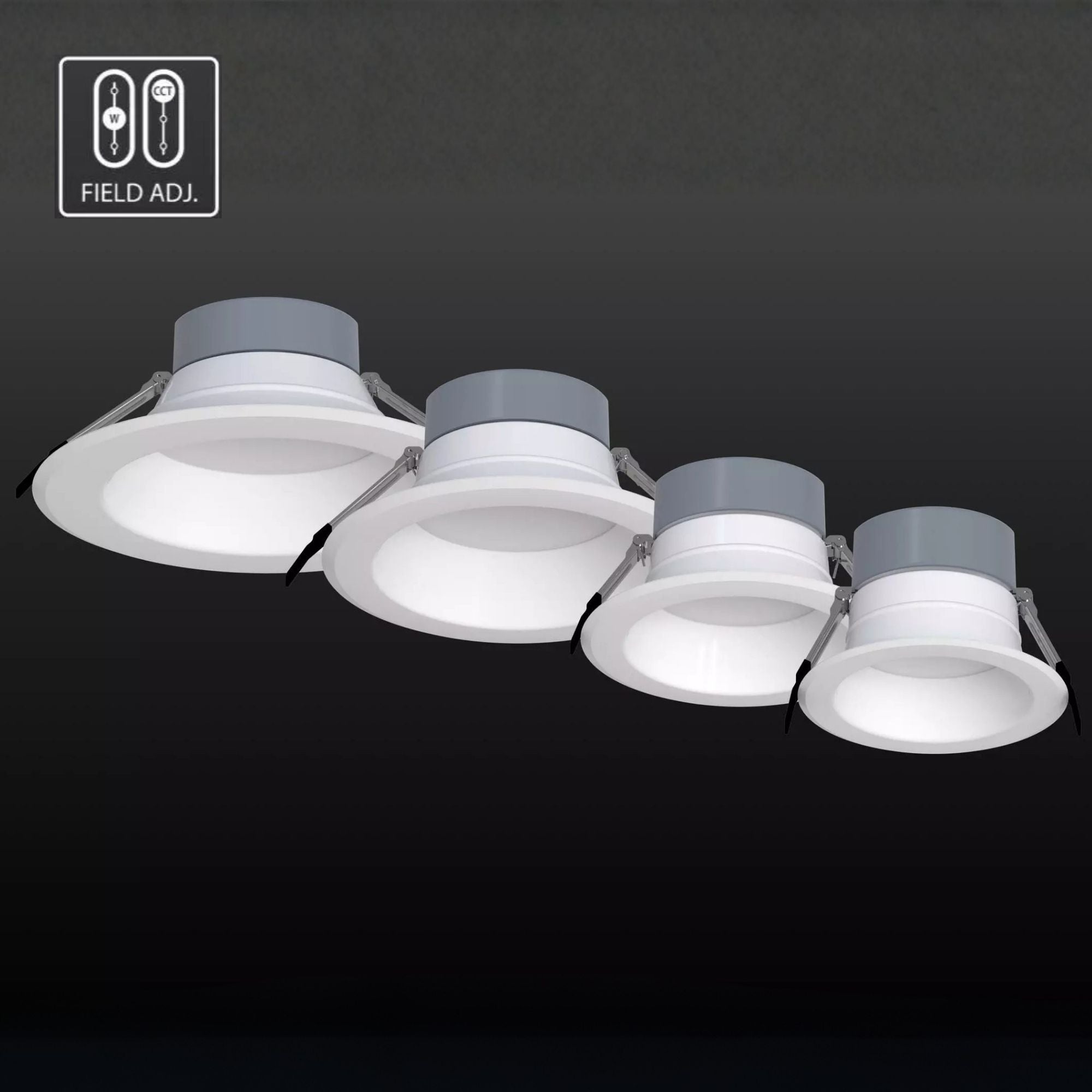

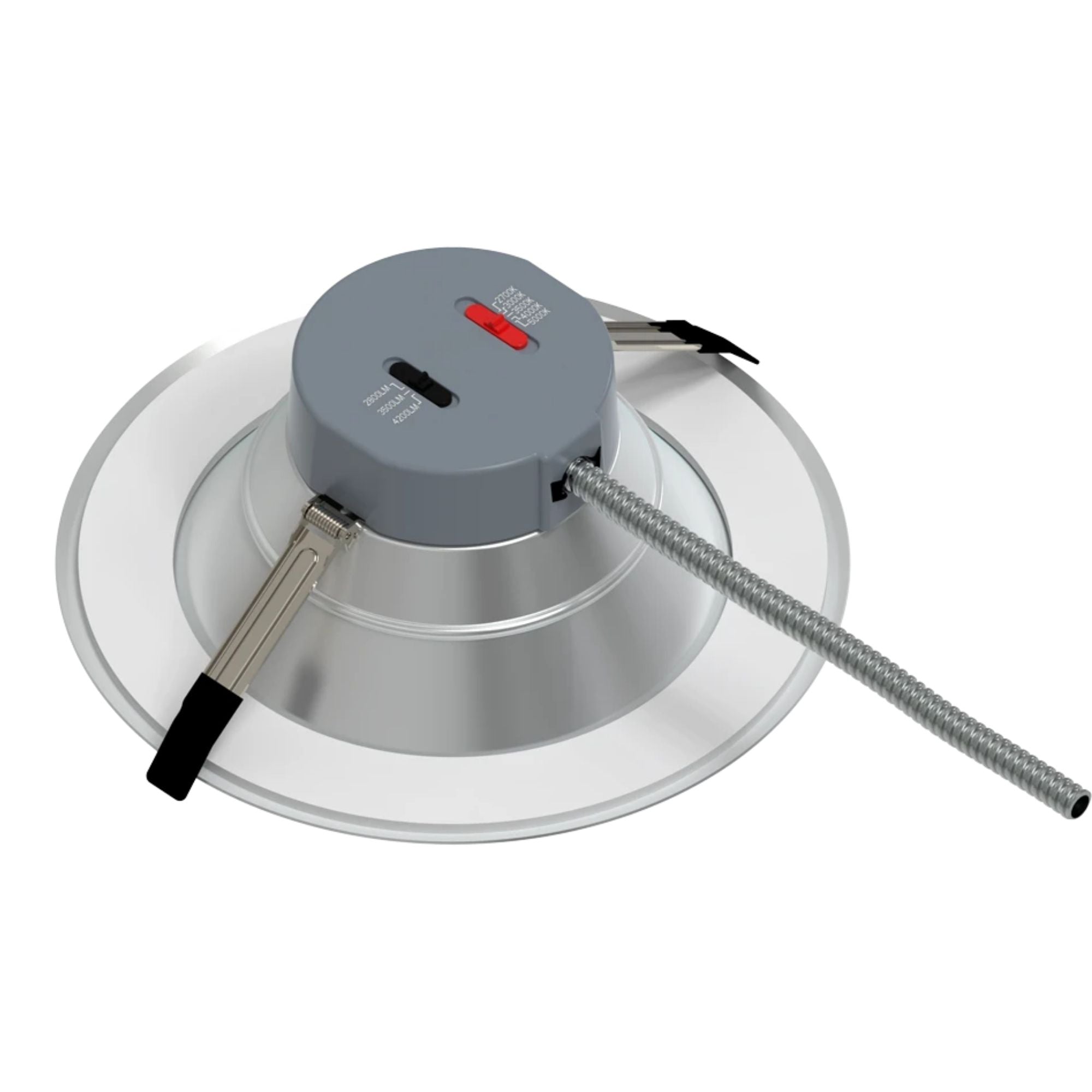

The CR10-HW dims to 10% on compatible 0-10V and TRIAC/ELV dimming systems. Wattage and CCT are both field-adjustable via integrated dipswitches — select from 24W, 30W, or 37W and from 2700K, 3000K, 3500K, 4000K, or 5000K (default 2700K) at installation. Battery backup sold separately. Compatible emergency driver: DRI-21-EMGR-DC-D10; emergency driver T20.

Construction & Design

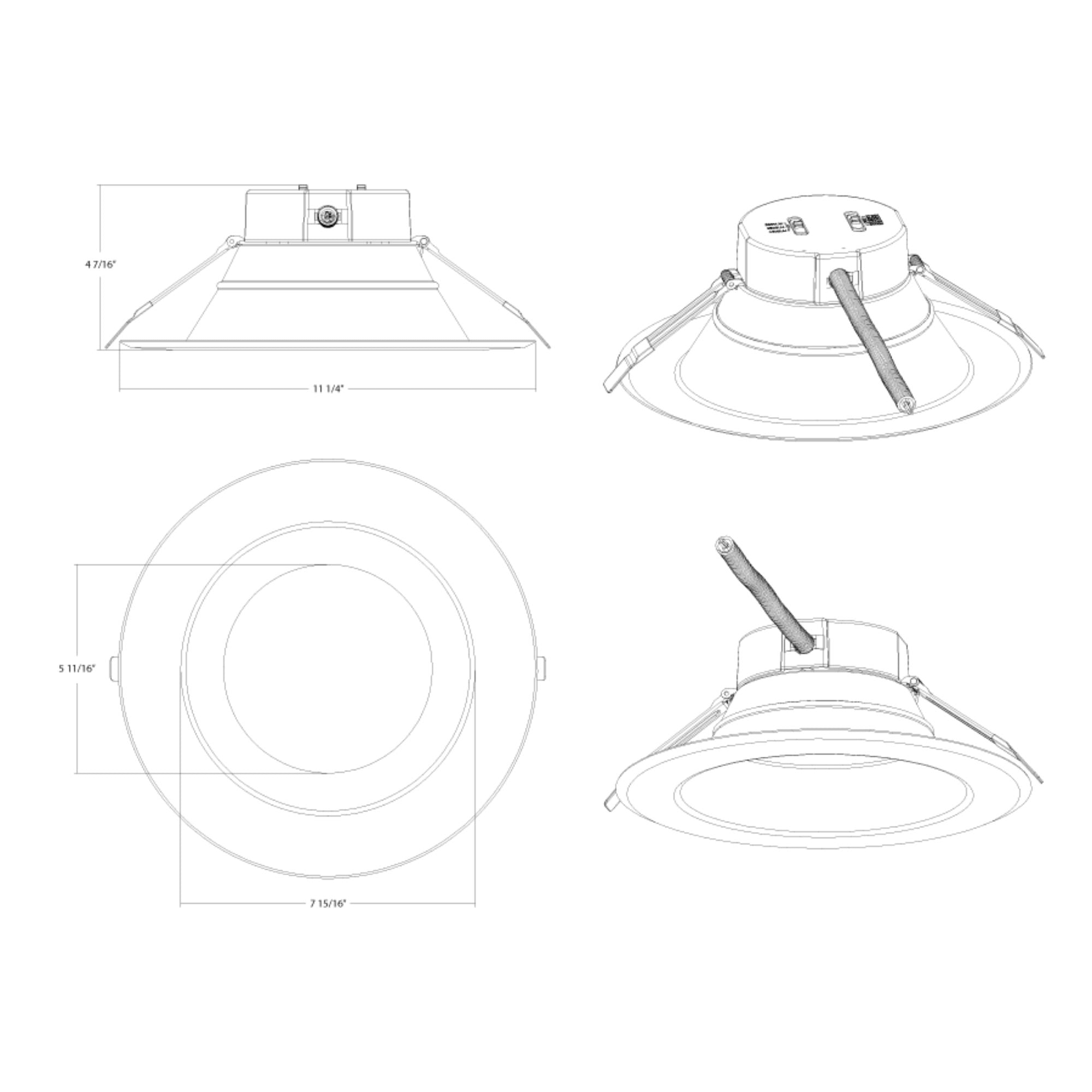

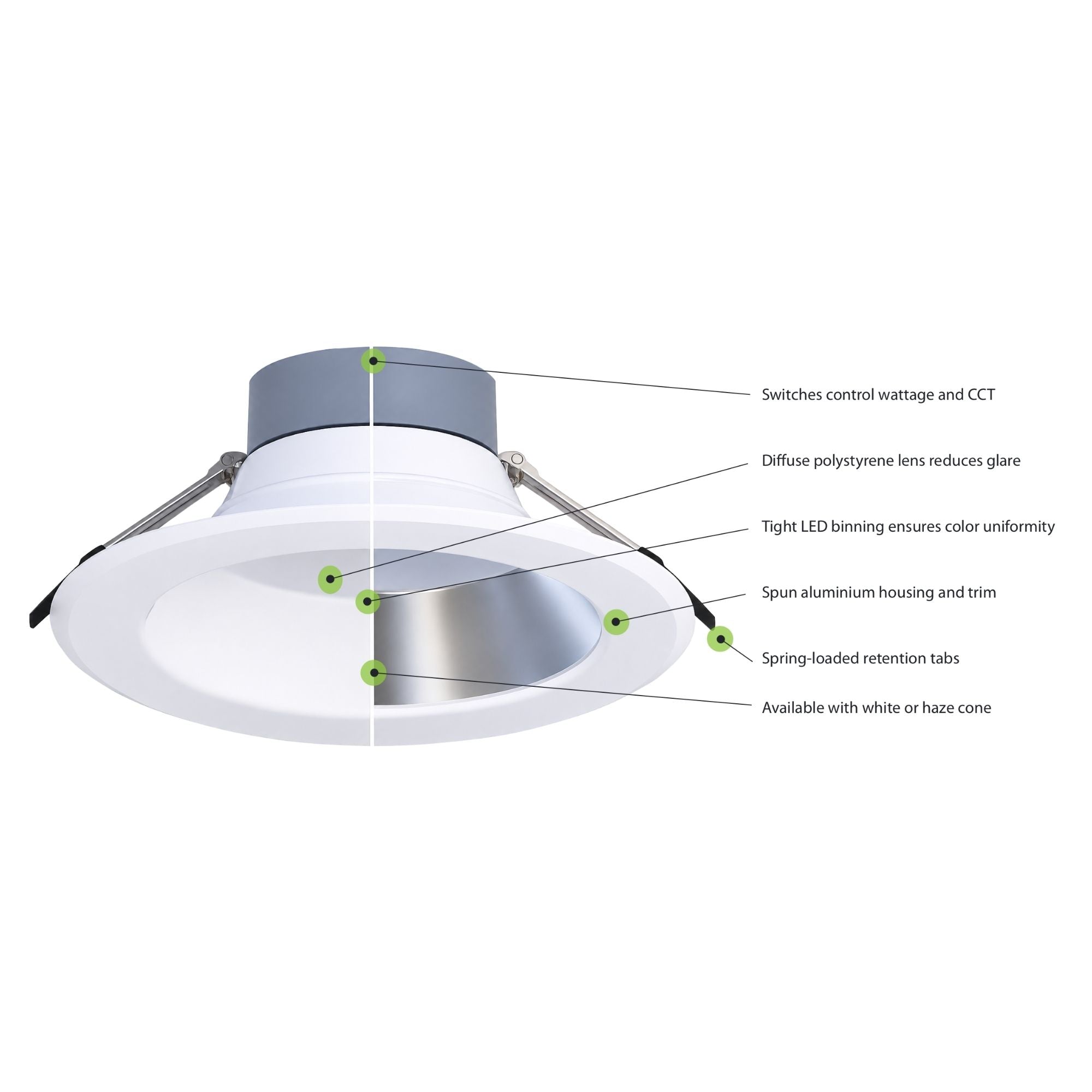

The CR10-HW features a spun aluminum enclosure that maximizes passive cooling to ensure long fixture lifespan, with a spun aluminum smooth splay reflector in haze white finish and a polycarbonate light diffuser for even, smooth general illumination. Stainless steel spring action clips allow for quick, tool-free installation into ceiling openings from 1/2 in to 2 in thick. Weight: 1.6 lbs. Accepts interchangeable 10 in color trim overlays in smooth black, brushed nickel, bronze, and haze white (all sold separately).

Light Output & Performance

With efficacy up to 122 lm/W (37W), a 90 CRI, R9 > 50, and a wide 85° beam angle, the CR10-HW delivers broad, powerful commercial illumination for large spaces. Color temperature is warranted to shift no more than 200K over five years (<4-step MacAdam Ellipse binning). Rated lifespan: 50,000 hours L70 per IES LM-70.

Electrical & Installation

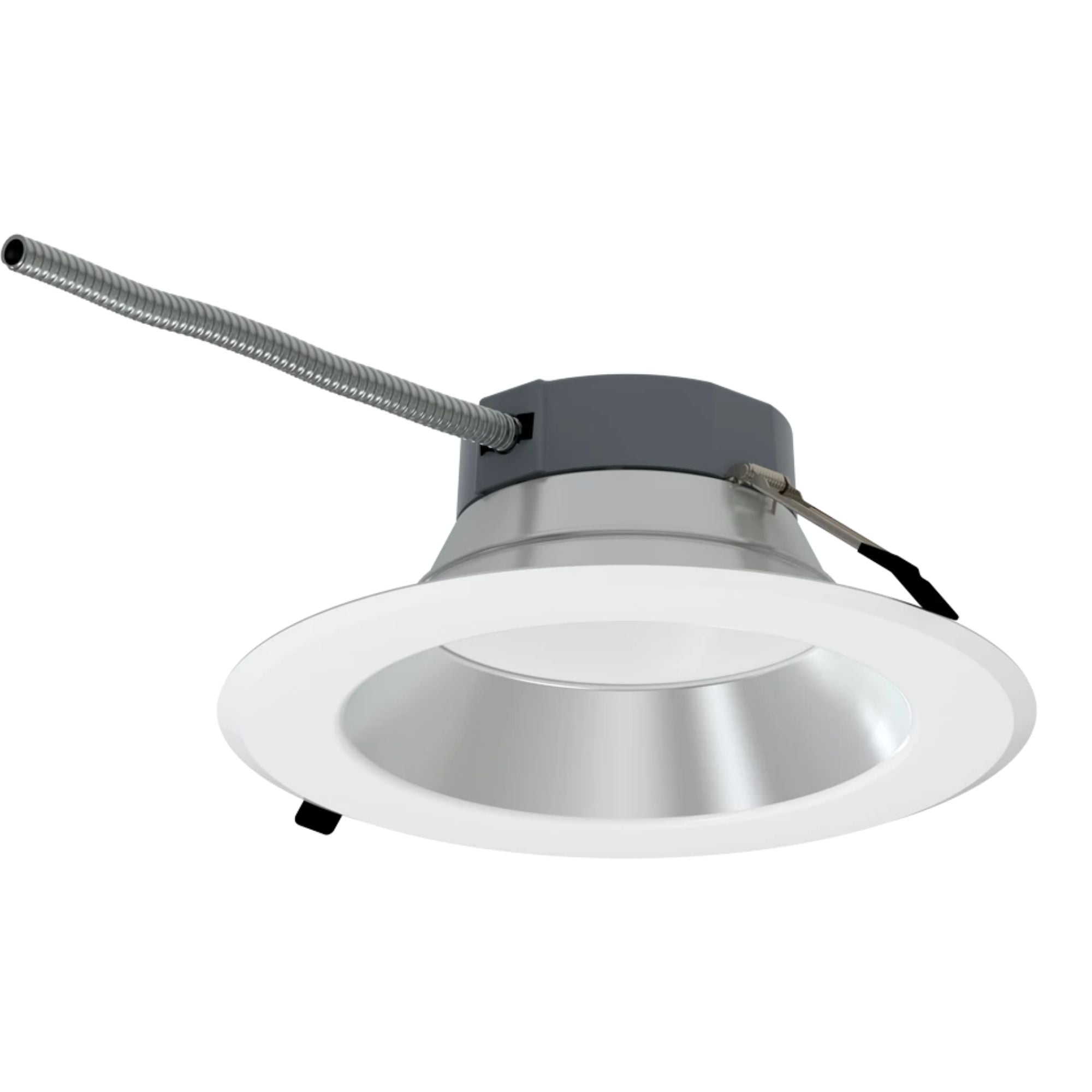

Operates on 120-277V with a Constant Current, Class A driver integrated on top of the fixture. Connects to junction box (not included) via MC Whip cable. Dimmable to 10% via 0-10V or TRIAC/ELV systems. Spring action clips support ceiling thicknesses from 1/2 in to 2 in. Suitable for remodel direct mount or retrofit into existing commercial downlight housings. IC rated for direct contact with air-permeable insulation; airtight certified (ASTM E283). Operating temperature: -4°F to 104°F.

Compatible Color Trim Accessories (sold separately)

• DL8-12GOOF/R/P/CRLEDFA — 10 in-12 in goof ring, white round
• DLTRIM/CRLEDFA10R-BS — 10 in color trim, round, smooth black
• DLTRIM/CRLEDFA10R-BNS — 10 in color trim, round, smooth brushed nickel
• DLTRIM/CRLEDFA10R-BRS — 10 in color trim, round, smooth bronze
• DLTRIM/CRLEDFA10R-HW — 10 in color trim, round, smooth haze white

What’s Included

• RAB CR10-HW 10 in round commercial downlight (haze white)
• Integrated driver (mounted on fixture)
• MC Whip cable
• Stainless steel spring action mounting clips
• Compatible accessories: DRI-21-EMGR-DC-D10 emergency driver; color trim overlays and goof ring DL8-12GOOF/R/P/CRLEDFA (all sold separately)
