RAB CR10 - 10" Commercial LED Downlight, 28-42W Adjustable, 2800-4200 Lumens, Selectable 3000K-5000K CCT, 120-277V

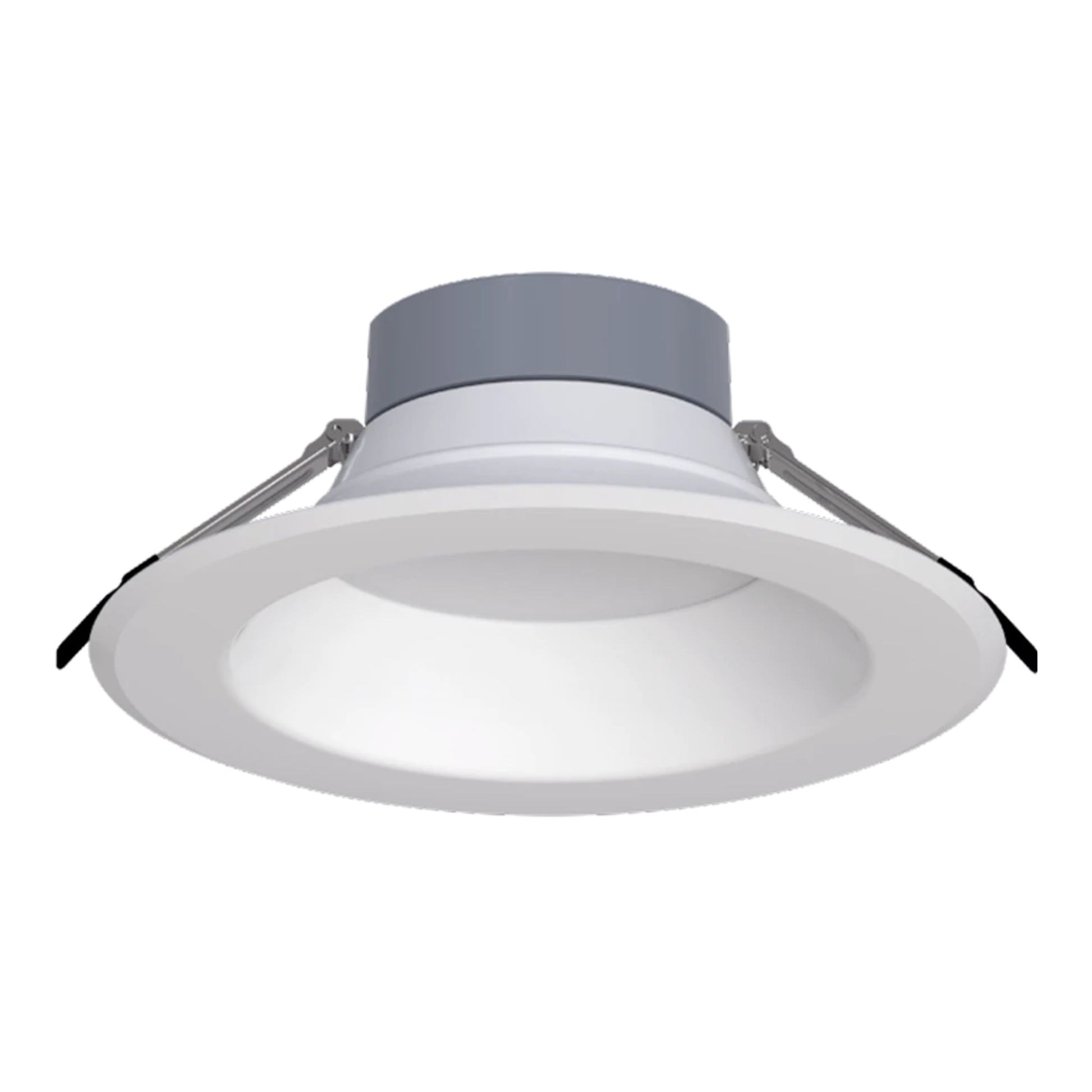

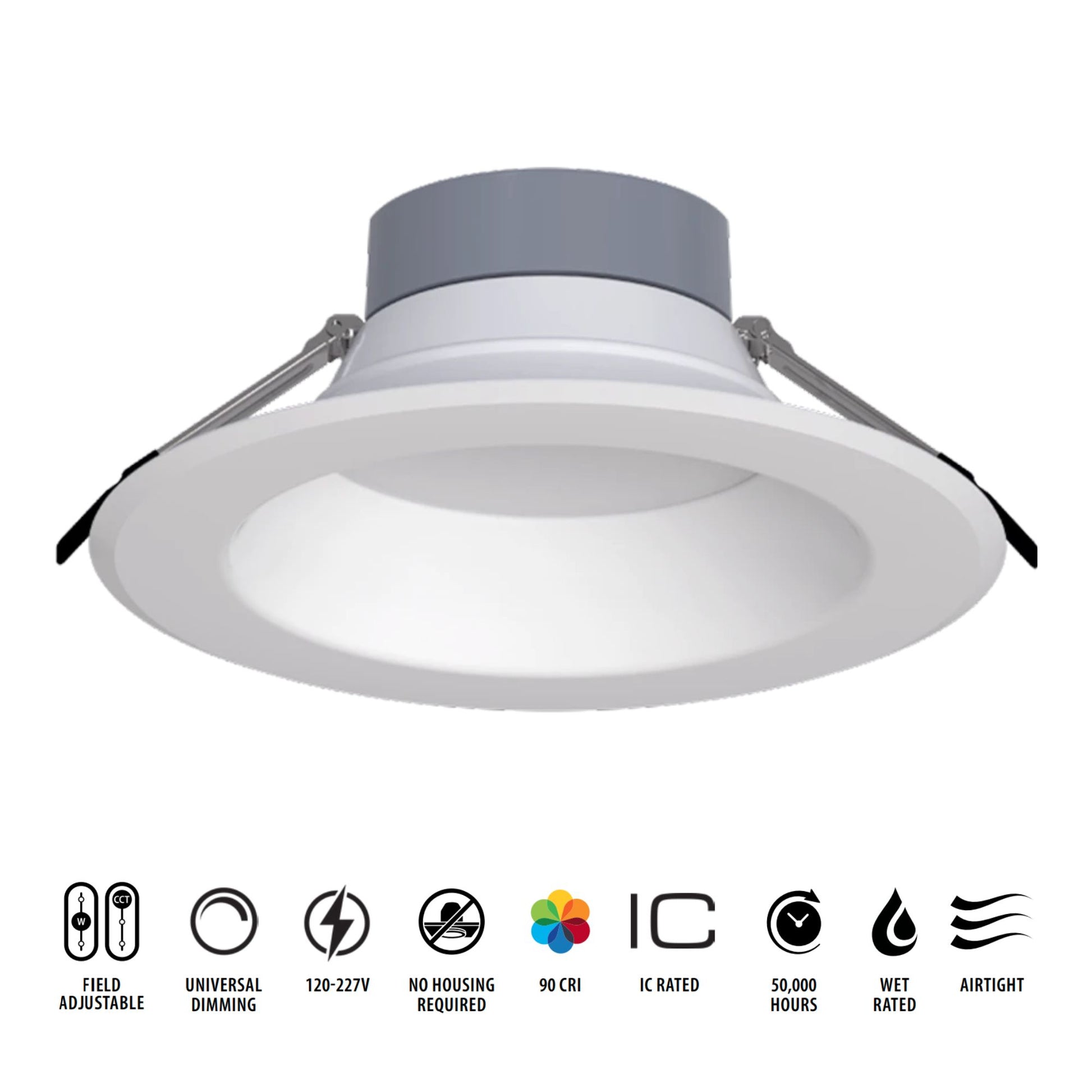

RAB CR10 10" Commercial LED Downlight

Experience professional-grade illumination with the genuine RAB CR10 commercial LED downlight. This large 10-inch deep regress fixture delivers an impressive 2800-4200 lumens of high-quality light with field-selectable wattage (28W/35W/42W) and color temperature from 3000K to 5000K. Designed for demanding commercial applications with universal 120-277V voltage and dual-mode dimming capability. The specification-grade design is wet location rated, IC-rated, and Title 24 JA8-2019 compliant.

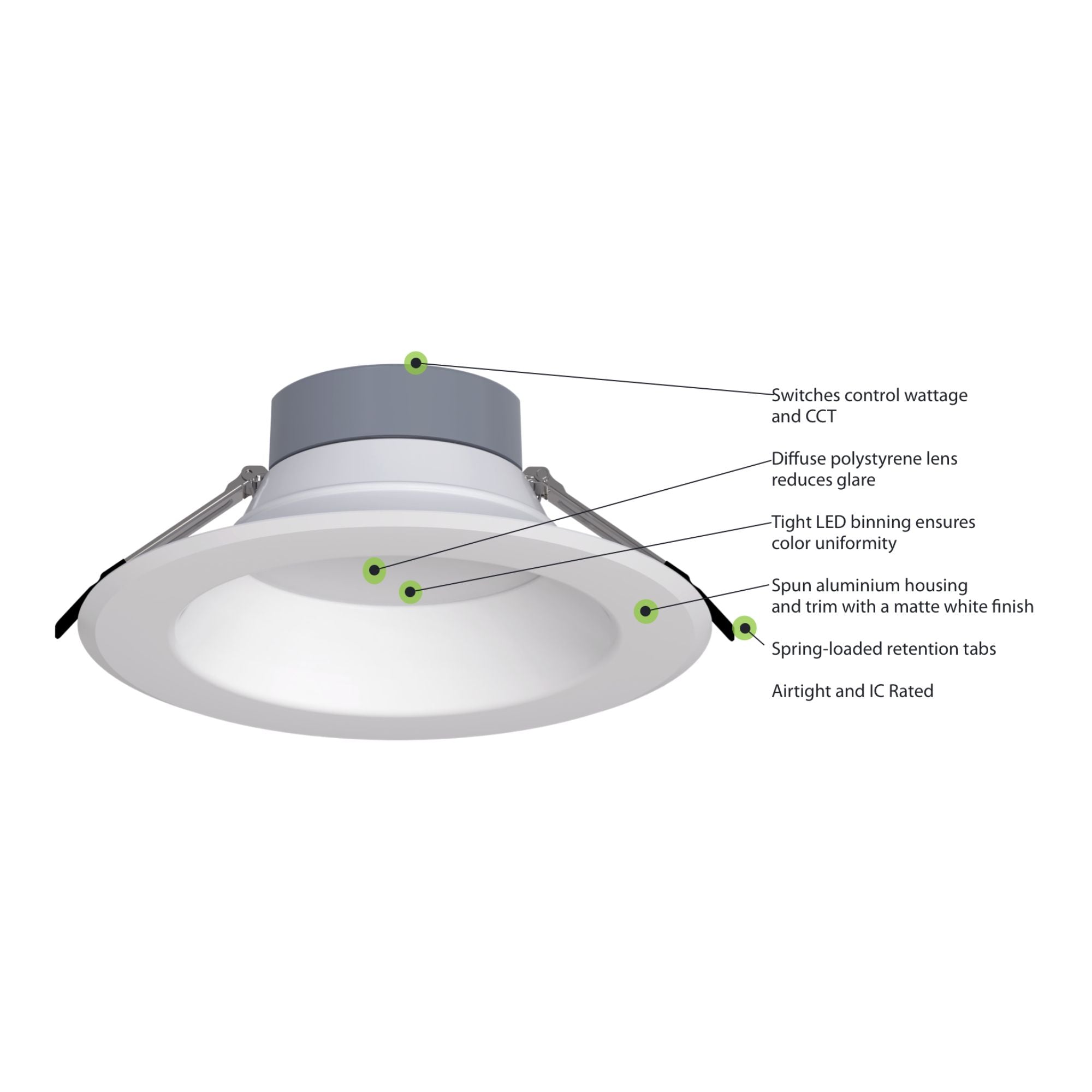

RAB CR10 Features

• Authentic RAB Quality: Genuine CR series with full 5-year manufacturer warranty
• Field-Adjustable Wattage: Select 28W, 35W, or 42W on-site without stocking multiple models
• Maximum Output: 2800-4200 lumens ideal for high-ceiling commercial spaces and general illumination
• Field-Selectable Color Temperature: Choose 3000K, 3500K, 4000K, or 5000K with built-in switch
• Universal Voltage: 120-277V driver for flexible commercial and industrial installation
• Dual-Mode Dimmable: 0-10V and TRIAC dimming compatible for maximum control flexibility

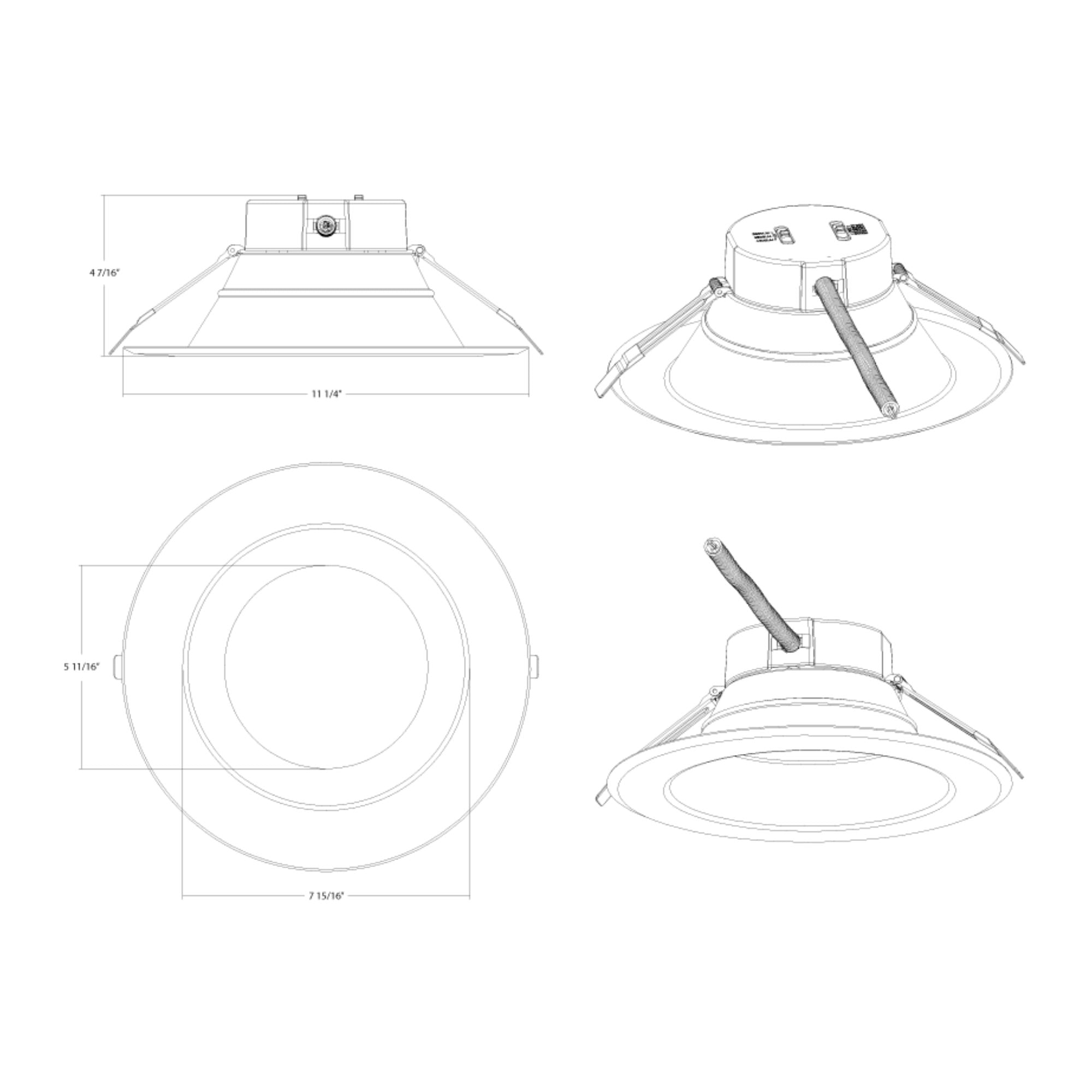

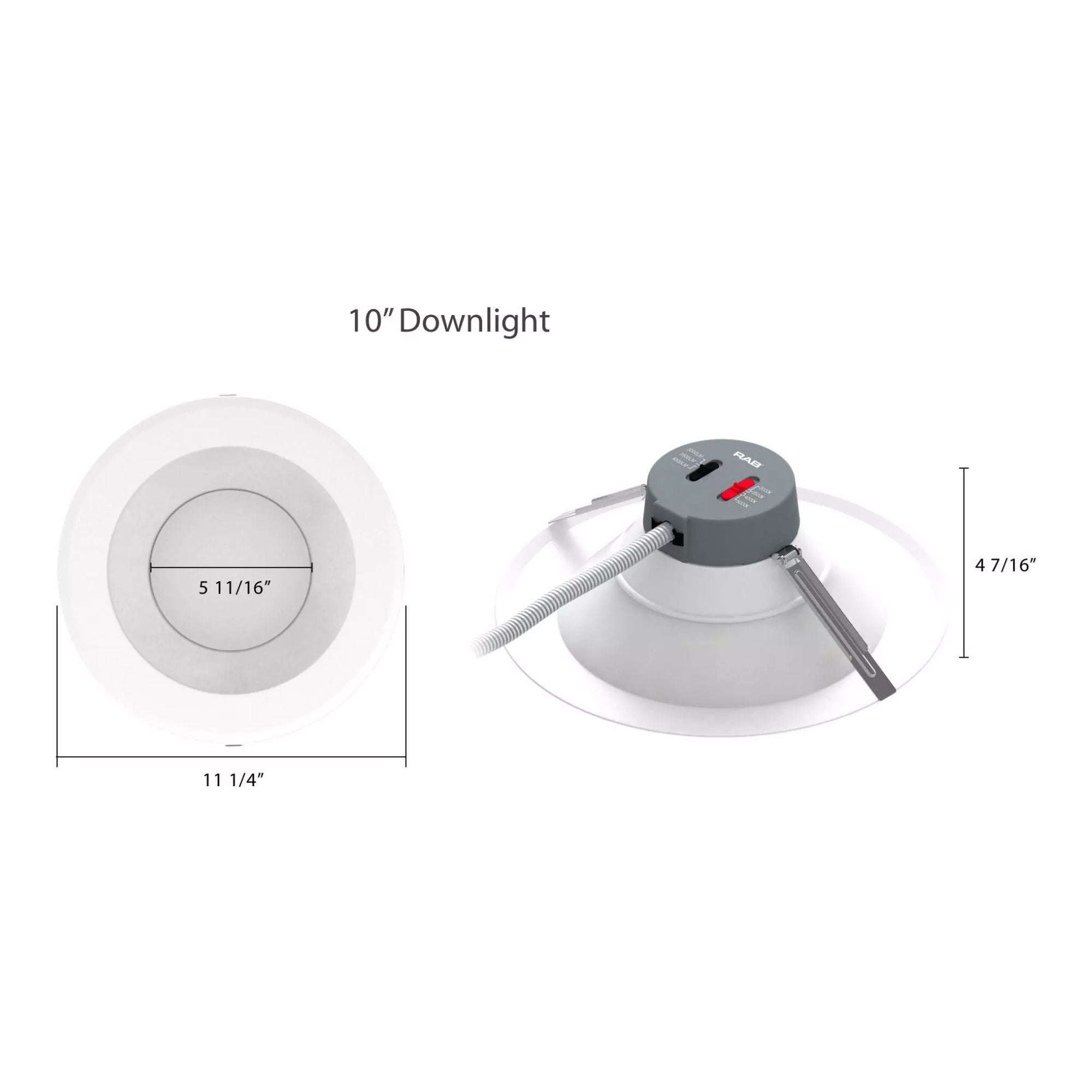

• Deep Regress Design: 10-inch commercial-grade housing for specification projects

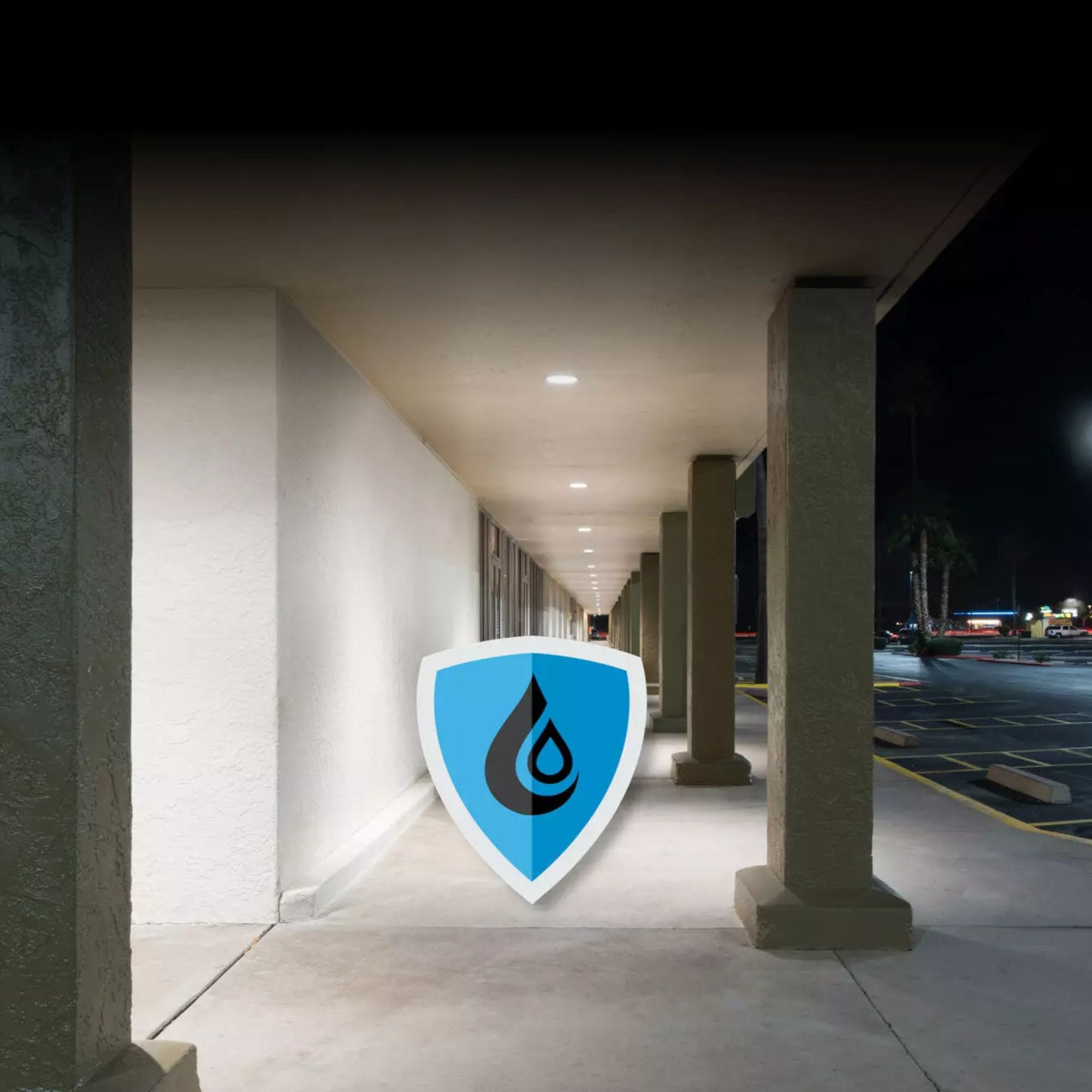

• Wet Location Rated: IP65 rated for outdoor soffits, covered walkways, and damp environments
• IC Rated: Safe for direct contact with insulation in ceiling cavities
• Superior Color Rendering: 90+ CRI for accurate color representation in commercial settings
• TAA Compliant: Meets Trade Agreements Act requirements for federal and government projects
• Title 24 JA8-2019: California Energy Code compliant for high-efficacy commercial lighting
• Energy Star & DLC Premium: Qualified for utility rebates and energy-efficient specifications
• Long-Lasting: 50,000-hour rated life (L70) for years of maintenance-free operation
• Multiple Finish Options: Available in white, matte silver, bronze, and black trim

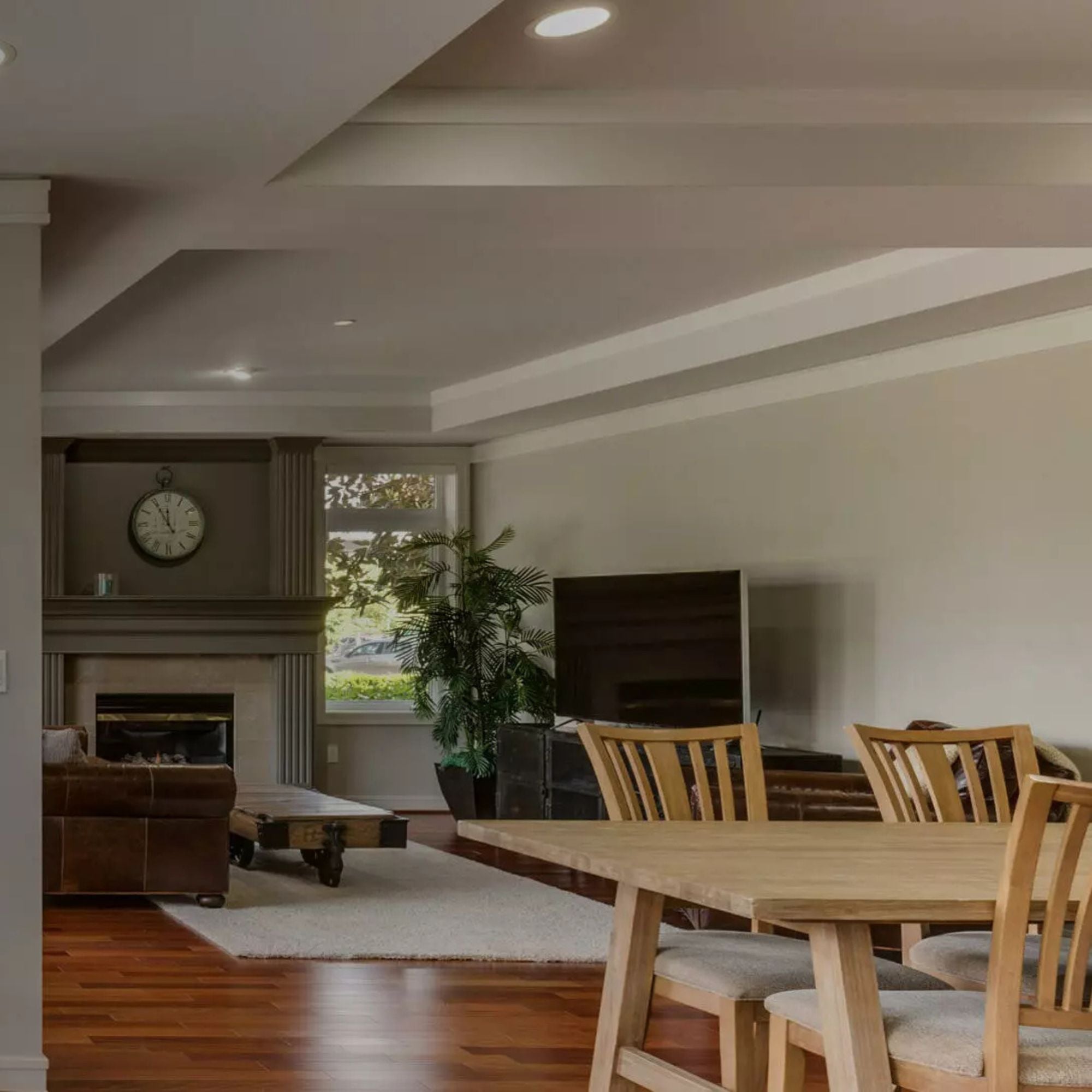

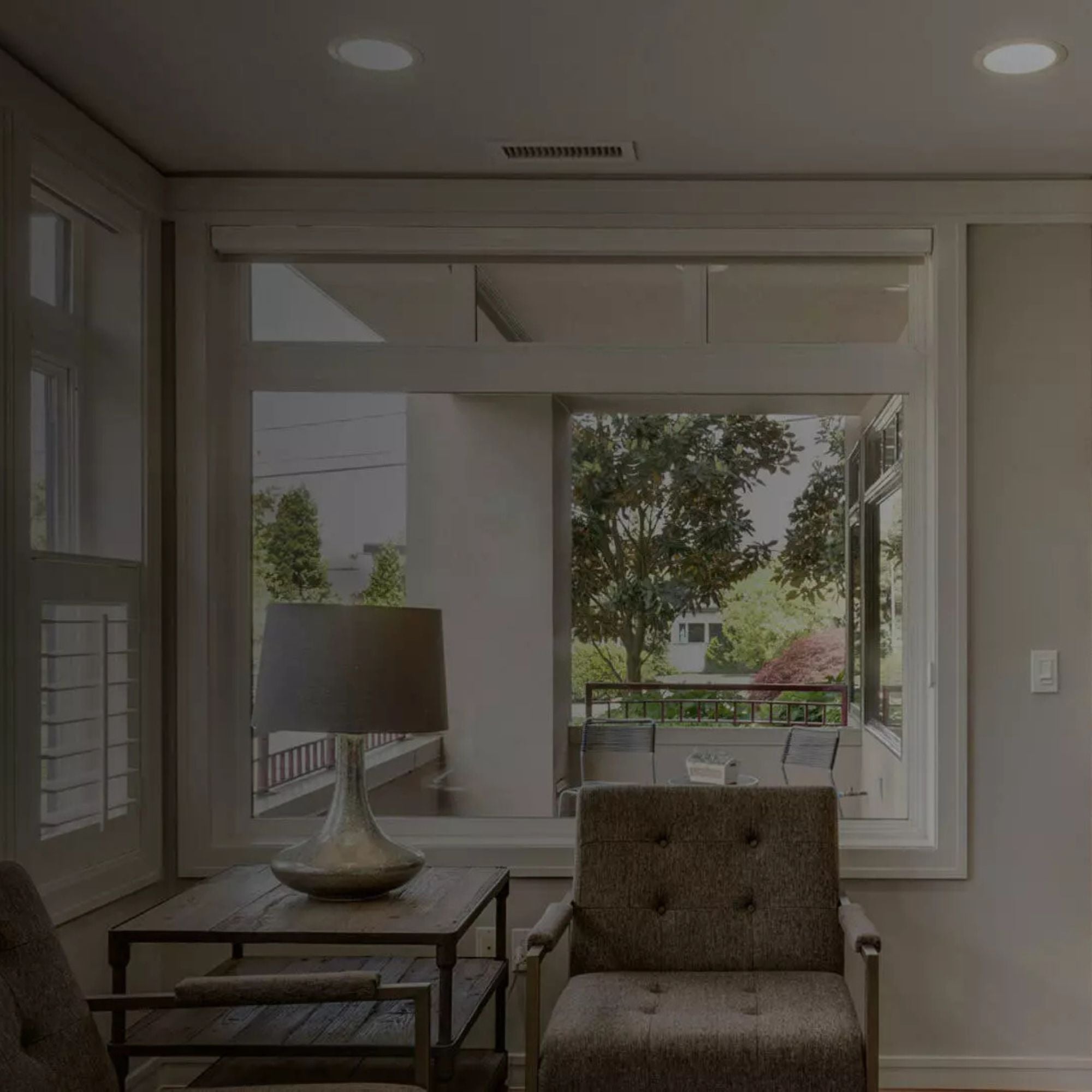

RAB CR10 Commercial LED Downlight Applications

• Commercial offices, conference rooms, and open workspaces
• Retail showrooms and display areas
• Hospitality lobbies, corridors, and guest rooms
• Healthcare facilities and patient care areas
• Educational institutions and classrooms
• Government and municipal buildings requiring TAA compliance
• High-ceiling commercial and industrial spaces
• Wet or damp locations including covered outdoor areas
• Restaurants and food service areas

Installation & What's Included

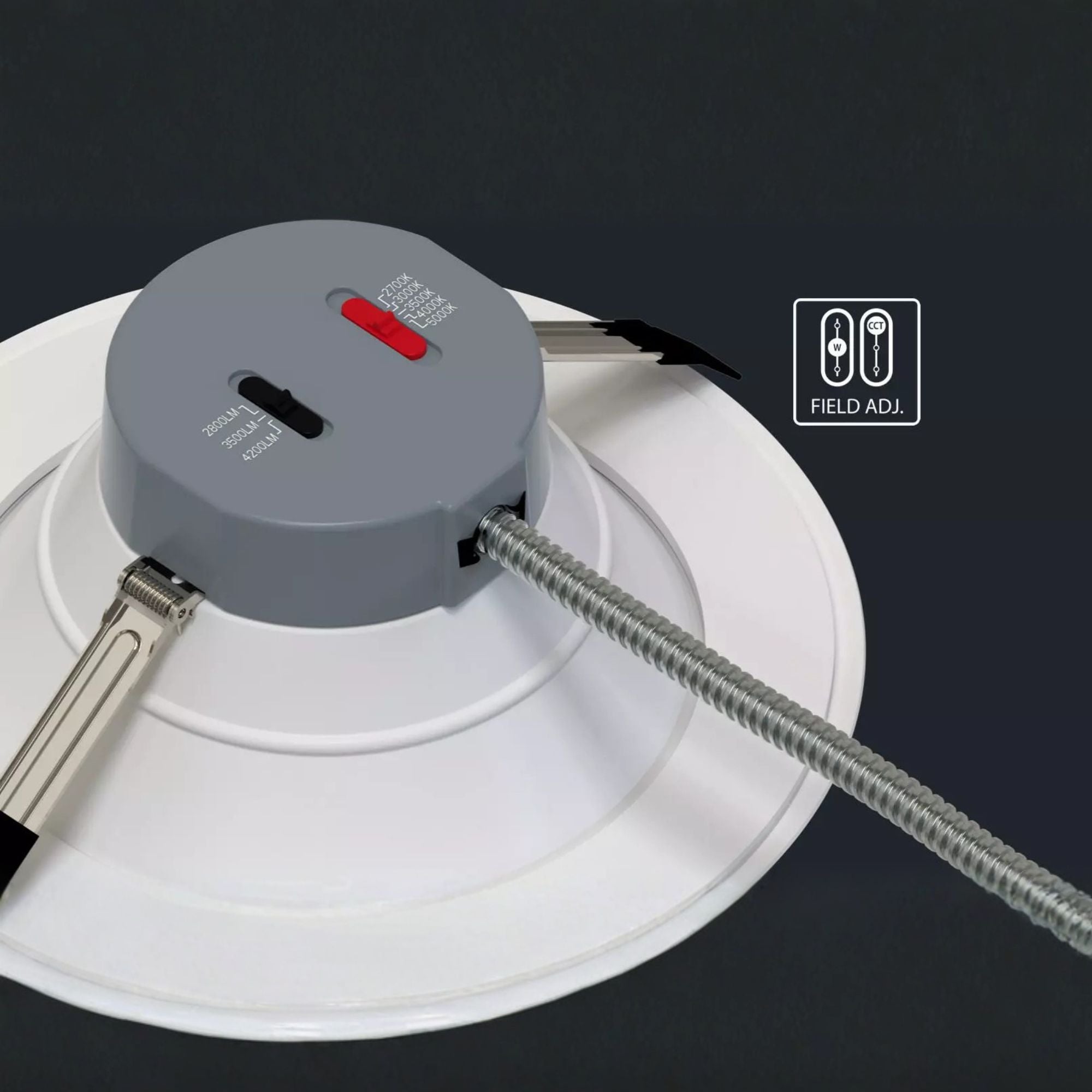

The CR10 installs into standard 10-inch IC-rated new construction or remodel housings. Field-adjustable wattage and CCT switches are accessible after installation, allowing on-site tuning without removing the fixture. Simply install into compatible housing, select your desired wattage and color temperature with the built-in switches, and connect to 120-277V power. Compatible with 0-10V and TRIAC dimming systems for flexible control integration. Wet location rating permits installation in damp or wet environments when properly sealed.

Compatible Accessories (Sold Separately)

• New Construction Housings: 10-inch IC-rated housings with nailer bars for pre-wiring in new construction
• Remodel Housings: 10-inch IC-rated housings for retrofit applications in existing ceilings
• Round Trim Rings: Decorative trim options in white, matte silver, bronze, and black for customized aesthetics
• Emergency Drivers: Code-required backup illumination for commercial egress and safety lighting
• Goof Rings: Cover oversized or irregular ceiling openings for professional-looking installations

Why Choose RAB CR Series Downlights

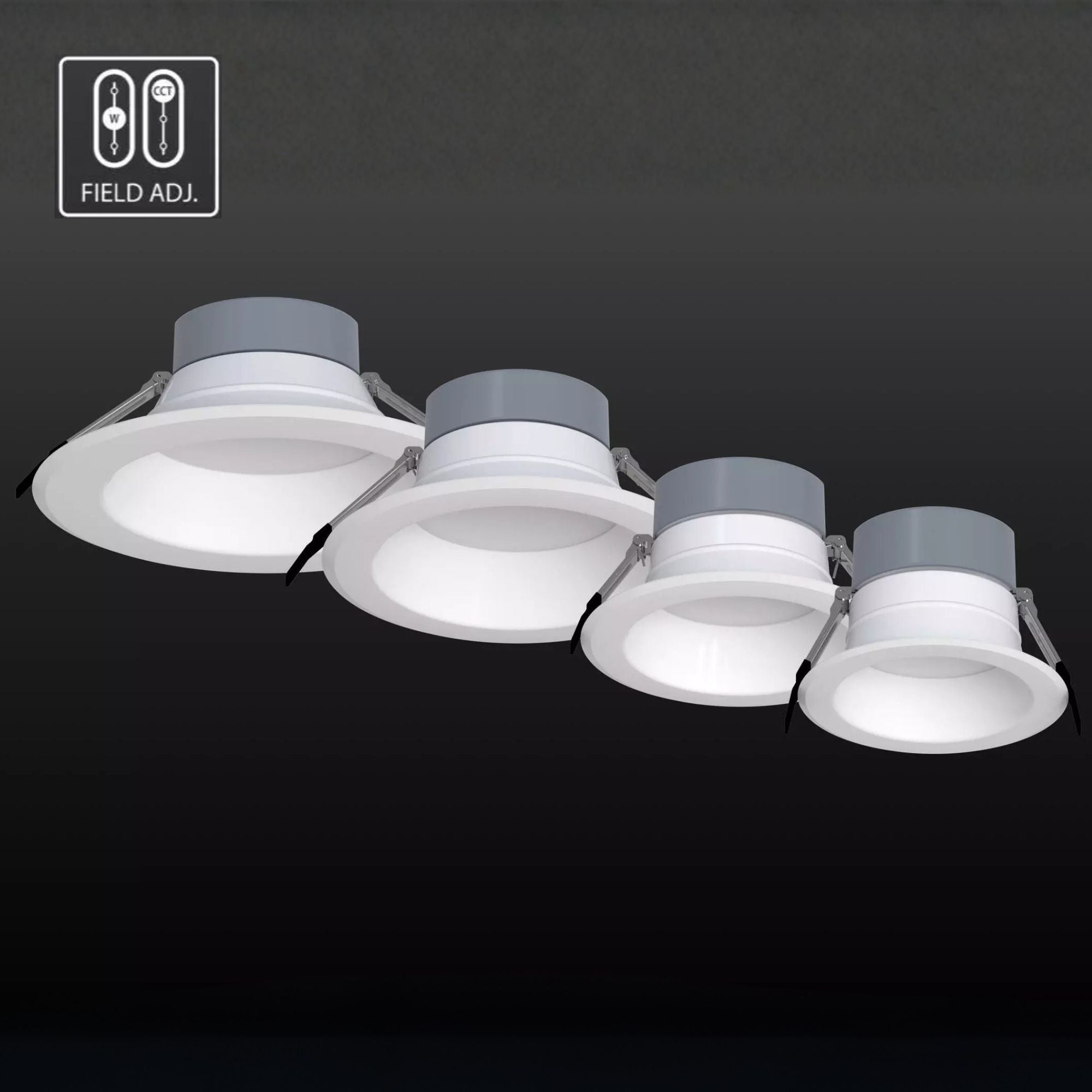

RAB's CR Commercial downlight series represents over 75 years of American lighting innovation. These field-adjustable fixtures eliminate the need for multiple SKUs with on-site wattage and CCT selection for ultimate project flexibility. The family features universal voltage for commercial applications, dual-mode dimming compatibility with any control system, and wet location rating for versatile installation. With Energy Star qualification, DLC Premium listing, Title 24 JA8 compliance, TAA compliance, 90+ CRI, and 50,000-hour rated life, RAB CR downlights deliver specification-grade performance trusted by contractors, specifiers, and facility managers nationwide.

Why Buy From Us: As an authorized RAB dealer, we guarantee 100% genuine products with full manufacturer warranty and expert customer support.
