RAB COL6RM 6 in Recessed Mount Track Head 6W Selectable CCT 120V
Available in stock (100)
About this item
About this item
- 6 in Round Recessed Downlight — COB LED / Aluminum: 36° beam angle; aluminum housing and reflector; IP20; UL Listed (damp locations); not wet rated; not IC rated; recessed mount; weight: 0.8 lbs; available in white and black finishes
- Field-Selectable CCT: 3000K / 4000K / 5000K via dip switch (factory default: 4000K); TRIAC dimmable (120V only); dim to off: No; no 2700K or 3500K
- 6W / 554–588 lm / 95.5–105 lm/W: CRI 93–94; 36° beam angle; L70: 100,000 hrs (IES LM-80 + TM-21); color stability per ANSI C78.377-2017
- TRIAC Dimmable: 120V | 0.05–0.06A | Constant Current | Class 1 | PF: ≥0.9 | THD: ≤20% | Surge: 2.5 kV | Op temp: -4°F to 104°F | 120V only (208/240/277V: 0.00A)
- DLC Listed / UL Listed (Damp): CEC: Lawful for CA; RoHS; ANSI C78.377-2017; 5-year no-compromise warranty; ENERGY STAR: No; TAA: No; not for wet locations
We process payments securely and do not store credit card information.
Description
Description

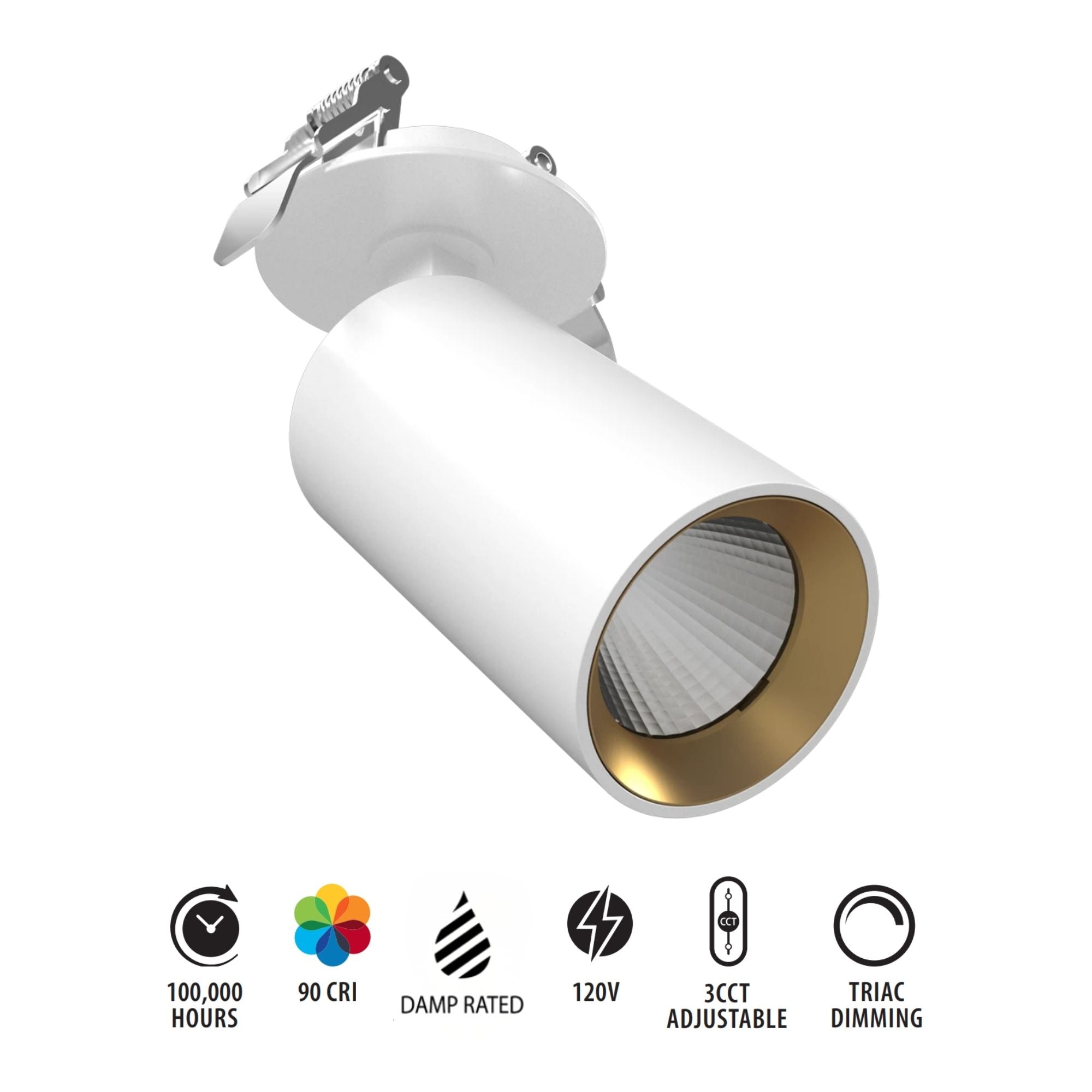

RAB COL6RM 6 in Recessed Mount Track Head — 6W / 554–588 lm / Selectable CCT / 120V
The RAB COL6RM is a 6 in round recessed mount LED track head from the COLUMN Track Light family, using a high-efficacy COB (Chip on Board) LED source. Delivering 554–588 lm at 6W (95.5–105 lm/W), with field-selectable CCT (3000K/4000K/5000K), a narrow 36° beam angle, aluminum housing and reflector, and a rated L70 lifespan of 100,000 hours. UL Listed for damp locations. DLC Listed. TRIAC dimmable at 120V. Available in white and black finishes.
Key Features
- Type: 6 in round recessed mount downlight | COLUMN Track Light family | COB (Chip on Board) LED | Aluminum housing + aluminum reflector
- Finish: Available in white and black | Formulated for high durability and long-lasting color
- Wattage: 6W nominal (input: 5.6–5.8W depending on CCT)
- Light Output: 554 lm @ 3000K | 588 lm @ 4000K | 587 lm @ 5000K
- Efficacy: 95.5 lm/W @ 3000K | 105.0 lm/W @ 4000K | 101.3 lm/W @ 5000K
- Beam Angle: 36°
- Field-Selectable CCT: 3000K / 4000K / 5000K (factory default: 4000K) | Note: 2700K and 3500K are not available
- CRI: 93 @ 3000K | 94 @ 4000K | 93 @ 5000K | Color uniformity per ANSI C78.377-2017
- Input Voltage: 120V | 60 Hz | 0.05–0.06A | 120V only (208/240/277V: 0.00A)
- Driver: Constant Current | Class 1 | PF: ≥0.9 | THD: ≤20%
- Dimming: TRIAC dimmable — see RAB Dimmer Compatibility List | Dim to off: No
- Surge Protection: Ring Wave L-N: 2.5 kV | LN-PE: 2.5 kV
- Environment: UL Listed (damp locations) | IP20 | Not wet rated | Op temp: -4°F to 104°F (-20°C to 40°C) | Weight: 0.8 lbs
- Mounting: Recessed Mount only
- Lifespan: 100,000 hours L70 (IES LM-80 + TM-21 calculations) | Warranty: 5-year no-compromise warranty
- Certifications: UL Listed (damp locations) | DLC Listed (verify QPL at designlights.org) | CEC: Lawful for CA | IESNA LM-79 & LM-80 | ANSI C78.377-2017 | RoHS
- Note: ENERGY STAR: No. TAA: No. Not IC rated. Not airtight. Not for wet locations. 120V only.
Light Output & Performance
The COL6RM delivers 554–588 lm at 6W, with efficacy up to 105 lm/W at 4000K. The 36° narrow beam angle provides focused, directional illumination ideal for accent and task lighting. The high-efficacy COB LED source delivers consistent CRI of 93–94 across all three CCT options, with color uniformity per ANSI C78.377-2017.
Electrical & Installation
The COL6RM operates at 120V / 60 Hz with a constant current Class 1 driver. TRIAC dimmable — see RAB Dimmer Compatibility List. Dim to off is not supported. 120V only; 208/240/277V not supported. Surge protection: Ring Wave L-N 2.5 kV. Minimum starting temperature: -4°F. Maximum ambient: 104°F. Recessed mount only. Not IC rated; not airtight.
Compatible Accessories (Sold Separately)

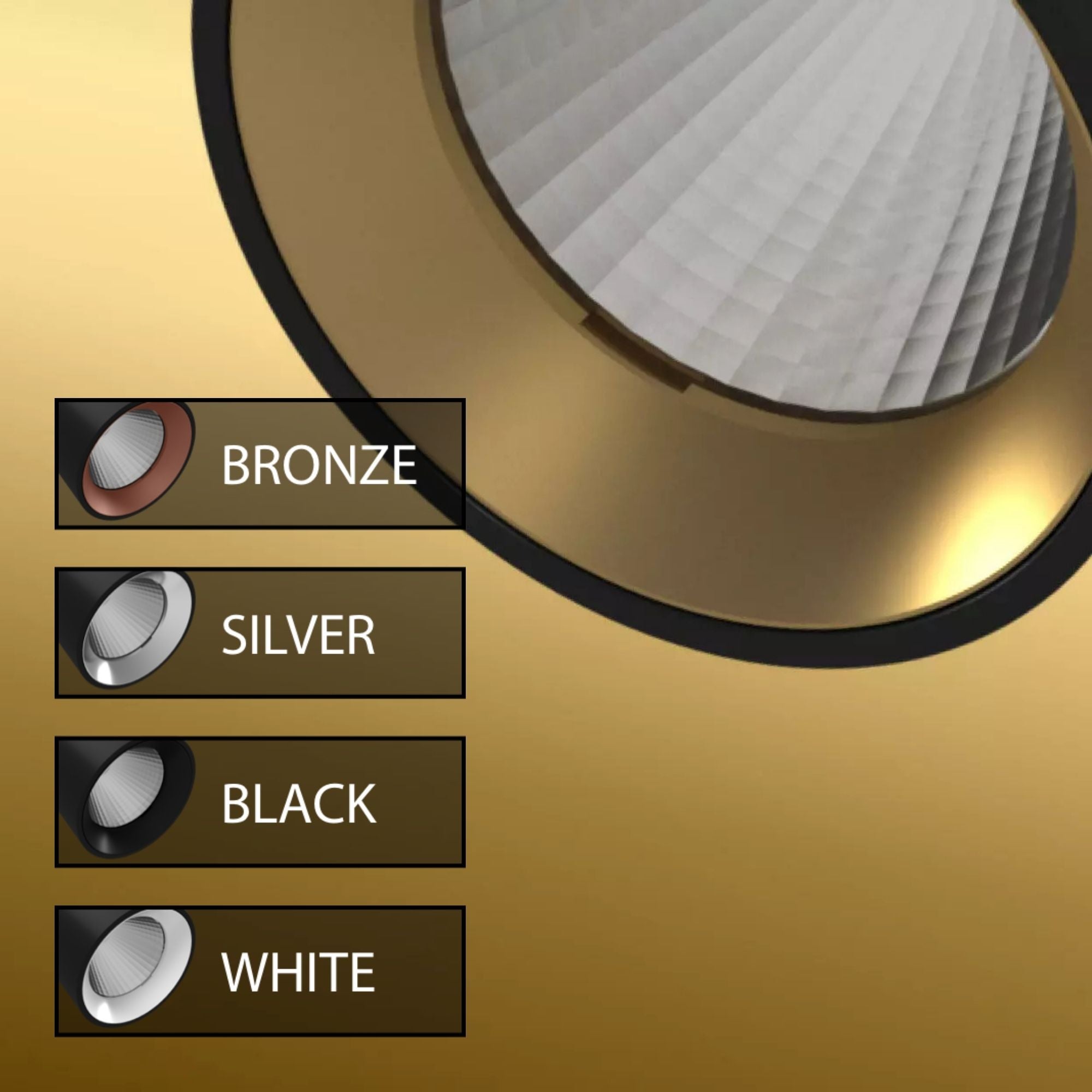

- Color Reflectors: COL-TW (white) | COL-TB (black) | COL-TS (silver) | COL-T (bronze)
Typical Applications
- Residential and commercial accent and task lighting
- Retail display and hospitality environments
- Office and general commercial spaces
- Interior dry and damp locations (not for wet/outdoor use)
- DLC-compliant commercial lighting installations
What’s Included
- RAB COL6RM 6 in recessed mount COB LED track head
