RAB Lighting Column COL6B LED Track Head

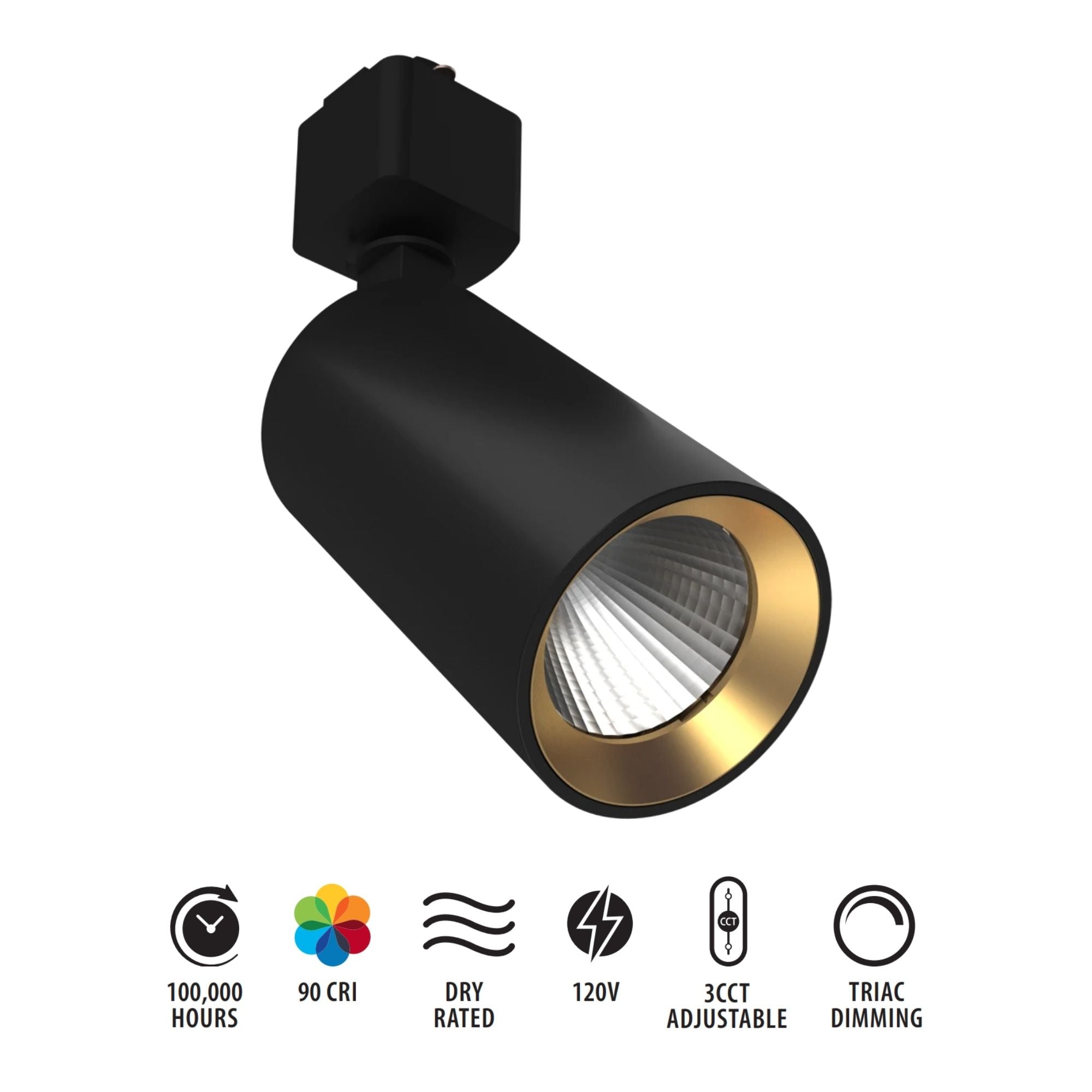

The RAB Lighting Column COL6B is a 6W integrated LED track head for H-Type track, with a black aluminum housing and included gold aluminum reflector. Select 3000K, 4000K or 5000K to suit your space. At the factory-default 4000K setting, it delivers 572 lumens with 94 CRI. Its 36° beam, 350° rotation and up to 70° tilt help direct light onto artwork, displays and work surfaces.

Key Features

• Track Compatibility: H-Type track mounting.
• Integrated Light Source: COB LED with a constant-current Class 2 driver.
• Power: 6W LED rating, with measured fixture input power of 5.9W to 6.1W depending on CCT.
• Selectable CCT: 3000K, 4000K and 5000K; factory default is 4000K.
• Default Light Output: 572 lumens at 4000K with 94 CRI.
• Focused Optics: 36° beam for accent lighting.
• Mechanical Aiming: 350° rotation and up to 70° tilt.
• Dimming: Dimmable down to 10% on compatible 120V TRIAC systems.
• Construction: Black aluminum housing with a gold aluminum reflector.
• LED Life: 100,000-hour LED lifespan based on LM-80 results and TM-21 calculations.
• Listing: UL Listed for dry locations with an IP20 rating.
• Warranty: RAB 5-year limited warranty covering light output, driver performance and paint finish, subject to warranty terms.

Construction & Design

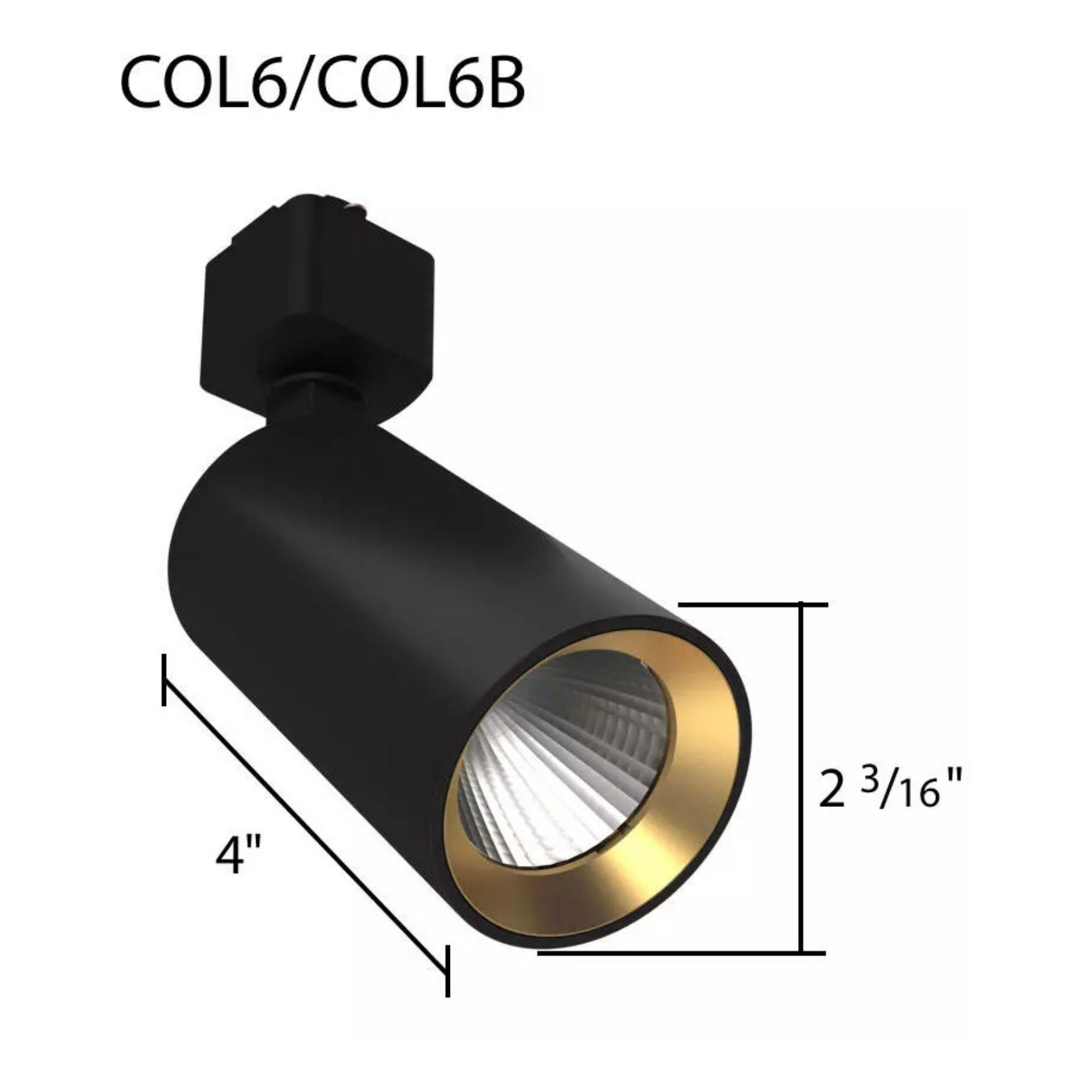

The cylindrical black aluminum head includes a gold aluminum reflector. Overall height is 6 1/4 in, with a 4 in head height and 2 3/16 in head width. The head rotates through 350° and tilts up to 70° to direct its 36° beam.

Light Output & Performance

At the fixed 36° beam angle, output is 537 lumens at 3000K, 572 lumens at 4000K and 571 lumens at 5000K. CRI is 93 at 3000K and 5000K, and 94 at 4000K. Measured input power is 6.1W, 5.9W and 6.1W, respectively. The integrated COB LED has a 100,000-hour rated lifespan.

Electrical & Installation

RAB Lighting COL6B mounts to H-Type track and operates at 120V, 60Hz. Its constant-current Class 2 driver powers the integrated 6W COB LED, so a separate lamp is not required. Select 3000K, 4000K or 5000K; the factory default is 4000K. Compatible 120V TRIAC dimming systems support dimming down to 10%. Install in dry locations. Minimum starting temperature is -4°F (-20°C), and maximum ambient temperature is 104°F (40°C).

Compatible Accessories

Matching black RAB H-Type track components and optional reflectors, sold separately.

• Track Rails: TK2/B (2 ft), TK4/B (4 ft), TK6/B (6 ft) and TK8/B (8 ft).
• Power Feeds: TK-EF/B top-access end feed, TK-JB/B junction-box end feed with cover and TK-FC/B floating canopy feed.
• Joiners: TK-I/B linear, TK-L/B L-shaped, TK-T/B T-shaped and TK-X/B X-shaped.
• End Cap: TK-EC/B finishes exposed track ends.
• Reflector Options: COL-TW white, COL-TB black, COL-TS silver and COL-T bronze, each compatible with COL6B as an alternative to the included gold reflector.

Typical Applications

• Residential artwork accents.
• Retail merchandise displays.
• Interior wall accents.
• Workspace lighting.

What's Included

• RAB Lighting COL6B black LED track head with gold aluminum reflector, integrated COB LED and constant-current Class 2 driver.
