Description

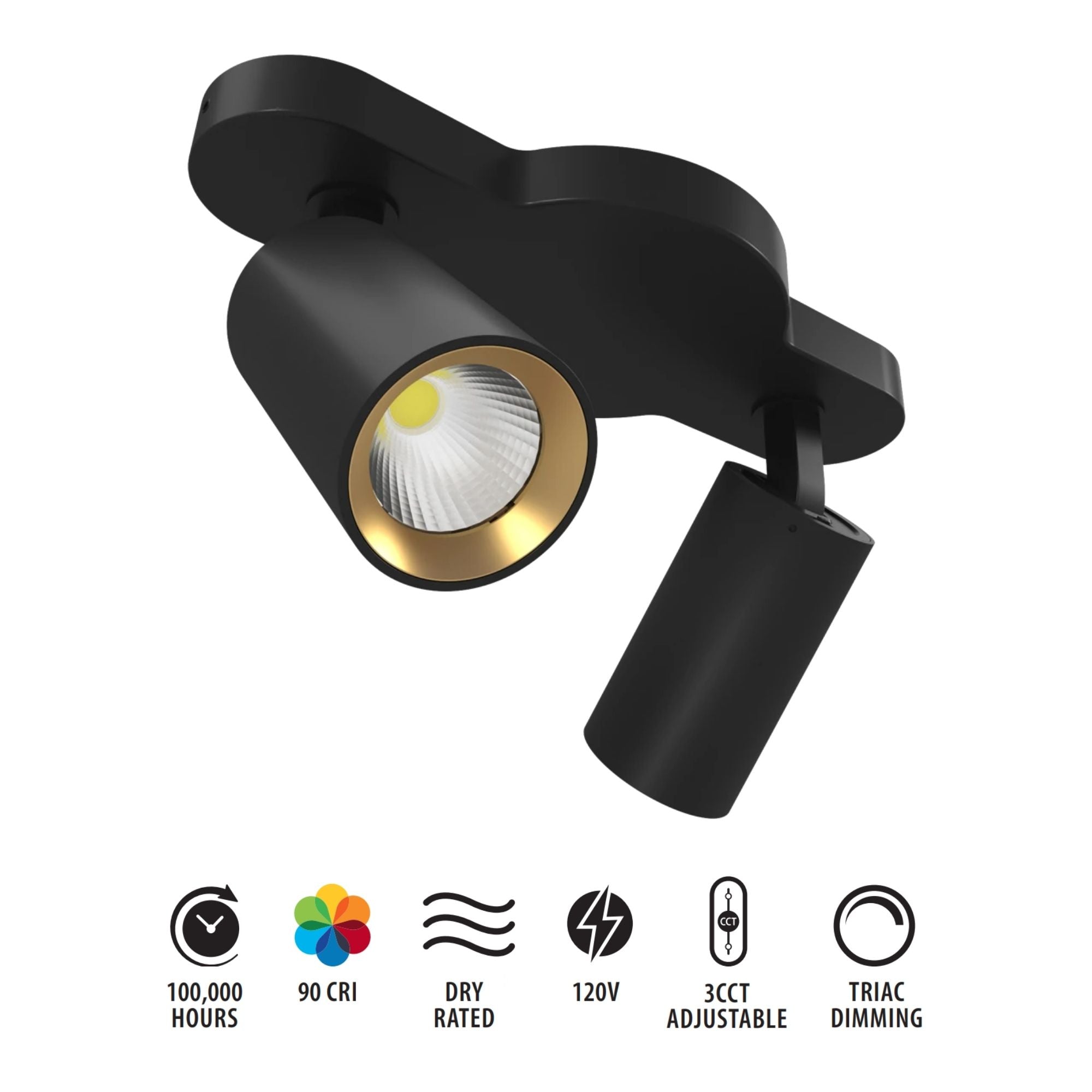

RAB Lighting Column COL12LM2B LED Fixed Rail Track Light

The RAB Lighting Column COL12LM2B fixed rail track light pairs two adjustable COB LED heads with a compact linear surface-mount base in Black. Standard gold reflectors add a warm decorative accent, while 350° rotation and up to 70° tilt let you direct light onto artwork, displays or work surfaces. This 12W fixture offers 3000K, 4000K and 5000K selectable CCT, factory-set to 4000K, with 1068–1136 lumens and 93–94 CRI.

Key Features

  • Fixture Type: Complete two-light linear surface-mount LED fixed rail track light.
  • LED System: Integrated COB LEDs, 12W nominal total.
  • Selectable CCT: 3000K, 4000K and 5000K, factory default 4000K.
  • Light Output: 1068 lumens at 3000K, 1135 lumens at 4000K, 1136 lumens at 5000K.
  • Color Rendering: 93 CRI at 3000K and 5000K, 94 CRI at 4000K.
  • Optics: 36° beam with included gold reflectors.

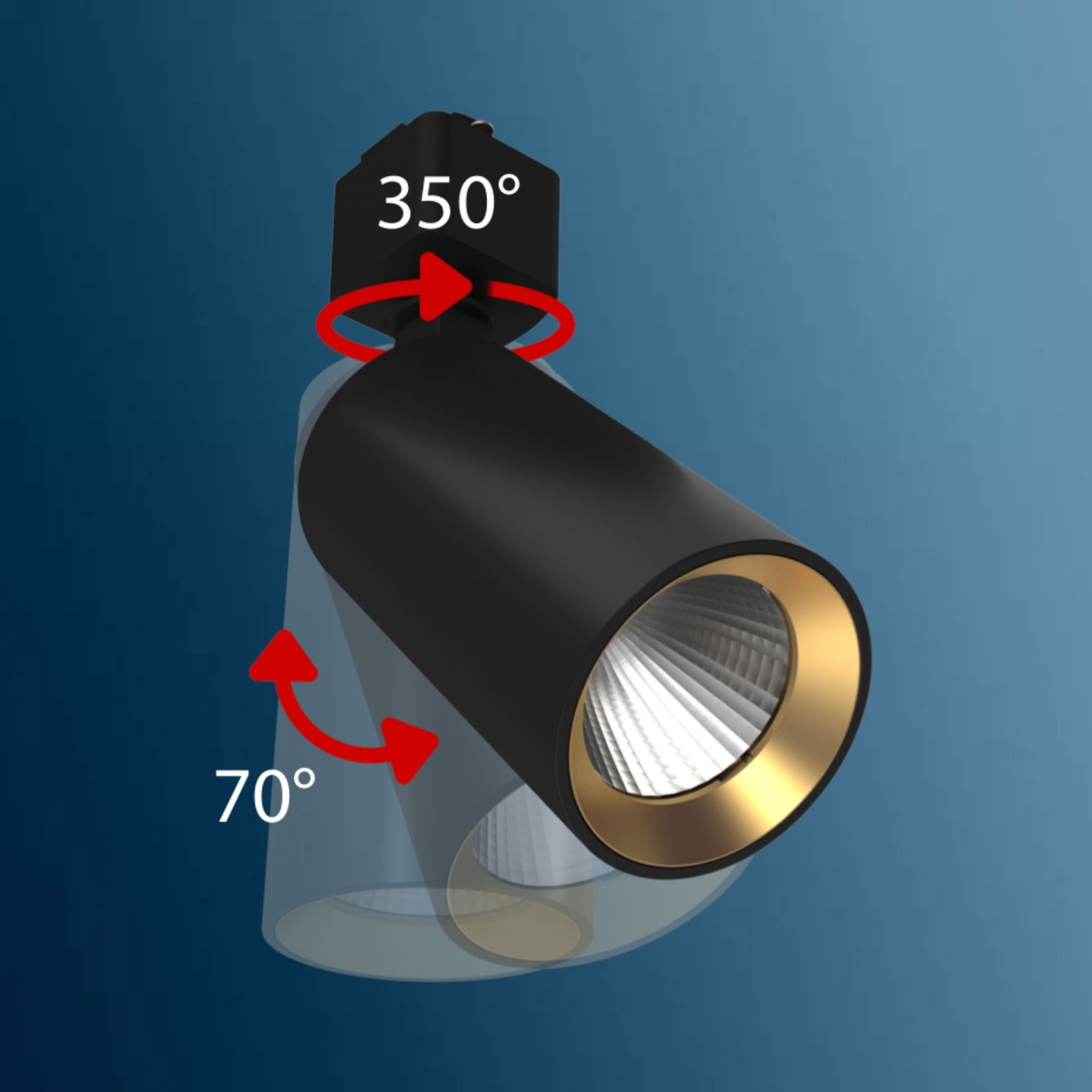

  • Aiming: Each head rotates 350° and tilts up to 70°.
  • Dimming: Compatible 120V TRIAC dimming down to 10%.
  • Construction: Aluminum housing and reflectors, Black exterior.

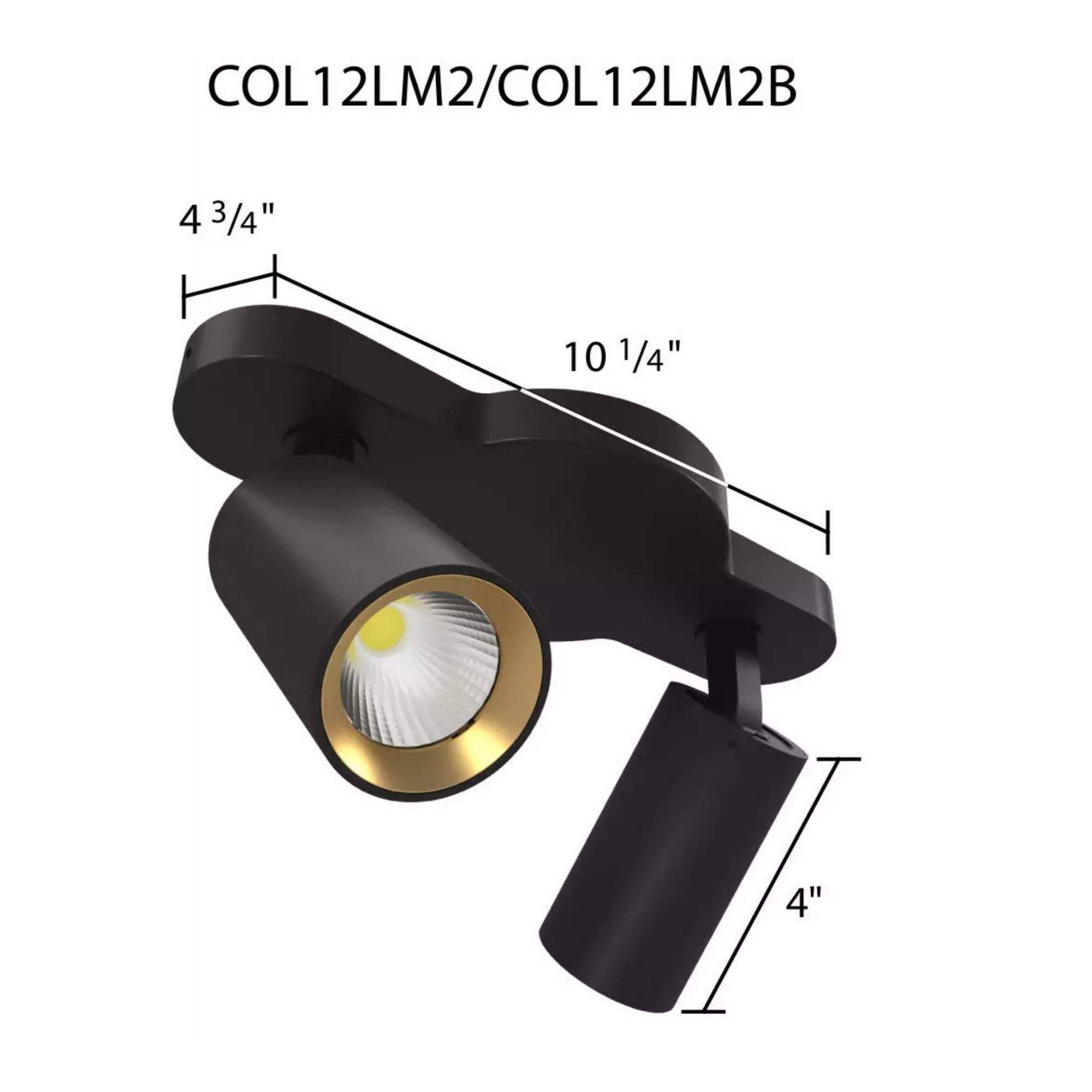

  • Dimensions: 10 1/4 in long, 4 3/4 in base width, 5 11/16 in overall height.
  • Electrical: 120V, 60Hz, Class 2 constant-current driver.
  • Life & Rating: 100,000-hour L70 life, UL listed for dry locations, IP20.

Construction & Design

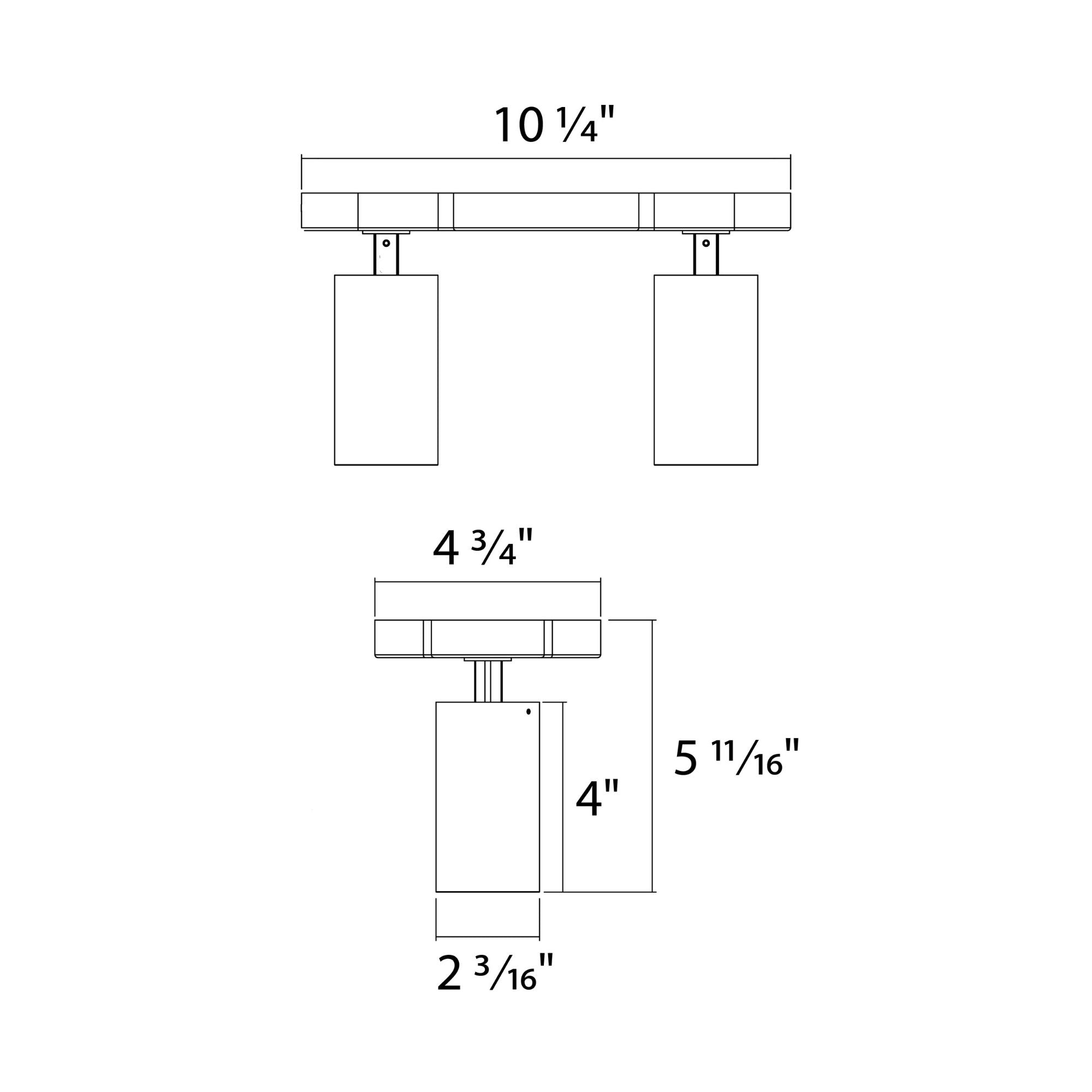

This Black fixed rail track light is designed strictly for surface mounting. Two cylindrical heads sit beneath a linear base, with gold reflectors included as standard. The aluminum housing and reflectors provide a coordinated, compact design. The fixture measures 10 1/4 in long, 4 3/4 in across the base and 5 11/16 in high. Each head measures 4 in high and 2 3/16 in across. Fixture weight is 2.2 lb.

Light Output & Performance

  • 3000K: 1068 lumens, 11.9W input, 89.7 lm/W, 93 CRI.
  • 4000K: 1135 lumens, 11.5W input, 98.7 lm/W, 94 CRI, factory default.
  • 5000K: 1136 lumens, 11.9W input, 95.5 lm/W, 93 CRI.

The 36° optics deliver directional illumination, with independent head adjustment for task and accent lighting. Compatible TRIAC dimming down to 10% adjusts brightness. Rated L70 life is 100,000 hours, based on LM-80 results and TM-21 calculations.

Electrical & Installation

The RAB Lighting COL12LM2B is a complete surface-mount fixture operating on 120V, 60Hz with a Class 2 constant-current driver. It supports compatible 120V TRIAC dimmers. Choose 3000K, 4000K or 5000K during installation; the factory setting is 4000K. The fixture is UL listed for dry locations and IP20 rated. Minimum starting temperature is -4°F (-20°C), with a maximum ambient operating temperature of 104°F (40°C).

Compatible Accessories

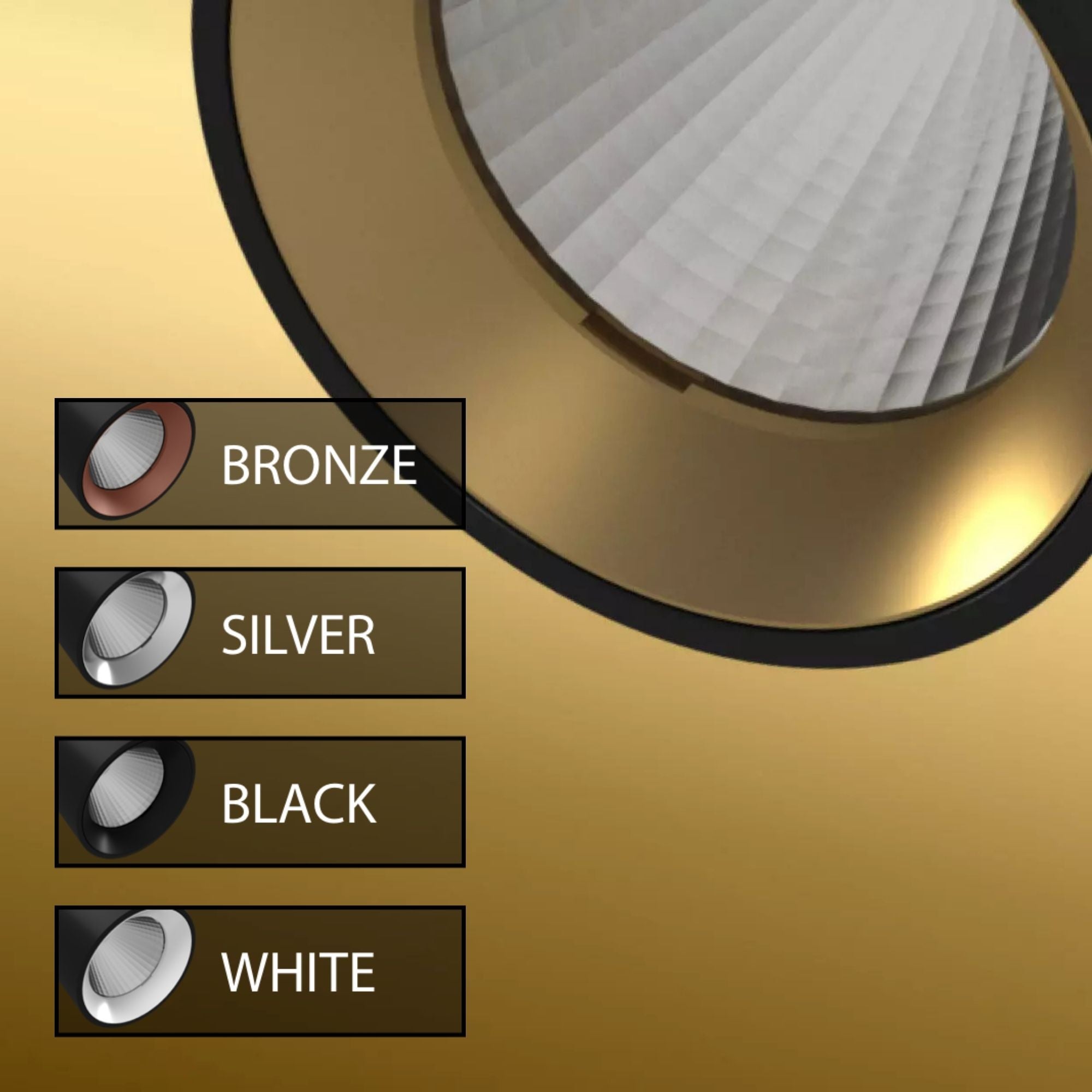

Gold reflectors are included. Optional Column reflectors change the decorative reflector finish and are sold separately.

  • COL-TB: Black reflector.
  • COL-TW: White reflector.
  • COL-TS: Silver reflector.
  • COL-T: Bronze reflector.

Typical Applications

  • Interior artwork and accent lighting.
  • Kitchen task surfaces.
  • Home office work areas.
  • Interior retail displays.

What's Included

  • One RAB Lighting Column COL12LM2B Black linear surface-mount fixture with two adjustable integrated COB LED heads, standard gold reflectors and driver.

Specifications

Dimensions

Length/Depth
10.25 in
Width/Diameter
2.19 in
Height
5.69 in
Weight
2 lb

Style & Materials

Finish
Black
Material
Aluminum
Style
Contemporary Modern

Characteristics & Features

Lamp Source
LED
Base Type
Integrated
Bulb Included
Yes
Integrated LED
Yes
Bulb
Integrated LED
Number of Lights
2
Lamp Color
3000K, 4000K, 5000K, Selectable CCT
Color Rendering
93 CRI
Delivered Lumens
1136
Beam Angle
36
Dimmable
Yes

Electrical Information

Voltage
120V
Total Wattage
12W

Item Details

MPN
COL12LM2B
Brand
RAB Lighting
Family
Column
UPC
192552058001

Warranty & Certifications

Product Warranty
5-Year Limited
Lamp Life
100,000 Hours
Product Rating
Dry
Safety Listing
UL

Shipping & Returns

Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.

Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.

See Full Shipping Policy | See Full Return Policy

Frequently Asked Questions

Is the RAB Lighting COL12LM2B a complete surface-mount fixture?

Yes, the RAB Lighting COL12LM2B is a complete two-head Column linear surface-mount fixture with integrated COB LEDs and standard gold reflectors. This model is designed strictly for surface mounting, not as an interchangeable H-Type track head.

Can the heads and color temperature on the RAB Lighting COL12LM2B be adjusted?

Yes, each head on the RAB Lighting COL12LM2B rotates 350° and tilts up to 70°. Selectable CCT settings are 3000K, 4000K and 5000K, with 4000K as the factory default.

Is the RAB Lighting COL12LM2B dimmable?

Yes, the RAB Lighting COL12LM2B supports compatible 120V TRIAC dimming down to 10%. It operates on 120V, 60Hz with a Class 2 constant-current driver.

What light output does the RAB Lighting COL12LM2B provide?

The RAB Lighting COL12LM2B provides 1068 lumens at 3000K, 1135 lumens at 4000K and 1136 lumens at 5000K. Input power is 11.9W, 11.5W and 11.9W, with efficacy of 89.7, 98.7 and 95.5 lm/W respectively. CRI is 93, 94 and 93 respectively. It has 36° optics and a 100,000-hour L70 life.

What are the dimensions and location rating of the RAB Lighting COL12LM2B?

The RAB Lighting COL12LM2B measures 10 1/4 in long, 4 3/4 in across the base and 5 11/16 in high and weighs 2.2 lb. It is UL listed for dry locations and IP20 rated, with a minimum starting temperature of -4°F (-20°C) and maximum ambient operating temperature of 104°F (40°C).
