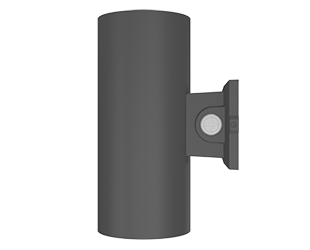

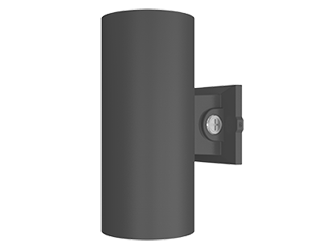

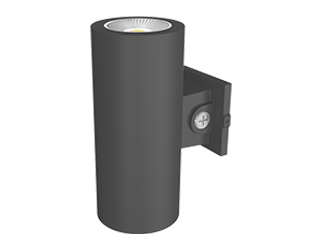

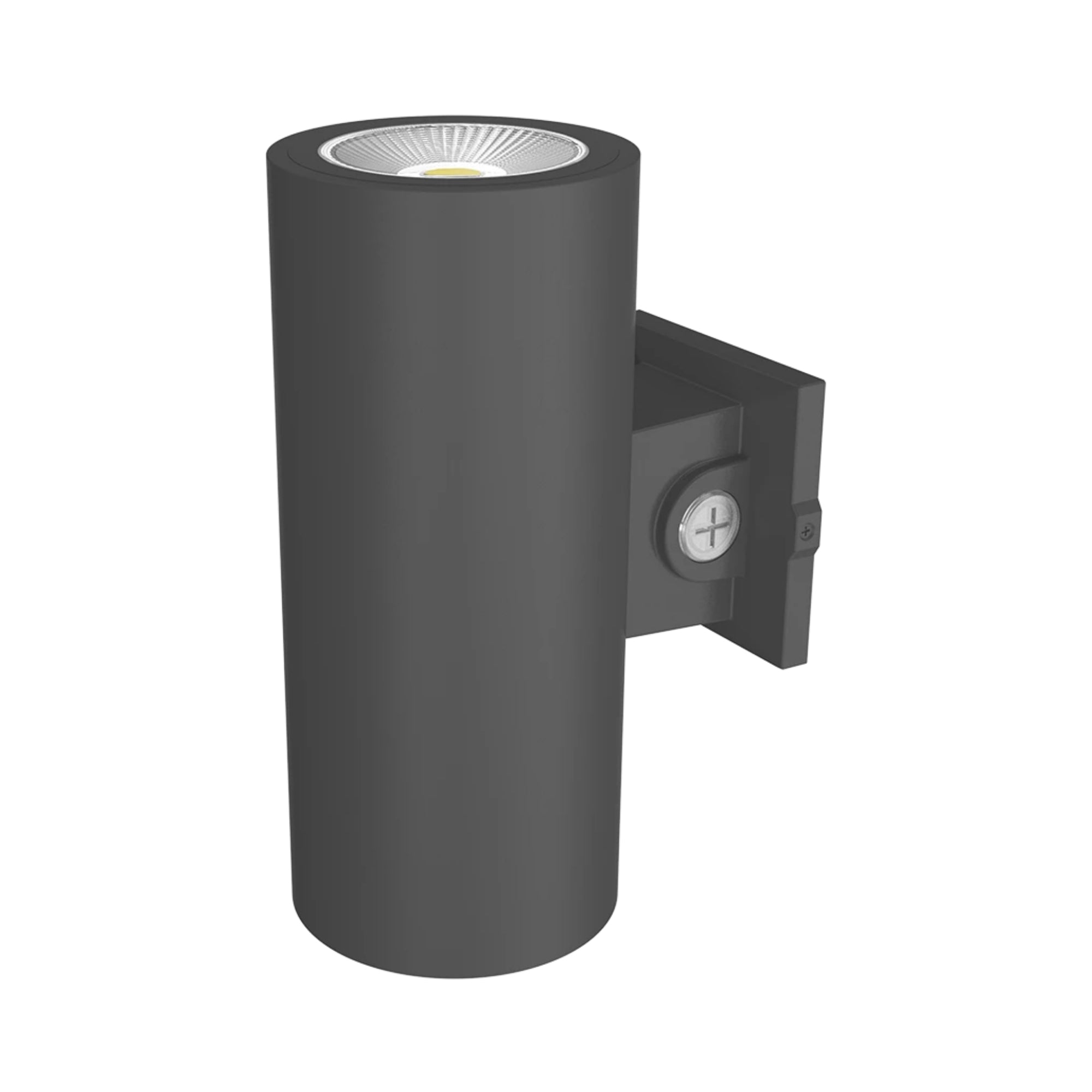

6" Bronze LED Cylinder Wall Light, 36W, 3300lm, Up/Down, Selectable CCT, 120-277V
Available in stock (1206)
About this item
About this item
- Grand Bronze Finish: The warm bronze metallic finish provides a sophisticated architectural look for professional entryways and courtyards.
- Interchangeable Optics: Features a customizable system with swappable lenses, allowing for field adjustment of the beam spread after installation.
- Industrial Efficacy: Delivers powerful illumination at 95 lm/W, meeting strict California CEC standards for high-performance energy efficiency.
- Independently Tested: Verified to IESNA LM-79 and LM-80 standards, ensuring long-term lumen maintenance and professional reliability.
- 5-Year Warranty: Backed by a 5-year limited warranty on the finish, driver, and LED module for ultimate peace of mind.
We process payments securely and do not store credit card information.
Description
Description

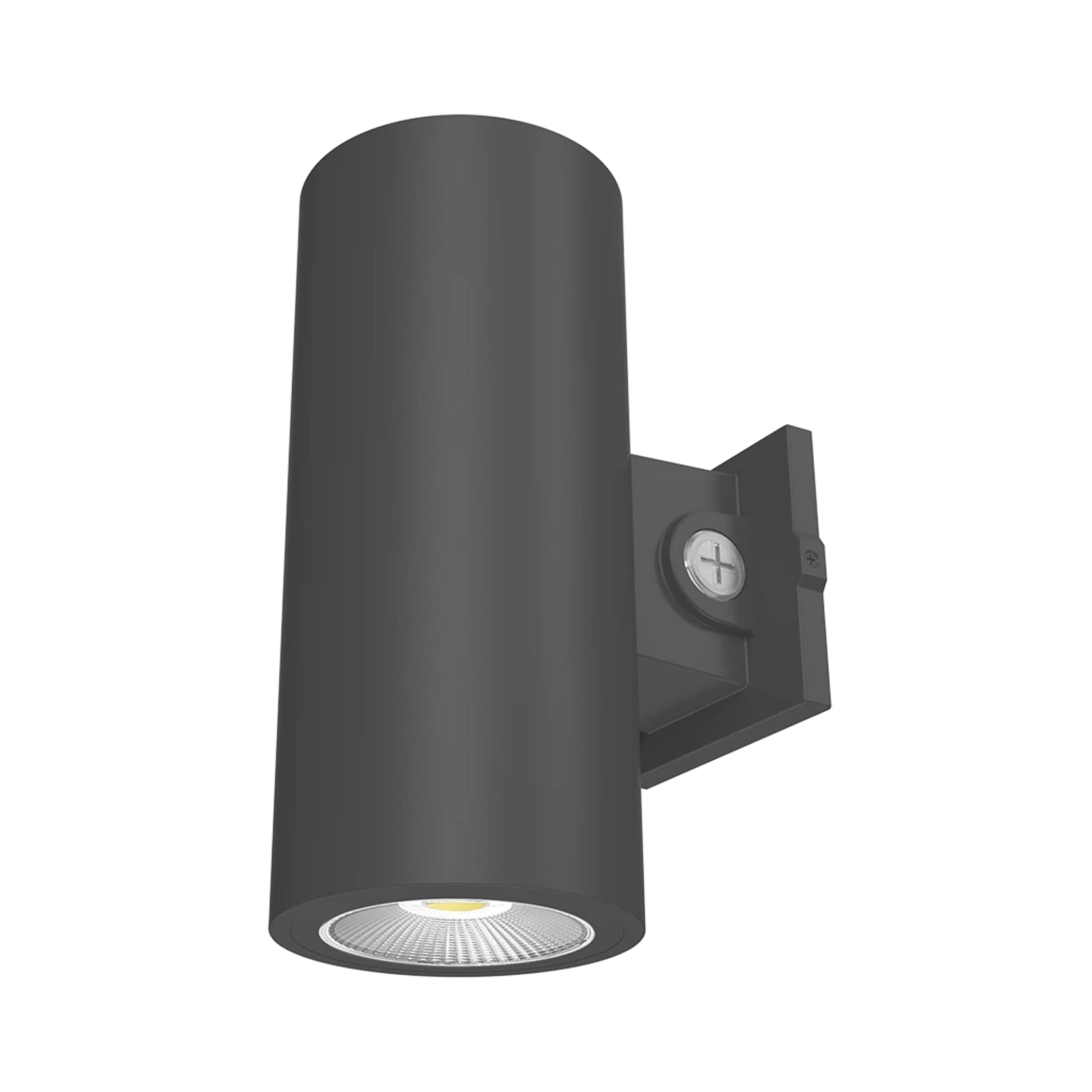

The RAB CD34-6WZ transforms exterior and interior walls with powerful up/down lighting from a 6-inch bronze cylinder. With field-selectable wattage (36W/28W/22W), field-selectable color temperatures from 3000K to 5000K, and delivering up to 3300 lumens, this wall mount fixture provides dramatic architectural accent lighting for building facades, exterior entryways, courtyards, and commercial exteriors where warm metallic finishes enhance architectural features.
Performance Features
- Field-selectable wattage: 36W/28W/22W for adjustable power output
- Up to 3300/2750/2100 lumens (varies by wattage and CCT selection)
- Field-selectable CCT: 3000K/4000K/5000K (outdoor)
- 95 lm/W for powerful, efficient illumination
- 25° field-swappable optic installed for focused beam control
- Selectable up, down, or both light direction control
- 0-10V dimming compatible with 120-277V systems
Construction & Design
- Die-cast aluminum housing with bronze anti-UV finish
- 6-inch cylinder designed for wall mount applications

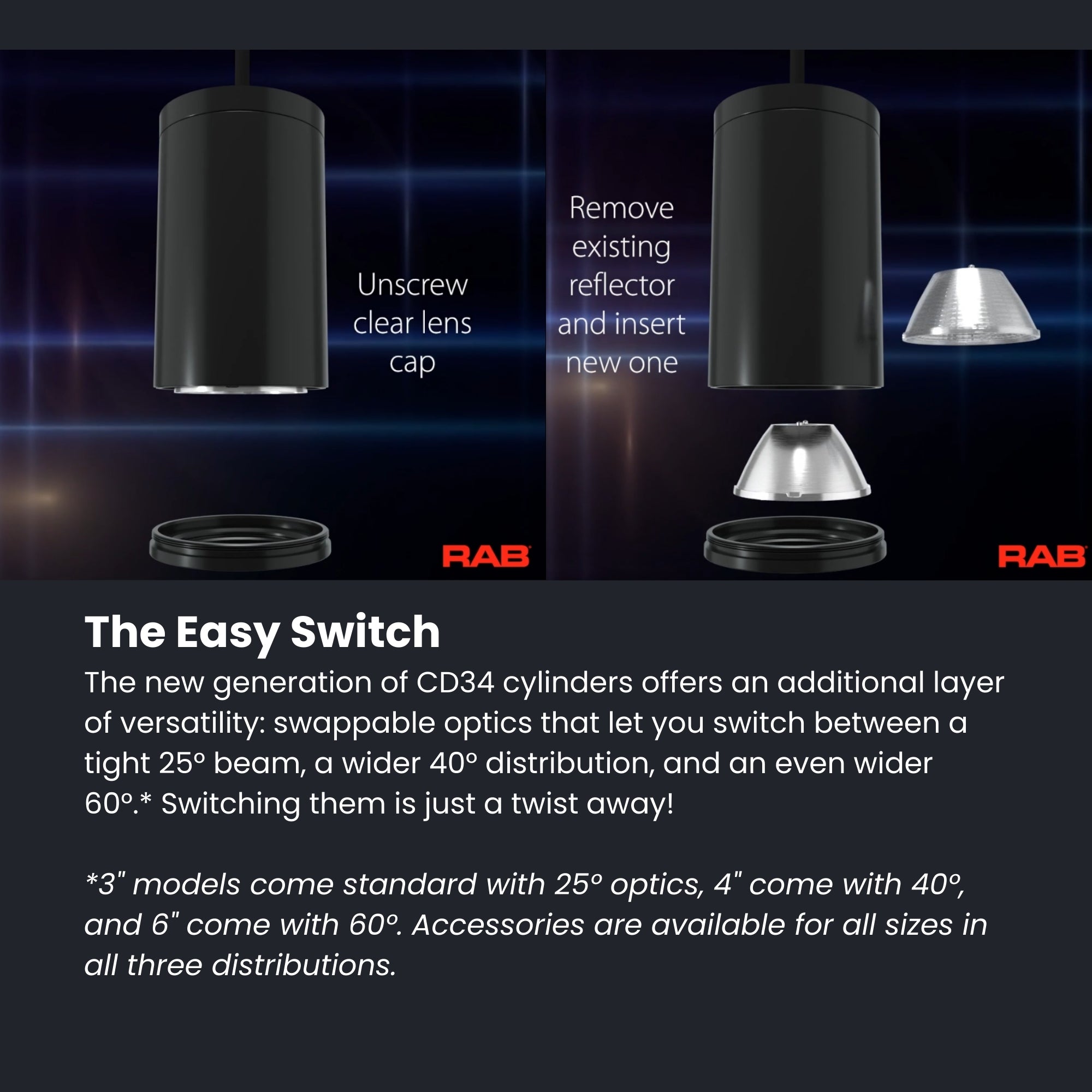

- Interchangeable optics and lenses for beam customization
- Clear lens factory-installed; frosted lenses available

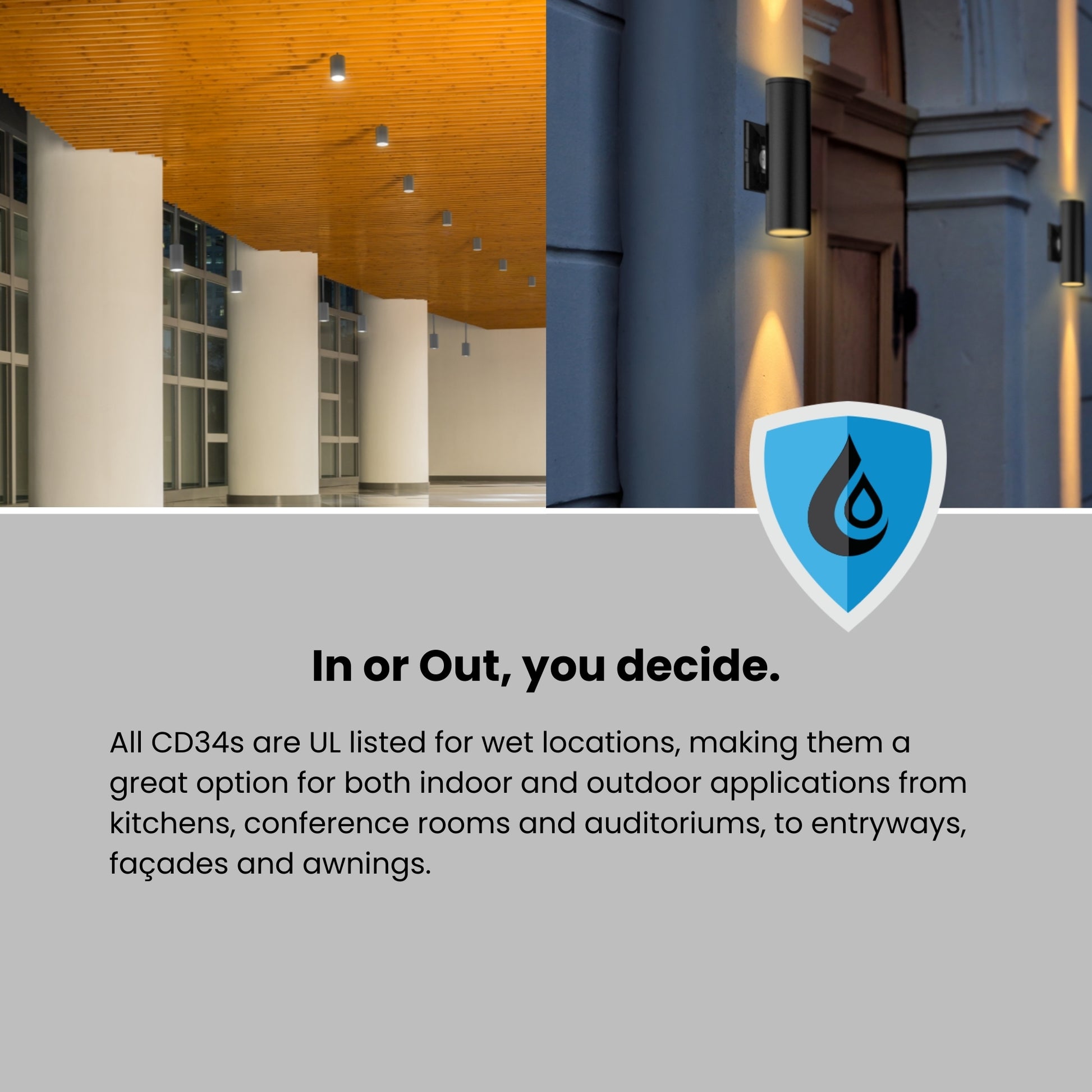

- IP65 wet location rating for outdoor durability
- Integrated photocell with manual on/off control in housing
Installation & Electrical

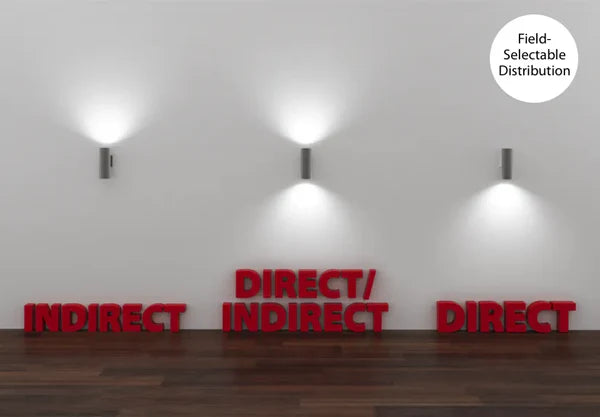

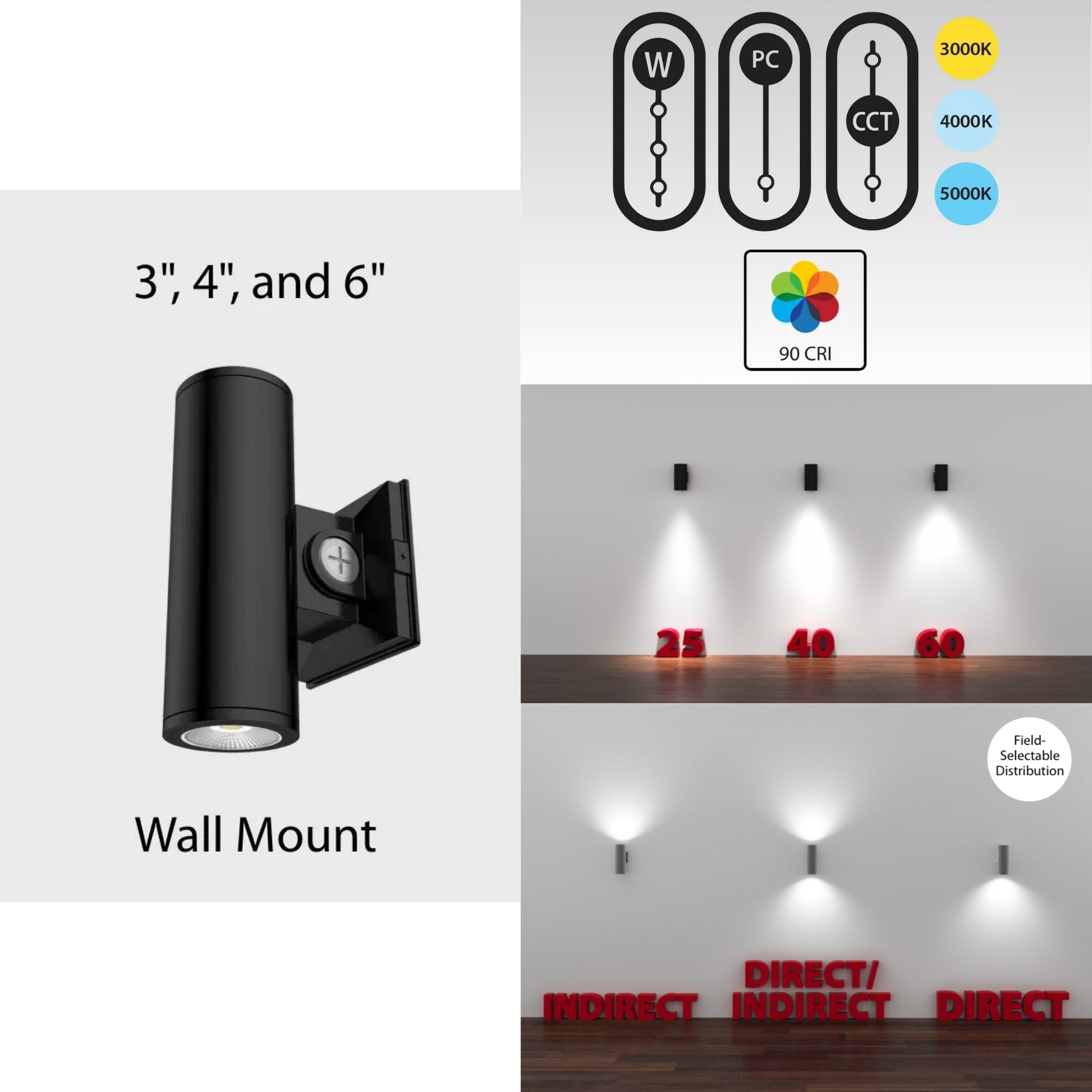

- Wall mount with direct, indirect, or full light modes
- 120-277V constant current driver, 50-60 Hz
- Operating temperature: -40°F to 120°F (-40°C to 45°C)
- Selectable light direction: up, down, or both
- UL Listed for dry, damp, and wet locations
LED Quality & Compliance
- CRI >90 for exceptional color fidelity
- Mercury-free, UV-free, RoHS-compliant LED technology
- FCC Part 15 compliant
- California CEC lawful for sales
- IESNA LM-79 and LM-80 independently tested
- 5-year warranty
Specifications
Specifications

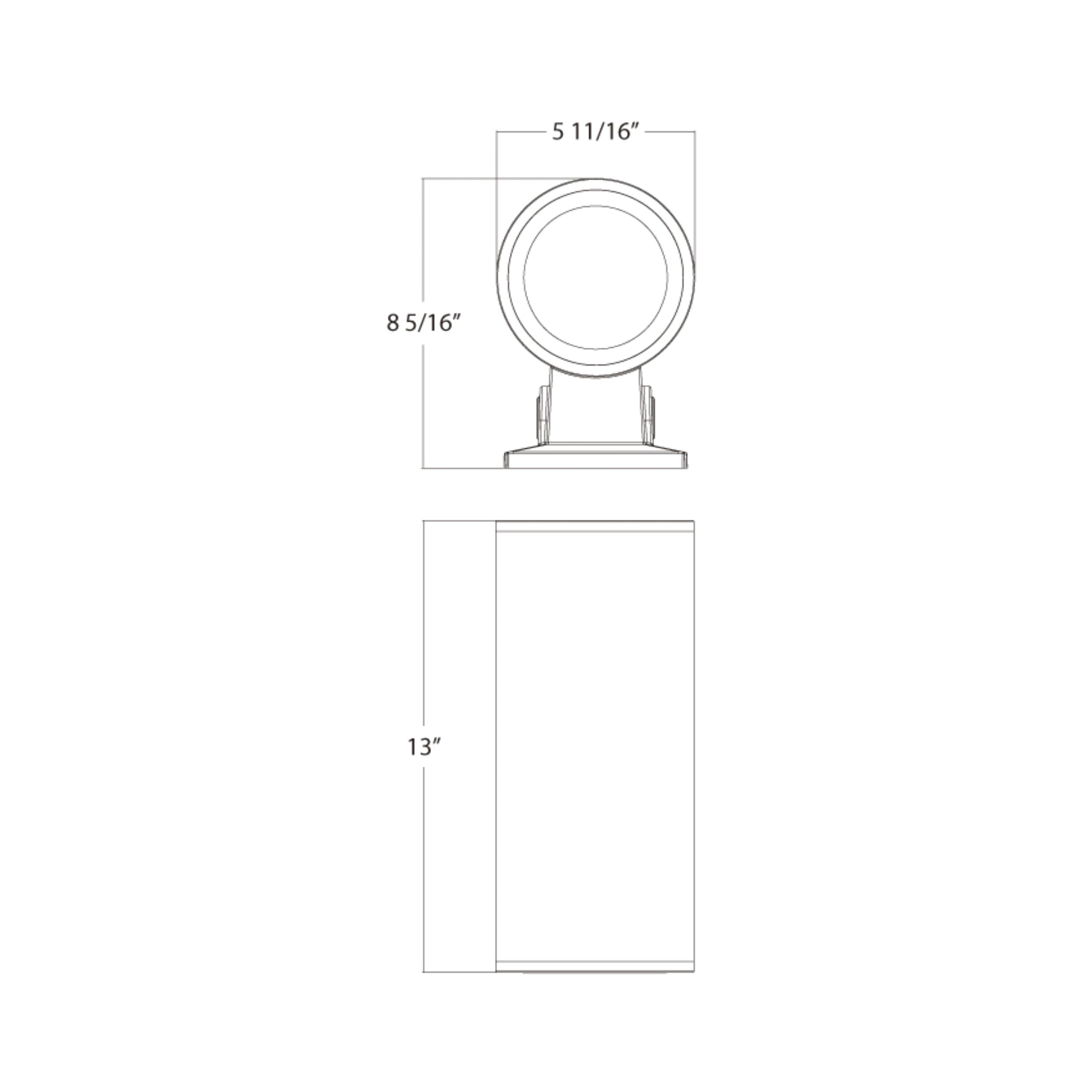

Dimensions
Style & Materials
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.
Frequently Asked Questions
What is the best height to install outdoor wall lights?
What is the best height to install outdoor wall lights?
The standard recommendation is to place the outdoor wall sconce so the center of the fixture is about 66 inches (5.5 feet) above the ground. For front doors, ensure the fixture is above eye level to prevent glare.
Should I choose a damp or wet location rating for my exterior wall light fixtures?
Should I choose a damp or wet location rating for my exterior wall light fixtures?
For covered areas like a porch or awning, a damp rating is usually sufficient. For fully exposed areas like an open garage wall or fence post, you must choose a wet location rated exterior wall light fixture for safety and durability.
How far apart should outdoor wall sconces be placed?
How far apart should outdoor wall sconces be placed?
When flanking a doorway, each outdoor wall sconce should be placed approximately one-quarter of the door's height away from the door frame. The wider the door, the further apart they should be.
What size outdoor wall light should I buy for my entryway?
What size outdoor wall light should I buy for my entryway?
The outdoor wall light should generally be between one-quarter and one-third the height of your front door. Matching the scale is key to boosting curb appeal.
What is the difference between an outdoor wall light and an outdoor wall sconce?
What is the difference between an outdoor wall light and an outdoor wall sconce?
The terms are often used interchangeably. Generally, an outdoor wall sconce refers to a decorative fixture that mounts to the wall and directs light upward or downward, while outdoor wall lights is a broader term encompassing all wall-mounted exterior wall light fixtures.
