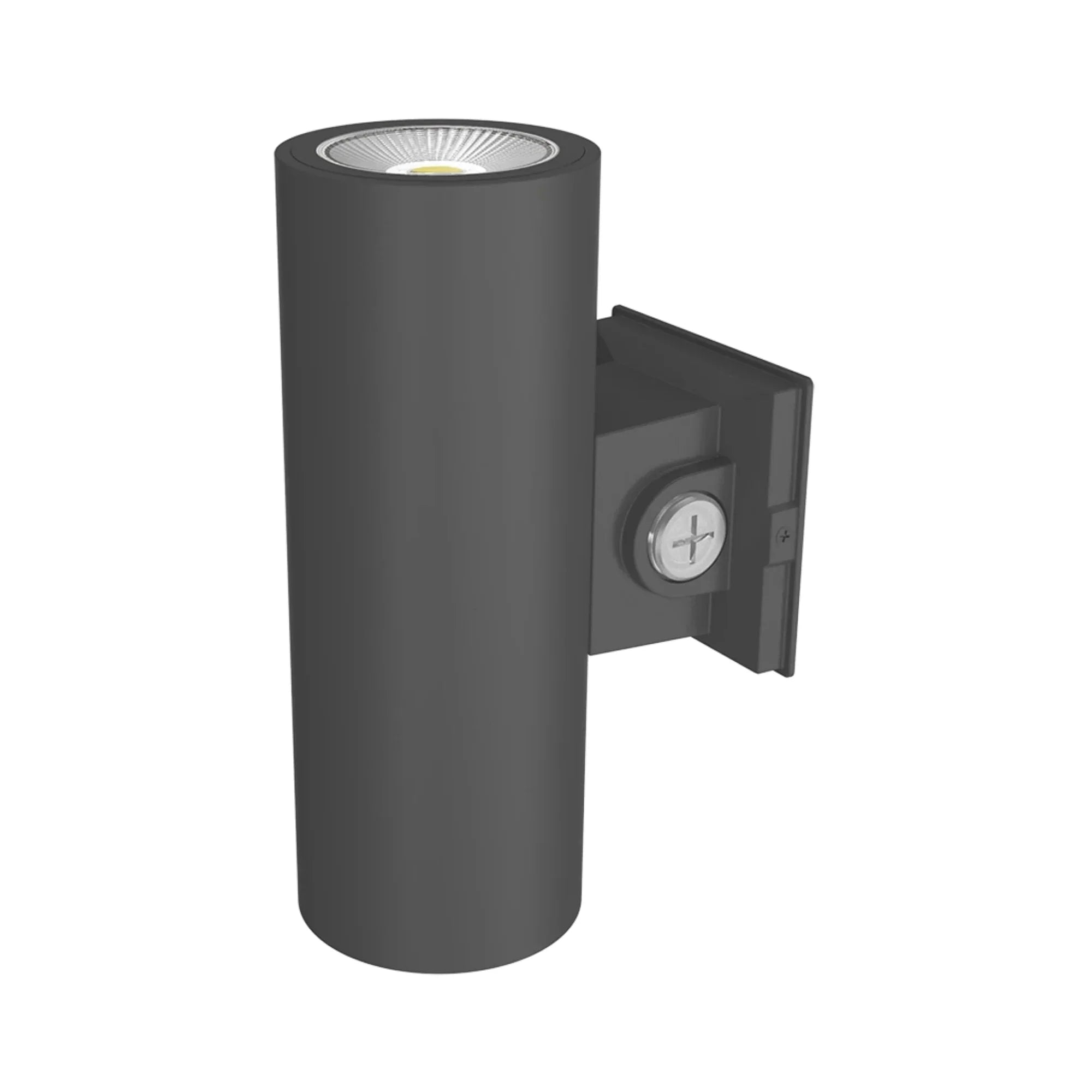

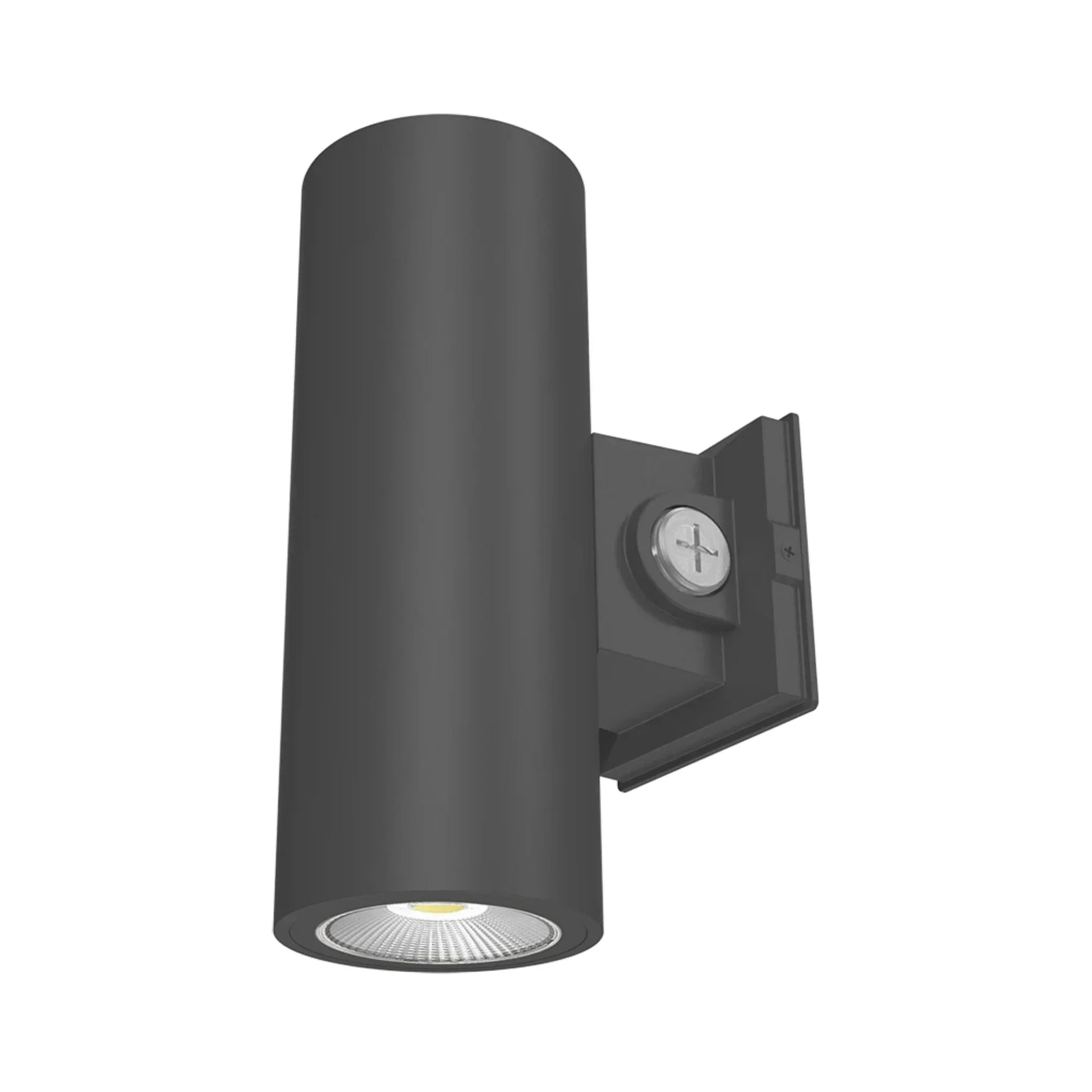

4" Bronze LED Cylinder Wall Light, 20W, 2000lm, Up/Down, Selectable CCT, 120-277V
In stock
About this item
About this item
- Bronze Aesthetic: The rich bronze anti-UV finish provides a warm metallic look that enhances architectural features and landscapes.
- 100 lm/W Efficacy: Delivers high-output illumination with exceptional energy efficiency, meeting strict California CEC compliance standards.
- Die-Cast Aluminum: Built with a rugged die-cast housing and a clear factory-installed lens, ensuring long-term performance in outdoor exposure.
- Independently Tested: Verified to IESNA LM-79 and LM-80 standards for lumen maintenance and performance, backed by a 5-year warranty.
- Mercury-Free LED: Environmentally friendly, RoHS-compliant technology that is UV-free and FCC Part 15 compliant for safe and reliable use.
We process payments securely and do not store credit card information.
Description
Description
The RAB CD34-4WZ delivers versatile up/down wall lighting in a compact 4-inch bronze cylinder. With field-selectable wattage (20W/16W/12W), field-selectable color temperatures from 3000K to 5000K, and up to 2000 lumens, this wall mount fixture provides architectural accent lighting for residential exteriors, commercial entryways, courtyard walls, and landscape applications where warm metallic finishes and space-efficient design meet performance.
Performance Features
- Field-selectable wattage: 20W/16W/12W for power flexibility
- Up to 2000/1600/1200 lumens (varies by wattage and CCT selection)
- Field-selectable CCT: 3000K/4000K/5000K (outdoor)
- 100 lm/W efficacy for efficient operation

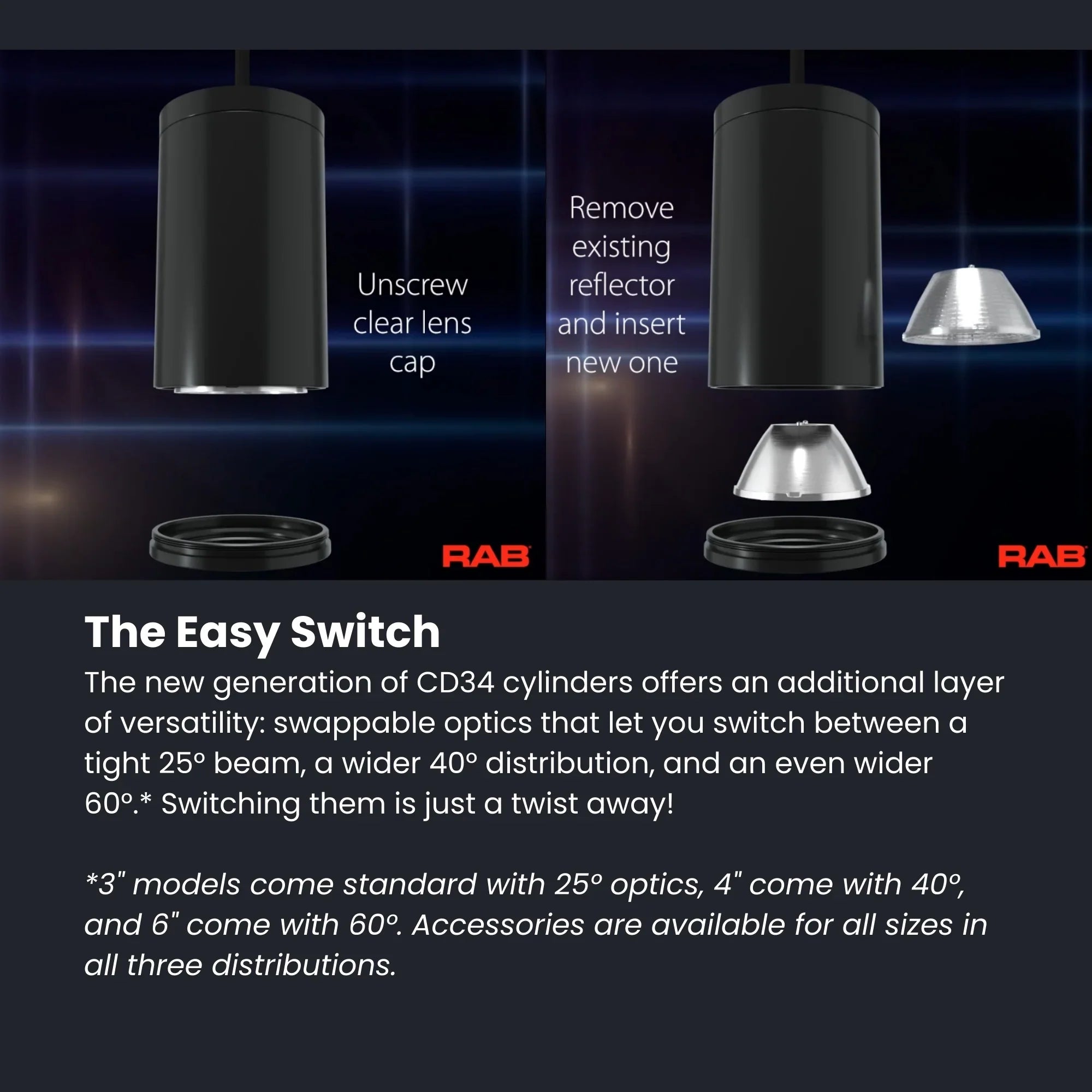

- 40° beam angle optic factory-installed with field-swappable capability
- Selectable up, down, or both light direction modes
- 0-10V dimming across 120-277V input voltage
Construction & Design
- Die-cast aluminum with bronze anti-UV protective finish
- Compact 4-inch cylinder for residential and light commercial use
- Interchangeable optics system for beam angle flexibility
- Clear lens standard; frosted lenses available
- IP65 wet location rating for outdoor exposure
- Photocell with manual on/off switch integrated into fixture
Installation & Electrical

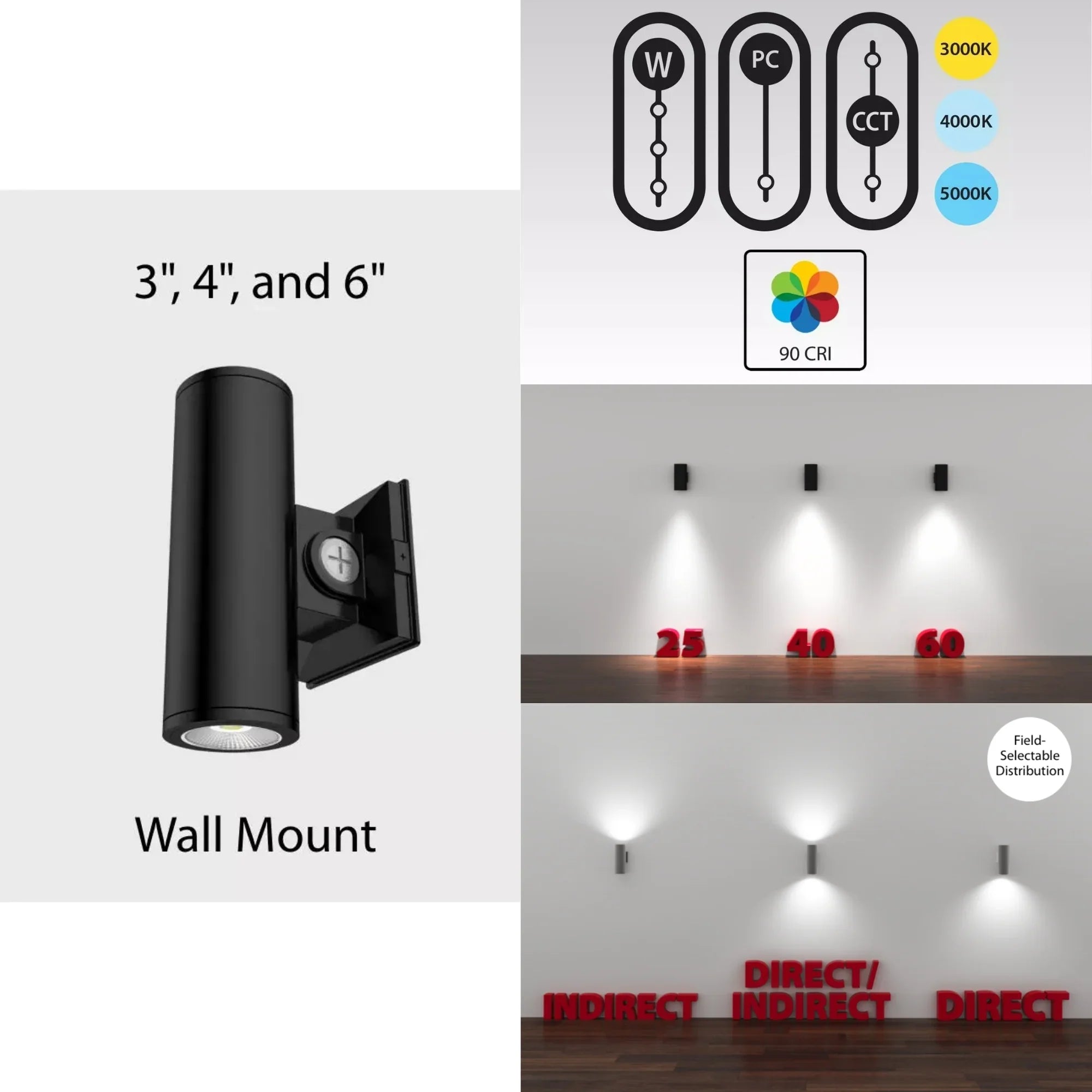

- Wall mount with selectable direct, indirect, or full lighting
- Constant current driver: 120-277V, 50-60 Hz
- Operating range: -40°F to 120°F (-40°C to 45°C)
- Selectable light direction: up, down, or both

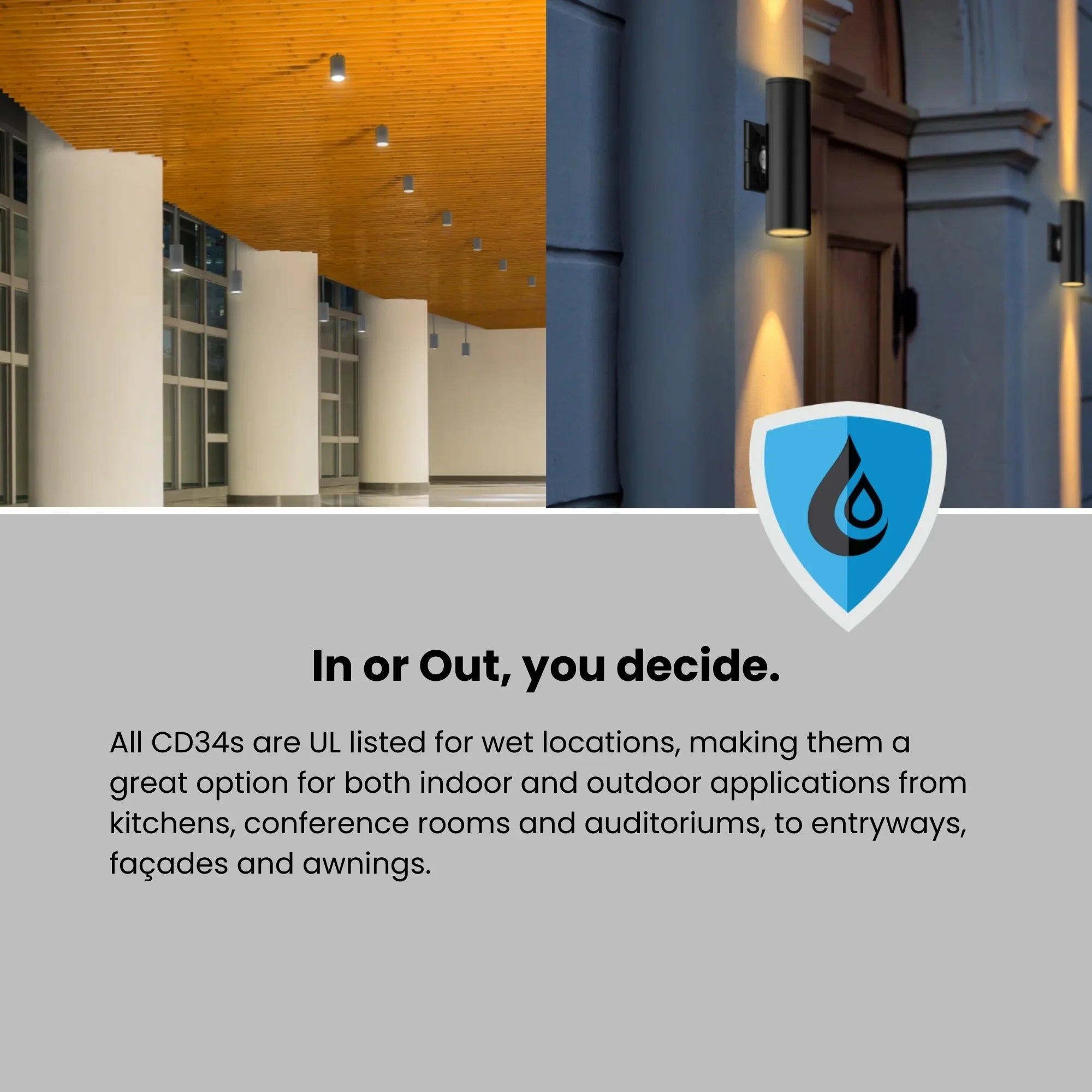

- UL Listed for dry, damp, and wet environments
LED Quality & Compliance
- CRI >90 for accurate color rendering
- RoHS-compliant, mercury-free, UV-free components
- FCC Part 15 electromagnetic compliance
- California CEC approved
- IESNA LM-79 and LM-80 independently tested
- 5-year warranty
Specifications
Specifications

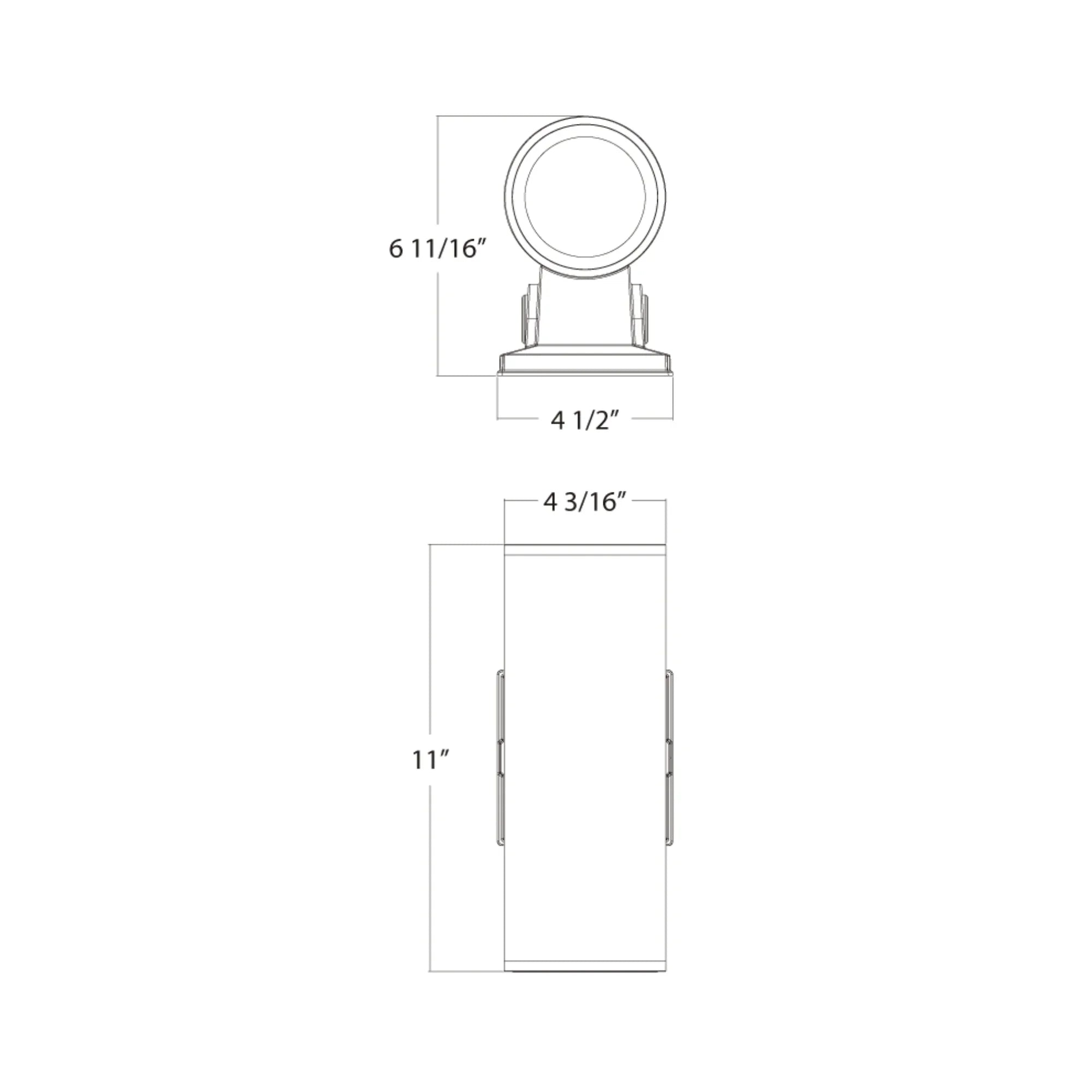

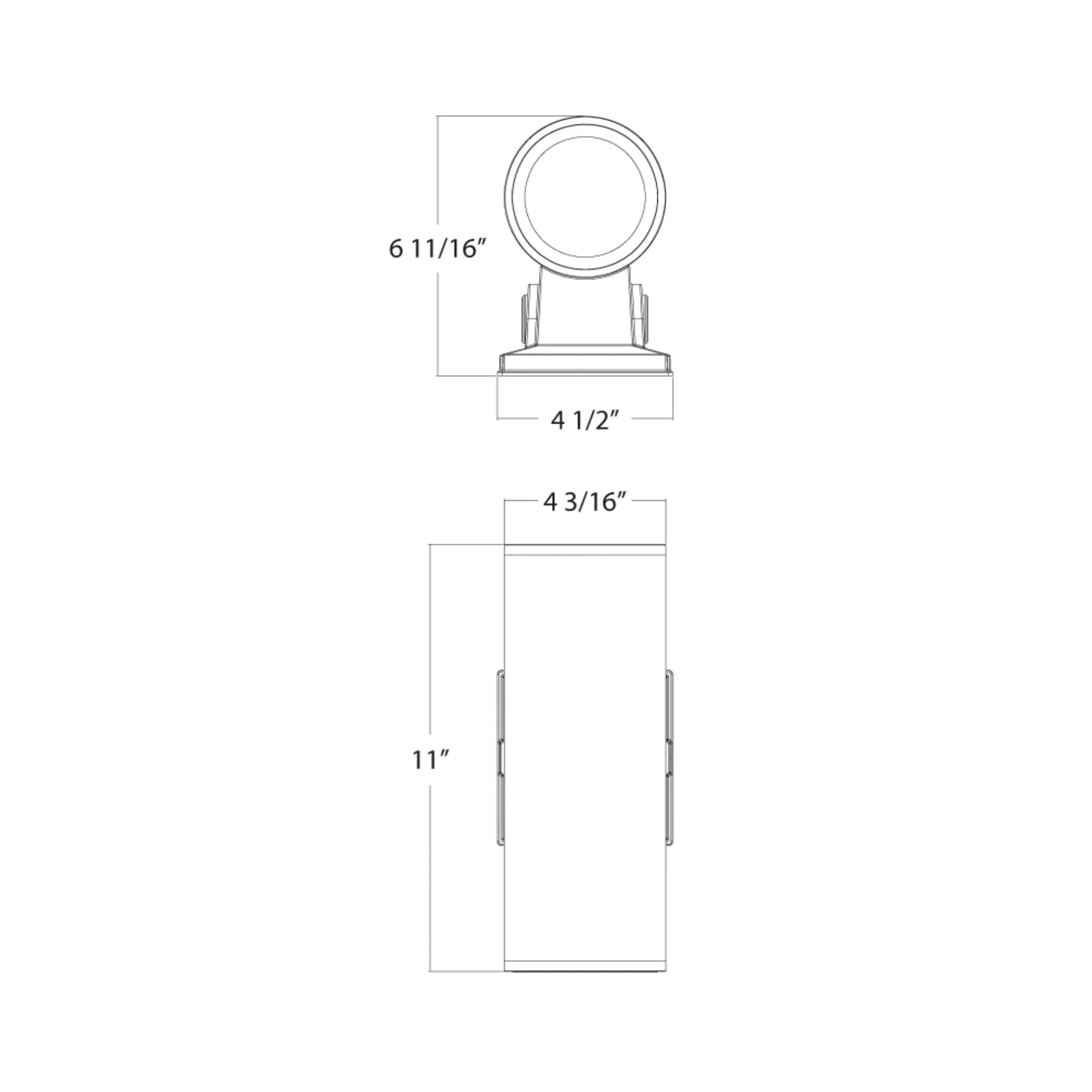

Dimensions
Style & Materials
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.
Frequently Asked Questions
What is the best height to install outdoor wall lights?
What is the best height to install outdoor wall lights?
The standard recommendation is to place the outdoor wall sconce so the center of the fixture is about 66 inches (5.5 feet) above the ground. For front doors, ensure the fixture is above eye level to prevent glare.
Should I choose a damp or wet location rating for my exterior wall light fixtures?
Should I choose a damp or wet location rating for my exterior wall light fixtures?
For covered areas like a porch or awning, a damp rating is usually sufficient. For fully exposed areas like an open garage wall or fence post, you must choose a wet location rated exterior wall light fixture for safety and durability.
How far apart should outdoor wall sconces be placed?
How far apart should outdoor wall sconces be placed?
When flanking a doorway, each outdoor wall sconce should be placed approximately one-quarter of the door's height away from the door frame. The wider the door, the further apart they should be.
What size outdoor wall light should I buy for my entryway?
What size outdoor wall light should I buy for my entryway?
The outdoor wall light should generally be between one-quarter and one-third the height of your front door. Matching the scale is key to boosting curb appeal.
What is the difference between an outdoor wall light and an outdoor wall sconce?
What is the difference between an outdoor wall light and an outdoor wall sconce?
The terms are often used interchangeably. Generally, an outdoor wall sconce refers to a decorative fixture that mounts to the wall and directs light upward or downward, while outdoor wall lights is a broader term encompassing all wall-mounted exterior wall light fixtures.
