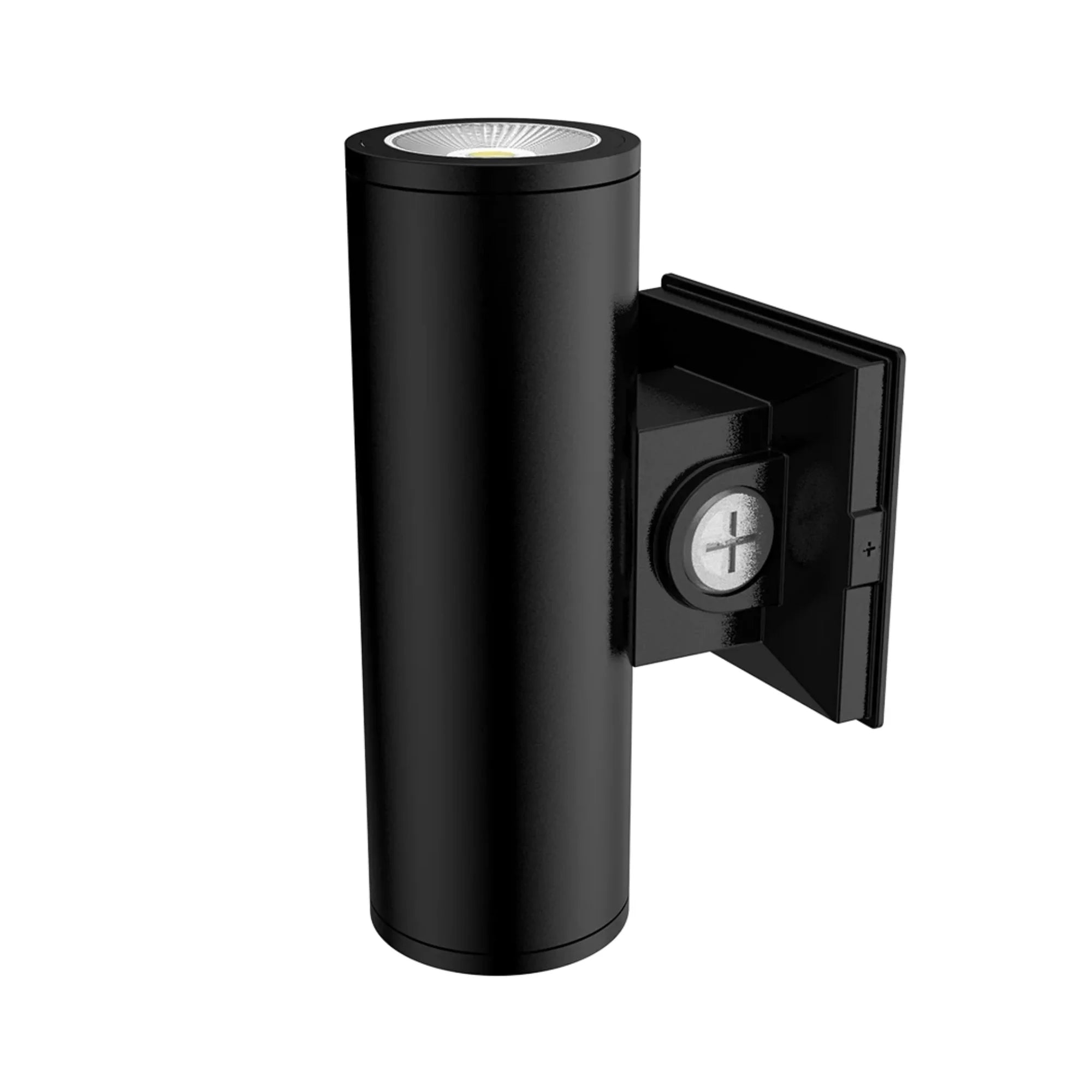

3" Black LED Cylinder Wall Light, 10W, 1000lm, Up/Down, Selectable CCT, 120-277V
In stock
About this item
About this item
- Power Flexibility: Features field-selectable wattage (6W/8W/10W), allowing you to adjust the light output up to 1000 lumens on-site.
- 3-CCT Tuning: Includes a selectable switch for 3000K, 4000K, or 5000K, providing the perfect color temperature for any outdoor environment.
- Custom Direction: Selectable light direction control allows for up-only, down-only, or bi-directional illumination for tailored wall washing.
- Integrated Photocell: Built-in dusk-to-dawn photocell with a manual on/off switch provides automated security and maximum energy efficiency.
- Ultra-Compact Design: The sleek 3-inch black cylinder offers a minimal visual footprint while delivering powerful architectural accent lighting.
We process payments securely and do not store credit card information.
Description
Description

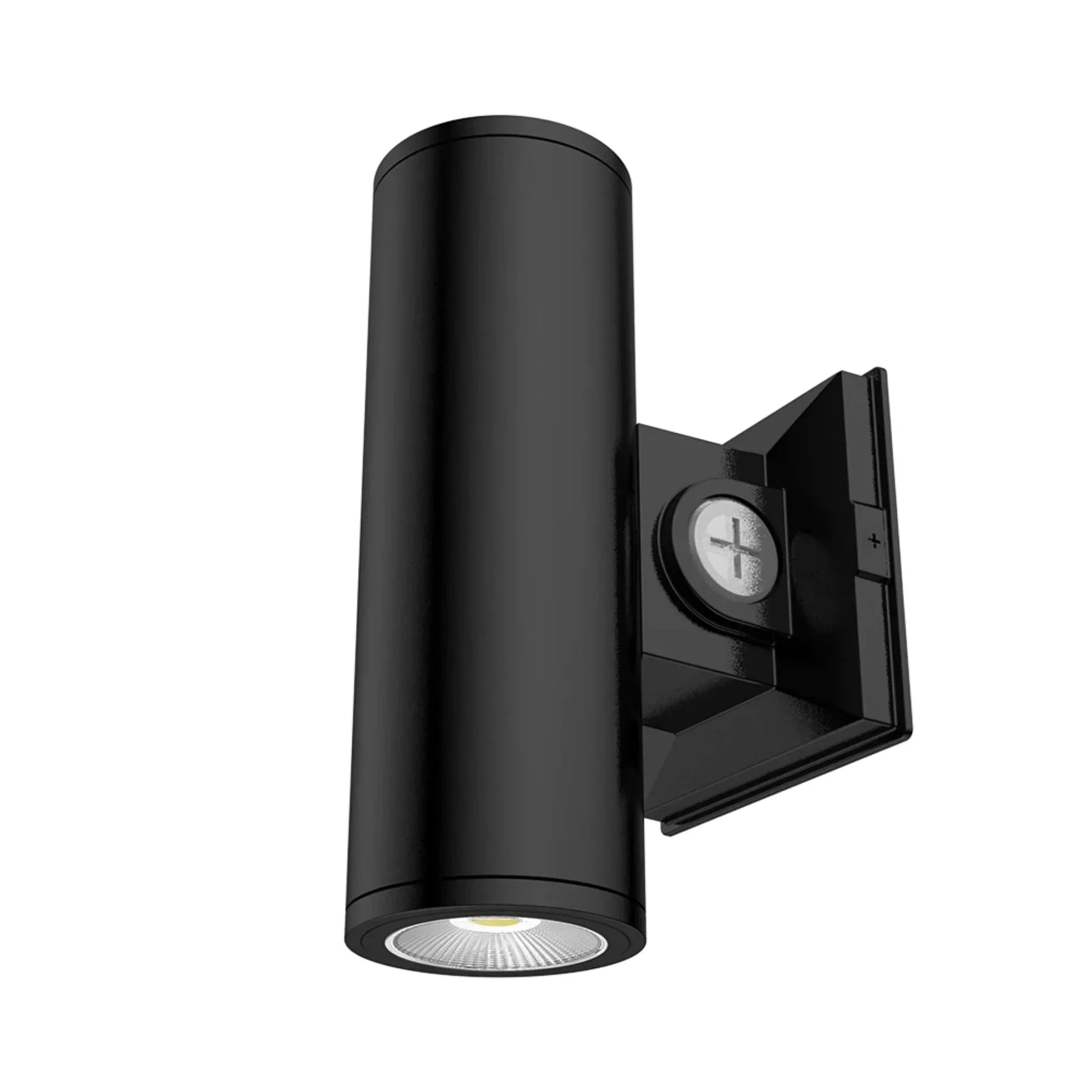

The RAB CD34-3WK provides compact up/down wall lighting in a 3-inch black cylinder. With field-selectable wattage (10W/8W/6W), field-selectable color temperatures from 3000K to 5000K, and up to 1000 lumens, this wall mount fixture delivers architectural accent lighting for residential pathways, small commercial entryways, landscape features, and applications where minimal footprint and maximum versatility are required.
Performance Features
- Field-selectable wattage: 10W/8W/6W for adjustable output
- Up to 1000/800/600 lumens (varies by wattage and CCT selection)
- Field-selectable CCT: 3000K/4000K/5000K (outdoor)
- 95 lm/W efficacy for energy-efficient performance
- 25° field-swappable optic installed for precise beam control

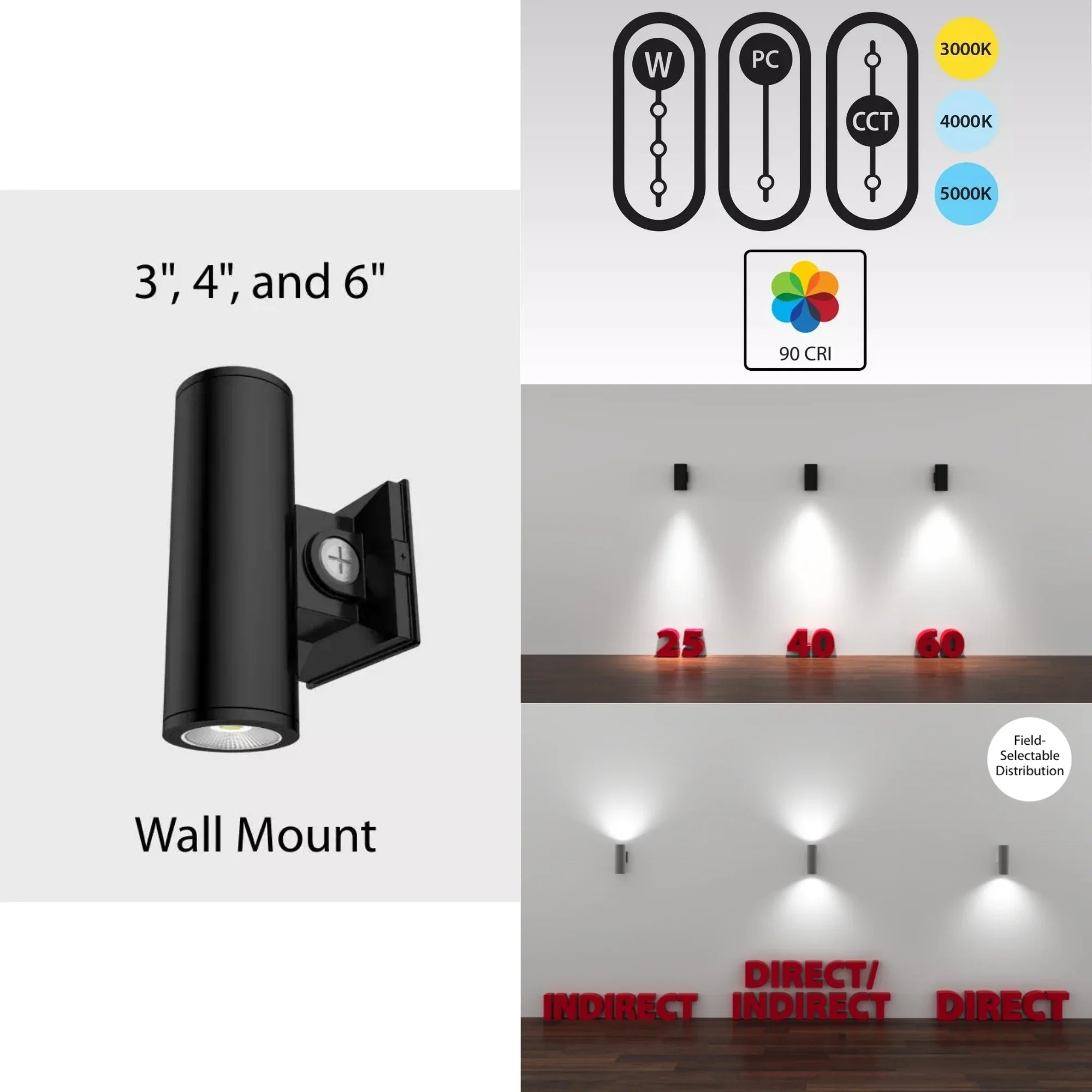

- Selectable up, down, or both light direction control
- 0-10V dimming compatible with 120-277V systems
Construction & Design
- Die-cast aluminum housing with black anti-UV finish
- Ultra-compact 3-inch cylinder for minimal visual impact

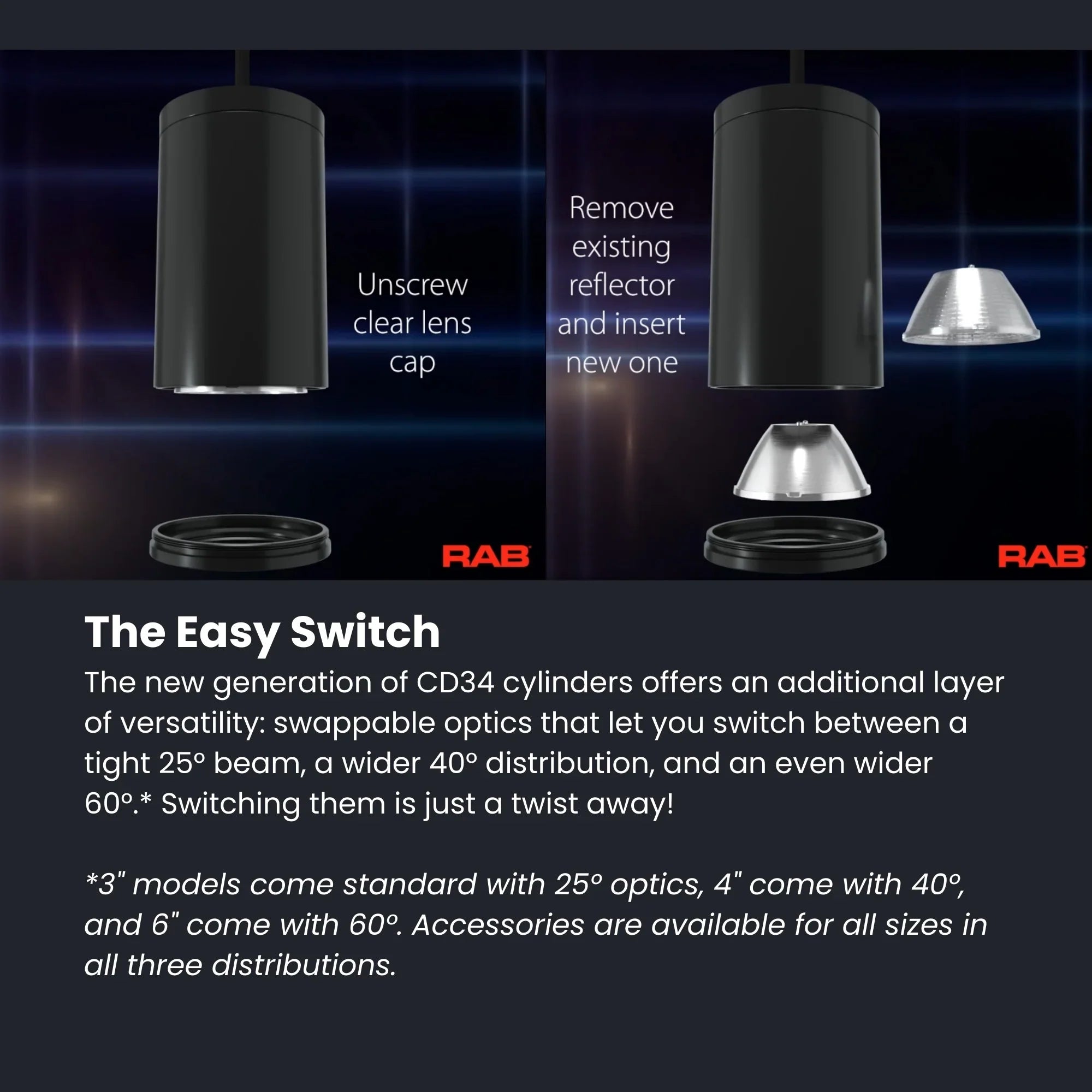

- Interchangeable optics and lenses for beam customization
- Clear lens factory-installed; frosted lenses available

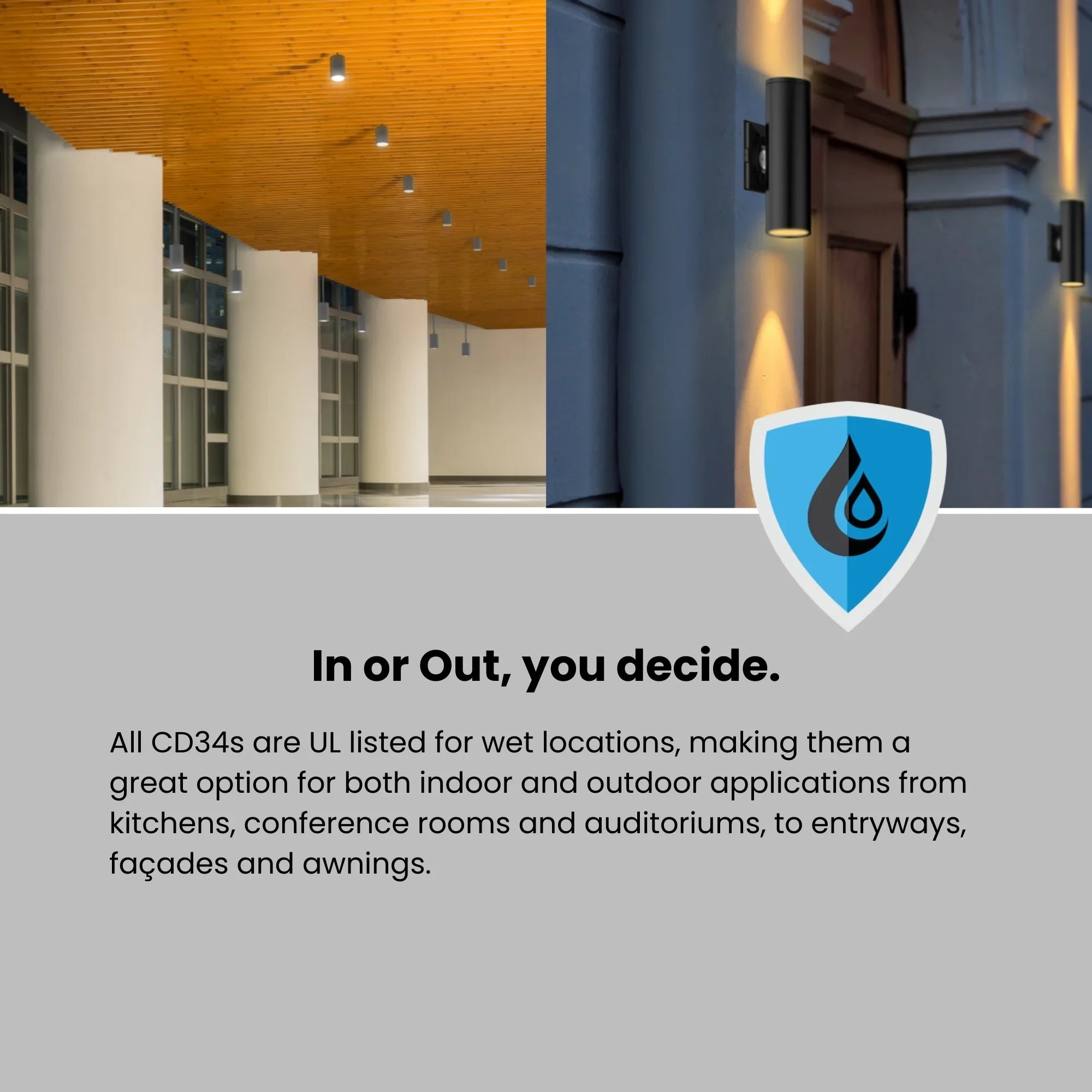

- IP65 wet location rating for outdoor durability
- Integrated photocell with manual on/off control
Installation & Electrical
- Wall mount with direct, indirect, or full light modes
- 120-277V constant current driver, 50-60 Hz
- Operating temperature: -40°F to 120°F (-40°C to 45°C)
- Selectable light direction: up, down, or both
- UL Listed for dry, damp, and wet locations
LED Quality & Compliance
- CRI >90 for exceptional color fidelity
- Mercury-free, UV-free, RoHS-compliant LED technology
- FCC Part 15 compliant
- California CEC lawful for sales
- IESNA LM-79 and LM-80 independently tested
- 5-year warranty
Specifications
Specifications

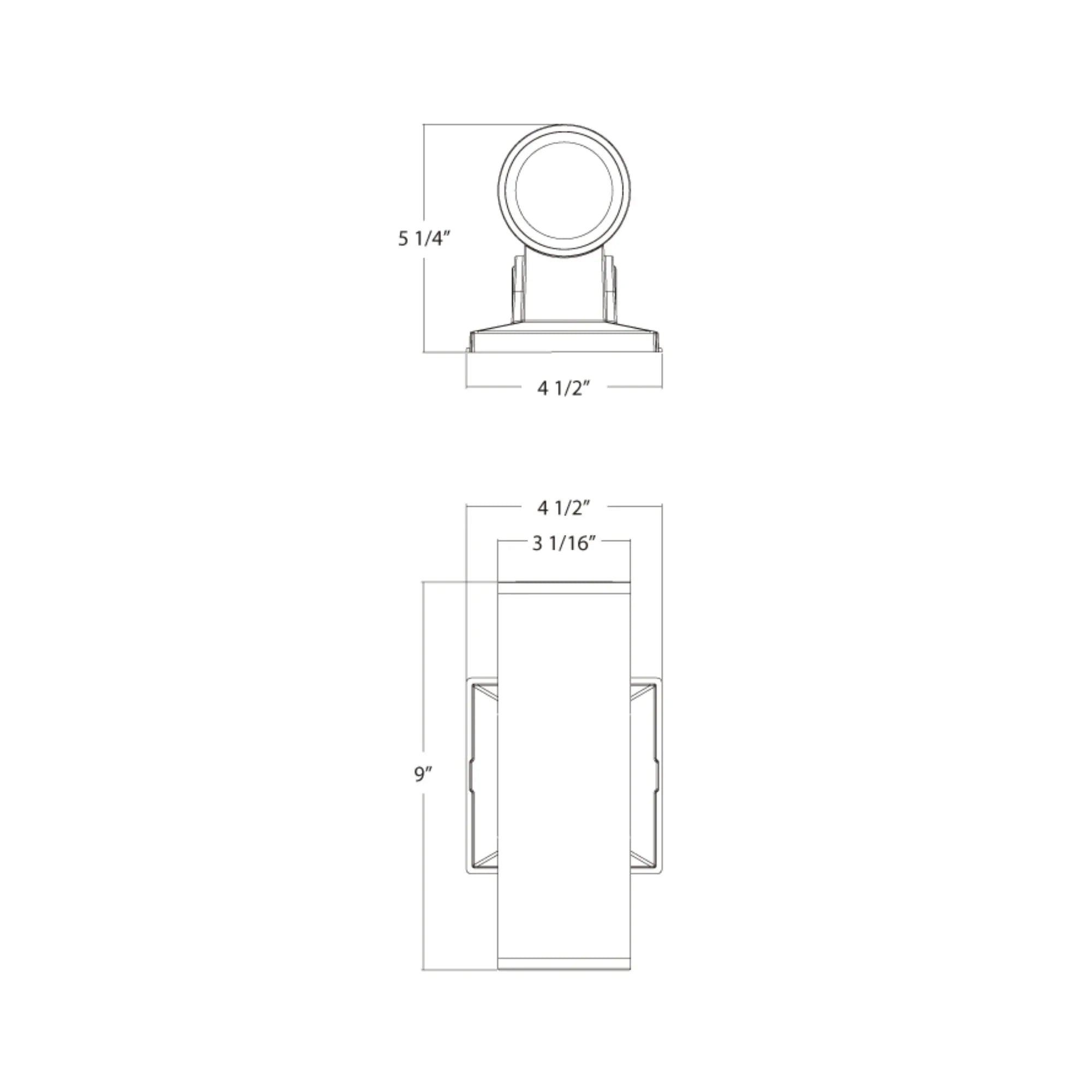

Dimensions
Style & Materials
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.
Frequently Asked Questions
What is the best height to install outdoor wall lights?
What is the best height to install outdoor wall lights?
The standard recommendation is to place the outdoor wall sconce so the center of the fixture is about 66 inches (5.5 feet) above the ground. For front doors, ensure the fixture is above eye level to prevent glare.
Should I choose a damp or wet location rating for my exterior wall light fixtures?
Should I choose a damp or wet location rating for my exterior wall light fixtures?
For covered areas like a porch or awning, a damp rating is usually sufficient. For fully exposed areas like an open garage wall or fence post, you must choose a wet location rated exterior wall light fixture for safety and durability.
How far apart should outdoor wall sconces be placed?
How far apart should outdoor wall sconces be placed?
When flanking a doorway, each outdoor wall sconce should be placed approximately one-quarter of the door's height away from the door frame. The wider the door, the further apart they should be.
What size outdoor wall light should I buy for my entryway?
What size outdoor wall light should I buy for my entryway?
The outdoor wall light should generally be between one-quarter and one-third the height of your front door. Matching the scale is key to boosting curb appeal.
What is the difference between an outdoor wall light and an outdoor wall sconce?
What is the difference between an outdoor wall light and an outdoor wall sconce?
The terms are often used interchangeably. Generally, an outdoor wall sconce refers to a decorative fixture that mounts to the wall and directs light upward or downward, while outdoor wall lights is a broader term encompassing all wall-mounted exterior wall light fixtures.
