Overview

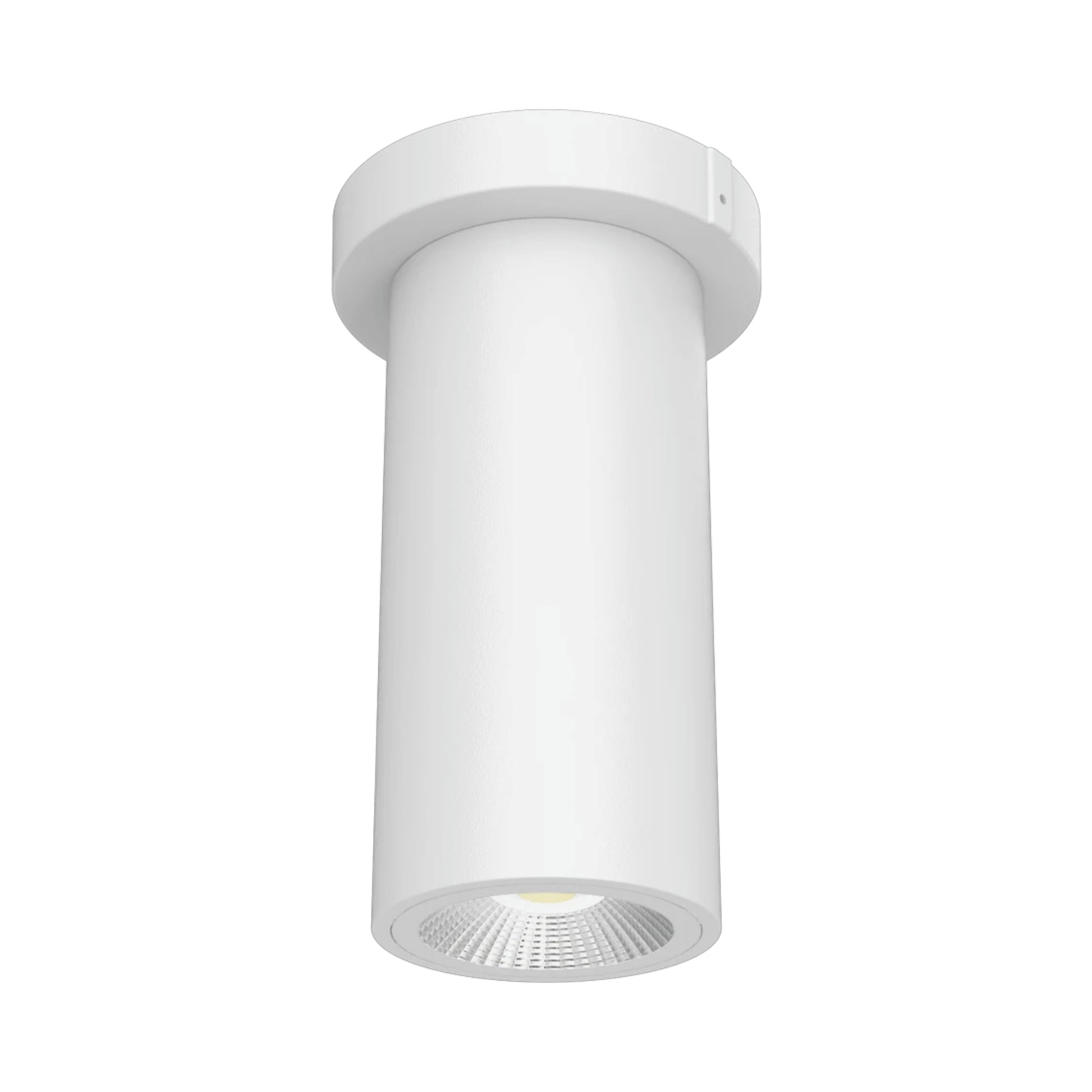

The RAB CD34-3SPW delivers compact architectural lighting in a modern 3-inch white cylinder. This surface and pendant mount LED fixture features field-selectable wattage (10W/8W/6W), field-selectable color temperature (3000K/4000K/5000K), and delivers up to 950 lumens, making it ideal for small retail displays, residential hallways, closets, compact corridors, and commercial spaces requiring discreet downlighting with a clean white finish.

Performance Features

  • Field-selectable wattage: 10W/8W/6W for flexible power consumption
  • Up to 950/760/570 lumens (varies by wattage and CCT selection)
  • Field-selectable CCT: 3000K/4000K/5000K
  • 95 lm/W efficacy for energy-efficient operation
  • 25° factory-installed beam angle with field-swappable optics
  • 0-10V dimmable across 120-277V systems
  • Energy Star approved for surface mount applications
  • Construction & Design

  • Die-cast aluminum housing with white anti-UV finish

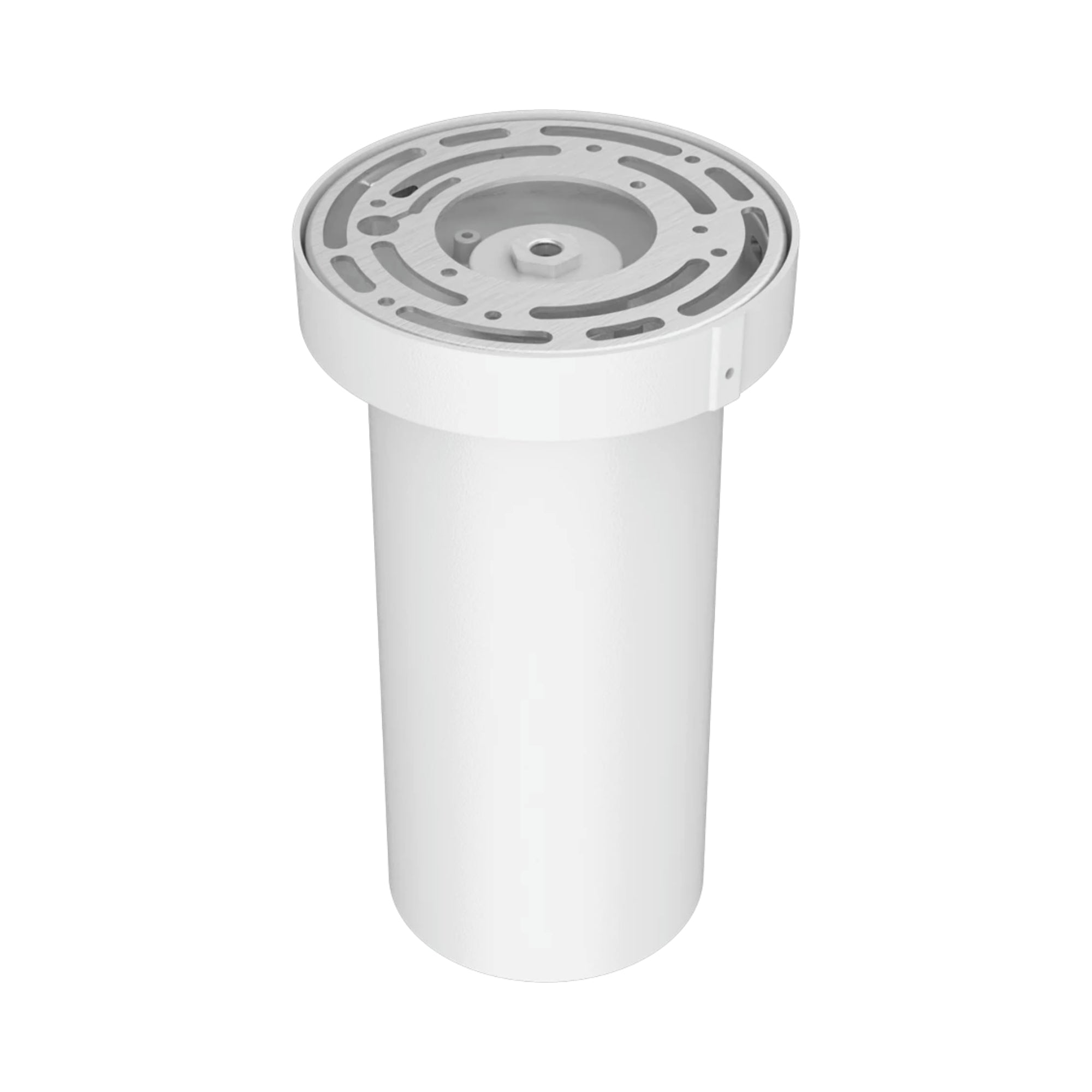

  • Ultra-compact 3-inch cylinder profile for minimal visual impact

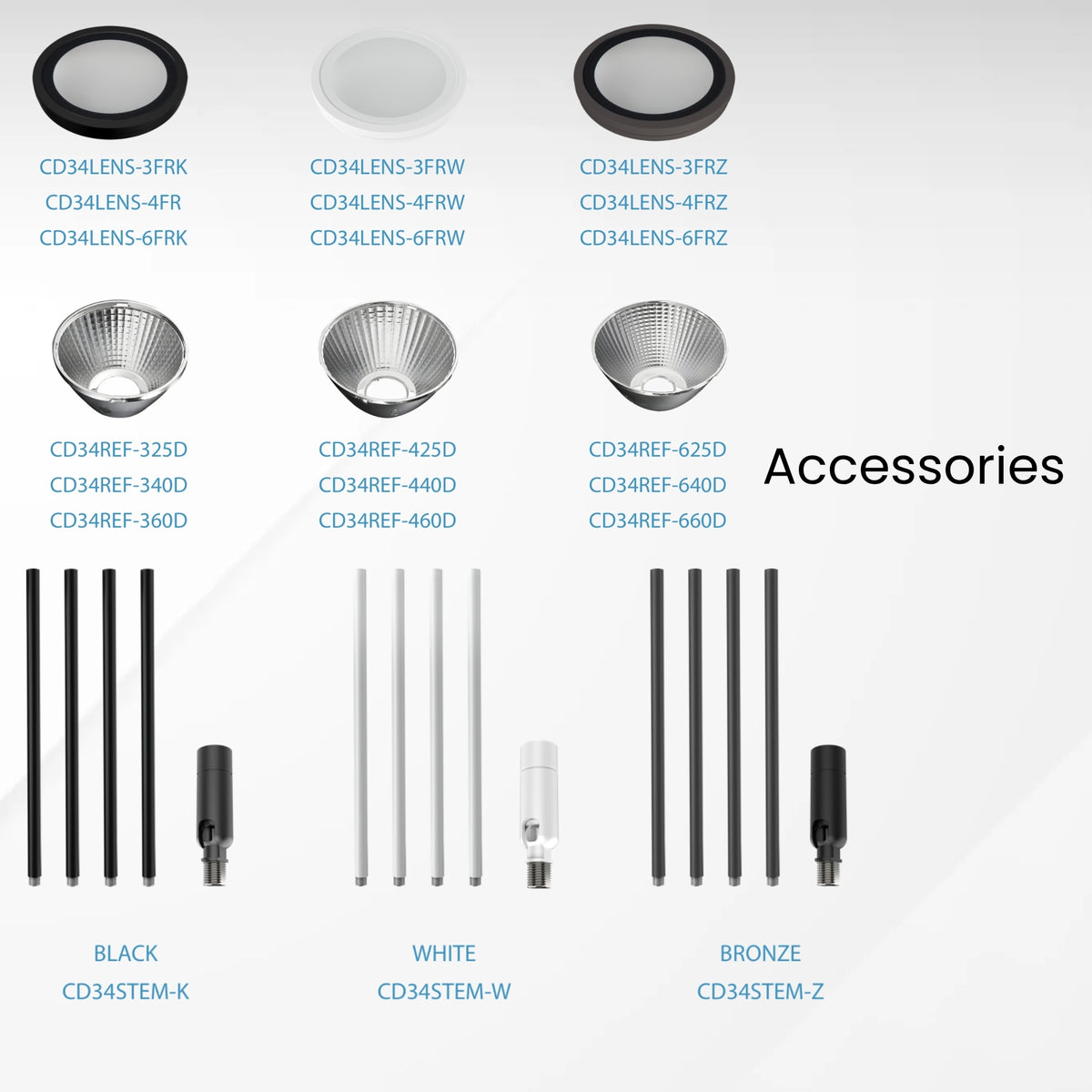

  • Interchangeable optics system (25°/40°/60° beam angles available)
  • Clear lens factory-installed; frosted lenses available

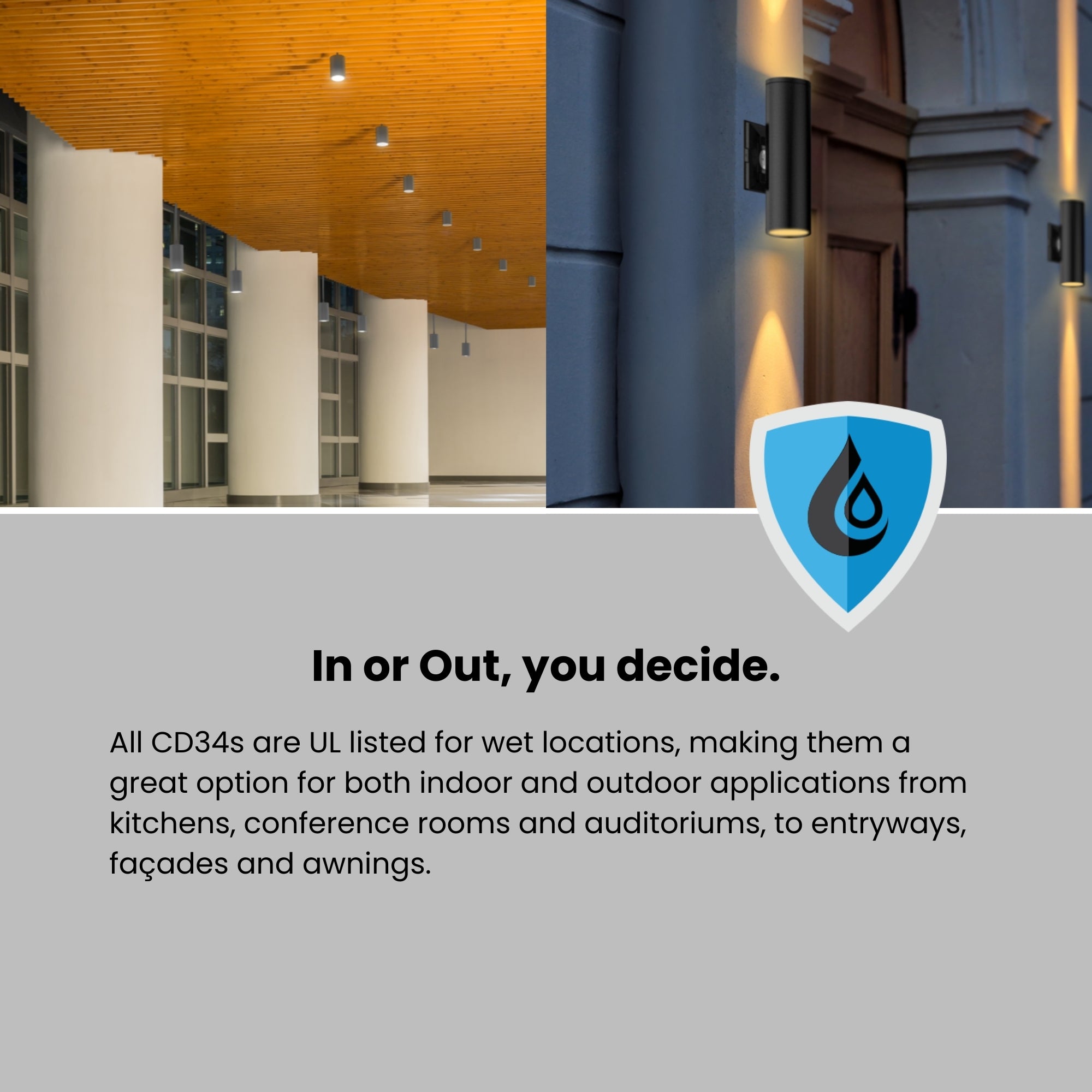

  • IP65 wet location rated for indoor and outdoor use
  • Surface or pendant mount capability
  • Installation & Electrical

  • 120-277V constant current driver, 50-60 Hz
  • Operating temperature: -40°F to 120°F (-40°C to 45°C)
  • Downlight only direction control
  • UL Listed for dry, damp, and wet environments
  • LED Quality & Compliance

  • CRI >90 for accurate color rendering
  • Mercury-free, UV-free, RoHS-compliant components
  • FCC Part 15 compliant
  • California CEC lawful for sales
  • IESNA LM-79 and LM-80 independently tested
  • 5-year warranty
  • Technical Resources

    Specifications

    Finish:
    White
    Size:

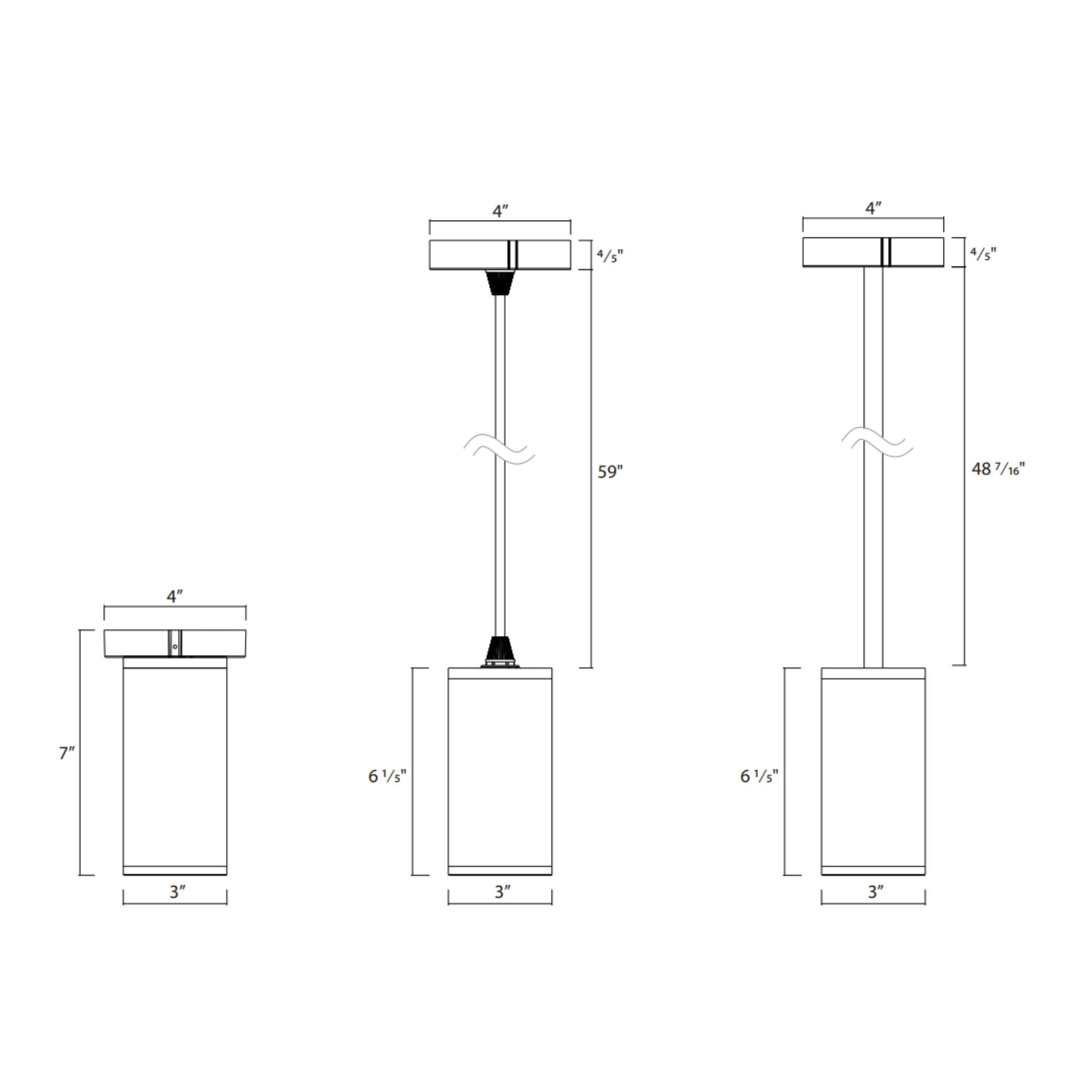

    4.0'' L X 4.0'' W X 7.0'' H
    Materials:
    Aluminum
    Lamp Source:
    LED Module
    Total Wattage:
    10
    Lamp Color:
    3000K, 4000K, 5000K, Selectable CCT
    Color Rendering:
    90
    Delivered Lumens:
    950
    Lamp Life:
    50,000 Hours
