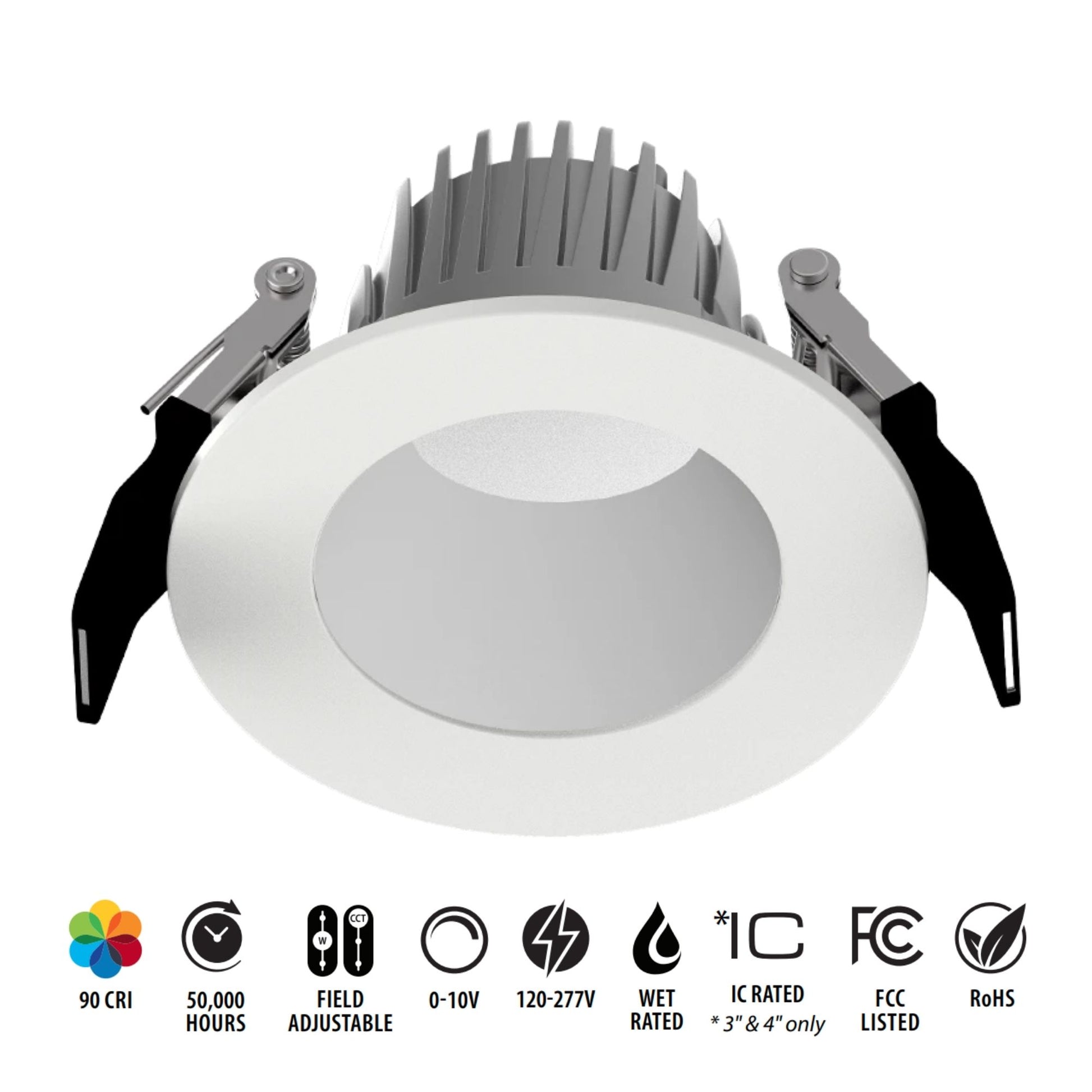

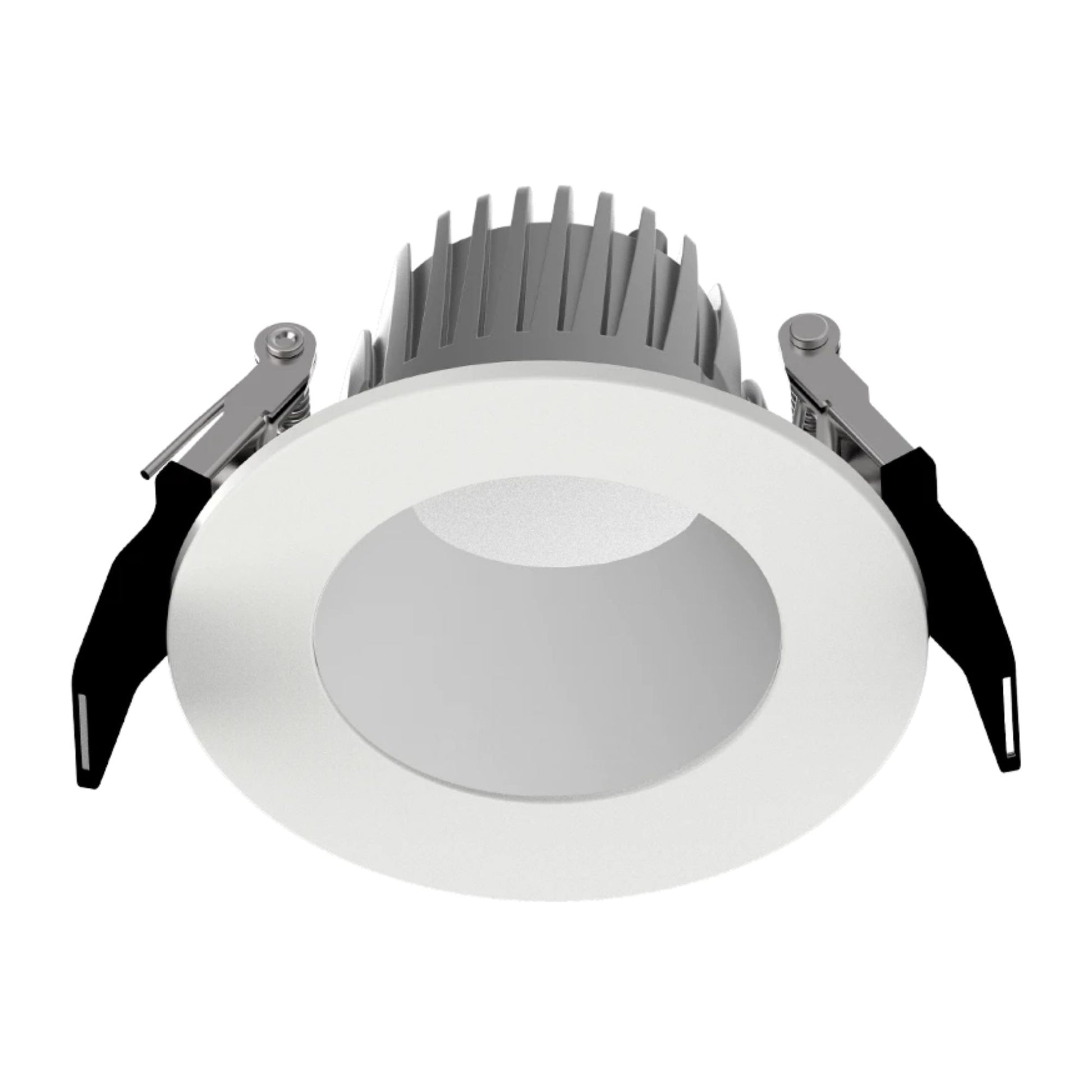

RAB C4R8/10/119FAUNVM 4 in. Smooth Trim Downlight — 11W / Selectable CCT

The RAB C4R8/10/119FAUNVM is a 4-inch commercial downlight featuring a smooth trim design. Delivering up to 716 lumens using 11W, this fixture offers selectable color temperatures of 3000K, 3500K, 4000K, and 5000K, making it versatile for various lighting needs.

Key Features

• Selectable CCT: 3000K, 3500K, 4000K, 5000K
• Wattage: 8/10/11W field adjustable
• Lumens: 515/620/716 lm
• Dimming: 0-10V dimming down to 10%
• Voltage: 120-277V AC
• Lifespan: 60,000 hours
• Compliance: UL Listed, T24 JA8 Compliant, RoHS
• Environment: Wet Rated
• Power Factor: ≥0.9
• THD: ≤20%
• Warranty: 5-year limited warranty
• Buy American Act: Compliant upon request

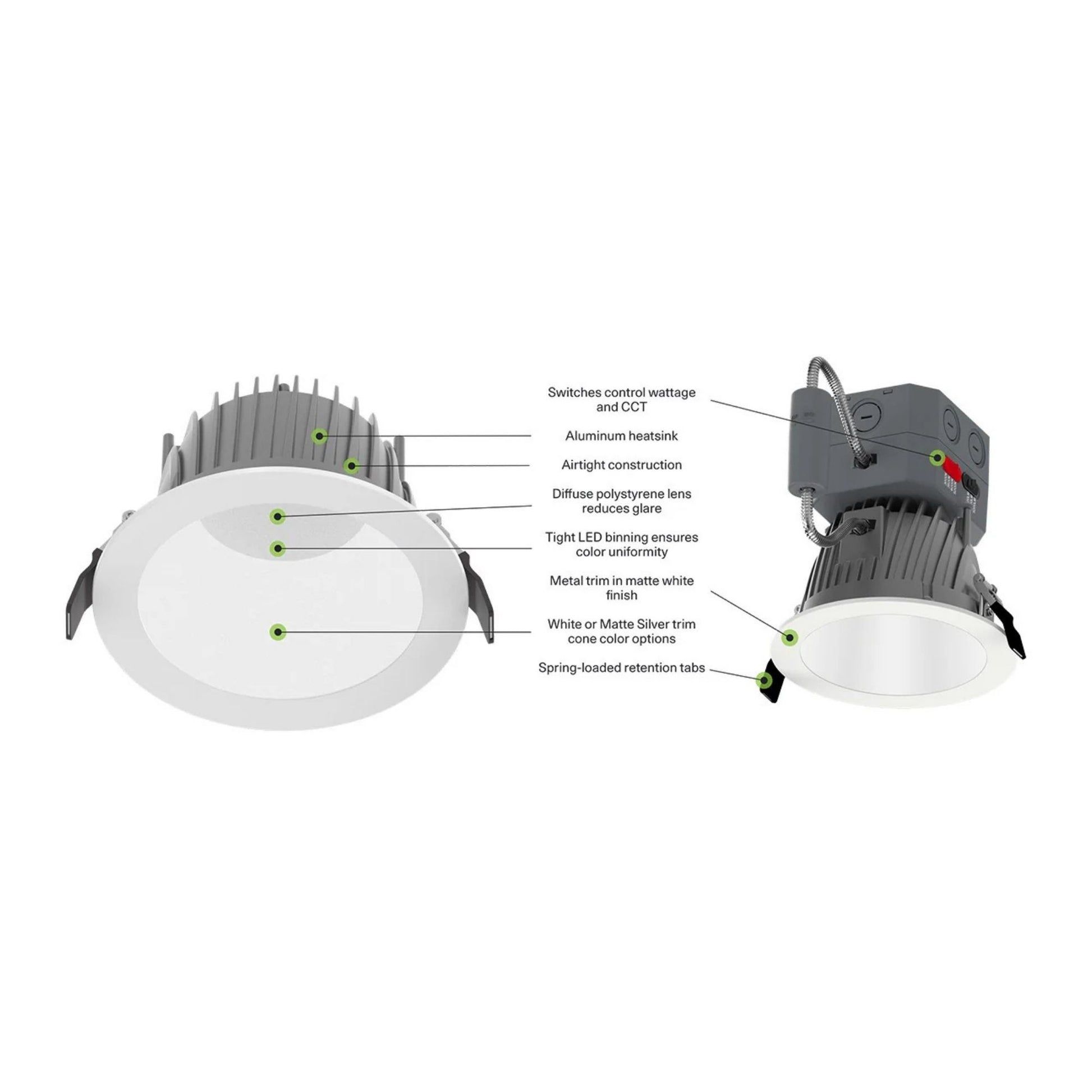

Construction & Aesthetics

This downlight features a durable metal housing with a matte silver finish and a smooth trim style. It is air-tight certified as per ASTM E283 standards, ensuring efficient performance.

Electrical & Installation

Designed for easy installation, this fixture operates on 120-277V AC and includes a dimming driver for 0-10V systems. It is suitable for direct contact with insulation, making it ideal for various applications.

Light Output & Performance

With a lumen output of 515 to 716 lumens and a CRI of 90, this downlight provides excellent color rendering and performance. It has a long LED lifespan of 60,000 hours.

Typical Applications

• Commercial spaces
• Retail environments
• Offices
• Hospitality settings
• Healthcare facilities
