RAB C-SWISH 1x4 LED Troffer — 30W Selectable, 4028 Lumens, 120-277V, Microwave Sensor

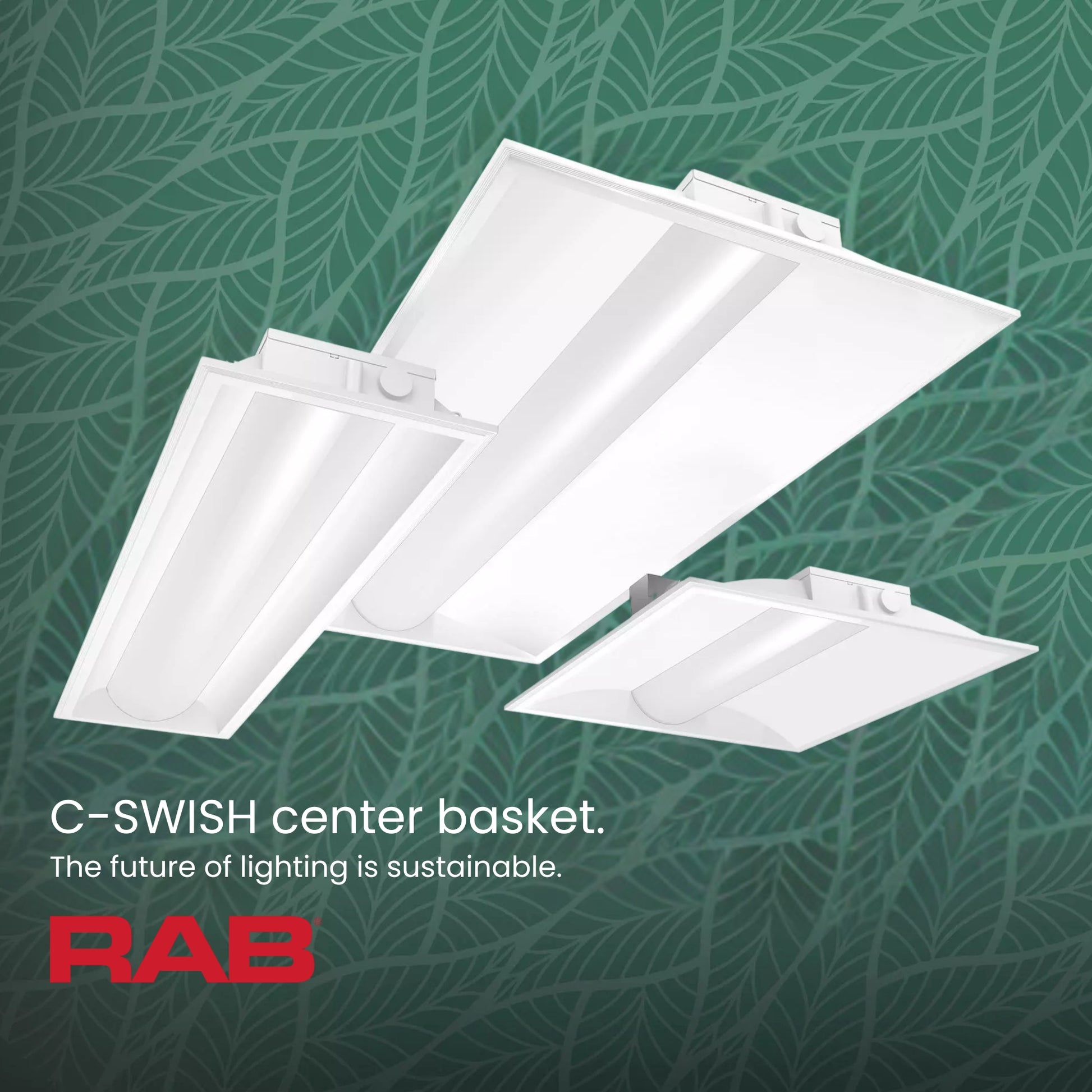

The RAB C-SWISH1X4/MVS is a contractor-grade 1x4 LED troffer designed for modern commercial drop ceilings. Operating at up to 30W to deliver 4,028 lumens across a universal 120-277V input, this fixture features field-adjustable wattage and selectable CCT capabilities alongside an integrated microwave occupancy sensor. Designed with a volumetric center-basket profile and frosted polycarbonate lens, it seamlessly integrates into standard T-grid ceilings, providing efficient, automated illumination for offices and corridors.

Key Features

• Power Consumption: 30W Max (Field-adjustable 30/25/20W)
• Lumen Output: Up to 4,028 lumens
• Input Voltage: 120-277V
• Color Temperature: Selectable CCT (3500K/4000K/5000K)
• Control: Integrated Microwave (MVS) Occupancy Sensor
• Dimming: 0-10V continuous (dims down to 10%)
• Lens: Frosted polycarbonate
• Housing: High-durability construction with white finish
• Environmental Rating: Damp location and IC rated
• Lifespan: 100,000 hours (L70)

Typical Applications

• Commercial office spaces
• Restrooms and enclosed corridors
• Educational institutions
• Healthcare facilities
• Areas with cubicles or partitions

Performance & Light Output

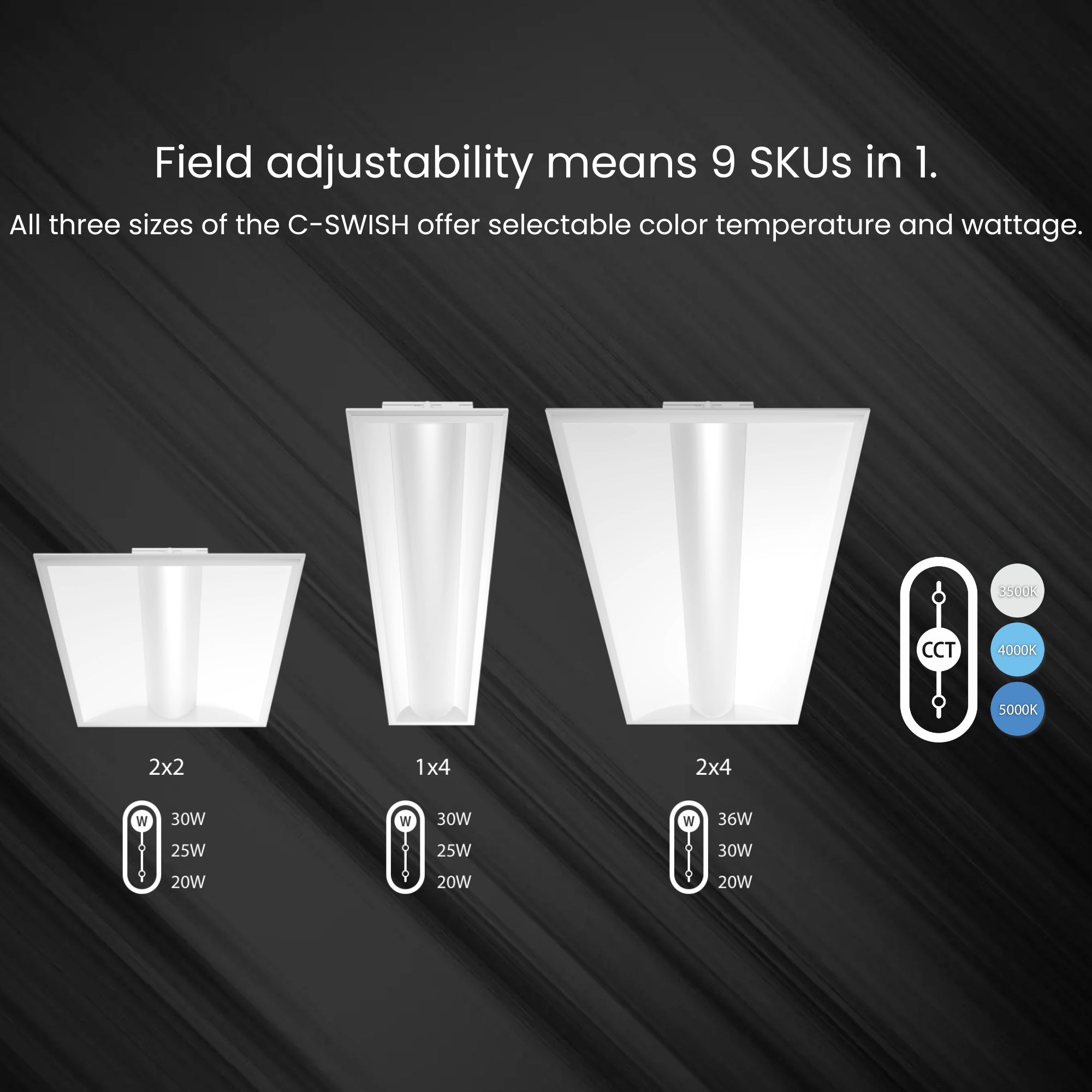

This 1x4 troffer outputs a maximum of 4,028 lumens at its highest 30W setting, achieving an excellent efficacy of up to 138 lumens per watt. It features comprehensive field-selectability with three distinct color temperatures (3500K, 4000K, and 5000K) and three wattage levels, allowing precise visual tuning for any environment. The optical design utilizes a frosted polycarbonate lens to ensure smooth, glare-free volumetric light distribution while maintaining an 80+ CRI over its extended 100,000-hour operational lifespan.

Electrical & Controls

Powered by a high-efficiency Class 2 driver operating on a universal 120-277V circuit, this luminaire ensures stable performance across standard commercial grids. This specific model features an integrated Microwave (MVS) occupancy sensor, which detects fine motion through minor physical obstructions, ensuring lights remain on when spaces are actively occupied. It also includes standard 0-10V dimming leads, capable of dimming down to 10 percent.

Construction & Durability

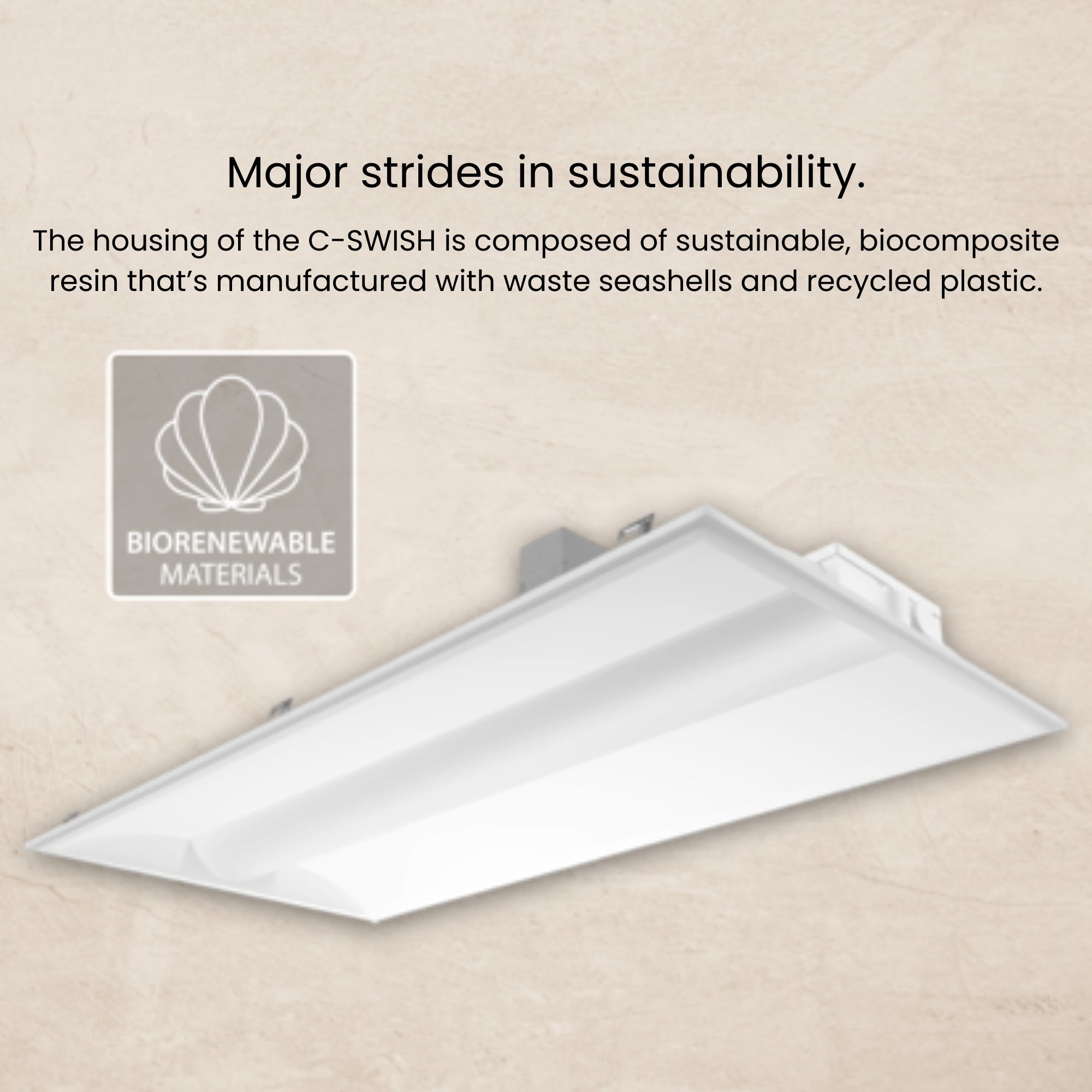

Engineered for lightweight durability and contractor-friendly installation, the fixture features a robust housing finished in a clean white coating to blend seamlessly with standard ceiling grids. The fully enclosed design minimizes dust accumulation and protects the internal LEDs. It is strictly IC rated, authorizing safe, direct contact with standard ceiling insulation, and carries a UL listing for use in environmentally controlled damp interior spaces.

Installation & Mounting

The fixture is designed for rapid, drop-in installation into standard 1x4 recessed T-bar ceiling grids. It rests securely on the grid structure, allowing for quick deployment in both retrofit and new construction projects. It features integral grid clips that bend over the T-bar to secure the unit against vibration, and support wire holes are provided for anchoring to the structural ceiling per commercial safety codes.

What's Included

• (1) 1x4 LED Troffer Fixture
• (1) Integrated Microwave Sensor
• Integral T-Grid Mounting Clips
