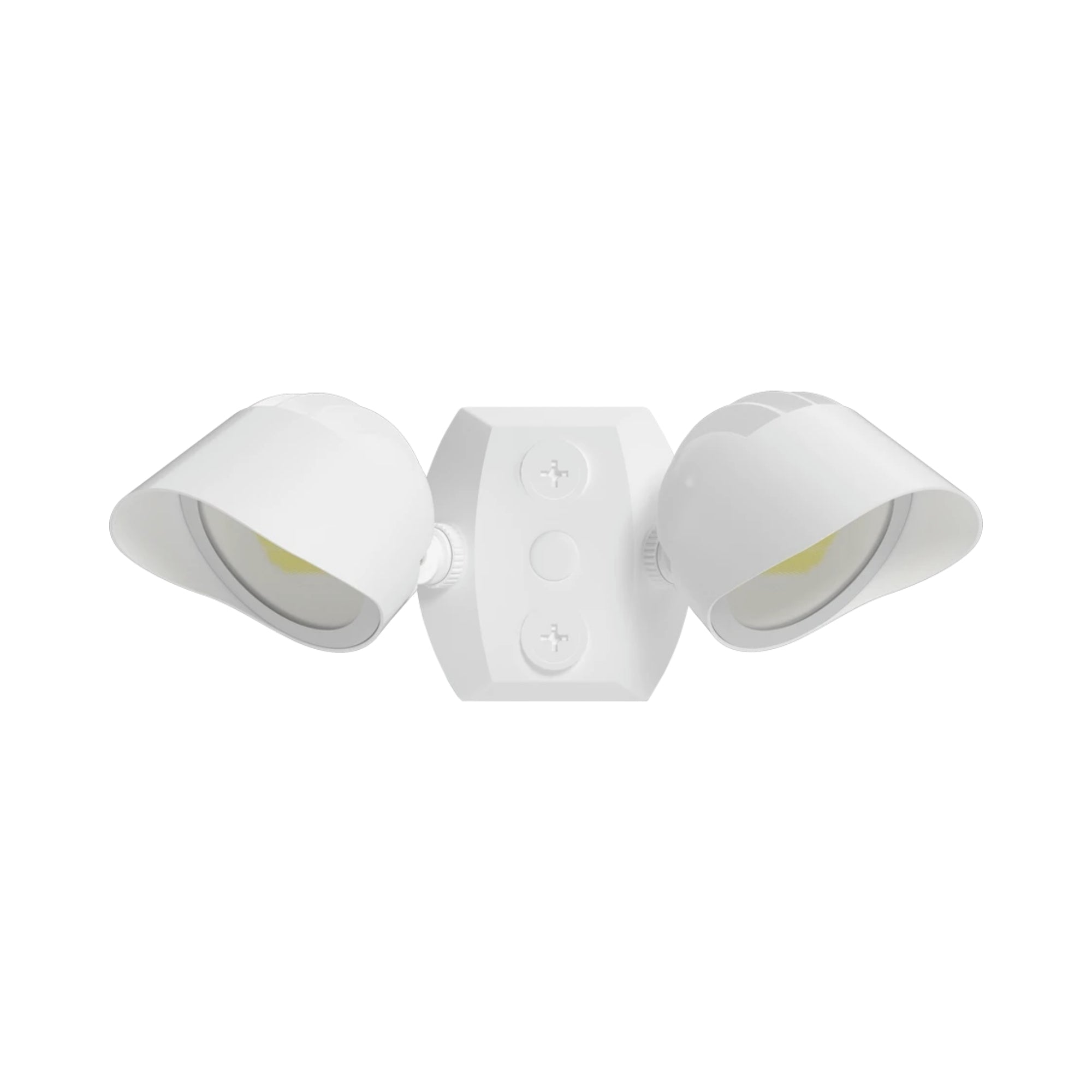

RAB Bullet Field Adjustable Flood Light — 40W Configuration

The RAB BULLET2X20W is a versatile flood light offering 40W of power, delivering up to 4,190 lumens. It features selectable color temperatures of 3000K, 4000K, and 5000K and operates on 120-277V. This flood light is IP65 rated, making it suitable for wet locations and various outdoor applications.

Key Features

• Field Adjustability: Offers adjustable light output with settings of 40W, 30W, and 20W, and selectable CCT of 3000K, 4000K, and 5000K.
• Driver: Equipped with a constant current driver, ensuring stable performance across a range of voltages.
• Dimming Capability: Compatible with TRIAC dimmers, allowing for dimming down to 10% for energy savings and ambiance control.
• Construction: Features a die-cast aluminum housing and glass lens for durability and longevity.
• Optics: NEMA 6H x 6V beam spread for wide area coverage.

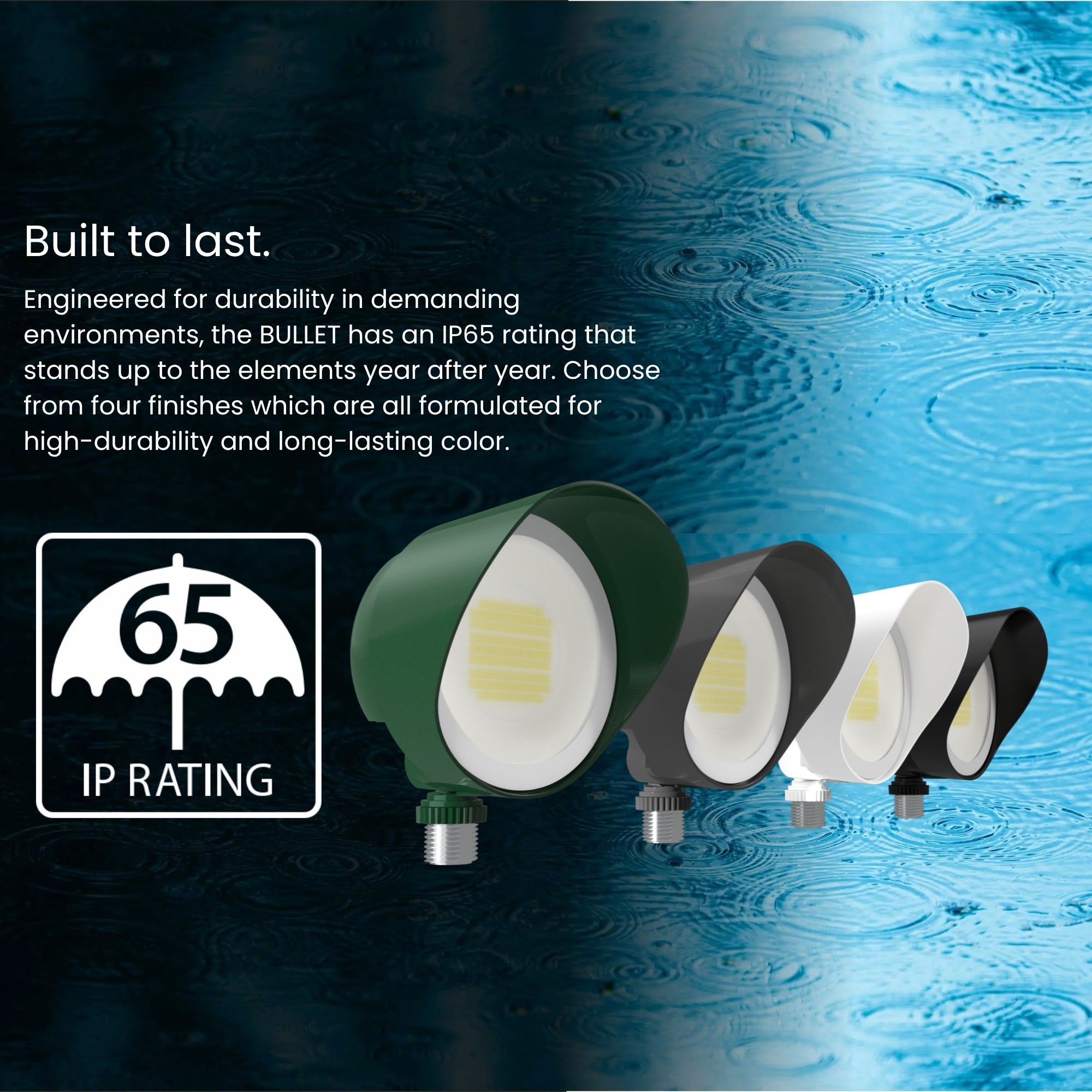

• Environmental Protection: IP65 rated, providing excellent protection against dust and water ingress.
• Temperature Range: Operates in temperatures from -40°F to 104°F, suitable for various climates.
• Compliance: UL Listed for wet locations and complies with the Trade Agreements Act.
• Surge Protection: Includes 1 kV surge protection for enhanced reliability.
• Warranty: Backed by a 5-year limited warranty covering light output, driver performance, and paint finish.

Typical Applications

• Building facades
• Parking lots
• Security lighting
• Signage illumination
• Landscape lighting

Performance & Light Output

This flood light provides a luminous efficacy of 97.5-116.3 lm/W, with a CRI of 82-84, ensuring high-quality light output. It has a long lifespan of 100,000 hours, reducing maintenance needs.

Electrical & Controls

Designed for 120-277V systems, it features a constant current driver and TRIAC dimming capability. The power factor is 98.8% at 120V, with a THD of 14.73%.

Construction & Durability

The fixture is constructed with a die-cast aluminum housing and a glass lens, ensuring durability. It is IP65 rated for protection against dust and water ingress, and operates in temperatures from -40°F to 104°F.

Installation & Mounting

Comes with a heavy-duty mounting arm, 'O' ring seal, and stainless steel screws for secure installation.

What's Included

• Flood light fixture
• Mounting arm
• Installation hardware
