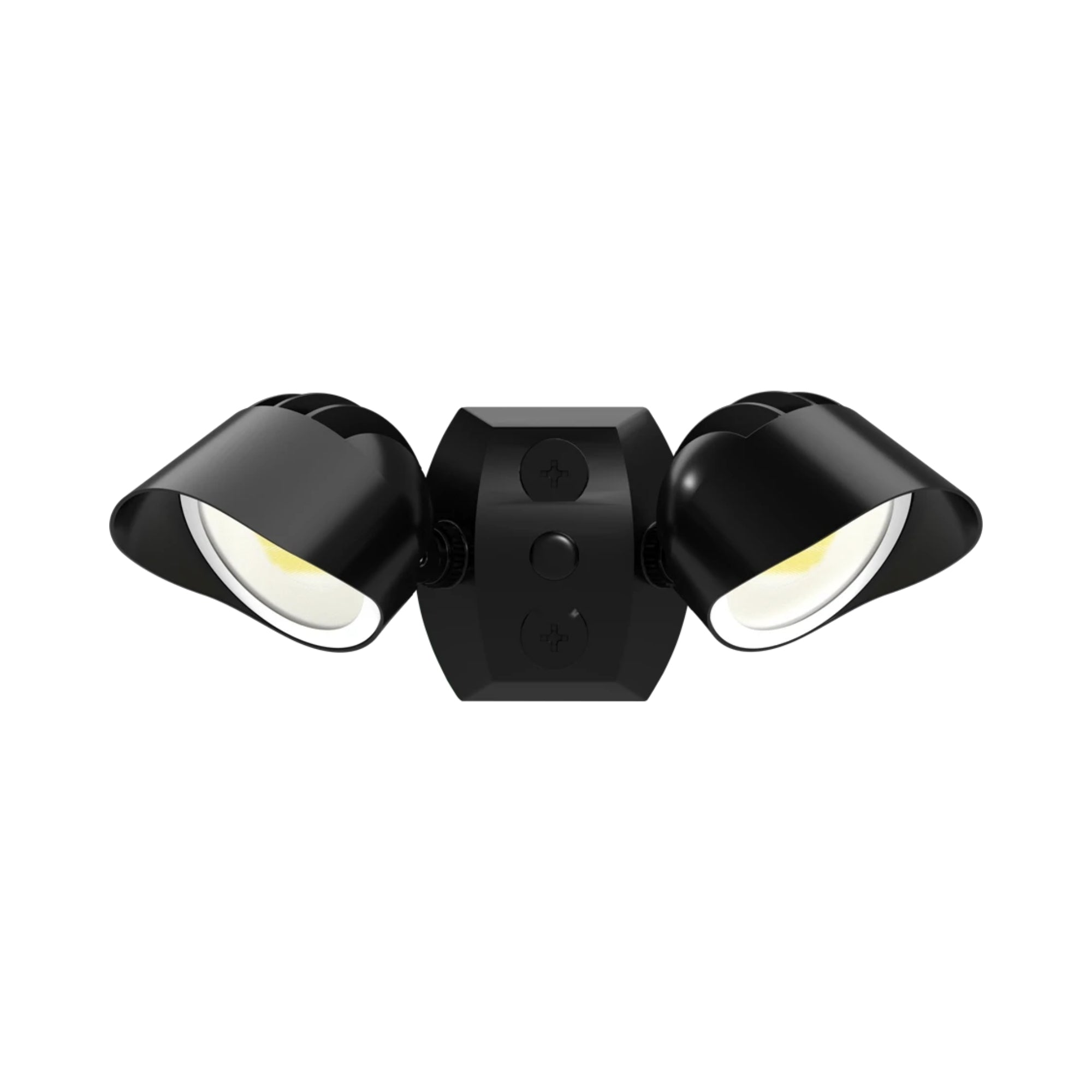

RAB Bullet Field Adjustable Flood Light — 40W Configuration

The RAB BULLET2X20B flood light features a field-adjustable wattage of 40W, 30W, and 20W, delivering up to 4,189 lumens with selectable CCT options of 3000K, 4000K, and 5000K. Designed for 120-277V input, this fixture is ideal for outdoor applications requiring versatile lighting solutions.

Key Features

• Field Adjustability: Offers adjustable light output settings of 40W, 30W, and 20W with factory default at 40W.
• Selectable CCT: Choose between 3000K, 4000K, and 5000K color temperatures, with a factory default of 4000K.
• IP65 Rating: Provides robust protection against dust and water, suitable for wet locations.
• Long Lifespan: Features a 100,000-hour LED lifespan based on IES LM-80 results and TM-21 calculations.
• High Efficacy: Achieves an efficacy range of 97.5 to 116.3 lm/W, ensuring efficient energy use.
• Durable Construction: Constructed with die-cast aluminum housing and a glass lens for durability.
• Dimming Compatibility: Compatible with TRIAC dimmers, allowing dimming down to 10%.
• Surge Protection: Equipped with 1 kV surge protection for enhanced reliability.
• UL Listed: Suitable for wet locations, ensuring compliance with safety standards.
• Trade Agreements Act Compliant: Manufactured in a designated country, compliant with the Trade Agreements Act.

Typical Applications

• Building Facades
• Landscape Lighting
• Security Lighting
• Parking Areas
• Signage Illumination

Performance & Light Output

This flood light offers a lumen output range from 2,319 to 4,189 lumens with an efficacy of 97.5 to 116.3 lm/W. It features a CRI of 82-84 and a NEMA beam spread of 6H x 6V, ensuring broad and efficient light distribution.

Electrical & Controls

Designed for 120-277V input, the fixture includes a constant current driver and supports TRIAC dimming down to 10%. It has a power factor of 98.8% at 120V and includes 1 kV surge protection.

Construction & Durability

The fixture is built with a die-cast aluminum housing and a glass lens, rated for IP65 ingress protection. It operates in temperatures from -40°F to 104°F, ensuring reliability in various environments.

Installation & Mounting

Features a heavy-duty mounting arm with an 'O' ring seal and stainless steel screws for secure installation.

What's Included

• Flood Light Fixture
• Mounting Arm
